Why MVI?

Introducing MVI

State

Action

(ViewModel/Presenter)

(Fragment/ViewController)

User

Intent

Model

View

Reducer

State

Data source

Intent

Transformer

View

Model

Reducer

State

Data source

Intent

Transformer

View

Model

Side effect

Key concepts

Unidirectional cycle of data
Non-blocking
Immutable state

MVI - benefits

Simplicity
Well defined contract
Easy unit testing

MVI - benefits

Screenshot testing
Interaction testing
Time-travel debugging

Testing apps

Use cases & repos

Backend

MVI

Testing apps

Use cases & repos

Backend

MVI

Testing apps

Use cases & repos

Backend

MVI

(c) Martin Fowler

Testing apps

Use cases & repos

Backend

MVI

Screenshot

Unit

Interaction

Contract / Integration

Testing apps

	Screenshot	E2E UI
Airbnb	~ 30 000	none
Uber	thousands	handful
Spotify	~ 1 600	~ 500
Shopify	~ 2 300	~ 20

"Building Mobile Apps at scale - 39 Engineering Challenges"

State

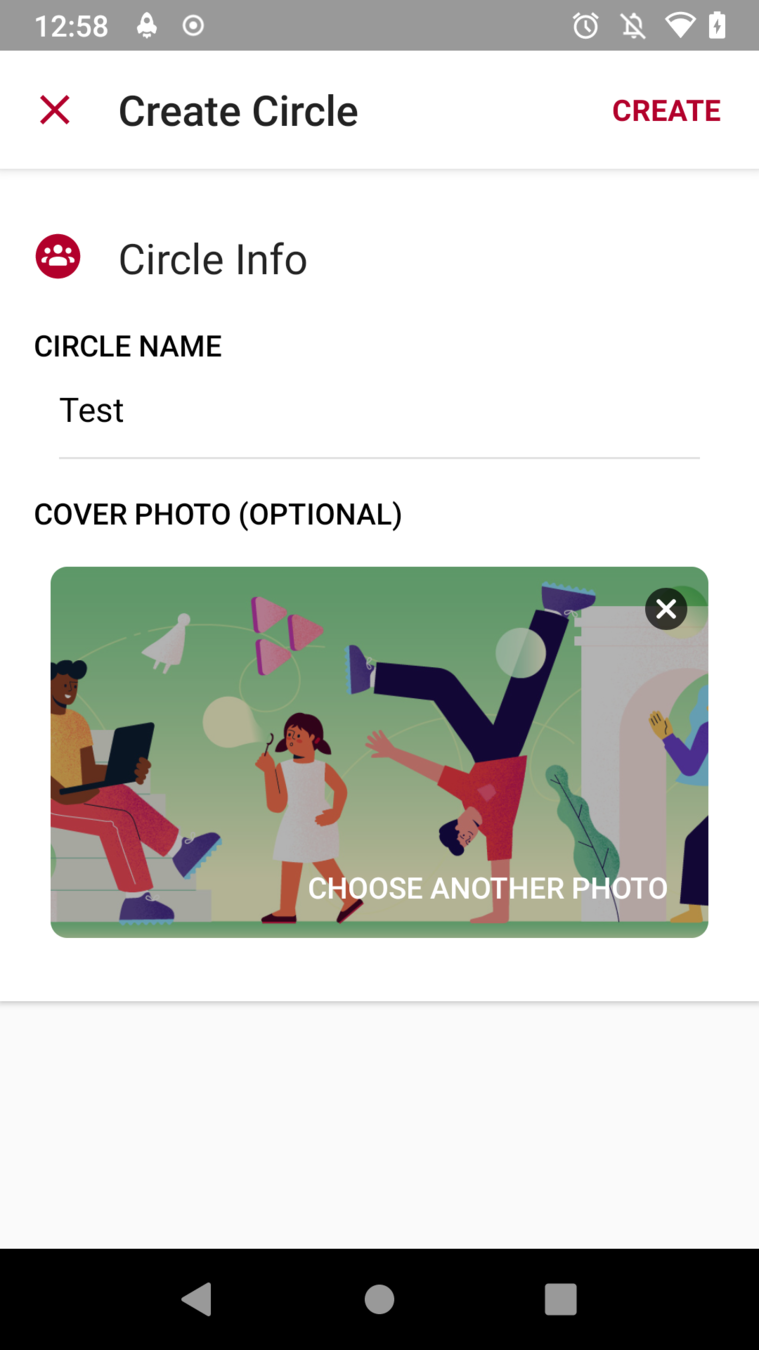

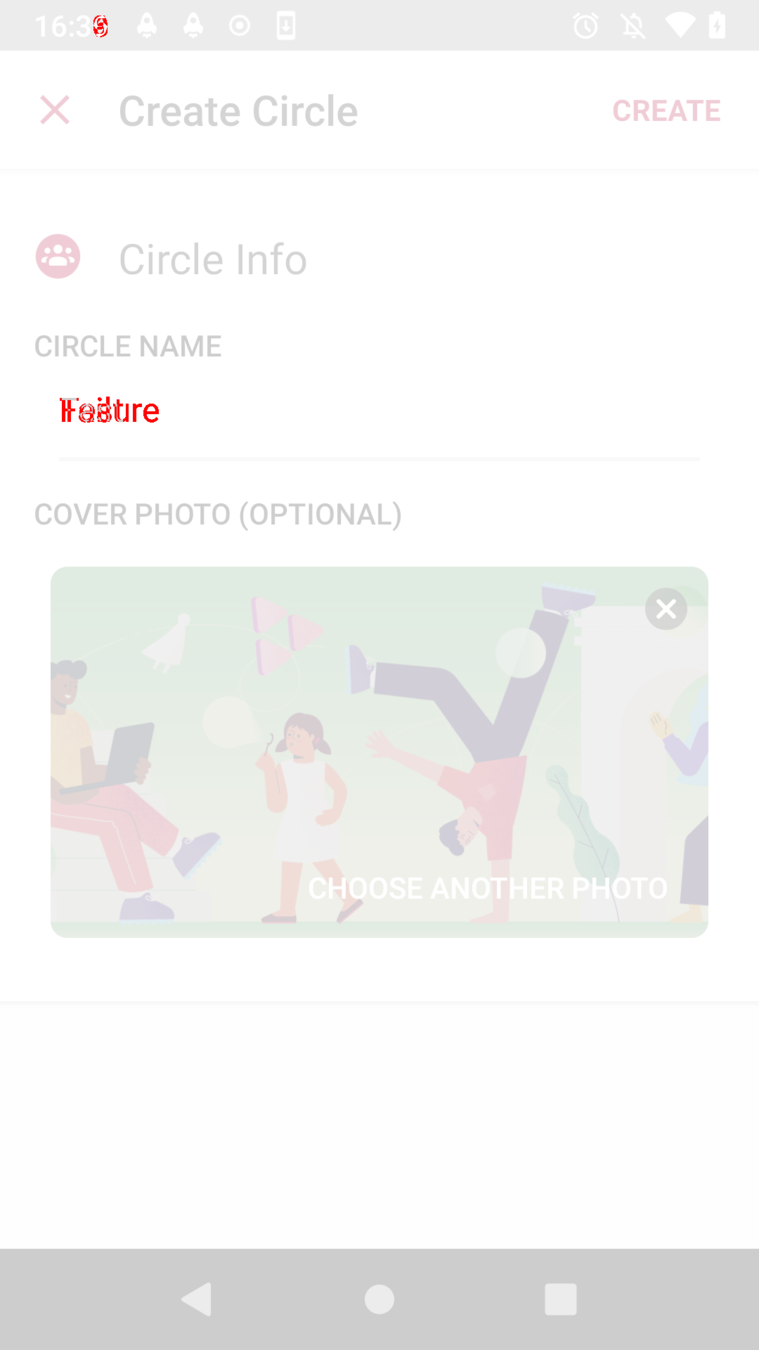

Screenshot testing

State

Screenshot testing

State

Interaction testing

"button_close": {
  "view": "ImageView",
  "click": [
    {
      "onExitRequested": {
        "params": [
            createCircleRequestDomain: "{circleName="Test",coverPhoto="file://something.jpg"}"
        ]
      }
    }
  ]
}

Interaction testing

"button_close": {
  "view": "ImageView",
  "click": [
    "onExitRequested": {
      "params": [
          createCircleRequestDomain: "{circleName="Test",coverPhoto="file://something.jpg"}"
      ]
    }
  ]
}

Time travel

Reducer

State

Data source

Intent

Transformer

View

Model

Time travel

State

Intent

Time travel

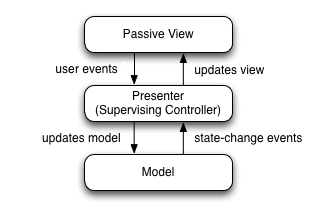

MVP to MVI

Unidirectional cycle of data
Non-blocking
Immutable state

MVI framework

Step1 - translate contract

State

Side effect

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void showCreateSpinner();
        void showEditSpinner();
        void redirectToCircleFeedScreen(final String circleId);
        void redirectToCircleInviteScreen(final String circleId);
        void showCreateCircleErrorDialog();
        void showEditCircleErrorDialog();
        void showInitEditErrorDialog();
        void enableCTA();
        void disableCTA();
        void exitWithCreateConfirmationDialog();
        void exitWithEditConfirmationDialog();
        void exitWithoutConfirmationDialog();
        void exitToAggregatedFeed();
        void showDeleteConfirmationDialog();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void showCreateSpinner();
        void showEditSpinner();
        void redirectToCircleFeedScreen(final String circleId);
        void redirectToCircleInviteScreen(final String circleId);
        void showCreateCircleErrorDialog();
        void showEditCircleErrorDialog();
        void showInitEditErrorDialog();
        void enableCTA();
        void disableCTA();
        void exitWithCreateConfirmationDialog();
        void exitWithEditConfirmationDialog();
        void exitWithoutConfirmationDialog();
        void exitToAggregatedFeed();
        void showDeleteConfirmationDialog();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

@AutoValue
public abstract class CreateOrEditState {

    public abstract Mode mode();

    public enum Mode {
        CREATE,
        EDIT;
    }
}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void showCreateSpinner();
        void showEditSpinner();
        void redirectToCircleFeedScreen(final String circleId);
        void redirectToCircleInviteScreen(final String circleId);
        void showCreateCircleErrorDialog();
        void showEditCircleErrorDialog();
        void showInitEditErrorDialog();
        void enableCTA();
        void disableCTA();
        void exitWithCreateConfirmationDialog();
        void exitWithEditConfirmationDialog();
        void exitWithoutConfirmationDialog();
        void exitToAggregatedFeed();
        void showDeleteConfirmationDialog();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

@AutoValue
public abstract class CreateOrEditState {

    public abstract Mode mode();

    public abstract boolean committingChanges();

    public enum Mode {
        CREATE,
        EDIT;
    }
}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void redirectToCircleFeedScreen(final String circleId);
        void redirectToCircleInviteScreen(final String circleId);
        void showCreateCircleErrorDialog();
        void showEditCircleErrorDialog();
        void showInitEditErrorDialog();
        void enableCTA();
        void disableCTA();
        void exitWithCreateConfirmationDialog();
        void exitWithEditConfirmationDialog();
        void exitWithoutConfirmationDialog();
        void exitToAggregatedFeed();
        void showDeleteConfirmationDialog();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

public interface CreateOrEditSideEffect {


    enum Simple implements CreateOrEditSideEffect {
        SHOW_ERROR
    }

}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void redirectToCircleFeedScreen(final String circleId);
        void redirectToCircleInviteScreen(final String circleId);
        void showInitEditErrorDialog();
        void enableCTA();
        void disableCTA();
        void exitWithCreateConfirmationDialog();
        void exitWithEditConfirmationDialog();
        void exitWithoutConfirmationDialog();
        void exitToAggregatedFeed();
        void showDeleteConfirmationDialog();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

public interface CreateOrEditSideEffect {


    enum Simple implements CreateOrEditSideEffect {
        SHOW_ERROR,
        SHOW_EXIT_CONFIRMATION
    }

}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void redirectToCircleFeedScreen(final String circleId);
        void redirectToCircleInviteScreen(final String circleId);
        void showInitEditErrorDialog();
        void enableCTA();
        void disableCTA();
        void exitWithoutConfirmationDialog();
        void exitToAggregatedFeed();
        void showDeleteConfirmationDialog();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

public interface CreateOrEditSideEffect {


    enum Simple implements CreateOrEditSideEffect {
        CLOSE,
        OPEN_AGGREGATED_FEED,
        SHOW_DELETE_CONFIRMATION,
        SHOW_EXIT_CONFIRMATION,
        SHOW_ERROR,
        SHOW_INIT_EDIT_ERROR
    }

}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void redirectToCircleFeedScreen(final String circleId);
        void redirectToCircleInviteScreen(final String circleId);
        void enableCTA();
        void disableCTA();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

public interface CreateOrEditSideEffect {

    @AutoValue
    abstract class OpenCircleInvite implements CreateOrEditSideEffect {

        public abstract String circleId();

        ...
    }

    @AutoValue
    abstract class OpenCircleFeed implements CreateOrEditSideEffect {

        public abstract String circleId();

        ...
    }

    enum Simple implements CreateOrEditSideEffect {
        ...
    }
}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        void enableCTA();
        void disableCTA();
        void setEditableCircleData(CircleConfigModel result);
    }

    abstract class Presenter extends SimplePresenter<View> {
        ...
    }

}

@AutoValue
public abstract class CreateOrEditState {

    public abstract Mode mode();

    public abstract boolean committingChanges();

    public abstract Optional<CircleConfigModel> editedCircle();

    public abstract boolean ctaEnabled();

    public enum Mode {
        CREATE,
        EDIT;
    }
}

@AutoValue
public abstract class CreateOrEditState {

    public abstract Mode mode();

    public abstract boolean committingChanges();

    public abstract Optional<CircleConfigModel> editedCircle();

    public abstract boolean ctaEnabled();


    public CreateOrEditState withCommittingChanges(final boolean committingChanges) {
        return toBuilder()
                .committingChanges(committingChanges)
                .build();
    }

    public abstract Builder toBuilder();

    public static Builder builder() {
        return new AutoValue_CreateOrEditState.Builder()
                .mode(Mode.CREATE)
                .ctaEnabled(false)
                .committingChanges(false);
    }

    @AutoValue.Builder
    public abstract static class Builder {

        public abstract Builder mode(final Mode mode);

        public abstract Builder editedCircle(final CircleConfigModel editedCircle);

        public abstract Builder ctaEnabled(final boolean ctaEnabled);

        public abstract Builder committingChanges(final boolean committingChanges);

        public abstract CreateOrEditState build();
    }

    public enum Mode {
        CREATE,
        EDIT;
    }
}

@Value.Immutable
public abstract class CreateOrEditState {

    @Value.Default
    public Mode mode() {
        return Mode.CREATE;
    }

    public abstract Optional<CircleConfigModel> editedCircle();

    @Value.Default
    public boolean ctaEnabled() {
        return false;
    }

    @Value.Default
    public boolean committingChanges() {
        return false;
    }

    public enum Mode {
        CREATE,
        EDIT;
    }
}

public interface CreateOrEditCircleContract {

    interface View extends BaseView {

        // yay
    }

    abstract class Presenter extends SimplePresenter<View> {

        public abstract void onCheckFormRequested(final CreateOrEditCircleRequestDomain createCircleRequestDomain);

        public abstract void onFormSubmitted(final CreateOrEditCircleRequestDomain createCircleRequestDomain);

        public abstract void onExitFromCreateCircleFlowRequested(final CreateOrEditCircleRequestDomain createCircleRequestDomain);

        public abstract void onEditCircleRequested(final String circleIdToEdit);

        public abstract void onDeleteCircleRequested();

        public abstract void onDeleteCircleConfirmed();
    }

}

Step 2 - processing in background

public class CreateOrEditCirclePresenter extends CreateOrEditCircleContract.Presenter {

    public static final String TAG = "CreateCirclePresenter";
    private final HasCreateCircleRequestChangedUseCase hasCreateCircleRequestChangedUseCase;
    private final CirclesRepository circlesRepository;
    private final PrepareEditCircleRequestUseCase prepareEditCircleRequestUseCase;
    private final ShouldAllowFormSubmissionUseCase shouldAllowFormSubmissionUseCase;
    private CreateOrEditCircleContract.Mode mode = CreateOrEditCircleContract.Mode.CREATE;
    private CircleConfigModel editedCircle;

    public CreateOrEditCirclePresenter(
            final ShouldAllowFormSubmissionUseCase shouldAllowFormSubmissionUseCase,
            final HasCreateCircleRequestChangedUseCase hasCreateCircleRequestChangedUseCase,
            final CirclesRepository circlesRepository,
            final PrepareEditCircleRequestUseCase prepareEditCircleRequestUseCase
    ) {
        this.shouldAllowFormSubmissionUseCase = shouldAllowFormSubmissionUseCase;
        this.hasCreateCircleRequestChangedUseCase = hasCreateCircleRequestChangedUseCase;
        this.circlesRepository = circlesRepository;
        this.prepareEditCircleRequestUseCase = prepareEditCircleRequestUseCase;
    }

    ...

}

public class CreateOrEditCirclePresenter extends
        MviContainerHost<ImmutableCreateOrEditState, CreateOrEditSideEffect> {

    public static final String TAG = "CreateCirclePresenter";
    private final HasCreateCircleRequestChangedUseCase hasCreateCircleRequestChangedUseCase;
    private final CirclesRepository circlesRepository;
    private final PrepareEditCircleRequestUseCase prepareEditCircleRequestUseCase;
    private final ShouldAllowFormSubmissionUseCase shouldAllowFormSubmissionUseCase;

    public CreateOrEditCirclePresenter(
            final ShouldAllowFormSubmissionUseCase shouldAllowFormSubmissionUseCase,
            final HasCreateCircleRequestChangedUseCase hasCreateCircleRequestChangedUseCase,
            final CirclesRepository circlesRepository,
            final PrepareEditCircleRequestUseCase prepareEditCircleRequestUseCase
    ) {
        super(ImmutableCreateOrEditState.builder().build());
        this.shouldAllowFormSubmissionUseCase = shouldAllowFormSubmissionUseCase;
        this.hasCreateCircleRequestChangedUseCase = hasCreateCircleRequestChangedUseCase;
        this.circlesRepository = circlesRepository;
        this.prepareEditCircleRequestUseCase = prepareEditCircleRequestUseCase;
    }

    ...

}

public class CreateOrEditCirclePresenter extends
        MviContainerHost<ImmutableCreateOrEditState, CreateOrEditSideEffect> {

    ...

    public void onDeleteCircleConfirmed() {

        ifAttached(view -> view.showEditSpinner());

        circlesRepository.deleteCircle(editedCircle.id())
                .subscribeOnUiThread(
                        result -> ifAttached(view -> view.exitToAggregatedFeed()),
                        exception -> ifAttached(view -> view.showEditCircleErrorDialog())
                );
    }

    ...

}

public class CreateOrEditCirclePresenter extends
        MviContainerHost<ImmutableCreateOrEditState, CreateOrEditSideEffect> {

    ...

    public void onDeleteCircleConfirmed() {

        intent(mvi -> {
            ifAttached(view -> view.showEditSpinner());

            circlesRepository.deleteCircle(editedCircle.id())
                    .subscribeOnUiThread(
                            result -> ifAttached(view -> view.exitToAggregatedFeed()),
                            exception -> ifAttached(view -> view.showEditCircleErrorDialog())
                    );
        }
    }

    ...

}

Step 3 - translate view interactions

public class CreateOrEditCirclePresenter extends
        MviContainerHost<ImmutableCreateOrEditState, CreateOrEditSideEffect> {

    ...

    public void onDeleteCircleConfirmed() {

        intent(mvi -> {
            ifAttached(view -> view.showEditSpinner());

            circlesRepository.deleteCircle(editedCircle.id())
                    .subscribeOnUiThread(
                            result -> ifAttached(view -> view.exitToAggregatedFeed()),
                            exception -> ifAttached(view -> view.showEditCircleErrorDialog())
                    );
        }
    }

    ...

}

public class CreateOrEditCirclePresenter extends
        MviContainerHost<ImmutableCreateOrEditState, CreateOrEditSideEffect> {

    ...

    public void onDeleteCircleConfirmed() {

        intent(mvi -> {
            mvi.reduce(currentState -> currentState.withCommittingChanges(true));

            circlesRepository.deleteCircle(mvi.getState().editedCircle().get().id())
                    .subscribe(
                            result ->
                                mvi.postSideEffect(CreateOrEditSideEffect.Simple.OPEN_AGGREGATED_FEED),
                            exception -> {
                                mvi.reduce(currentState -> currentState.withCommittingChanges(false));
                                mvi.postSideEffect(CreateOrEditSideEffect.Simple.SHOW_ERROR);
                            }
                    );
        });
    }

    ...

}

Step 4 - refactor view

override fun onCreate(savedInstanceState: Bundle?) {

    ...

    presenter.subscribe(
            lifecycleScope,
            lifecycle,
            ::handleState,
            ::handleSideEffect
        )
}

private fun handleState(createOrEditState: ImmutableCreateOrEditState) {

        with(createOrEditState) {

            updateCtaState(ctaEnabled())

            if (committingChanges()) {
                if (mode() == CreateOrEditState.Mode.CREATE) {
                    showCreateSpinner()
                } else {
                    showEditSpinner()
                }
            } else {
                hideSpinner()
            }

            if (mode == CreateOrEditState.Mode.EDIT &&
                     !editInitialized &&
                     editedCircle() != null) {
                editInitialized = true
                setEditableCircleData(editedCircle().get())
            }
        }
    }

private fun handleSideEffect(sideEffect: CreateOrEditSideEffect) {

        when (sideEffect) {
            is CreateOrEditSideEffect.OpenCircleInvite -> redirectToCircleInviteScreen(sideEffect.circleId())
            is CreateOrEditSideEffect.OpenCircleFeed -> redirectToCircleFeedScreen(sideEffect.circleId())
            CreateOrEditSideEffect.Simple.CLOSE -> exitWithoutConfirmationDialog()
            CreateOrEditSideEffect.Simple.OPEN_AGGREGATED_FEED -> exitToAggregatedFeed()
            CreateOrEditSideEffect.Simple.SHOW_DELETE_CONFIRMATION -> showDeleteConfirmationDialog()
            CreateOrEditSideEffect.Simple.SHOW_EXIT_CONFIRMATION -> if (mode == CreateOrEditState.Mode.CREATE) {
                exitWithCreateConfirmationDialog()
            } else {
                exitWithEditConfirmationDialog()
            }
            CreateOrEditSideEffect.Simple.SHOW_ERROR -> if (mode == CreateOrEditState.Mode.CREATE) {
                showCreateCircleErrorDialog()
            } else {
                showEditCircleErrorDialog()
            }
            CreateOrEditSideEffect.Simple.SHOW_INIT_EDIT_ERROR -> showInitEditErrorDialog()
        }

    }

How does it look on iOS?

class CreateEditCircleViewController: FabulousViewController {

    ...

    @Inject({ $0.presenter.createCreateOrEditCirclePresenter() })
    private var presenter: CreateOrEditCirclePresenter

    private let disposeBag = DisposeBag()

    override func viewDidLoad() {
        super.viewDidLoad()

        presenter
            .subscribe(
                stateHandler: { [weak self] state in
                    self?.handleState(state: state)
                },
                sideEffectHandler: { [weak self] sideEffect in
                    self?.handleSideEffect(sideEffect: sideEffect)
                }
            )
            .disposed(by: disposeBag)
    }

    func handleState(state: CreateOrEditState) {
        nameTextField.text = state.circleName()
        if state.coverImage().isPresent(),
           let imagePath = state.coverImage().get() as? String,
           let imageUrl = URL(string: imagePath) {
            imageView.image = try? UIImage(url: imageUrl)
        }
        saveButton.isEnabled = state.ctaEnabled()
        spinner.isHidden = state.committingChanges().isFalse
    }

    @IBAction private func nameChanged(_ sender: Any) {
        presenter.onNameChanged(with: nameTextField.text ?? "")
    }

    @IBAction private func saveButtonTapped(_ sender: Any) {
        presenter.onFormSubmitted()
    }

    func handleSideEffect(sideEffect: CreateOrEditSideEffect) {
        switch sideEffect {

        case let openCircleInvite as CreateOrEditSideEffect_OpenCircleInvite:
            openCircleInviteScreen(circleId: openCircleInvite.circleId())

        case let openCircleFeed as CreateOrEditSideEffect_OpenCircleFeed:
            openCircleFeedScreen(circleId: openCircleFeed.circleId())

        case let simpleEffect as CreateOrEditSideEffect_Simple:
            switch simpleEffect.toNSEnum() {
            case CreateOrEditSideEffect_Simple_Enum.CLOSE:
                dismissScreen()
            case CreateOrEditSideEffect_Simple_Enum.OPEN_AGGREGATED_FEED:
                dismissToAggregatedFeed()
            case CreateOrEditSideEffect_Simple_Enum.SHOW_DELETE_CONFIRMATION:
                showDeleteConfirmation()
            case CreateOrEditSideEffect_Simple_Enum.SHOW_EXIT_CONFIRMATION:
                showExitConfiramtion()
            case CreateOrEditSideEffect_Simple_Enum.SHOW_ERROR:
                showErrorDialog()
            case CreateOrEditSideEffect_Simple_Enum.SHOW_INIT_EDIT_ERROR:
                showInitEditErrorDialog()
            default:
                break
            }

        default:
            break
        }
    }

Code available at

https://github.com/thefabulous/fabulous-ios/tree/feature/mviPoc

Unit testing

@Test
fun `should exit when delete is confirmed and completes successfully`() {
    val fakeCircle = fixture<CircleConfigModel>()
    val presenter = createPresenter(
        circlesRepository = mock {
            on { deleteCircle(fakeCircle.id()) } doReturn Task.empty()
        }
    )
    val initialState = ImmutableCreateOrEditState.builder()
        .mode(CreateOrEditState.Mode.EDIT)
        .editedCircle(fakeCircle)
        .build()
    val testPresenter = presenter.test(initialState)

    testPresenter.testIntent {
        onDeleteCircleConfirmed()
    }

    testPresenter.assert(initialState) {
        states(
            { withCommittingChanges(true) }
        )
        postedSideEffects(CreateOrEditSideEffect.Simple.OPEN_AGGREGATED_FEED)
    }
}

testPresenter.assert(defaultInitialState) {
    states(
        { withCommittingChanges(true).withMode(CreateOrEditState.Mode.EDIT) },
        { withCommittingChanges(false) }
    )
}

Conclusions

To do

Improve lifecycle management (e.g. ViewModel)
Side effect caching
State saving

Next steps

Do we want this in our app?
Draw up implementation plan
Implement missing/extra features

Thanks!

Why MVI?

By Mikołaj Leszczyński

Why MVI?

1,025

Mikołaj Leszczyński

TheAngroid

Why MVI?

Introducing MVI

Introducing MVI

Key concepts

MVI - benefits

MVI - benefits

MVI - benefits

Testing apps

Testing apps

Testing apps

Testing apps

Testing apps

Screenshot testing

Screenshot testing

Screenshot testing

Screenshot testing

Screenshot testing

Interaction testing

Interaction testing

Interaction testing

Interaction testing

Interaction testing

Time travel

Time travel

Time travel

MVP to MVI

MVP to MVI

MVI framework

Step1 - translate contract

Step 2 - processing in background

Step 3 - translate view interactions

Step 4 - refactor view

How does it look on iOS?

Code available at

https://github.com/thefabulous/fabulous-ios/tree/feature/mviPoc

Unit testing

Conclusions

To do

Next steps

Thanks!

Why MVI?

Why MVI?

Mikołaj Leszczyński

More from Mikołaj Leszczyński
