How to modify the

osCommerce template or theme?

如何改版面??

修改CSS?? (css檔案在哪?)

確認想改的"地方"

  • 分析HTML結構
  • 了解HTML與style之間的關係
  • 在OSC中找到實體檔案

分析版面配置 (Layout)

tag間的相對關係與邏輯結構

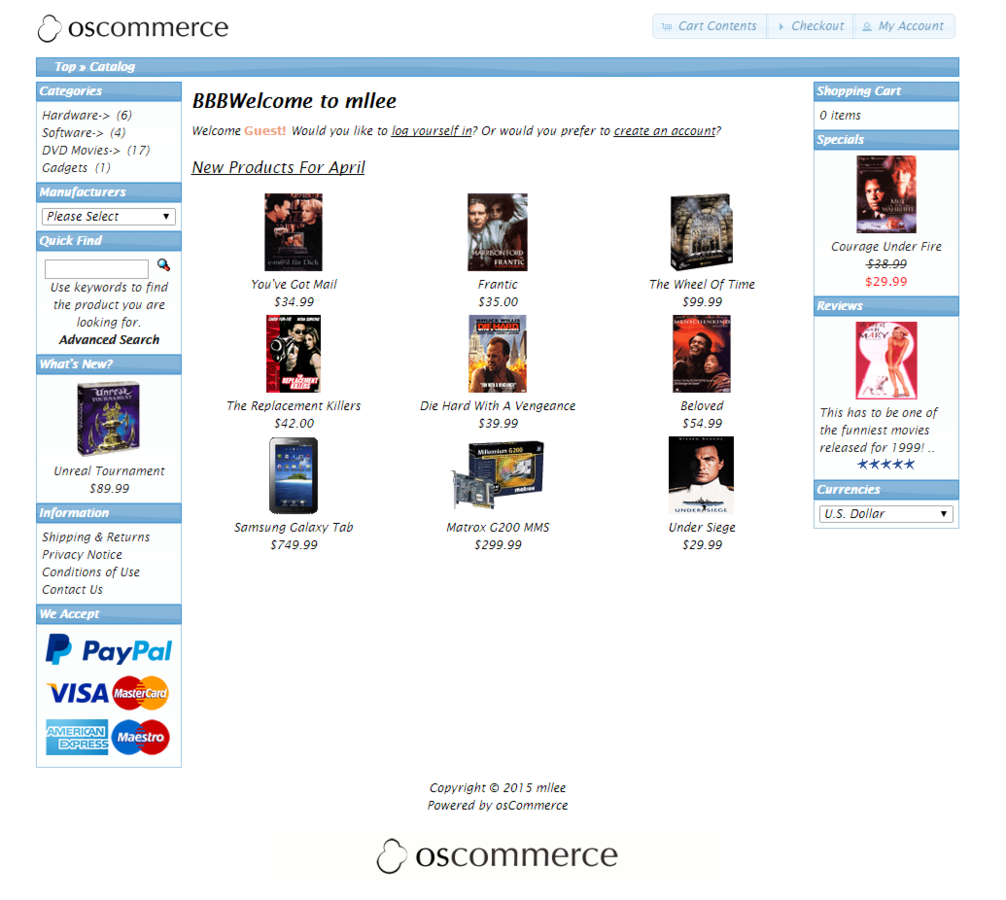

首頁

Text

<div id="header" class="grid_24"> ...

​<div class="grid_24 ui-widget infoBoxContainer"> ...

<div
id="columnLeft"
class="grid_4 pull_16"> ...

<div
id="columnRight"
class="grid_4"> ...

<div id="bodyContent"
class="grid_16 push_4"> ...

<div class="grid_24 footer"> ...

​<div class="grid_24 ui-widget infoBoxContainer"> ...

首頁

/index.php

/includes/application_top.php

/includes/application_bottom.php

/includes/template_top.php

/includes/template_bottom.php

/includes/classes/osc_template.php

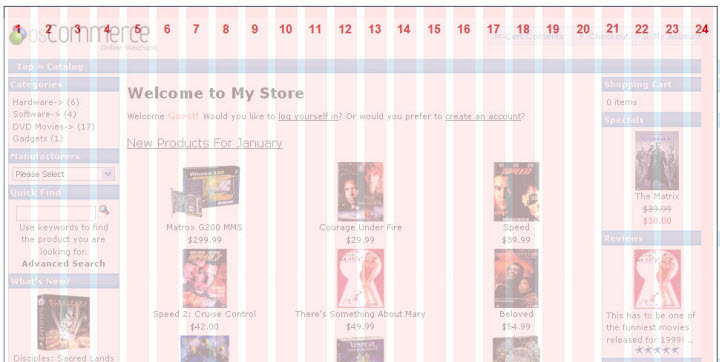

Grid System

osc_template.php

/ext/960gs/960_24_col.css

/includes/header.php
/includes/footer.php
/includes/template_bottom.php
/includes/template_bottom.php
/includes/template_top.php
/includes/classes/osc_template.php
/ext/960gs/960_24_col.css

開始大改裝

body {
  background: url("img/body_bg.png") repeat-x #f4f4f4;
  color: #666;
  margin: 0px;
  font-size: 12px;
  font-family: '微軟正黑體', Verdana;
}
#bodyWrapper {
  background: url("img/wrapper_bg.jpg") no-repeat center top;
}
<div id="header_nev" class="grid_24 ...

重新定義 Body

#header_nev {
  margin-bottom: 180px;
}
<link rel="icon" href="img/ico.png" type="image/x-icon" />
  • includes\template_top.php (line:52)
  • includes\header.php (line:38)

改裝 Header

  • 修改logo
    • 到後台管理介面上傳 logo圖檔 (Configuration > Store Logo)
#storeLogo {
  float: left;
}
<div id="headerShortcuts">
<?php
  //echo tep_draw_button(HEADER_TITLE_CART_CONTENTS . ($cart->count_contents() > 0 ? ' (' . $cart->count_contents() . ')' : ''), 'cart', tep_href_link(FILENAME_SHOPPING_CART)) .
  //     tep_draw_button(HEADER_TITLE_CHECKOUT, 'triangle-1-e', tep_href_link(FILENAME_CHECKOUT_SHIPPING, '', 'SSL')) .
  //     tep_draw_button(HEADER_TITLE_MY_ACCOUNT, 'person', tep_href_link(FILENAME_ACCOUNT, '', 'SSL'));
  if (tep_session_is_registered('customer_id')) {
    echo tep_draw_button(HEADER_TITLE_LOGOFF, null, tep_href_link(FILENAME_LOGOFF, '', 'SSL'));
  }
?>
    <a href="shopping_cart.php">購物車</a>
    <a href="checkout_shipping.php">結帳</a>
    <a href="account.php">我的帳號</a>
  </div>
<!--script type="text/javascript">
  $("#headerShortcuts").buttonset();
</script-->
  • 修改右邊3個連結 (includes\header.php (line:21))
#headerShortcuts {
  float: right;
  border-left: 1px solid #ddd;
}

#headerShortcuts > a {
  line-height: 55px;
  border-right: 1px solid #ddd;
  padding: 0px 30px;
  display: inline-block;
  font-size: 14px;
  font-weight: bold;
  text-decoration: none;
  float: left;
}

#headerShortcuts > a:hover {
  color: #FFF;
  background-color: #74ddb4;
}

#headerShortcuts > a:active {
  box-shadow: inset 0 2px 10px rgba(0,0,0,0.3);
}
  • 修改右邊3個連結 (CSS)
.infoBoxContainer {}

A.headerNavigation {}

A.headerNavigation:hover {}
<!--div id="header_nev" class="grid_24 ui-widget infoBoxContainer">
  <div class="ui-widget-header infoBoxHeading"><?php echo '  ' . $breadcrumb->trail(' » '); ?></div>
</div-->
<div id="header_nev" class="grid_24 infoBoxContainer">
  <?php echo '  ' . $breadcrumb->trail(' » '); ?>
</div>
  • 修改Header Navigation
    includes\header.php (line:41)

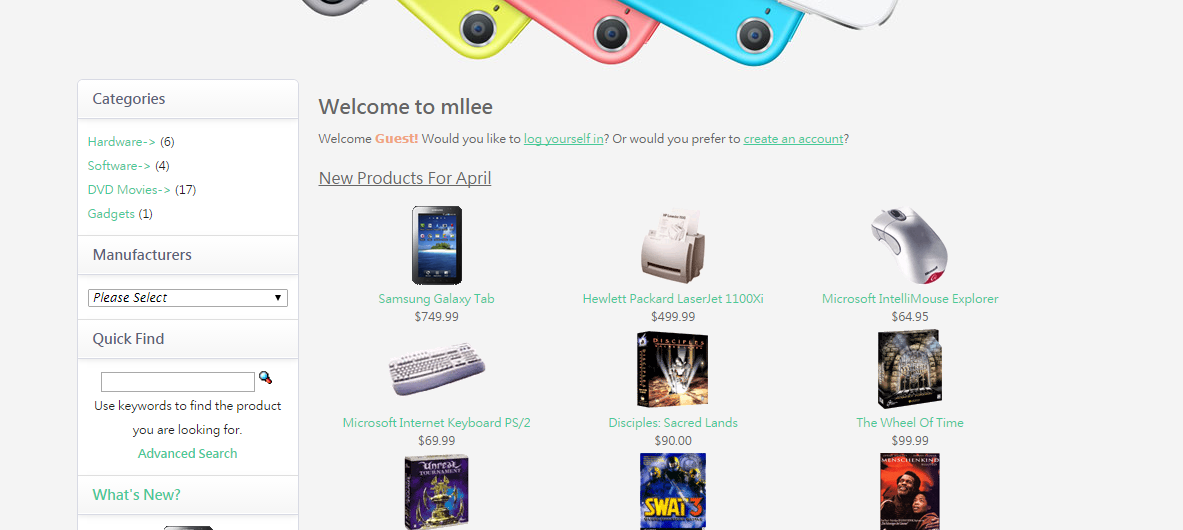

改裝 left Column

#columnLeft {
  border-radius: 6px;
  border: 1px solid #d8dae4;
  background: #fff;
  overflow-x: hidden;
  width: 220px;
  margin: 0px 15px 0px 3px;
}

#columnRight {}
  • 修改left column
  • 調整左右column的內容
    • 到後台管理介面把所有 (Modules > Boxes)，Boxes調整到左邊
    • 修改osc_template.php
var $_grid_content_width = 12;      // line 18
var $_grid_column_width = 6;        // line 19
.infoBoxContainer {}

.infoBoxHeading {
  margin: 0;
  font-size: 14px;
  font-family: '微軟正黑體', Verdana;
  font-weight: bold;
  color: #596377;
  line-height: 1;
  padding: 12px 15px;
  background: #fff;
  border: 0px;
  border-bottom: 1px solid #d8dae4;
  background-image: -webkit-gradient(linear,50% 0,50% 100%,color-stop(0%,#fff),color-stop(100%,#f6f6f6));
  background-image: -webkit-linear-gradient(top,#fff 0,#f6f6f6 100%);
  background-image: -moz-linear-gradient(top,#fff 0,#f6f6f6 100%);
  background-image: -o-linear-gradient(top,#fff 0,#f6f6f6 100%);
  background-image: linear-gradient(top,#fff 0,#f6f6f6 100%);
  box-shadow: inset 0 -1px 0 #fff,0 2px 6px #eee;
}

.infoBoxHeading a {
  color: #48ca98;
}

.infoBoxContents {
  font-family: '微軟正黑體', Verdana;
  padding: 10px;
  line-height: 2;
  border: 0px;
  border-bottom: 1px solid #DDD;
  background: transparent;
}

.infoBoxContents a{
  color: #48ca98;
}

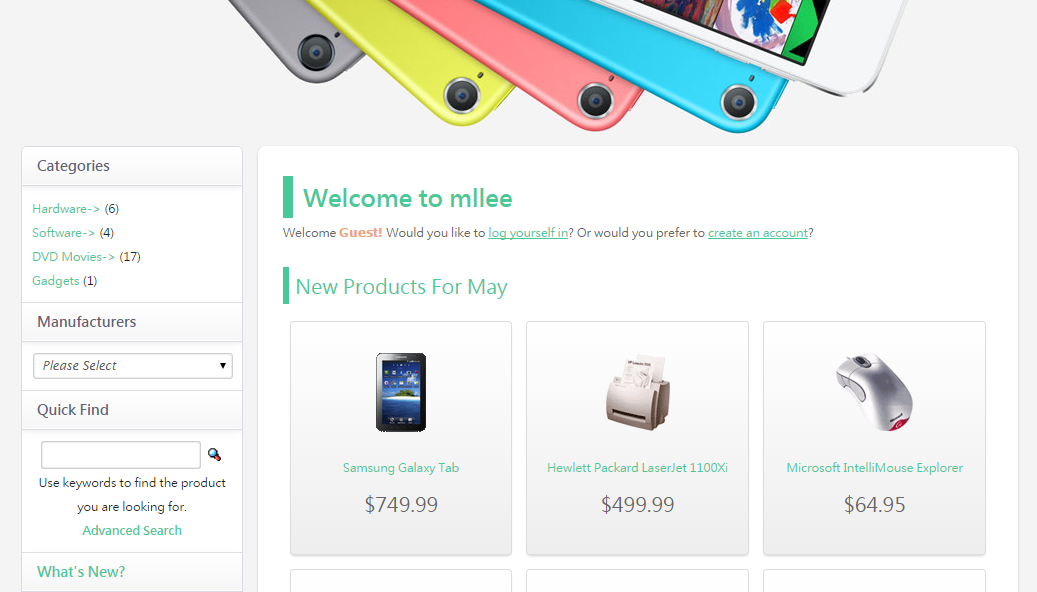

改裝中間區域

#bodyContent {
  background-color: #FFF;
  box-shadow: 0 1px 5px -1px rgba(0,0,0,0.3);
  border-radius: 8px;
  padding: 20px 25px;
  margin: 0px -40px;
}
#bodyContent h1{
  color: #48ca98;
  font-size: 24px;
  padding: 5px 10px;
  margin: 10px 0px 0px 0px;
  border-left: 10px solid #48ca98;
}

#bodyContent h2{
  color: #48ca98;
  font-size: 20px;
  padding: 5px 6px;
  margin: 20px 0px 0px 0px;
  border-left: 6px solid #48ca98;
  text-decoration: none;
}
.product{
  background-color: #F8F8F8;
  padding: 30px 10px;
  margin: 5px;
  border: 1px solid #DDD;
  box-shadow: 0 2px 5px -2px rgba(0,0,0,0.3);
  border-radius: 4px;
  font-size: 20px;
  line-height: 2;
  background-image: -webkit-linear-gradient(top,#FFFFFF 0,#EEEEEE 100%);
}

.product:hover{
  border: 1px solid #48ca98;
  box-shadow: 0 0 4px 0 #48ca98;
}

.product > a{
  font-size: 12px;
}
  • 修改CSS (新增 .product)
  • 微調HTML
    • 加上<div class="product">...</div>
    • includes\modules\new_products.php (line:33)
$new_prods_content .= '<td width="33%" align="center" valign="top"><div class="product"><a href="' . tep_href_link(FILENAME_PRODUCT_INFO, 'products_id=' . $new_products['products_id']) . '">' . tep_image(DIR_WS_IMAGES . $new_products['products_image'], $new_products['products_name'], SMALL_IMAGE_WIDTH, SMALL_IMAGE_HEIGHT) . '</a><br /><a href="' . tep_href_link(FILENAME_PRODUCT_INFO, 'products_id=' . $new_products['products_id']) . '">' . $new_products['products_name'] . '</a><br />' . $currencies->display_price($new_products['products_price'], tep_get_tax_rate($new_products['products_tax_class_id'])) . '</div></td>';
  • 調整Footer
    • includes/footer.php (line:24)
<!--div class="grid_24" style="text-align: center; padding-bottom: 20px;">
  <?php echo tep_display_banner('static', $banner); ?>
</div-->
  • 重新定義ui-button
.ui-button{
  padding: 5px 10px;
  cursor: pointer;
  text-decoration: none;
  text-align: center;
  font-size: 18px;
  color: #333;
  border-radius: 4px;
  display: inline-block;
  font-style: normal;
  border: 1px solid #c2c9d6;
  background-color: #fcfdfd;
  filter: progid:DXImageTransform.Microsoft.gradient(gradientType=0,startColorstr='#FFFCFDFD',endColorstr='#FFEDEFF3');
  background-image: -webkit-linear-gradient(top,#fcfdfd 0,#edeff3 100%);
  background-image: -moz-linear-gradient(top,#fcfdfd 0,#edeff3 100%);
  background-image: -o-linear-gradient(top,#fcfdfd 0,#edeff3 100%);
  background-image: linear-gradient(top,#fcfdfd 0,#edeff3 100%);
  box-shadow: inset 0 1px 0 0 #fff;
}

.ui-button:hover{
  color: #000;
  background-color: #edeff3;
  filter: progid:DXImageTransform.Microsoft.gradient(gradientType=0,startColorstr='#FFEDEFF3',endColorstr='#FFE7EAEF');
  background-image: -webkit-linear-gradient(top,#edeff3 0,#e7eaef 100%);
  background-image: -moz-linear-gradient(top,#edeff3 0,#e7eaef 100%);
  background-image: -o-linear-gradient(top,#edeff3 0,#e7eaef 100%);
  background-image: linear-gradient(top,#edeff3 0,#e7eaef 100%);
}

.ui-button:active{
  box-shadow: inset 0 5px 10px #ced4df,inset 0 1px 0 0 #e5ecfb;
}

.ui-widget {
  font-family: Verdana, Arial, sans-serif;
  font-size: 12px;
}
  • 重新定義表單(Form)元素
input, textarea, button, select {
  font-size: 1em;
  font-family: inherit;
  line-height: 1.5;
  margin: 1px;
  outline: none;
  vertical-align: middle;
}

input[type="text"], input[type="password"], textarea, select {
  position: relative;
  background-color: #fff;
  padding: 4px;
  border: 1px solid #d0d0d0;
  color: #606060;
  resize: none;
  border-radius: 3px;
  -webkit-box-shadow: inset 0 0 2px rgba(0, 0, 0, 0.2);
  -moz-box-shadow: inset 0 0 2px rgba(0, 0, 0, 0.2);
  box-shadow: inset 0 0 2px rgba(0, 0, 0, 0.2);
}

input[type="text"]:hover, input[type="password"]:hover, input[type="checkbox"]:hover, textarea:hover, div.select:hover {
  border-color: #aaaaaa;
}

input[type="text"]:focus, input[type="password"]:focus, textarea:focus, div.select.select_focus {
  border-color: #8ccfff !important;
  box-shadow: 0 0 5px #8ccfff, inset 0 0 2px rgba(0, 0, 0, 0.12);
}
.cartList{}

.cartList > tbody > tr:first-child > td {
  border-top: 1px solid #DDD;
}

.cartList > tbody > tr > td {
  padding: 5px;
  border-bottom: 1px solid #DDD;
}

.cartList > tbody > tr:hover > td{
  background-color: #ecfff8;
}

.cartList > tbody > tr > td:last-child{
  color: #48ca98;
  font-size: 24px;
}
  • 修改CSS (新增 .cartList)
  • 微調HTML (加上 class="carList")
    • \shopping_cart.php (line:69)
<table border="0" width="100%" cellspacing="0" cellpadding="0" class="cartList">

改裝購物車

.ui-widget-header.ui-corner-top.infoBoxHeading{
  background: transparent;
  box-shadow: none;
  border-width: 0px;
}

改裝商品列表

.productListingHeader {
  table-layout: fixed;
  /*color: #FFFFFF;*/
  font-weight: bold;
}

/*.productListingHeader A:hover {
  color: #FFFFFF;
}*/
.productListingData > tbody > tr:first-child > td {
  border-top: 1px solid #DDD;
}

.productListingData > tbody > tr > td {
  padding: 5px;
  border-bottom: 1px solid #DDD;
}

.productListingData > tbody > tr:hover > td{
  background-color: #ecfff8;
}

.ui-widget-content{
    border-width: 0px;
}
