Angular 2

• Next major version for Angular
• Rather a development platform than just a framework

• Mobile First, future ready, powered by open source community

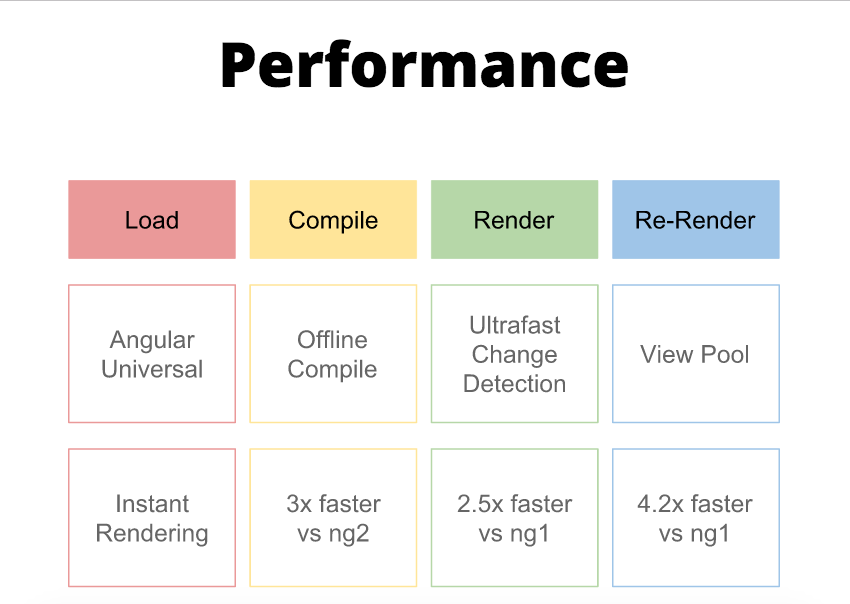

• Faster, better tooling, more flexible, ...

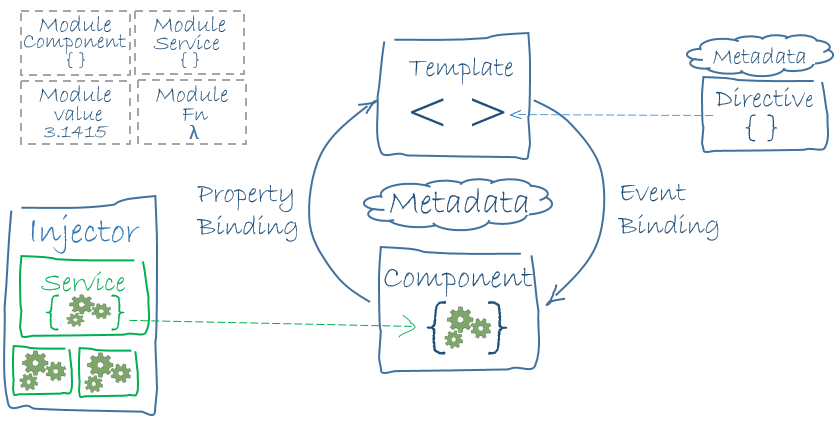

Architecture

Major Blocks

• Modules
• Components
• Templates
• Metadata
• Databinding
• Directives
• Services
• Dependency Injection

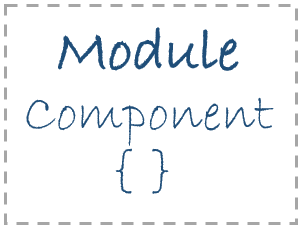

Modules

• Very similar to A1 modules
• Apps can consist of more than one modules
• Each app must have one root module
• JS modules are different than NgModules
• Libraries are modules i.e. collection of NgComponents packed in a NgModule

Components

• Synonymous to A1 controllers
• Controls a patch of the view
• Defines the view logic
• Angular2 creates, updates and destroys components through the application lifecycle

Templates

• Synonymous to A1 templates
• Helps Angular decide how to render views
• Must be hooked with a component
• Uses A2 template syntax

Metadata

• Leverages on decorators in TS
• Helps Angular decide how to execute classes

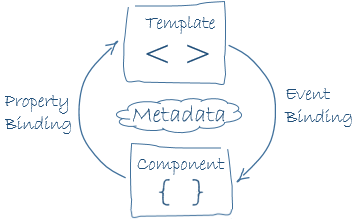

Databinding

• Bind component data on templates
• Supports one-way and two-way databinding through varying syntax

Databinding

Directives

• Essentially components without a template
• Structural directives add/remove/replace DOM e.g. ngFor
• Attribute directives change the appearance of an existing DOM element e.g. ngClass

Services

• Nothing special about them, they are just classes
• Heavy lifting to be done in services and provided to components via DI

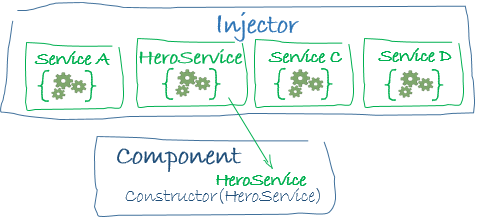

Dependency Injection

• Way to provide services to other services, components, directives

Dependency Injection

• Way to provide services to other services, components, directives

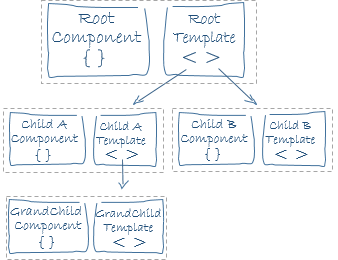

Component Hierarchy

AppComponent
