Violence

numbers

&

beauty

monad




monas "unit", menein "to be stable"

essence, unity, god

dyad




twoness, duality, tension, vesica piscis
polarity (attraction/repulsion)

triad




trinity, the surface

+

tetrad

PENTAD

decade

...

immense amount
of blahblah

φ

1.61803398874989484820458683436563811772030917980576286213544862270526046281890244970720720418939113748475408807538689175212663386222353693179318006076672635443338908659593958290563832266131992829026788067520876689250171169620703222104321626954862629631361443814975870122034080588795445474924618569536486444924104432077134494704956584678850987433944221254487706647809158846074998871240076521705751797883416625624940758906970400028121042762177111777805315317141011704666599146697987317613560067087480710131795236894275219484353056783002287856997829778347845878228911097625003026961561700250464338243776486102838312683303724292675263116533924731671112115881863851331620384005222165791286675294654906811317159934323597349498509040947621322298101726107059611645629909816290555208524790352406020172799747175342777592778625619432082750513121815628551222480939471234145...blablah

A theory of pure design

Dennan W. Ross, 1907 ?

lines, a brief history

Tim Ingold, 2007 Routledge

pedagogical sketchbook

Paul Klee, 1925 / 1953 via

Point and line to plane

Wassily Kandinsky, 1926 Dover publications

continuous

&

discrete


the world can be thought of as a continuous system

whereas digital computers feed on discrete data


most dimensions of the world can be

turned into discretes variables

splitting the world

 into discrete data


light ⇨ color palette

phenomenon ⇨ simulation

reaction ⇨ process

time ⇨ interval

subtractive ⇨ additive

transparency ⇨ translucency

Continuous data is measured, Discrete data is counted

1 Dimension


primitive types : the flesh of computation


bit / boolean 0 or 1
byte / octet : 8 bit
Float : 16 bit ( picture source )

Int  /  Uint  /  Double : 32 bit
Character : 7 bit (US ASCII ) - 32 bit (UTF-32)

2 Dimensions


a series of unidimesnsional data


String : "Nicolas Barradeau"
( Typed linear ) Array / Buffer : ["a", "b", "c"] /
 [ 0, 1, 2 ]
( empty ) image: [  width, height ]

( mono-channel ) sound : [ value ( frequency modulation ), time ]

two dimensional data holder: coordinate { x:0, y:0 }

N-dimensions

combinatorics of primitive data types

color  { R, G, B }

3D vector { X, Y, Z }

binary + pixel : [ X, Y, value ]

quaternion { X, Y, Z, W }

stereo + sound :  [ L, R, T, sampling rate ]

 pixel + color : [ X, Y, R, G, B ]

pixel + alpha + color : [ X, Y, A, R, G, B ]

3D scene = coordinates, colors, projection, time

video = image, position, color, sound, time

N-DIMENSIONS

how many dimensions to TWEET?
 {
"coordinates": null,
"favorited": false,
"created_at": "Wed Sep 05 00:37:15 +0000 2012",
"truncated": false,
"id_str": "243145735212777472",
"entities": {
"urls": [
],
"hashtags": [
{
"text": "peterfalk",
"indices": [
35,
45
]
}
],
"user_mentions": [

]
},
"in_reply_to_user_id_str": null,
"text": "Maybe he'll finally find his keys. #peterfalk",
"contributors": null,
"retweet_count": 0,
"id": 243145735212777472,
"in_reply_to_status_id_str": null,
"geo": null,
"retweeted": false,
"in_reply_to_user_id": null,
"place": null,
"user": {
"name": "Jason Costa",
"profile_sidebar_border_color": "86A4A6",
"profile_sidebar_fill_color": "A0C5C7",
"profile_background_tile": false,
"profile_image_url": "http://a0.twimg.com/profile_images/1751674923/new_york_beard_normal.jpg",
"created_at": "Wed May 28 00:20:15 +0000 2008",
"location": "",
"is_translator": true,
"follow_request_sent": false,
"id_str": "14927800",
"profile_link_color": "FF3300",
"entities": {
"url": {
"urls": [
{
"expanded_url": "http://www.jason-costa.blogspot.com/",
"url": "http://t.co/YCA3ZKY",
"indices": [
0,
19
],
"display_url": "jason-costa.blogspot.com"
}
]
},
"description": {
"urls": [

]
}
},
"default_profile": false,
"contributors_enabled": false,
"url": "http://t.co/YCA3ZKY",
"favourites_count": 883,
"utc_offset": -28800,
"id": 14927800,
"profile_image_url_https": "https://si0.twimg.com/profile_images/1751674923/new_york_beard_normal.jpg",
"profile_use_background_image": true,
"listed_count": 150,
"profile_text_color": "333333",
"protected": false,
"lang": "en",
"followers_count": 8760,
"time_zone": "Pacific Time (US & Canada)",
"profile_background_image_url_https": "https://si0.twimg.com/images/themes/theme6/bg.gif",
"verified": false,
"profile_background_color": "709397",
"notifications": false,
"description": "Platform at Twitter",
"geo_enabled": true,
"statuses_count": 5532,
"default_profile_image": false,
"friends_count": 166,
"profile_background_image_url": "http://a0.twimg.com/images/themes/theme6/bg.gif",
"show_all_inline_media": true,
"screen_name": "jasoncosta",
"following": false
},
"source": "<a href=\"http://jason-costa.blogspot.com\" rel=\"nofollow\">My Shiny App</a>",
"in_reply_to_screen_name": null,
"in_reply_to_status_id": null
}

a tweet can potentially be represented in ~72 dimensions

sample JSON response for a Tweet update source


SPAmARIUM




reduced to a unidimensional variable, a data

can shift between various fields of representation


more and more data are made available

http://onesecond.designly.com/


most data are often rich enough

to create a great complexity

"draw me an ant!"

parametrisation

expressiveness

step 1




because sometimes, that's all it takes...

a brainless ant colony

step 2



adding 3 pairs of «legs» implicitly draws a

segmentation of the body into 3 parts

STEP 3



if it's going to walk, better split the legs from the body...
by the way, the "ghost" dots appearing at the intersections is called a Hermann grid

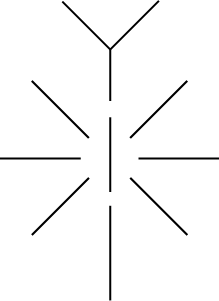

STEP 4

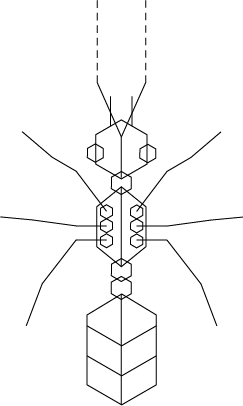

in fact, the ant's body is made of 3 segments: a head with 2 antennas,  a thorax from where legs start in a star shape and the abdomen which is slightly bigger than the thorax

STEP 5



legs are composed of 3 segments, the forelegs are usually shorter, the back legs are stronger, the gravity center lies around the petiole

STEP 6

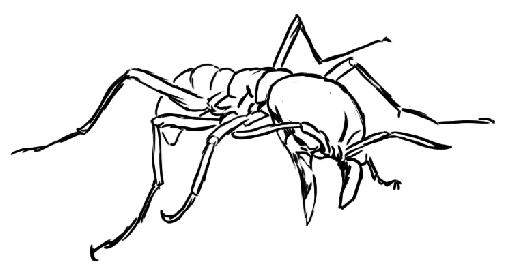

antennas are made of 7 segments, we can add a  pair of mandibles, eyes and optional occelli.  the joints are constrained within given angle ranges...  in other words:
there’s virtually no limit to granularity in parametric modeling

BALANCE

it boils down to finding the right balance between
the parametrisation & the expressiveness of a model

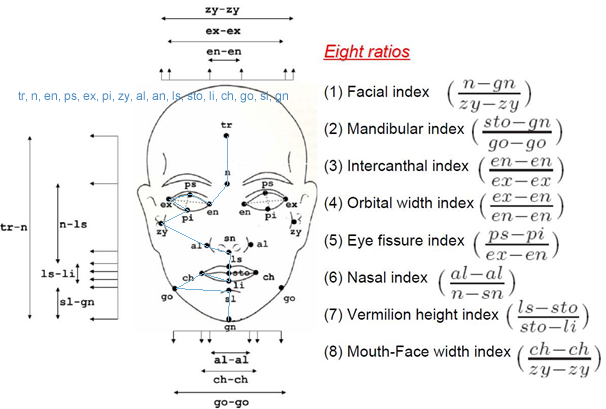

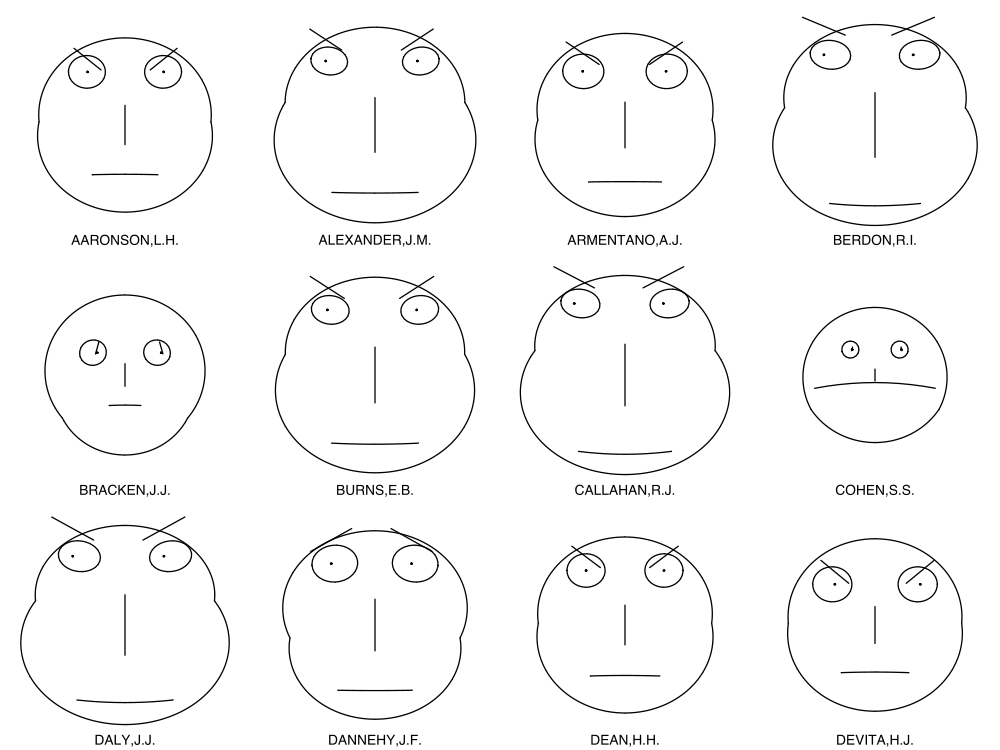

in the eyes of a computer, your face is a random pile of phenotypic traits

homeworks : pareidolia

phenotype

as wikipedia puts it

phainein, 'to show'  & typos, 'type'
  the composite of an organism's observable characteristics or traits , such as its morphology, development, biochemical or physiological properties, phenology, BLAH BLAH BLAH


excellent tutorials by Joumana Medlej on how to draw mankind in all it's variety http://majnouna.com/tutorials.html

traits


+ The visual display of quantitative information. Edward Tufte p.97

parametric

I scrapped this low res picture somewhere on the interwebs (can't find out where)


from which I collected a set of key values hereunder encoded in SVG.

data="M 11 0 L 11 8 L 8 11 L 5 9 L 1 10 L 4 12 L 0 14 L 8 18 L 11 19 L 11 21 L 11 22 L 11 24 L 7 22 L 2 25 L 11 25 L 11 30"

expressive

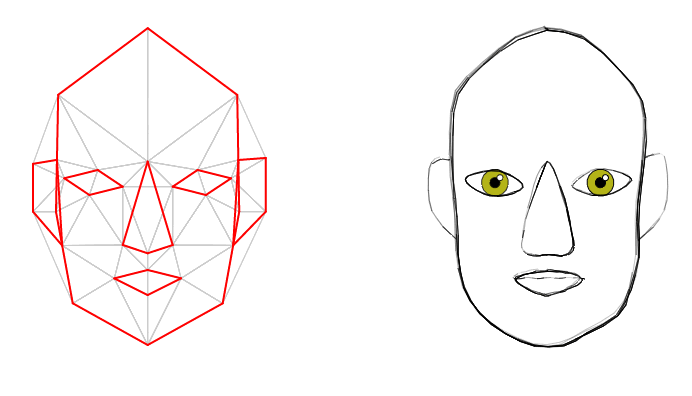

from this points, I built a parametric face & a more expressive renderer
your face

graphics

rules

Learn to see

Inge Druckrey: Teaching to See
distribution, masses,  balance,  tension...

DETAILs

grain, blur/sharp, frequencies, contrast...






Joseph Mallord

William Turner

critical distance


art is percieved simultaneously at different scales
in differents spaces : conceptual, physical, social, temporal

take a step back

don't forget the context (shot/reverse shot)

don't forget the standpoint (perspective, levels of detail)

NOISE

&

VARIATION


are easier to control than pure random

a noise is a unidimensional process can

apply to any dimension of an object

COLOR PALETTE

using a limited set of colors

UNLESS DONE ON PURPOSE

this is wrong!

when seeing a colorful setup, take a quick note with a camera then use one of the numerous online utilities


it can be done at runtime by a program

Color Explorer

acquire a visual culture

&

become an artist in 3 easy steps


  1. dig some artists' shit and steal it !
  2. rip, copy, clone their shit !
    1. do NOT publish anything yet
  3. outshine their shit and publish !

lifecycle of an art piece


  • conception

  • production

  • exhibition

  • archive


if one of these steps is missing
you messed up somewhere
note: this requires a LOT of WORK


GRAPHICS

TOOLs





polar

x = cos( angle ) * radius;
y = sin( angle ) * radius;


cylindrical

x = cos( angle ) * radius;
y = height value;
z = sin( angle ) * radius;


spherical

var theta = 0 > ? > PI * 2;
var phi = -PI > ? > PI;
x = sin( theta ) * cos( phi ) * radius;
y = sin( theta ) * sin( phi ) * radius;
z = cos( theta ) * radius;

POINT & vector

a data holder in a coordinate system

LINE & RAY

line is infinite, ray has an origin and a direction

EDGE & SEGMENT

a line portion defined by 2 points

POLYLINE

a set of consecutive segments

SURFACE

a shape enclosing a portion of space

CIRCLE & rect

a point and a radius & a surface determined by 2 points

triangle

surface determined by 3 points (amazing properties)

regular polygon

a point, a radius and a number of sides

CURVE

a line with a curvature

VOLUME

a shape enclosing a portion of 3D space

polyhedron

3D model made of multiple faces

TIME

prerequisite to animation

towards a unified model


buffers to represent anything
shaders to render anything

low level data
stream process

+ shaders can divide by zero!
almost...

methods

functions


distribution


distance

function distance( p0, p1 )
{
    var dx = p0.x - p1.x;
    var dy = p0.y - p1.y;
    return sqrt( dx * dx + dy * dy );
}


angle

function angle( p0, p1 )
{
    return atan2( p1.y - p0.y, p1.x - p0.x );
}

pseudo-random

&

random

jitter

normalization

function nrm( value, A, B )
{
    return ( value - A ) / ( B - A );
}

LINEAR INTERPOLATION

function lrp( value, A, B )
{
    return A + value * ( B - A );
}

MAP

function map( value, A0, B0, A1, B1 )
{
    var norm = nrm( value, A0, B0 );
    return lrp( norm, A1, B1 );
}

cartesian

to

polar

regular patterns


translation

function translate( p, x, y )
{
    p.x += x;
    p.y += y;
    return p;
}

rotation (around a lattice)

function rotate( p, lattice, angle )
{
    var a = angle( lattice, p ) + angle;
    var d = distance( lattice, p );
    var nx = lattice.x + cos( a ) * d;
    var ny = lattice.y + sin( a ) * d;
    return new point( nx, ny );
}

projection

function project( p, a, b, asSegment )
{    var A = p.x - a.x;
    var B = p.y - a.y;
    var C = b.x - a.x;
    var D = b.y - a.y;

    var dot = A * C + B * D;
    var len = C * C + D * D;
    var t = dot / len;

    if( asSegment )
    {
        if( t < 0 ) return a;
        if( t > 1 ) return b;
    }    return new point( a.x + t * C, a.y + t * D );}

reflection

function reflect( p, a, b )
{
    var pp = project( p, a, b, false );
    var nx = p.x + ( pp.x - p.x ) * 2;
    var ny = p.y + ( pp.y - p.y ) * 2;
    return new point( nx, ny );
}

glide

 function glide( p, a, b, distance )
{
    var t = reflect( p, a, b );
    var angle = angle( a, b );
    var nx = cos( angle ) * distance;
    var ny = sin( angle ) * distance;
    return translate( t, nx, ny );
}


tiling planes
with lemurs







introduction to generative concepts

http://en.nicoptere.net/?tag=introduction


open processing samples

distributing unidimensional random values  http://www.openprocessing.org/sketch/84288

building a N-dimensional bezier curve  http://www.openprocessing.org/sketch/106374


codepen snippets
little wing: drawing parametric object  http://codepen.io/nicoptere/full/Dhdqg
progressively drawing a curveTo  http://codepen.io/nicoptere/full/Bykjh

small

world

patterns

&

structures

pattern


regularly repeating array of identical units
or rather
[...] arrays of units that are similar but not necessarily identical, and which repeat but not necessarily regularly or with a well-defined symmetry. [...]

Philip Ball  in Nature's patterns, a tapestry in three parts

LITTLE THINGS

PLEASE LITTLE MINDS

one of my greatest joys in life
 is to observe patterns







contemplation is a creative hobby

I try to understand how they  work
to find their structure or formal grammar

understanding a structure allows to build a system

further reading


D'Arcy WentWorth Thompson

Philip Ball

SIMPLicitiES

=

complexity

iteration


var bits = "I AM A BANANA!".split('');
var max = bits.length;
var out = "";
for( var i = 0; i < max; i++ )
{
    out += bits[ i ];
}
console.log( out );//-> I AM A BANANA!
balls
particles

recursion


function goBanana( count )
{
    if( count == 0 )
    {
        return "I AM A BANANA!";
    }
    else
    {
        return goBanana( --count );
    }
}
console.log( goBanana( 100 ) );//-> I AM A BANANA!
balls

motion


var PI2 = Math.PI * 2;
var D2R = Math.PI / 180;
var PHI = 3 * D2R;
var pos = new Vector3();
var angle = new Vector3( rnd() * PI2, rnd() * PI2, rnd() * PI2 );
var speed = new Vector3( rnd() * PHI, rnd() * PHI, rnd() * PHI );

function update()
{
    angle.add( speed );
    pos.x = 1;
    pos.y = 0;
    pos.z = 0;
    quaternion.setFromEuler( angle );
    pos.applyQuaternion( quaternion );
    pos.normalize();
    pos.multiplyScalar( radius );
}
simple
composed

FRACTAL

ATTRACTORs


//ratios: -2 > R > 2
var r = [0.487108, -0.806386, 1.343395, 0.706031, 1.323653 ];
var v = new Vector3();
var scale = 50;
for( var i = 0; i < 20000; i++ )
{
	var k = 0;
	var x = v.x;
	var y = v.y;
	var z = v.z;
	v.x = sin( r[ k++ ] * y ) - z * cos( r[ k++ ] * x );
	v.y = z * sin( r[ k++ ] * x ) - cos( r[ k++ ] * y );
	v.z = r[ k++ ] * sin( x );
	//ouput position
	var o = new Vector3( v.x * scale, v.y * scale, v.z * scale );
}

http://sprott.physics.wisc.edu/fractals/booktext/sabook.pdf
Clifford attractor

rewriting

var axiom = "a";
var rules = { "a" : "ab", "b" : "a" };
function rewrite()
{
	var new_axiom = "";
	var tmp = axiom.split( '' );
	for( var i = 0; i < tmp.length; i++ )
	{
		new_axiom += rules[ tmp[ i ] ]; 	}
	axiom = new_axiom;
	return axiom;
}
console.log( rewrite() );   // -> ab
console.log( rewrite() );   // -> aba
console.log( rewrite() );   // -> abaab
console.log( rewrite() );   // -> abaababa
rewriting geometry
unbound & bound L-system
triangulation attempt

CONTEXT-FREE GRAMMAR

describes the structure of all valid sentences. a formal grammar is based on production rules and stops when the axiom contains only terminal symbols

#define _col0 #F00
#define _col1 #FF0
#define _inc 0.1
40 * {   y 0.1 ry 9 rz -2 s 1.01 1.01 1.01 color _col0  }column
rule column w 0.5
{
    { y 0.5 ry 18   blend _col1 _inc     }box
}
rule column w 0.2
{
    { x -0.25 z -0.25 y 0.5 s 0.8  blend _col1 _inc     } box
}
rule column w 0.2
{
    20 * { rx 1 ry 1.5 rz 3 s 0.75 0.95 1.10  blend _col1 _inc }box
}





further reading


the previous slides were done using structure synth and rendered using sunflow

a good read about structure synth



a regexp (supposed) to match all english words

fields


principle
motion
traces

growth


principle
topology
mesh

side notes

&

mantras

resarch & development


matters a lot, do what it takes

the implementation

is less important than

the algorithm


you're not the first anyway...

cheap tricks work


use with extreme caution

try to take risks

playing is not working


be open-minded, passionate, curious
but most of all
be hard at work

FAILure IS NOT GOOd


persisting through failure is
it takes time to learn to fail

Stop Starting,

Start Finishing


start small, finish the shit, now

try to work with people that are better than you

creatives with
some logic

&

coders with
some taste

never go unemployed

thank you

beautiful!


NICOLAS BARRADEAU

credits

p2
pictograms from  the Pan European Game Iinformation website
p3
background image: Medusa Rondanini, attributed to Phidias. Glyphothek Munich, Germany
images are respective snapshots from the mentioned books
p4
background: Fingerprints taken by William James Herschel
p5
ants by Mishraphotographer http://commons.wikimedia.org/wiki/File:Ant.JPG
p6
Chernoff faces from wikipedia
p7
wolf by  Gunnar Ries  -  link   moon by Gregory H. Revera -  link
William Turner reproduction: The Punta della Dogana and Santa Maria della Salute
p8
lemur picture from wikimedia commons

other images come from some agile rabbit books of mine

reasons to be creative 2013

By nicolas barradeau

reasons to be creative 2013

session slides

  • 1,025
