Step 2: Sketch out the flow

Have a design/flow-diagram to work with.

Make a rough one by hand if you don't get one from the designer. It helps.

Design Blueprint

Step 3: Sign the contract

Once the first two steps are done, it's time to create a Contract for the ViewProxy, Presenter and Model layers.

This does not have to be final. It just serves as a great starting point and allows you to get some clarity.

Make an architectural design doc, using the template.

Step 3: Sign the contract

The doc should essentially contain the following-

• Breakdown/Decomposition of the feature in ViewProxy, Model and Presenter layers
• (Having a draft contract for each screen works well)
• List of classes with brief distribution of responsibilities.

MVP tips

Activity

Keep the activities lean

Delegate lifecycle events to the Presenter

To call super methods in the Activity, use a custom interface, that gets called by the presenter

MVP tips

Presenter

It's a good idea to have the Presenter extend from the LifecycleAwarePresenter (com.kouzoh.mercari.common.presenter)

The lifecycle (FragmentActivity.getLifecycle()) can be passed to the Presenter during construction

This allows for clearing the disposables at the right lifecycle events.

MVP tips

ViewProxy

The ViewProxy should be initialized inside the Activity and passed on to the presenter during it's construction.

The ViewProxy can take in the activity as parameter during construction. This allows for obtaining the context and finding views by ID.

Let's do it together!

Template Create and Edit Screen

TemplateCreateEditActivity

SPEC Breakdown

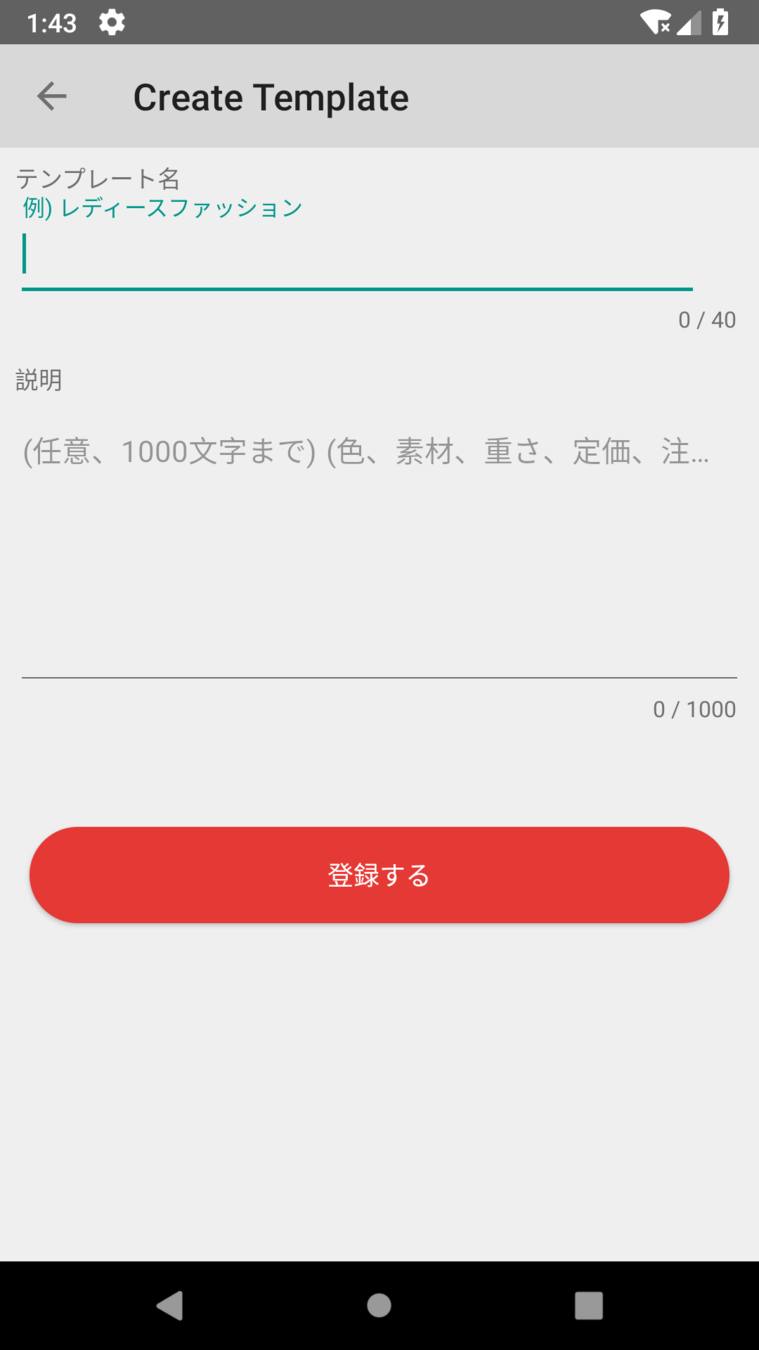

​Create Screen

• Set Toolbar Title and Button text
• Setup onClickListener for the Create button
• On Click of the Create Button-
  • If entered title and description are non-empty, make the API request to create a new template
  • Else show a dialog alert

SPEC Breakdown

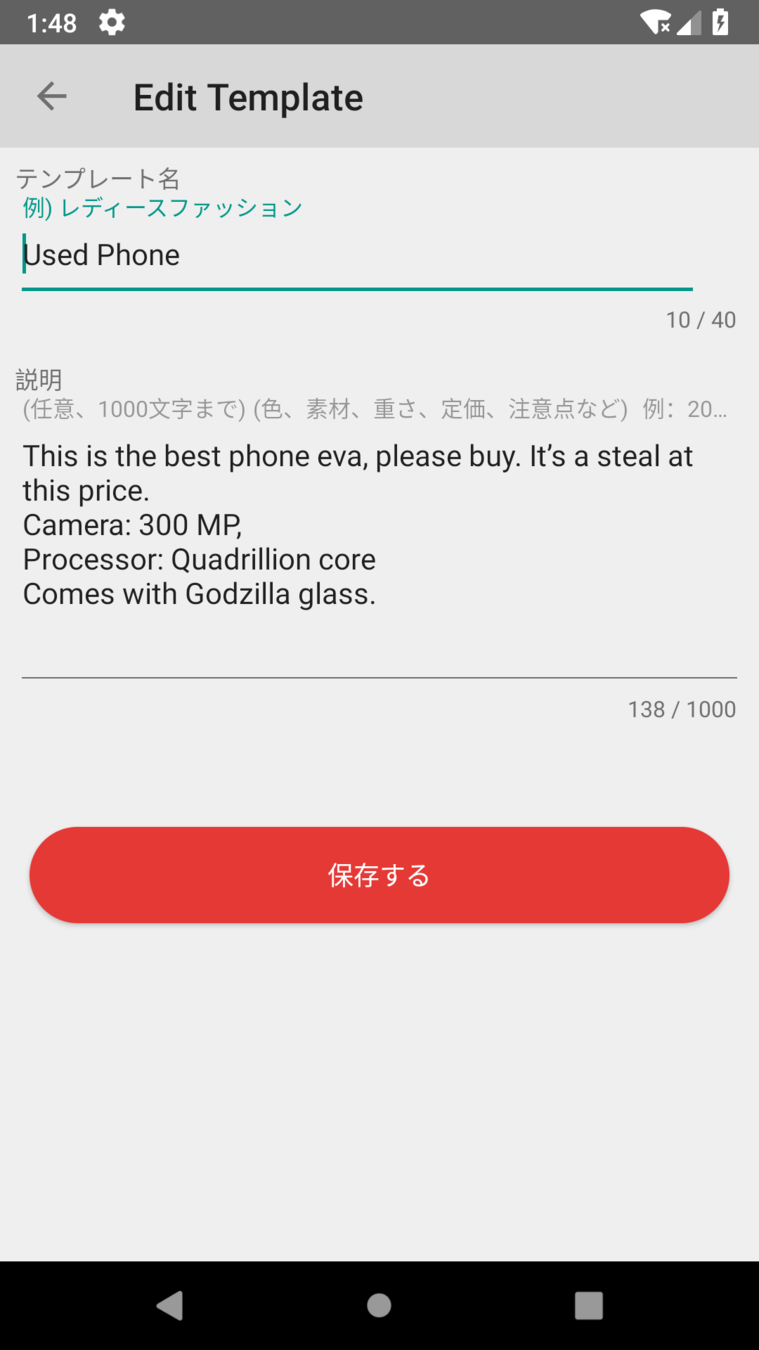

Edit Screen

• Set Toolbar Title and Button text
• Fill fields with selected template
• Setup onClickListener for the Edit button
• On Click of the Edit Button-
  • If entered title and description are non-empty, make the API request to edit the opened template
  • Else show a dialog alert

What does the contract look like?

Presenter

• onCreate

• createTemplate
• editTemplate

Repository

• createTemplate(title, description): Observable

• editTemplate(id, title, description): Observable

ViewProxy

• setTitleForCreate()
• setTitleForEdit()
• setTextForSaveButton()
• setOnClickListenerForSave
  Button(listener)

• fillFields(title, description)

• getTitleText()
• getDescriptionText()

• displayErrorMessage()

Android Studio
