Climate change impact on flood hazard over Italy

Adriano Fantini

PhD Course in Earth Science, Fluid Dynamics, and Mathematics

Supervisor: Erika Coppola



ADRIANO.FANTINI@phd.units.it

Aims

  • Flood hazard mapping over Italy
  • Scientific, reliable approach
  • Future projections

Models

  • ICTP RegCM Regional Climate Model
  • CHyM hydrological model
  • CA2D hydraulic model

Project overview

Participants

  • Erika Coppola
  • Rita Nogherotto
  • Filippo Giorgi
  • Adriano Fantini
  • Francesca Raffaele
  1. Can a model chain of climate, hydrological and hydraulic models reproduce flood hazard?

  2. How does climate change impact flood hazard over Italy?

  3. What is the link between changes in precipitation extremes and changes in flood hazard?

Research questions

Methodology

Precipitation:

  • Observations
  • RCM output

Gridded netCDF:

  • River network
  • Discharges

hydrological model

For each RP, cell:

  • Gumbel distr.
  • Hydrographs
  • Extreme Q

Statistical analysis

For each RP, cell:

  • Flood extent
  • Flood depth

(multiple simulations)

  • RCM output
  • Discharges
  • Floods

Validation and change for

CA2D hydraulic model

Based on Maione et al., 2003

(over nine domains)

2

3

4

5

1.0 - Flood hazard: overview

RISK

=

HAZARD

×

EXPOSURE

×

COPING FACTOR

Event probability, Return Period

Goods, people and services exposed

Emergency plans, adaptation strategies

1.1 - Flood hazard: overview

What variables are we interested in?

DIRECT

  • Flood extent
  • Flood water depth
  • Flood water speed
  • Precipitation extremes
  • Discharge extremes

PROXIES

1.2 - Flood hazard: overview

Methods used to obtain hazard maps:

  • Historical discharge and flooding records
  • Documentary evidence from past events
  • Local surveys
  • Hydrological + hydraulical modelling

Advantages:

  • Possible on any region/basin, also large scale
  • Extreme value analysis extends to any Return Period
  • Climate projections can drive the models (future change)
  • Uncertainty can be assessed via ensemble modelling

PRECIPITATION

DISCHARGE

FLOOD

HYDROLOGICAL MODEL

HYDRAULICAL MODEL

1.3 - Flood hazard: overview

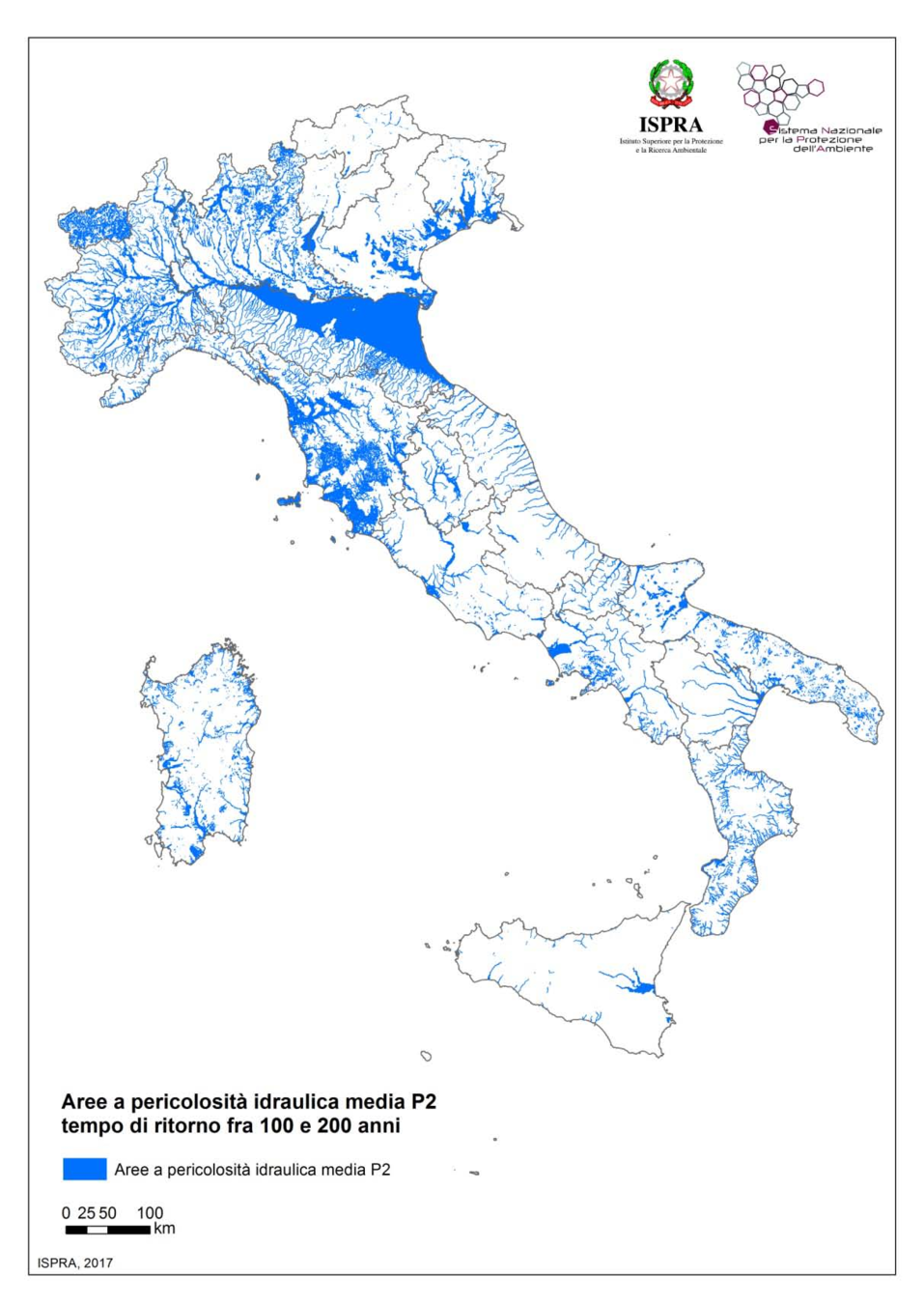

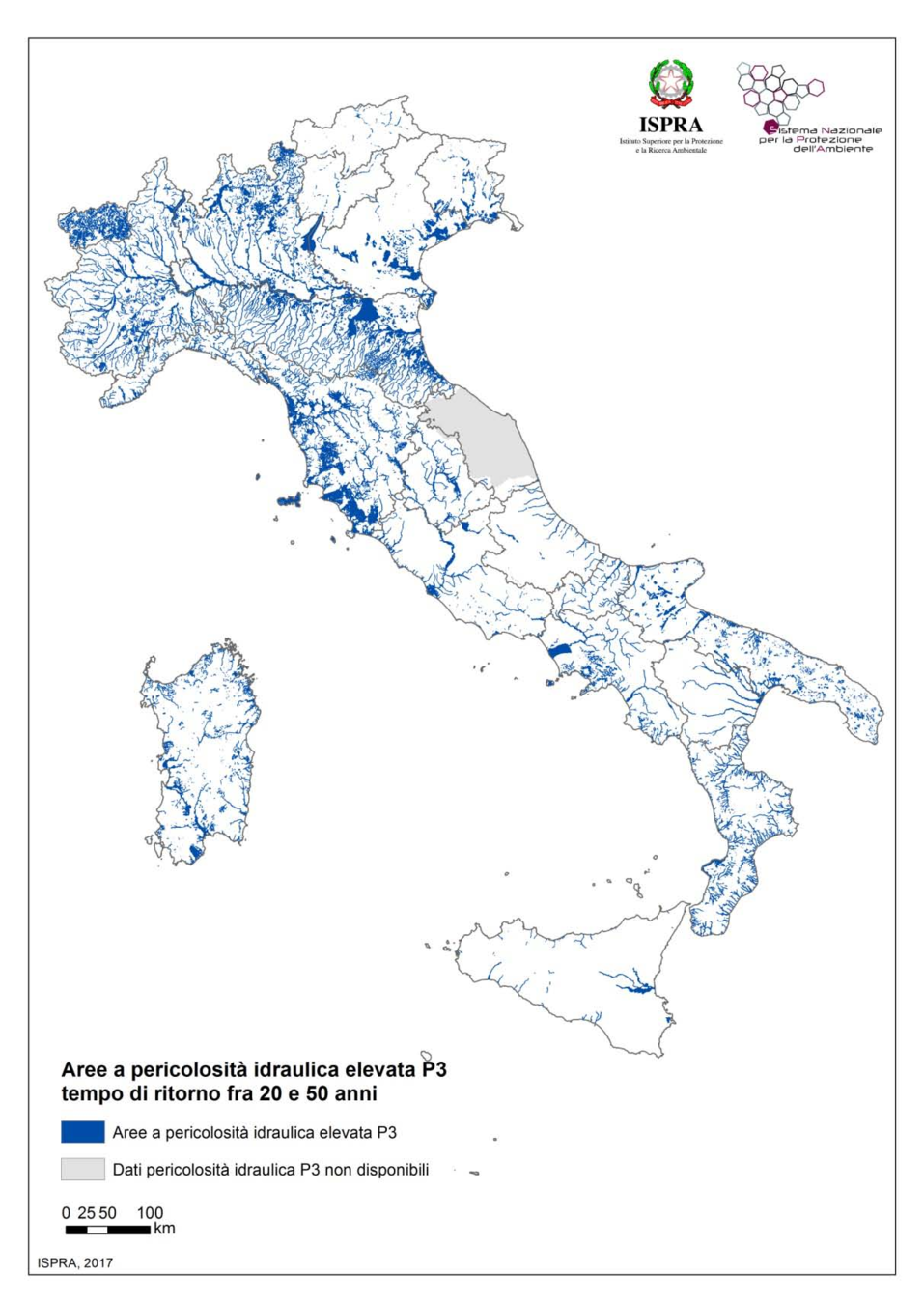

Flood hazard over Italy (PRESENT DAY)

ISPRA (2018), Dissesto idrogeologico in Italia: pericolosità e indicatori di rischio

Return Period:

100-200 yrs

CURRENT KNOWLEDGE

ISPRA data obtained from the single regional agencies.

Issues:

  • Undisclosed methodologies
  • Non-uniform approach
  • No future projections

1.4 - Flood hazard: overview

Flood hazard over Italy (FUTURE CHANGE)

  • Several studies available
  • No study specific to Italy
  • Relatively low resolution (>5km)
  • No flood extents, only flood proxies (extreme discharge)

Results over Italy:

  • General increase in flood proxies by the end of the century
  • Especially for Northern Italy
  • Low resolution does not resolve smaller basins

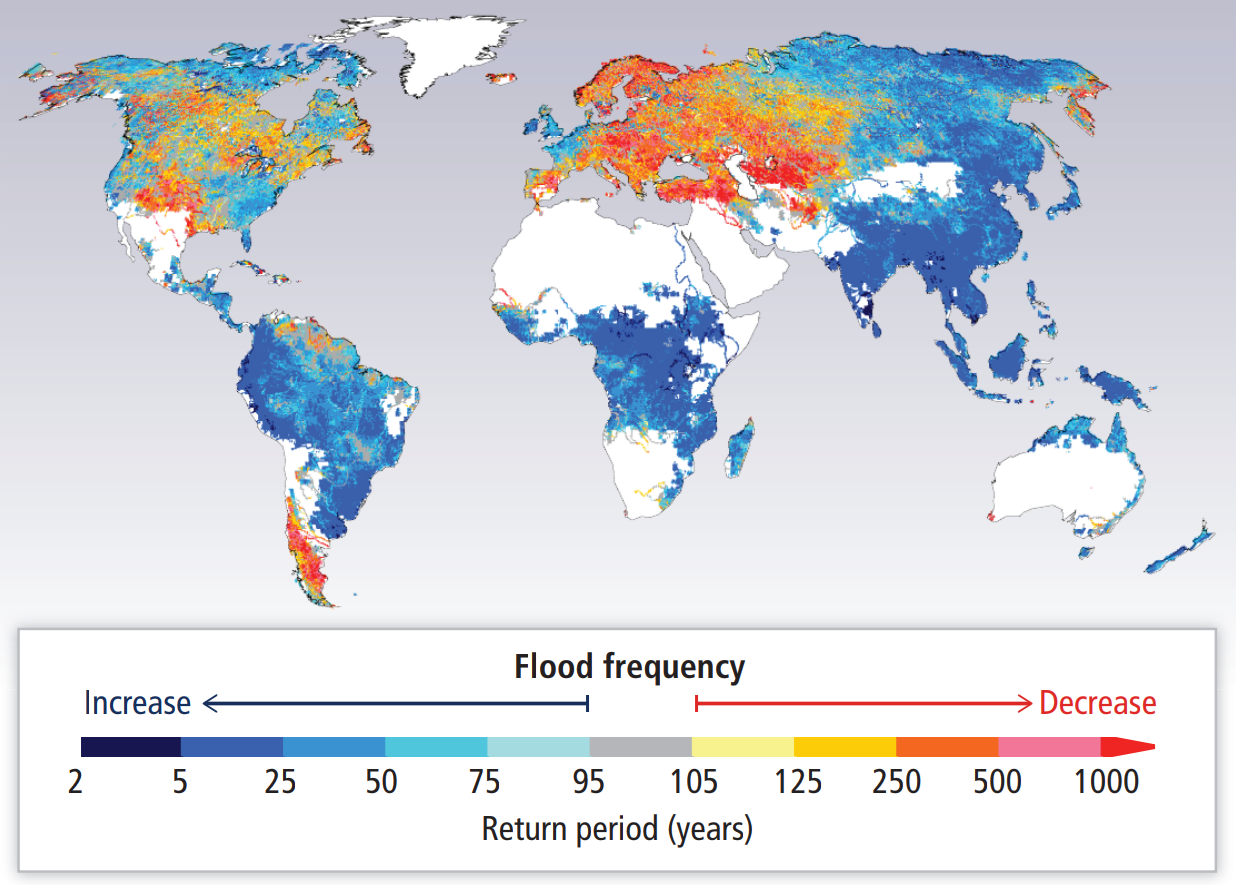

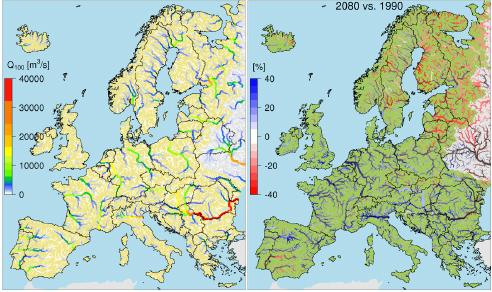

Alfieri et al. (2015); Thober et al. (2018); Donnelly et al. (2017)

Hirabayashi et al. (2013); Rojas et al. (2012);

2.0 - The GRIPHO dataset

Two main goals:

  • Driving the hydrological model with high resolution data
  • Validating the regional climate simulations

Raw station data provided by Marco Verdecchia (CETEMPS):

  • 2001 - present
  • Hourly
  • 3712 stations
  • No quality check

GRIPHO

(GRidded Italian Precipitation Hourly Observations)

2.1 - The GRIPHO dataset

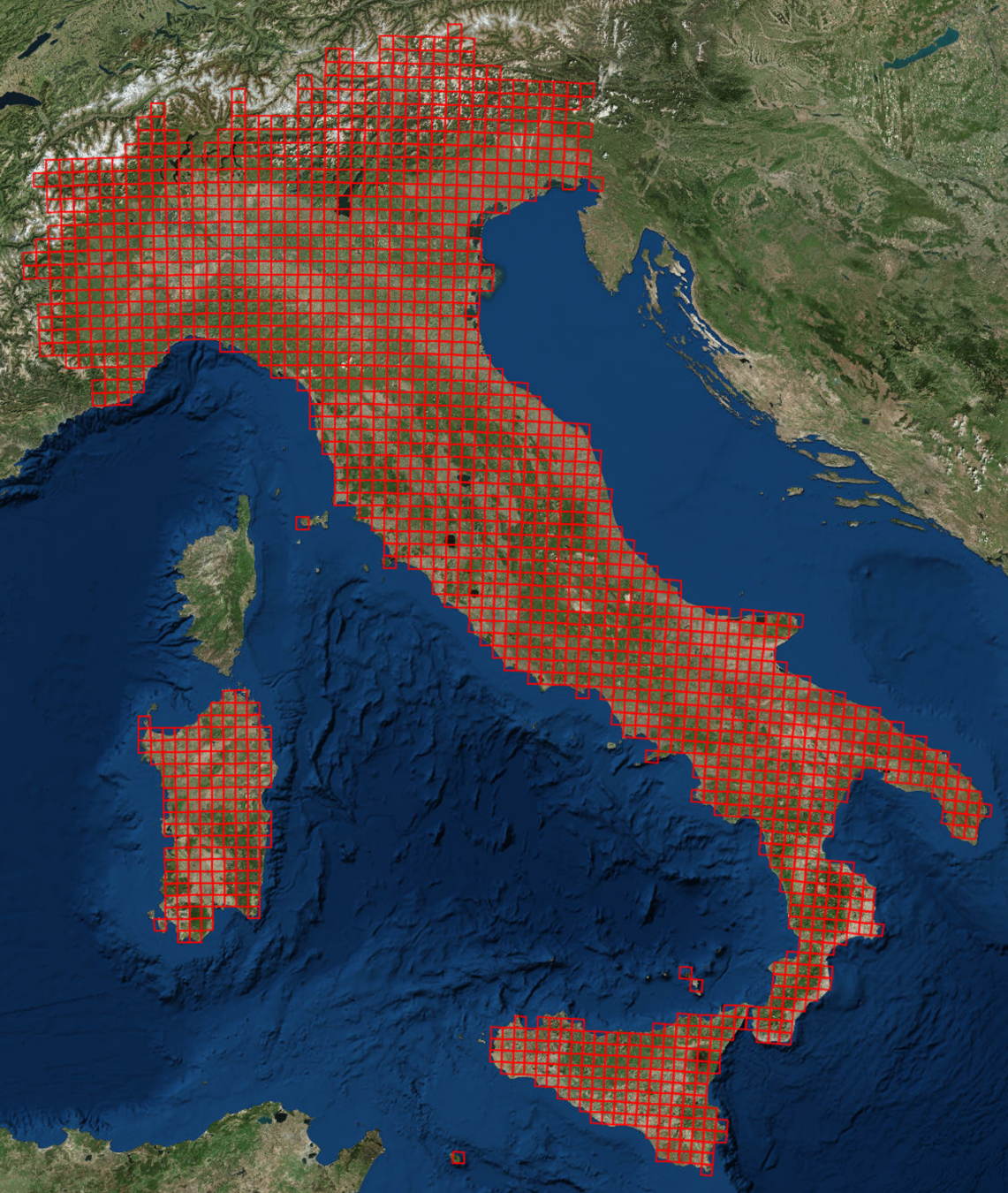

Gridding

  • 12km Lambert Conformal Conic grid
  • Gridding method based on Delaunay polygons using SciPy's interpolate.griddata

  • Simple, fast method which minimizes smoothing
  • Similar to Norway's KLIMAGRID dataset (Mohr, 2008, 2009)
  • NetCDF CF-compliant output format

Mohr M., 2008: New Routines for Gridding of Temperature and Precipitation Observations for seNorge.no

Mohr M., 2009: Comparison of versions 1.1 and 1.0 of gridded temperature and precipitation data for Norway

Velasquez N. et al., 2011: Rainfall distribution based on a Delaunay triangulation method

2.2 - The GRIPHO dataset

Issues:

  • Varying station availability and density across the domain
  • Inconsistencies, outliers and data errors
  • Only ~15 years or data

Strong points:

  • High station density (~1 station/100km²)
  • High temporal resolution (1 hour)
  • Only high resolution station-based dataset covering all Italy

TIME

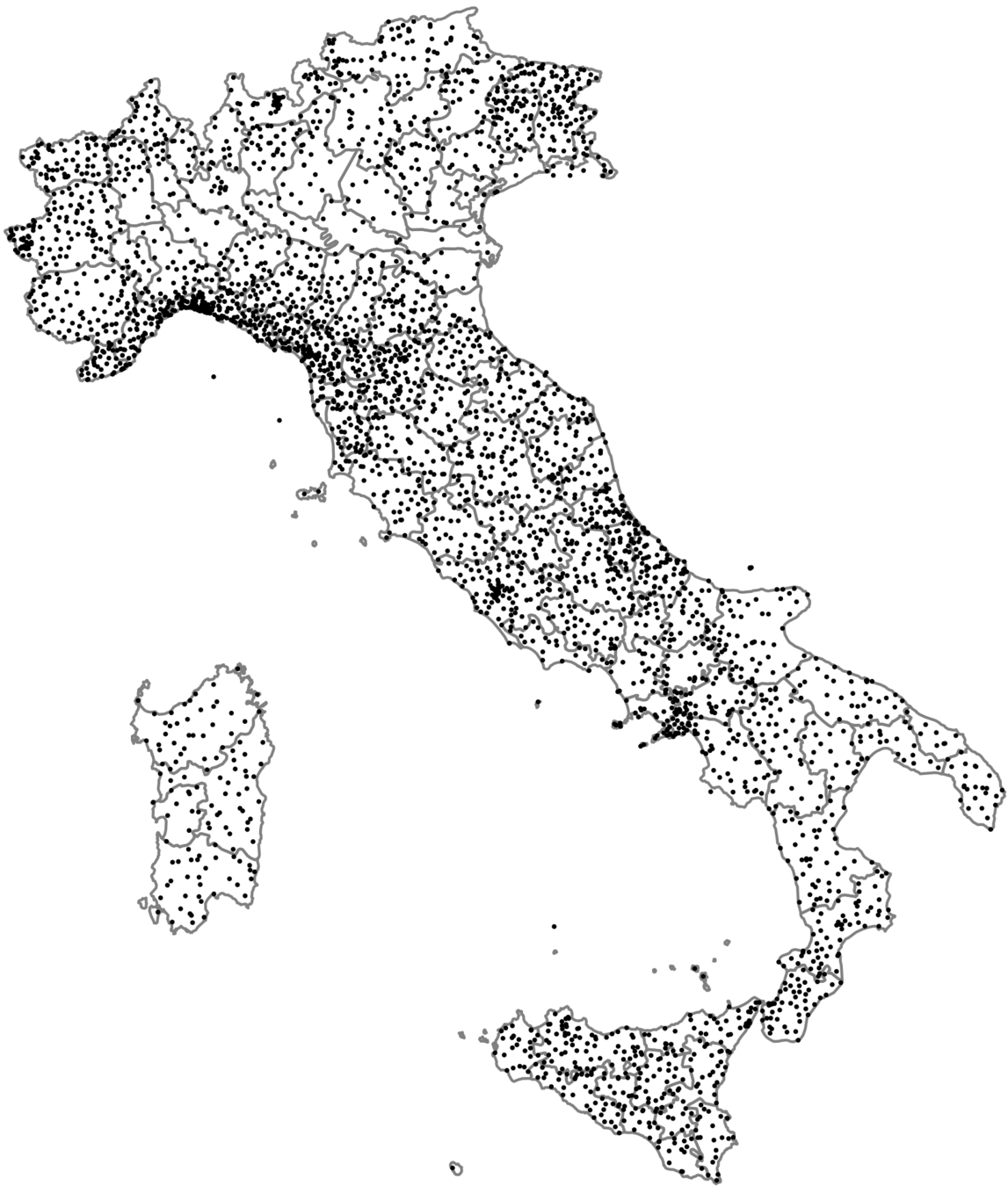

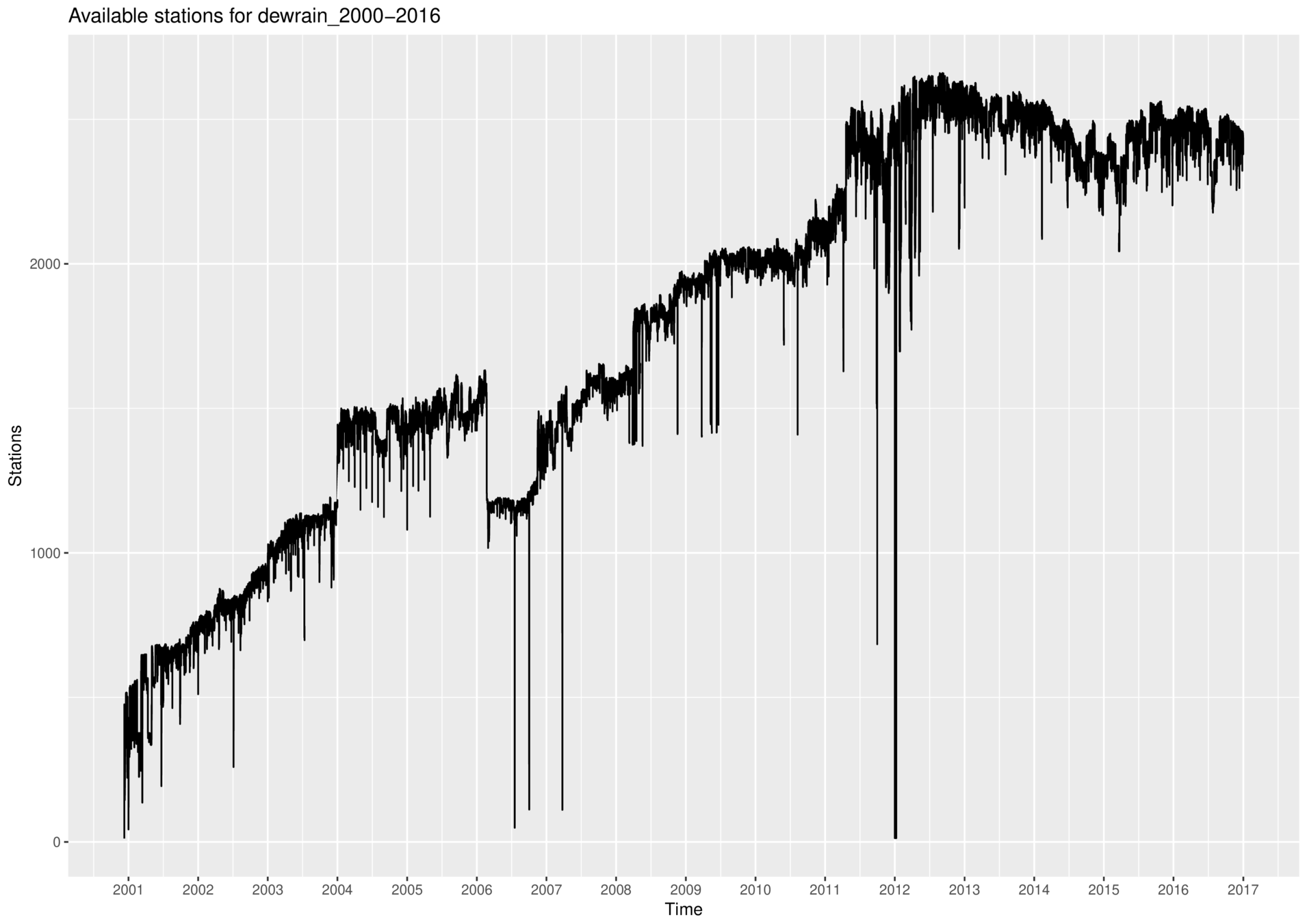

NUMBER OF STATIONS

FIRST-STAGE FILTERING

FLAGGING

FLAG CHECKING

MANUAL DATA CLEANING

CLEANED DATASET!

2.3 - The GRIPHO dataset

Cleaning procedure

2.4 - The GRIPHO dataset

Data cleaning (R95ptot = %pr above 95th pctl)

2.5 - The GRIPHO dataset

Metrics:

  • Mean seasonal
  • Extremes (R95ptot, R99ptot)

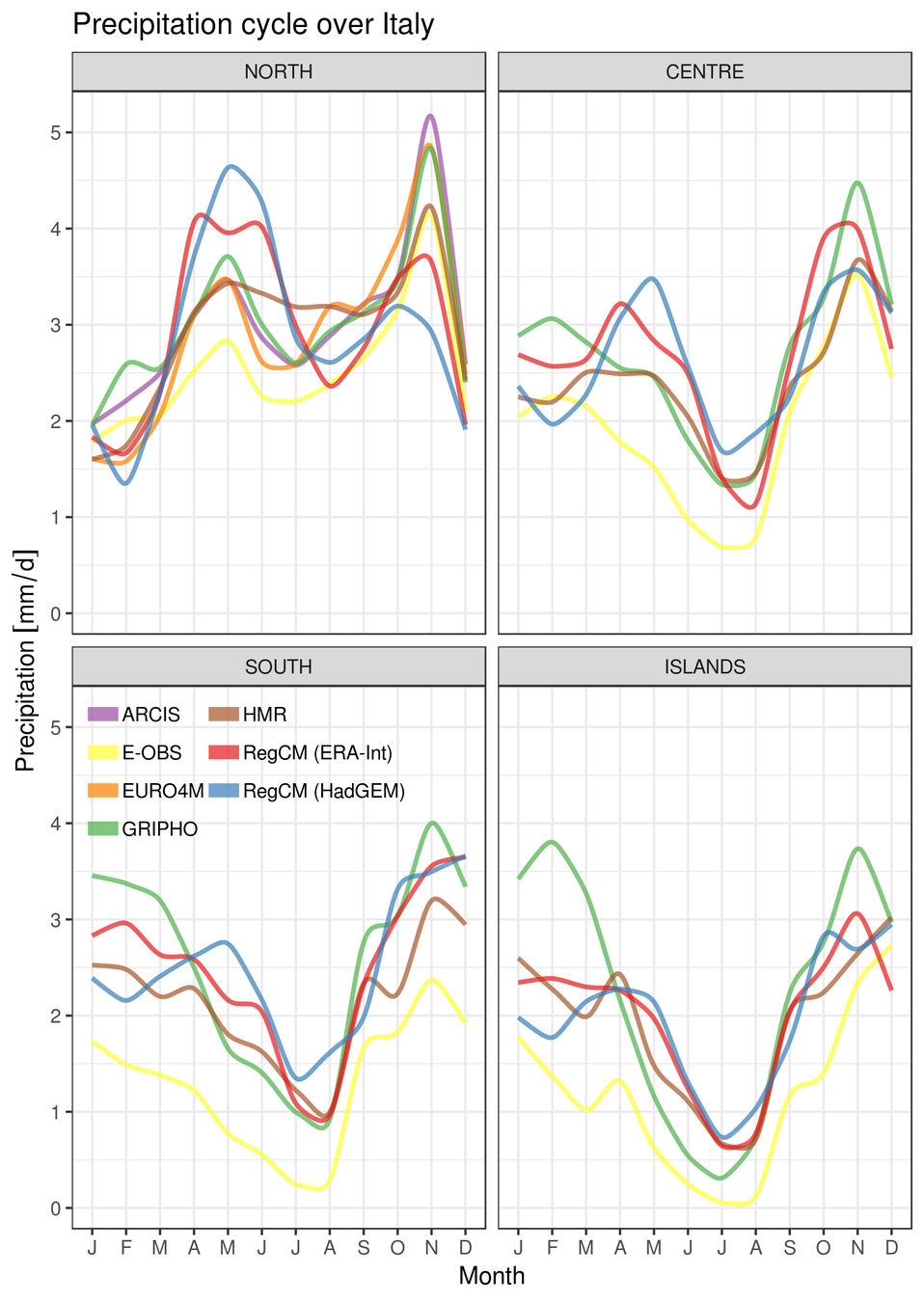

  • Annual cycles
  • Probability Density Functions

Validation against:

  • E-OBS
  • ARCIS
  • HMR
  • EURO4M-APGD

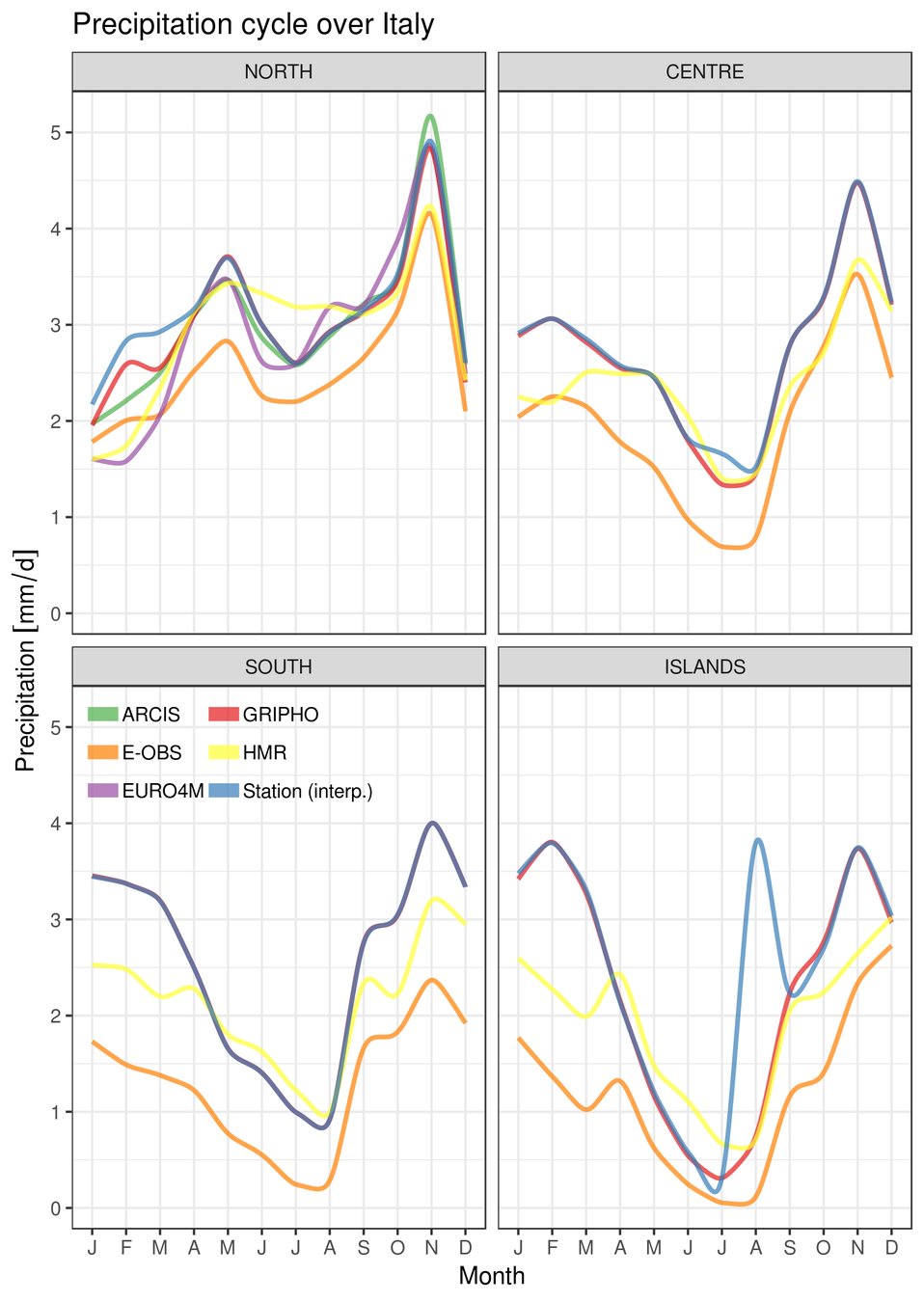

2.6 - The GRIPHO dataset

Validation (mean PR, detail)

GRIPHO

E-OBS

HMR (rean.)

2.7 - The GRIPHO dataset

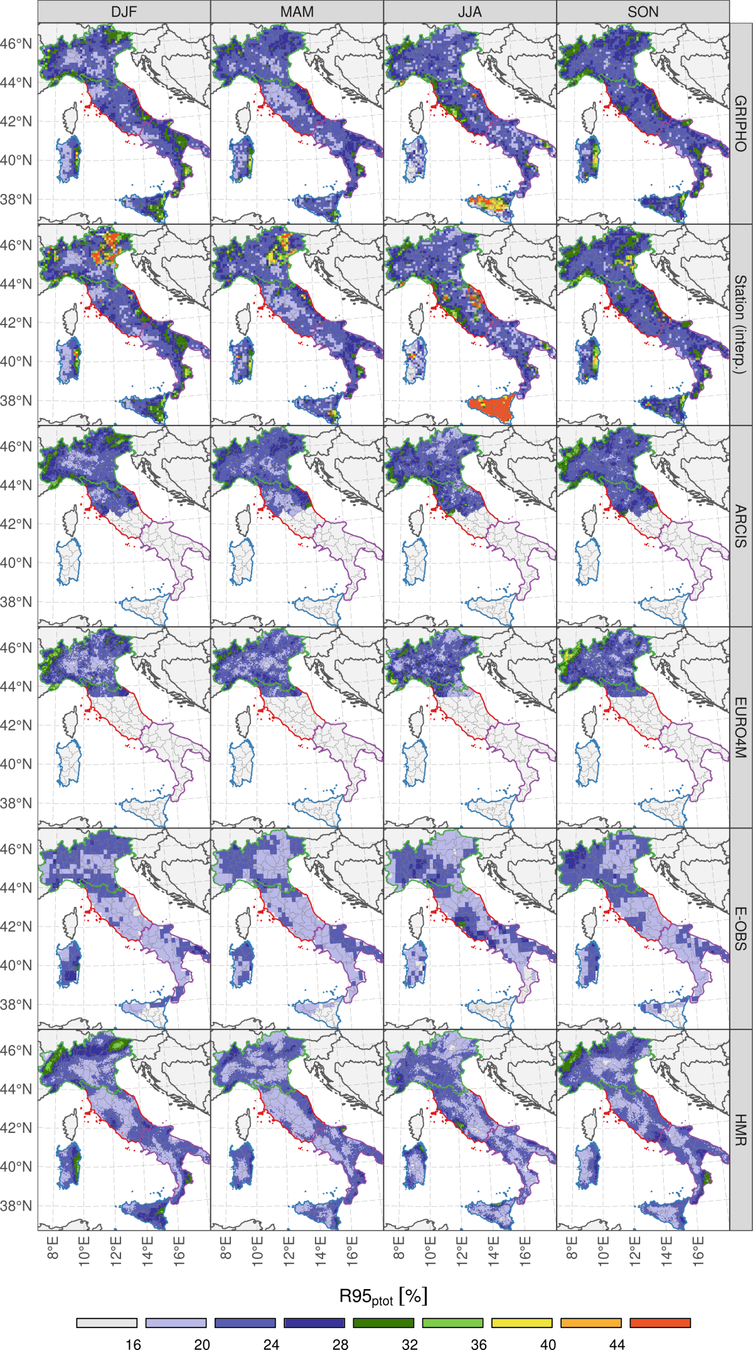

Validation (R95ptot, detail)

GRIPHO

E-OBS

HMR (rean.)

2.8 - The GRIPHO dataset

Conclusions

  • Performance in the North similar to other high resolution datasets (EURO4M-APGD, ARCIS)
  • Much finer details compared to HMR and E-OBS, especially for extremes
  • Only station-based dataset over Italy providing hourly precipitation

Fantini A., Coppola E., Verdecchia M. and Giuliani G.:

GRIPHO: a gridded high-resolution hourly precipitation dataset over Italy’, in preparation

Issues:

  • Further data cleaning must be performed (esp. in Sicily)
  • Some areas are left missing in some time periods, could be filled in?

Automated filtering

  • Removal of extreme values > 200 mm/h
  • Removal of isolated > 100 mm/h reports
  • Removal of complete months with > 1800 mm (2.5 mm/h)
  • Removal of continuous identical values

Rauthe et al. 2013; A Central European precipitation climatology–Part I: Generation and validation of a high-resolution gridded daily data set (HYRAS)

Isotta et al. 2013; The climate of daily precipitation in the Alps: development and analysis of a high‐resolution grid dataset from pan‐Alpine rain‐gauge data

Perry et al., 2009; The generation of daily gridded datasets of temperature and rainfall for the UK

Hiebl et al., 2017; Daily precipitation grids for Austria since 1961—development and evaluation of a spatial dataset for hydroclimatic monitoring and modelling



2.x - The GRIPHO dataset

Flagging

  • Total % of valid values
  • Total % of valid values ≠ 0
  • % of events > mean + {10,15,25} SD
  • % of events > median + {10,15,25} IQR
  • % of events with 50 < pr < 100mm/h
  • % of events with pr > 100mm/h
  • % of the top {1,5,10} most common values
Before After Diff
Total valid values 250M 243M -2.6%
Total flags 324468 58008 -82.1%
pr > Mean + 20SD  3240 2538 -21.7%
pr > Median + 20IQR  49753 22519 -54.7%
pr > 100 mm/h  221822 711 -99.7%
Other softer flags 49646 32240 -35.1%

2.x - The GRIPHO dataset

Results on warning flags

FILTERED

ORIGINAL

2.x - The GRIPHO dataset

Data cleaning (mean PR)

MANUALLY CLEANED

ONLY AUTO CLEANED

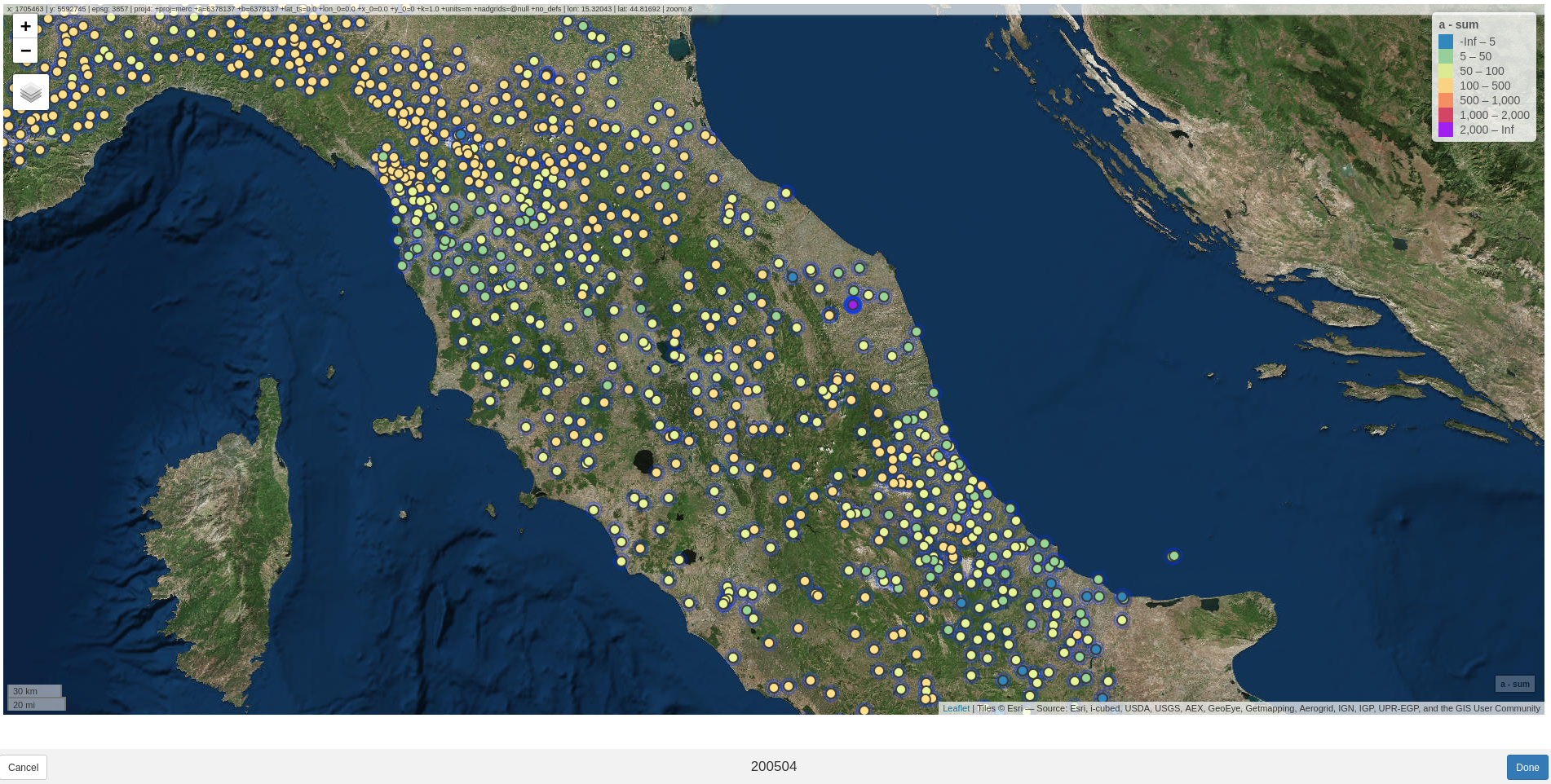

Manual filtering on a monthly basis

2.x - The GRIPHO dataset

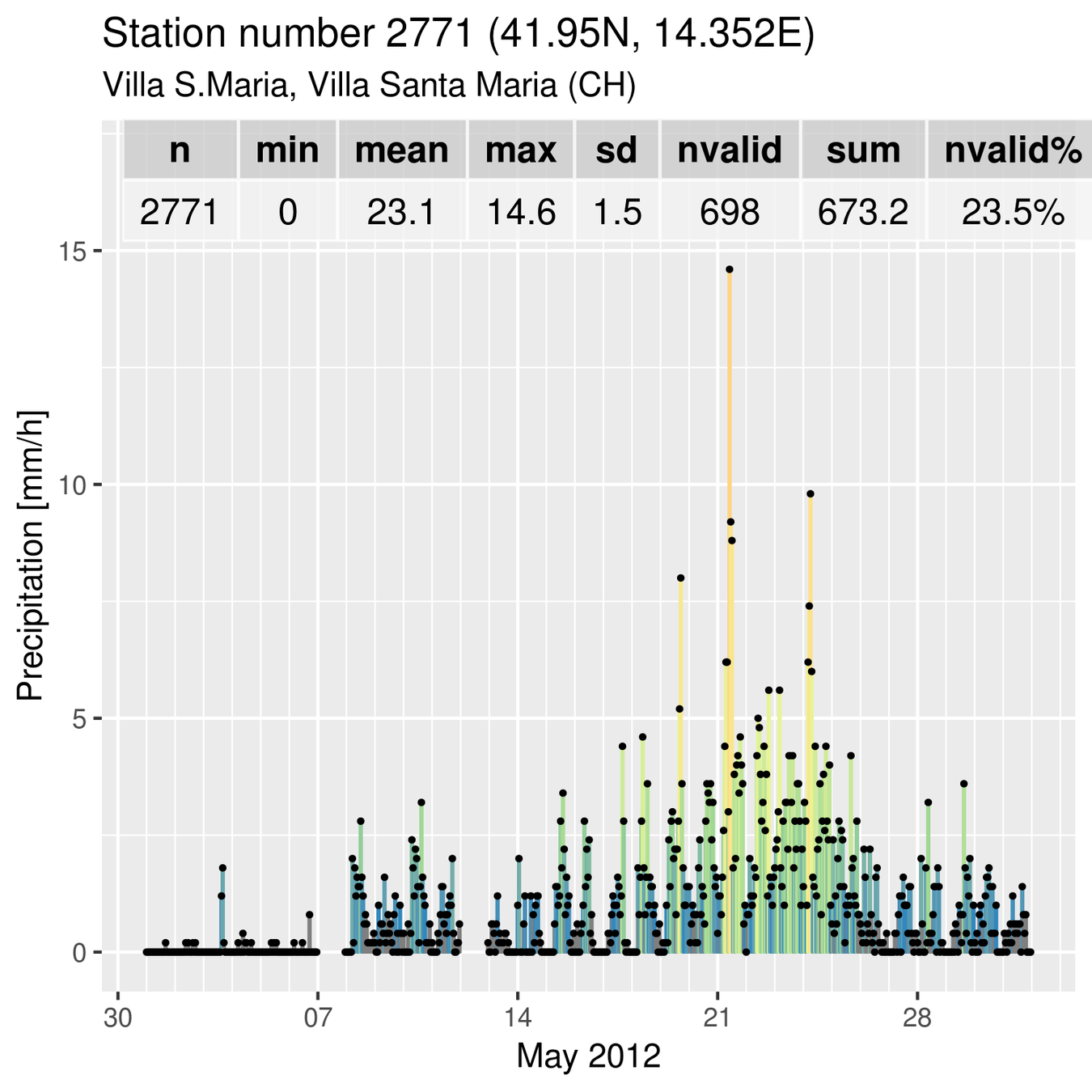

Some examples...

Outliers

2.x - The GRIPHO dataset

2.x - The GRIPHO dataset

Validation

2.x - The GRIPHO dataset

Validation

2.x - The GRIPHO dataset

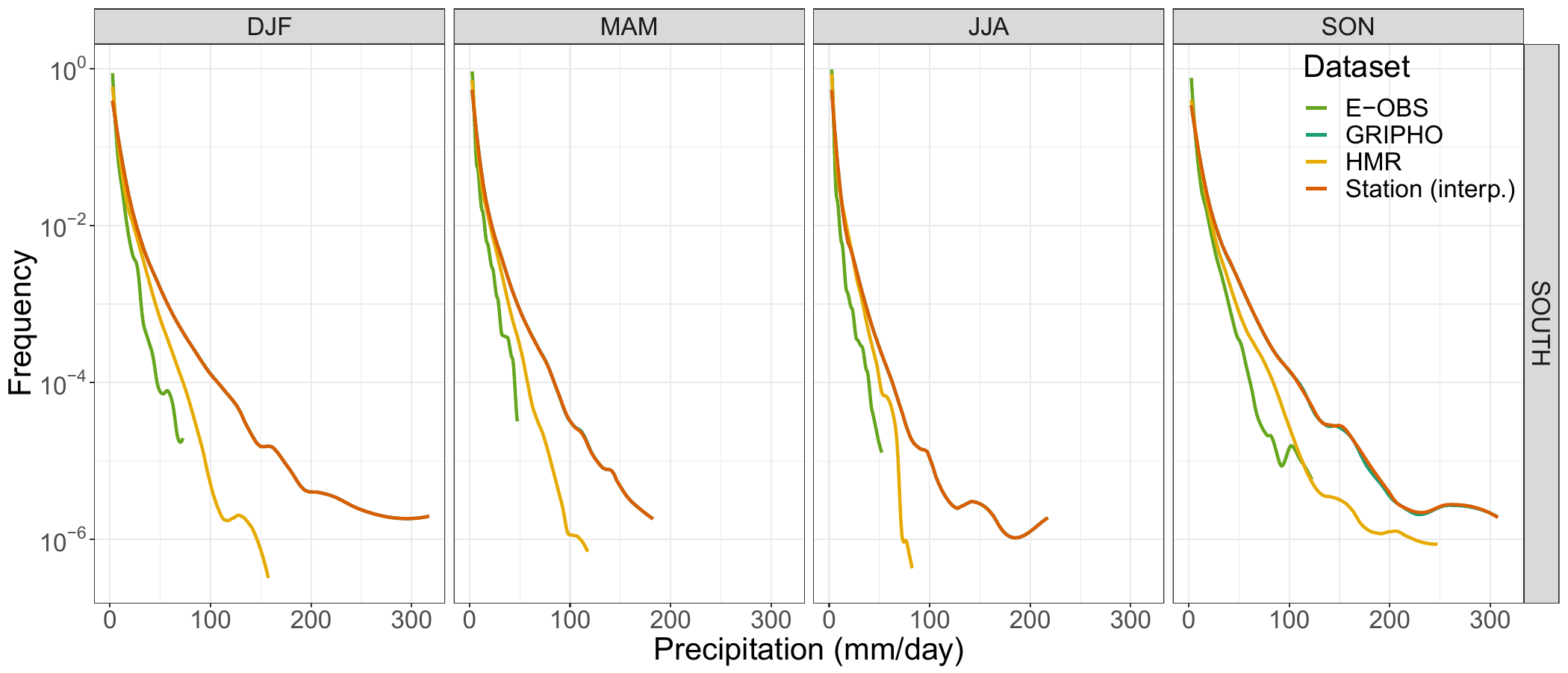

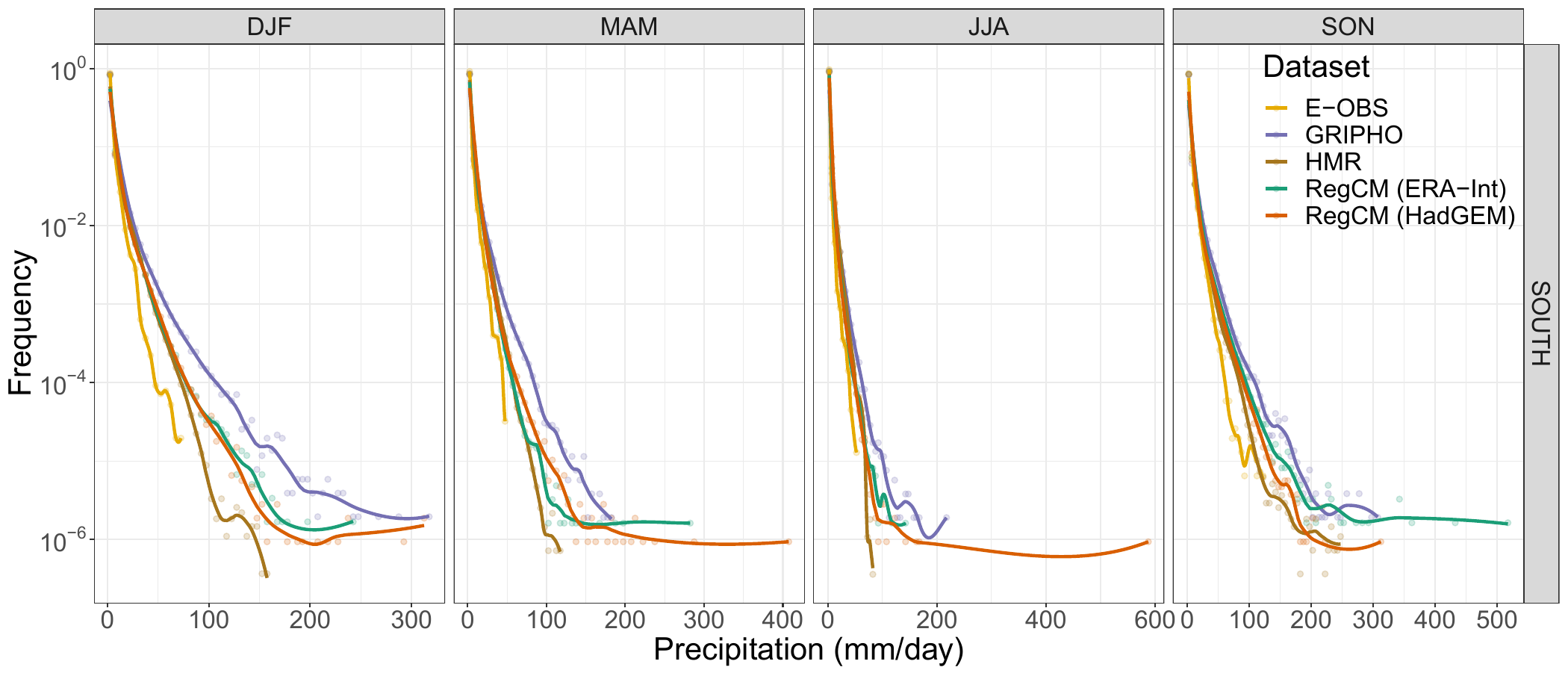

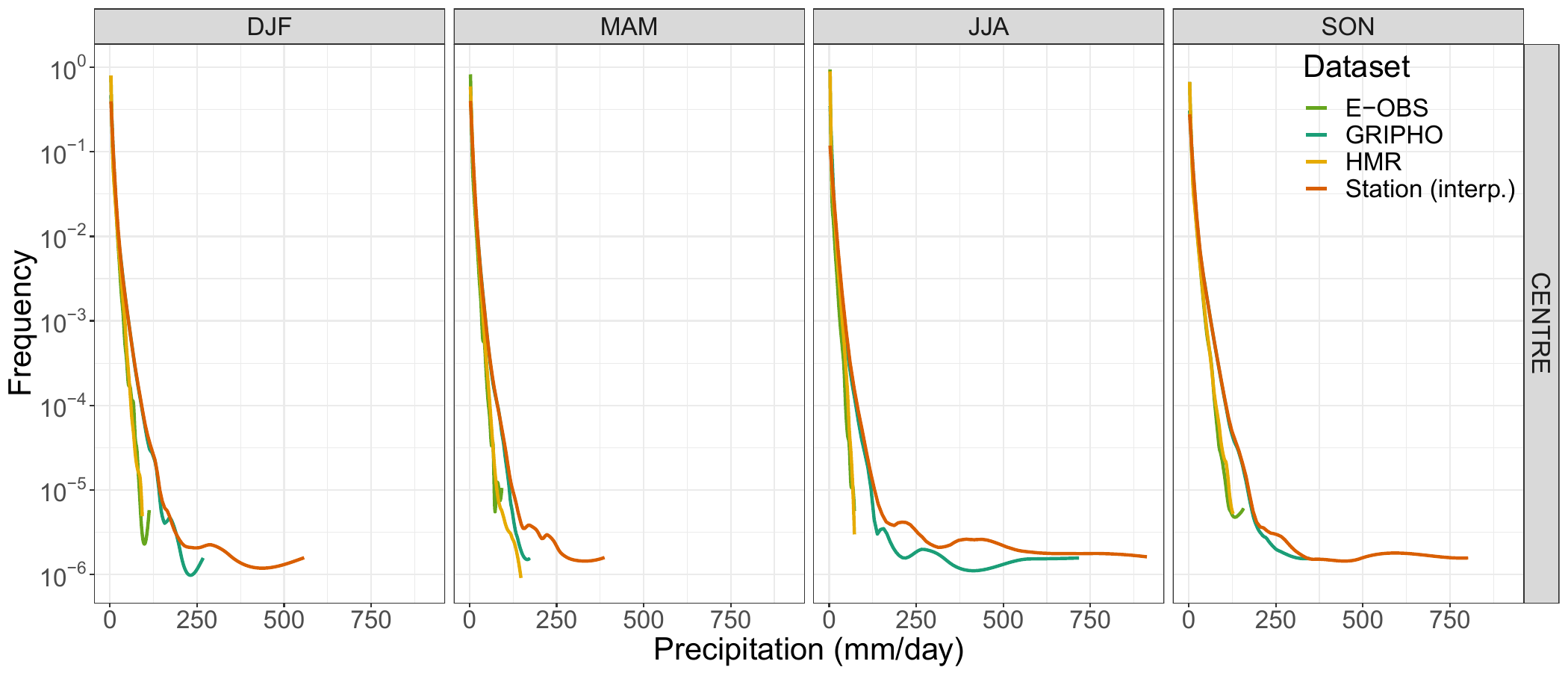

Validation (PDF, detail)

2.x - The GRIPHO dataset

2.x - The GRIPHO dataset

3.0 - Regional Climate Model

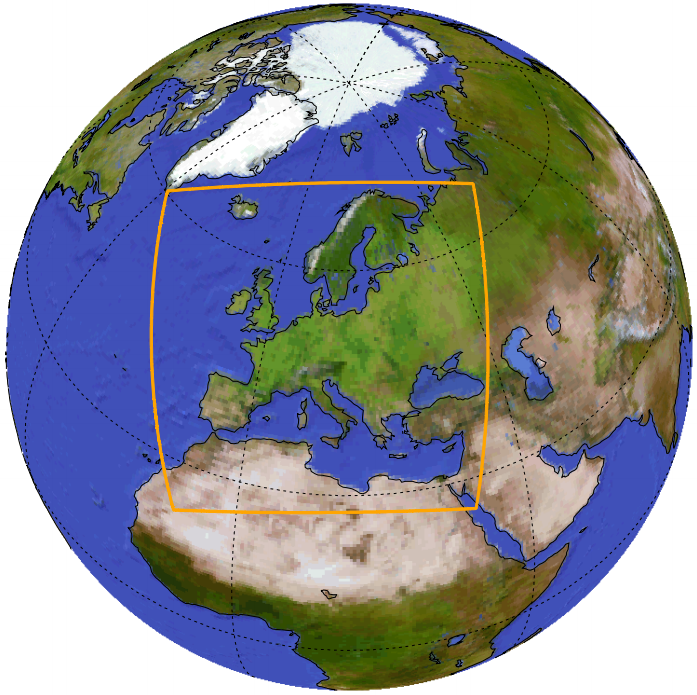

Two RegCM 4.6.1 12km EURO-CORDEX simulations run on ICTP's Argo and CINECA's Marconi clusters:

  1. ERA-Interim driven 1979-2016 historical simulation
  2. HadGEM driven 1971-2099 scenario simulation (RCP8.5)

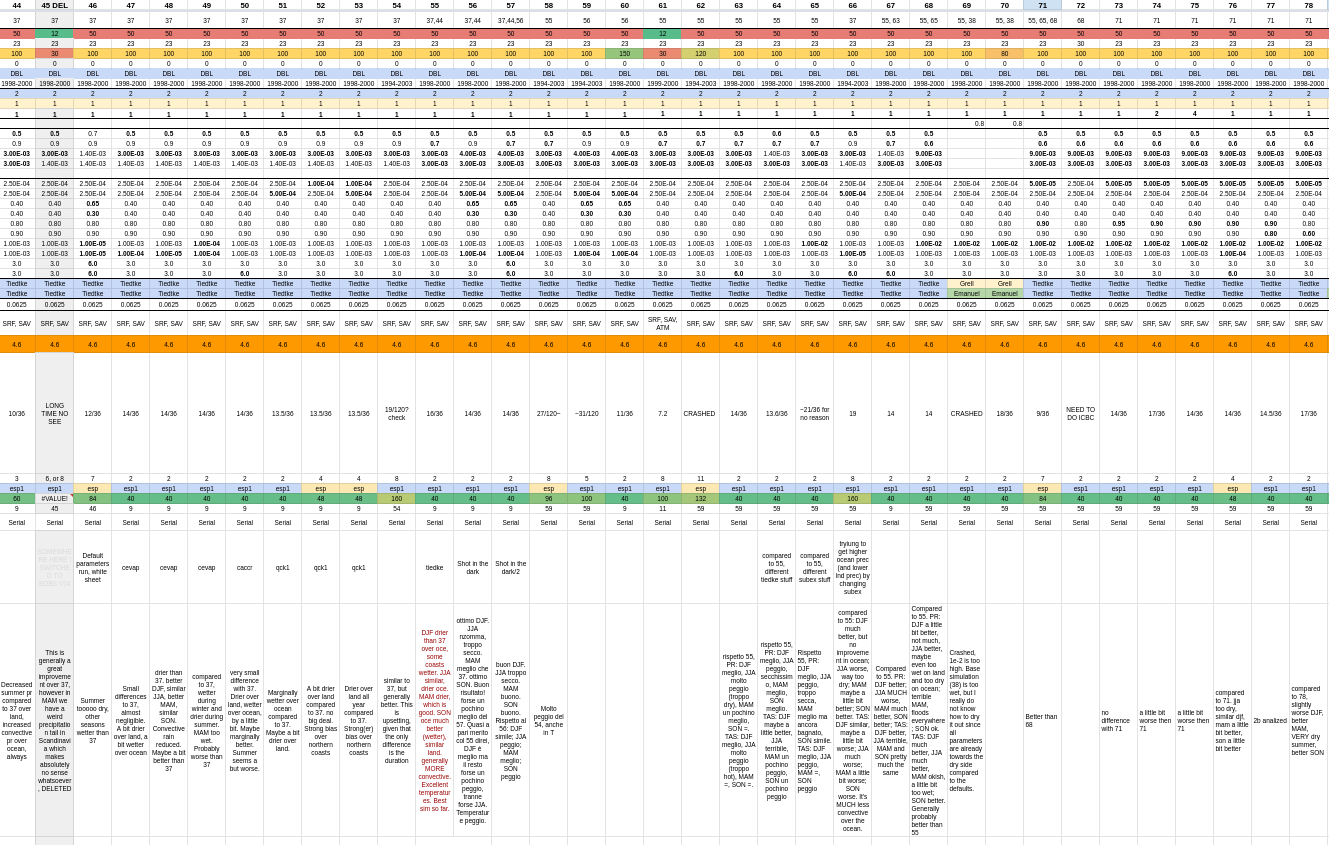

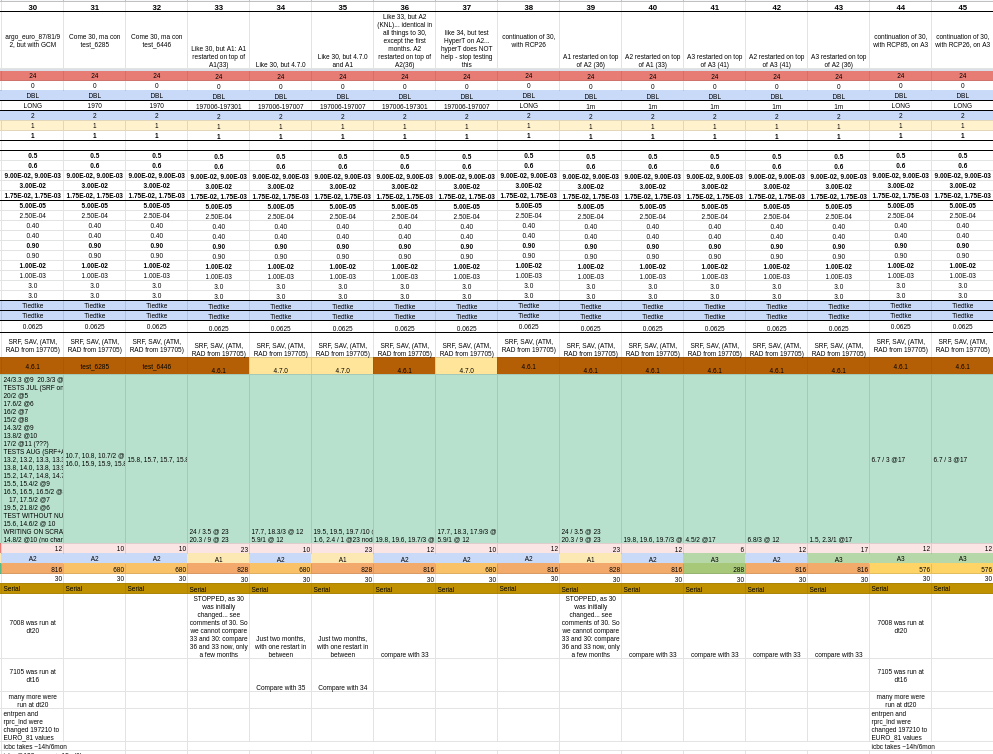

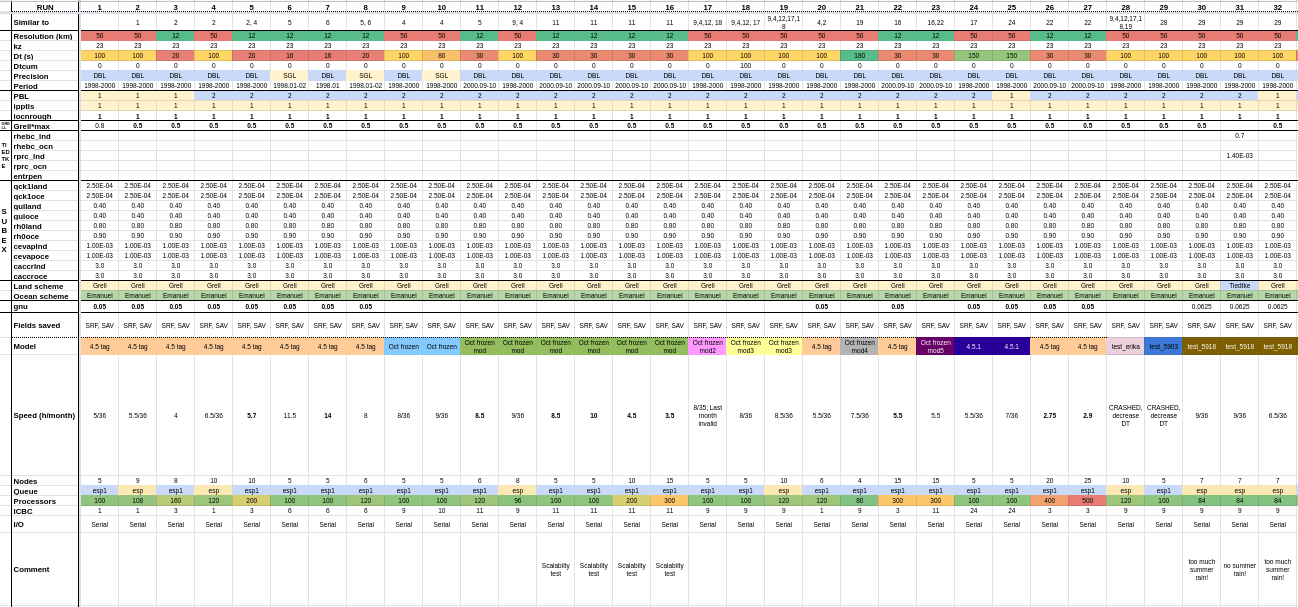

  • 135 3-year tuning experiments
  • 6000 runtime hours
  • 3 million core-hours
  • >100TB disk usage

Thanks to James Ciarlo` for running part of the HadGEM driven simulation!

3.1 - Regional Climate Model

Does the model perform well?

Validation for precipitation + temperature:

  • Mean seasonal
  • Extremes (R95ptot, R99ptot)
  • Annual cycles
  • Probability Density Functions

3.2 - Regional Climate Model

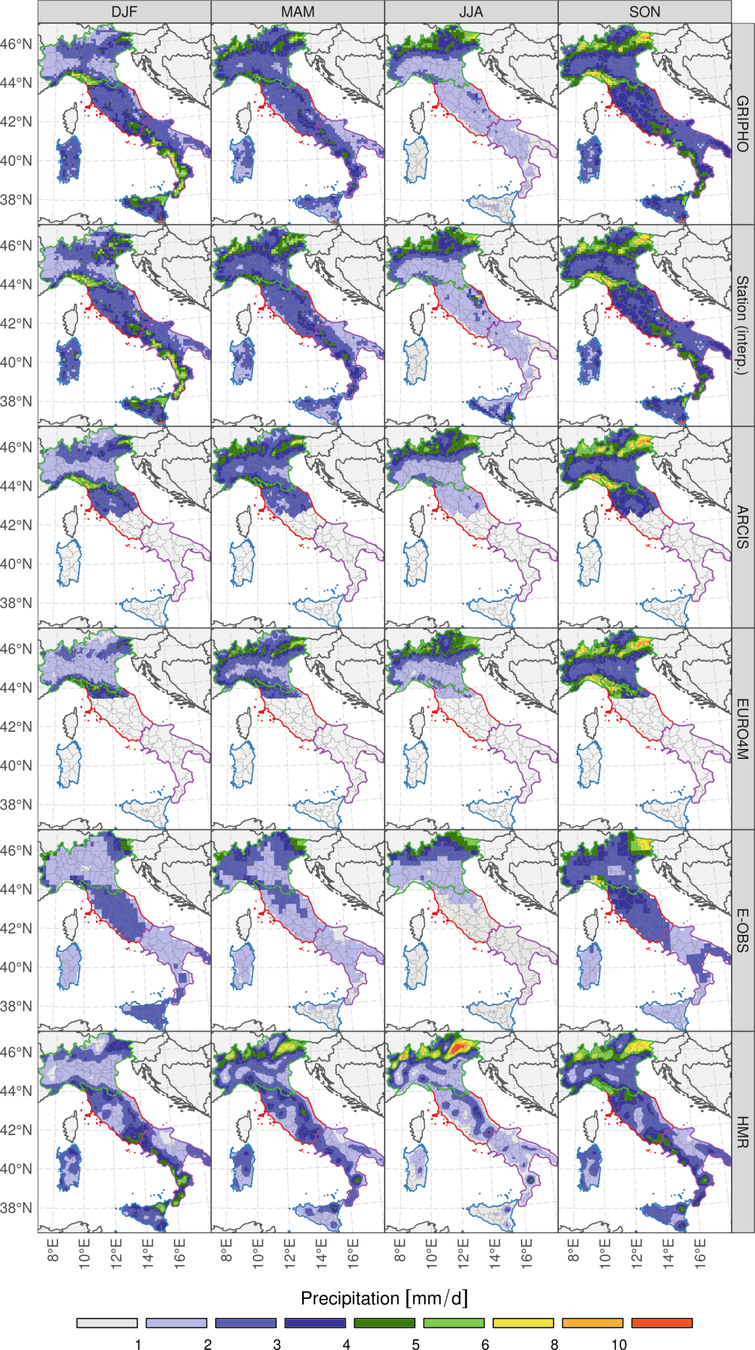

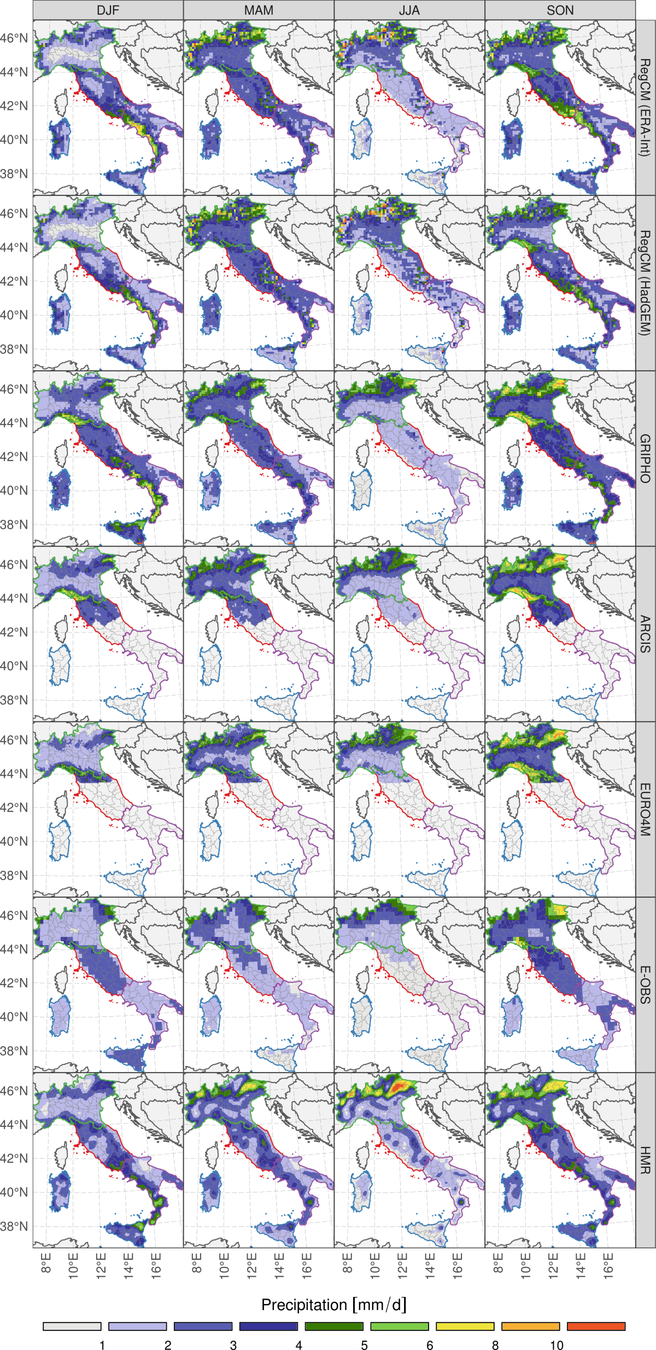

Validation (mean PR, detail)

3.3 - Regional Climate Model

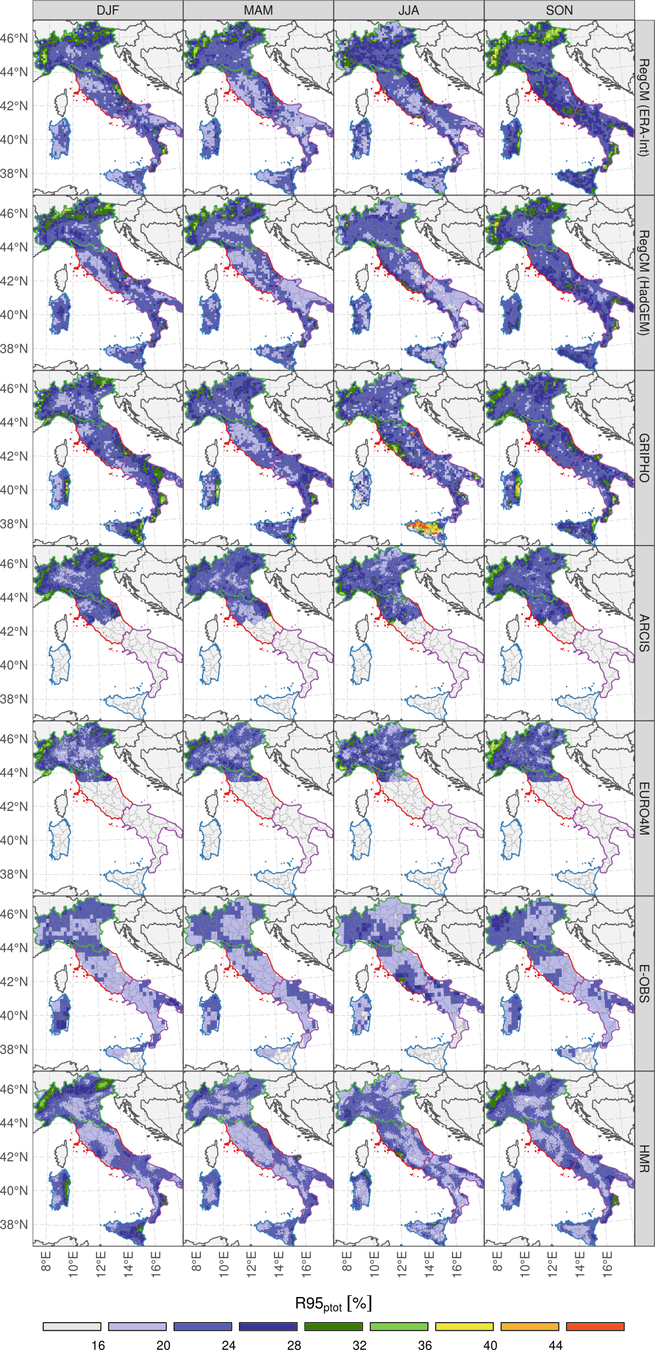

Validation (R95ptot, detail)

3.4 - Regional Climate Model

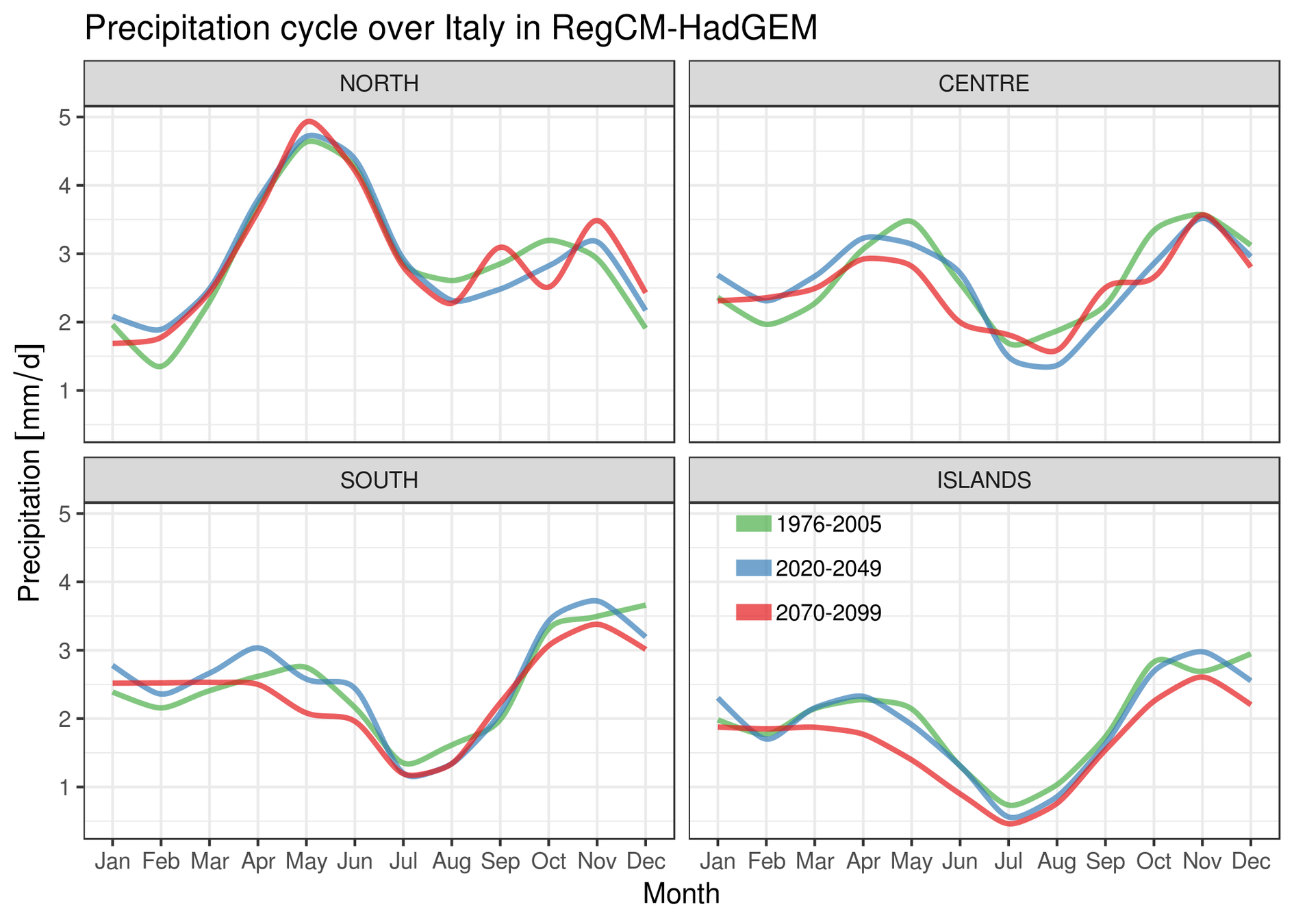

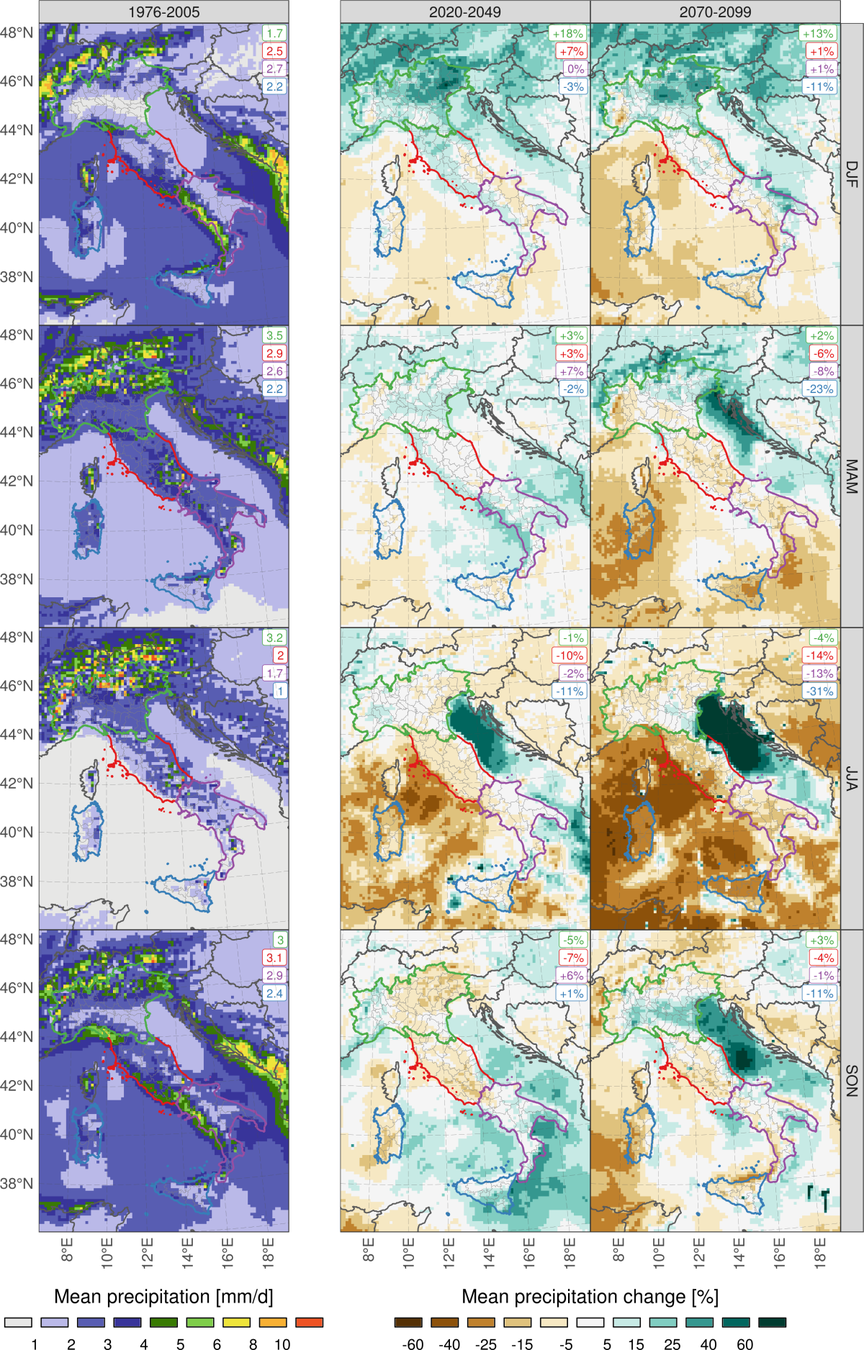

Mean PR change

3.5 - Regional Climate Model

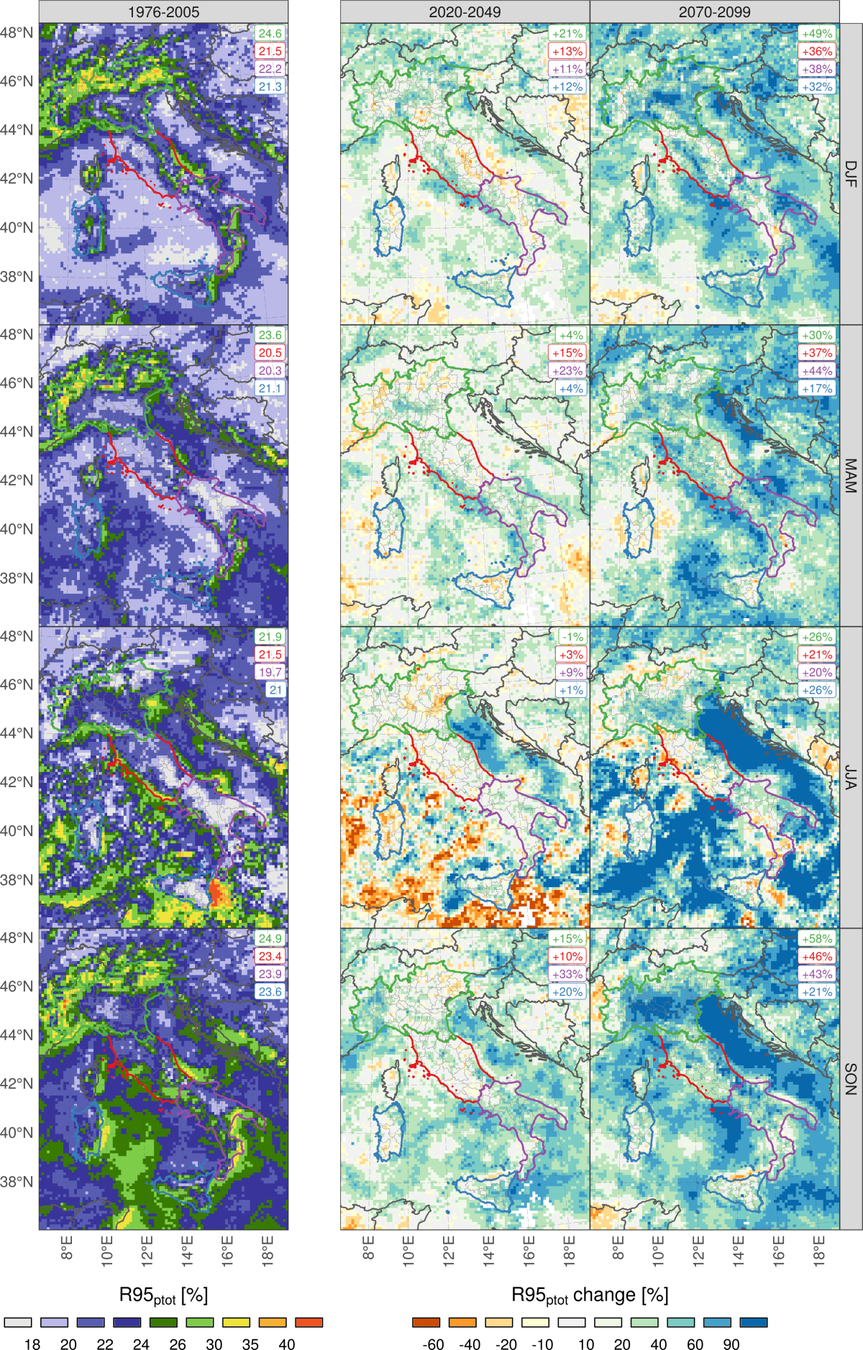

Mean R95ptot change

3.6 - Regional Climate Model

RegCM Conclusions

  • Model precipitation and temperature generally in line with observations
  • Increased projected average precipitation by the end of the century in winter in the north; decrease in the south and isles in summer            dipole
  • Precipitation extremes projected to strongly increase
  • The most extreme events increase more

3.x - Regional Climate Model

3.x - Regional Climate Model

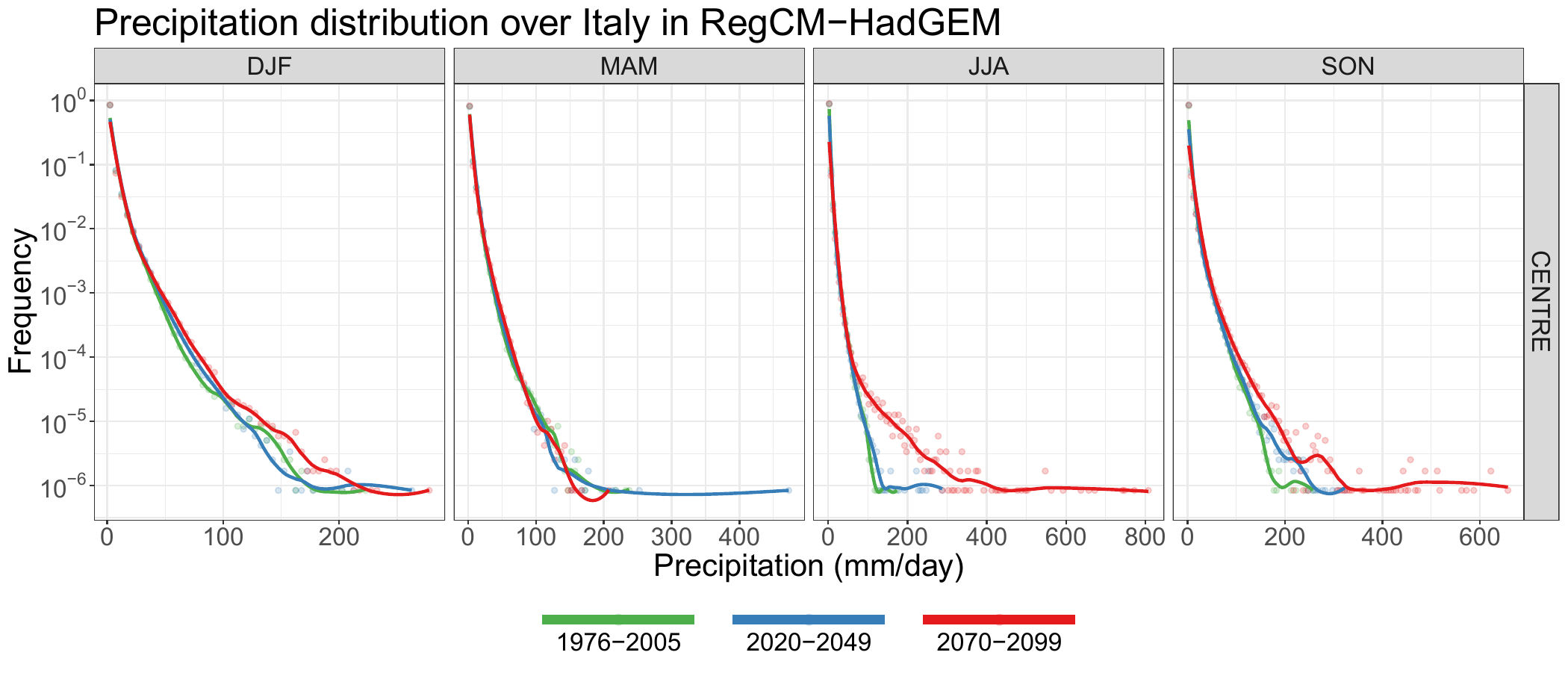

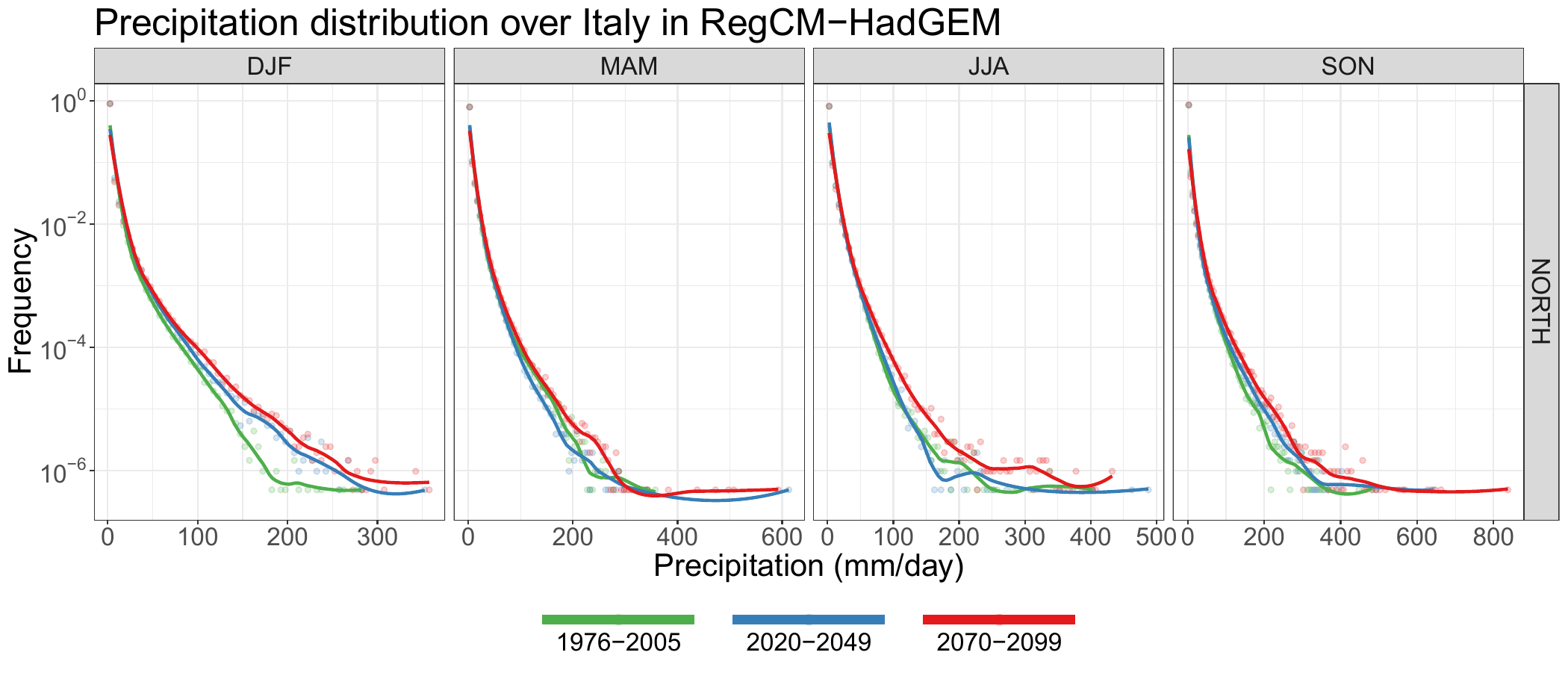

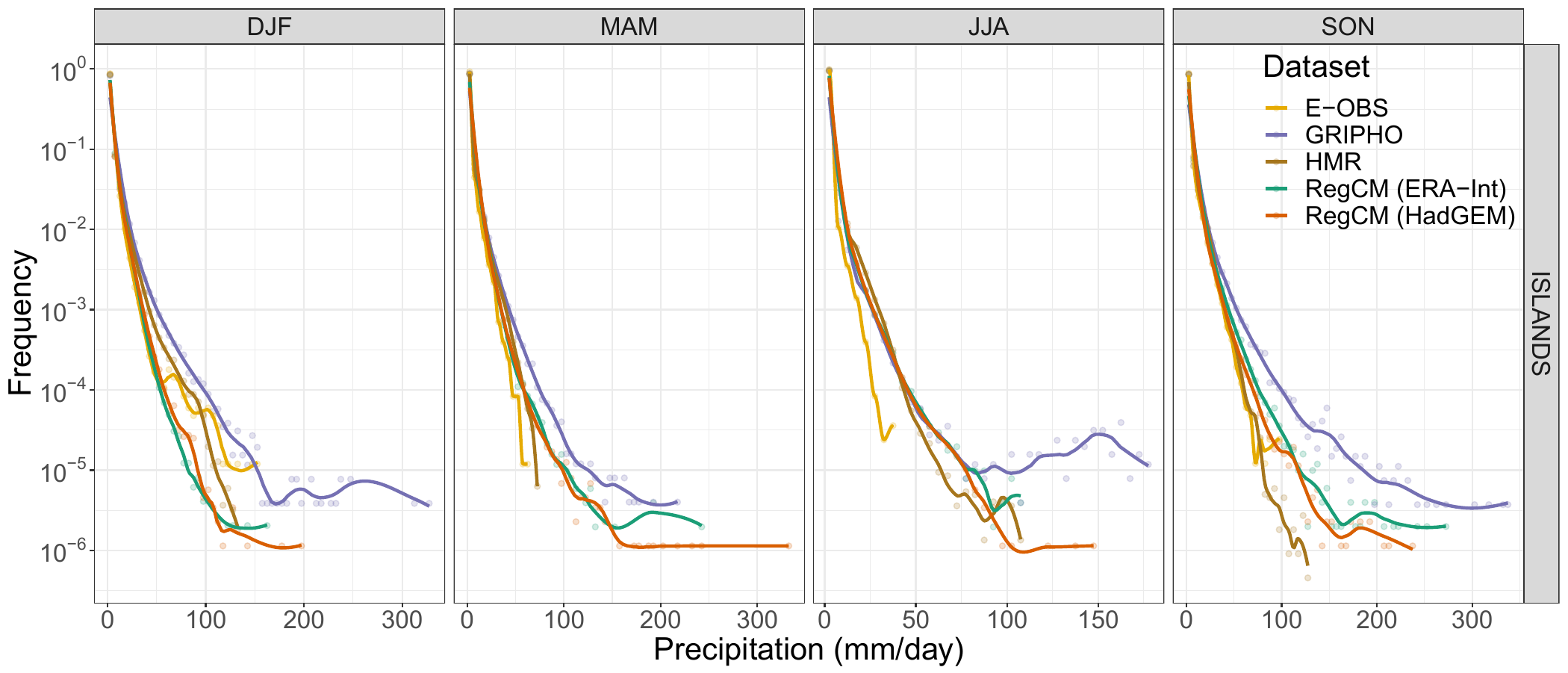

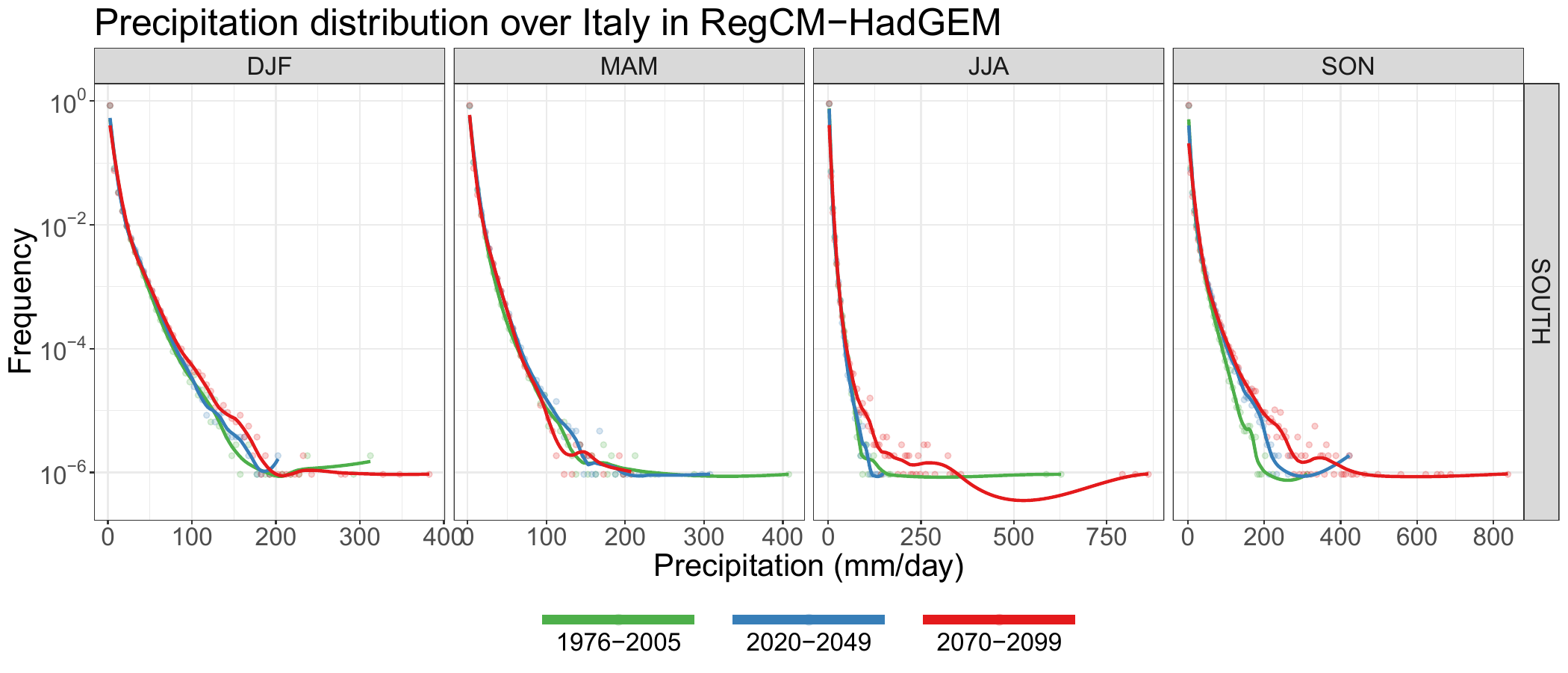

PDF change

3.x - Regional Climate Model

PDF change

3.x - Regional Climate Model

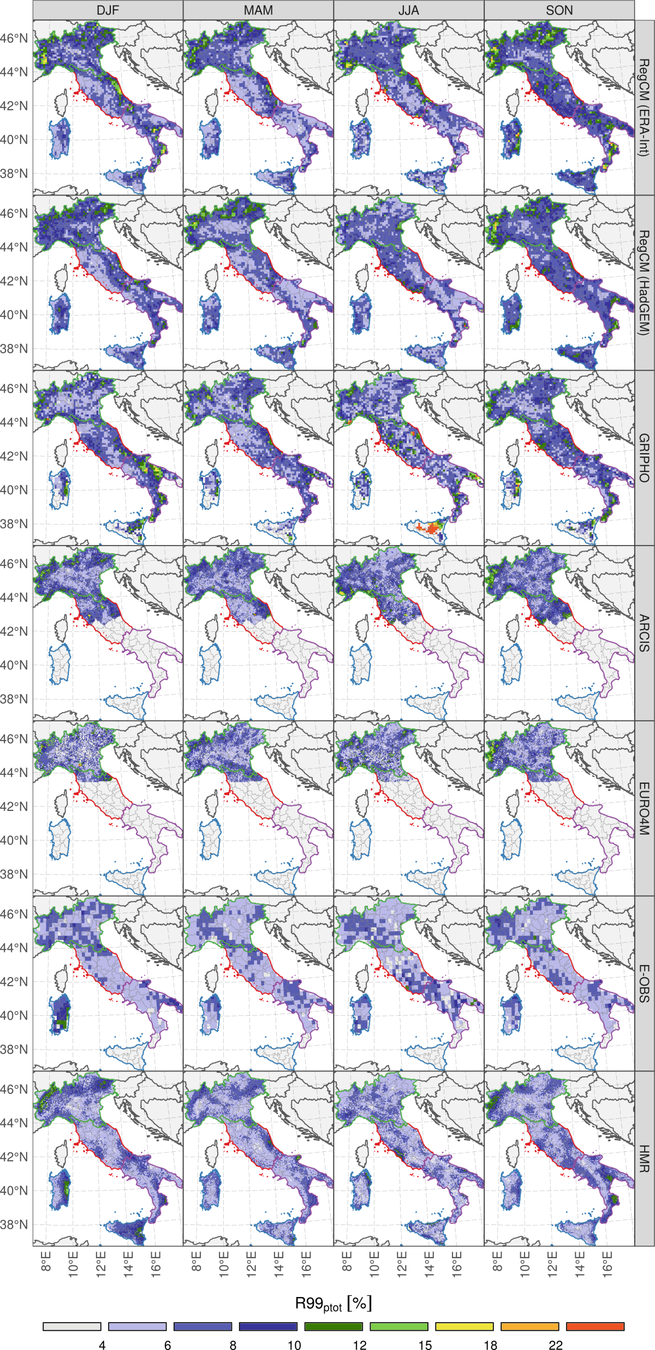

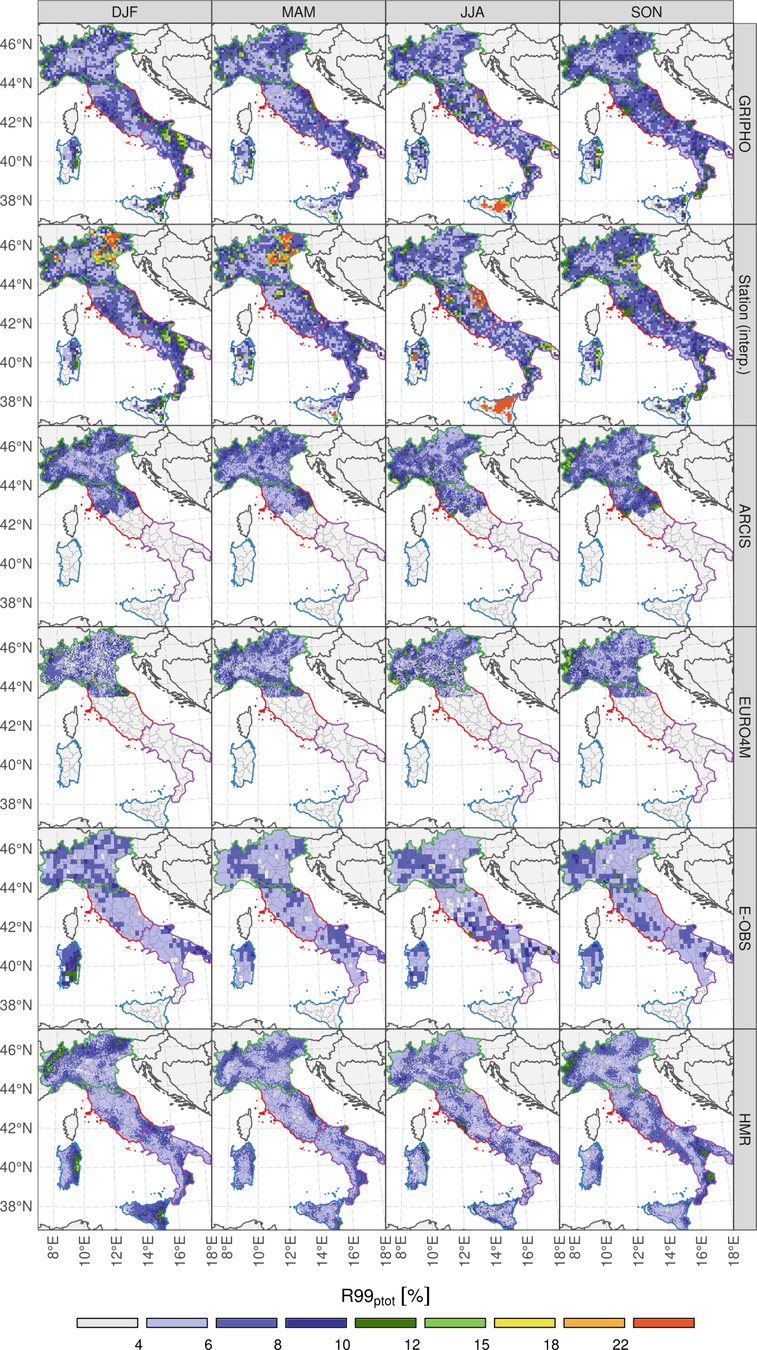

R95ptot validation

3.x - Regional Climate Model

R99ptot validation

3.x - Regional Climate Model

TAS

PR

3.x - Regional Climate Model

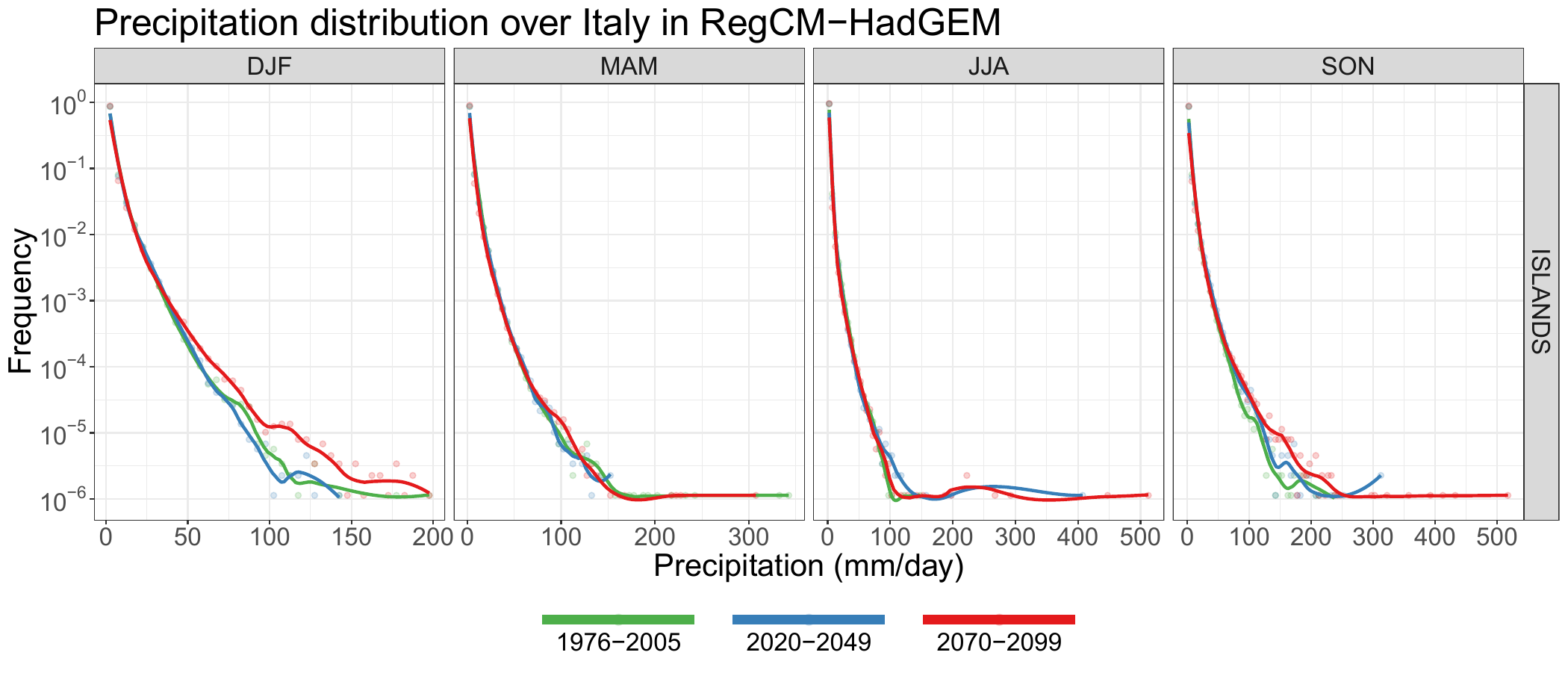

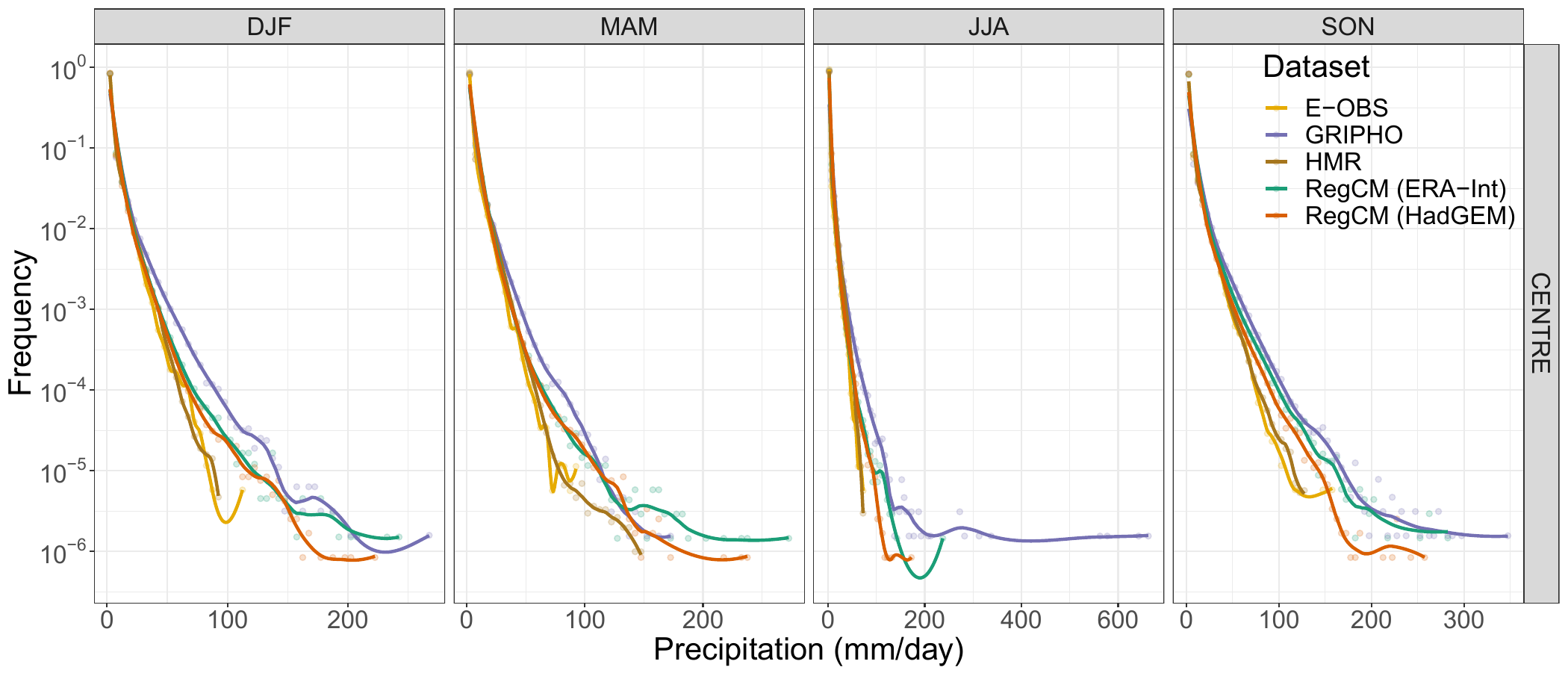

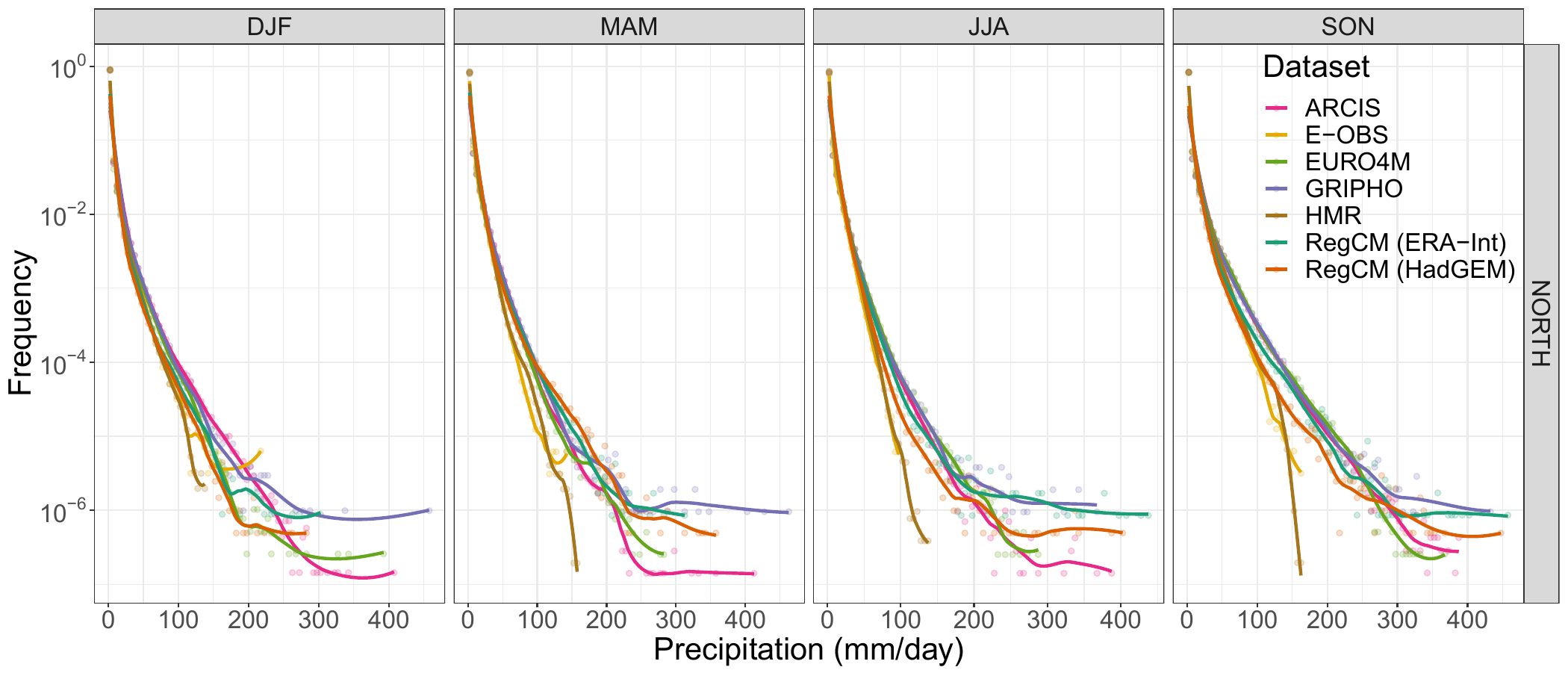

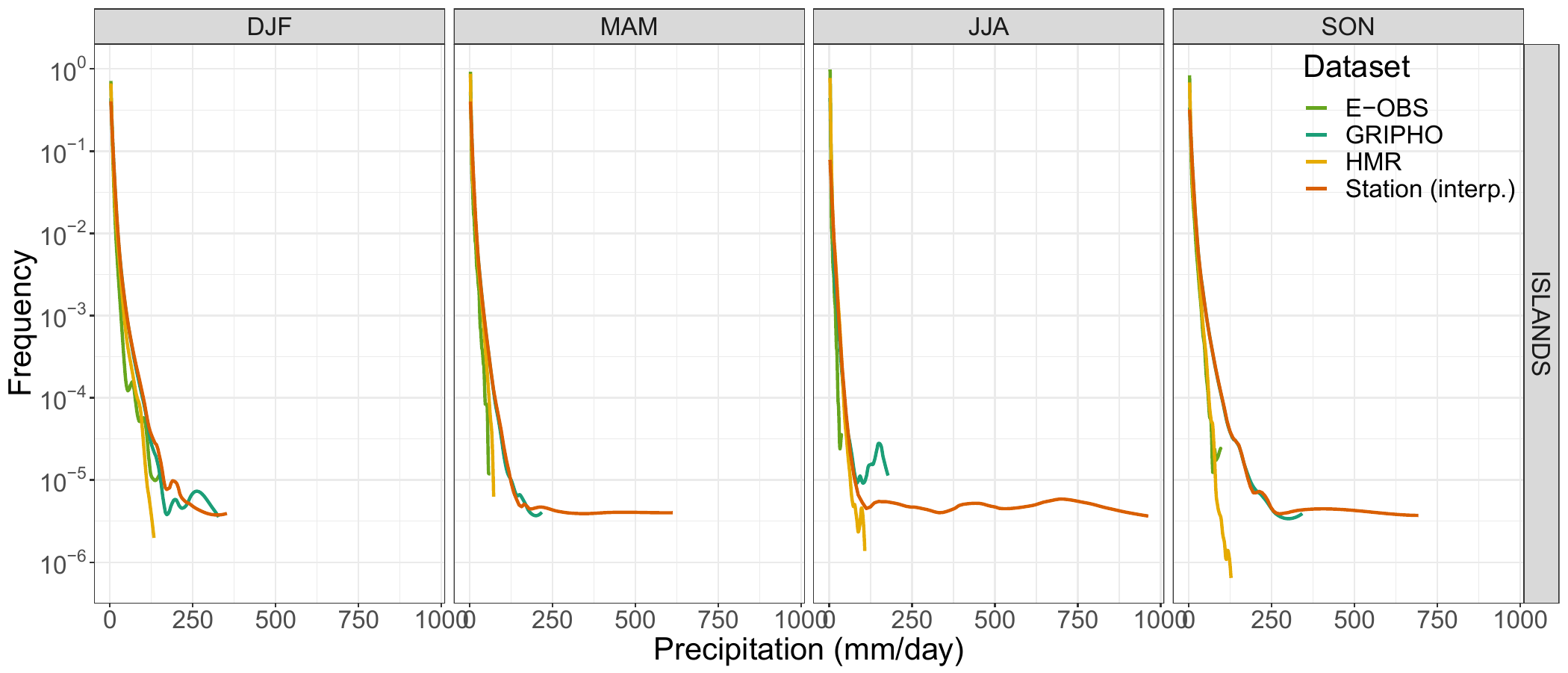

PDF validation

3.x - Regional Climate Model

PDF validation

3.x - Regional Climate Model

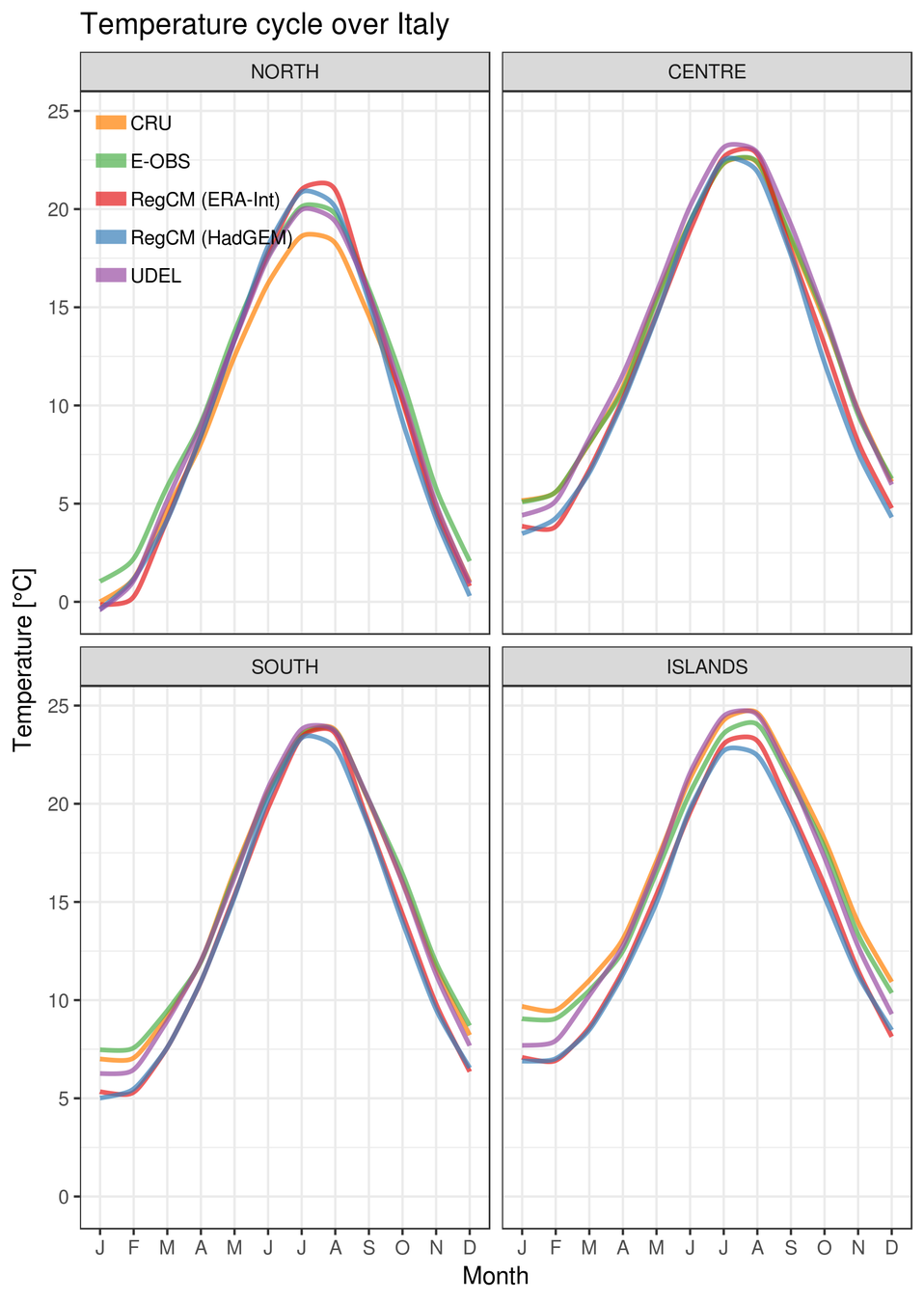

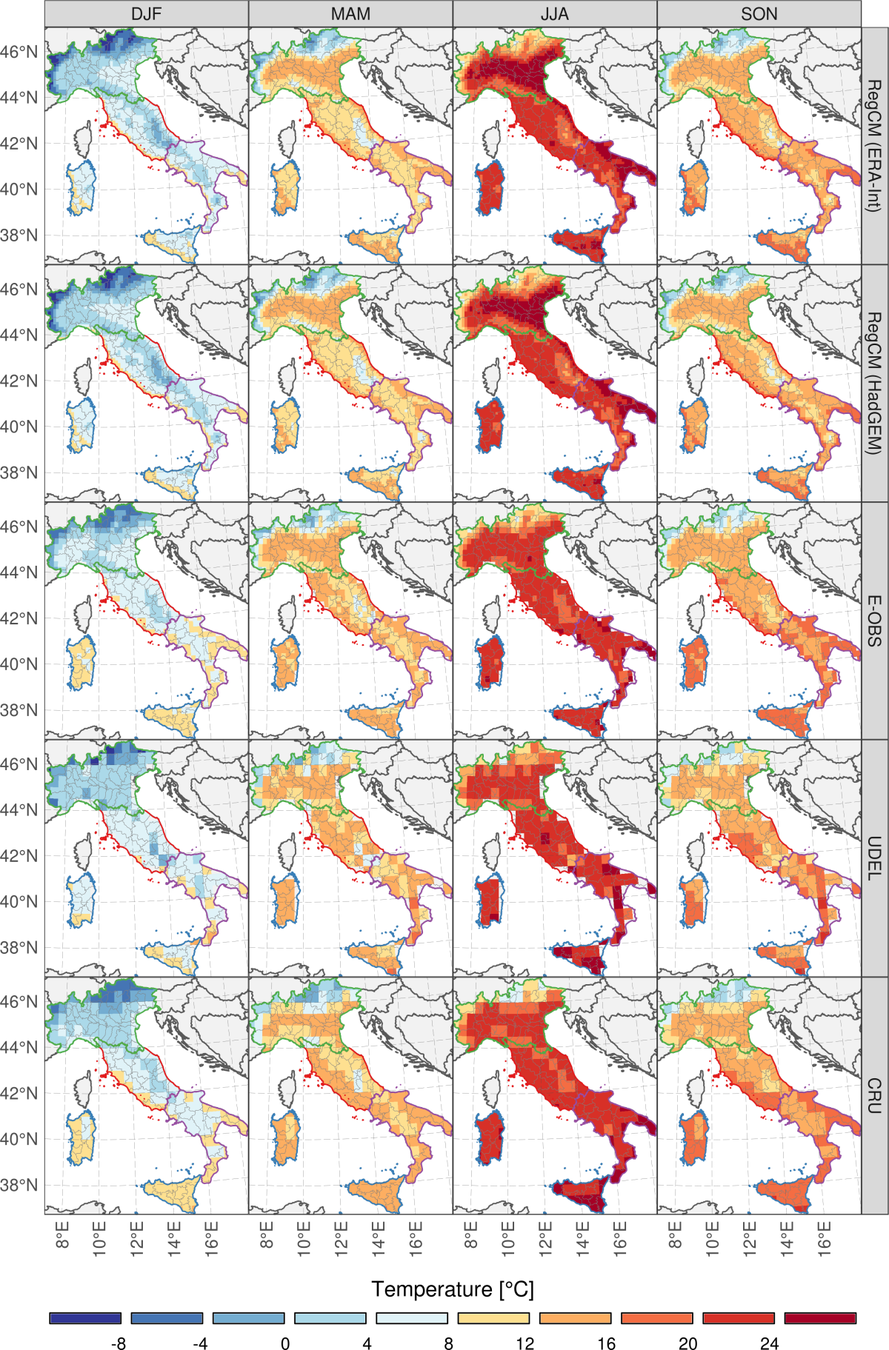

Temperature validation

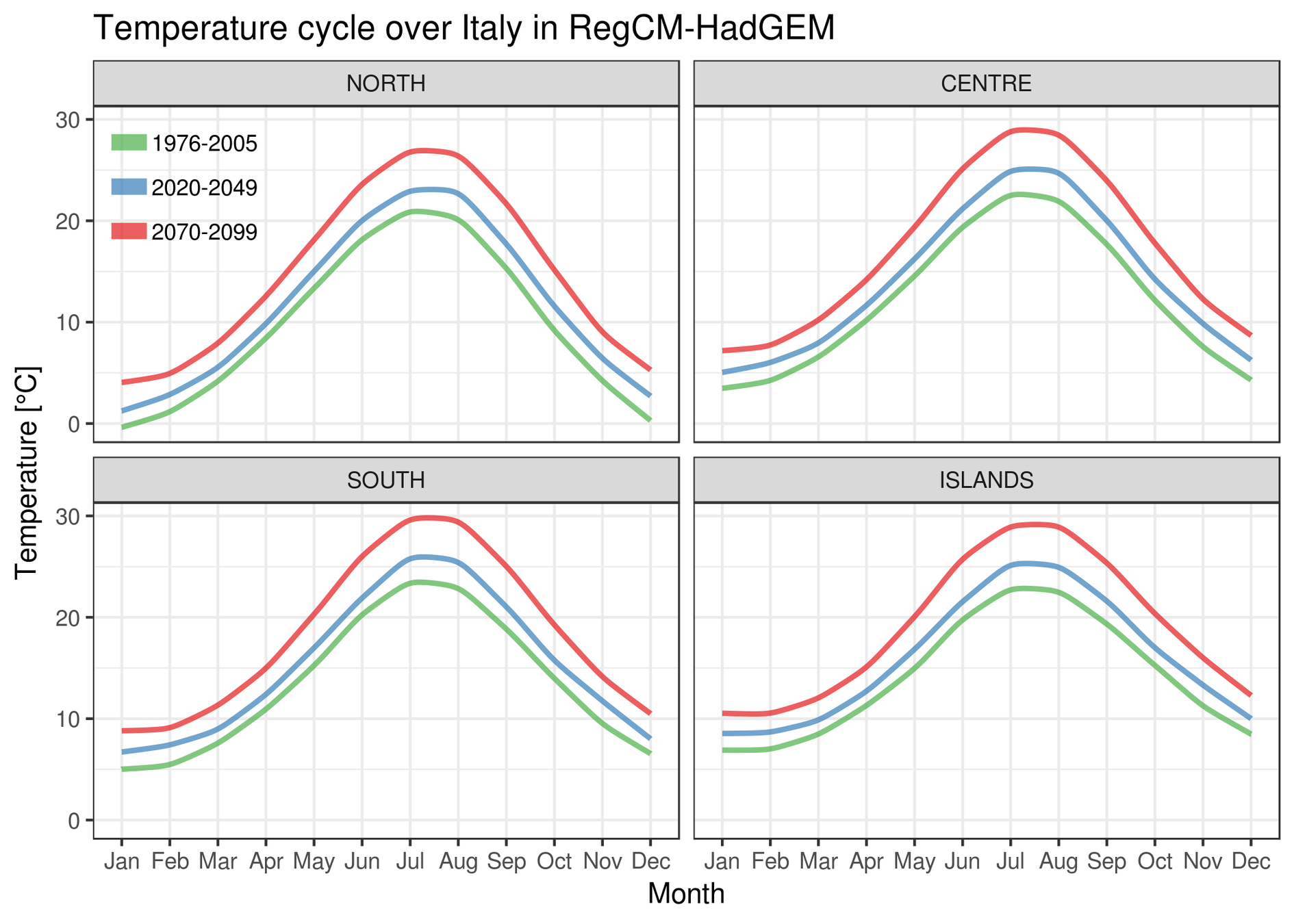

3.x - Regional Climate Model

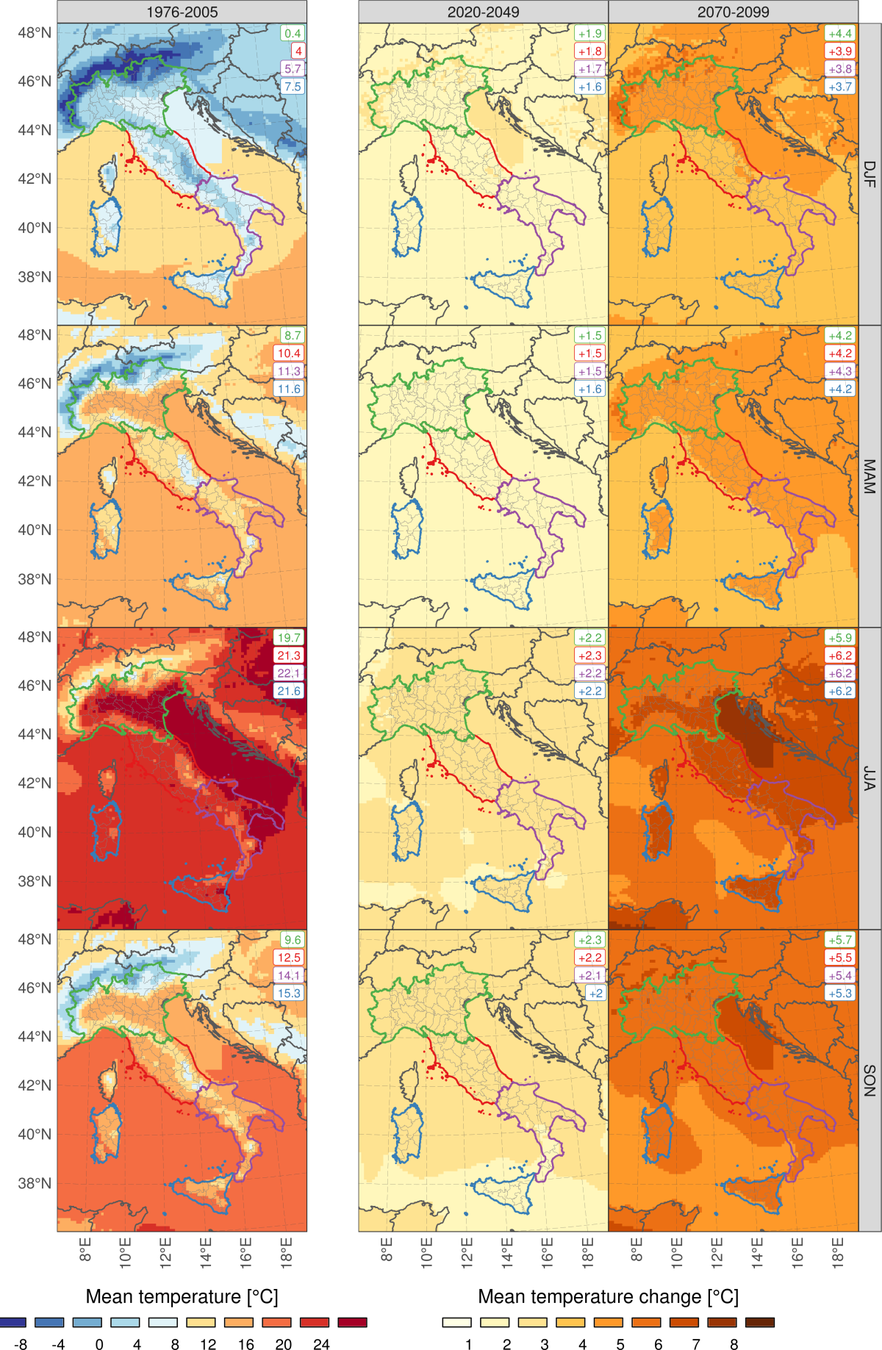

Temperature change

4.0 - Cetemps Hydrological Model

CHyM Is a distributed (gridded) hydrological model. Peculiarities:

  • Can build DEM from various sources, smoothing by cellula automata algorithms
  • Can use several kind of inputs, such as station observations, gridded model data, etc.
  • Designed to work on any domain
  • Used daily at CETEMPS for operational forecasts
  • Hourly NetCDF output

4.1 - Cetemps Hydrological Model

  • 9 simulated domains

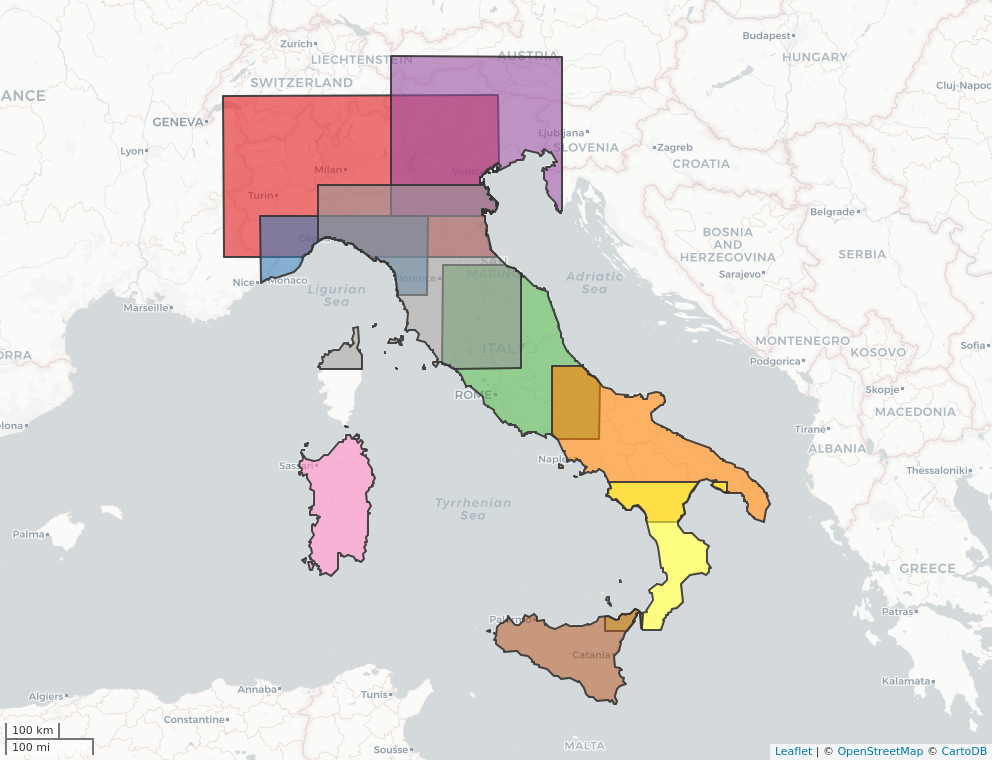

  • Tested several Digital Elevation Models, chose HydroSHEDS
  • Specific tuning for each region
  • 300-900m resolution
  • Argo and Marconi clusters
  • 3000 runtime hours
  • 100k core-hours
  • ~35TB

Three PR drivers:

  • GRIPHO (MM5) 2001-2016
  • RegCM-ERA       1980-2016
  • RegCM-HAD      1972-2099

4.2 - Cetemps Hydrological Model

Does the model perform well?

Validation only possible against a few discharge stations:

  • Average discharge
  • Yearly maximum discharge
  • Projected Q100 discharge
  • Standard hydrological model metrics (NSE, KGE, correlation, index of agreement, ...)

4.3 - Cetemps Hydrological Model

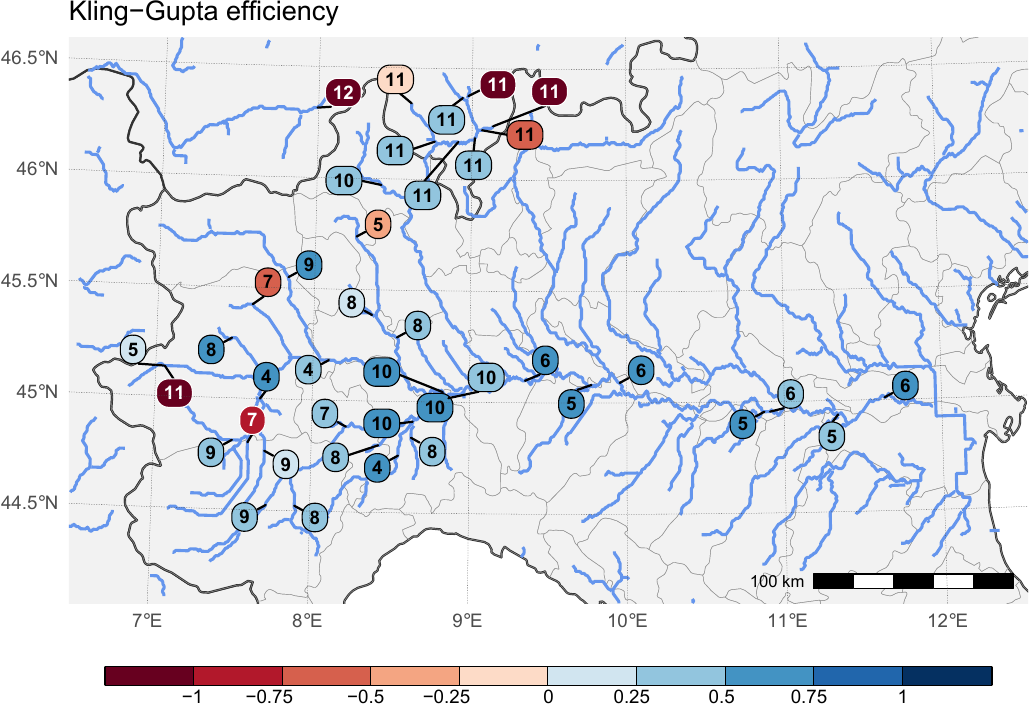

CHyM (GRIPHO)

4.4 - Cetemps Hydrological Model

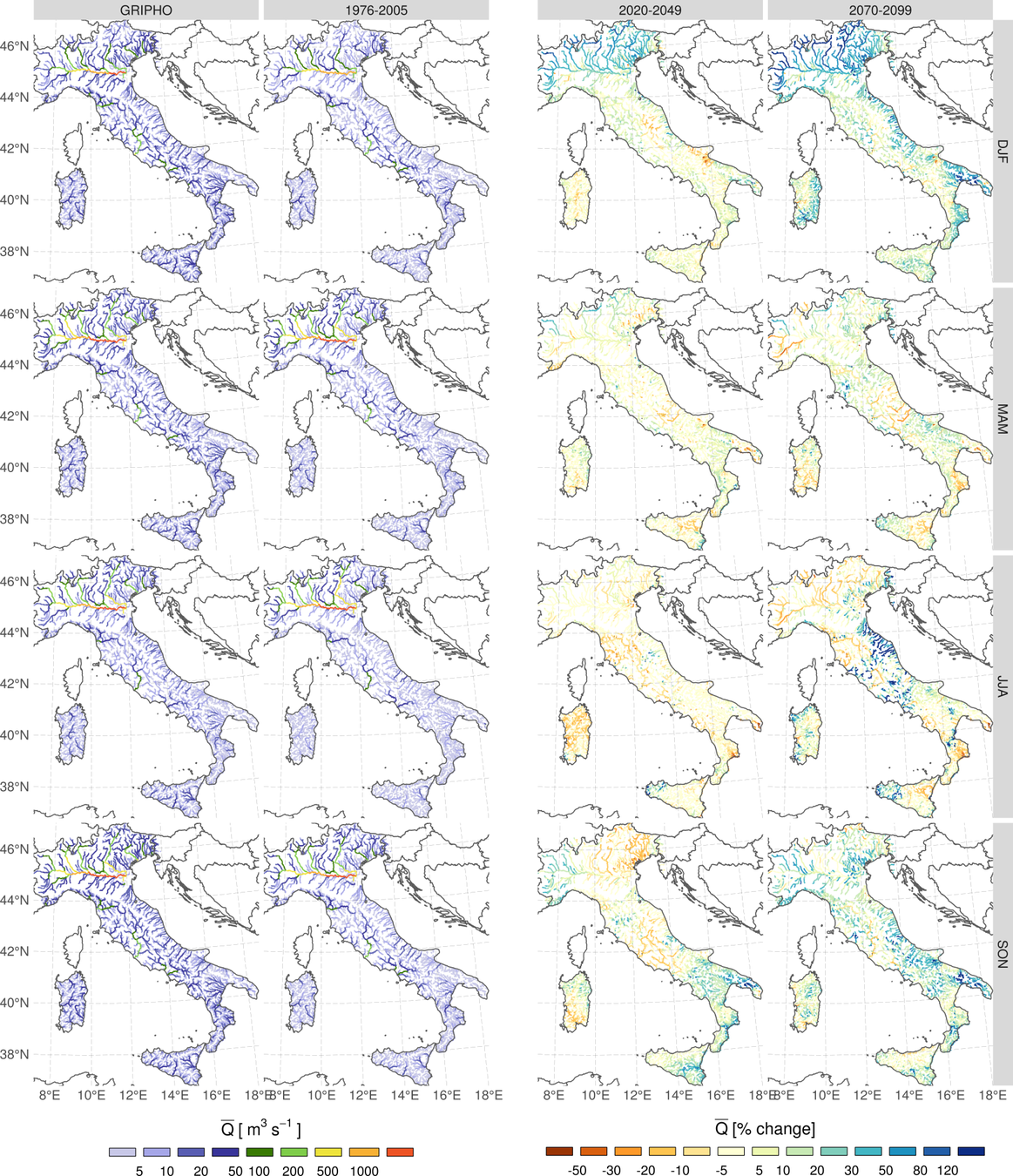

MEAN DISCHARGE

MEAN DISCHARGE CHANGE

MEAN PRECIP CHANGE

4.5 - Cetemps Hydrological Model

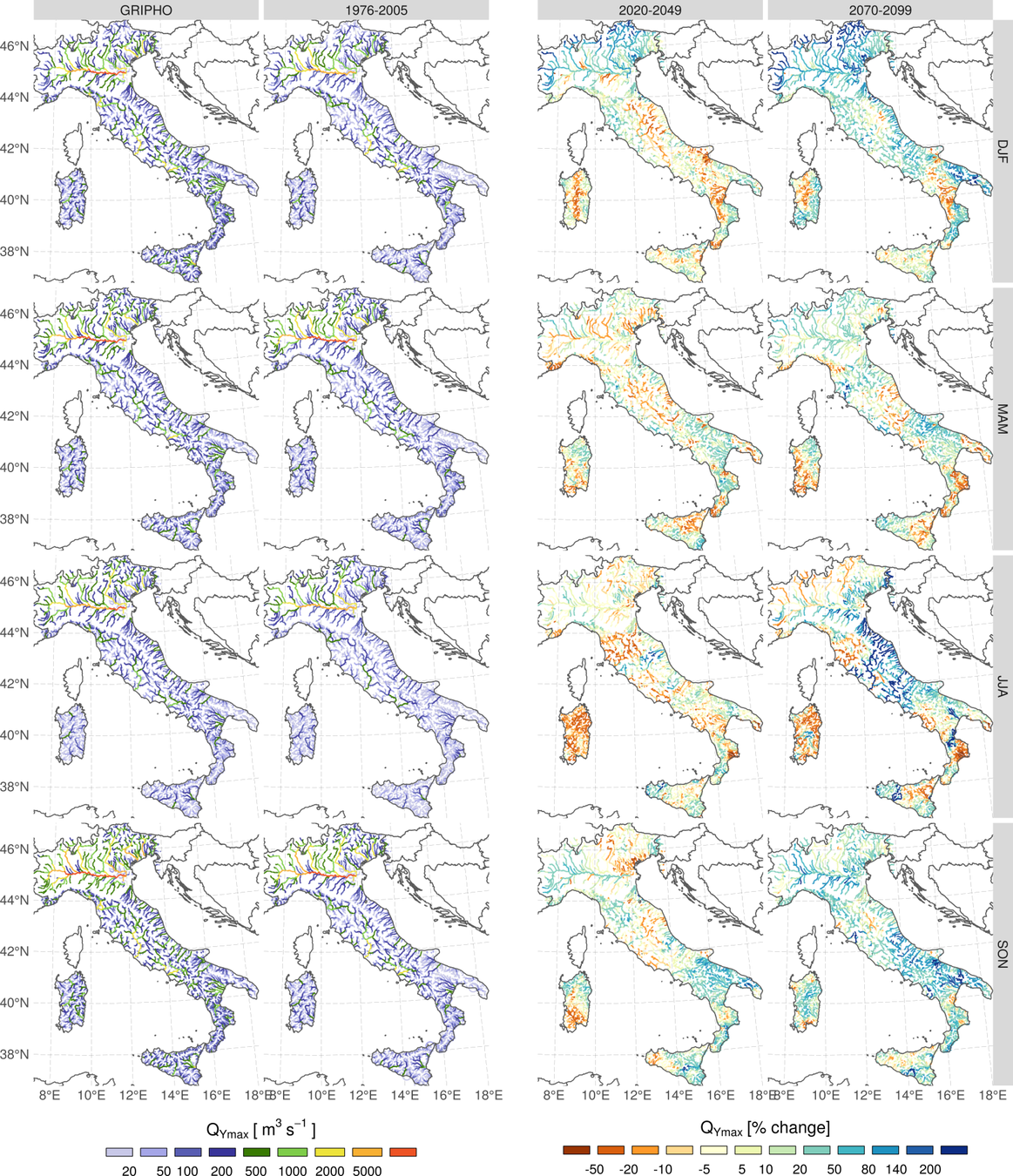

MEAN ANNUAL MAXIMUM DISCHARGE

Qymax DISCHARGE CHANGE

R95ptot PRECIP CHANGE

4.6 - Cetemps Hydrological Model

CHyM Conclusions

  • Model discharges in line with observations, for the few available stations
  • Average discharge projected to slightly increase in the north; mixed changes elsewhere
  • Extreme discharges projected to strongly increase by the end of the century (often >1.5x)
  • Extreme discharge changes (Q100) do not match extreme precipitation changes            hydrological model adds useful information!

4.x - Cetemps Hydrological Model

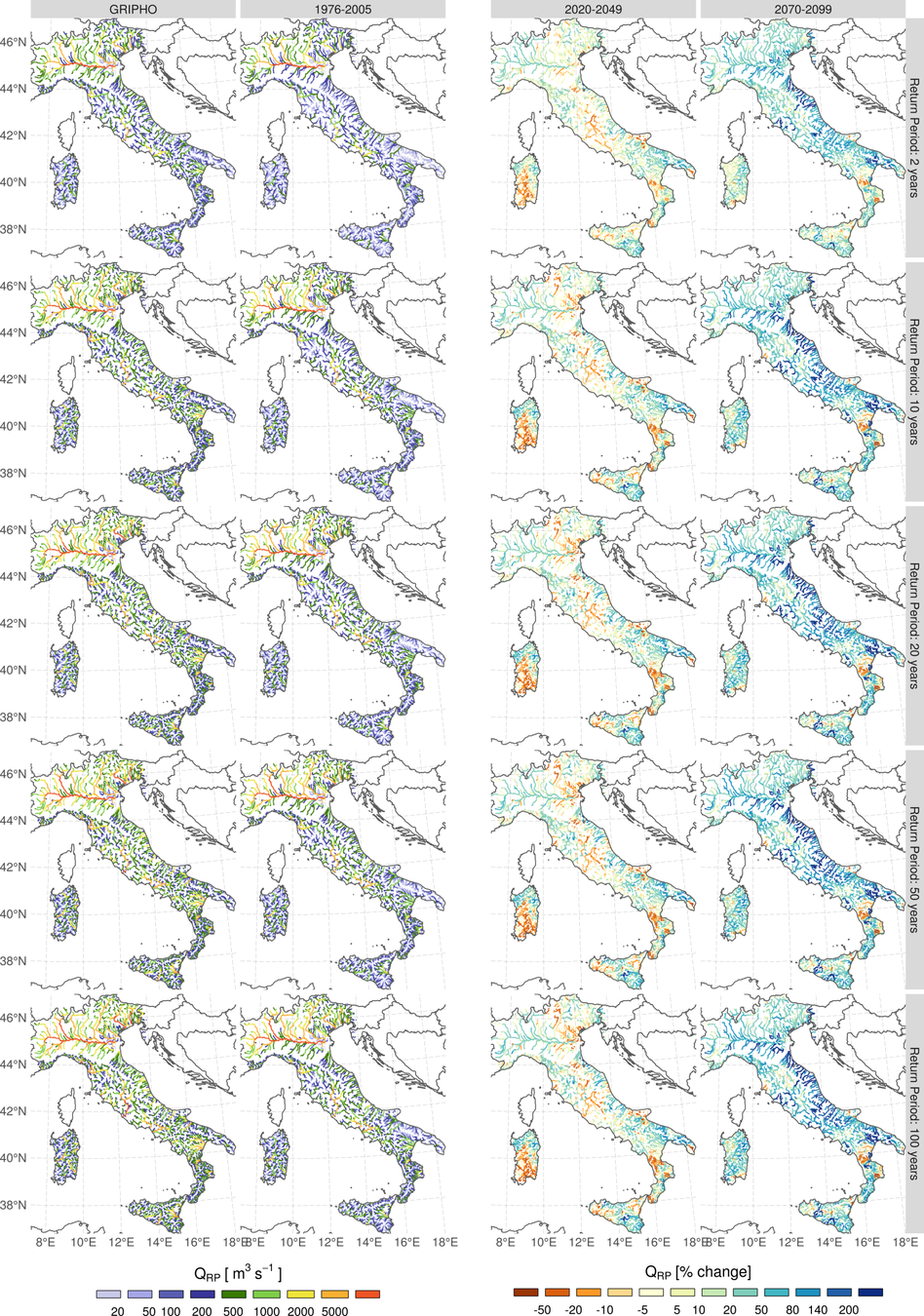

Q100: 100 YEAR ESTIMATED DISCHARGE

GRIPHO

HadGEM

present

HadGEM

2020-2049

HadGEM

2070-2099

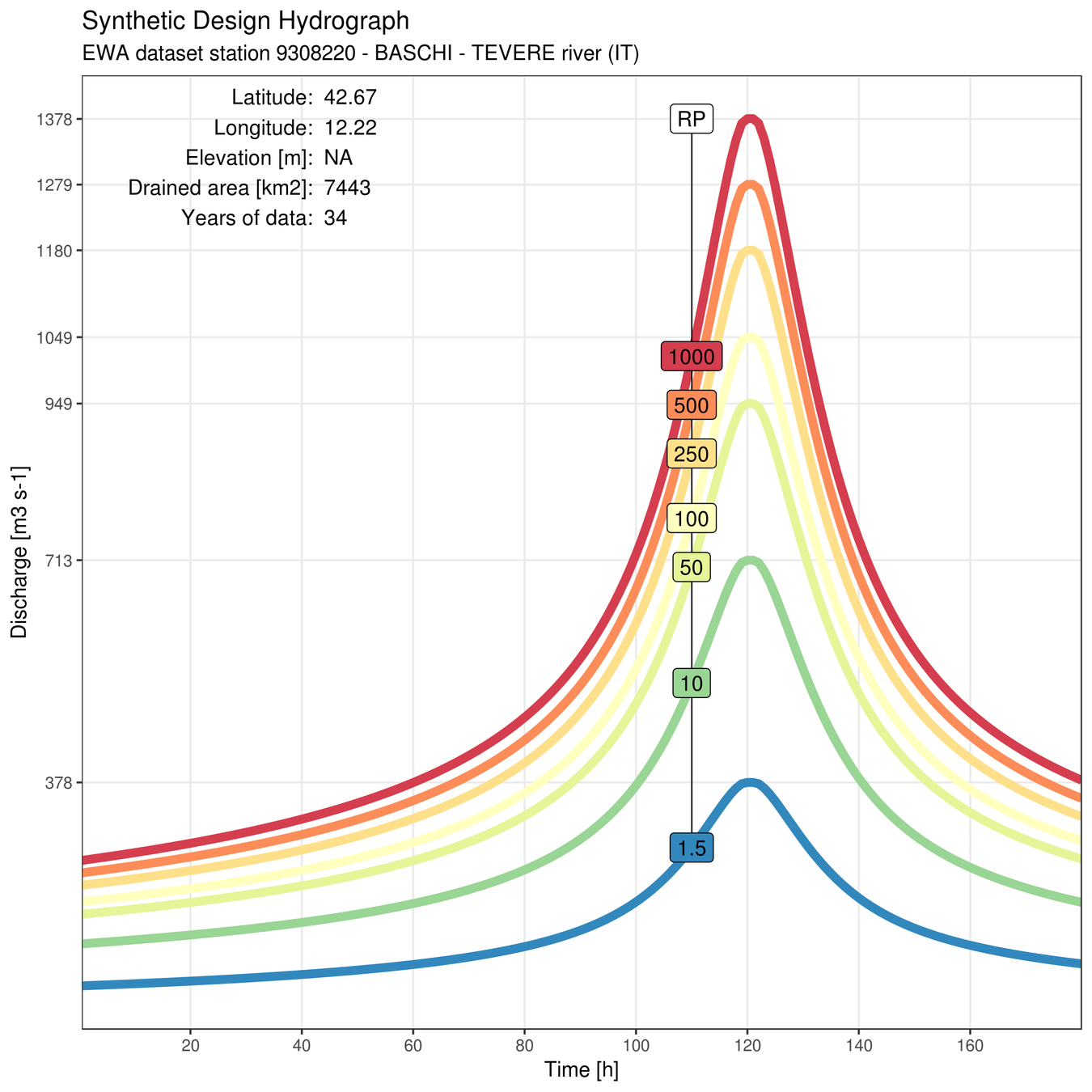

100-year discharges estimated following:

Maione et al., 2003: Regional estimation of synthetic design hydrographs

Thanks to Francesca Raffaele for the research work!

4.x - Cetemps Hydrological Model

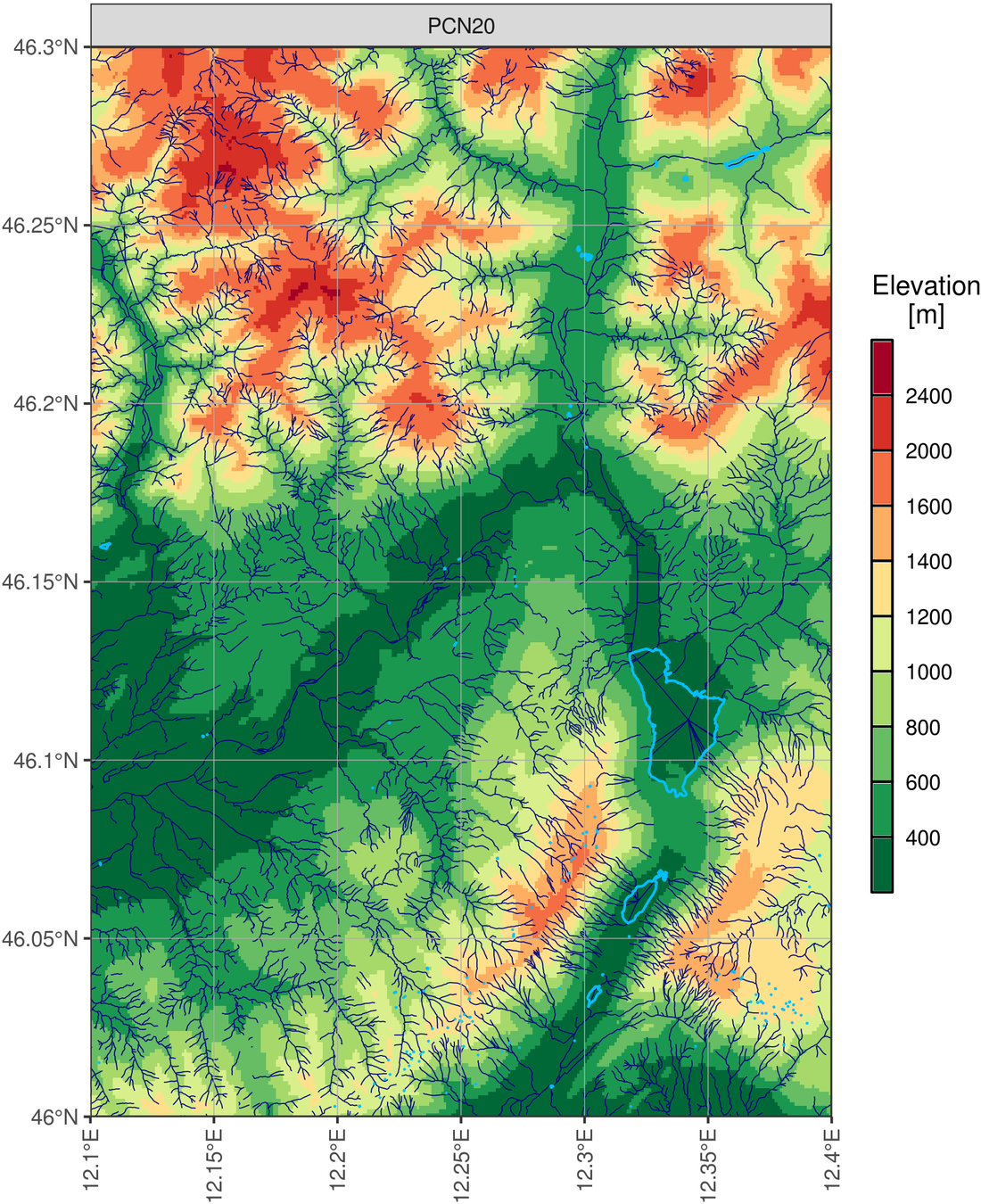

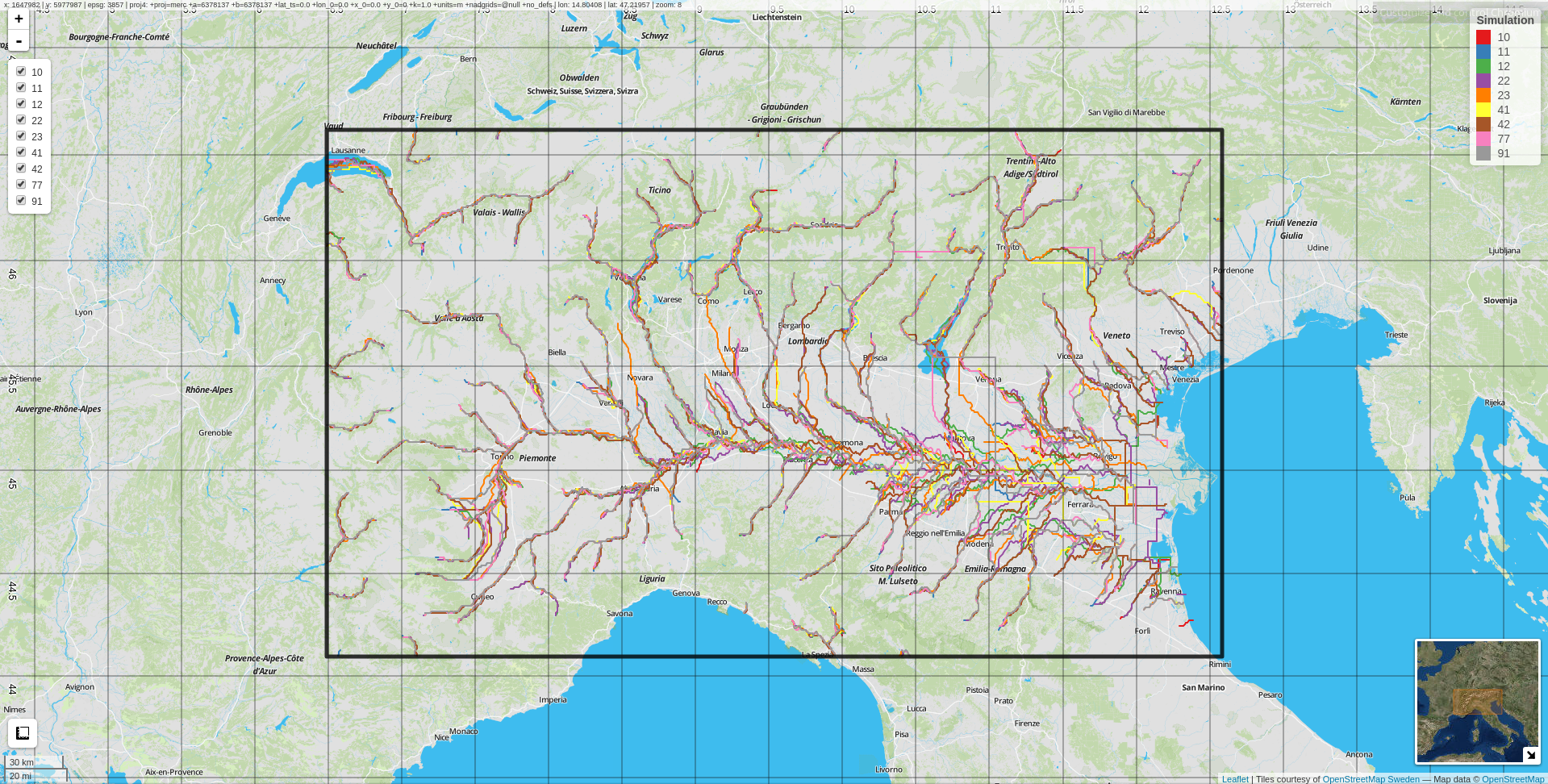

96 river network reconstruction tests for each region

(manual and automatic, with distance measures)

4.x - Cetemps Hydrological Model

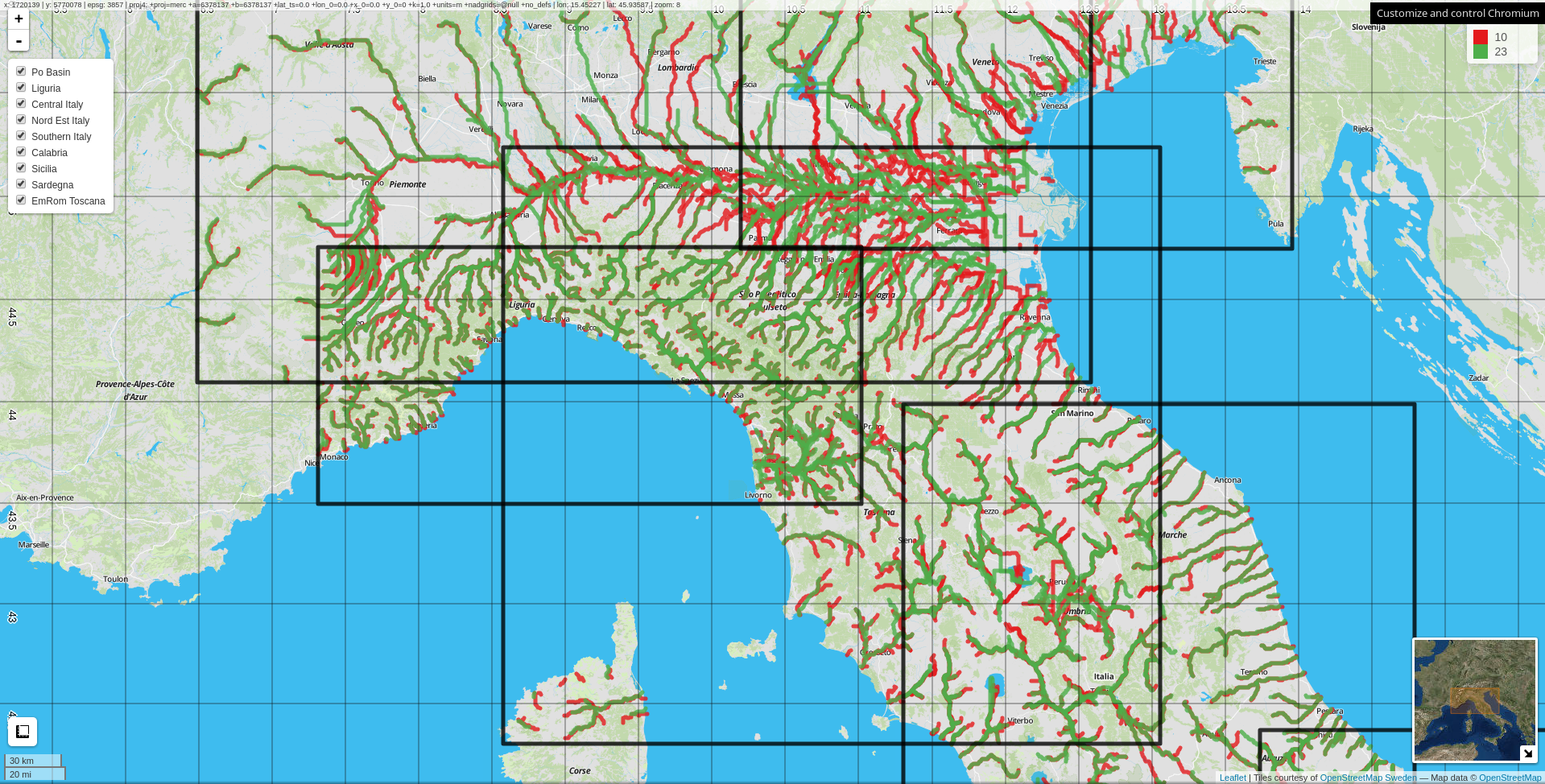

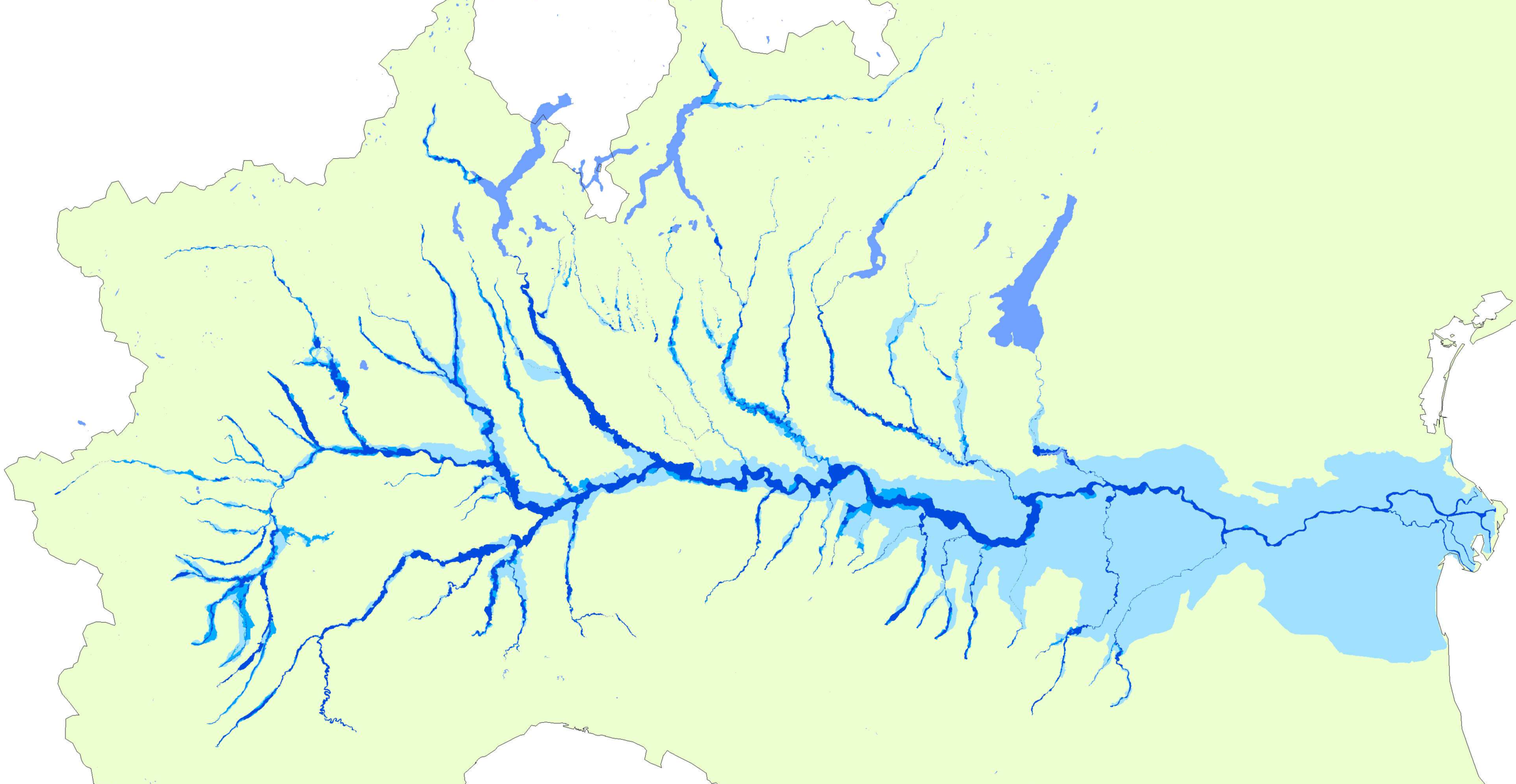

CHyM-OP reproduced domains:

4.x - Cetemps Hydrological Model

CHyM-OP reproduced domains:

4.x - Cetemps Hydrological Model

4.x - Cetemps Hydrological Model

So far:

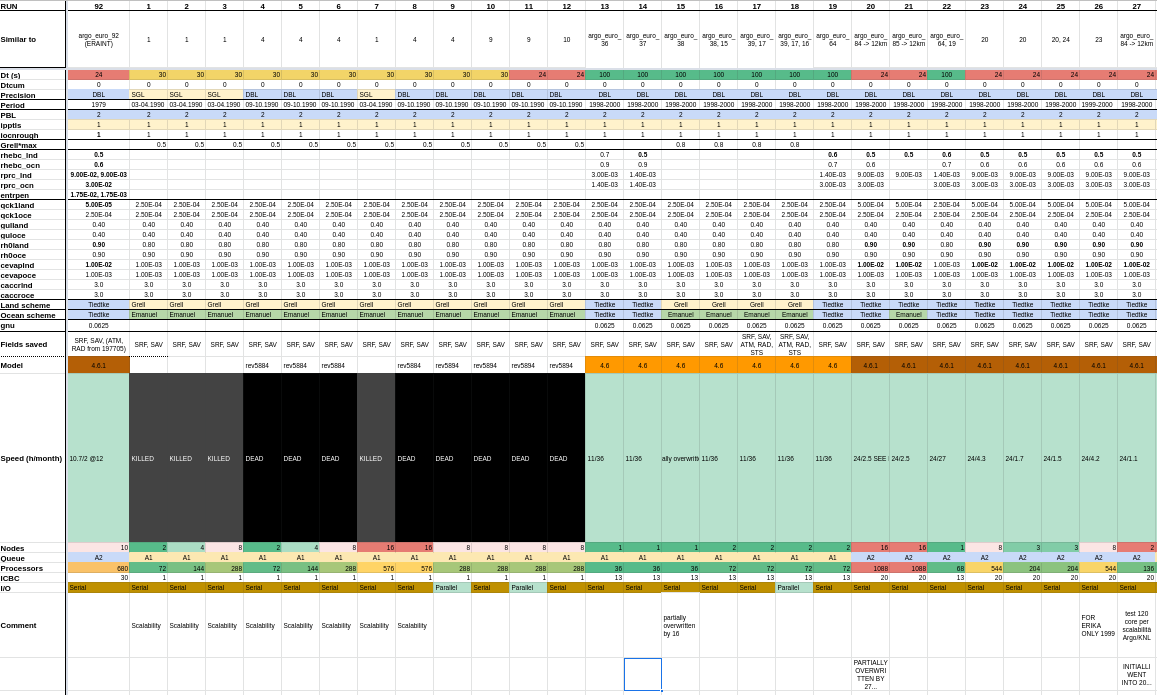

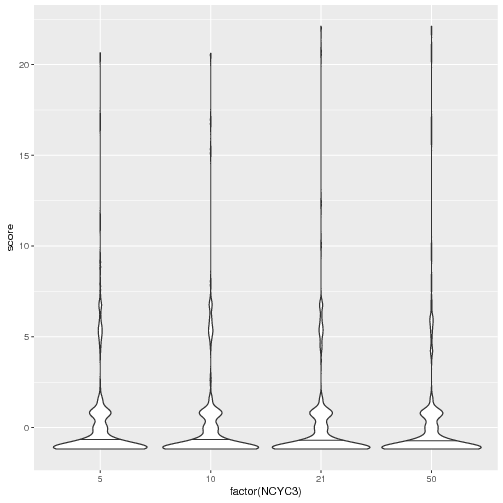

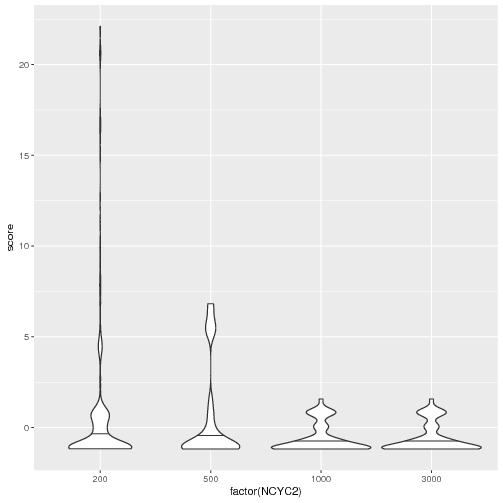

  • Performed ~2000 model simulations to find the best configuration for the river network reconstruction

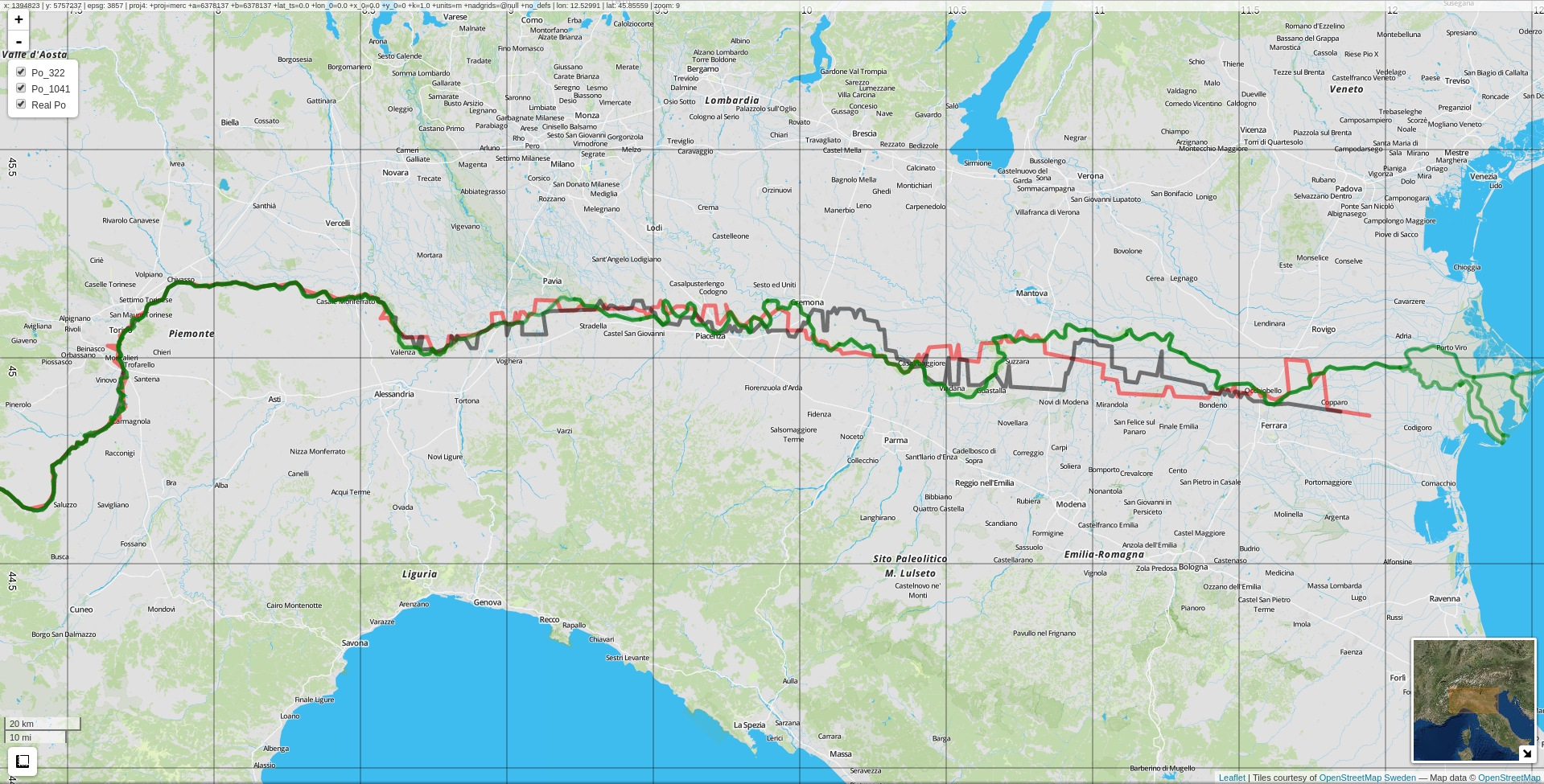

  • Identify and compare the reconstruction of the Po river with different metrics: mean distance, basin area, distance Q95...

4.x - Cetemps Hydrological Model

5.0 - CA2D hydraulic model

2D flood inundation model from Dottori and Todini, 2010, 2011, modified by Rita Nogherotto to run in parallel

  • DEM
  • River network
  • SDH

5.1 - CA2D hydraulic model

  • 90m resolution
  • HydroSHEDS DEM and river channels

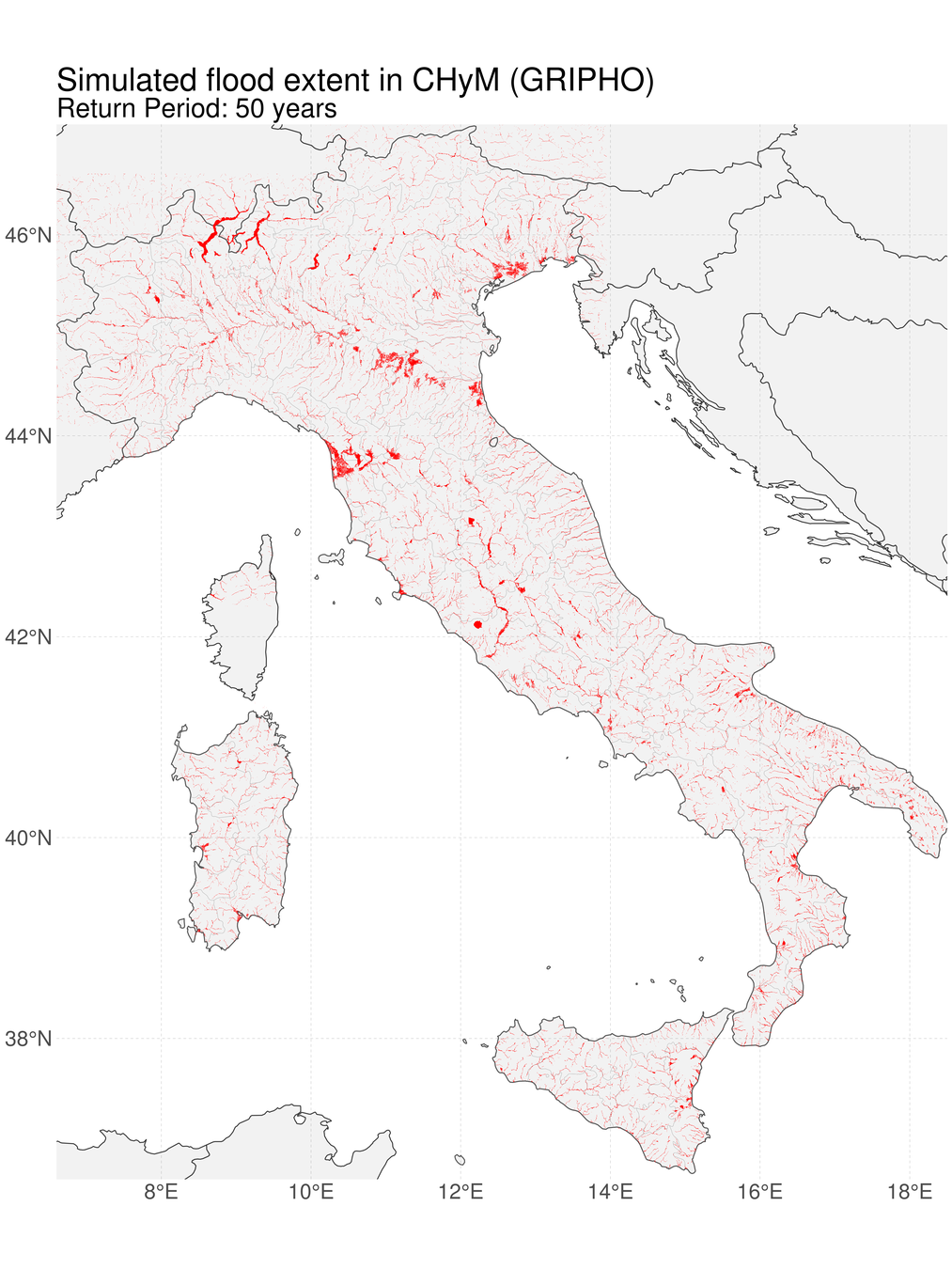

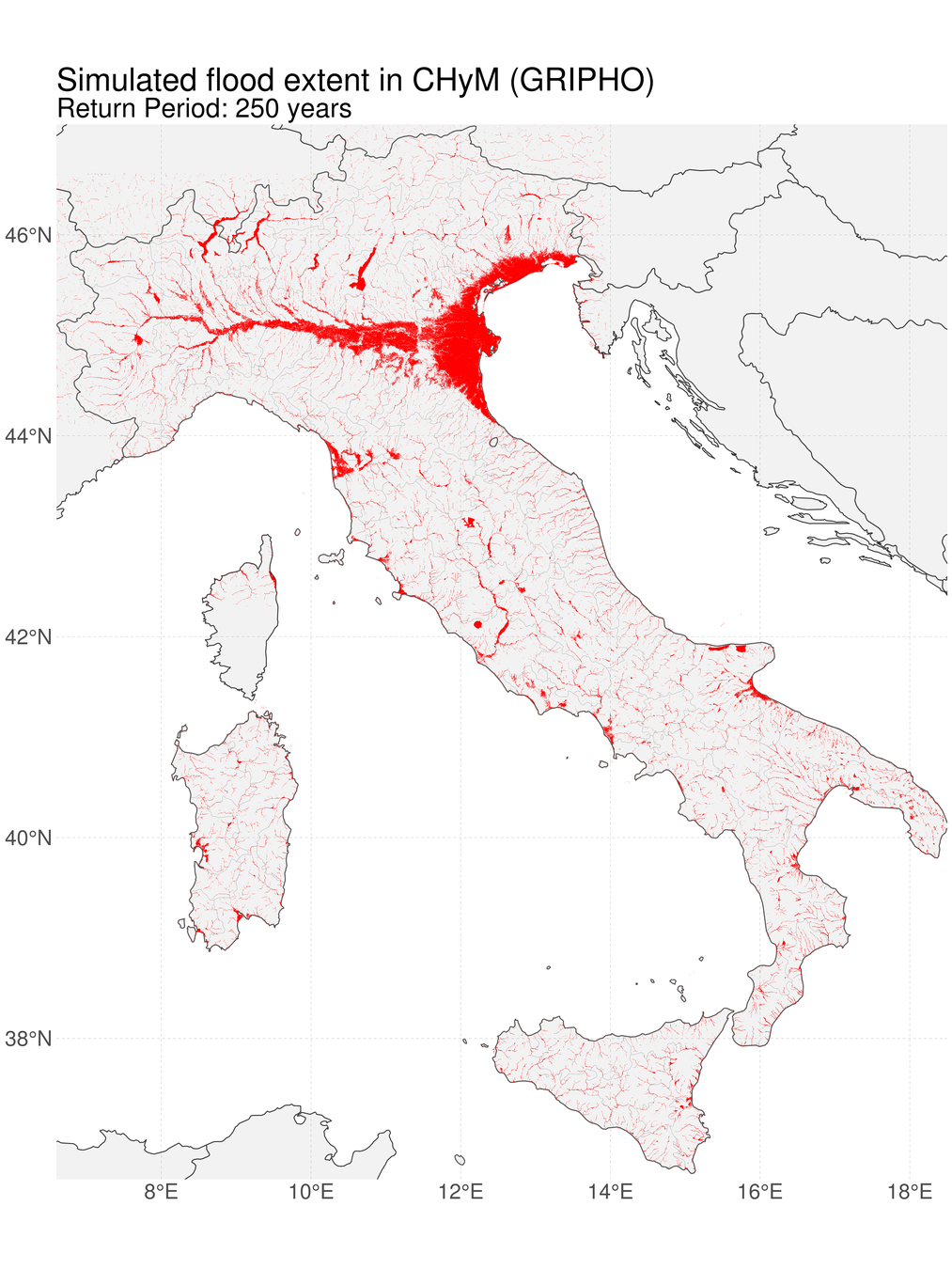

  • Still ongoing, currently completed only for CHyM (GRIPHO)

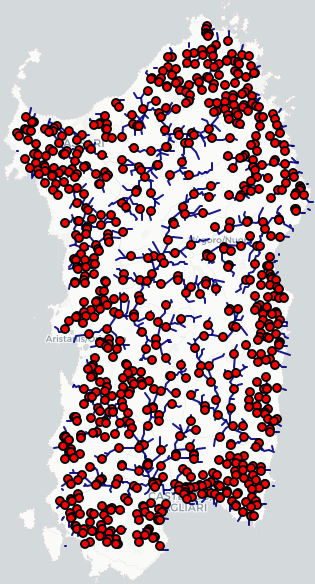

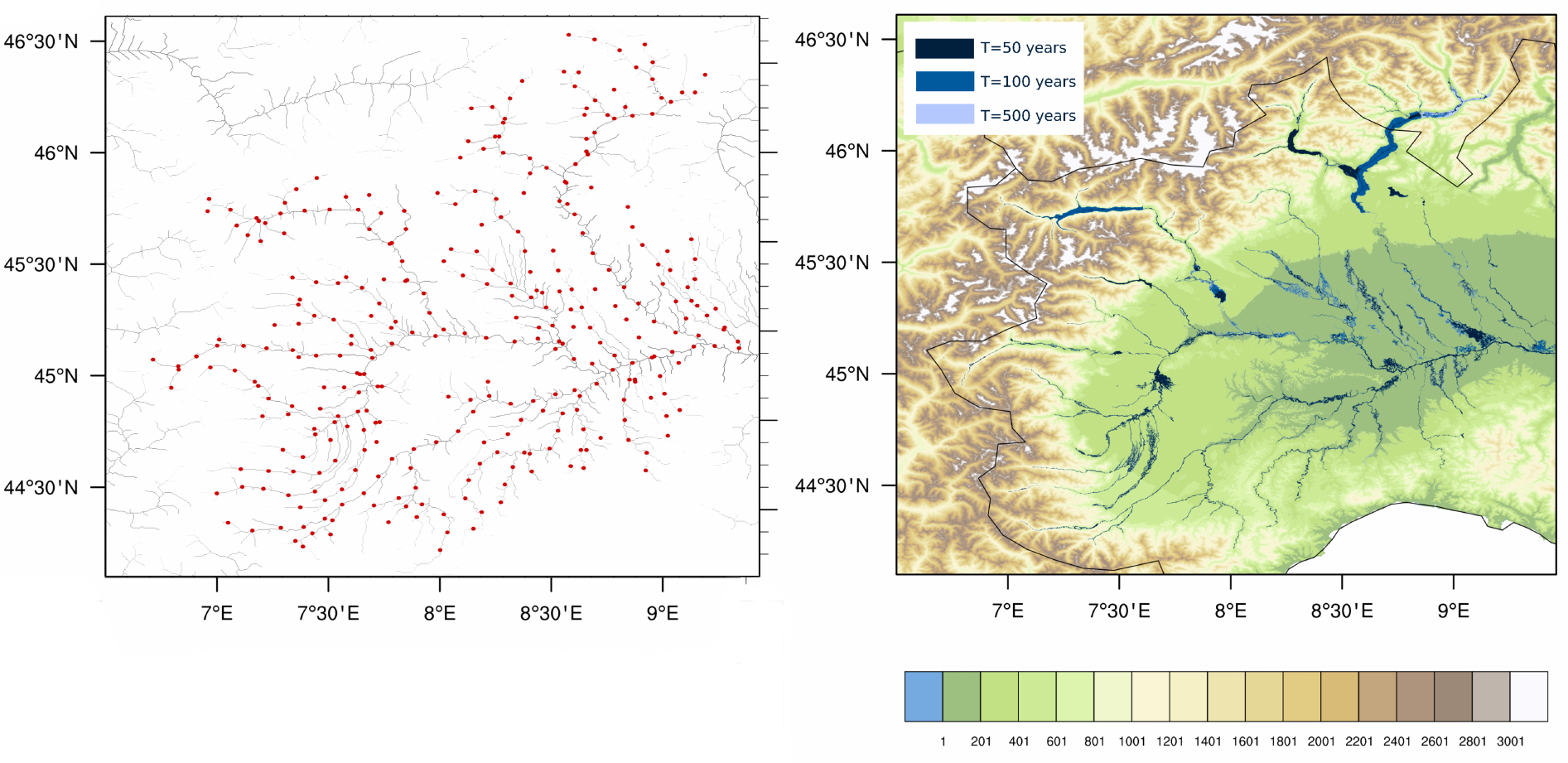

  • 5528 "virtual stations" cover all rivers every 5-10km
  • Two case studies in North-Western Italy

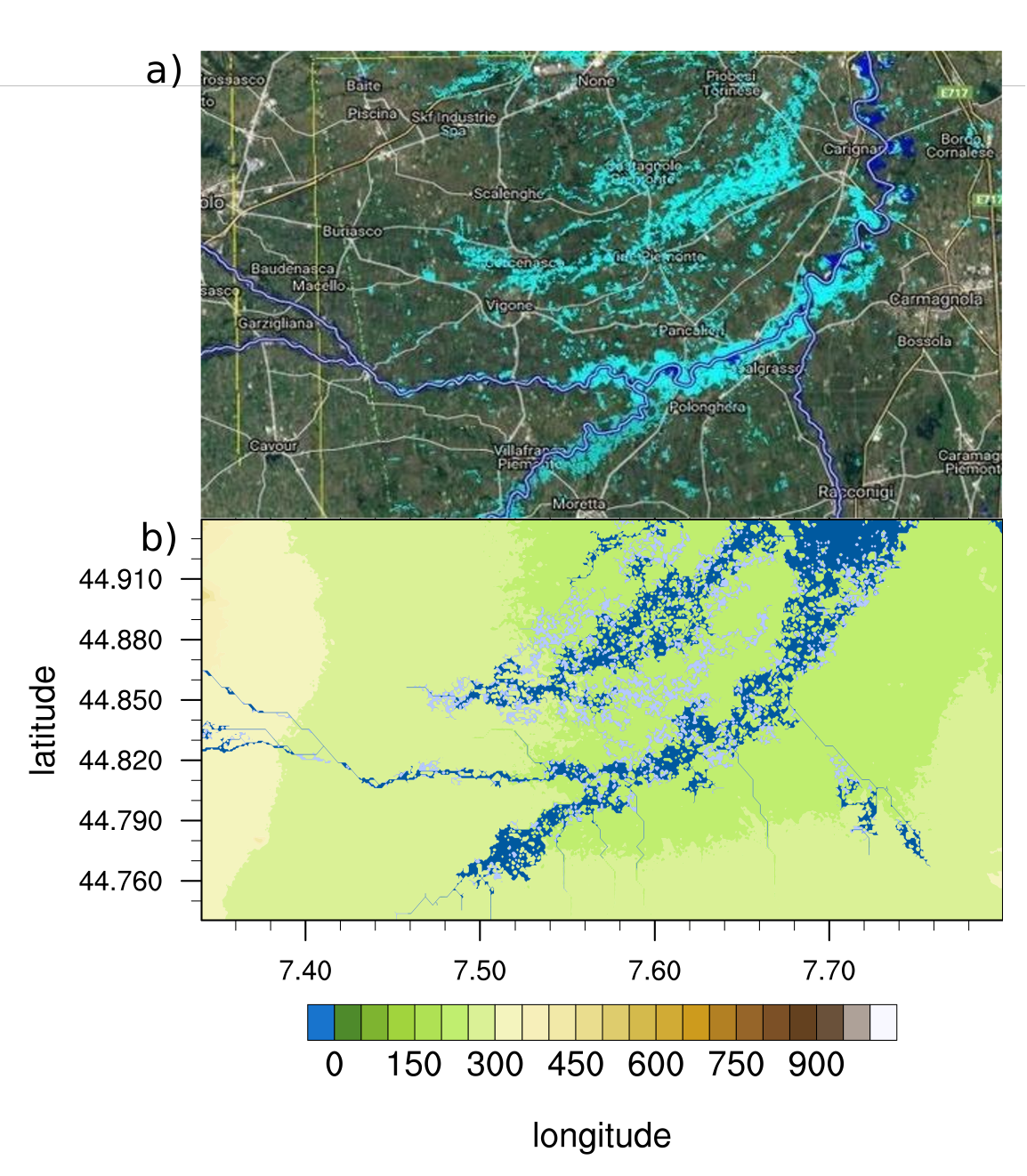

Satellite images from COSMO-SkyMed, November 2016 event

COSMO

CA2D

5.2 - CA2D hydraulic model

RP = ~200yr

Po river basin

5.3 - CA2D hydraulic model

AdBPo

GRIPHO/ CHYM / CA2D

ISPRA

5.4 - CA2D hydraulic model

Nogherotto R., Fantini A., Raffaele F., Coppola E. and Giorgi F.:

´An integrated hydrological and hydraulic modelling approach for the flood risk assessment over Po river basin: a case study for the ALLIANZ Insurance Company´ (in preparation)

CA2D Conclusions

  • Encouraging initial results
  • Good results in the case study
  • General agreement with ISPRA maps

Issues:

  • Ignoring coastal flooding, dams and water management
  • Lack of data available for validation
  • Future flood hazard not yet computed

5.x - CA2D hydraulic model

5.x - CA2D hydraulic model

"Virtual stations"

6.0 - Summary

New data:

  • New state of the art GRIPHO precipitation dataset
  • Two new RCM EURO-CORDEX simulations
  • Three new high resolution CHyM hydrological simulations

Ongoing work and future improvements:

  • Complete and analyse all the CA2D simulations, projections
  • Perform ensemble analysis to assess uncertainty

Flood hazard:

  • We can produce flood hazard maps via a model chain
  • Much higher resolution than previous studies
  • Scientific, reproducible result
  • The methodology can be applied anywhere
  • Continent-scale studies are possible
  • Strong projected increase in extreme pr and flood proxies

6.1 - Research... answers

1. Can a model chain of climate, hydrological and hydraulic models reproduce flood hazard?

Yes, it can!

2. How does climate change impact flood hazard over Italy?

Increase in all flood proxies, sometimes > 150%

3. What is the link between changes in precipitation extremes and changes in flood hazard?

The two are often linked, but not always!

6.x - Visualization

An R/Leaflet tool for flood, river, DEM, basin and station visualization

6.x - Visualization

Click_edit: an R/Shiny tool for WYSISYG editing of NetCDF files

Thanks for your attention!

afantini@ictp.it

Precipitation:

  • Observations
  • RCM output

Gridded netCDF:

  • River network
  • Discharges

hydrological model

For each RP, cell:

  • Gumbel distr.
  • Hydrographs
  • Extreme Q

Statistical analysis

For each RP, cell:

  • Flood extent
  • Flood depth

(multiple simulations)

  • RCM output
  • Discharges
  • Floods

Validation and change for

CA2D hydraulic model

Based on Maione et al., 2003

(over nine domains)

Final PhD presentation

By odineidolon

Final PhD presentation

Final PhD presentation, 15/03/2019

  • 229

More from odineidolon
