Unit Testing

Angular with Jasmine

Agenda

1. Jasmine

2. Arrange, Act, Assert

3. Unit testing Angular

- pipes

- services

- components

- attribute directives

4. Debugging unit tests

Jasmine

Typical structures

describe()
it()
fdescribe(), fit()
beforeEach()
"expect()" asertions:
- toEqual()
- toBe()
- toHaveBeenCalled()
- toHaveBeenCalledWith()
"expect().not" matcher
spyOn()

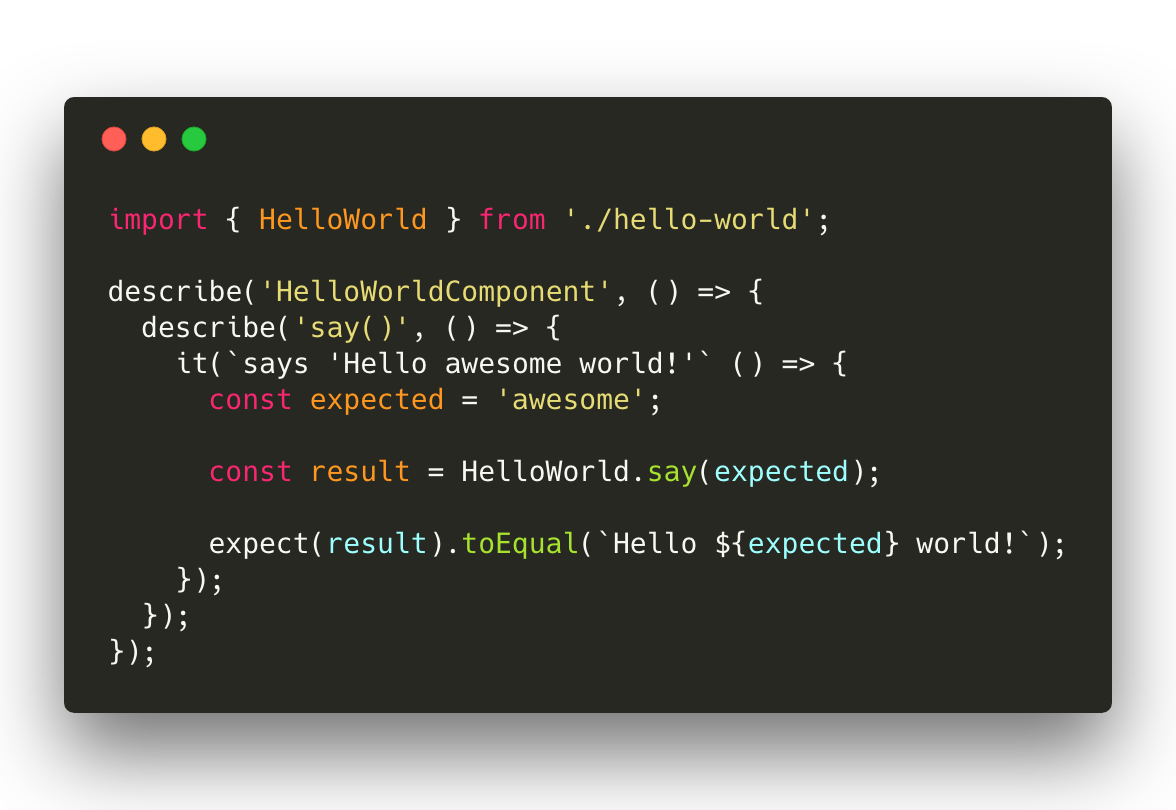

Basic example

beforeEach()

helps keeping your unit tests DRY where it's possible by grouping common arrangements
works for each it() block which is inside of describe() it is defined in
each describe() block can have it's own beforeEach()

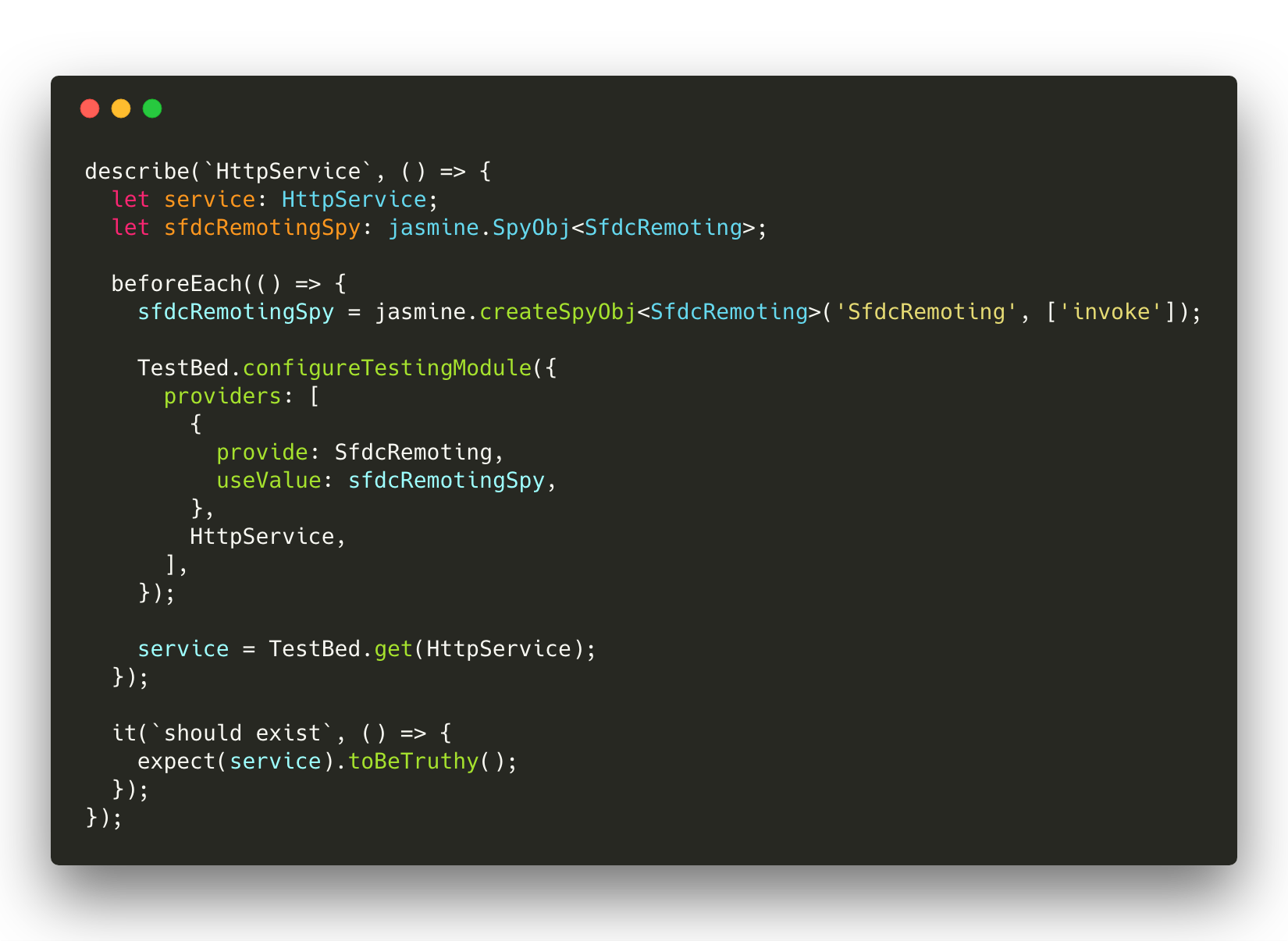

beforeEach() example

Spies

spyOn() global function
tested method isolation
stubbing return values of existing methods
can be asserted with additional matchers such as:
- toHaveBeenCalled()
- toHaveBeenCalledWith(), etc.

basic spyOn() examples

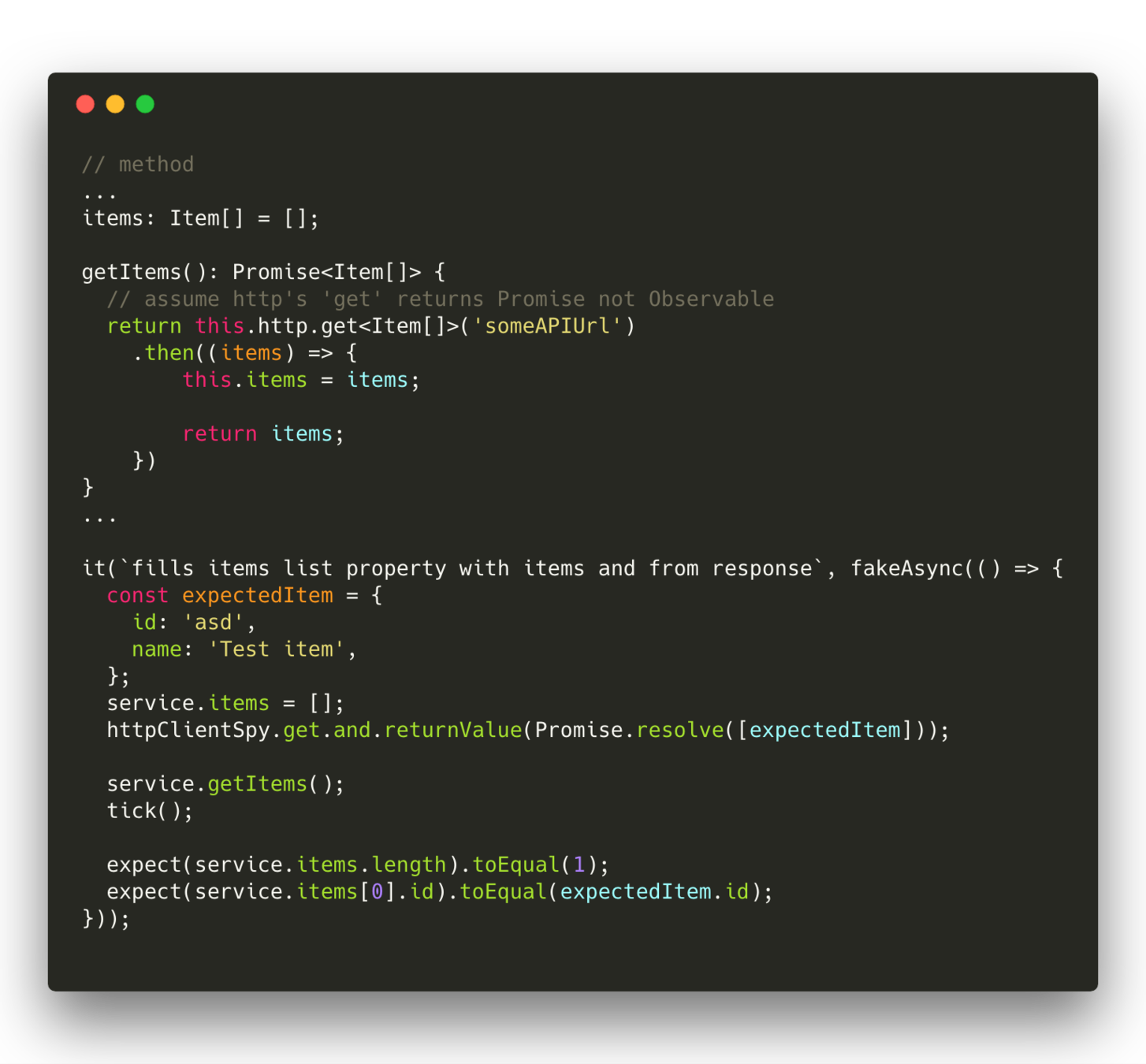

spyOn() Promises

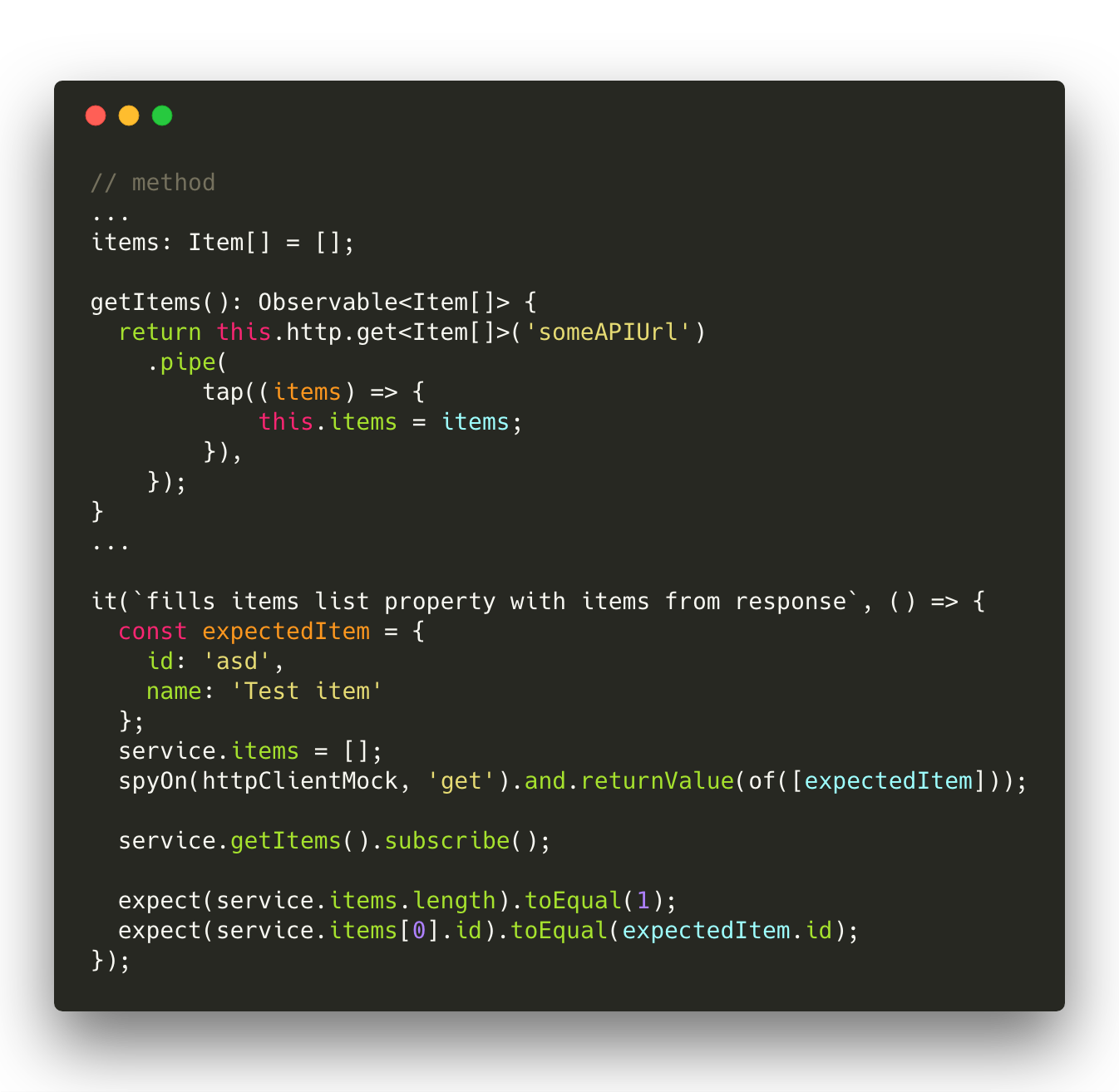

spyOn() Observables

Arrange, Act, Assert

put all of your unit test preparation/bootstrap code inside of Arrange section of unit test
perform action, result of which you want to test inside of Act section of unit test
check expected result of executed Action inside of Assert section of unit test

AAA example

Unit Testing Angular

Pipes

easy to test without the Angular testing utilities
has only one method transform()
most pipes have no dependence on Angular other than the @Pipe metadata and an interface

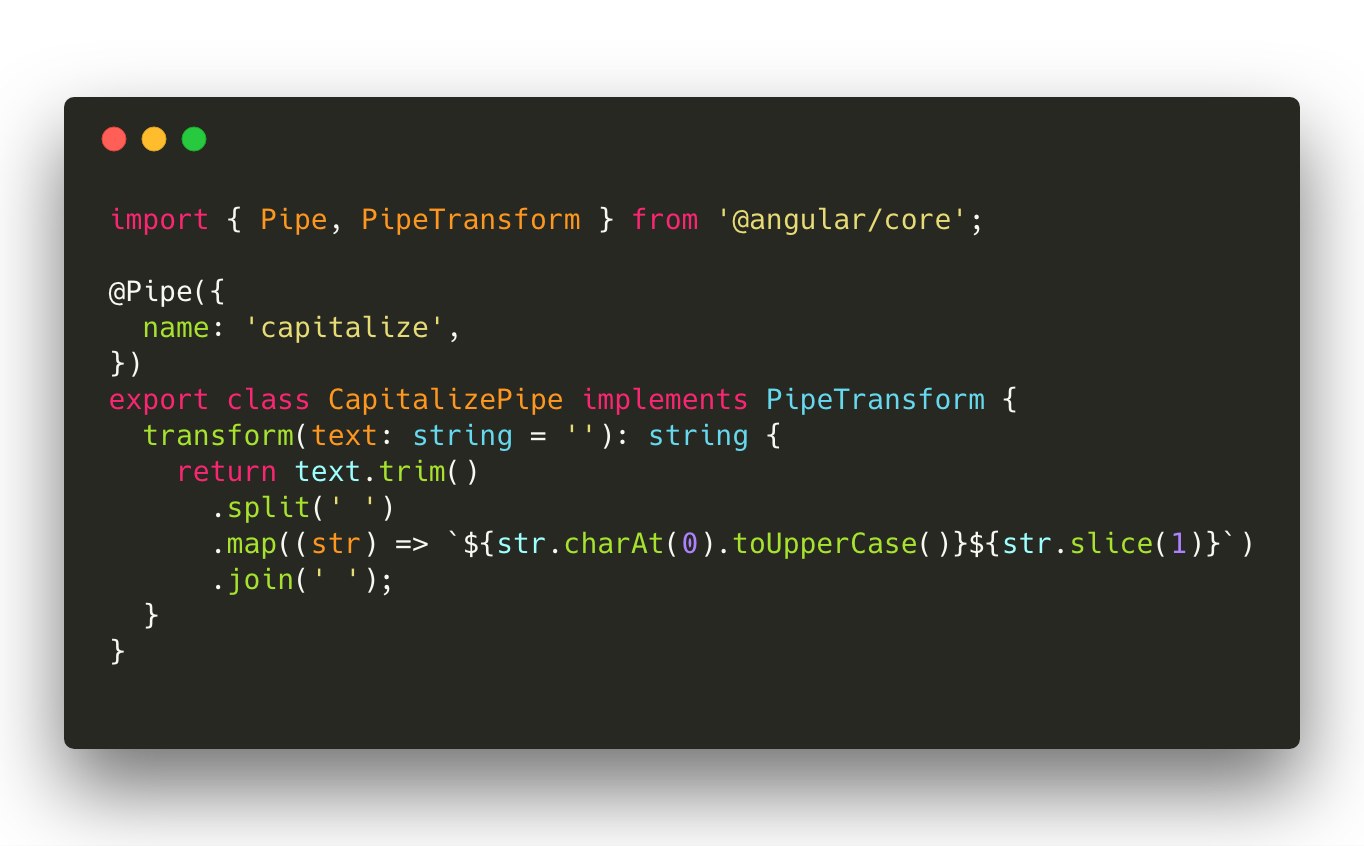

Pipe example

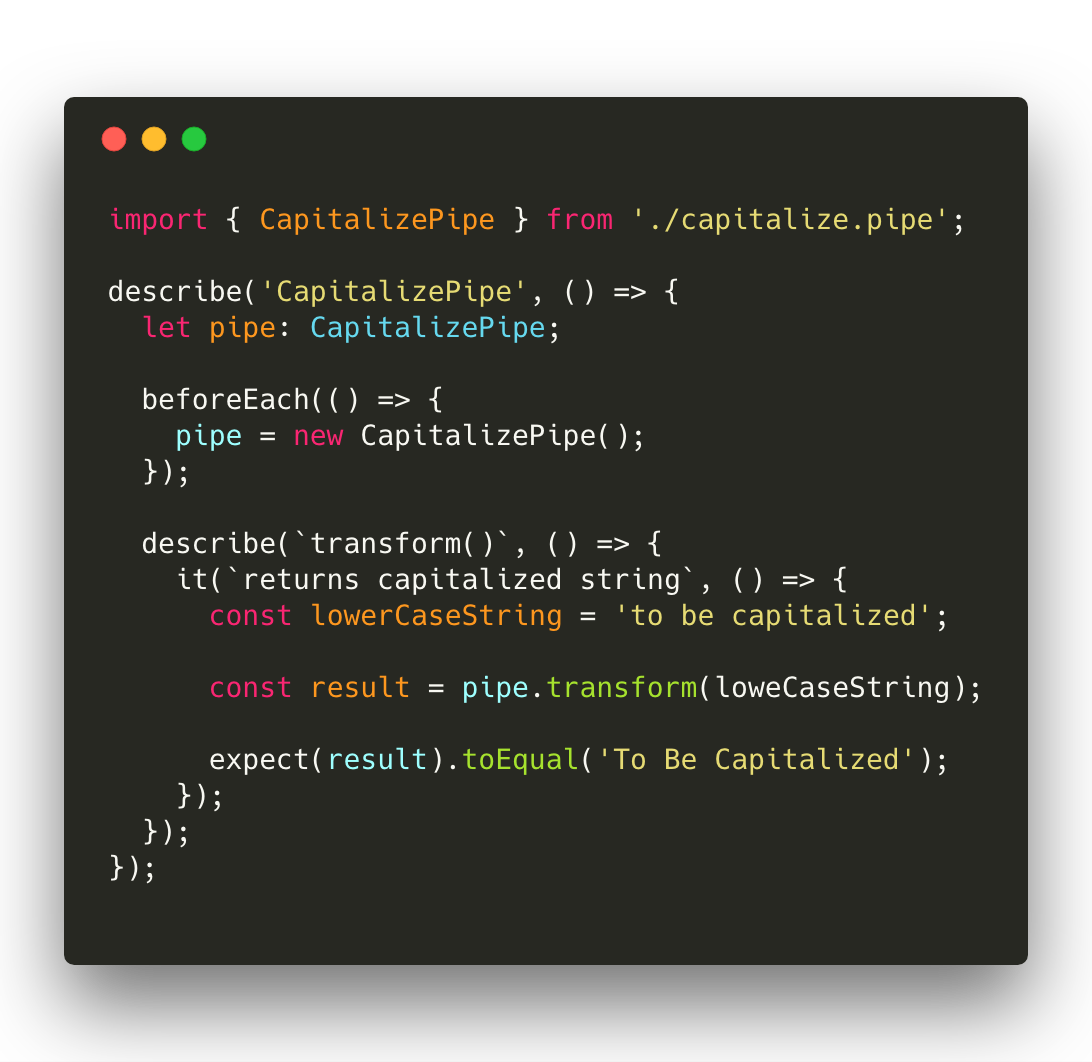

Pipe testing example

Services

services without dependencies can be tested as simple classes
when having dependencies, Angular TestBed utility shall be used to mock all of them
most pipes have no dependence on Angular other than the @Pipe metadata and an interface

Service example

import { Injectable } from '@angular/core';

// moment
import * as moment from 'moment';

// services
import { StateService } from '../state/state.service';
import { LoadHelperService } from './helpers/load-helper/load-helper.service';

// models
import { Granularity } from '../../models/granularity.model';
import { LoadSettings } from '../../models/load-settings.model';

@Injectable()
export class LoadService {
  private loadObject: LoadConfig = {} as any;

  constructor(
    private loadHelper: LoadHelperService,
    private stateService: StateService,
  ) { }

  // ...

  prefillConfig(loadSettings: LoadSettings): void {
    if (loadSettings.startDate && loadSettings.endDate && typeof loadSettings.hoursDay === 'number') {
      const start = moment(loadSettings.startDate).startOf('d');
      const end = moment(loadSettings.endDate).endOf('d');
      const hours = loadSettings.hoursDay;
      const workDays = this.stateService.workingSettings().value.workingDays;

      this.loadObject = {
        ...loadSettings,
        id: loadSettings.id,
        load: loadSettings.load,
        startDate: moment(loadSettings.startDate).valueOf(),
        endDate: moment(loadSettings.endDate).valueOf(),
        workDays: this.loadHelper.getWorkDays(start, end, hours, workDays),
        workWeeks: this.loadHelper.getWorkPeriod(LoadUnitType.week, start, end, hours, workDays),
        workMonths: this.loadHelper.getWorkPeriod(LoadUnitType.month, start, end, hours, workDays),
        totalHours: this.loadHelper.getWorkHoursForPeriod(start, end, hours, workDays),
      };

      this.loadObject.suggestedGranularity = this.suggestGranularity();
    }
  }

  private suggestGranularity(): Granularity {
    // ...
  }
}

Service testing example

import { TestBed } from '@angular/core/testing';

import { LoadService } from './load.service';

// Models
import { LoadConfig } from '../../models/load-config.model';
import { LoadUnitType } from '../../models/load-unit-type.model';
import { Granularity } from '../../models/granularity.model';

// Services
import { StateService } from '../state/state.service';
import { LoadHelperService } from './helpers/load-helper/load-helper.service';

describe('LoadService', () => {
  let loadHelperServiceSpy: jasmine.SpyObj<LoadHelperService>;
  let stateServiceSpy: jasmine.SpyObj<StateService>;

  let service: LoadService;

  const testLoad: LoadConfig = {
    id: '1',
    startDate: 1,
    endDate: 20,
    hoursDay: 1,
    totalHours: 0,
    load: 10,
    workMonths: [],
    workWeeks: [],
    workDays: [],
  };

  beforeEach(() => {
    loadHelperServiceSpy = jasmine.createSpyObj<LoadHelperService>('LoadHelperService', [
      'getWorkDays',
      'getWorkPeriod',
      'getWorkHoursForPeriod',
    ]);
    stateServiceSpy = jasmine.createSpyObj<StateService>('StateService', ['workingSettings']);

    TestBed.configureTestingModule({
      providers: [
        {
          provide: LoadHelperService,
          useValue: loadHelperServiceSpy,
        },
        {
          provide: StateService,
          useValue: stateServiceSpy,
        },
        LoadService,
      ],
    });

    service = TestBed.get(LoadService);
  });

  it('should exist', () => {
    expect(service).toBeTruthy();
  });

  describe('prefillConfig()', () => {
    it('prefills config work', () => {
      // Arrange
      const settings = {
        user: { Id: '1', Name: 'test user' },
        load: 100,
        hoursDay: 5,
        startDate: 100,
        endDate: 200,
      };
      loadHelperServiceSpy.getWorkDays.and.returnValue([]);
      loadHelperServiceSpy.getWorkPeriod.and.returnValue([]);
      loadHelperServiceSpy.getWorkHoursForPeriod.and.returnValue(0);
      stateServiceSpy.workingSettings.and.returnValue({
        value: {
          workingDays: {},
        },
      });
      spyOn(service, 'suggestGranularity').and.returnValue(Granularity.days);

      // Act
      service.prefillConfig(settings);

      // Assert
      expect(service['loadObject'].workDays).toEqual([]);
      expect(service['loadObject'].workWeeks).toEqual([]);
      expect(service['loadObject'].workMonths).toEqual([]);
      expect(service['loadObject'].totalHours).toEqual(0);
      expect(service.suggestGranularity).toHaveBeenCalled();
      expect(loadHelperServiceSpy.getWorkDays).toHaveBeenCalled();
      expect(loadHelperServiceSpy.getWorkPeriod).toHaveBeenCalled();
      expect(loadHelperServiceSpy.getWorkHoursForPeriod).toHaveBeenCalled();
    });
  });
});

Components

can be tested as class
DOM elements of component's template can be queried to test DOM interactions
heavily depends on TestBed testing utility
tested like service, but additionally utilizes declares property of TestBed.configureTestingModule, besides providers
if component has router events subscription, include RouterTestingModule to automatically mock ActivatedRoute and Router injections
if component has nested components, either mock each one of them, or use: schemas: [ NO_ERRORS_SCHEMA ]

Component example

@Component({
  selector: 'cc-select',
  templateUrl: './select.component.html',
  styleUrls: ['./select.component.scss'],
  providers: [SELECT_VALUE_ACCESSOR],
})
export class SelectComponent implements ControlValueAccessor, OnInit {
  @Input() options: SelectOption[] = [];

  selectedOption: SelectOption;
  onChange;
  onTouched;

  ngOnInit() {
    this.selectedOption = this.options[0];
  }

  selectOption(option: SelectOption): void {
    this.onChange(option.value);
    this.selectedOption = option;
  }

  writeValue(formFieldValue: string): void {
    this.selectedOption = this.options.find((option) => option.value === formFieldValue);
  }

  registerOnTouched(fn: any): void {
    this.onTouched = fn;
  }

  registerOnChange(fn: any): void {
    this.onChange = fn;
  }
}

Component testing example

import { ComponentFixture, TestBed } from '@angular/core/testing';

import { SelectComponent } from './select.component';

describe('SelectComponent', () => {
  let component: SelectComponent;
  let fixture: ComponentFixture<SelectComponent>;

  const options = [
    { value: 'days', label: 'Days' },
    { value: 'weeks', label: 'Weeks' },
  ];

  beforeEach(() => {
    TestBed.configureTestingModule({
      declarations: [
        SelectComponent,
      ],
    });

    fixture = TestBed.createComponent(SelectComponent);
    component = fixture.componentInstance;

    component.options = options;
  });

  it('should create', () => {
    expect(component).toBeTruthy();
  });

  describe(`selectOption()`, () => {
    beforeEach(() => {
      component.onChange = () => {};
      spyOn(component, 'onChange');
    });

    it(`sets selectedOption variable`, () => {
      component.selectOption(options[1]);

      expect(component.selectedOption).toEqual(options[1]);
    });

    it(`calls onChange with option value`, () => {
      component.selectOption(options[1]);

      expect(component.onChange).toHaveBeenCalledWith(options[1].value);
    });
  });

  describe(`writeValue()`, () => {
    it(`sets selectedOption`, () => {
      component.writeValue('days');

      expect(component.selectedOption).toEqual(options[0]);
    });
  });
});

Attribute directives

can be tested as class
if there a need to test actual user interaction, it is recommended to test inside of mocked wrapper components

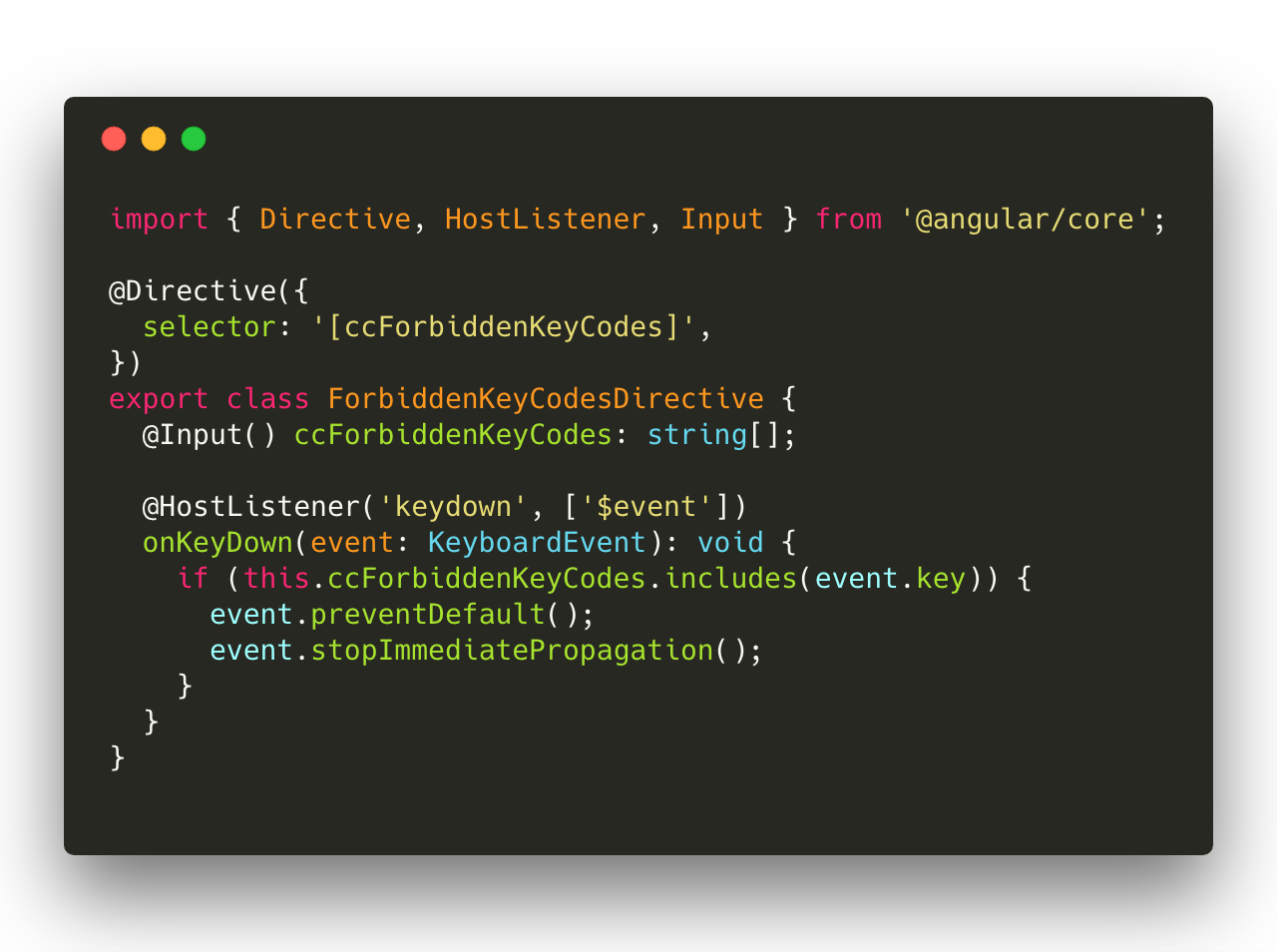

Attribute directive example

Attribute Directive testing example

import { ForbiddenKeyCodesDirective } from './forbidden-key-codes.directive';

describe('ForbiddenKeyCodesDirective', () => {
  let directive: ForbiddenKeyCodesDirective;

  beforeEach(() => {
    directive = new ForbiddenKeyCodesDirective();
  });

  describe(`onKeyDown()`, () => {
    const event = {
      preventDefault() {},
      stopImmediatePropagation() {},
      key: '+',
    } as any;

    beforeEach(() => {
      spyOn(event, 'preventDefault');
      spyOn(event, 'stopImmediatePropagation');
    });

    it(`prevents event if key code is forbidden`, () => {
      directive.ccForbiddenKeyCodes = ['+', '-'];

      directive.onKeyDown(event);

      expect(event.preventDefault).toHaveBeenCalled();
      expect(event.stopImmediatePropagation).toHaveBeenCalled();
    });

    it(`doesn't prevent event if key code is allowed`, () => {
      directive.ccForbiddenKeyCodes = ['-'];

      directive.onKeyDown(event);

      expect(event.preventDefault).not.toHaveBeenCalled();
      expect(event.stopImmediatePropagation).not.toHaveBeenCalled();
    });
  });
});

Debugging

by default Karma runs unit tests at http://0.0.0.0:9876 (http://localhost:9876)
Karma runner browser UI - represents current test run and all possible error logs in a user friendly manner
debug mode - can be accessed both by clicking Debug button at Karma UI or going by entering address http://0.0.0.0:9876/debug.html
in Debug mode unit tests can be debugged via browser's of choice DevTools, same way as any Javascript application

Contacts

oleksandr.hutsulyak@techmagic.co

kami_lviv
