Запись аудио в браузере

Ольга Маланова

Немного истории воспроизведения аудио

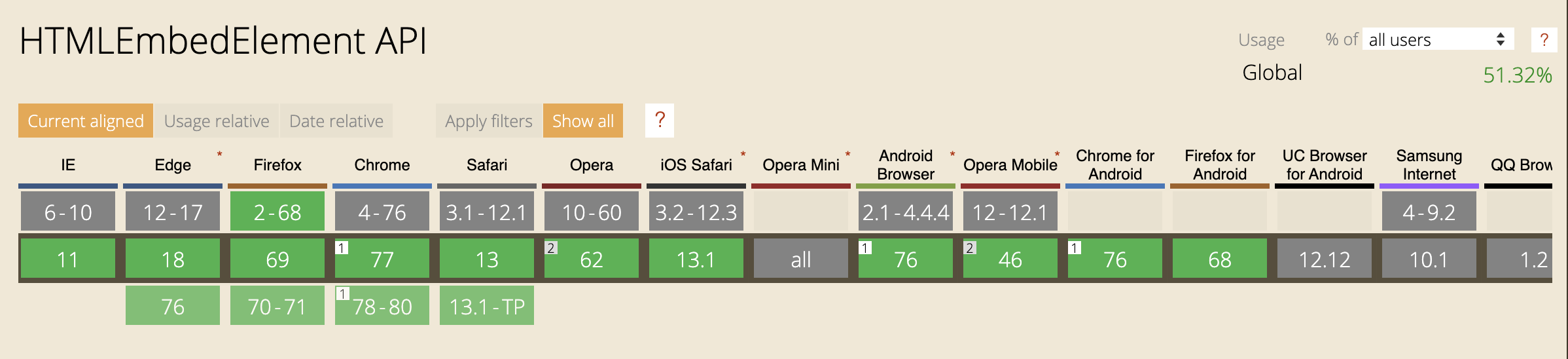

<embed>

Плагины

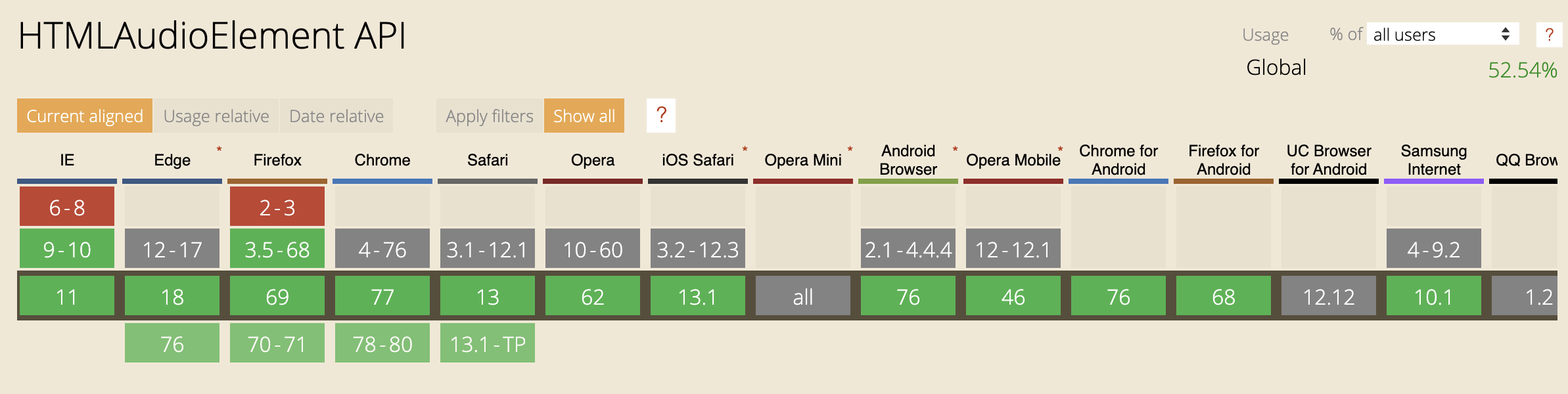

<audio>

Доступ к потоку медиаданных

<input type="file"/>

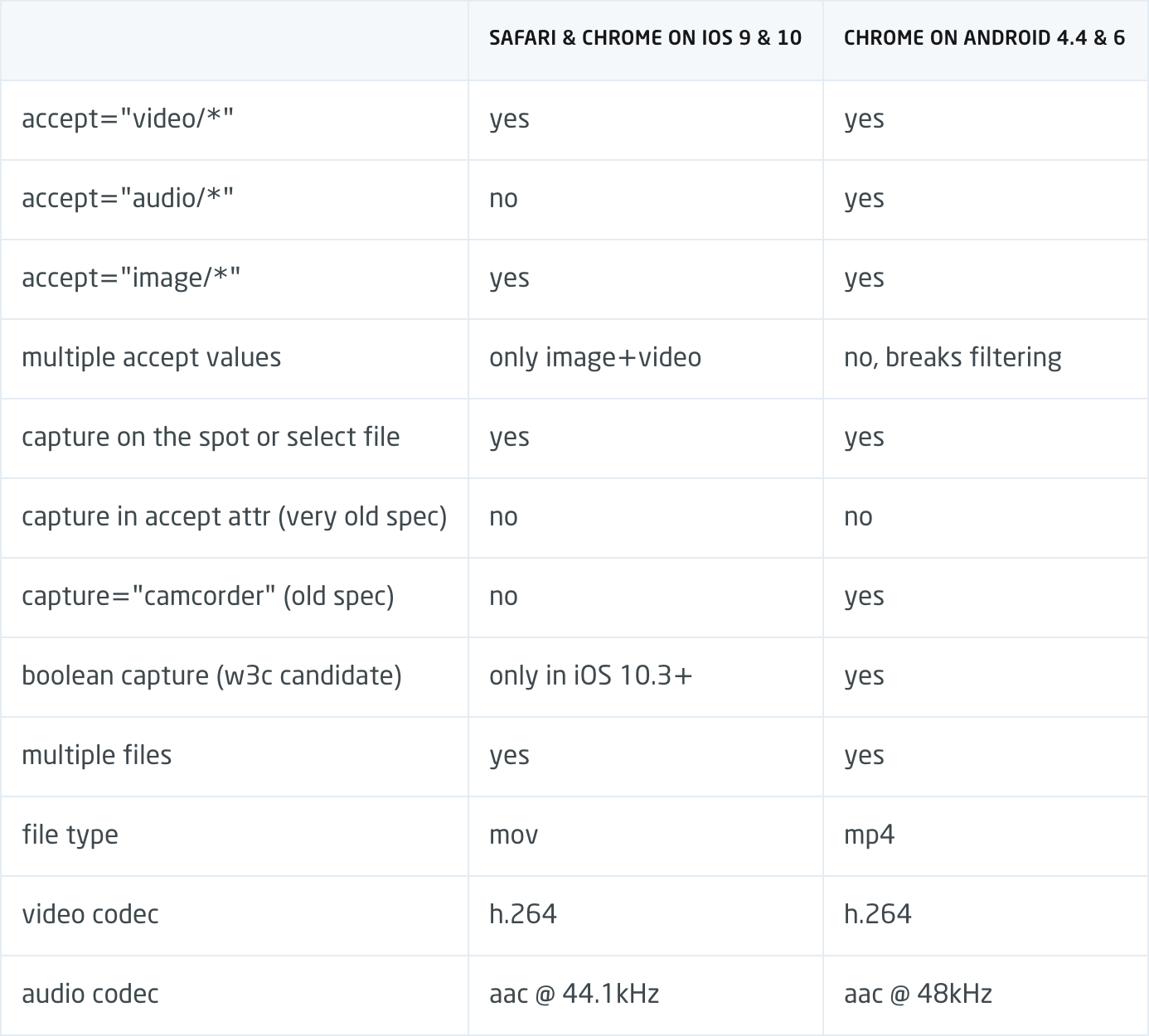

<input type="file" accept="audio/*;capture=microphone">
<device type="media" onchange="update(this.data)"></device>
<audio></auidio>
<script>
  function update(stream) {
    document.querySelector('audio').src = stream.url;
  }
</script>

<device>

getUserMedia

getUserMedia

async getMedia = () => {
  try {
    const stream = await navigator.mediaDevices.getUserMedia({ audio: true })
    /* handle the stream */
    successCallback(stream)
  } catch (err) {
    /* handle the error */
    errorCallback(err)
  }
}

Обработка и сохранение

Web APIs

MediaRecorder API

Media Streams  API

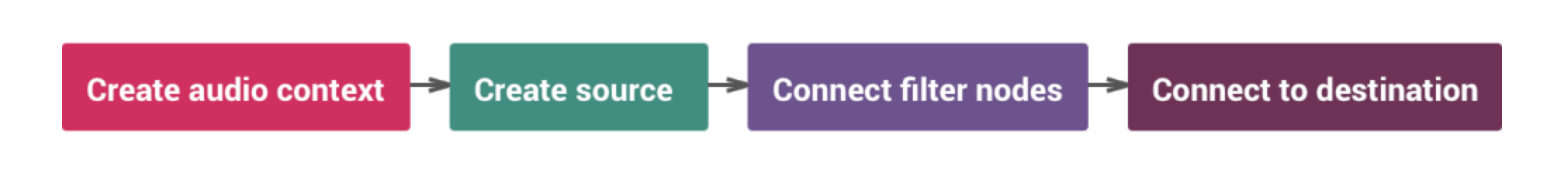

Web Audio API

Web Audio API

Web Audio API

const AudioContext = window.AudioContext || window.webkitAudioContext
const audioCtx = new AudioContext()

const sourceNode = audioCtx.createMediaStreamSource(stream)
const gainNode = audioCtx.createGain()
const finishNode = audioCtx.destination

sourceNode.connect(gainNode);
gainNode.connect(finishNode)

AudioNode

пример

 /* NTSC */
 const freq1 = 60 * (525 - 35 ) / 2 * 3 // 44100
 /* PAL */
 const freq2 = 50 * (625 - 37) / 2 * 3 // 44100

NTSC vs PAL

MediaStream

ondataavailable

Blob

MediaRecorder API

MediaRecorder

export default {
  name: 'MediaRecorderComponent',
  data () {
    return {
      mediaRecorder: null
      isAudioAccessReceived: false,
      isRecording: false,
      chunks: [],
      audio: this.$refs.audio
    }
  },
  methods: {
    toggleRecord () {
      if (!this.isAudioAccessReceived) {
        try {
          const stream = await navigator.mediaDevices.getUserMedia({ audio: true })
          this.mediaRecorder = new window.MediaRecorder(stream, { type: 'audio/ogg' })
          this.mediaRecorder.ondataavailable = () => this.chunks.push(event.data)
          mediaRecorder.onstop = (e) => {
            const blob = new Blob(chunks, { 'type' : 'audio/ogg; codecs=opus' });
            this.chunks = [];
            const audioURL = window.URL.createObjectURL(blob);
            audio.src = audioURL;
          }
          this.isAudioAccessReceived = true
        } catch (e) { /* handle error */ }
      }
      if (!this.isRecording) {
        this.mediaRecorder.start()
      } else {
        this.mediaRecorder.stop()
      }
      this.isRecording = !this.isRecording
    }
  }
}
<template>
  <div class="text-center" padding>
    <div class="q-ma-md text-center text-h4">MediaRecording API</div>
    <div class="q-ma-md text-center">
      <q-btn @click="start" label="start" class="q-ma-sm" rounded color="blue"/>
      <q-btn @click="stop" label="stop" class="q-ma-sm" rounded color="blue"/>
    </div>
    <div v-show="!isMediaRecorderSupported">{{ error }}</div>
  </div>
</template>

<script>
export default {
  name: 'VueMediaRecorder',
  methods: {
    start () {
      this.mediaRecorder.start()
    },
    stop () {
      this.mediaRecorder.stop()
    }
  }
}

VueJS with MediaRecorder

VueJS with MediaRecorder

export default {
  name: 'MediaRecorderComponent',
  data () {
    return {
      chunks: []
    }
  },
  async mounted () {
    try {
      this.mediaRecorder.onstop = this.handleStop
    } catch (e) { /* handle error */ }
  },
  methods: {
    handleStop () {
      const blob = new Blob(this.chunks, { type: 'audio/ogg; codecs=opus' })
      const audioURL = window.URL.createObjectURL(blob)
      this.chunks = []
    }
  }
}

MediaRecorder Support

Альтернативы

RecorderJS

<template>
  <div padding>
    <div v-if="getIsMediaDevicesAvailable">
        <q-btn
          @click="toggleRecord()"
          value="record"
        >
        </q-btn>
    </div>
  </div>
</template>

<script>
export default {
  name: 'AudioRecorder',
  components: {
    AudioAnswerRecord,
    CommonTimerCounter
  },
  data () {
    return {
      notStoredAnswersRecords: [],
      isRecording: false,
      recordProcessCircle: 0,
      isDataDownloading: false,
      recButtonDisabled: false,
      isWaiting: false,
      recorder: null,
      audioContext: null,
      recorderUnAvailable: null
    }
  },
  created () {
    this.audioContext = new this.AudioContextClass()
  },
  beforeDestroy () {
    this.audioContext = null
  },
  methods: {
    toggleRecord () {
      if (this.isRecording) {
        this.isRecording = false
        setTimeout(() => {
          this.recorder.stop()
          this.stream.getAudioTracks()[0].stop()
          this.recorder.exportWAV((finalUserData) => {
            const notStoredAnswerRecord = {
              name: `${new Date().getTime()}-${finalUserData.size}.wav`,
              blobObj: finalUserData
            }
            this.notStoredAnswersRecords.push(notStoredAnswerRecord)
            this.writeRecordAnswer(notStoredAnswerRecord)
              .then(() => {
                console.debug(
                  'AudioRecorder writeRecordAnswer this.notStoredAnswersRecords =',
                  this.notStoredAnswersRecords
                )
                this.notStoredAnswersRecords = this.notStoredAnswersRecords
                  .filter(record => record.name !== notStoredAnswerRecord.name)
              })
              .catch(
                () => this.$refs.notStoredAnswersRecords.filter(notStoredComponentRecord => {
                  console.debug('notStoredComponentRecord =', notStoredComponentRecord)
                  notStoredComponentRecord.setErrorDownloading()
                })
              )
            this.recButtonDisabled = false
          })
        }, 700)
      } else {
        this.recButtonDisabled = true
        console.debug('Try record start this.recButtonDisabled =', this.recButtonDisabled)
        navigator.mediaDevices.getUserMedia({
          audio: true
        })
          .then((stream) => {
            this.setIsMediaDevicesAvailable(true)
            if (this.audioContext.state === 'suspended') {
              /**
               * Это связано с особенностью хрома. Нужно в ручную запускать auido context,
               * если пользотватель еще не выполнидл никакого действия.
               * https://developers.google.com/web/updates/2017/09/autoplay-policy-changes#webaudio
              */
              this.audioContext.resume()
            }
            this.stream = stream
            console.debug('audioRecorder this.audioContext =', this.audioContext)
            this.recorder = new window.Recorder(
              this.audioContext.createMediaStreamSource(stream),
              { numChannels: 1, type: 'audio/wav' }
            )
            this.recorder.record()
            this.isRecording = true
            this.recButtonDisabled = false
          })
          .catch(err => {
            console.error('The following getUserMedia error occured: ' + err)
            this.setIsMediaDevicesAvailable(false)
            this.recButtonDisabled = false
          })
        console.debug('this.recorder = ', this.recorder)
      }
    },
  }
}
</script>

XSound

import { X } from 'xsound'
export default {
  name: 'XSoundRecorder',
  data () {
    return {
      isStop: false
    }
  },
  mounted () {
    X('oscillator').setup(true)
    X('oscillator').module('recorder').setup(4)
    this.isStop = true
  },
  methods: {
  	toggleRecording () {
      if (this.isStop) {
          X('oscillator').module('recorder').ready(0)
          X('oscillator').module('recorder').start()
          X('oscillator').start(440)
      } else {
          X('oscillator').module('recorder').stop()
          X('oscillator').stop()
          console.log(X('oscillator').module('recorder').getActiveTrack())
      }
      this.isStop = !this.isStop
    }
  }
}

WebAudioRecorder

let webAudioRecorder = new WebAudioRecorder(source, {
    workerDir: 'web_audio_recorder_js/',
    encoding: 'mp3',
    options: {
        encodeAfterRecord: true,
        mp3: { bitRate: '320' }
    }
});

webAudioRecorder.onComplete = (webAudioRecorder, blob) => {
    let audioElementSource = window.URL.createObjectURL(blob);
    audioElement.src = audioElementSource;
    audioElement.controls = true;
}
webAudioRecorder.onError = (webAudioRecorder, err) => {
    console.error(err);
}
webAudioRecorder.startRecording();
webAudioRecorder.finishRecording();

MediaStreamRecorder

<script>
var mediaConstraints = {
    audio: true
};

navigator.getUserMedia(mediaConstraints, onMediaSuccess, onMediaError);

function onMediaSuccess(stream) {
    var mediaRecorder = new MediaStreamRecorder(stream);
    mediaRecorder.mimeType = 'video/webm';
    mediaRecorder.ondataavailable = function (blob) {
        // POST/PUT "Blob" using FormData/XHR2
        var blobURL = URL.createObjectURL(blob);
        document.write('<a href="' + blobURL + '">' + blobURL + '</a>');
    };
    mediaRecorder.start(3000);
}

function onMediaError(e) {
    console.error('media error', e);
}

mediaRecorder.stop();
mediaRecorder.start();
mediaRecorder.save();
</script>

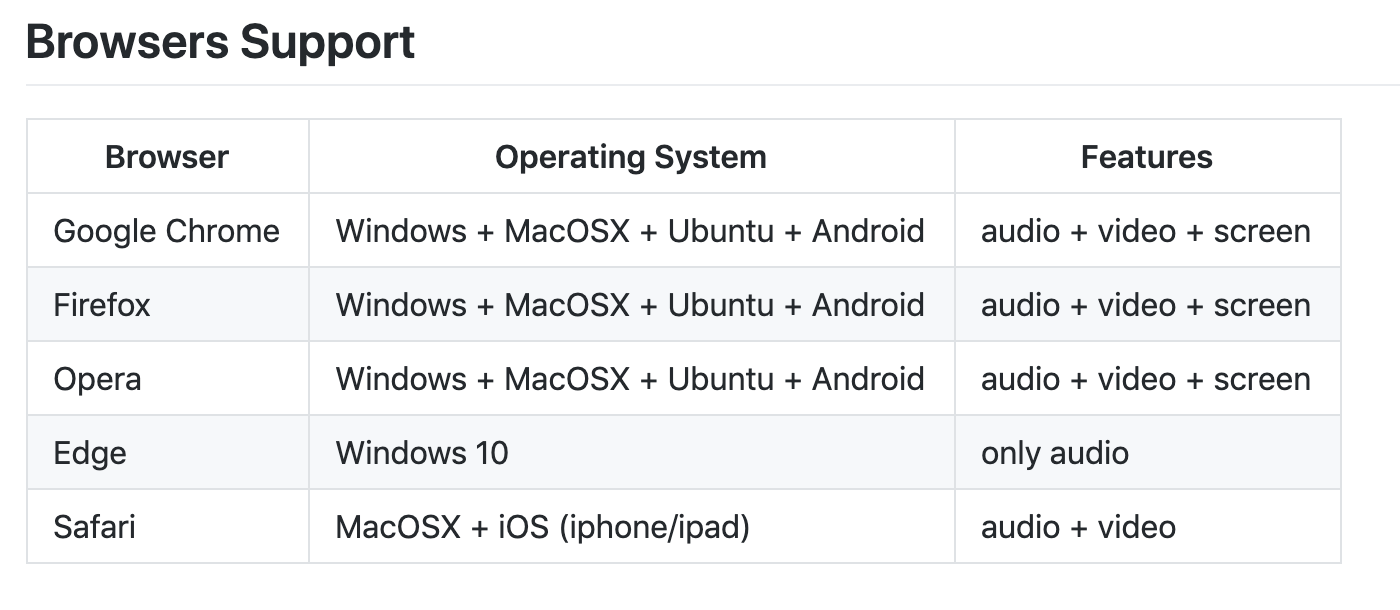

RecordRTC

let stream = await navigator.mediaDevices.getUserMedia({video: true, audio: true});
let recorder = new RecordRTCPromisesHandler(stream, {
    type: 'video'
});
recorder.startRecording();

const sleep = m => new Promise(r => setTimeout(r, m));
await sleep(3000);

await recorder.stopRecording();
let blob = await recorder.getBlob();
invokeSaveAsDialog(blob);

WebRTC adapter

Готовые компоненты

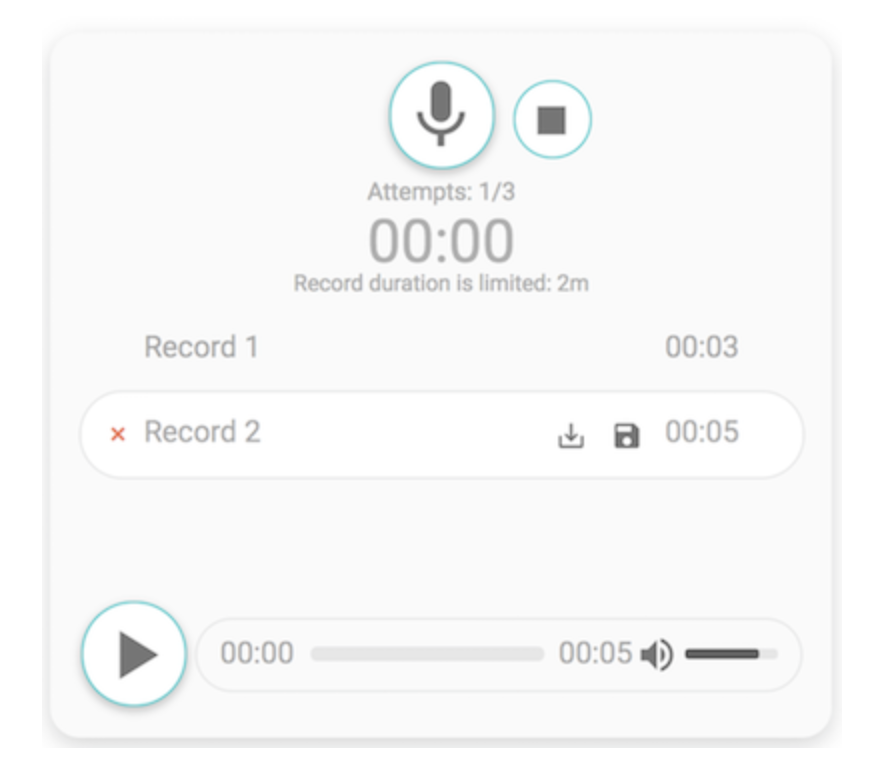

VueAudioRecorder

/* boot/audioRecorder.js */
import AudioRecorder from 'vue-audio-recorder'

export default ({ Vue }) => {
  Vue.use(AudioRecorder)
}

VueAudioRecorder

/* MyVueAudioRecorder.vue */
<template>
    <audio-recorder
      upload-url="some url"
      :attempts="3"
      :time="2"
      :before-recording="callback"
      :after-recording="callback"
      :before-upload="callback"
      :successful-upload="callback"
      :failed-upload="callback"></audio-recorder>
</template>

<script>
export default {
  name: 'MyVueAudioRecorder',
  methods: {
    callback (msg) {
      console.debug('Event: ', msg)
    }
  }
}
</script>

Пара сниппетов

Audio Blob

const BASE64_MARKER = ';base64,';
const convertDataURIToBinary = (dataURI) => {
  const base64Index = dataURI.indexOf(BASE64_MARKER) + BASE64_MARKER.length;
  const base64 = dataURI.substring(base64Index);
  const raw = window.atob(base64);
  const rawLength = raw.length;
  let array = new Uint8Array(new ArrayBuffer(rawLength));

  for(i = 0; i < rawLength; i++) {
    array[i] = raw.charCodeAt(i);
  }
  return array;
}
const binary= convertDataURIToBinary(data);
const blob=new Blob([binary], {type : 'audio/ogg'});
const blobUrl = URL.createObjectURL(blob);

Создаем объект для скачивания

mediaRecorder.addEventListener("stop", () => {
  const audioBlob = new Blob(audioChunks)
  const audioUrl = URL.createObjectURL(audioBlob)
})

Полезные ссылки

Спасибо за внимание!

tg @omalanova
