What is CANVAS?

The CANVAS element, introduced in HTML5, enables the dinamic generation of bitmap images be means of JavaSript code

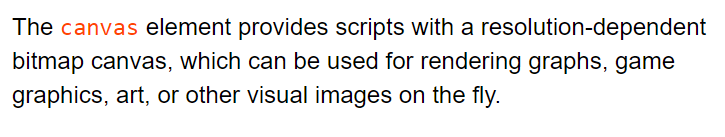

According to the HTML5 specification:

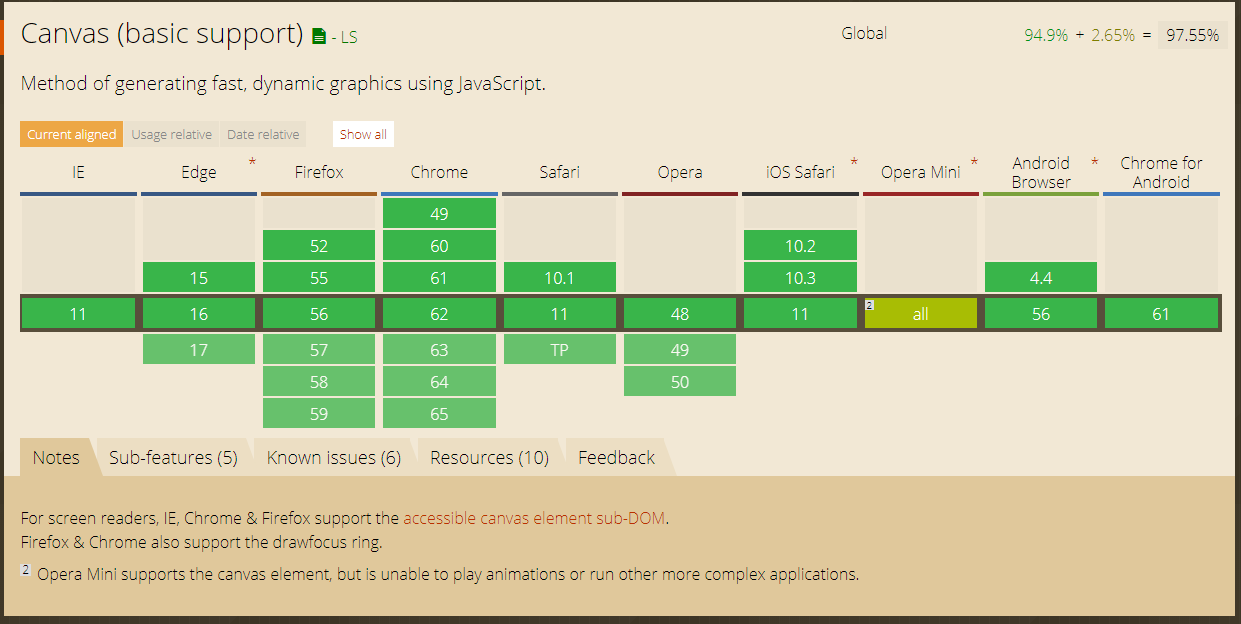

Support Canvas

Use Canvas

for drawing shapes and complex images

for drawing graphs

to create a game board in browser games

for manipulate photos

for almost all animation

to embed video in a page

it is possible to create a full-fledged player

and much more

Canvas element and basic setup

HTML

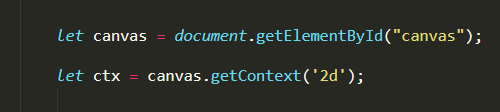

JS

ID:

Although not required, supplying an ID is recommended as it eases the process of identifying it within a script



WIDTH:

The initial width is 300px



HEIGHT:

The initial height is 300px

2.1 the HTMLCanvasElement

2.2 the CanvasRenderingContext2D

2.1
2.2

Two parts of code:

Required attributes:

1

2

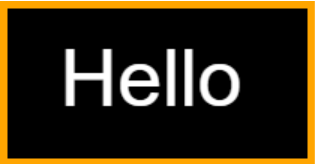

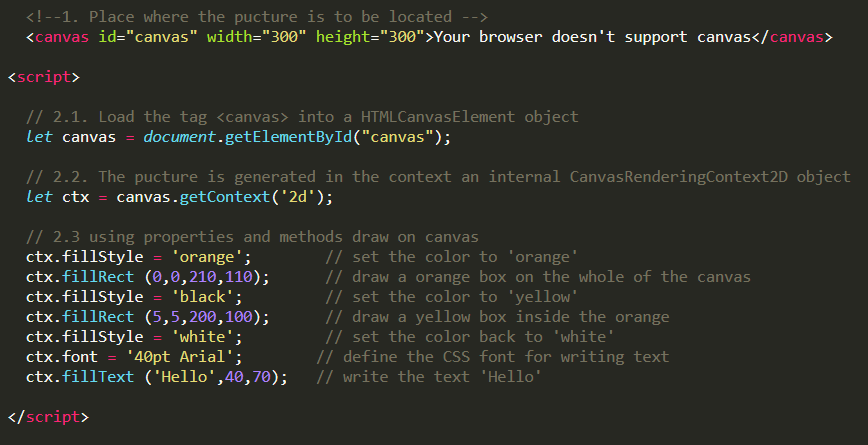

Example basic steps

Main points of work with Canvas

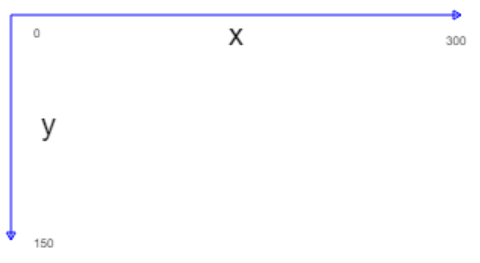

Points (x, y) and the canvas coordinates

The origin (point 0,0) is in the upper left corner.But it can be shifted



Changing the height or width of the canvas will erase all its contents



The text color, font size, style can be specified in the same way as CSS



Possibilities of Сanvas

Using about 20 properties and 35 methods to work with Canvas

 you can implement complex and interesting things

Drawing shapes

Canvas supports 2 primitive shapes: rectangles and paths

Rectangle

4 ways to create a rectangle

rect(x, y, width, height)

adds a rectangular path to a currently open path

Where:

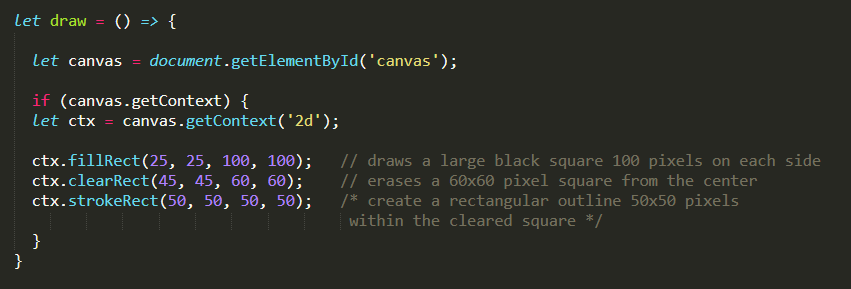

fillRect(x, y, width, height)

filled rectangle

strokeRect(x, y, width, height)

a rectangule outline

clearRect(x, y, width, height)

make the rectangular area transparent

X

the x axis of the coordinate

Y

the y axis of the coordinate

Width

the rectangle’s width

Height

the rectangle’s height

Example

Path

A path is a list of points connected by segments of lines

that can be of varying shapes, curves, widths, and colors.

Take some extra steps and metods:

beginPath()

creates a new path



path methods

methods to set different path for object



closePath()

closes the path



1

2

3

4

stroke()

draws the shape by stroking its outline

fill()

drawing a solid shape by filling the path's content area



Path metods:

moveTo()

moves the starting point of a new sub-path

lineTo()

connects the last point in the sub-path

bezierCurveTo()

adds a cubic Bézier curve to the path



arc() and arcTo()



quadraticCurveTo()

adds a quadratic Bézier curve to the path

ellipse()



rect()

creates a path for a rectangle

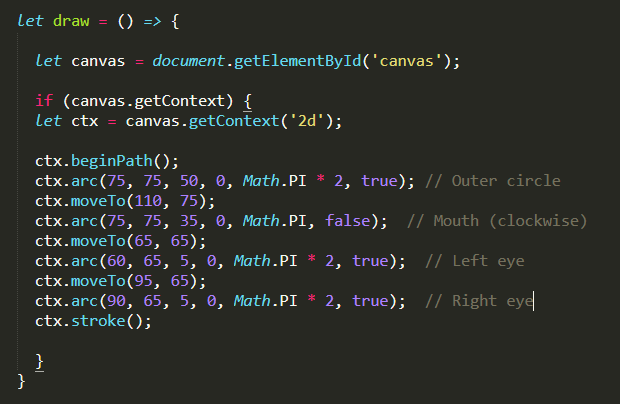

Example

Applying colors

Colors

fillStyle = color

Sets the styles used when filling shapes

strokeStyle = color

Sets the styles for shape outline

Transparency

globalAlpha = value

to all future shapes drawn

Patterns

createPattern(image, repetition)

to all future shapes drawn

Canvas fill rules

norzero-rule          event-odd rule

a curve filled according rulles

Gradients

createLinearGradient(x0, y0, x1, y1);



createRadialGradient(x0, y0, x1, y1, r1);



gradient.addColorStop(position, color);



Example

Applying styles

Line styles

lineWidth = value



miteralLimit = value



Shadows

getLineDash()

gets the current line dash pattern



setLineDash(segments)

sets the line dash pattern



lineDashOffset = value



shadowOffsetX = float



shadowOffsetY = float



shadowBlur = float



shadowColor = color



lineCap = type

determines how the end points of every line are drawn

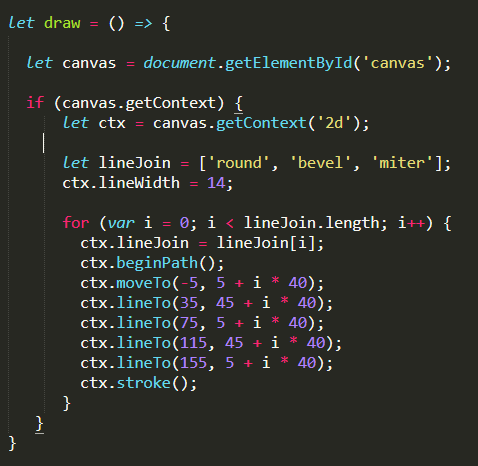

lineJoin = type

determines how two connecting segments (of lines, arcs or curves)

Example

Drawing text

Methods

Styling text

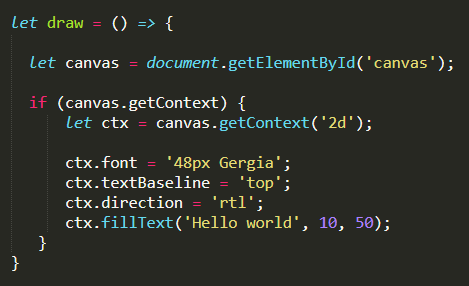

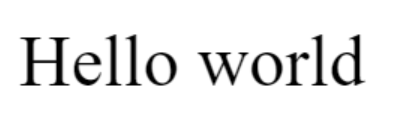

fillText(text, x, y [, maxWidth])

fills a given text at the given (x,y) position



font = value



textAlign = value



textBaseline = value



direction = value

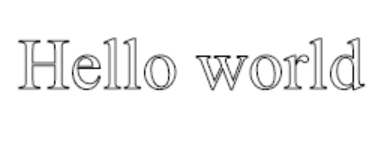

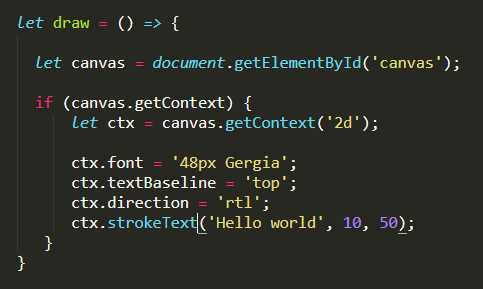

strokeText(text, x, y [, maxWidth])

strokes a given text at the given (x,y) position





measureText()

Advanced text measurement

Example

Using images

Getting image to draw

Drawing images

HTML ImageElement



drawImage(image, x, y)

draws the CanvasImageSource at the coordinates (x, y)

HTML VideoElement



HTML CanvasElement



The canvas API an image sourse:

Using images from the same page

Using images from other domains

Using other canvas elements

Creating an image from scratch

Embedding an image via data: URL

Using frames from a video

drawImage(image, x, y, width, height)

two new parameters scaled images on the canvas

-   Scaling

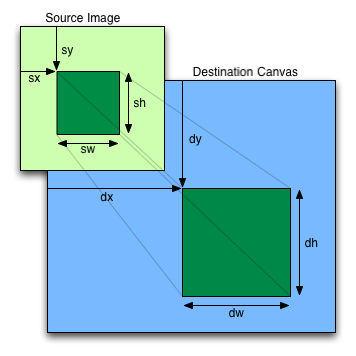

drawImage(image, sx, sy, sWidth, sHeight, dx, dy, dWidth, dHeight)

cut out a section of the source image, scale and draw

-   Slicing

Example

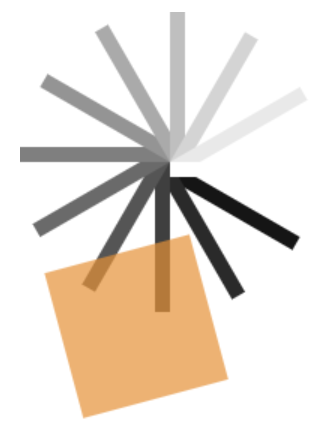

Transformations

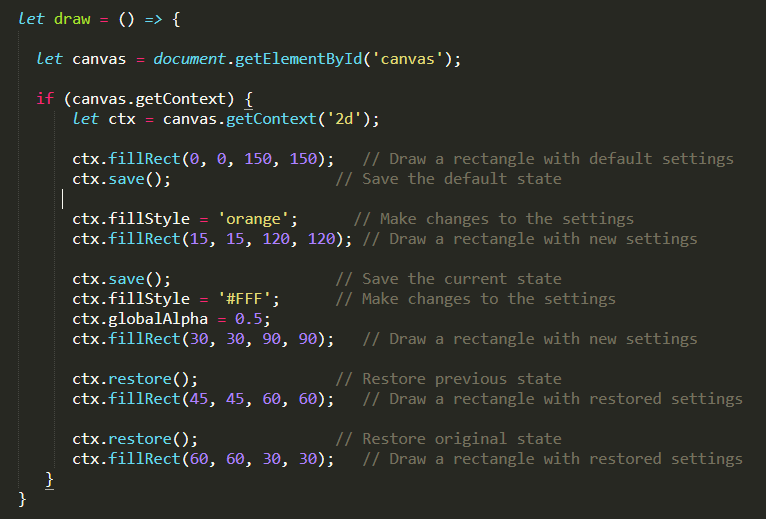

save()

Saves the entire state of the canvas

restore()

Restores the most recently saved canvas state

Canvas states are stored on a stack

Saving and restoring state

Transformations

translate(x, y)

Moves the canvas and its origin on the grid

rotate(x, y)

Rotates the canvas clockwise around the current origin by the angle number of radians

scale(x, y)

Scales the canvas units by x horizontally and by y vertically

setTransform(a, b, c, d, e, f)

Resets the current transform to the identity matrix, and then invokes the transform() method with the same arguments

resetTransform()

Resets the current transform to the identity matrix

transform(a, b, c, d, e, f)

Multiplies the current transformation matrix with the matrix described by its arguments

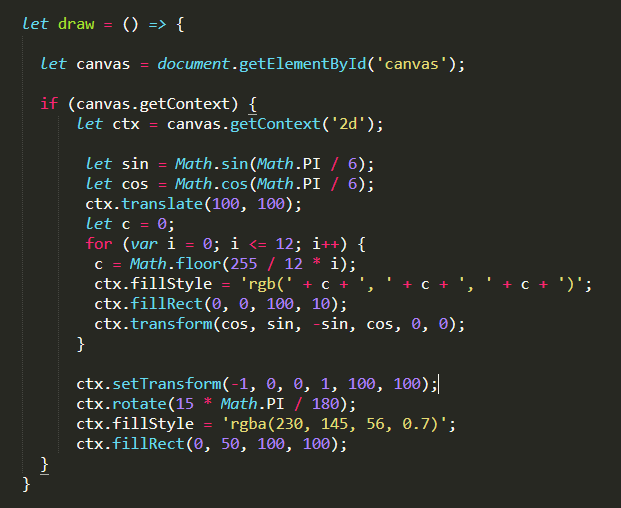

Example

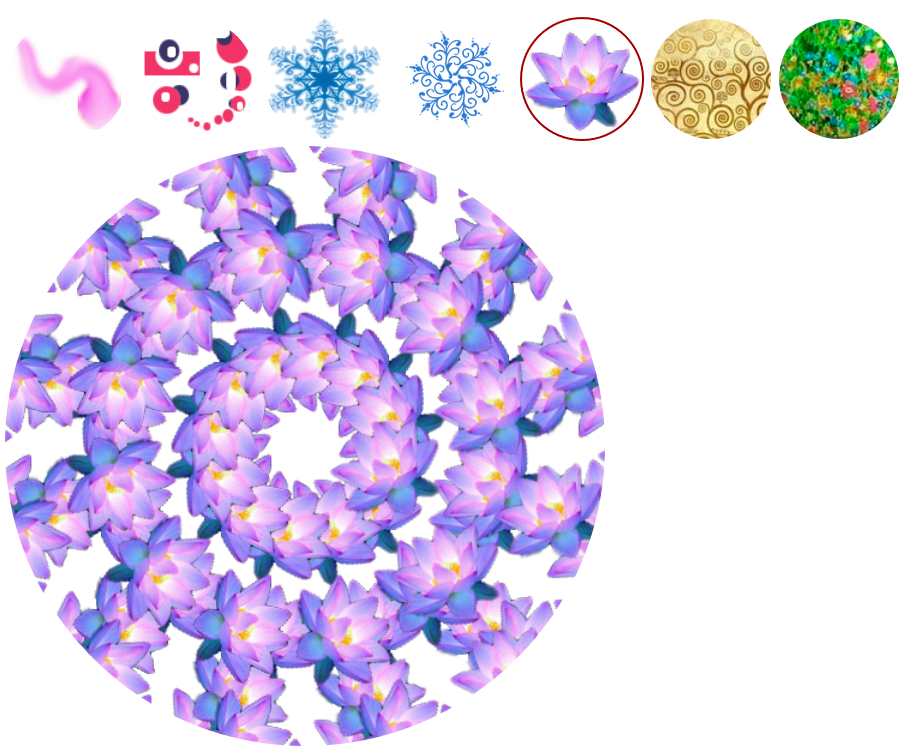

Compositiong and clipping

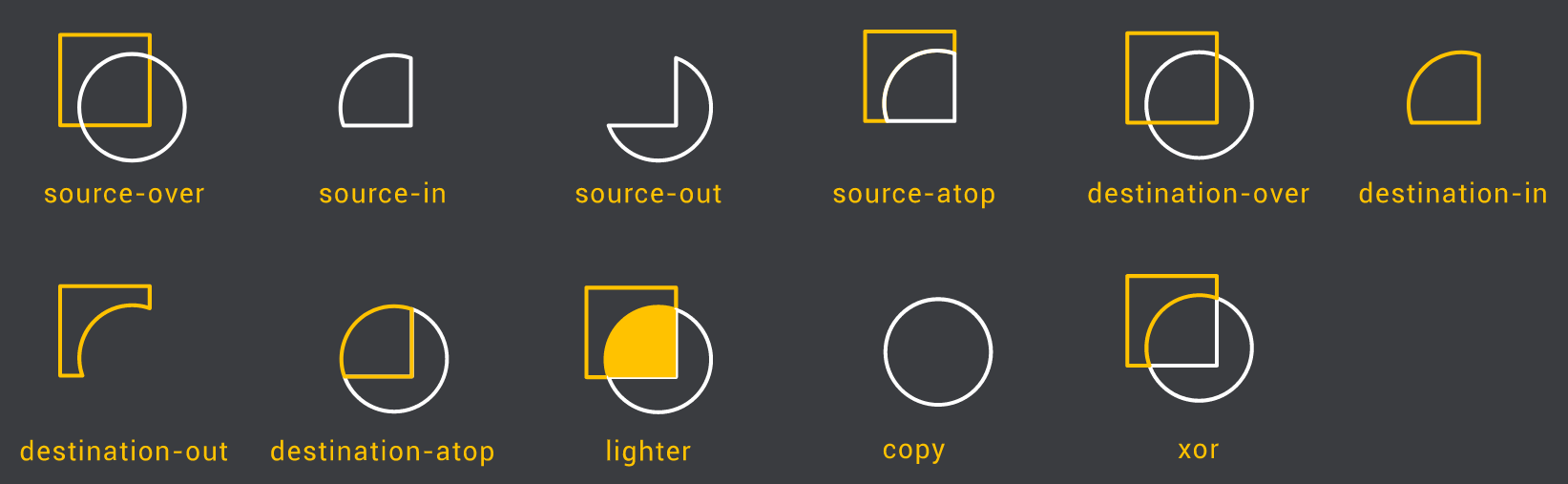

globalCompositeOperation = type



Sets the type of compositing operation to apply when drawing new shapes. 'Type' is used to identify which of the twelve compositing operations to use.

clip()



Turns the path currently being built into the current clipping path

Animation

Clear the canvas



setInterval(function, delay)



Basic animation steps

1

Save the canvas state



2

Draw animated shape



3

Restore the canvas state



4

Controlling an animation

setTimeout(function, delay)



requestAnimationFrame(callback)



Pixel manipulation

canvas.toDataURL('image/png')



default setting, creates a PNG image.



Methods

Saving image

createImageData()



create image data object





getImageData()



get the pixel data from the content





putImageData()



painting pixel data into content





drawImage()



zooming and anti-aliasing





canvas.toDataURL('image/jpag', quality)



creates a JPG image



canvas.toBlob(callback, type, encoderOptions)



creates a Blob object representing the image contained in the canvas



Events

Canvas doesn't define any new events. You can listen to the same mouse and touch events that you'd work with anywhere else.





The Canvas just looks like a rectangular area of pixels to the rest of the browser. The browser doesn't know about any shapes you've drawn.

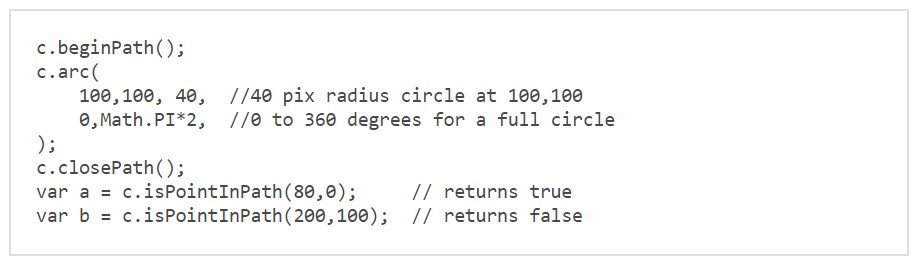

Calculating which shape is under the mouse cursor could be very difficult. Fortunately Canvas has an API to help: isPointInPath. This function will tell you if a given coordinate is inside of the current path. Here's a quick example:





Useful tips

Pre-render similar primitives or repeating objects on an off-screen canvas

Avoid floating-point coordinates and use integers instead

Don’t scale images in drawImage

Use multiple layered canvases for complex scenes

CSS for large background images

Scaling canvas using CSS transforms

Batch canvas calls together

Avoid unnecessary canvas state changes

Render screen differences only, not the whole new state

Avoid the shadowBlur property whenever possible

Avoid text rendering whenever possible

Try different ways to clear the canvas (clearRect() vs. fillRect()

With animations use: window.requestAnimationFrame() instead of window.setInterval()

Conclusion

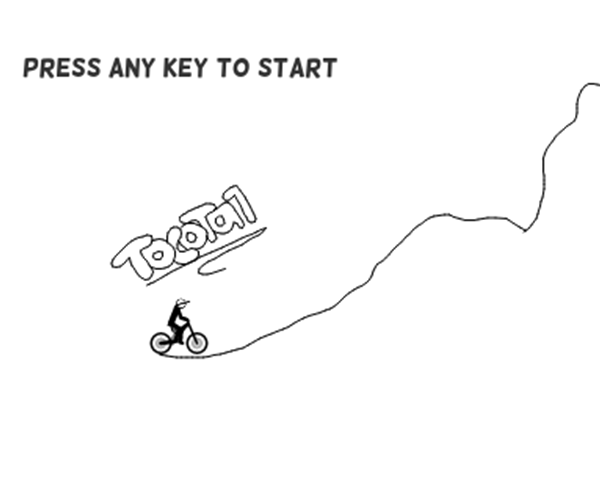

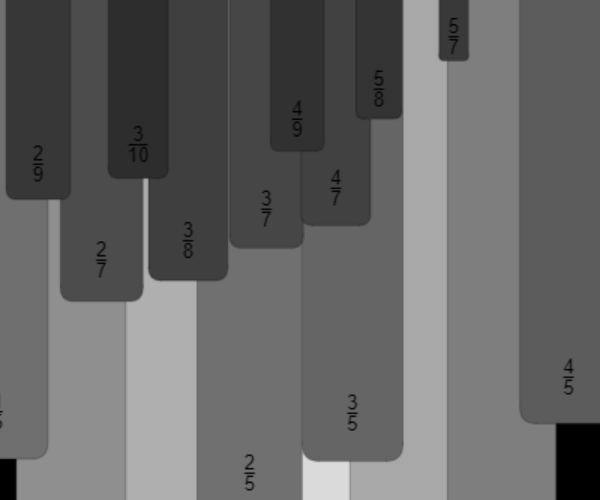

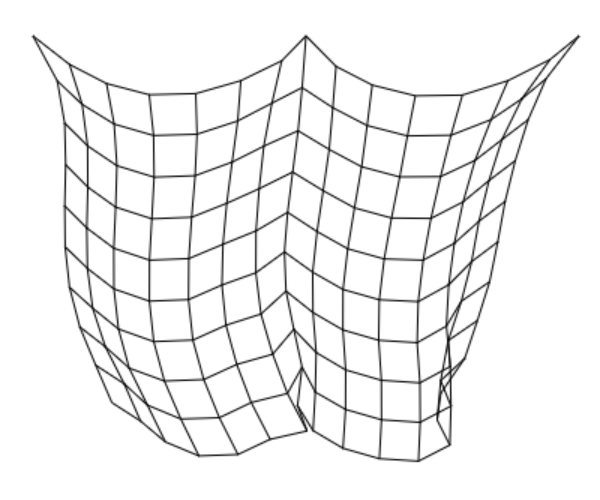

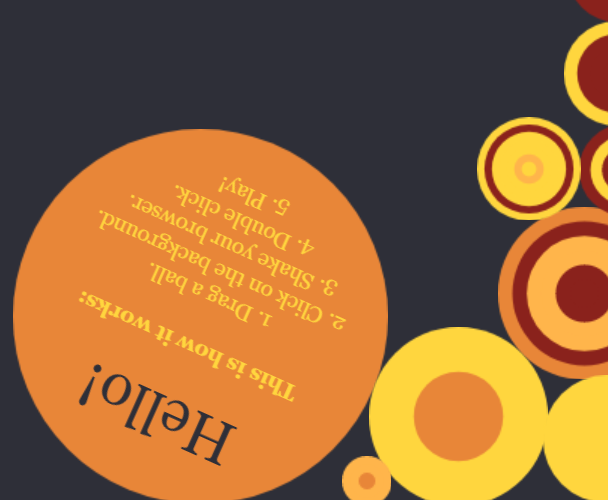

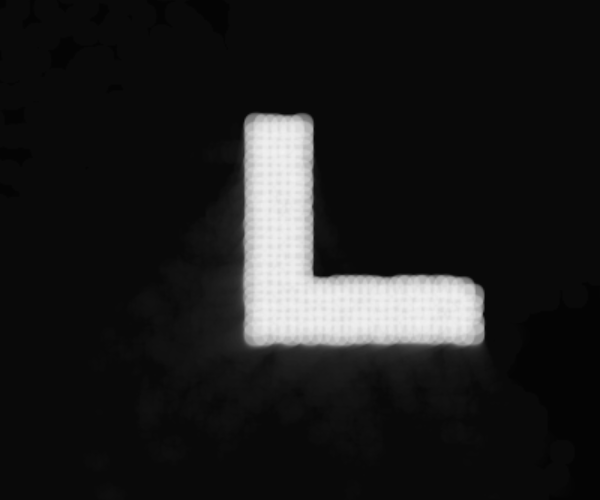

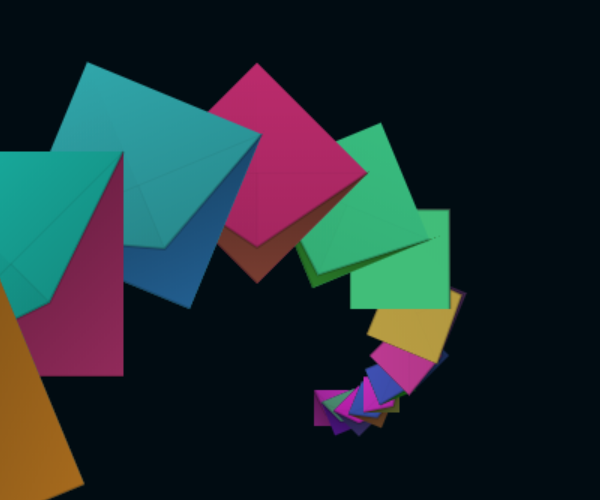

More examples of the possibilities of canvas for Canvas inspiration
