Web Animations:
From Disney to SASS
@opherv / JSConfBP / Oct 2017
slides.com/opherv/jsconfbp2017
Blizzard
Art by DarrenGeers
@opherv
Hi! I'm Opher
I'm a creative developer at Eko
The Lion King (1994)
@opherv
@opherv
@opherv
@opherv
01 Squash and Stretch
02 Anticipation
03 Staging
04 Straight Ahead Action and Pose to Pose

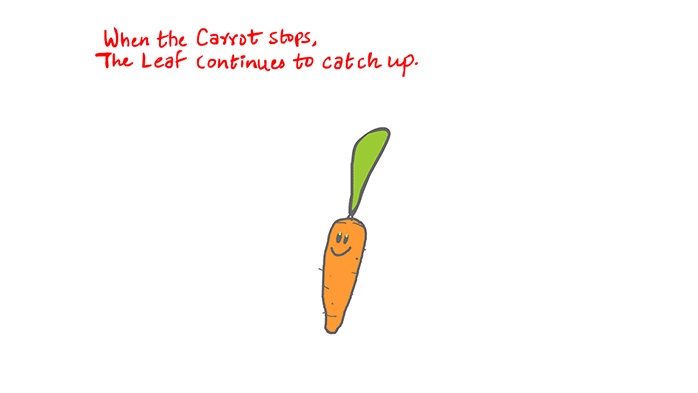

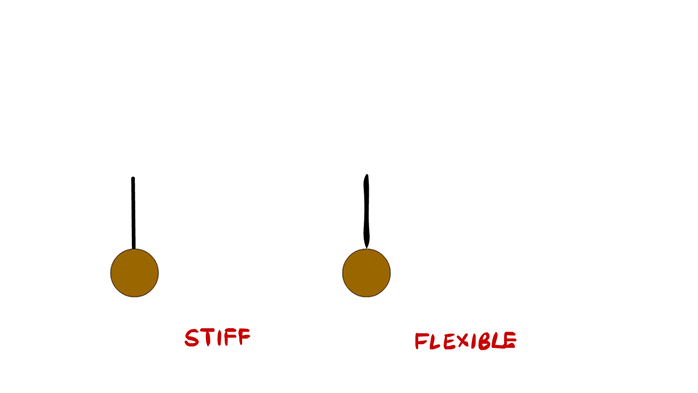

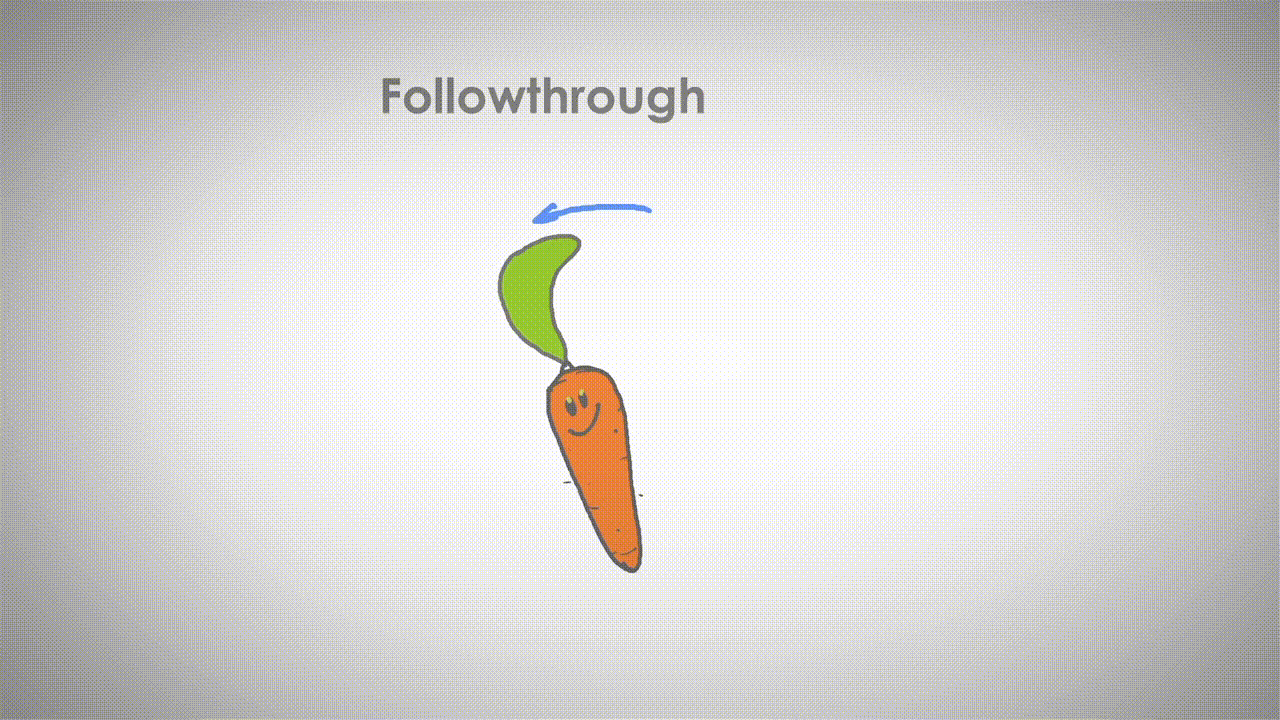

05 Follow Through and Overlapping Action
06 Slow In and Slow Out
07 Arc
08 Secondary Action
09 Timing
12 Appeal
10 Exaggeration
11 Solid drawing

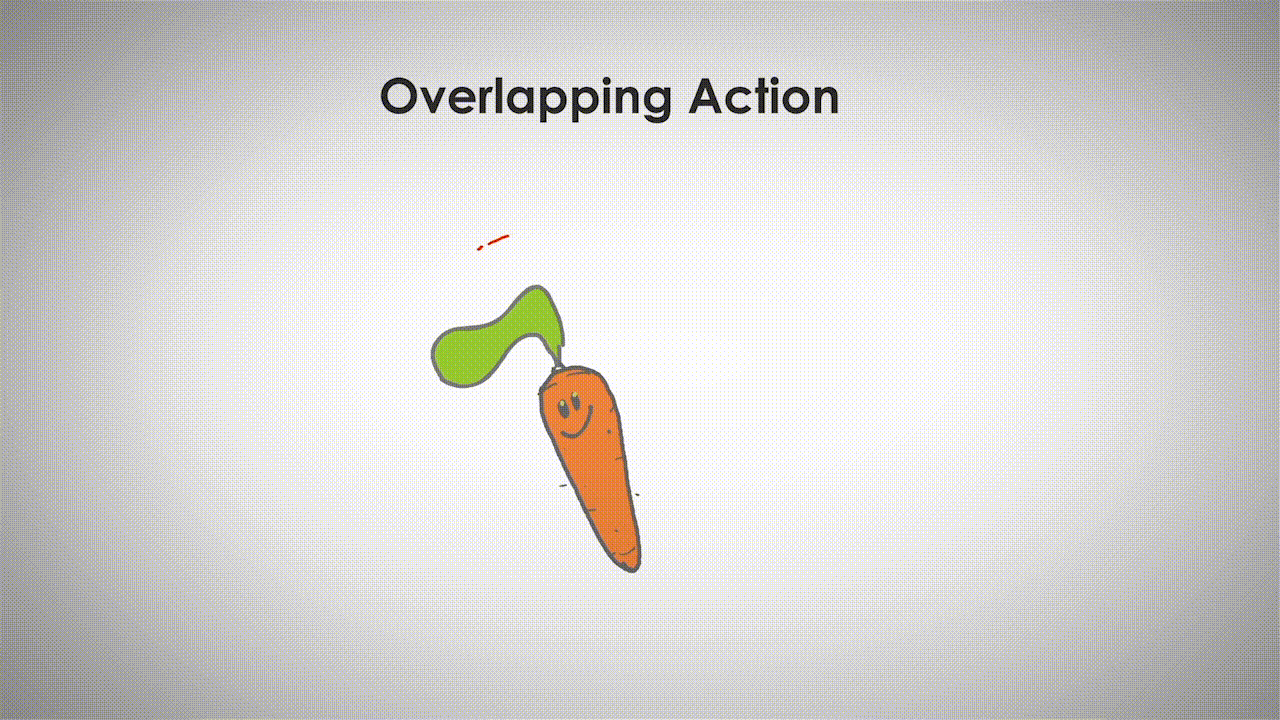

05 Follow Through and Overlapping Action
@opherv
@opherv
@opherv
@opherv
@opherv
@opherv
@opherv
What are we making?
Animation specs:
Four circles
Total Iteration time: 1 second
Circle moment time: 0.5 seconds
Circle stagger time: 0.15 seconds
@opherv
Our options
Web Animation API
@opherv
Implementation 1
@opherv
Pros
Good performance across devices (GPU accelerated *)
Cons
Limited features /
complex animations are tricky
Defined using CSS
No dynamic animations
Hard to debug
CSS Animation - quick recap
@keyframes move {
0% { transform: translateX(0); }
25% { transform: translateX(100px); }
100% { transform: translateX(400px); }
}
span{
animation: move 2s infinite;
}Let's add animation-delay
hmm... what just happened?
animation-delay affects only the start delay. It doesn't affect animation repeats!
@opherv
Making sense of it all
0s = 0%
0.3s = 0.3 / 1s * 100 = 30%
0.8s = (0.3 + 0.5) / 1s * 100 = 80%
1s = 100%@keyframes circle2{
0%{ transform: translateX(0); }
???% { transform: translateX(0); }
???% { transform: translateX(60px); }
100% { transform: translateX(60px); }
}
The solution
@mixin createCircleAnimation($i, $animTime, $totalTime, $delay){
@include keyframes(circle#{$i}){
0%, #{($i * $delay)/$totalTime * 100}% {
@include transform(translateX(0));
}
#{($i * $delay + $animTime)/$totalTime * 100}%, 100% {
@include transform(translateX(60px));
}
}
}
$animTime: 0.5s;
$totalTime: 1s;
$staggerTime: 0.15s;
@for $i from 0 through 3 {
@include createCircleAnimation($i, $animTime, $totalTime, $staggerTime);
span:nth-child(#{($i + 1)}){
animation: circle#{(3 - $i)} $totalTime infinite;
left: #{$i * 60 - 60 }px;
}
}mixin
@mixin createCircleAnimation($i, $animTime, $totalTime, $delay){
@include keyframes(circle#{$i}){
0%, #{($i * $delay)/$totalTime * 100}% {
@include transform(translateX(0));
}
#{($i * $delay + $animTime)/$totalTime * 100}%, 100% {
@include transform(translateX(60px));
}
}
}usage
$animTime: 0.5s;
$totalTime: 1s;
$staggerTime: 0.15s;
@for $i from 0 through 3 {
@include createCircleAnimation($i, $animTime, $totalTime, $staggerTime);
span:nth-child(#{($i + 1)}){
animation: circle#{(3 - $i)} $totalTime infinite;
left: #{$i * 60 - 60 }px;
}
}
<-- Why I can't work from home
@opherv
Implementation 2
@opherv
Pros
Great, robust API
Cons
Requires loading an extra lib
Dynamic animations
Handles browser inconsistencies
JS is implementation-sensitive
Some advanced features cost $
@opherv
Which one to use?
Thanks!
@OpherV
opherv.com
Web Animation: from Disney to SASS
By Opher Vishnia
