Engineering design

W6-1

Professor: Oscar Alonso Rosete Beas

Agenda



  • Tangency in mechanical drawing
  • ANSI title block
  • ​Portfolio drafts 9,10 and 11

Portfolio draft (9)

Tangent to a circle and a line

Arc tangent to two arcs

Title block ANSI

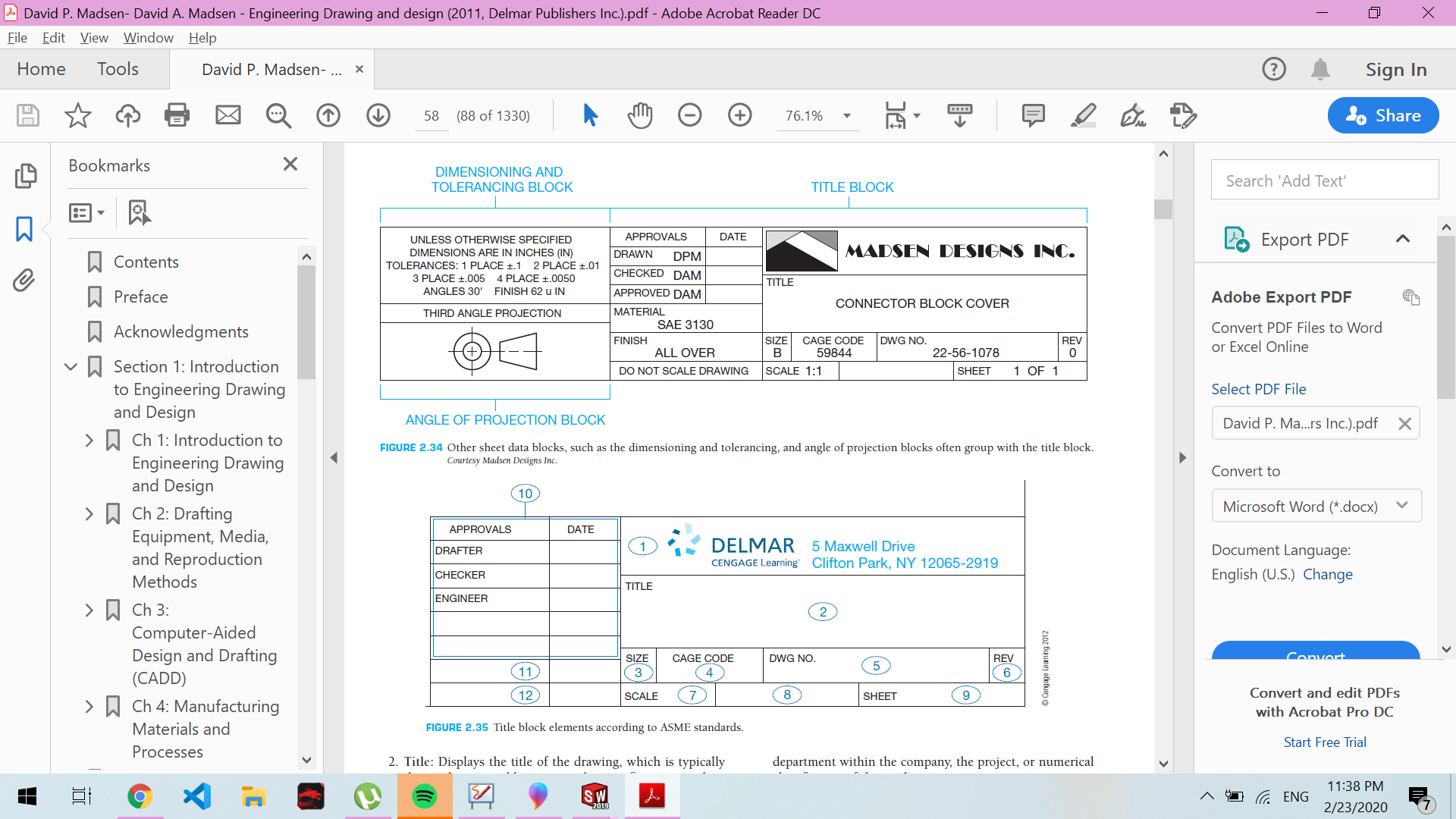

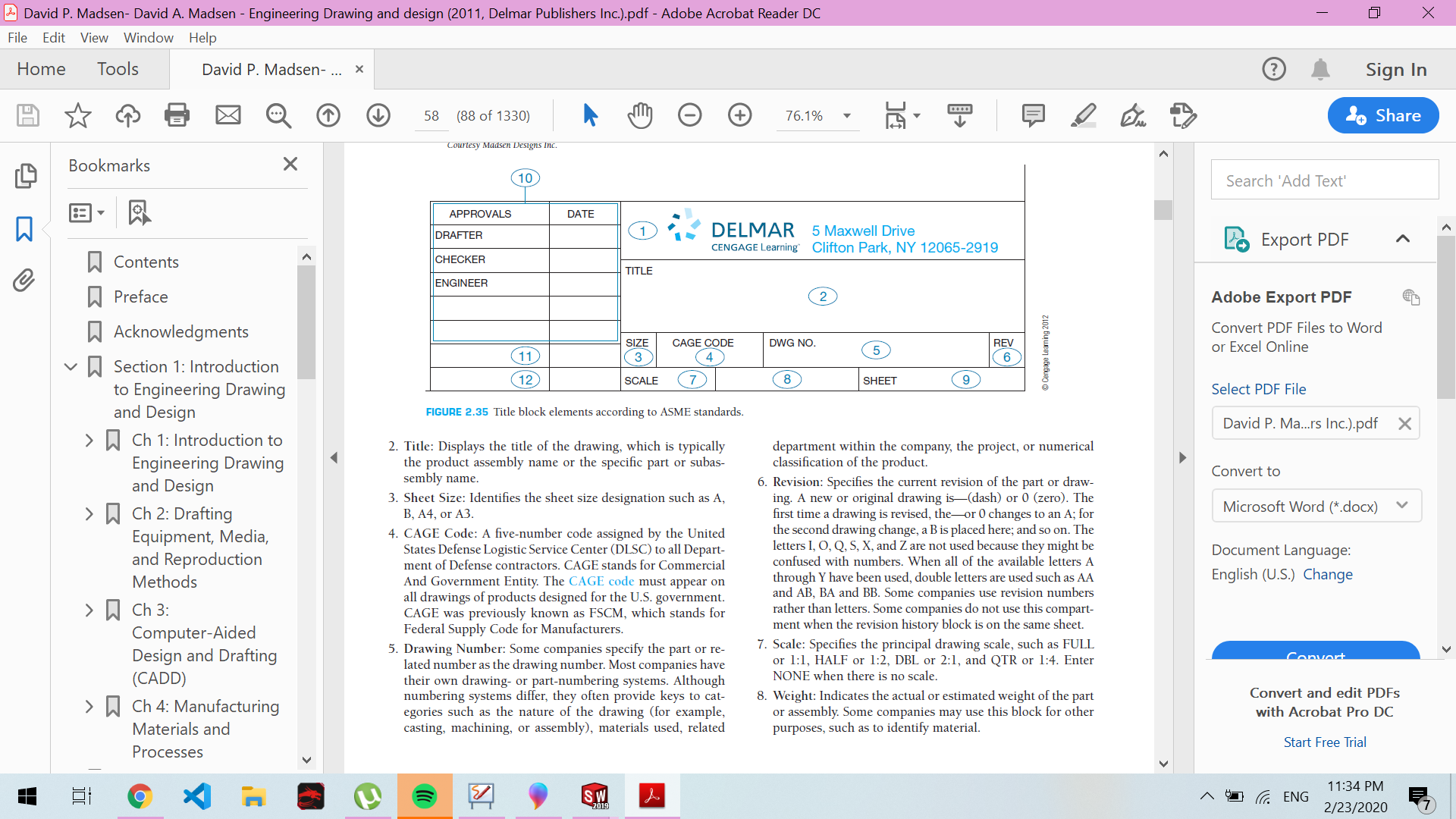

ANSI/ASME Y14.1 Decimal Inch Drawing Sheet Size and Format

1. Name (Company name)

2. Drawing title

3. SIze(Sheet size)

4. DAI (Design activity id for the area)

5. Drawing Number

6. Revision

7. Scale (1:1/Full, Half/1:2)

8. Weight (actual or estimated)

9. Sheet (relative to a group)

10. drafted by, engineered, approvals (All initials)

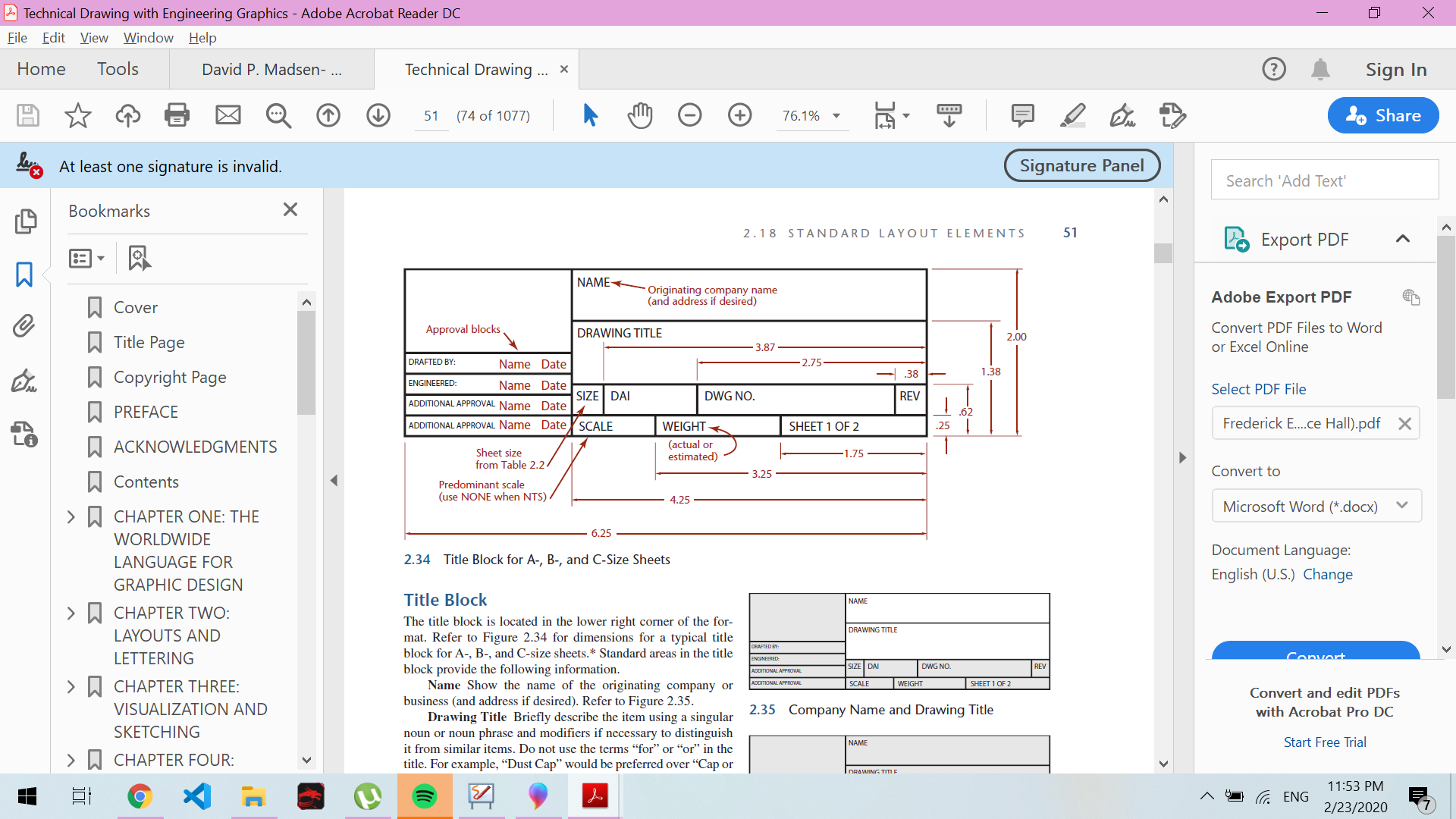

Title block dimensions

ANSI/ASME Y14.1 Decimal Inch Drawing Sheet Size and Format

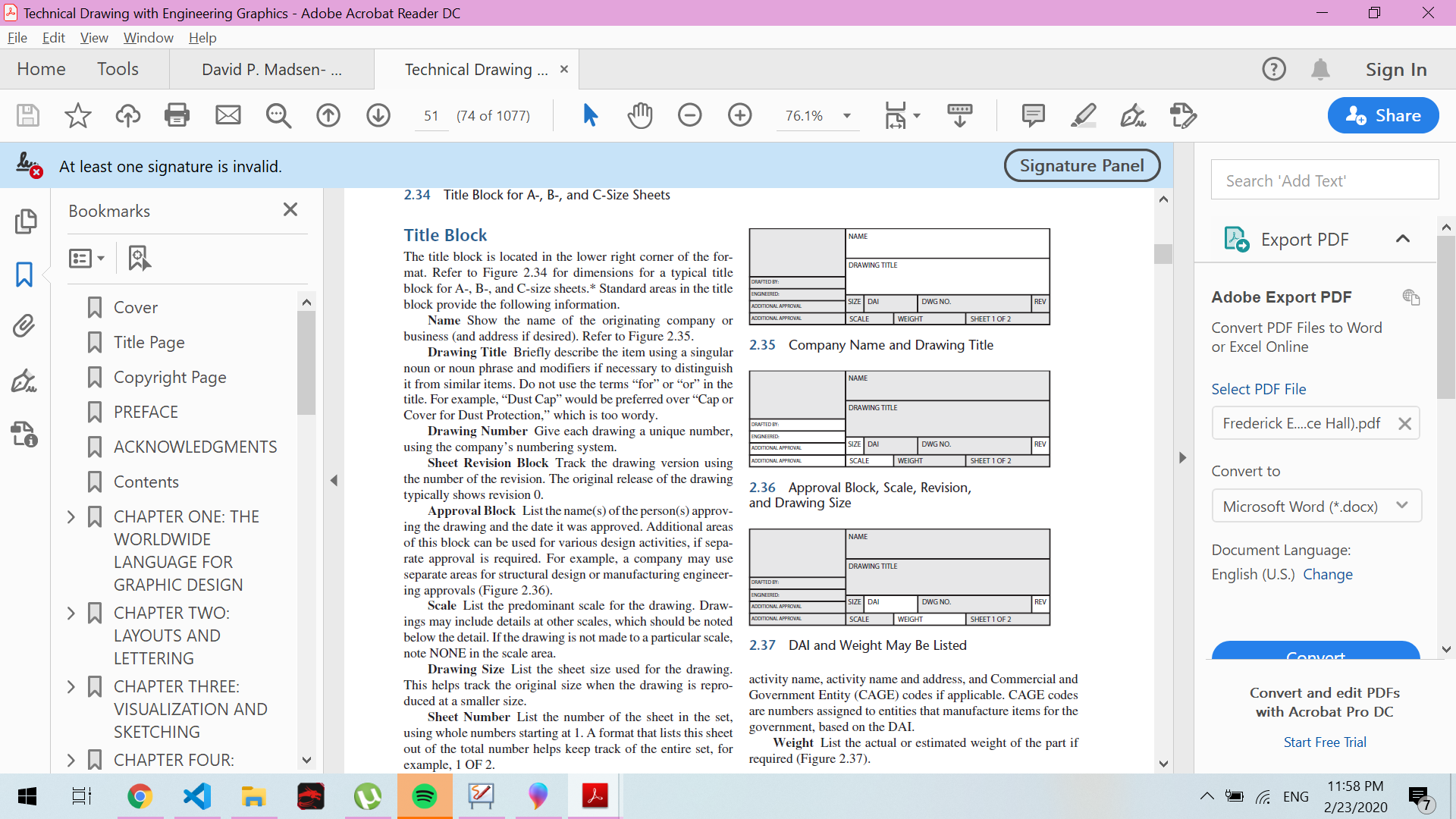

Title block example

ANSI/ASME Y14.1 Decimal Inch Drawing Sheet Size and Format

Frame of 1 cm

Units expressed in mm, multiply quantities by a factor of 2.

Try to horizontally and vertically center your draft.

Title block (ISO):

  • Title: support brace

Section 1:

Draw the component as seen on the previous procedure

Include the annotations

One-View drawing of a support brace



Portfolio draft (10)

Frame of 1 cm

Include the title block

Title block (ANSI):

  • Name: CETYS, Title: Gasket, drafted by: your initials, Additional Approval: OARB,Size: A, Drawing Number: 11

  • Include the date in which it was drawn.

Units expressed in inches

Try to horizontally and vertically center your draft. on the remaining blank space.

Draw the component as seen on the previous procedure

Include the annotations

One-View drawing of a gasket



Portfolio draft (11)

On a Microsoft Powerpoint Presentation:

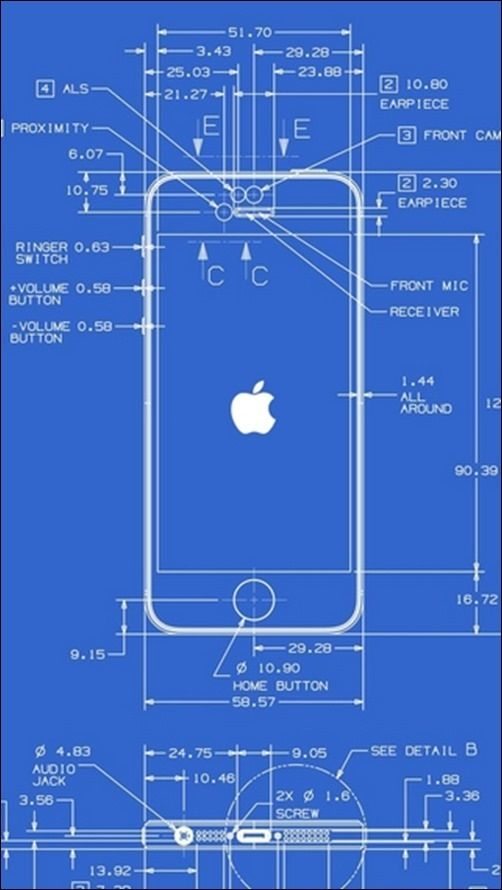

  • Include a photograph from the top of a product of your selection which contains horizontal.
  • Include at least one photograph that proves your measurements.
  • Include a photograph of your draft #1.
  • Include a photograph of your draft #2.

Note: It should contain arcs/fillet/round, circles, angled lines.



Make a draft of your product(draft #1):

  • Frame of 1 cm
  • Include the title block based on your measurements take the decision of using ANSI or ISO standard and fill the corresponding fields.
  • Try to horizontally and vertically center your draft on the remaining blank space.
  • Include annotations

Deadline: 03/02/2020

First Homework

Frame of 1 cm

Include the title block

Title block (ISO):

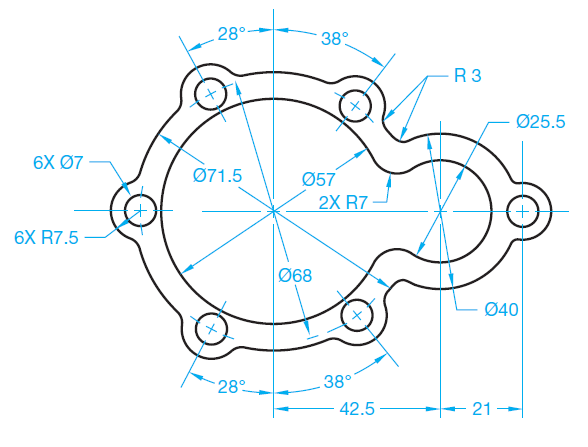

  • Name: CETYS, Title: Gasket 2

  • Include the date in which it was drawn.

Units expressed in mm, multiply quantities by a factor of 1.5.

Try to horizontally and vertically center your draft. on the remaining blank space.



Include the annotations

One-View drawing of a gasket



Homework draft #2
