Engineering design

W8-1

Professor: Oscar Alonso Rosete Beas

Agenda



  • Unit 2 introduction
    • Orthographic Projection
    • Multiview drawings
    • Third-angle vs First-angle projection

Portfolio draft (10)

Portfolio draft (11)

Portfolio draft (12)

Portfolio draft (13)

Frame of 1 cm

Include the title block in the bottom right corner

Title block (ISO):

  • Name: CETYS, Title: Review#1, Created by: your initials, Approved by: OARB,Size: A, Drawing Number: 1

  • Include the date in which it was drawn.

Units expressed in mm.

Try to horizontally and vertically center your drafts on the remaining blank space.

Draw the component´s three principal views in first-angle projection.

Include the annotations

Multiview-drawing

Review activity (1)

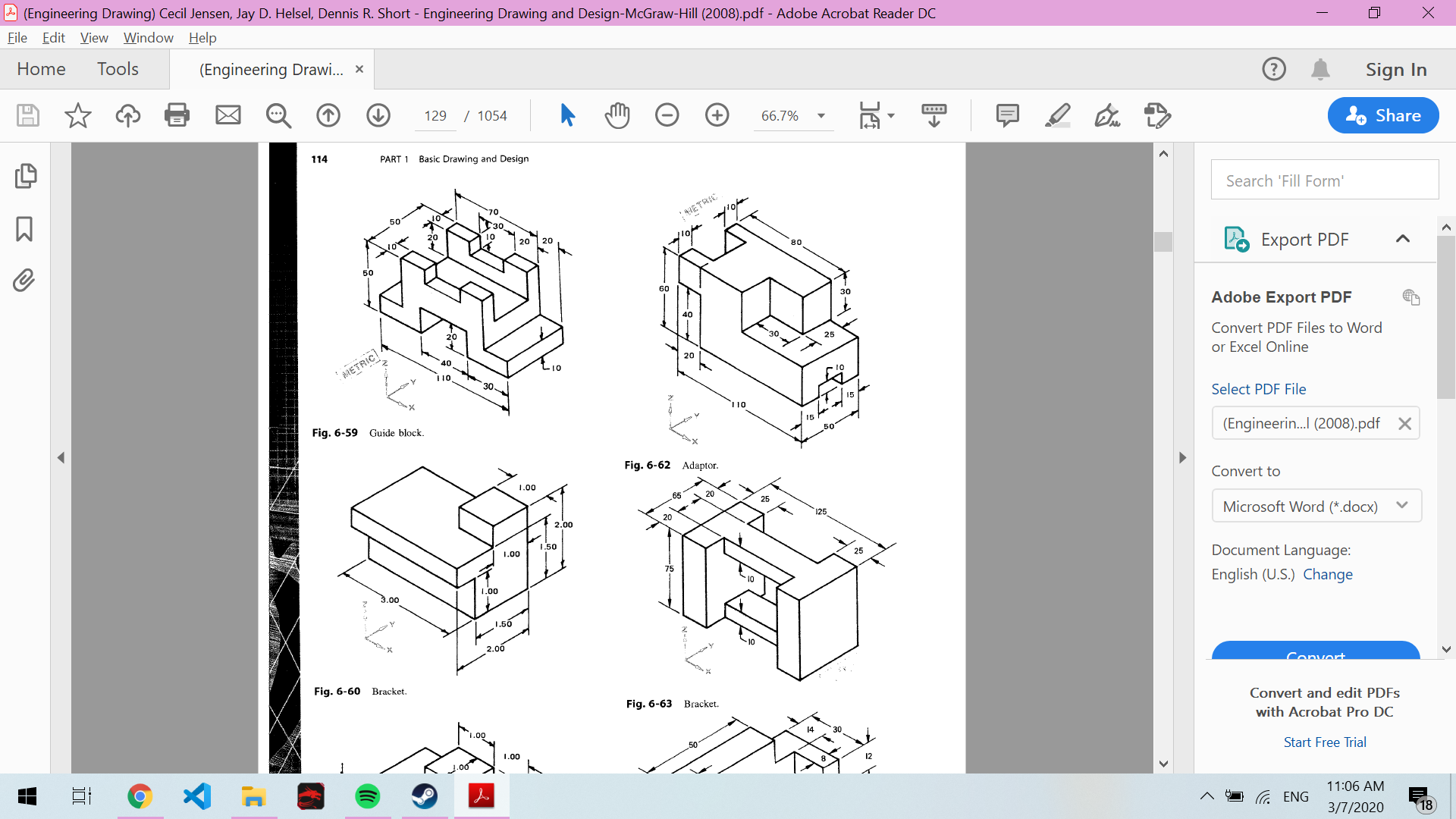

Cecil Jensen, Jay D. Helsel, Dennis R. Short - Engineering Drawing and Design-McGraw-Hill (2008)

Review activity (2)

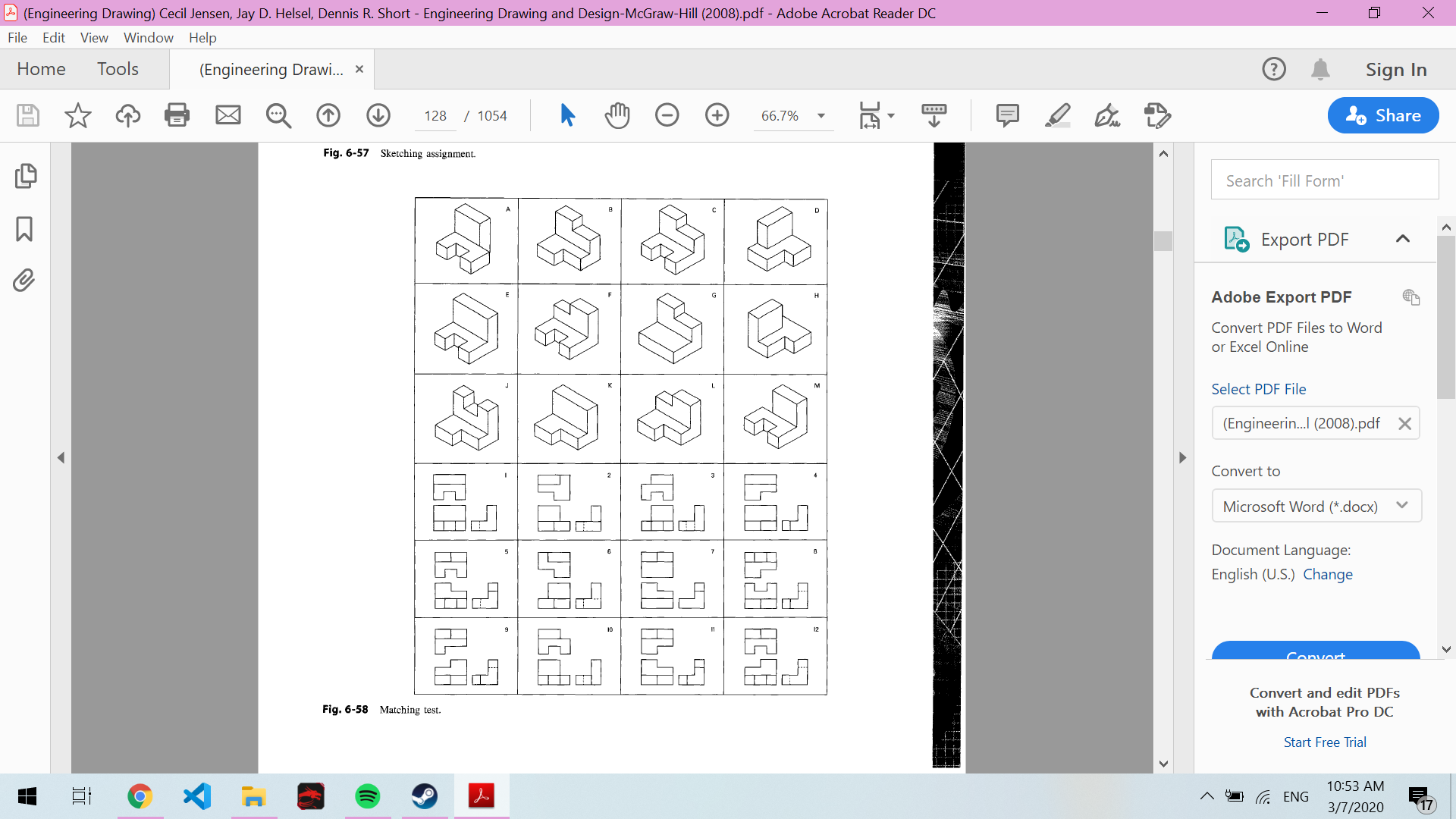

Match them together and write your answer in:



http://bit.ly/td-review-2

Technical Drawing W8-1
