Twitter Example

+            PyMongo

Twitter Example

Stream Listener

Streaming Time: 6 hours

Filtered with world coordinates:

• Longitude Southwest Corner: -180
• Latitude Soutwest Corner: -90
• Longitude Northeast Corner: 180
• Latitude Northeast Corner: 90

Twitter Example

Stream Listener

# Function listening to twitter messages
def on_data(data):

    # Connect to Mongo instance, database, collection
    client = MongoClient("localhost", 27017)
    database = client["twitter_database"]
    collection = database["twitter_collection"]

    # Decoding string of twitter messages to JSON
    tweets = json.loads(data)
    collection.insert(tweets)

Twitter Example

Twitter Data

{
        "contributors": null,
        "truncated": false,
        "text": "@KristianBrodal what about now?!",
        "is_quote_status": false,
        "in_reply_to_status_id": 656758043300925440,
        "id": 656762185281097732,
        "favorite_count": 0,
        "retweeted": false,
        "coordinates": null,
        "timestamp_ms": "1445419281679",
        "lang": "en",
        "created_at": "Wed Oct 21 09:21:21 +0000 2015",
        "place": {
            "country_code": "SE",
            "country": "Sverige",
            "place_type": "city",
            "bounding_box": {
                "type": "Polygon",
                "coordinates": [
                    [
                        [
                            13.621107,
                            58.24702
                        ],
                        [
                            13.621107,
                            58.595865
                        ],
                        [
                            14.152948,
                            58.595865
                        ],
                        [
                            14.152948,
                            58.24702
                        ]
                    ]
                ]
            },
            "full_name": "Skövde, Sverige",
            "attributes": {},
            "id": "8f7b18e7e397d055",
            "name": "Skövde"
}

Twitter Example

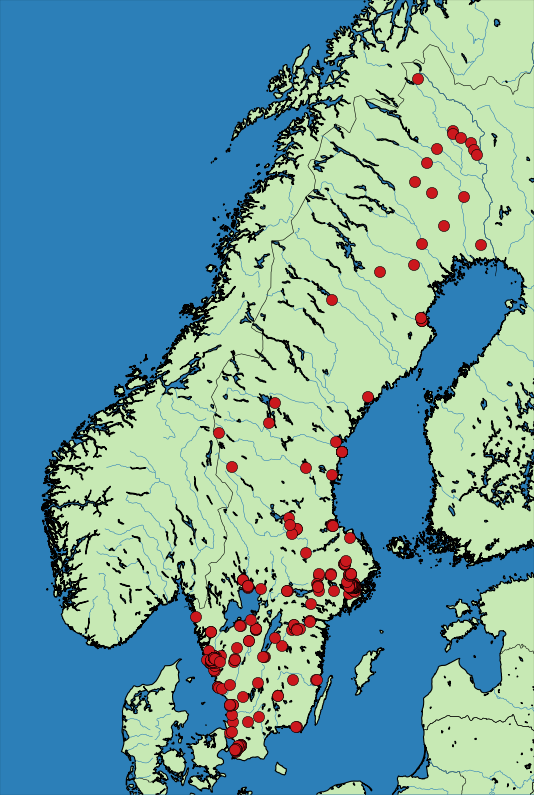

We want to see where people tweet in Sweden!

Twitter Example

Looking at the collection

# Get collection stats
collection_stats = client["twitter_database"].command("collstats", "twitter_collection")

Count: 1 106 789

Size: 4 616 MB

Avg document size: 4 065 KB

GPS coordinate distribution: 19.51%

Twitter Example

Creating a new collection

# Create new collection based on query criteria
client["twitter_db"]["twitter_collection_geo"].insert(
        client["twitter_db"]["twitter_collection"].find({"coordinates":{"$ne": None}})
)

# Get collection stats
collection_stats = client["twitter_database"].command("collstats", "twitter_collection_geo")

Count: 215 943

Size: 1 021 MB

Avg document size: 4 158 KB

GPS coordinate distribution: 100.0%

Twitter Example

How to know if a tweet is made in Sweden?

[
    [ 22.18317345550193, 65.723740546320172 ], [ 21.21351687997722, 65.026005357515274 ],
    [ 21.369631381930958, 64.413587958424287 ], [ 19.77887576669022, 63.609554348395037 ],
    [ 17.847779168375212, 62.74940013289681 ], [ 17.119554884518124, 61.341165676510968 ],
    [ 17.831346062906391, 60.636583360427409 ], [ 18.787721795332089, 60.081914374422595 ],
    [ 17.86922488777634, 58.953766181058697 ], [ 16.829185011470088, 58.719826972073392 ],
    [ 16.447709588291474, 57.041118069071885 ], [ 15.879785597403783, 56.104301866268663 ],
    [ 14.666681349352075, 56.200885118222175 ], [ 14.100721062891465, 55.407781073622651 ],
    [ 12.942910597392057, 55.361737372450577 ], [ 12.625100538797028, 56.30708018658197 ],
    [ 11.787942335668674, 57.441817125063068 ], [ 11.027368605196868, 58.856149400459358 ],
    [ 11.468271925511146, 59.432393296946039 ], [ 12.300365838274899, 60.117932847730032 ],
    [ 12.631146681375185, 61.293571682370136 ], [ 11.992064243221563, 61.80036245385655 ],
    [ 11.930569288794231, 63.128317572676977 ], [ 12.579935336973934, 64.066218980558332 ],
    [ 13.571916131248713, 64.04911408146971 ], [ 13.919905226302204, 64.44542064071608 ],
    [ 13.555689731509091, 64.787027696381514 ], [ 15.108411492583002, 66.193866889095474 ],
    [ 16.108712192456778, 67.302455552836889 ], [ 16.768878614985482, 68.013936672631402 ],
    [ 17.729181756265348, 68.010551866316277 ], [ 17.993868442464333, 68.567391262477358 ],
    [ 19.878559604581255, 68.407194322372575 ], [ 20.025268995857886, 69.065138658312705 ],
    [ 20.645592889089528, 69.106247260200874 ], [ 21.978534783626117, 68.616845608180697 ],
    [ 23.539473097434438, 67.93600861273525 ], [ 23.565879754335583, 66.396050930437426 ],
    [ 23.903378533633802, 66.006927395279618 ], [ 22.18317345550193, 65.723740546320172 ]
]

Polygon

[
    [10.634765625, 54.9776136707],
    [24.4775390625, 69.115611065]
]

Box

Twitter Example

Find tweets

# Find all tweets within Sweden polygon
tweets = client["twitter_db"]["twitter_collection_geo"].find(
    {"coordinates": {"$geoWithin": {"$geometry": SWEDEN_POLYGON}}}
)

Count: 470

Time: 481 MS

Twitter Example

Indexing

# Create geospatial indexing in the collection
client["twitter_db"]["twitter_collection_geo"].ensure_index([("coordinates", GEOSPHERE)])

# Find all tweets within Sweden polygon
tweets = client["twitter_db"]["twitter_collection_geo"].find(
    {"coordinates": {"$geoWithin": {"$geometry": SWEDEN_POLYGON}}}
)

Count: 470

Time: 3 MS

Twitter Example

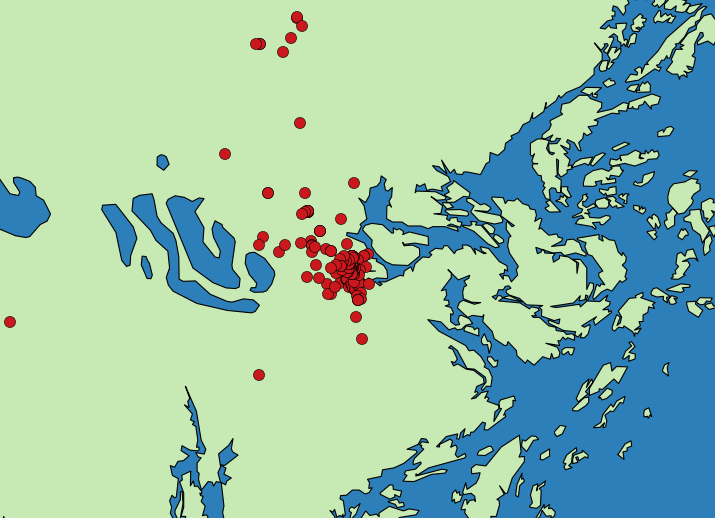

Stockholm

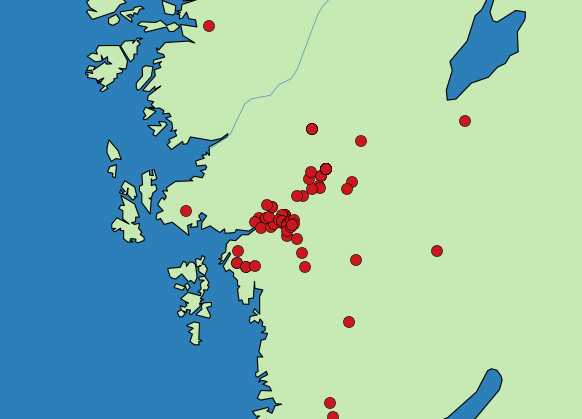

Gothenburg

Twitter Example

We want to know the places where people tweet most!

Twitter Example

MapReduce

{
    "place": {
        "place_type": "city",
        "country": "Sweden",
        "name": "Stockholm"
    }
}

Map

{
    "place": {
        "place_type": "city",
        "country": "Sweden",
        "name": "Gothenburg"
    }
}

{
    "place": {
        "place_type": "city",
        "country": "Norway",
        "name": "Oslo"
    }
}

{
    "Sweden": {
        "count": 1
    }
}

Reduce

{
    "Sweden": {
        "count": 1
    }
}

{
    "Norway": {
        "count": 1
    }
}

{
    "Norway": {
        "count": 1
    }
}

{
    "Sweden": {
        "count": 2
    }
}

Twitter Example

map_func = '''
    function() {

        emit(this.place.country, {
            count: 1,
        });

    }
'''

Map

reduce_func = '''
    function(key, values) {

        var result = {
            count: 0,
        };

        values.forEach(function(value) {
            result.count += value.count;
        });

        return result;

    }
'''

Reduce

# Perform MapReduce for calculating aggregated values for countries
country_count = client['twitter_db']['twitter_collection'].map_reduce(
    map_func,
    reduce_func,
    out = "countries",
    query = {"place": {"$ne": None}},

)

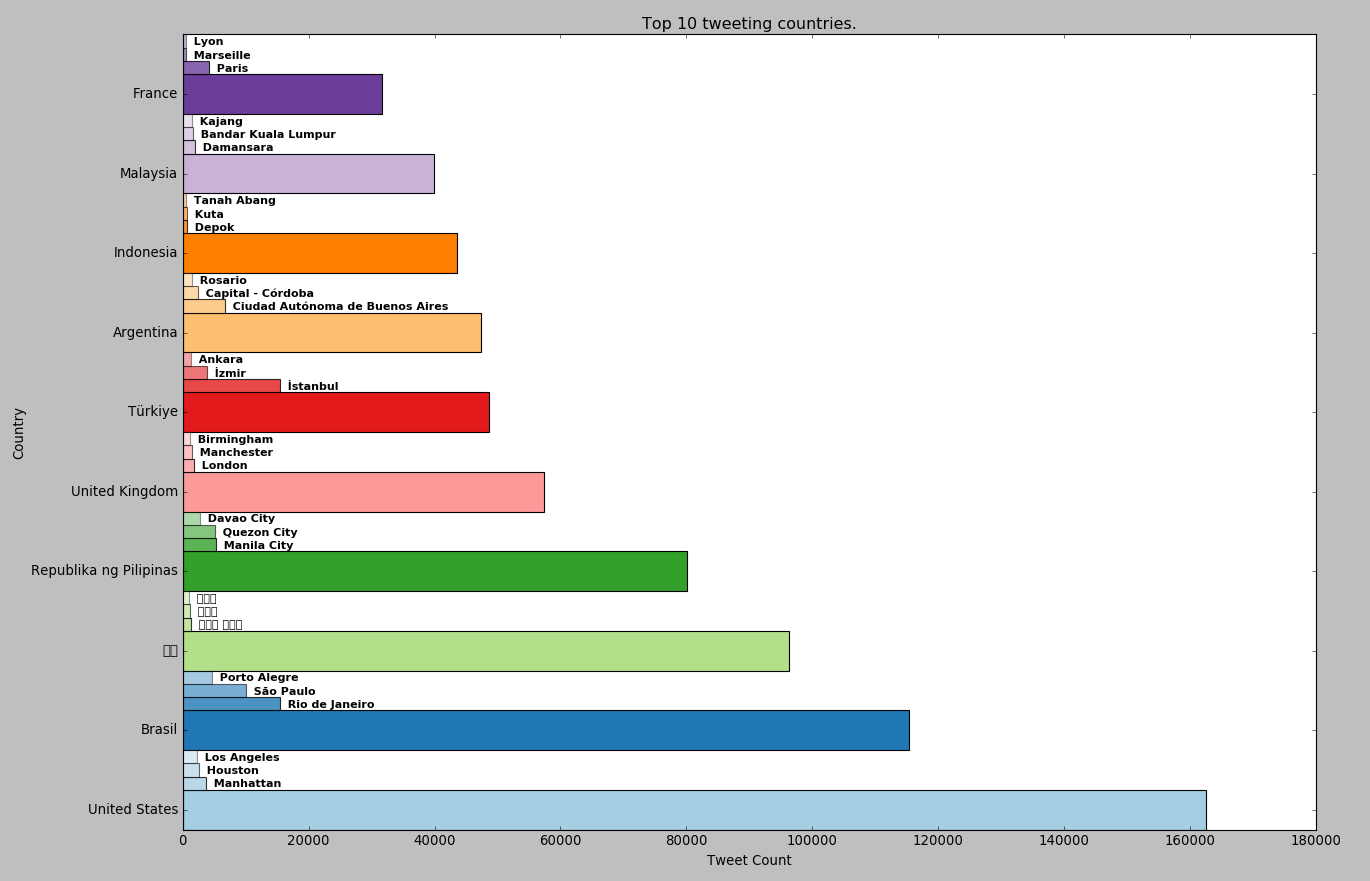

# Get top 10 most tweeting countries
result = country_count.find().sort("value.count", DESCENDING).limit(10)

MapReduce

Twitter Example
