Dynamic Programming
Learning Goals
- Basic dynamic programming
- Memoization
Dynamic Programming is a method for
solving a problem by
- breaking it down into simpler subproblems,
- solving each subproblem just once,
- and storing their solutions using a memory-based data structure (array, map,etc).

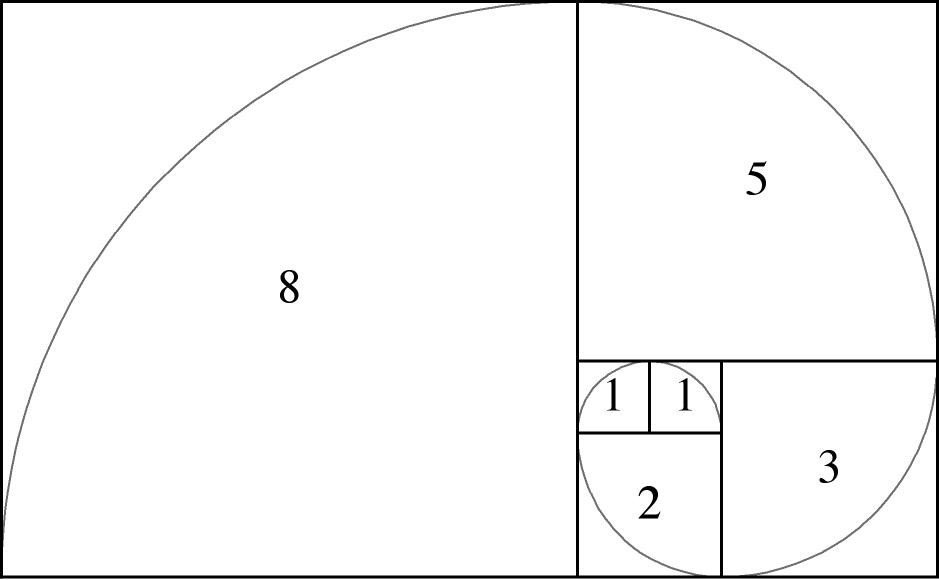

Fibonnaci
Recursive Solution
The naive approach
def fib(n):
if (n <= 0):
return 0
if (n == 1):
return 1

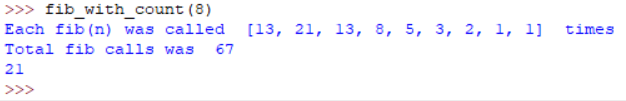

return fib(n-1) + fib(n-2)def fib_with_count(n):
count = [0]*(n+1)
def fib(n):
count[n] = count[n] + 1
if (n <= 0):
return 0
if (n == 1):
return 1
return fib(n-1) + fib(n-2)
res = fib(n)
print("Each fib(n) was called ",
count, " times")
print("Total fib calls was ",
sum(count))
return res
Recursive Solution

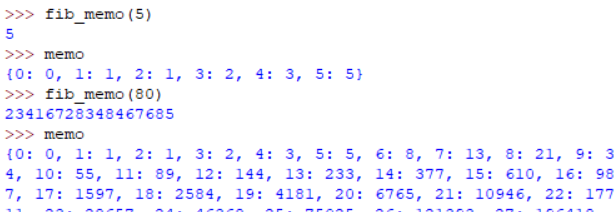

With memoization
memo = { 0: 0, 1: 1 }
def fib_memo(n):
if (n in memo):
return memo[n]
res = fib_memo(n-1) + fib_memo(n-2)
memo[n] = res
return res
def fib(n):
if (n <= 0):
return 0
if (n == 1):
return 1
return fib(n-1) + fib(n-2)Normal
Using memoization
Issues with recursive memoization
- Stack overflow
- Linear memory usage
..fib(n) only needs to know fib(n-1) and fib(n-2)
Dynamic Programming is a method for solving a problem by breaking it down into simpler subproblems,
solving each of those subproblems just once,
and storing their solutions using a memory-based data structure (array, map,etc).
Recursive fibonacci with memoization is dynamic programming, as it breaks down the problem into subproblems and solves each of them only once.
The Knights Dialer
Based on an excellent article at
https://hackernoon.com/google-interview-questions-deconstructed-the-knights-dialer-f780d516f029
How many disctinct numbers can be typed, starting at number 'i' after 'n' jumps?
Possible jumps
NEIGHBORS_MAP = {
1: (6, 8),
2: (7, 9),
3: (4, 8),
4: (3, 9, 0),
5: tuple(), # 5 has no neighbors
6: (1, 7, 0),
7: (2, 6),
8: (1, 3),
9: (2, 4),
0: (4, 6),
}4 jumps starting at 6
1
3
6
15

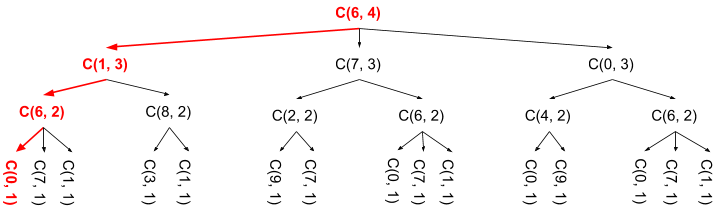

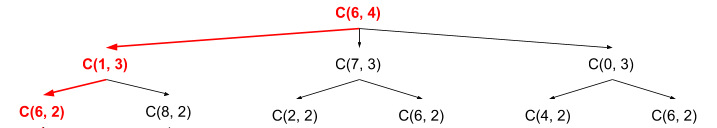

Naive recursion would be exponential time
Dynamic Programming is a method for
solving a problem by
- breaking it down into simpler subproblems,
- solving each subproblem just once,
- and storing their solutions using a memory-based data structure (array, map,etc).
solving each subproblem just once,
neighors = { ... } # map of neighbors
def count_sequences(start_position, num_hops):
if num_hops == 0:
return 1
num_sequences = 0
for position in neighbors(start_position):
num_sequences += count_sequences(position, num_hops - 1)
return num_sequences
if __name__ == '__main__':
print(count_sequences(6, 4)) Runtime with memoization
- Subproblemer are solved once
- We do n jumps
each having x subproblems - Runtime 9*n, linear!
Are we done yet?
No.
def count_sequences(start_position, num_hops):
prior_case = [1] * 10
current_case = [0] * 10
current_num_hops = 1
while current_num_hops <= num_hops:
current_case = [0] * 10
current_num_hops += 1
for position in range(0, 10):
for neighbor in neighbors(position):
current_case[position] += prior_case[neighbor]
prior_case = current_case
return current_case[start_position] Still linear memory usage
Can we go faster?
Yes, but its very hard
Examples
Comparing data
seq_data = get_data_sequentially(..)
threaded_data = get_data_threaded(..)
# Data must have same length
self.assertTrue(len(seq_data) == len(threaded_data))
# Each data point must match,
# but data is in random order,
# and sorting it is too slow.
# TODO Can we compare the data in linear time?
A project I'm working on has to fetch a lot of data.
Fetching the data took 1127 seconds,
which is about 19 minutes.
To speed it up we added threads to do a lot of it in paralell - how do you quickly test if this is correct?
seen_data = {} # memoization: O(1) insert and lookup
# Memo the seq data
for data in seq_data:
# False until seen by both lists
seen_data[data.id] = False
# Verify threaded data was also found seq.
for data in threaded_data:
if not data.id in seen_data:
assertTrue(False,
"Data not found {}".format(data.id))
else:
seen_data[data.id] = True
# Verify threading missed no data
for (k,v) in seen_data:
assertTrue(v,
"{} not found".format(k))Other relevant examples
- Calculating map clustering
- Searches, quick string comparisons
Time
For
Practice
https://open.kattis.com/contests/ptasxp
Dynamic Programming
By Patrick Lid Monslaup
Dynamic Programming
What is dynamic programming, and how can it be leveraged to increase code quality and speed?
