Local
Work
Flow

Local Work Flow

New for Radar

1. Install Git
2. Install TortoiseGit
3. Clone
4. Set bugtraq
5. Set Remote

New for Radar

Install Git

Install TorotiseGit

Install

Git

• Distributed version control system
• Source: https://git-scm.com/

TortoiseGit

• Windows Shell Interface to Git
• Source: https://tortoisegit.org/

Install

New for Radar

Install Git

Install TorotiseGit

Clone

Clone

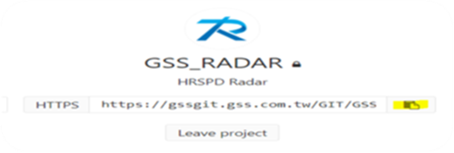

打開GitLab進入專案首頁按下Copy URL to clipboard

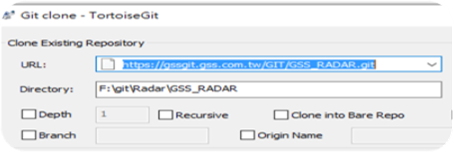

本地資料夾按右鍵點選`Git Clone...`

Clone

複製遠端檔案庫至本地端

New for Radar

Install Git

Install TorotiseGit

Clone

Set bugtraq

Set bugtraq

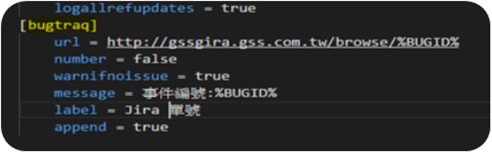

.git/config中加入[bugtraq]

Commit時可以填入Jira單號

Set bugtraq

追蹤Jira單號

New for Radar

Install Git

Install TorotiseGit

Clone

Set bugtraq

Set Remote

Set Remote

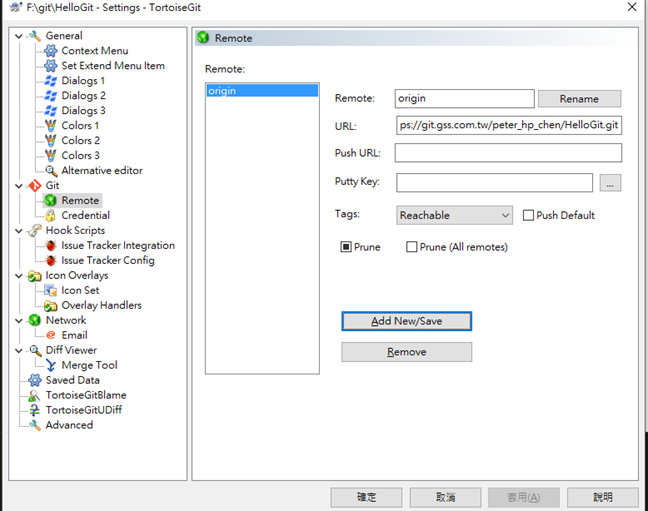

Set Remote URL

1. 專案資料夾右鍵`TortoiseGit` => `Settings`

2. 打開Remote頁籤

3. 設定Clone的URL為origin remote的URL

New for Radar

Install Git

Install TorotiseGit

Clone

Set bugtraq

Set Remote

Local Work Flow

Get New Jira Issue

1. Get Jira
2. Branch
3. Checkout
4. Developing

Get New Jira Issue

Get Jira

Get Jira

Get New Jira Issue

Get Jira

Branch

Branch

在分支中解Jira單

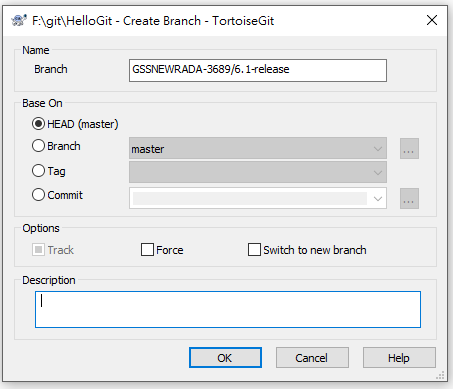

1. 專案資料夾右鍵`TortoiseGit` => `Create Branch...`

2. Branch Name格式: Jira單號/版本號

Get New Jira Issue

Get Jira

Branch

Checkout

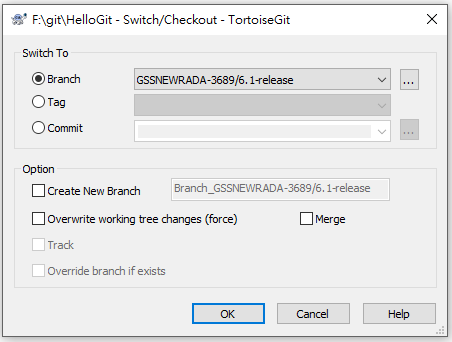

1. 專案資料夾右鍵`TortoiseGit` => ` Switch/Checkout... `
2. 選取待解的Jira單號/版本號

查看目前所在的分支對資料夾按右鍵

Checkout

變換分支

Get New Jira Issue

Get Jira

Branch

Checkout

Developing

Local Work Flow

Developing

• Developing
• Pull
• Conflict
• Resolve
• Commit

Developing

Developing

Developing

Developing

Developing

Pull

Pull

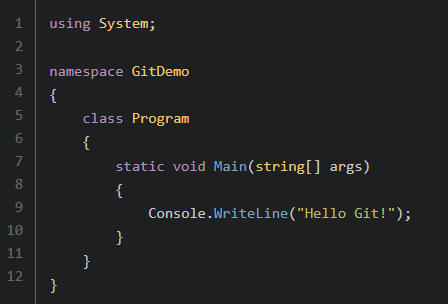

本地的Program.cs是Hello World!

遠端的Program.cs已經被改成Hello Git!

Pull

遠端檔案庫檔案放至本地檔案庫並合併

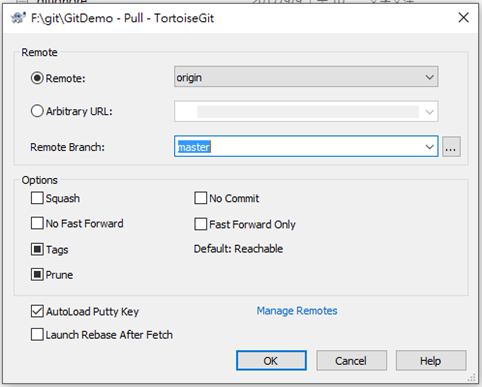

1. 資料夾按右鍵TortoiseGit => Pull...
2. 同步遠端的master檔案至本地端

本地的Hello World!已經變成Hello Git!

Pull

Developing

Developing

Pull

Conflict

Conflict

Conflict

• 衝突情況發生於Pull時來源跟本地端的檔案內容不一致
• Pull為兩個指令的合併
  • Fetch: 取得遠端檔案庫最新資料並於本地建立分支儲存
  • Merge: 將Fetch所在的分支合併到目前的分支中
• Merge時會因兩個分支不一致導致Conflict

Developing

Developing

Pull

Conflict

Resolve

Resolve

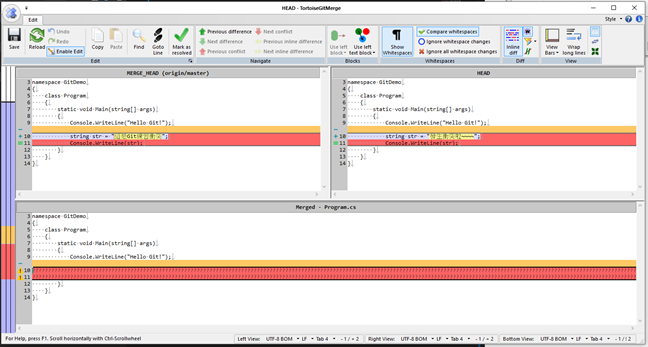

Resolve Conflict

1. 對發生衝突的檔案按右鍵Edit Conflicts

2. 畫面說明

   • ​​左上: 遠端檔案庫檔案

   • 右上: 本地檔案庫檔案

   • 下方: 合併後的檔案

3. ​區塊說明
   • 橘色: 變更
   • 紅色: 衝突
4. ​將Merge後的結果編輯在下方的檔案中

5. 按下Save, 按下Mark as resolved

Developing

Developing

Pull

Conflict

Resolve

Commit

Commit

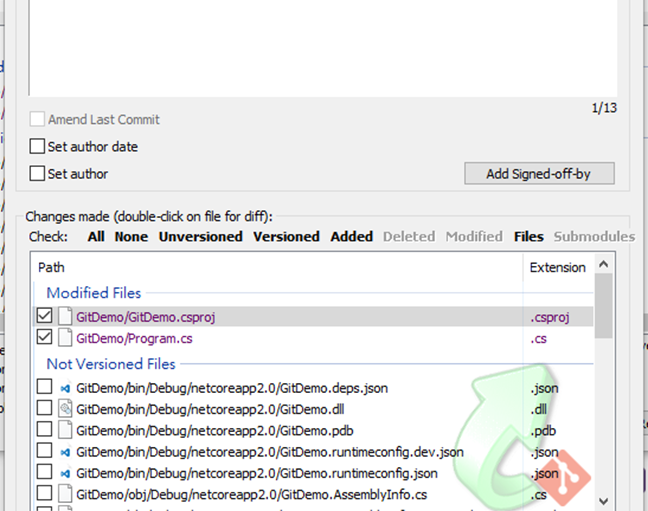

Commit
將檔案上到本地檔案庫

• 專案資料夾右鍵Git Commit -> [Jira單號/版本號]
• Commit時於右上角填入Jira單號
• 註1: 不要Commit在master
• 註2: 設定.gitignore將不需要commit的檔案(ex: Build之後產出的dll)排除

Developing

Developing

Pull

Conflict

Resolve

Commit

Local Work Flow

New Feature Completed

Bug Fixed

New Feature Completed

Bug Fixed

Local Test

Local Test

New Feature Completed

Bug Fixed

Local Test

Push Branch to Remote Repo

Push Branch to Remote Repo

1. 專案資料夾右鍵TortoiseGit => Push…
2. Remote填入Jira單號/版本號

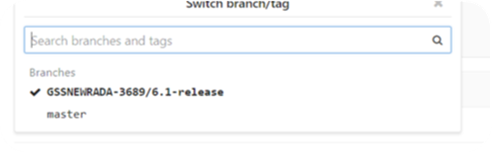

GitLab上可以看到此分支

Push

將本地檔案庫推至遠端檔案庫中

New Feature Completed

Bug Fixed

Local Test

Push Branch to Remote Repo

Local Work Flow

Remote
Work
Flow

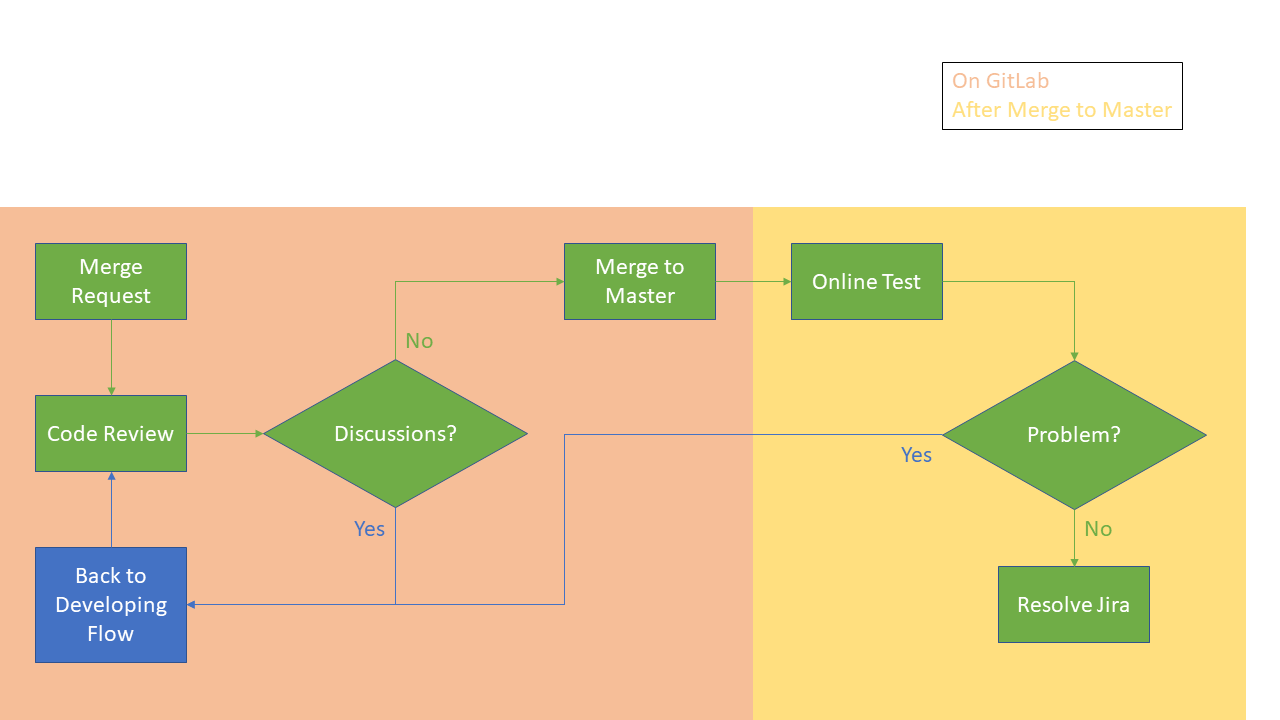

Remote Work Flow

On GitLab

• Merge Request
• Code Review
• Discussions?
  • No: Merge to Master
  • Yes: Back to Developing Flow

On GitLab

Merge Request

Merge Request

Merge Request

對遠端檔案庫Master提交合併請求

• 在GitLab上按下Merge Requests => Create/New Merge Request
• Title格式: Jira單號/版本號 Jira標題
• Description寫上此次Push的內容, 文尾加入事件編號

On GitLab

Merge Request

Code Review

Merge to Master

Discussions?

Back to Developing Flow

Yes

No

Remote Work Flow

After Merge to Master

• Online Test
• Problem?
  • No: Resolve Jira
  • Yes: Back to Developing Flow

After Merge to Master

Online Test

Problem?

Resolve Jira

Back to Developing FLow

Yes

No

Remote Work Flow
