Flink 102

Core Concepts other options

Stream Basics

Life is Easy without State

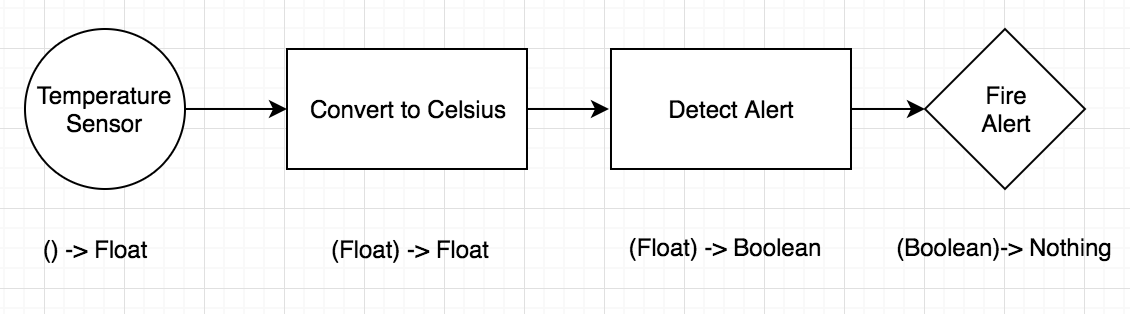

(Source Float) DataStream<Float>

DataStream<Float> (map Float->Float) DataStream<Float>

DataStream<Float> (map Float->Boolean) DataStream<Boolean>

DataStream<Boolean> (sink Boolean)

Stream Basics

• DataStreams are infinite
• Operators perform transformations
• Data is processed in the order in which it is received
• Backup/Restore is easy (check source offset)

State Instantly Makes Life HARD

• Let's say temperature alerts when it's over 100 degrees C, fires once, doesn't fire again until the next event.

State Instantly Makes Life HARD

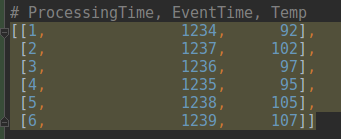

• Requires Data In Order
• Requires Knowledge on if we've alerted

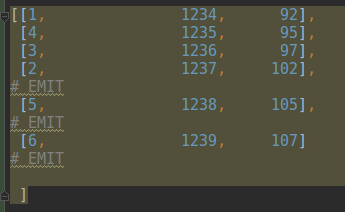

Watermarking

• Event Time
• Buffers for a defined period until Watermark is met
• Emits Data

Watermarking

• How long can we wait?
• What do we do if something passes our wait timer?
• How much memory does this use?
• What does this do to system latency?

Flink State

• Flink can capture state variables and remember them
• This hurts composition
• This means operators need to be serializable
• This means we have backup/restore operational stories

Flink Windows

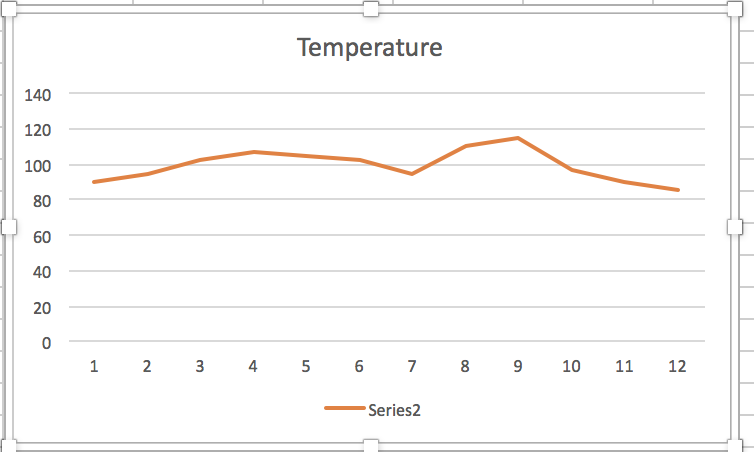

• What if we wanted to know the average temperature during an alert?
• We now need to collect data for an arbitrary period
• Windowing lets us aggregate data according to some criteria and emit a collection.
• Window Start when we pass threshold, collect data until under threshold
• Fire collection of datapoints to an operator that generates an average

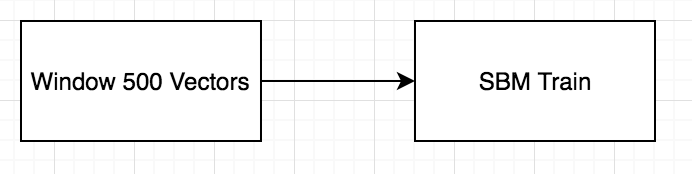

• Windows can be very simple too (i.e. collect 1 minute of data)
• Windows don't like to reopen (tricky)

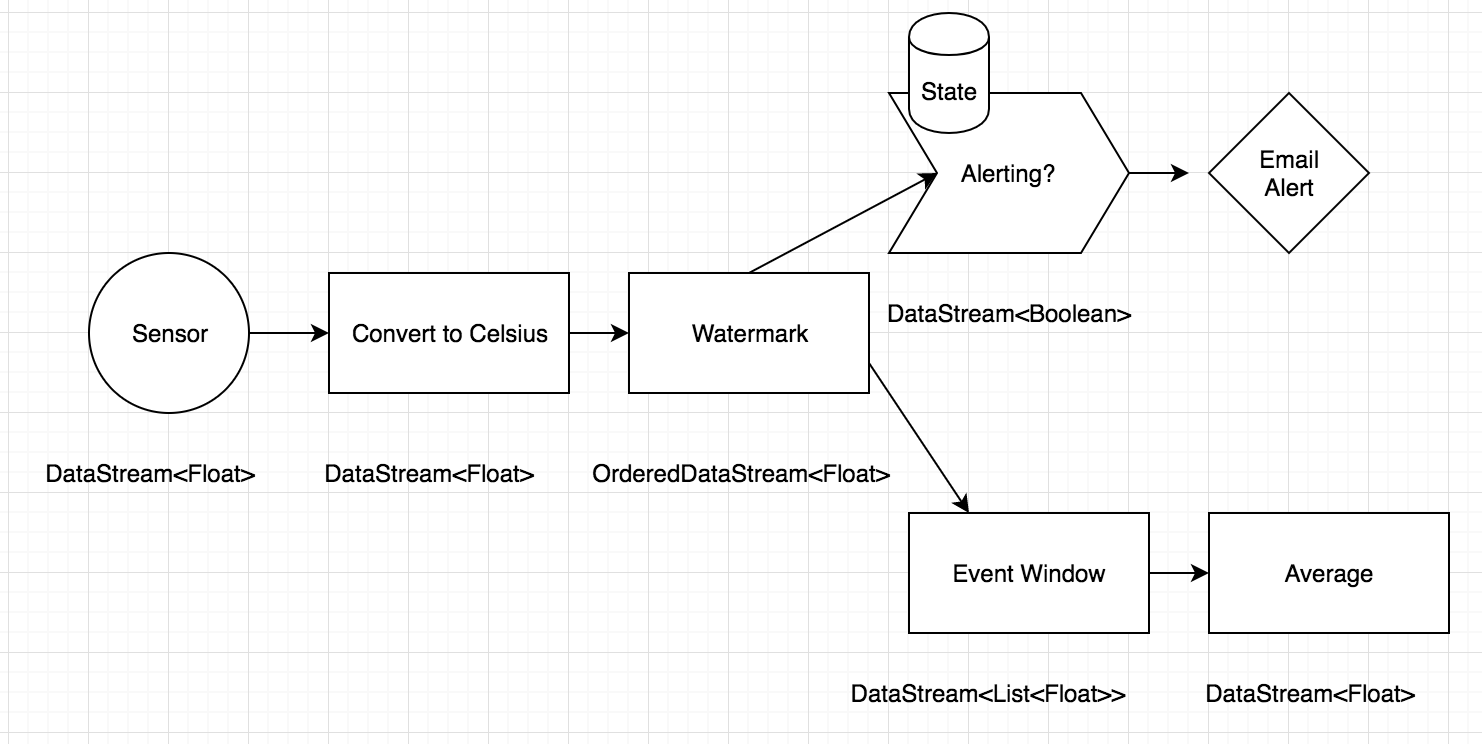

Final Graph

More interesting things

• Streams form a graph
• Can be forked
• Operators can emit zero to many data points.
• Cycles should be avoided
• We can query running state
• We need to advance forward down the graph

Streaming vs Micro Batching

• Allows us to play data in Event Time order
• Windowing sounds similar to a batch, but allows more flexibility in terms of window size

Nothing New Under the Sun

• People have done this all before, but Flink as a framework assembles these features for us.
