Orchestration is

(necessary)

bad

#0: who am I?

Piotr Stapp

Unique name - just sing a song: "Don't Stapp me know" ;)
CEO @ Dotnetomaniak
VP @ devWarsztaty
ex - Senior software/DevOps/Architect @mBank/@FinAi/@Allegro
Principal SAFe System Architect @ Demant Technology Center
M.Sc (distction) Oxford Brooks University in Web Tech
M.Sc. Warsaw University of Technology in Computer Science
And ......

https://www.linkedin.com/in/piotrstapp/

#1: History

(or architecture)

If you can’t feed a team with two pizzas, it’s too large. That limits a task force to five to seven people, depending on their appetites

Jeff Bezos

Why two pizza rule?

\Huge\tfrac{n*(n-1)}{2}

%n = # of people

n = # of people

How many links are in your group?

=> 15 links

=> 66 links

=> 1225 links

\tfrac{n*(n-1)}{2}

Two-pizza team (n=6)

2x two-pizza team

My company (~50 ppl)

Important dates

2007.02 -> RabbitMQ initial release -(1.0.0-alpha)
2010.10 -> AngularJS initial release
2011.05-> "microservice" term in Venice
2012.05 -> James Lewis - Micro services - Java, the Unix Way at Kraków
2013.03 -> Docker debuted at PyCon
2013.05 -> React initial release
2014.02 -> Vue.js initial release
2014.03 -> Docker 0.9 released
2014.06 -> Kubernetes initial release
2014.11 -> Docker annouced for AWS EC2

#2 Arch VS. release

???

From spaghetti to ...

(simple one)

by @gutek

Repeat & repeat

A bit lasagna and ravioli

by @gutek

"IKEA" release

Modern one

by @gutek and me :)

and ....

Title Text

https://m.oursky.com/saas-paas-and-iaas-explained-in-one-graphic-d56c3e6f4606

Who runs the world?

The new kingmakers

The new kingmakers

#3 Kubernetes

or K8S (k12345678s)

From standard

by @gutek

to K8S pods

by @gutek

Uwaga: NIEBEZPIECZEŃSTWO

to K8S

1000 words

https://medium.com/@tsuyoshiushio/kubernetes-in-three-diagrams-6aba8432541c

YAML

apiVersion: apps/v1
kind: Deployment
metadata:
  name: #{ApplicationName}#
spec:
  selector:
    matchLabels:
      app: #{ApplicationName}#
  replicas: 2
  template:
    metadata:
      labels:
        app: #{ApplicationName}#
    spec:
      containers:
      - name: #{ApplicationName}#
        image: #{image}#
        ports:
        - containerPort: 80
---
kind: Service
apiVersion: v1
metadata:
  name: #{ApplicationName}#
spec:
  selector:
    app: #{ApplicationName}#
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
  type: ClusterIP
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: #{ApplicationName}#
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
    kubernetes.io/ingress.class: internal
spec:
  rules:
  - http:
      paths:
      - path: /
        backend:
          serviceName: #{ApplicationName}#
          servicePort: 80
    host: #{ApplicationName}#-app-#{EnvironmentName}#.internal.comapny.com
  tls:
    - secretName: internal.comapny.com
      hosts:
        - #{ApplicationName}#-app-#{EnvironmentName}#..internal.comapny.com

Deployment strategies

https://github.com/ContainerSolutions/k8s-deployment-strategies

Happy ever after?

Not exactly :(

#4 Five typical problems

Five? O RLY?

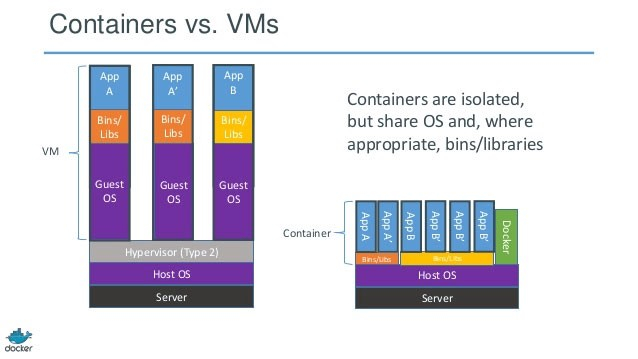

#1 - Docker versus VM

VM versus docker

#2 - One instance

Pod are ephemeral

#3 - Deployment...

Deployment

probes

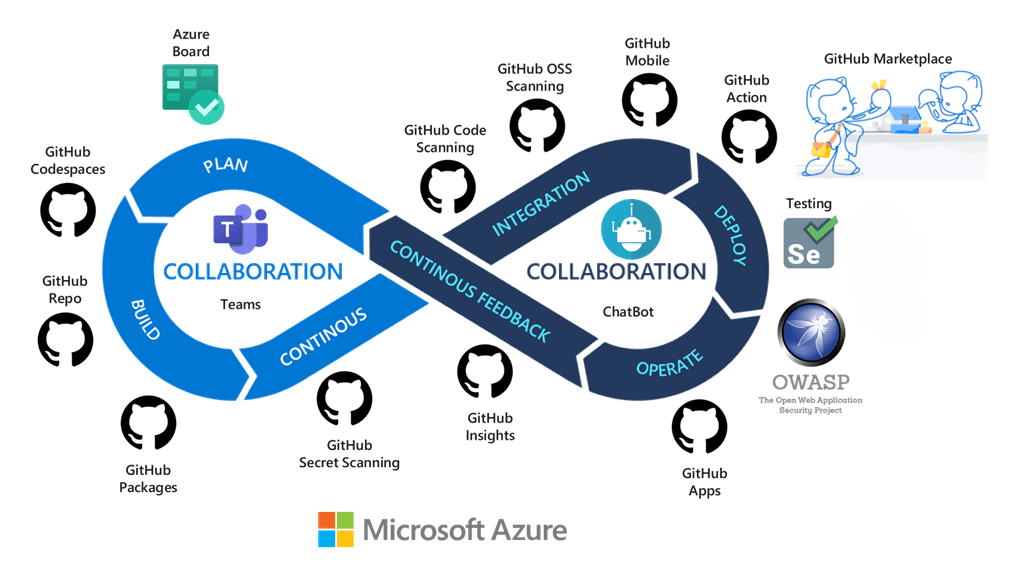

#3 - Automation & CI/CD

CI/CD 7 steps

Prepare environment variables
Replace variables in template
Validate YAML (or Helm)
Run 'apply' (or Helm)
Check rollout status
If status fail then do rollback
Check rollback status

Example: 7 steps

# prepare variables
export IMAGE=poznajkubernetes/pkad:red
# replace variables
envsubst < yaml/template.yaml > yaml/dep-ready.yaml
# validate
kubeval --strict yaml/dep-ready.yaml
# apply
kubectl apply -f yaml/dep-ready.yaml

# check rollout status
if ! kubectl rollout status deployment pkad-dep; then
  # rollback
  kubectl rollout undo deployment pkad-dep;
  # rollback status
  kubectl rollout status deployment pkad-dep;
  echo "ERROR - should exit ;)"
fi
