 Container    Internals

}

हैन के चै रछ?

Audience
  • basic linux concept

  • ​experienced with container technologies
  • or eagerness to learn entirely new thing
ए हलो!! मलाई चिन्यो
Contents

१.

२.

Underlying Linux Features


chroot/cgroup/namespaces/linux security features

३.

Introducing/Demo to the tools

nsenter, lsns, unshare, cgcreate, chroot
# Objective
What is a container

Demystifying the underlying magic behind containers
# Comparison
येसो गरे कसो होला?
containers are not light weight VMs
VMs Containes
Heavy Light weight
Resource Intensive Resource Friendly
Better Isolated Less Isolated
Shares underlying Hypervisor Shares Underlying Host OS
# Comparison
VMs Containes
Heavy Light weight
Resource Intensive Resource Friendly
Better Isolated Less Isolated
Shares underlying Hypervisor Shares Underlying Host OS

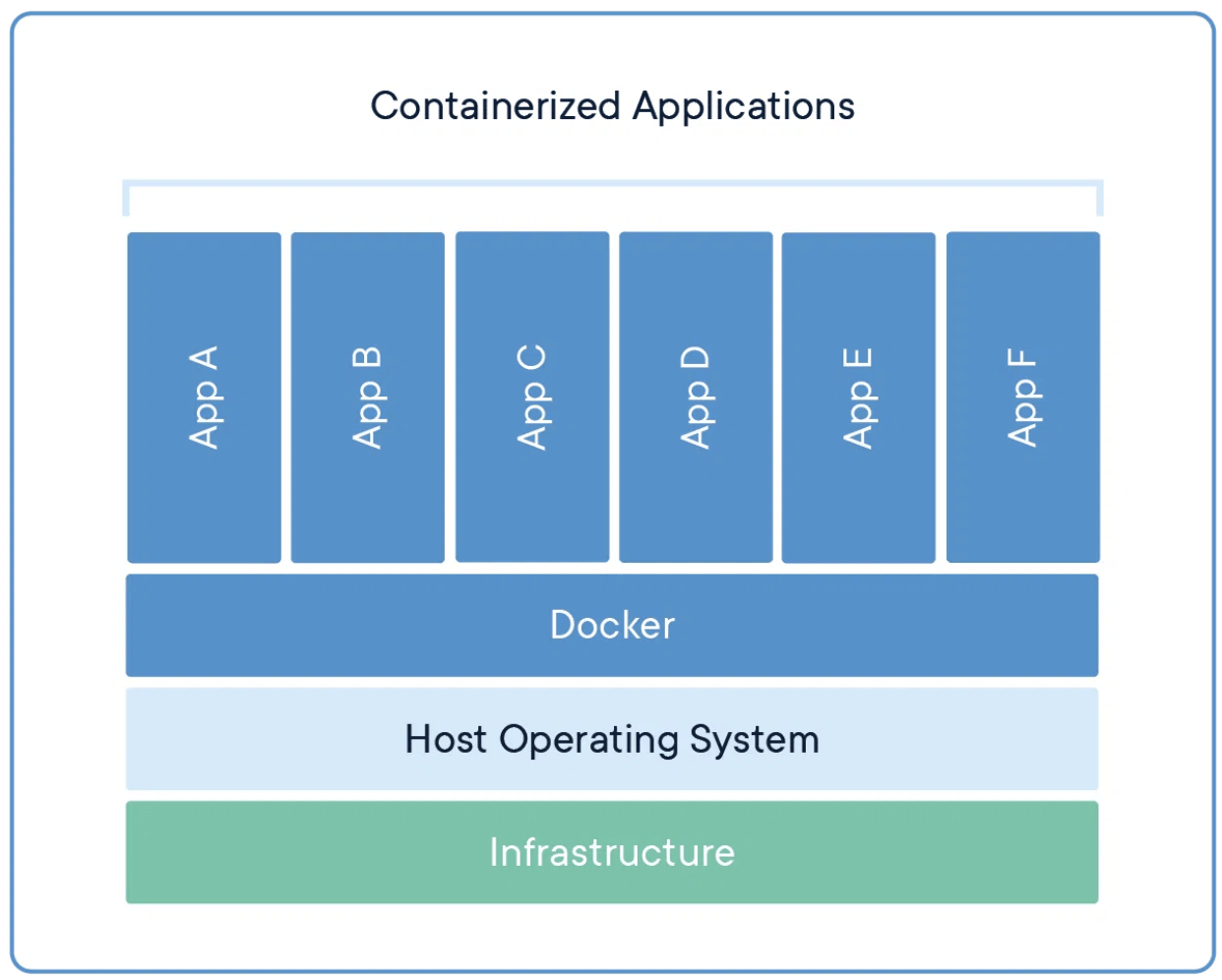

VMs
Containers
येसो गरे कसो होला?
containers are not light weight VMs
## Proof
watch ps -fC nginx

docker run --rm nginx
(containers == process)

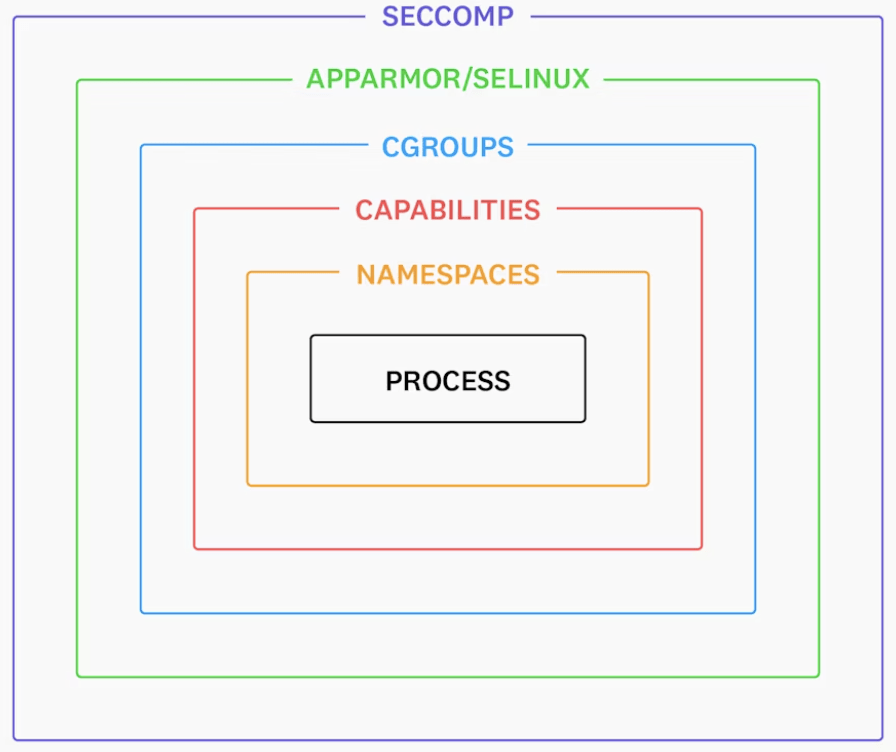

  • Container is just a linux process isolated in such way that it looks and feels like a separate operating system
  • Isolation are created using following linux features:
    • chroot
    • namespaces
    • cgroups
    • linux capabilities/security modules
fig. containerized process

१

Isolated FileSystem
and Dependency
Isolated Network

Isolated HostName

Secure

२

Isolated Process Table
Isolated User
Isolated Resource Usage

३

५

४

६

७

Isolations in Containers
# CHROOT

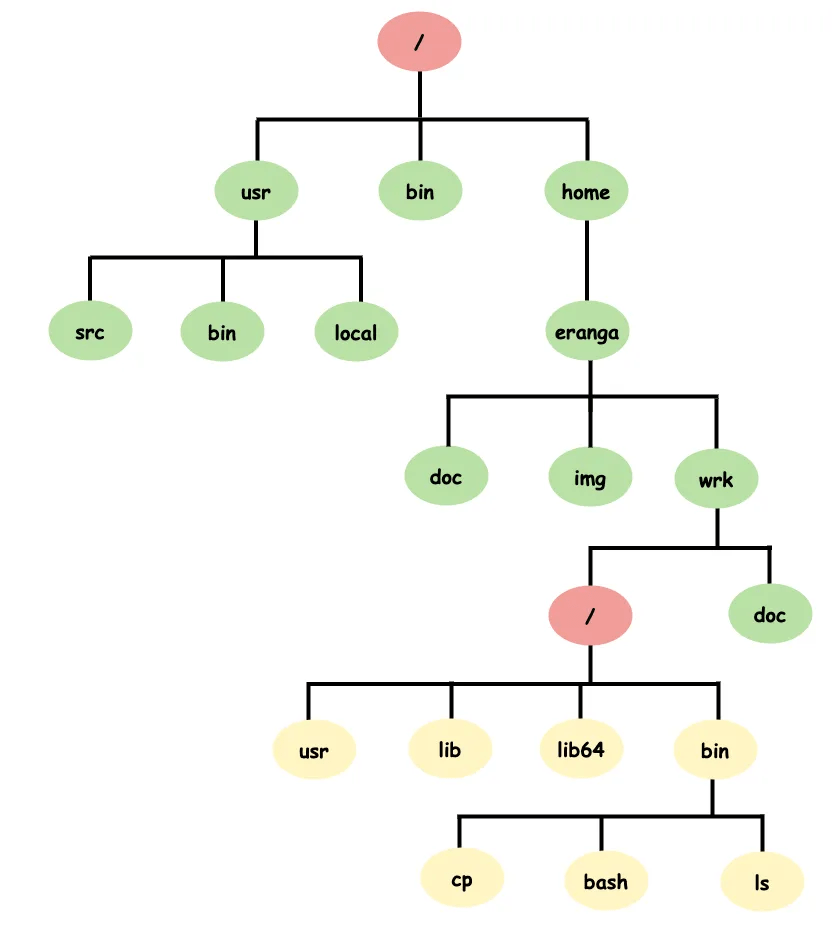

Chroot: Change Root Directory
  • chroot() syscall
  • Root directory is not absolute thing.
  • chrooted process live and die in the new root directory.
  • Chroot is also referred as chroot jail/jail.
  • Used to provide filesystem isolation.

# DEMO Time
Chroot Command Demo
## intro about the root and demo
ls -la /
ls -la /proc/self/root/

## create my own root and run ls -la command
mkdir newroot
lddtree -l `which bash`

mkdir -p newroot/{usr/bin,lib64/,lib/x86_64-linux-gnu}

cp /usr/bin/bash ~/newroot/usr/bin/
cp /lib64/ld-linux-x86-64.so.2 ~/newroot/lib64
cp /lib/x86_64-linux-gnu/libc.so.6 ~/newroot/lib/x86_64-linux-gnu/
cp /lib/x86_64-linux-gnu/libtinfo.so.6 ~/newroot/lib/x86_64-linux-gnu/

## run shell inside the chrooted environment
/vagrant/copy-dep.sh `which ls` ~/newroot/
sudo chroot ~/myroot ls -la /

## run demo docker hello-world program
sudo chroot ~/alpine /bin/sh
Description: run command or interactive shell with special root directory
Syntax:
  chroot <directory> [command]
# Namespaces
Namespaces
 Metaphorically
  • Namespaces are like rooms of a house
  • each room provides different isolation
  • each room has a unique room number
 Details
  • There are different types of namespaces.

  • each type partitions different resource type
  • each namespace is identified with unique number
Wikipedia:
Feature of the Linux kernel that partition kernel resources such that one set of processes sees one set of resources, while another set of processes sees a different set of resources.
  • ​Feature of the Linux kernel
  • Partitions kernel resources
  • One set of processes sees one set of resources
  • Another set of processes sees a different set of resources

१

PID NS

२

UTS NS
USER NS
Mount NS
TIME NS

८

Types of Namespaces

३

Network NS
Cgroup NS
IPC NS

४

५

६

७

# DEMO Time
Let's play with namespaces
  • lsns: list namespaces
lsns
lsns -p $$
ls /proc/<pid>/ns

watch ps -fC sh
docker run --name busybox --rm -it busybox
sudo lsns -p <pid>

sudo unshare --pid --mount-proc --fork
ps -ef
# DEMO Time
PID NS
  • unshare: creates and runs a process in a new namespace
unshare --pid --fork --mount-proc --net
ip link
python3 -m http.server 8080

## another terminal
ip link
curl localhost:8080
Network NS
docker run --rm -it --name busybox busybox httpd -fv
docker exec -it busybox /bin/sh
ps -fC httpd
sudo nsenter --target <pid> --net
sudo nsenter --target <pid> --net --pid --mount
# DEMO Time
nsenter
  • nsenter: run program in an existing namespace
  • Example Syntax: nsenter --target <pid> [namespaces]
sudo unshare --pid --fork --mount-proc --uts
export PS1="\h ~ "
hostname mycontainer
exec $SHELL
# DEMO Time
UTS NS
#### 1. without map root
unshare --pid --fork --mount-proc --uts --user
export PS1="\u@\h ~ "
ps -fC bash

#### 2. map root with non root user
unshare --pid --fork --mount-proc --uts --user --map-root
export PS1="\u@\h ~ "
ps -fC bash

#### 3. map root with root user
sudo unshare --pid --fork --mount-proc --uts --user --map-root
export PS1="\u@\h ~ "
ps -fC bash
# DEMO Time
USER NS
# DEMO Time
Remaining Namespaces
cgroups, time, mount, ipc
Cgroups(or control groups)
# Cgroup
  • cgroups is a Linux kernel feature that limits and isolates the resource usage (CPU, memory, disk I/O, etc.) of a collection of processes.
  • Engineers at Google started the work on this feature in 2006 under the name "process containers"
  • Later renamed to "control groups" to avoid confusion caused by multiple meanings of the term "container" in the Linux kernel context,
fig. water usage in a  typical tenant setup
# creating cgroup with ownership to a user

sudo cgcreate -a $USER -t $USER -g memory,cpu,pids:demo-groups
ls -la /sys/fs/cgroup/demo-groups

# limit the memory size to 10MB for that cgroup directly using filesystem
echo 0 > /sys/fs/cgroup/demo-groups/cpuset.mems
echo 10 > /sys/fs/cgroup/demo-groups/pids.max
echo 10000000 > /sys/fs/cgroup/demo-groups/memory.max

# run process in a namespace
sudo cgexec -g *:demo-groups /bin/bash
sudo cgexec -g *:demo-groups unshare --pid --mount-proc --fork

## test fork bomb
fork() {
    fork | fork &
}
fork
Cgroups Demo
# Demo TIME
  • systemd, libcgroup can be used to play with cgroups
Security
pscap

docker run --rm -it --name busybox busybox sh
ping google.com
pscap | grep -i sh

docker run --rm -it --cap-drop=net_raw busybox sh
pscap | grep -i sh
ping google.com

# Linux Security
  • LSMs: apparmor, selinux
  • Seccomp
  • Capabilities
Security
Kernel
Hardware
container1
container2
container3
sys call
DIY Container Runtime
sudo ship ps
sudo ship run ~/alpine /bin/sh
sudo ship exec <container-id>
sudo ship rm <container-id>
# DEMO Time
Resources
  • https://github.com/rbalman/ship

  • https://github.com/lizrice/containers-from-scratch
  • https://github.com/p8952/bocker
  • https://www.youtube.com/watch?v=7CKCWqUkMJ4&list=PLdh-RwQzDsaNWBex2I09OFLCph7l_KnQE&ab_channel=Datadog
  • https://wiki.archlinux.org/title/cgroups
Get in touch
- balman.rawat@gmail.com
- github.com/rbalman
- https://www.linkedin.com/in/rbalman/

Q&A
