UI5 intro


Dôvod vzniku

... ideme s dobou










R/2 od 1979

R/3 Dynpro

v4 od 1998


Webdynpro

od 2003

NWBC

od 2005

SAPUI5

od 2012
nezávislý od zariadenia => responsive

prepojenie

SAP UI5
OpenUI5 - open source

Fiori

aplikácie

UI frameworks

FPM - Floorplan Manager

Technológie








+ preprocessor

Ale hlavne...



oplatí sa vedieť

XML

JSON

{
    "Responsibility": [
        {
            "id": 0,            "type": "none"		},
        {            "id": 1,            "type": "responsible"        },        {            "id": 2,            "type": "backup"        }    ]
}
objekty a polia, obsahujú number/string/boolean/null





Gateway
OData

MVC

Model-View-Controller

MVC

control:UIComponent (Component.js)
 |
 +-- view:App (view/App.view.xml)
      |
      +-- control:SplitApp
           |
           +-- aggregation:masterPages
           |    |
           |    +-- view:Master (view/Master.view.xml)
           |         |
           |         +-- controller: Master (view/Master.controller.js)
           |
           +-- aggregation:detailPages
                 |
                 +-- view:Detail (view/Detail.view.xml)
                 |    |
                 |    +-- controller:Detail (view/Detail.controller.js)
                 |
                 +-- view:NotFound (view/NotFound.view.xml)
                 |
                 +-- view:AddProduct (view/AddProduct.view.xml)
                      |
                      +-- controller:AddProduct (view/AddProduct.controller.js)

Model

Client side

JSON model
XML model
Resource model - hlavne pre preklad

Server side

OData model


jeden hlavny model na aplikaciu

dalsie modely vo vlastnej "oblasti"


Model

OData
var url = "/proxy/http/<server>:<port>/sap/opu/odata/sap/ZGWSAMPLE_SRV/";
var oModel = new sap.ui.model.odata.ODataModel(url, true, "<user>", "<password>");
JSON
var oModel = new sap.ui.model.json.JSONModel("http://172.27.10.43/app/files/data.php");

var deviceModel = new sap.ui.model.json.JSONModel({
    isPhone: sap.ui.Device.system.phone,
    isNoPhone: ! sap.ui.Device.system.phone,
    listMode: (sap.ui.Device.system.phone) ? "None" : "SingleSelectMaster",
    listItemType: (sap.ui.Device.system.phone) ? "Active" : "Inactive"
});

oView.setModel(oModel);
oView.setModel(deviceModel, "device");
oView instanceof sap.ui.core.mvc.JSView

MODEL

Resource model
var i18nModel = new sap.ui.model.resource.ResourceModel({
    bundleUrl: "i18n/i18n.properties"
});

oView.setModel(i18nModel, "i18n");
DomainsTitle=Domains
UsersTitle=Users
Persons=Persons
AddDomain=Add Domain
EditDomain=Edit Domain
DomainsTitle=Domény
UsersTitle=Užívatelia
Persons=Osoby
AddDomain=Pridať doménu
EditDomain=Upraviť doménu
i18n.propertiesi18n_sk_SK.properties

DATA Binding

<List
    id="list"
    mode="{device>listMode}">
    <items>
        <StandardListItem
            title="{i18n>DomainsTitle}"
            type="Navigation"
            press="handleDomains"
            />
        <StandardListItem
            title="{i18n>UsersTitle}"
            type="Active"
            press="handleUsers"
            />
    </items>
</List>

Data binding

 <List
    id="list"
    mode="{ui>/listMode}"
    delete="handleDelete"
    select="handleListSelect"
    items="{/Data}">
    <StandardListItem
        title="{name}"
        type="Active"
        press="handleListItemPress">
    </StandardListItem>
</List>

json file

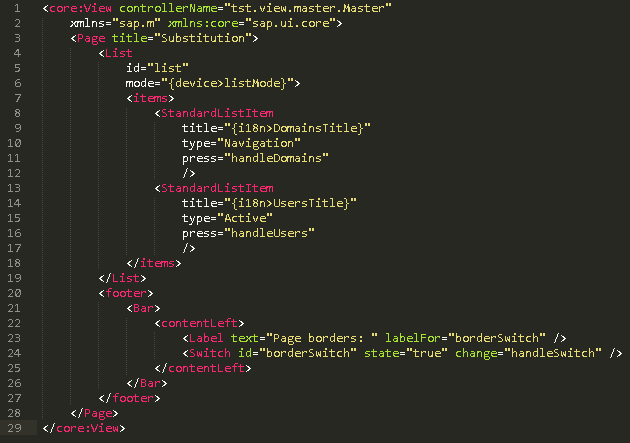

VIEW

koncovka .view.*

XML (moze byt mix spolu s HTML)
JSON
JS
HTML (data-* atributy)

VIEW

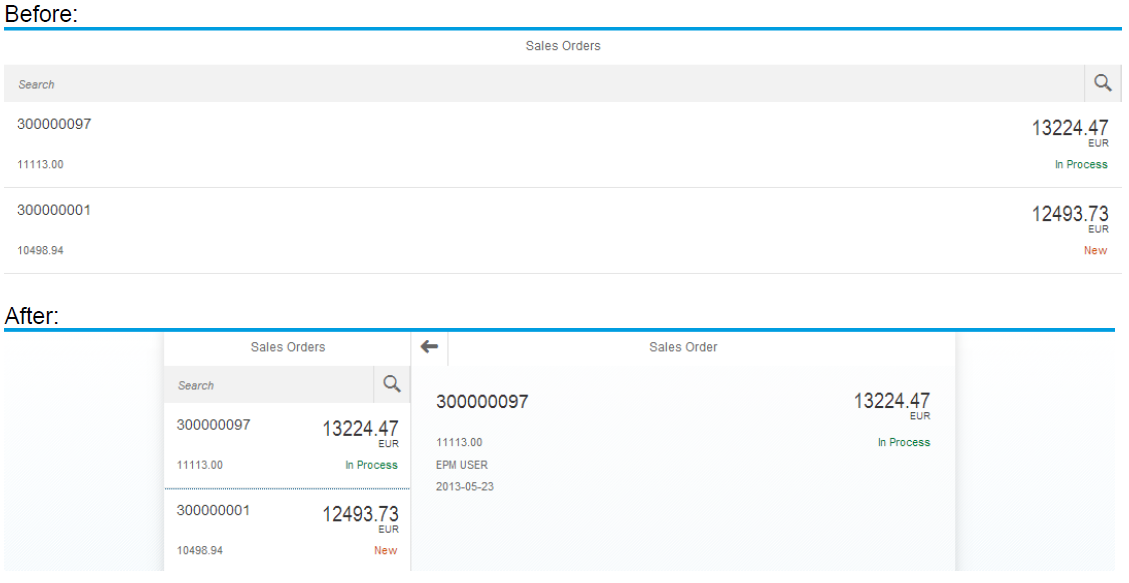

SAP.M.APP / SAP.M.SPLITAPP


Controller

eventy

 onInit();
 onExit();
 onAfterRendering();
 onBeforeRendering()
+ vlastne metódy
jQuery.sap.require("sap.m.MessageToast");

sap.ui.controller("tst.view.master.Master", {

    handleDelete: function(e) {
        var oItem = e.getParameter("listItem");
        e.getSource().removeItem(oItem);
        sap.m.MessageToast.show("Domain was deleted.");
    }

});

Adresárová štruktúra

+---app
|   +---adminer
|   \---files
+---assets
|   +---css
|   +---img
|   \---js
+---i18n
+---libs
|   +---dibi
|   \---tracy
+---model
+---resources
+---util
|---view
|   +---detail
|   +---fragments
|   \---master
|
+---Component.js
\---index.html

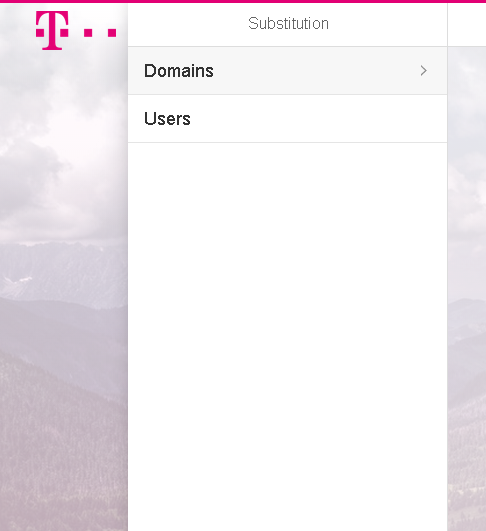

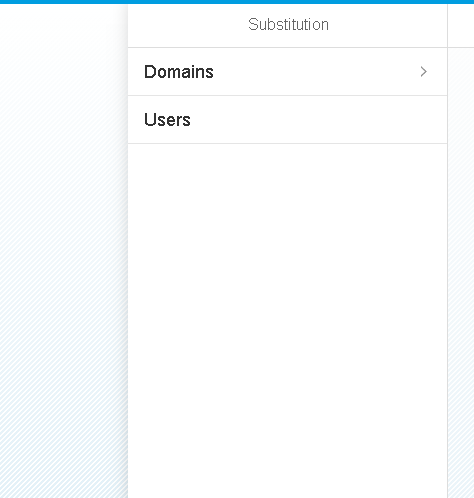

Theming


Vývoj

Notepad
...
Eclipse + Developer Tools
iný editor - Sublime Text

Zdroje

Debugging





Substitution

Miles plus
...
autorizácia

Zdroje
