#DevoxxFR

Sara Harkousse @Sara_harkousse

Web Components

It's all rainbows and unicorns! Is it?

SARA HARKOUSSE

@Sara_harkousse



Tech Lead, front-end Web developer at Dassault Systèmes

Duchess France Leader





About me

#DevoxxFR #webcomponents

Web Components



It's all rainbows and unicorns! Is it?

http://vignette2.wikia.nocookie.net/weirdcommunity/images/a/a2/Rainbow-flow-abstract-backgrounds-for-powerpoint.jpg/revision/latest?cb=20130603085532​​

Motivation

#DevoxxFR #webcomponents @Sara_harkousse

  • Modular architecture

Filterable Product Table

Search Bar

Product Table

Product Row

Product Category Row

https://facebook.github.io/react/docs/thinking-in-react.html

Angular 5.2.10 Component

import { Component } from '@angular/core';

@Component({
  selector: 'my-app',
  template: `<h1>Hello {{name}}</h1>`
})

export class AppComponent { name = 'Angular'; }

<my-app><h1>Hello Angular</h1></my-app>

https://angular.io/tutorial/toh-pt1

#DevoxxFR #webcomponents @Sara_harkousse

Ember 3.0.0 Component

<article class="blog-post">
  <h1>{{title}}</h1>
  <p>{{yield}}</p>
  <p>Edit title: {{input type="text" value=title}}</p>
</article>
{{#each model as |post|}}
  {{#blog-post title=post.title}}
    {{post.body}}
  {{/blog-post}}
{{/each}}

https://guides.emberjs.com/v3.0.0/components/defining-a-component/

Polymer 2.0 Element

  // Define the class for a new element called custom-element
  class CustomElement extends Polymer.Element {
    static get is() { return "custom-element"; }
    constructor() {
        super();
        this.textContent = "I'm a custom-element.";
      }
  }
  // Register the new element with the browser
  customElements.define('custom-element', CustomElement);
<custom-element></custom-element>

http://plnkr.co/edit/PaCt2M?p=preview

#DevoxxFR #webcomponents @Sara_harkousse

Frameworks make it hard to get along

#DevoxxFR #webcomponents @Sara_harkousse

Harmony happens when there is less learning curve

Browser support

https://www.webcomponents.org/

  • use webcomponents.js

#DevoxxFR #webcomponents @Sara_harkousse

Refresher on web components

Web components are a set of web platform APIs that allow you to create new custom, reusable, encapsulated HTML tags to use in web apps.”

https://www.webcomponents.org/

#DevoxxFR #webcomponents @Sara_harkousse

Refresher on web components

#DevoxxFR #webcomponents @Sara_harkousse

  • HTML Template Tag

  • Shadow DOM

  • Custom Elements

  • HTML Imports

HTML Template Tag

#DevoxxFR #webcomponents @Sara_harkousse

  <template id="template">
    <div id="container">
      <img class="webcomponents" src="logo.svg">
    </div>
  </template>

https://github.com/SaraHarkousse/Web_Components/tree/master/VanillaJS/Template

HTML Template Tag Usage

#DevoxxFR #webcomponents @Sara_harkousse

var template = document.querySelector('#template');
var clone = template.content.cloneNode(true);
var host = document.querySelector('#host');
host.appendChild(clone);

https://github.com/SaraHarkousse/Web_Components/tree/master/VanillaJS/Template

HTML Template Tag

#DevoxxFR #webcomponents @Sara_harkousse

  • A way to add inert DOM elements to your document

  • Not something that's going to revolutionize your apps

  • No two-way data binding, no binding at all

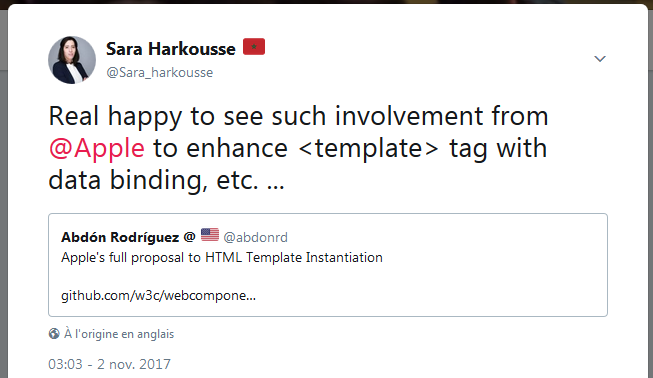

HTML Template Tag Futur ?

#DevoxxFR #webcomponents @Sara_harkousse

#DevoxxFR #webcomponents @Sara_harkousse

Shadow DOM

  • A tiny document

  • exists inside of a host element

#DevoxxFR #webcomponents @Sara_harkousse

Shadow DOM requires a polyfill

  • Hard to polyfill

#DevoxxFR #webcomponents @Sara_harkousse

Use/Don't use

Shadow DOM?

callback() {
    // Use it
    this.root = this.attachShadow({mode: 'open'});

    var template = document.querySelector('#template');
    var clone = document.importNode(template.content, true);
    this.root.appendChild(clone);
}

callback() {
    // Don't Use it
    this.root = this;

    var template = document.querySelector('#template');
    var clone = document.importNode(template.content, true);
    this.root.appendChild(clone);
}

#DevoxxFR #webcomponents @Sara_harkousse

Use/Don't use

Shadow DOM?

/* Use it */
:host {
    color: red;
}

/* Don't use it */
custom-component {
    color: red;
}

#DevoxxFR #webcomponents @Sara_harkousse

Use AND Don't use

Shadow DOM

if (shadowflag){
    this.root = this.attachShadow({mode: 'open'});
} else {
    this.root = this;
}
custom-component, :host {
    color: red;
}

#DevoxxFR #webcomponents @Sara_harkousse

Custom Elements

class CustomButton extends HTMLElement {...}
window.customElements.define('custom-button', CustomButton);

<custom-button></custom-button>

  • Acts like a div

#DevoxxFR #webcomponents @Sara_harkousse

Custom Elements

class CustomButton extends HTMLButtonElement {...}
window.customElements.define('custom-button', CustomButton, {extends: 'button'});
<button is="custom-button" disabled>My button!</button>

  • Acts like a real button

#DevoxxFR #webcomponents @Sara_harkousse

Custom Elements ES6 Class

class Custom-component extends HTMLElement {
  constructor() {
    super(); // always call super() first in the ctor.
    ...
  }
  connectedCallback() {
    ...
  }
  disconnectedCallback() {
    ...
  }
  attributeChangedCallback(attrName, oldVal, newVal) {
    ...
  }

}

HTML Imports

#DevoxxFR #webcomponents @Sara_harkousse

 <link rel="import" href="component.html">
 <link rel="stylesheet" href="style.css">
 <div id="container">
     <img class="rotate" src="logo.svg">
 </div>
 <script src="script.js"></script>

How to get my component?

#DevoxxFR #webcomponents @Sara_harkousse

var link = document.querySelector('link[rel="import"]');
var content = link.import;

// Grab DOM from component.html's document.
var el = content.querySelector('#container');
var clone = el.cloneNode(true);
var host = document.querySelector('#host');
host.appendChild(clone);

#DevoxxFR #webcomponents @Sara_harkousse

HTML Import requires a polyfill

  • ES module?

https://www.webcomponents.org/

#DevoxxFR #webcomponents @Sara_harkousse

ES module

// export feature
export const Component = // …

// import feature
import {Component} from '../components/cutom-component.js';

#DevoxxFR #webcomponents @Sara_harkousse

Components on a page

<!doctype html>
<html lang="en">
    <head>
        <link rel="import" href="/components/CustomNavbar.html">
        ..
    </head>
    <body>
        <custom-navbar style="compact"></custom-navbar>
        <custom-toolbar style="full"></custom-toolbar>
        <custom-pagecontent>
            <custom-input attr="val"></custom-input>
            <progress-bar></progress-bar>
        </custom-pagecontent>

        <script>
            ...
        </script>
    </body>
</html>

#DevoxxFR #webcomponents @Sara_harkousse

Communication between Components on a page

<script>
    document.querySelector('custom-input').dispatchEvent(new CustomEvent('customevent', {
        detail: { prop: true }
    }));

    customElements.whenDefined('progress-bar').then(() => {
        document.querySelector('progress-bar').addEventListener(
            'customevent', function () {
                 // do something
             }
        });
    });
</script>

#DevoxxFR #webcomponents @Sara_harkousse

Takeaway

  • Template tag? yeah! why not?

  • Use ES module instead of HTML Imports

  • Use Shadom DOM with a flag

  • Custom Elements?? Go, Go, Go



#DevoxxFR #webcomponents

Thanks for listening!

Follow for slides

@Sara_harkousse

https://github.com/SaraHarkousse

https://www.programmez.com/magazine/article/web-components-que-du-bonheur-nest-ce-pas

Web Components: It’s all rainbows and unicorns! Is it?

By sara_harkousse

Made with Slides.com

Web Components: It’s all rainbows and unicorns! Is it?

Web components are a tale of four w3c specifications. They are a hot topic now. We’ve all seen big headlines, for instance, “The Web Components revolution”, “Web Components are a game changer”, “A Tectonic Shift for Web Development”, … and so many others. They are certainly exciting and promising, nevertheless, there are some factors holding them back such as performance issues and lack of browser support. Some features seem to be more hassle than they’re worth. In this talk you’ll examine web components from a pragmatic stand point. So if you want to start using web components in production, come to learn what features can you use today. Actually, despite the still short browser support, some of web components features seems to be the best choice to start with . The assessment you’ll learn is the reflection of my personal research and work on my spare time and also feedbacks from my co-workers.
