Cross-Platform Desktop Application

Satit Rianpit

25-26 June 2015

Course Outline

JavaScript
NodeJS/io.js
jQuery
Bootstrap
nwjs (node-webkit)
MySQL
Highcharts

Cross-Platform Desktop Application

with nwjs (node-webkit)

Run cross platform (Windows, Linux, Mac)
Built with Web technology (HTML, CSS, JavaScript)
Use NodeJS modules

bower/npm

bower : ใช้ติดตั้ง package ที่ใช้สำหรับเว็บ เช่น jQuery, Bootstrap, Font-Awesome, lumx

npm : ใช้ติดตั้ง package/module สำหรับ NodeJs/io.js

# bower init // start new project
# bower install jquery
# bower install bootstrap --save  // save to bower.json

# npm init // start new project
# npm install mysql
# npm install gulp -g
# npm install moment --save  // save to package.json

npm install bower -g

ติดตั้ง bower

การใช้งาน

1 JavaScript

Basic JavaScript: variables, function, class

Basic JavaScript

Variables, comments, array, object

// Single line comment
var a = 10;
var msg = 'Hello world';  // Comment
var b = a + 5; /* b = 15 */

/*
Multiple line comment
*/
function hello(name) {
     alert('Hello, ' + name;
}

// Array
var arr = [];
var fruits = ['Apple', 'Mango', 'Banana'];
fruits.push('Pie Apple');

// Object
var obj = {};
obj.name = 'Satit';
obj.surname = 'Rianpit';

Basic JavaScript

string

// String
var name = 'Satit';
var fullname = name + ' Rianpit'; // Satit Rianpit
var myName = ['Satit', 'Rianpit'].join(' '); // Satit Rianpit

var longString = 'Welcome ' +
                 'to ' +
                 'My Application'; // Welcome to My Application

var sql = 'SELECT name, last_name' +
          ' FROM users' +
          ' WHERE id=1'; // SELECT name, last_name FROM users WHERE id=1

Basic JavaScript

(Function and Class)

// named function
var sayHello = function (name) {
    console.log(name);
};

function sayHi(name) {
    console.log(name);
};

sayHello('Satit');
sayHi('Monalisa');

// Class

var say = {
    hi: function (name) {
         console.log(name);
    },
    hello: function (name) {
        console.log(name);
    }
};

// OR
var say = {};
say.hi = function (name) {
    console.log(name);
};

say.hello = function (name) {
    console.log(name);
};

say.hi('Satit');
say.hello('Monalisa');

Basic JavaScript

(Callback function)

var getUser = function (callback) {
    var db = getConnection();
    var sql = 'SELECT * FROM users';
    db.raw(sql)
        .then(function (rows) {
            callback(null, rows);
        })
        .catch(function (err) {
            callback(err);
        });
};

// Get list
getUser(function (err, rows) {
    if (err) {
        console.log(err);
        alert('Error found!');
    } else {
        // Display users in table
    }
});

var showName = function (name, callback) {
    if (name == 'Satit') {
        callback(null, 'Satit Rianpit');
    } else {
        callback('Not found');
    }
};

showName('Satit', function (err, fullname) {
    if (err) {
        alert('Error, not found!');
    } else {
        alert(fullname); // Satit Rianpit
    }
});

2 NodeJS

Basic NodeJS: modules

NodeJS/io.js

Node.js is an open source, cross-platform runtime environment for server-side and networking applications written in JavaScript. Run on Windows, Linux, FreeBSD and OSX

Platform

NodeJS: Built-in Modules

var os = require('os');

console.log(os.platform()); // dawin, win32, win64, linux
console.log(os.hostname());
console.log(os.networkInterfaces());

var crypto = require('crypto');
var cryptPassword = crypto.createHash('md5')
                    .update('123456')
                    .digest('hex'); //e10adc3949ba59abbe56e057f20f883e

NodeJS: External Modules

// Install module

# npm install fs-extra
# npm install jsonfile --save // save to package.json

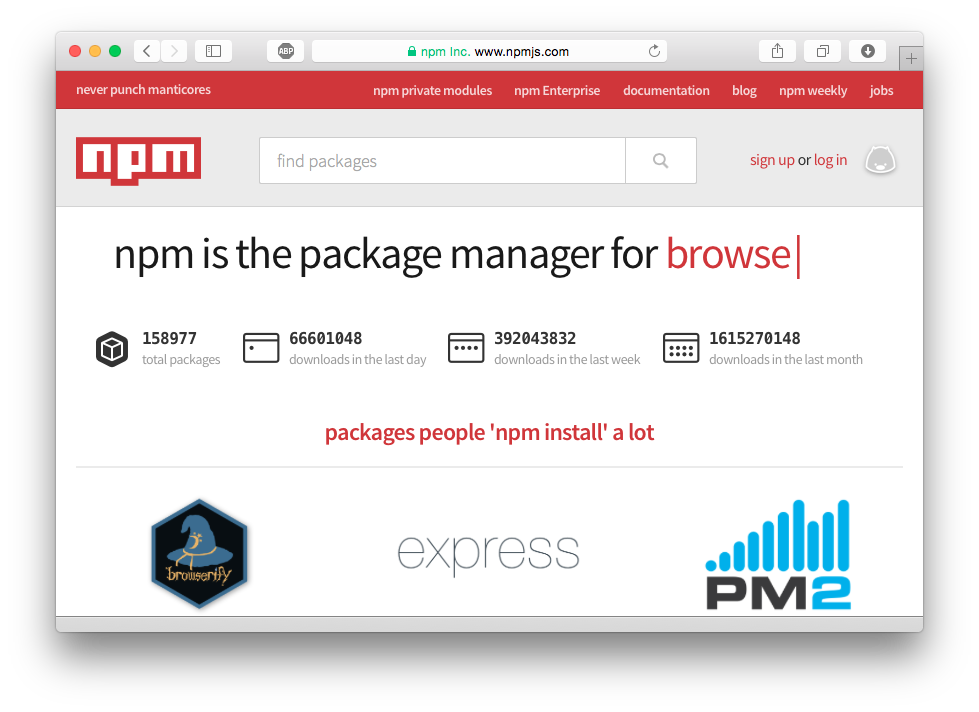

http://www.npmjs.com

NodeJS: External Modules

// Install module

# npm install fs-extra

// app.js
var fse = require('fs-extra');
fse.copy('/tmp/myfile', '/tmp/mynewfile', function (err) {
  if (err) return console.error(err)
  console.log("success!")
}); // copies file


# npm install moment

//app.js
var moment = require('moment');
var today = moment().format('YYYY-MM-DD'); // 2015-06-25
var tomorrow = moment().add(1, 'days'); // 2015-06-26
var theNext = moment().add(7, 'days').add(1, 'months');
var theNext2 = moment().add({days: 7, months: 1});

NodeJS: Custom Modules

// file my-module.js

var MyModule = {
    getName: function () {
        return 'Satit';
    },
    getFullname: function () {
        return 'Satit Rianpit';
    }
};

module.exports = MyModule;

// app.js
var my = require('./my-module');
var name = my.getName(); // Satit
var fullname = my.getFullname(); // Satit Rianpit

3 jQuery

Basic jQuery: DOM, Events

Basic jQuery

// Initial jQuery on page loaded.
$(function () {
    // code here...
});

Initialized

// index.html
<span>Hello</span>
<div id="mydiv">Hello world </div>
<button class="btn btn-success">Button</button>
<input type="text" name="txtName" value="Hello" />

DOM access

// index.js
$(function () {

    var txtSpan = $('span').text(); // Hello
    var divId = $('#mydiv').text(); // Hello world
    var btnClass = $('button.btn').text(); // Button
    var inText = $('input[type="text"]').val(); // Hello

});

Events

// index.html
<input type="text" id="txtName" />
<button type="button" id="btnSubmit">Submit</button>

// index.js
$(function () {

    $('#btnSubmit').on('click', function () {
        var name = $('#txtName').val();
        alert(name);
    });

});

// Event
$elm.on(event, function () {...});

Event:
 - blur            - change
 - click            - dblclick
 - focus            - hover
 ...

4 Bootstrap

Basic Bootstrap: Button, Table, Grid, Colors, Modal

Download/Installation

Download: http://getbootstrap.com

# bower install bootstrap

Bower:

<!DOCTYPE html>
<html lang="en">
  <head>
    <link href="css/bootstrap.min.css" rel="stylesheet">

    <script src="jquery.min.js"></script>
    <script src="js/bootstrap.min.js"></script>
  </head>
  <body>

  </body>
</html>

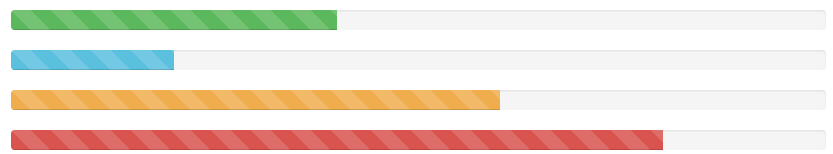

Components

Other modules/Component

Grid
Responsive
Alert
Modal
Table
Panel

Demo

5 nwjs (node-webkit)

Basic nwjs: Window, nodejs modules, deployment

nwjs (node-webkit)

Start new project

Create new app

# npm init -y

{
  "name": "myapp",
  "version": "1.0.0",
  "description": "",
  "main": "index.html",  <-- Change
  "keywords": [],
  "author": "",
  "license": "ISC"
}

index.html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport"
        content="width=device-width, initial-scale=1">
    <title>My App</title>
    <link href="bower_components/bootstrap/dist/css/bootstrap.min.css"
            rel="stylesheet">

  </head>
  <body>
    <h1>Hello, world!</h1>
    <button class="btn btn-success">Click me!</button>
    <script src="bower_components/jquery/dist/jquery.min.js">
    </script>
    <script src="bower_components/bootstrap/distjs/bootstrap.min.js">
    </script>
  </body>
</html>

package.json

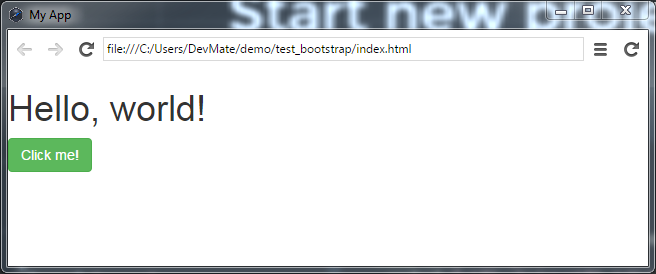

Run program

# nw .

package.json

{
  "main": "index.html",
  "name": "nw-demo",
  "description": "demo app of node-webkit",
  "version": "0.1.0",
  "keywords": [ "demo", "node-webkit" ],
  "window": {
    "title": "node-webkit demo",
    "icon": "link.png",
    "toolbar": true,
    "frame": false,
    "width": 800,
    "height": 500,
    "position": "center",
    "min_width": 400,
    "min_height": 200,
    "max_width": 800,
    "max_height": 600
  },
  "webkit": {
    "plugin": true
  }
}

https://github.com/nwjs/nw.js/wiki/Manifest-format

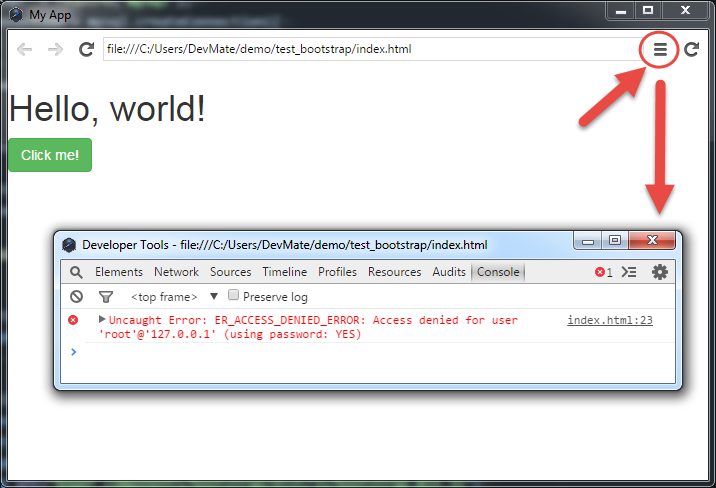

Debug

6 nwjs + MySQL

Installation

# npm install mysql --save

var mysql  = require('mysql');
var connection = mysql.createConnection({
  host     : 'localhost',
  user     : 'me',
  password : 'secret'
});

connection.connect();

connection.query('SELECT 1 + 1 AS solution', function(err, rows, fields) {
  if (err) throw err;

  console.log('The solution is: ', rows[0].solution);
});

connection.end();

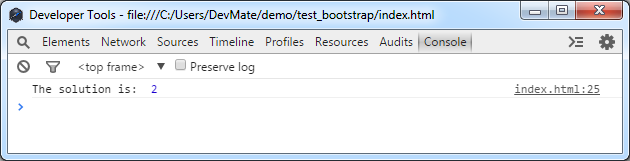

Example

KnexJS

knex.select('title', 'author', 'year').from('books')

Outputs:
select `title`, `author`, `year` from `books`

knex.select('*').from('users').leftJoin('accounts', 'users.id', 'accounts.user_id')


Outputs:
select * from `users` left join `accounts` on `users`.`id` = `accounts`.`user_id`

// Raw query
knex.raw('select * from users where id = ?', [1]).then(function(resp) {
  ...
});

Knex.js is a "batteries included" SQL query builder for Postgres, MySQL, MariaDB,SQLite3, and Oracle

http://knexjs.org/

Connection/Run query

var knex = require('knex')({
  client: 'mysql',
  connection: {
    host     : '127.0.0.1',
    user     : 'your_database_user',
    password : 'your_database_password',
    database : 'myapp_test'
  }
});

knex.select('*')
    .from('users')
    .leftJoin('accounts', 'users.id', 'accounts.user_id')
    .then(function (rows) {
        // success with results
    })
    .catch(function (err) {
        // error
    });

Usage:

CRUD Query builder

knex('users')
    .insert({ name: 'Satit', password: '123456' });

knex('users')
    .where('id', 1)
    .update({ name: 'Satit', password: '123456' });

INSERT

UPDATE

knex('users')
    .where('id', 1)
    .delete();

DELETE

knex('users')
    .select('name', 'password');

SELECT

Advanced Query builder

knex('users as u')
    .select('u.name', 't.name as type_name')
    .leftJoin('user_type as t', 't.id', 'u.type_id');

JOIN

innerJoin, leftJoin, rightJoin

knex('users')
    .where('id', 1)
    .whereBetween('user_type', [1, 2, 3])
    .where('name', 'like', '%Satit%')

where

KnexJS demo

7 HighCharts

Basic Dashboard: Bar, Line, Donut

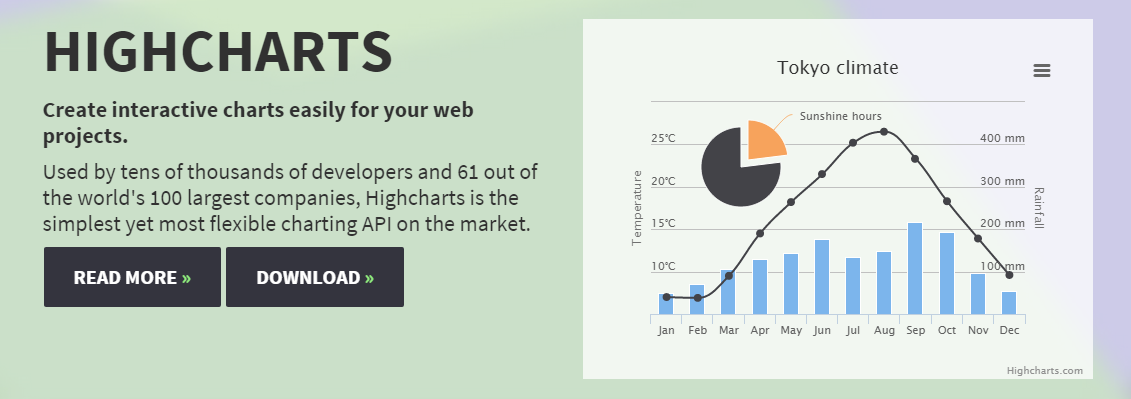

Highcharts

Installation

# bower install highcharts

<html>
    <head>
        <script src="bower_components/jquery/dist/jquery.min.js"></script>
        <script src="bower_components/highcharts/highcharts.js"></script>
    </head>
    <body>
        <div id="container" style="width:100%; height:400px;"></div>
        <script>
            $(function () {
                $('#container').highcharts({
                    chart: {  type: 'bar' },
                    title: {  text: 'Fruit Consumption' },
                    xAxis: {  categories: ['Apples', 'Bananas', 'Oranges'] },
                    yAxis: { title: {  text: 'Fruit eaten' } },
                    series: [{ name: 'Jane', data: [1, 0, 4]},
                                { name: 'John', data: [5, 7, 3] }]
                });
            });
        </script>
    </body>
</html>

Deployment

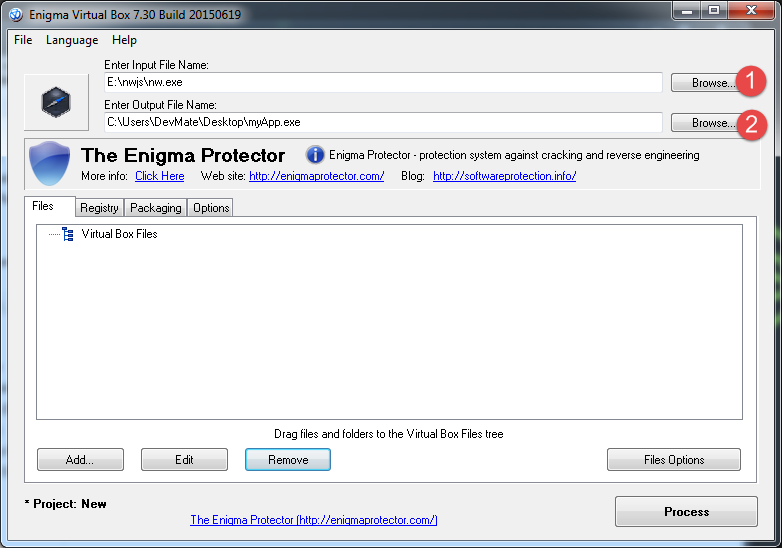

Step 1

1. เลือกไฟล์ nw.exe ในโฟลเดอร์ที่เก็บโปรแกรม nwjs ที่ได้แตก zip ไฟล์ไว้ (C:\nwjs\nw.exe)

2. เลือกที่อยู่ของไฟล์ Output ที่ต้องการ

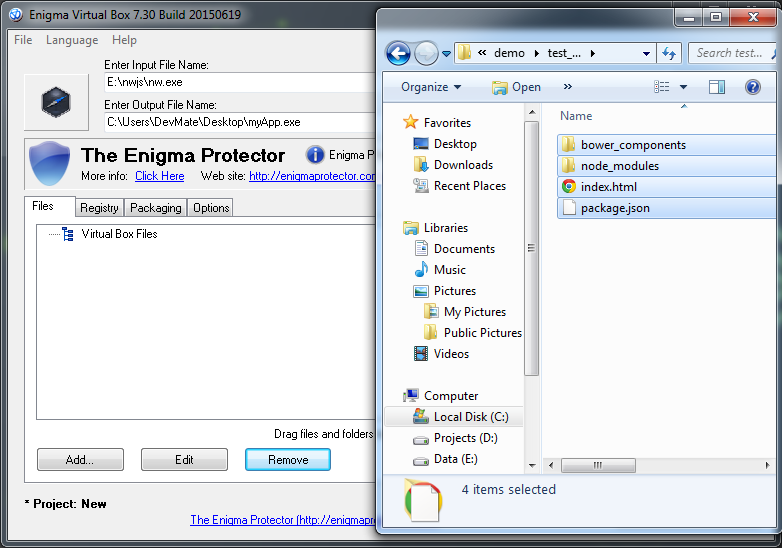

Step 2

1. เปิด Explorer แล้วทำการลากไฟล์ Project ของเรามาไว้ที่โปรแกรม Enigma Virtual Box ดังรูป

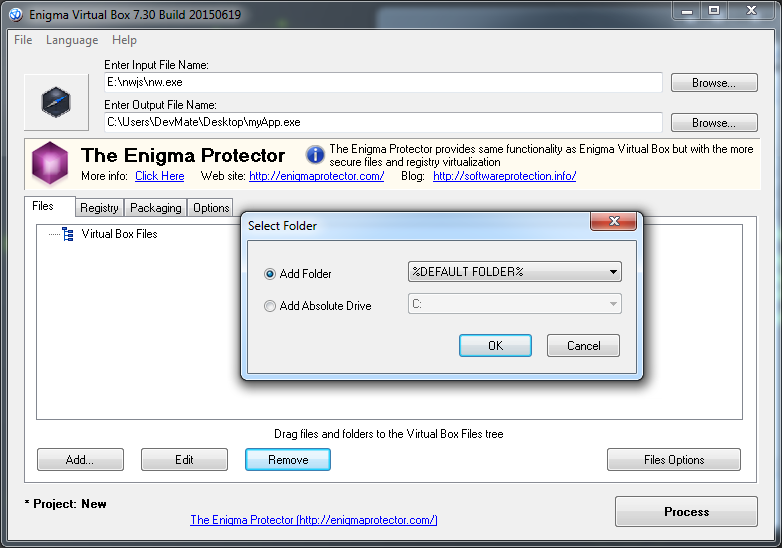

Step 3

1. ปรากฎหน้าต่างเลือกโฟล์เดอร์ ให้คลกที่ปุ่ม OK

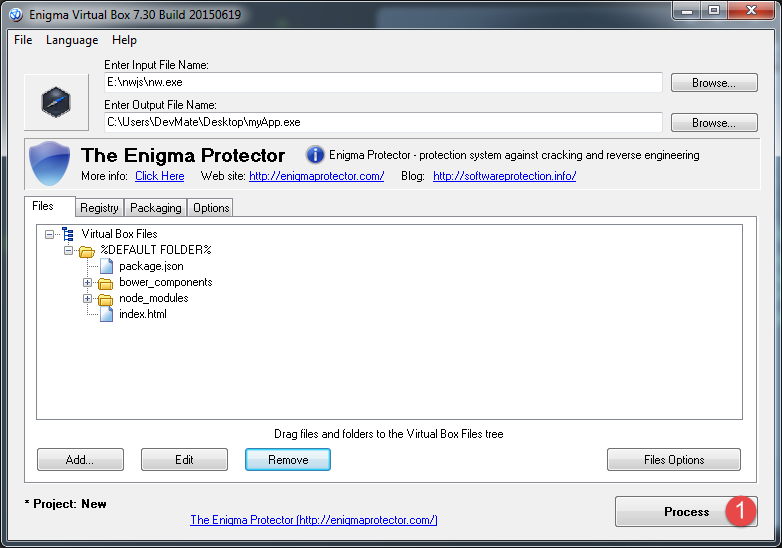

Step 4

1. เมื่อลากไฟล์ Project ทั้งหมดมาแล้ว จะได้ดังรูป

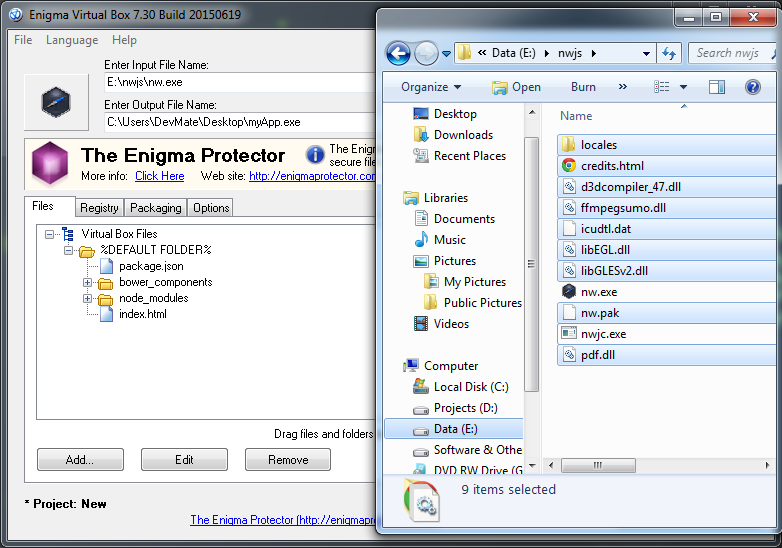

Step 5

เลือกไฟล์ และ โฟลเดอร์ทั้งหมดในโฟลเดอร์ c:\nwjs ยกเว้น ไฟล์ nwjc.exe แล้วลากมาวางในโปรแกรม Enigma Virtual Box ดังรูป

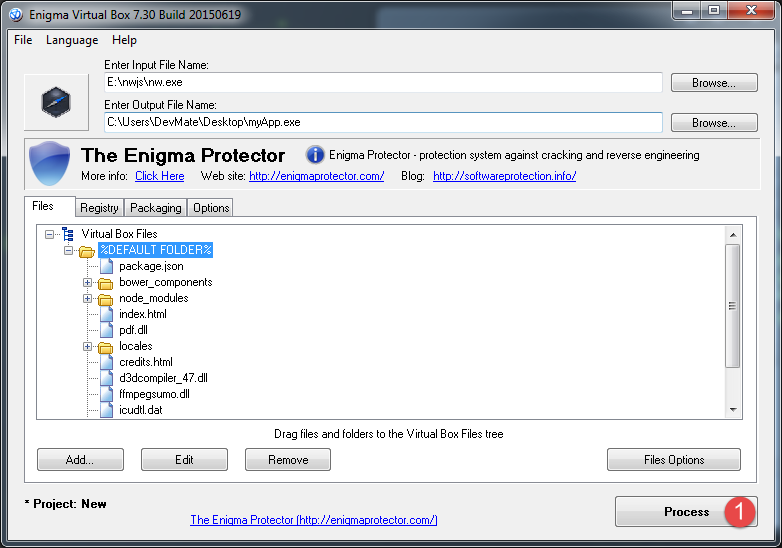

Step 6

จะได้ไฟล์ทั้งหมด ดังรูป

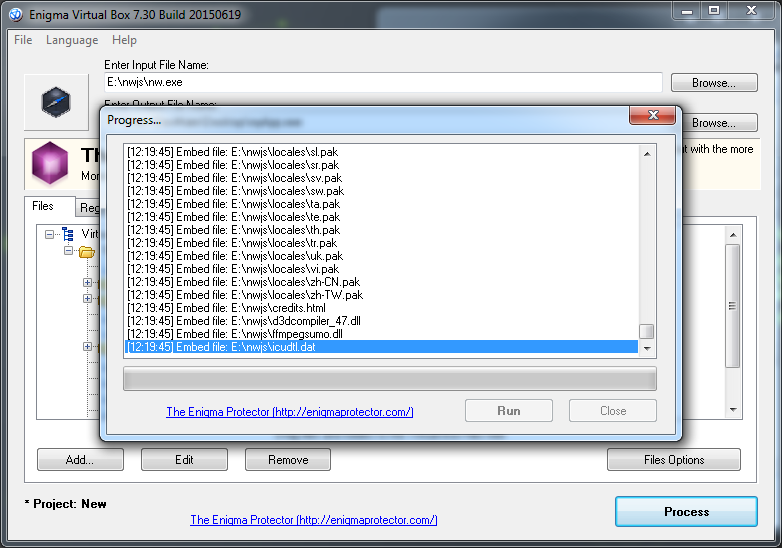

Step 7

คลิกที่ปุ่ม Process โปรแกรมจะทำการ Compile ตัว Project ให้

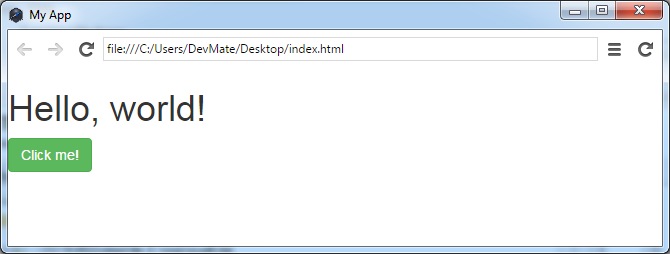

Step 8

เมื่อเสร็จแล้วสามารถเปิดโปรแกรมที่เราได้ทำการ compile จะได้ผลดังรูป

Cross-Platform Desktop Application

By Satit Rianpit

Cross-Platform Desktop Application

Cross-Platform Desktop Application

Course Outline

Cross-Platform Desktop Application

with nwjs (node-webkit)

bower/npm

1

JavaScript

Basic JavaScript

Basic JavaScript

Basic JavaScript

Basic JavaScript

2

NodeJS

NodeJS/io.js

Platform

NodeJS: Built-in Modules

NodeJS: External Modules

NodeJS: External Modules

NodeJS: Custom Modules

3

jQuery

Basic jQuery

Events

4

Bootstrap

Download/Installation

Components

Demo

5

nwjs (node-webkit)

nwjs (node-webkit)

Start new project

Run program

package.json

Debug

6

nwjs + MySQL

Installation

KnexJS

Connection/Run query

CRUD Query builder

Advanced Query builder

KnexJS demo

7

HighCharts

Installation

Deployment

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Step 8

Cross-Platform Desktop Application

More from Satit Rianpit
