linear regressor

Recap:

the regressor is linear in the feature \(x\)

\(y = \theta^{\top} x+\theta_0\)

z = \theta^{\top} x+\theta_0

\{x: \theta^{\top} x+\theta_0>0\}

\{x: \theta^{\top} x+\theta_0<0\}

linear classifier

Recap:

separator

\{x: \theta^{\top} x+\theta_0 = 0\}

the separator is linear in the feature \(x\)

\{x: \sigma(\theta^{\top} x+\theta_0)>0.5\}

\{x: \sigma(\theta^{\top} x+\theta_0)<0.5\}

linear logistic classifier

\(g(x)=\sigma\left(\theta^{\top} x+\theta_0\right)\)

Recap:

separator

the separator is linear in the feature \(x\)

\{x: \theta^{\top} x+\theta_0 = 0\}

Linear classification played a pivotal role in kicking off the first wave of AI enthusiasm.

👆

👇

Not linearly separable.

Linear tools cannot solve interesting tasks.

Linear tools cannot, by themselves, solve interesting tasks.

XOR dataset

feature engineering 👉

👈 neural networks

Outline

Systematic feature transformations
- Engineered features
- Polynomial features
- Expressive power
Neural networks
- Terminologies
  - neuron, activation function, layer, feedforward network
- Design choices

old/raw/ original features \(x \in \mathbb{R^d}\)

\longrightarrow

new features \(\phi(x) \in \mathbb{R^{d^{\prime}}}\)

non-linear in \(x\)

linear in \(\phi\)

\longrightarrow

non-linear transformation

\theta_1\phi_1(x) + \theta_2\phi_2(x) + \dots \theta_{d'}\phi_{d'}(x)

Linearly separable in \(\phi(x) = x^2\) space

Not linearly separable in \(x\) space

-3

-2

-1

0

1

2

3

4

5

6

7

8

9

\phi(x)

transform via \(\phi(x) = x^2\)

\Downarrow

-3

-2

-1

0

1

2

3

4

5

6

7

8

9

x

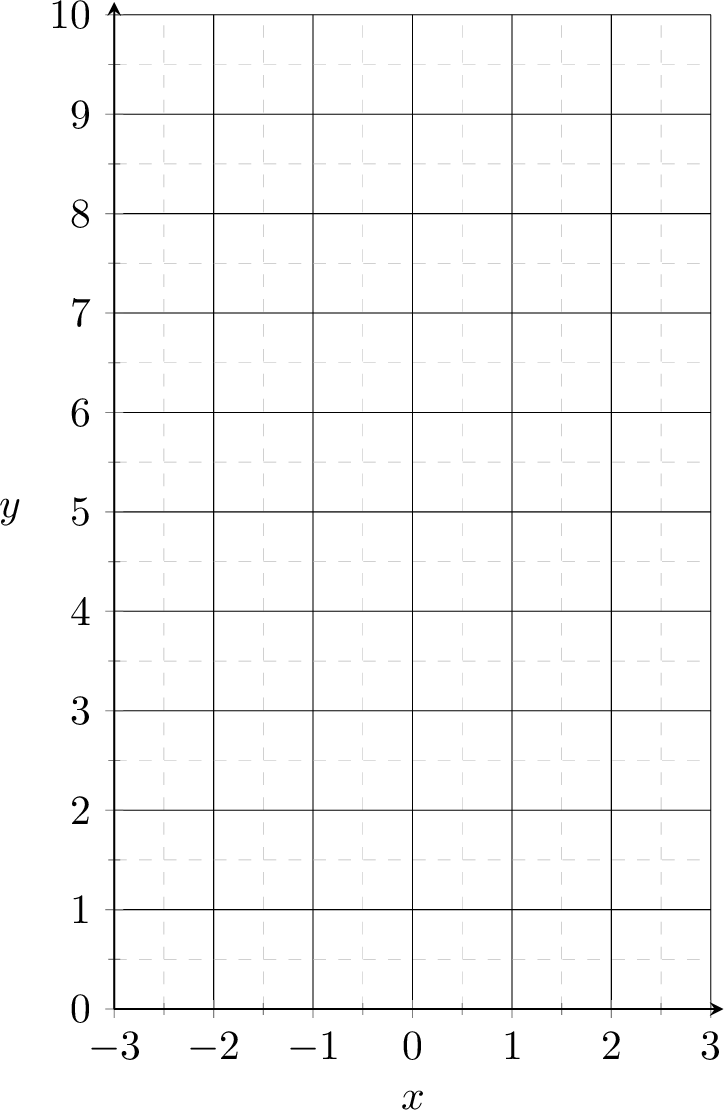

Linearly separable in \(\phi(x) = x^2\) space, e.g. predict positive if \(\phi \geq 3\)

Non-linearly separated in \(x\) space, e.g. predict positive if \(x^2 \geq 3\)

-3

-2

-1

0

1

2

3

4

5

6

7

8

9

\phi(x)

\Downarrow

transform via \(\phi(x) = x^2\)

-2

-1

0

1

2

3

4

5

6

7

8

9

x

-3

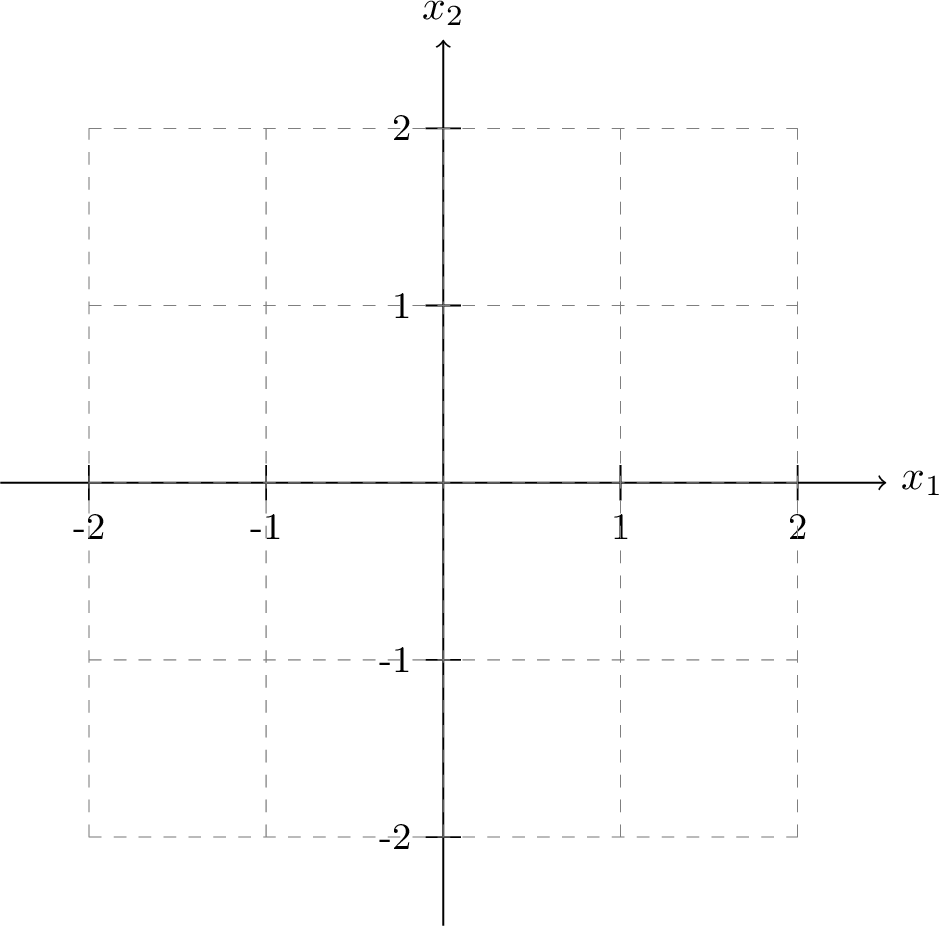

\{ x: x_1^2+x_2^2>10\}

\{ x: x_1^2+x_2^2<10\}

= x_1^2

\phi_2

z = \phi_1 + \phi_2

=x_2^2

\phi_1

x_1

x_2

z = x_1^2 + x_2^2

training data


p1	-2	5
p2	1	2
p3	3	10

x

y

\Rightarrow

transform via

\(\phi(x)=x^2\)

training data


p1	4	5
p2	1	2
p3	9	10

\phi

y

\Rightarrow

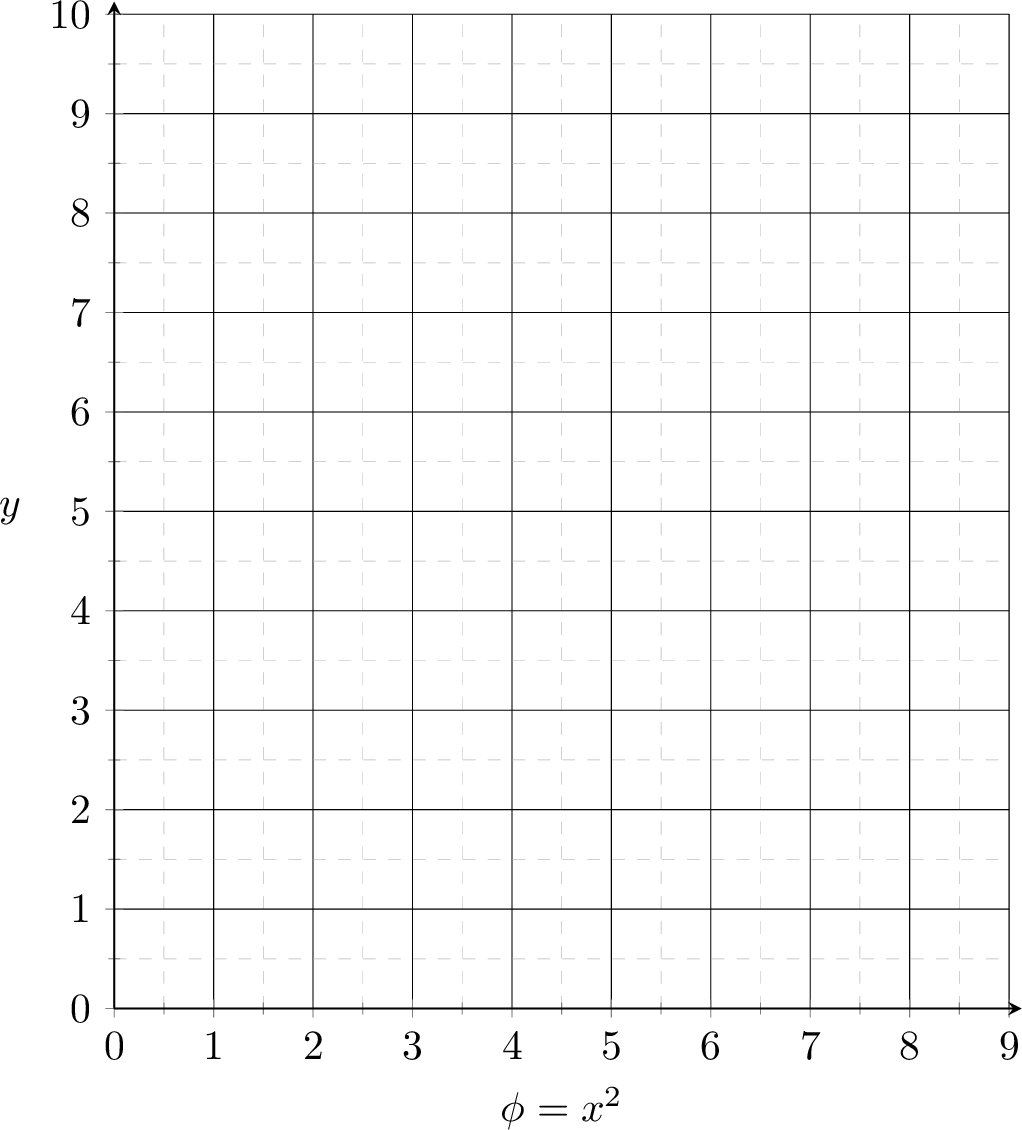

\(y=\phi+1\)

training data


p1	4	5
p2	1	2
p3	9	10

\phi

y

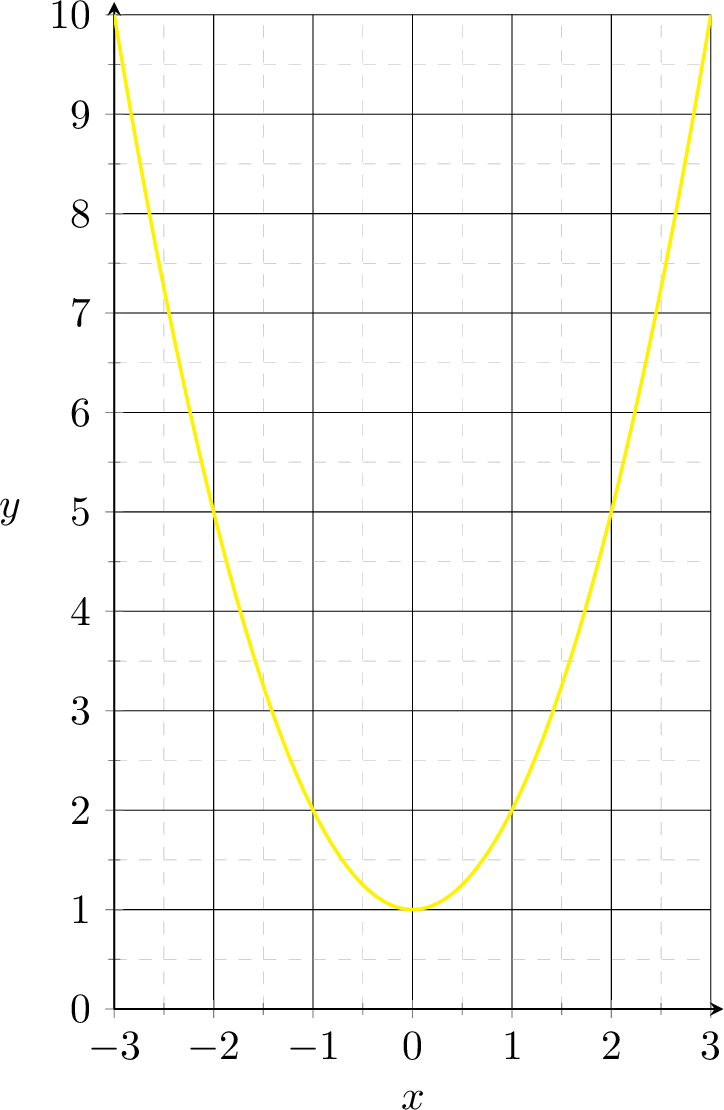

\(=x^2+1\)

training data


p1	-2	5
p2	1	2
p3	3	10

x

y

systematic polynomial features construction

d = 1

d = 2

\dots

Elements in the basis are the monomials of original features raised up to power \(k\)
With a given \(d\) and a fixed \(k\), the basis is fixed.

k = 1

k = 2

k = 3

1

k = 0

1

x_{1}, x_{2}

x_{1}

1, x_{1}

1, x_{1}, x_{1}^{2}

1, x_{1}, x_{1}^{2}, x_{1}^{3}

1, x_{1}, x_{2}

1, x_{1}, x_{2}, x_{1}^{2}, x_{1}x_{2}, x_{2}^{2}

1, x_{1}, x_{2}, x_{1}^{2}, x_{1}x_{2}, x_{2}^{2}, x_{1}^{3}, x_{1}^{2}x_{2}, x_{1}x_{2}^{2}, x_{2}^{3}

9 data points; each data point has a feature \(x \in \mathbb{R},\) label \(y \in \mathbb{R}\)

generated from green dashed line

\(k = 1\)
\( h(x; \textcolor{blue}{\theta}) = \textcolor{blue}{\theta_0} + \textcolor{blue}{\theta_1} \textcolor{gray}{x} \)
Learn 2 parameters for linear function

x

y

x

y

Choose \(k = 2\)
New features \(\phi=[1; x; x^2]\)
\( h(x; \textcolor{blue}{\theta}) = \textcolor{blue}{\theta_0} + \textcolor{blue}{\theta_1} \textcolor{gray}{x} +\textcolor{blue}{\theta_2} \textcolor{gray}{x^2} \)
Learn 3 parameters for quadratic function

x

y

Choose \(k = 5\)
New features \(\phi=[1; x; x^2;x^3;x^4;x^5]\)
\( h(x; \textcolor{blue}{\theta}) = \textcolor{blue}{\theta}_0 + \textcolor{blue}{\theta_1} \textcolor{gray}{x} + \textcolor{blue}{\theta_2} \textcolor{gray}{x^2} + \textcolor{blue}{\theta_3} \textcolor{gray}{x^3} + \textcolor{blue}{\theta_4} \textcolor{gray}{x^4} + \textcolor{blue}{\theta_5} \textcolor{gray}{x^5} \)
Learn 6 parameters for degree-5 polynomial function

k=7

k=8

k=10

Underfitting

Appropriate model

Overfitting

high error on train set

high error on test set

low error on train set

low error on test set

low error on train set

high error on test set

k=1

k=2

k=10

\(k:\) a hyperparameter that determines the capacity (expressiveness) of the hypothesis class.
Models with many rich features and free parameters tend to have high capacity but also greater risk of overfitting.
How to choose \(k?\) Validation/cross-validation.

Underfitting

Appropriate model

Overfitting

k=1

k=2

k=10

Similar overfitting can happen in classification

Using polynomial features of order 3

Quick summary:

Linear models are mathematically and algorithmically convenient but not expressive enough -- by themselves -- for most jobs.
We can express really rich hypothesis classes by performing a fixed non-linear feature transformation first, then applying our linear regression or classification methods.
Can think of fixed transformation as "adapters", enabling us to use old tools in broader situations.
Standard feature transformations: polynomials, absolute-value functions.

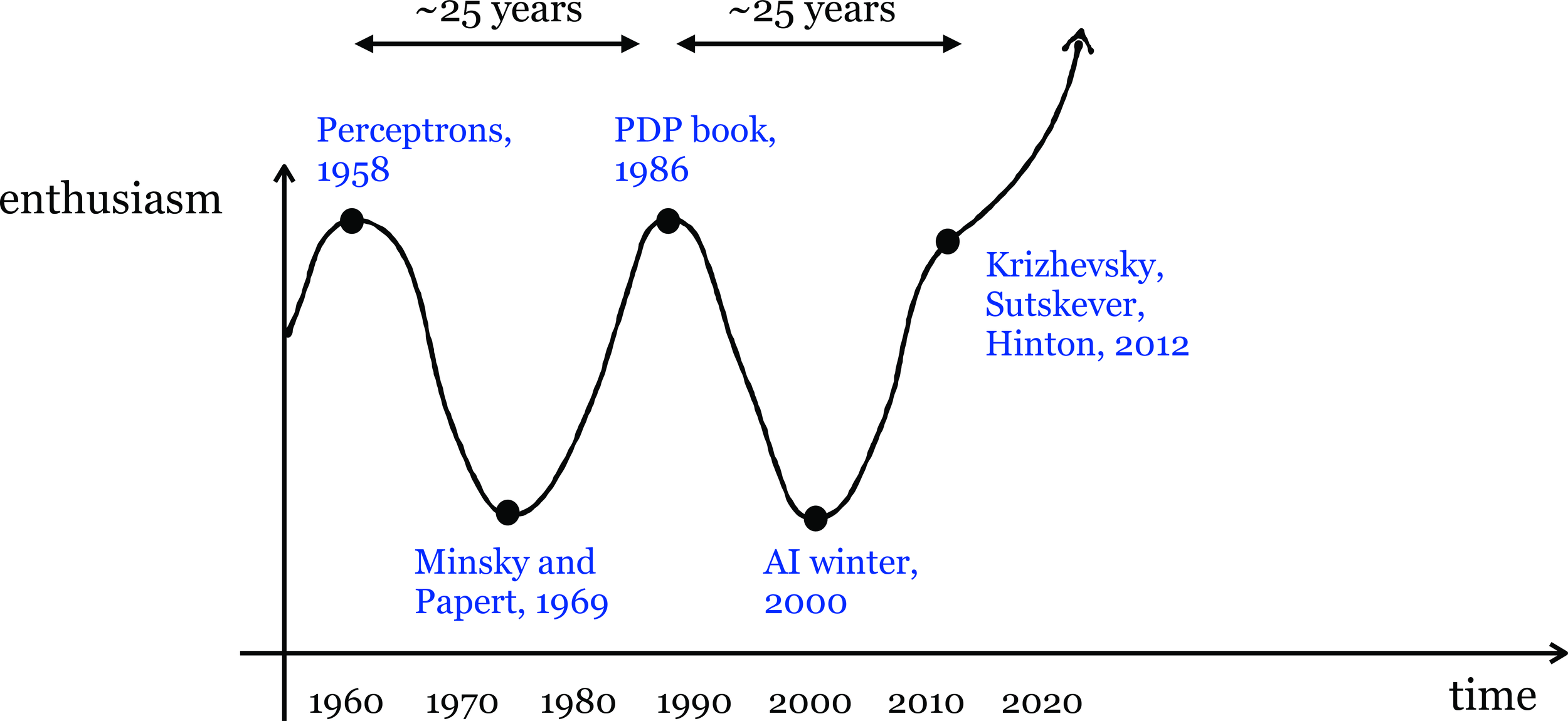

For a significant period, the essence of machine learning revolved around feature engineering—manually designing transformations to extract useful representations.

Outline

Systematic feature transformations
- Engineered features
- Polynomial features
- Expressive power
Neural networks
- Terminologies
  - neuron, activation function, layer, feedforward network
- Design choices

leveraging nonlinear transformations

👆

importantly, linear in \(\phi\), non-linear in \(x\)

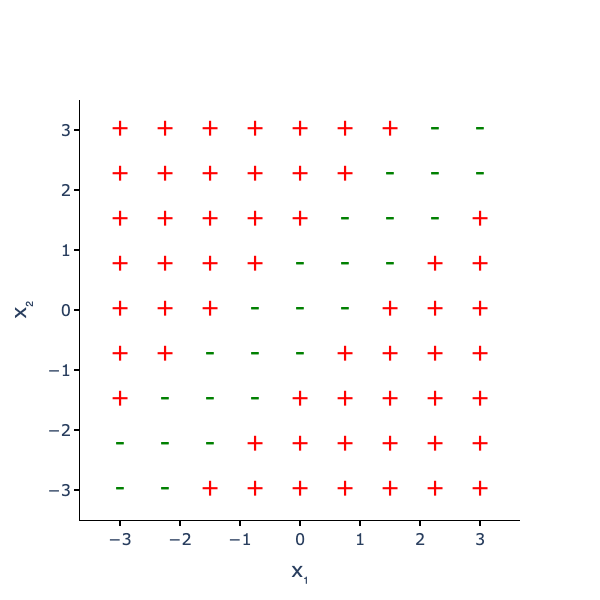

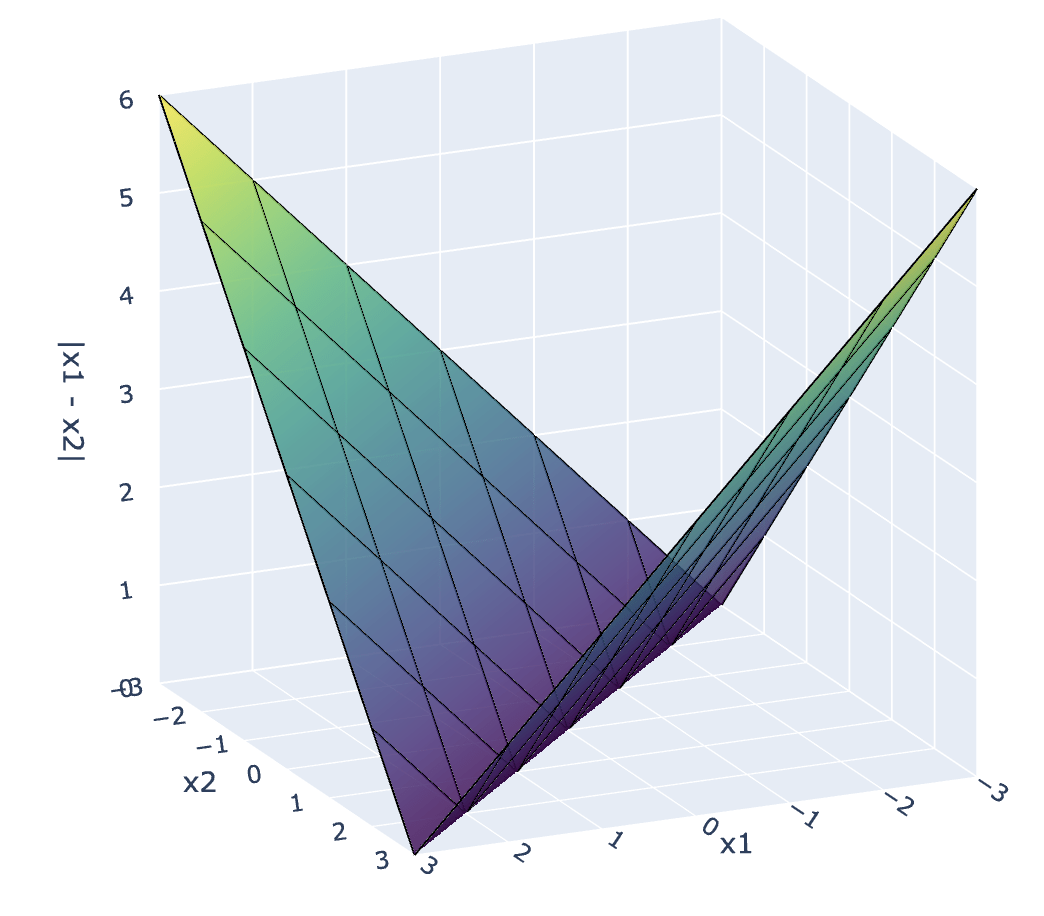

\phi\left(\left[x_1; x_2\right]\right)=\left[1;|x_1-x_2|\right]

transform via

Outlined the fundamental concepts of neural networks:

\}

expressiveness

efficient learning

Nonlinear feature transformation

"Composing" simple transformations

Backpropagation

"Composing" simple transformations

\sigma_1 = \sigma(5 x_1 -5 x_2 + 1)

\sigma_2 = \sigma(-5 x_1 + 5 x_2 + 1)

Two epiphanies:

nonlinear transformation empowers linear tools

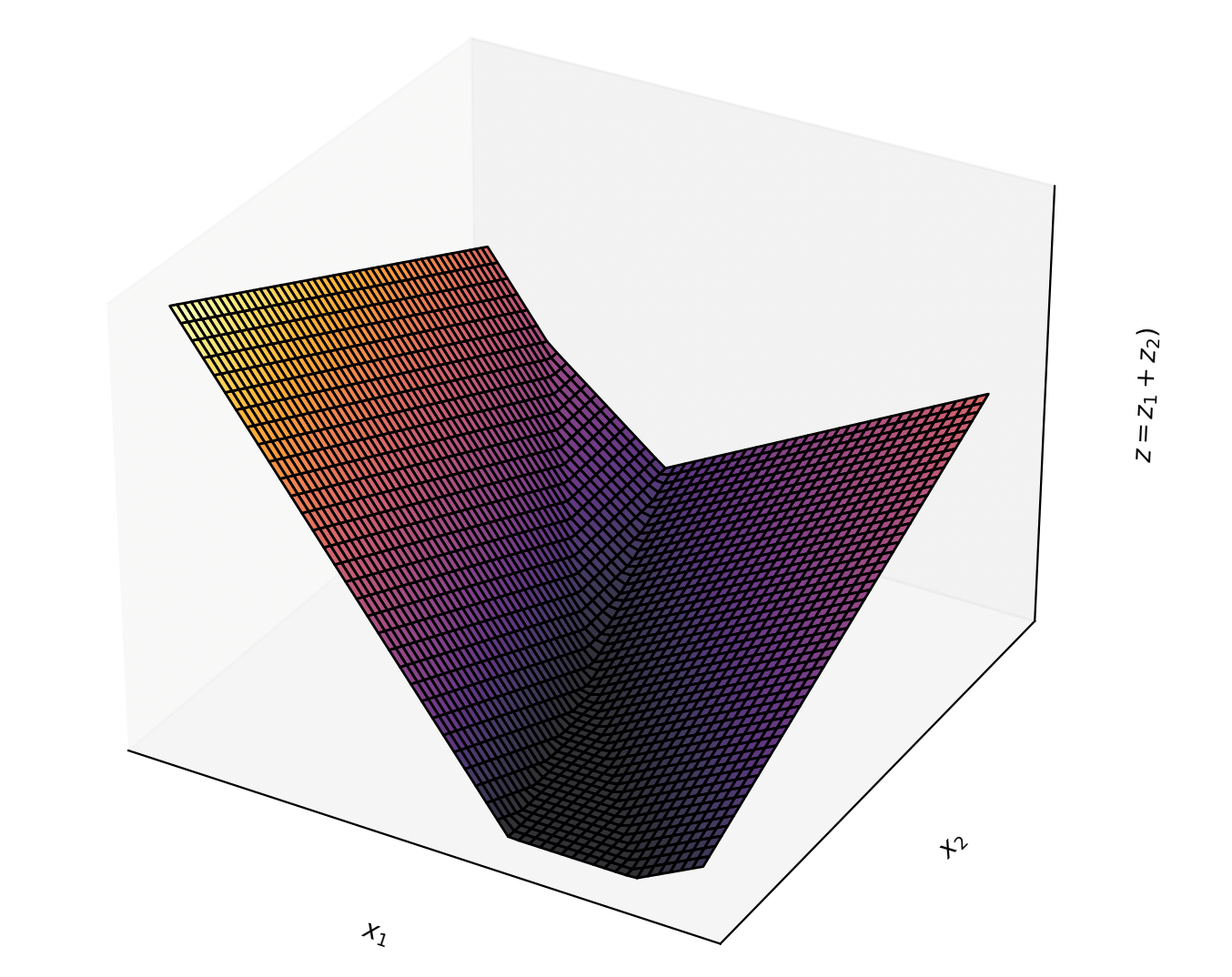

"composing" simple nonlinearities amplifies such effect

some appropriately weighted sum

Outline

Systematic feature transformations
- Engineered features
- Polynomial features
- Expressive power
Neural networks
- Terminologies
  - neuron, activation function, layer, feedforward network
- Design choices

👋 heads-up:

all neural network diagrams focus on a single data point

A neuron:

\(w\): what the algorithm learns

\(x\): \(d\)-dimensional input

a = f(z)

\Sigma

A neuron:

\(a\): post-activation output

\(f\): activation function

\(w\): weights (i.e. parameters)

\(z\): pre-activation output

\(f\): what we engineers choose

\dots

x_1

x_2

x_d

x = \left[ \begin{array}{c} \\ \\ \\ \\ \\ \\ \\ \end{array} \right]

w_1

w_d

\dots

w_2

= w^Tx

z

f(\cdot)

= f(w^Tx)

\(z\): scalar

\(a\): scalar

Choose activation \(f(z)=z\)

learnable parameters (weights)

e.g. linear regressor represented as a computation graph

= z

= w^Tx

w_1

w_d

\dots

x_1

x_2

x_d

\dots

x = \left[ \begin{array}{c} \\ \\ \\ \\ \\ \\ \\ \end{array} \right]

w_2

\Sigma

f(\cdot)

g

z

Choose activation \(f(z)=\sigma(z)\)

learnable parameters (weights)

e.g. linear logistic classifier represented as a computation graph

= \sigma(z)

= w^Tx

w_1

w_d

\dots

x_1

x_2

x_d

\dots

w_2

\Sigma

f(\cdot)

g

z

x = \left[ \begin{array}{c} \\ \\ \\ \\ \\ \\ \\ \end{array} \right]

\dots

A layer:

learnable weights

A layer:

a^1

z^1

\Sigma

f(\cdot)

z^2

\Sigma

f(\cdot)

a^2

z^m

a^m

\Sigma

f(\cdot)

\dots

x_1

x_2

x_d

(# of neurons) = (layer's output dimension).
typically, all neurons in one layer use the same activation \(f\) (if not, uglier algebra).
typically fully connected, where all \(x_i\) are connected to all \(z^j,\) meaning each \(x_i\) influences every \(a^j\) eventually.
typically, no "cross-wiring", meaning e.g. \(z^1\) won't affect \(a^2.\) (the output layer may be an exception if softmax is used.)

\dots

layer

linear combo

activations

A (fully-connected, feed-forward) neural network:

\dots

layer

\dots

x_1

x_2

x_d

input

\Sigma

f(\cdot)

\Sigma

f(\cdot)

\Sigma

f(\cdot)

\Sigma

f(\cdot)

\Sigma

f(\cdot)

\Sigma

f(\cdot)

\Sigma

f(\cdot)

neuron

learnable weights

We choose:

activation \(f\) in each layer
# of layers
# of neurons in each layer

hidden

output

\sigma_1 = \sigma(5 x_1 -5 x_2 + 1)

\sigma_2 = \sigma(-5 x_1 + 5 x_2 + 1)

some appropriate weighted sum

recall this example

x_1

x_2

1

\Sigma

f(\cdot)

\Sigma

f(\cdot)

\Sigma

f(\cdot)

\(f(\cdot) = \sigma(\cdot)\)

\(f(\cdot) \) identity function

it can be represented as

Outline

Systematic feature transformations
- Engineered features
- Polynomial features
- Expressive power
Neural networks
- Terminologies
  - neuron, activation function, layer, feedforward network
- Design choices

👋 heads-up:

all neural network diagrams focus on a single data point

Hidden layer activation function \(f\) choices

\(\sigma\) used to be the most popular

firing rate of a neuron
elegant gradient \(\sigma^{\prime}(z)=\sigma(z) \cdot(1-\sigma(z))\)

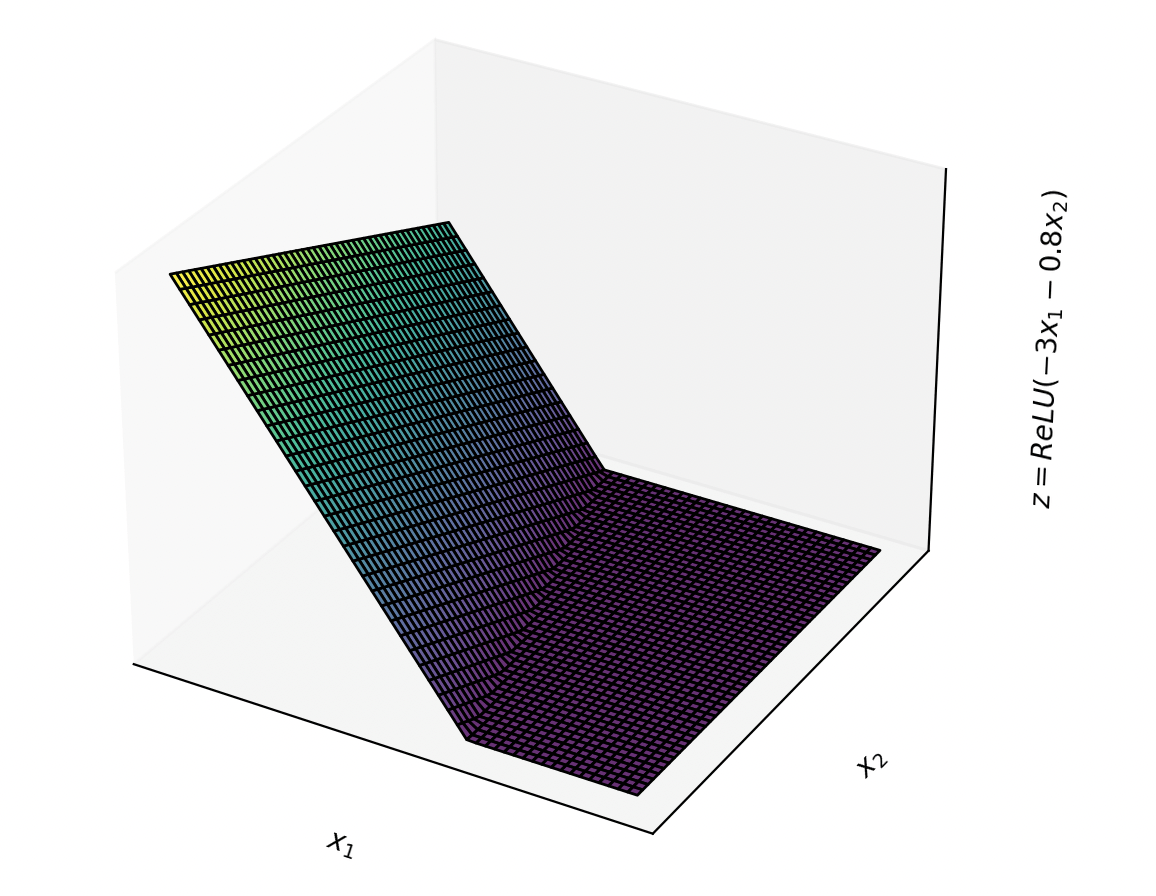

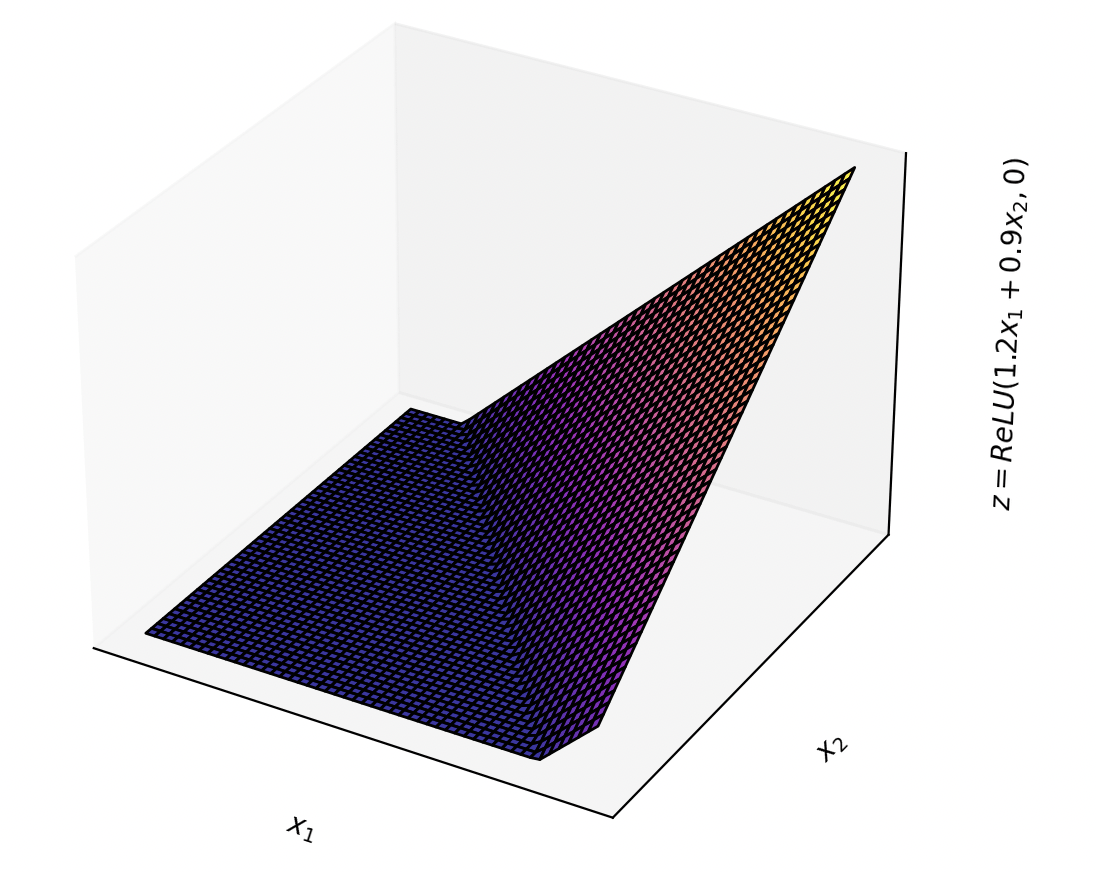

\operatorname{ReLU}(z)=\left\{\begin{array}{ll} 0 & \text { if } z<0 \\ z & \text { otherwise } \end{array}\\ \\ \right.

=\max (0, z)

=\max (0, w^Tx)

very simple function form (so is the gradient).

nowadays, default choice:

compositions of ReLU(s) can be quite expressive

in fact, asymptotically, can approximate any function!

image credit: Phillip Isola

+

=

or give arbitrary decision boundaries!

output layer design choices

# neurons, activation, and loss depend on the high-level goal.
typically straightforward.
Multi-class setup: if predict one and only one class out of \(K\) possibilities, then last layer: \(K\) neurons, softmax activation, cross-entropy loss

other multi-class settings, see lab.

e.g., say \(K=5\) classes

input \(x\)

hidden layer(s)

\dots

output layer

\begin{bmatrix} -1.0 \\ -0.5 \\ 0.0 \\ 0.5 \\ 1.0 \end{bmatrix}

\begin{bmatrix} 0.058 \\ 0.096 \\ 0.158 \\ 0.260 \\ 0.429 \end{bmatrix}

\operatorname{softmax}\left(z_j\right)\\=\frac{\exp \left(z_j\right)}{\sum_{i=1}^4 \exp \left(z_i\right)}

Width: # of neurons in layers
Depth: # of layers

Typically, increasing either the width or depth (with non-linear activation) makes the model more expressive, but it also increases the risk of overfitting.

However, in the realm of neural networks, the precise nature of this relationship remains an active area of research—for example, phenomena like the double-descent curve and scaling laws

(The demo won't embed in PDF. But the direct link below works.)

Summary

Linear models are mathematically and algorithmically convenient but not expressive enough -- by themselves -- for most jobs.
We can express really rich hypothesis classes by performing a fixed non-linear feature transformation first, then applying our linear methods. But this can get tedious.
Neural networks are a way to automatically find good transformations for us!
Standard NNs have layers that alternate between parameterized linear transformations and fixed non-linear transforms (but many other designs are possible.)
Typical non-linearities include sigmoid, tanh, relu, but mostly people use relu.
Typical output transformations for classification are as we've seen: sigmoid, or softmax.
