Mobile Dev concepts

Native & React Native

Index

Introduction to Mobile App Development.

Many apps, many tools but how does it work ?

Overview

Mobile App Development involves creating software applications that run on mobile devices.

why ??

Mobile apps are crucial for businesses to engage users, provide services, and enhance productivity.

Differences with other platforms

Aspect Web Development Mobile Development Desktop Development
User Reach Broad, accessible via any browser High, large user base on smartphones Limited, specific to desktop/laptop users
User Engagement Moderate, depends on web app functionality High, frequent use, push notifications Moderate, depends on application type
Accessibility Highly accessible, no installation needed Accessible with app download, push notifications Requires installation, less accessible
Monetization Ads, subscriptions, in-app purchases In-app purchases, subscriptions, ads Purchase price, subscriptions, e-sales
Marketplaces Websites, online directories App stores (App Store, Google Play) App stores (Microsoft Store, Mac App Store)
User Preferences Quick access, multi-device compatibility Seamless experience, offline capabilities Powerful features, productivity tools
Updates Immediate updates, continuous deployment Regular updates through app stores Manual or auto-updates depending on OS
Performance Expectation Varies with network speed and browser High performance expected, optimized for device High performance expected, leverages system resources

DIFFERENCES WITH OTHER PLATFORMS

Aspect Web Development Mobile Development Desktop Development
Security SSL/TLS, web security best practices Platform-specific security, permissions OS-specific security measures, firewalls
Cost of Development Generally lower, faster iterations Higher, platform-specific skills needed Moderate to high, depends on complexity
User Interaction Forms, mouse, keyboard Touch, gestures, voice commands Mouse, keyboard, some voice commands
Customer Support Online help, chatbots In-app support, chat, notifications Built-in help, dedicated support teams
Analytics Web analytics tools (Google Analytics) Mobile analytics tools (Firebase, Flurry) Desktop analytics tools, built-in OS analytics
Brand Loyalty Lower, users easily switch websites Higher, app presence on user’s device Moderate, depends on application necessity
Offline Functionality Limited, mostly online Extensive, many apps work offline Extensive, desktop apps usually fully functional offline
Development Speed Faster prototyping and deployment Slower, more thorough testing needed Moderate, varies with complexity and platform

Ecosystem and Market Trends

Currently iOS and Android dominate the mobile OS market.

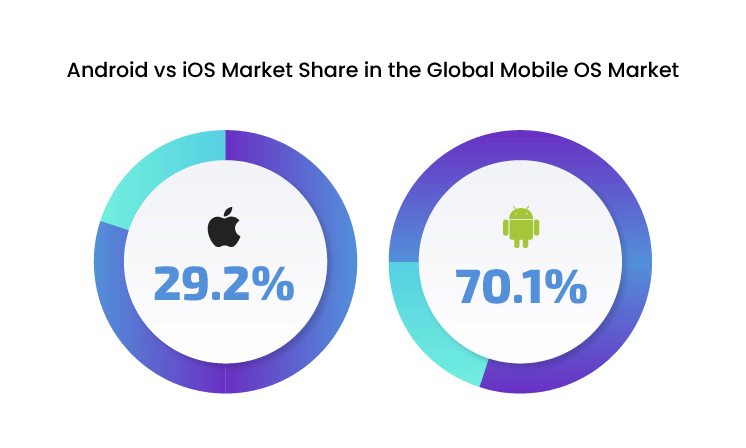

Market Share

Android holds a larger global market share, while iOS is predominant in certain regions.

CURRENT TRENDS

Trends include AI integration, AR/VR, and 5G technology.

Mobile App Lifecycle

Understanding the lifecycle of mobile apps is necessary to build a solid app.

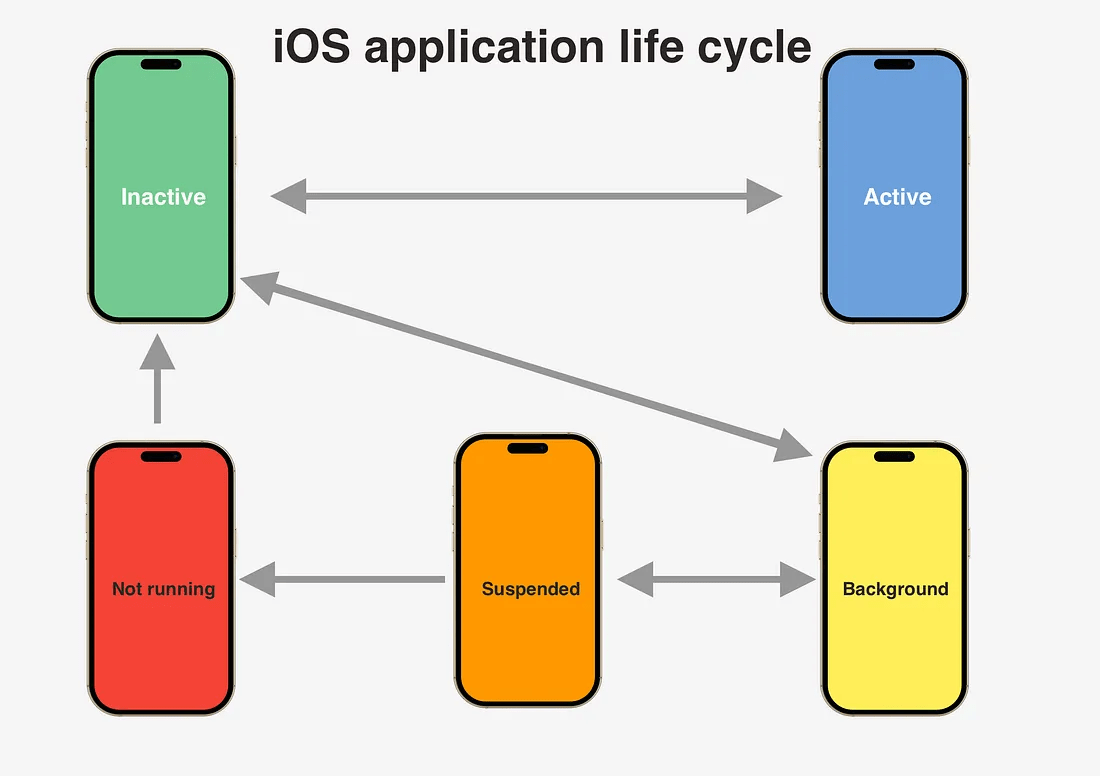

iOS Lifecycle

Different states an iOS app can be in during its lifecycle:
Not running, inactive, active, background, suspended

The app is in the foreground but not receiving events (e.g., the user receives a phone call).

The app is not launched or has been terminated by the system or user.

The app is in the foreground and receiving events. This is the normal state for the app when it is running and in use.

The app is in the background and executing code. An app can remain in this state for a short period before being suspended, or longer if it has background tasks.

The app is in the background and not executing code. It remains in memory but does not run any code.

Android Lifecycle

Different states an Android activity can be in during its lifecycle:Created, started, resumed, paused, stopped, destroyed

Called when the activity is first created.

Called when the activity becomes visible to the user

Called when the activity starts interacting with the user.

Called when the system is about to put the activity into the background.

Called when the activity is no longer visible to the user

Called after the activity has been stopped, just before it is started again

Called before the activity is destroyed

React native Lifecycle

React Native provides a lifecycle similar to React for web development but includes additional considerations for mobile app states and interactions.

export default function App() {
  useEffect(() => {
    const handleAppStateChange = (nextAppState: AppStateStatus) => {
      if (nextAppState === 'active') {
        // App has come to the foreground
        console.log('App is in foreground');
      } else if (nextAppState === 'background') {
        // App has gone to the background
        console.log('App is in background');
      } else if (nextAppState === 'inactive') {
        // App is in an intermediate state
        console.log('App is inactive');
      }
    };

    AppState.addEventListener('change', handleAppStateChange);

    return () => {
      AppState.removeEventListener('change', handleAppStateChange);
    };
  }, []);
	return ( /* Your component JSX */ );
};
import React, { useEffect } from 'react';
import { AppState, AppStateStatus } from 'react-native';

Core Components of Mobile Apps

Each OS has its own components and elements, but we can pick the common ones and see their equivalent in REACT NATIVE.

IOS Android REACT NATIVE
UIView View <View>
UILabel TextView <Text>
UIButton Button <Button>
UITableView RecyclerView <FlatList>
UICollectionView ListView <ScrollView>

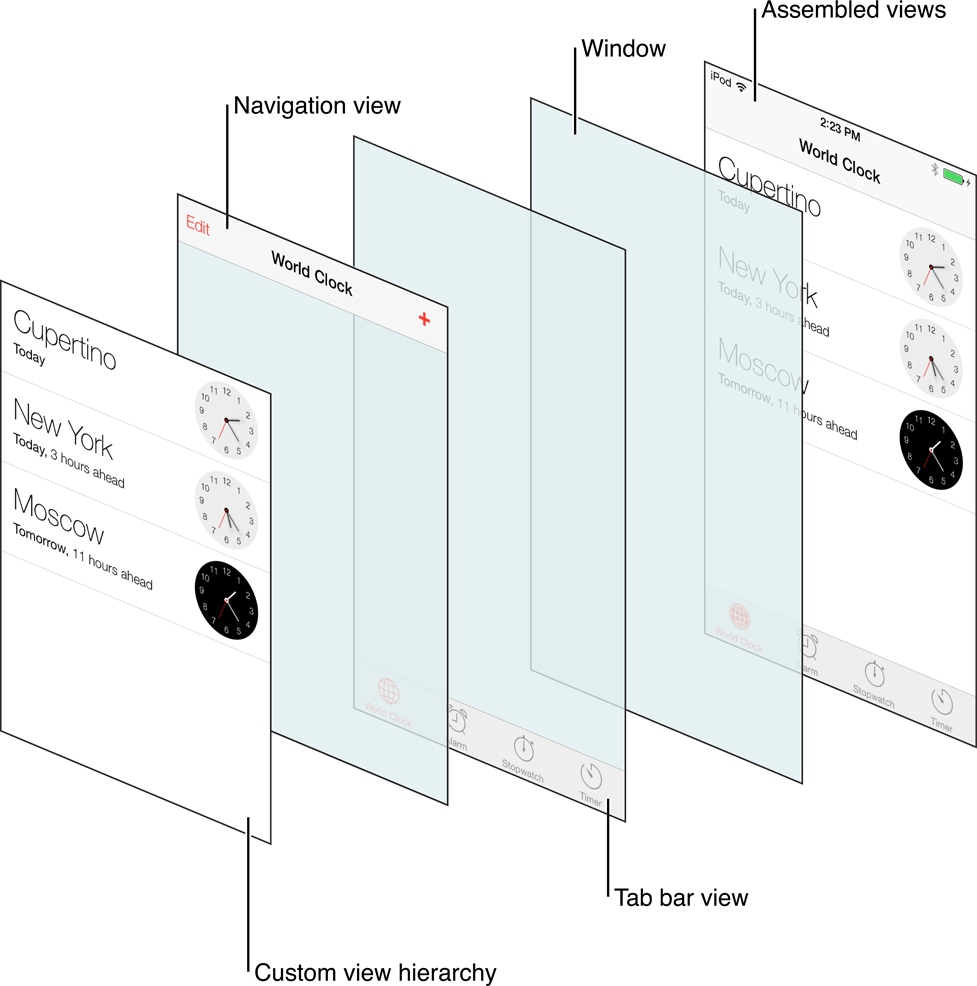

UI Components

UI components are like building blocks of a house.

 Auto Layout, Storyboards, XIBs

IOS

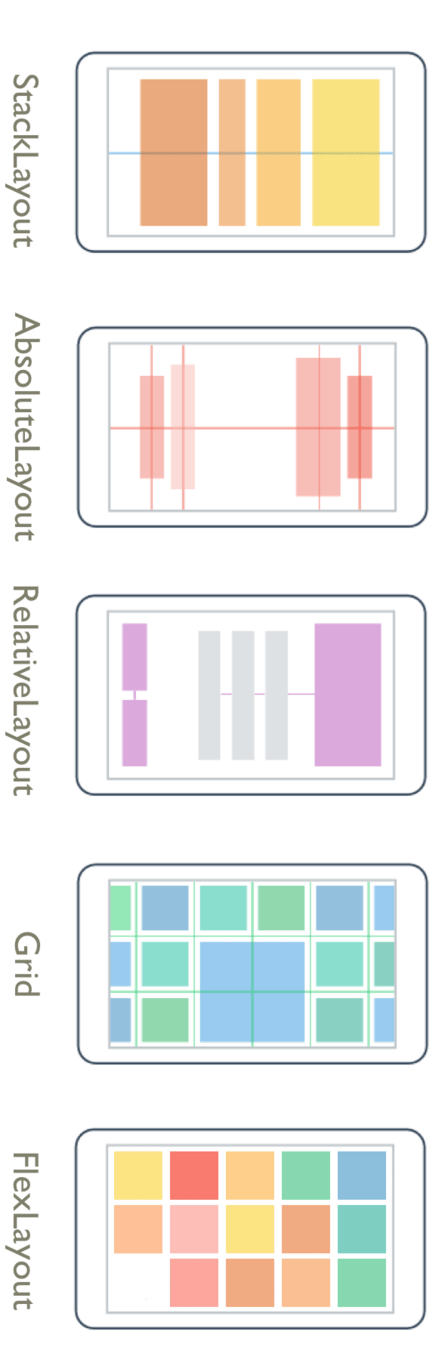

Layouts and Views

XML layouts, ConstraintLayout

Android

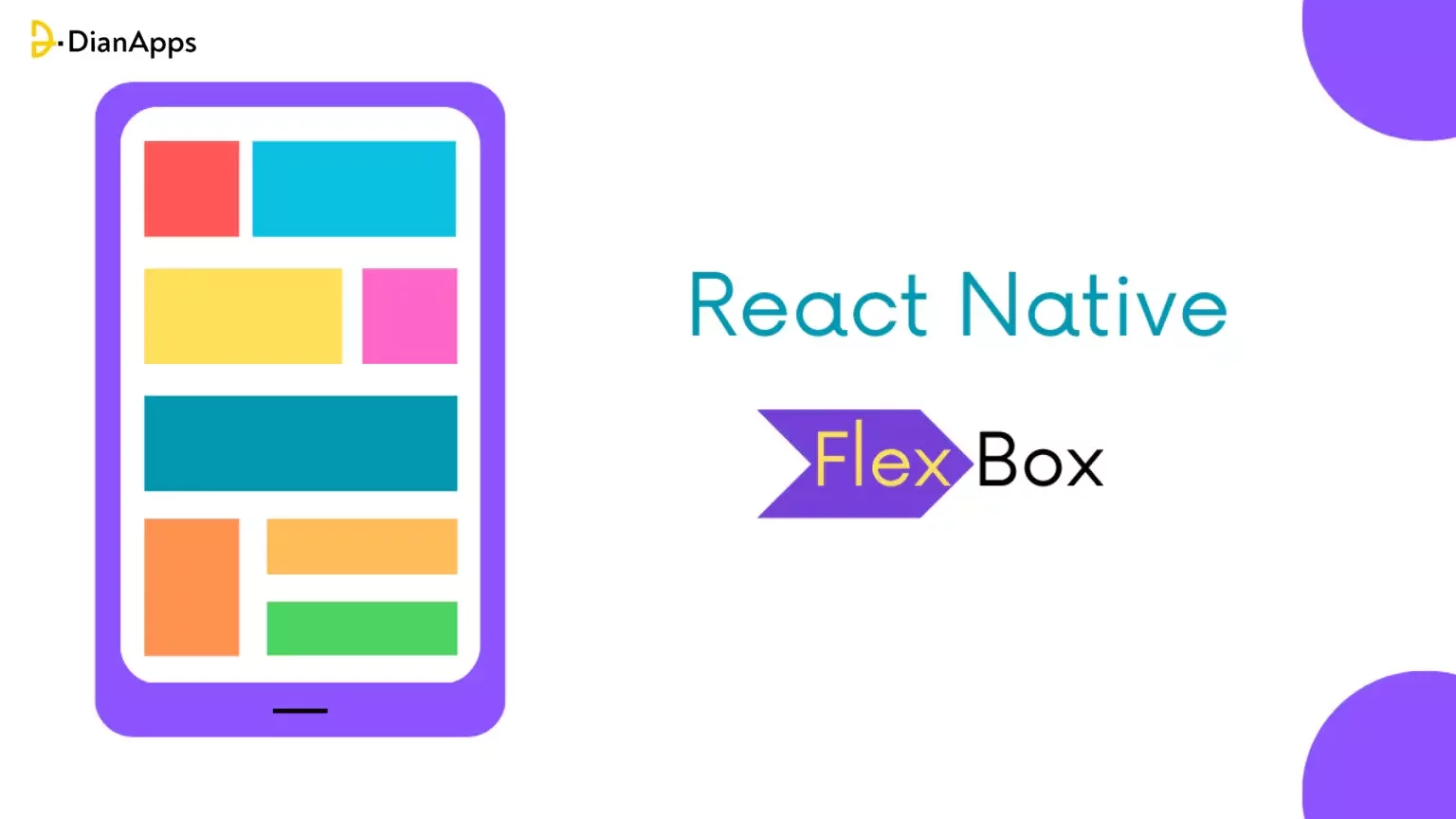

Flex box

REact native

Navigation is essential in any app, where it allows feedback between the app and its user.

Navigation and Routing

IOS NAVIGATION

Android NAVIGATION

React native NAVIGATION

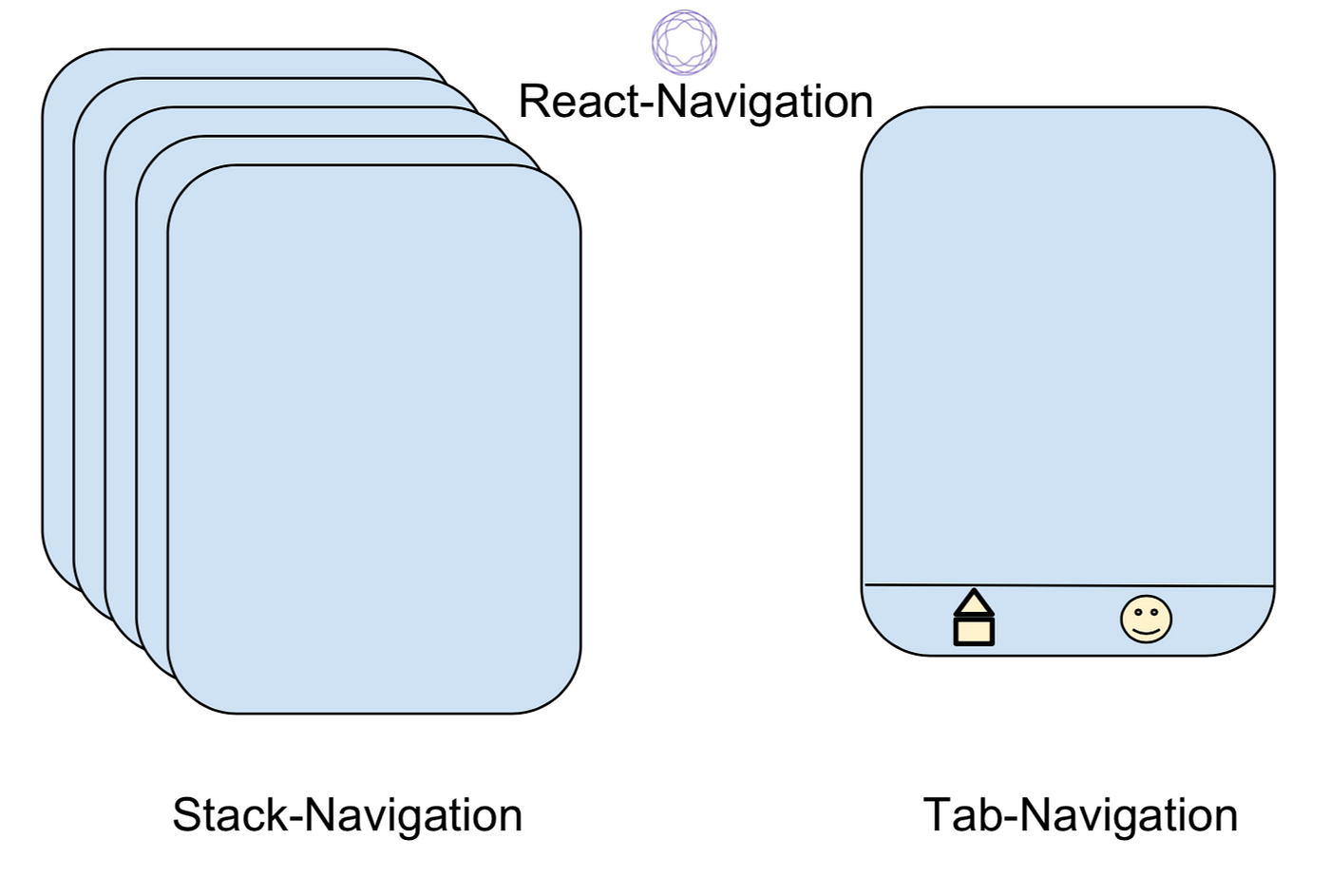

Stack Navigation & Tab navigation

React native NAVIGATION

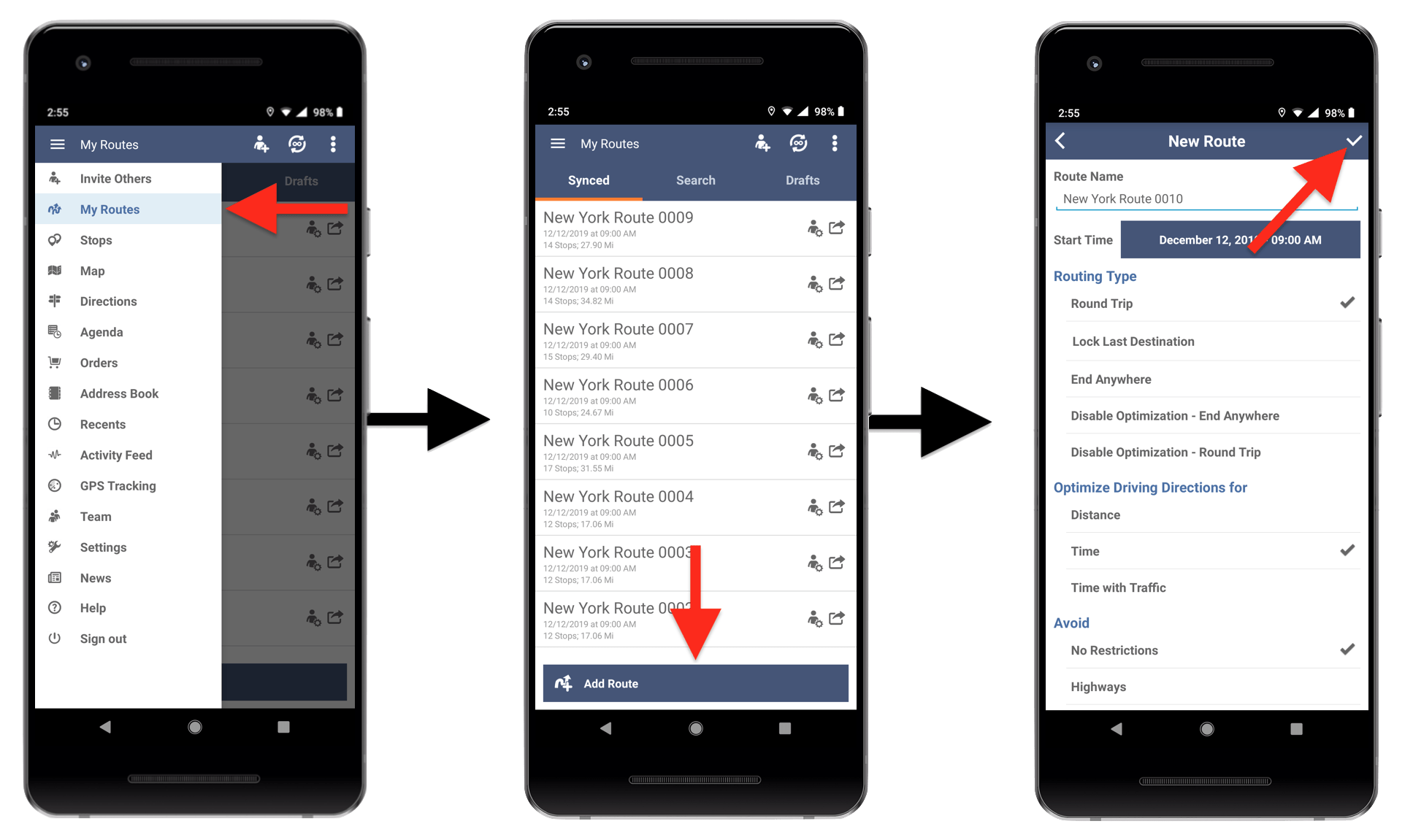

DRAWER Navigation

React native NAVIGATION

EXPO ROUTER

import { Stack } from 'expo-router';

export default function Layout() {
  return (
    <Stack
      screenOptions={{
        headerStyle: {
          backgroundColor: '#f4511e',
        },
        headerTintColor: '#fff',
        headerTitleStyle: {
          fontWeight: 'bold',
        },
      }}>
      {/* Optionally configure static options outside the route.*/}
      <Stack.Screen name="home" options={{}} />
    </Stack>
  );
}

app/_layout.tsx

export default function Home() {
  return (
    <View style={styles.container}>
      <Stack.Screen
        options={{
          title: 'My home',
          headerStyle: { backgroundColor: '#f4511e' },
          headerTintColor: '#fff',
          headerTitleStyle: {
            fontWeight: 'bold',
          },

          headerTitle: props => <LogoTitle {...props} />,
        }}
      />
      <Text>Home Screen</Text>
      <Link href={{ pathname: 'details', params: { name: 'Bacon' } }}>Go to Details</Link>
    </View>
  );
}

app/index.tsx

React native NAVIGATION

EXPO ROUTER

export default function Details() {
  const router = useRouter();
  const params = useLocalSearchParams();

  return (
    <View style={styles.container}>
      <Stack.Screen
        options={{
          title: params.name,
        }}
      />
      <Text onPress={() => { router.setParams({ name: 'Updated' }); }}>
        Update the title
      </Text>
    </View>
  );
}

app/details.tsx

for more details check: Stack - Expo Documentation

APIs and Data Handling

API and data are managed with local light databases systems in the OS and can be accessed in different ways.

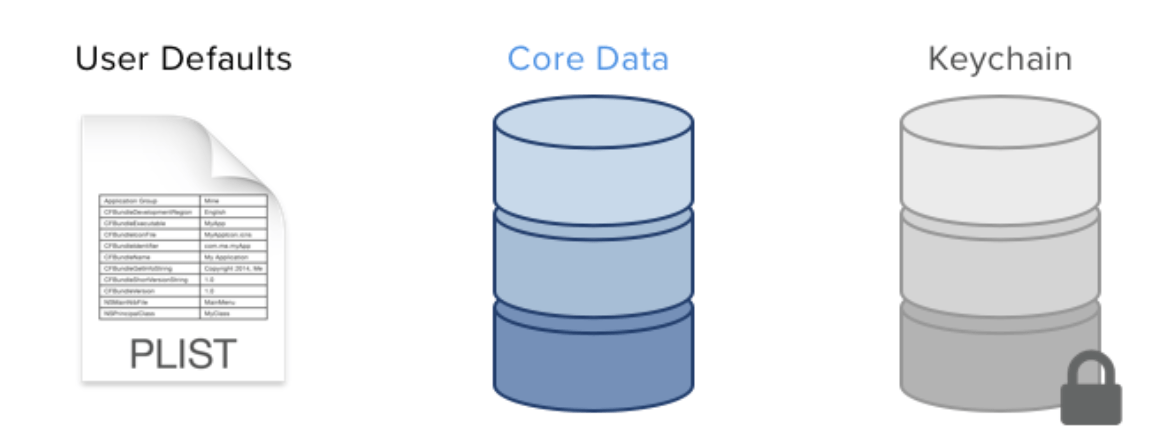

Core Data, UserDefaults

IOS

DATA STORAGES

+

 Room, SharedPreferences

Android

AsyncStorage, SQLite

REact native

+

DATA STORAGES

expo install @react-native-async-storage/async-storage
import AsyncStorage from '@react-native-async-storage/async-storage';
export default function AsyncStorageExample  () {
  const [storedData, setStoredData] = useState('');
  const storeData = async () => {
    try {
      await AsyncStorage.setItem('@myStorageKey', 'Hello, AsyncStorage!');
      alert('Data stored successfully!');
    } catch (e) {
      alert('Failed to store data.');
    }
  };
  const retrieveData = async () => {
    try {
      const value = await AsyncStorage.getItem('@myStorageKey');
      if (value !== null) {
        setStoredData(value);
      } else {
        alert('No data found.');
      }
    } catch (e) {
      alert('Failed to retrieve data.');
    }
  };
};
return (
    <View style={{
    	flex: 1,
        justifyContent: 'center',
        alignItems: 'center'
       }}>
      <Text>Stored Data: {storedData}</Text>
      <Button title="Store Data" onPress={storeData} />
      <Button title="Retrieve Data" onPress={retrieveData} />
    </View>
);

Services and Permissions

Many services in the mobiles systems requires permissions such as cameras, microphone, access files...etc.

Handling Permissions

Statically

Dynamically

Info.plist

IOS

AndroidManifest.xml

ANDROID

if (ContextCompat.checkSelfPermission(this, Manifest.permission.CAMERA)
        != PackageManager.PERMISSION_GRANTED) {
    // Permission is not granted, request it
    ActivityCompat.requestPermissions(this,
            new String[]{Manifest.permission.CAMERA},
            CAMERA_PERMISSION_REQUEST_CODE);
}
let locationManager = CLLocationManager()
locationManager.requestWhenInUseAuthorization()
AVCaptureDevice.requestAccess(for: .video) { (granted: Bool) in
    if granted {
        // Permission granted, proceed with using the camera
    } else {
        // Permission denied, handle accordingly
    }
}

Handling Permissions in react native (Request)

import { PermissionsAndroid, Platform } from 'react-native';

async function requestCameraPermission() {
  if (Platform.OS === 'android') {
    try {
      const granted = await PermissionsAndroid.request(
        PermissionsAndroid.PERMISSIONS.CAMERA,
        {
          title: 'Camera Permission',
          message: 'App needs access to your camera.',
          buttonNeutral: 'Ask Me Later',
          buttonNegative: 'Cancel',
          buttonPositive: 'OK',
        }
      );
      if (granted === PermissionsAndroid.RESULTS.GRANTED) console.log('Camera permission granted');
      else  console.log('Camera permission denied');
    } catch (err) {
      console.warn(err);
    }
  } else {
    // iOS specific permission handling
    // Example using Expo Permissions module:
    // const { status } = await Permissions.askAsync(Permissions.CAMERA);
  }
}

Handling Permissions in react native (CHECK)

import { PermissionsAndroid, Platform } from 'react-native';

async function checkLocationPermission() {
  if (Platform.OS === 'android') {
    try {
      const granted = await PermissionsAndroid.check(
        PermissionsAndroid.PERMISSIONS.ACCESS_FINE_LOCATION
      );
      if (granted) {
        console.log('Location permission granted');
      } else {
        console.log('Location permission denied');
      }
    } catch (err) {
      console.warn(err);
    }
  } else {
    // iOS specific permission handling
    // Example using Expo Permissions module:
    // const { status } = await Permissions.askAsync(Permissions.LOCATION);
  }
}

MOBILE DEV CONCEPTS

By Youcef Madadi
