Native JavaScript modules

Serg Hospodarets

About me

Why we need modularity ? 🤔

code readability
separation of concerns
localized/atomic changes
avoiding global scopes
modules/code reuse
dependencies management
better architecture

Otherwise

First attempt:
external JS files

Pros:
- Code separation
- Separate modules

Cons:
- Code reuse

- Global scope

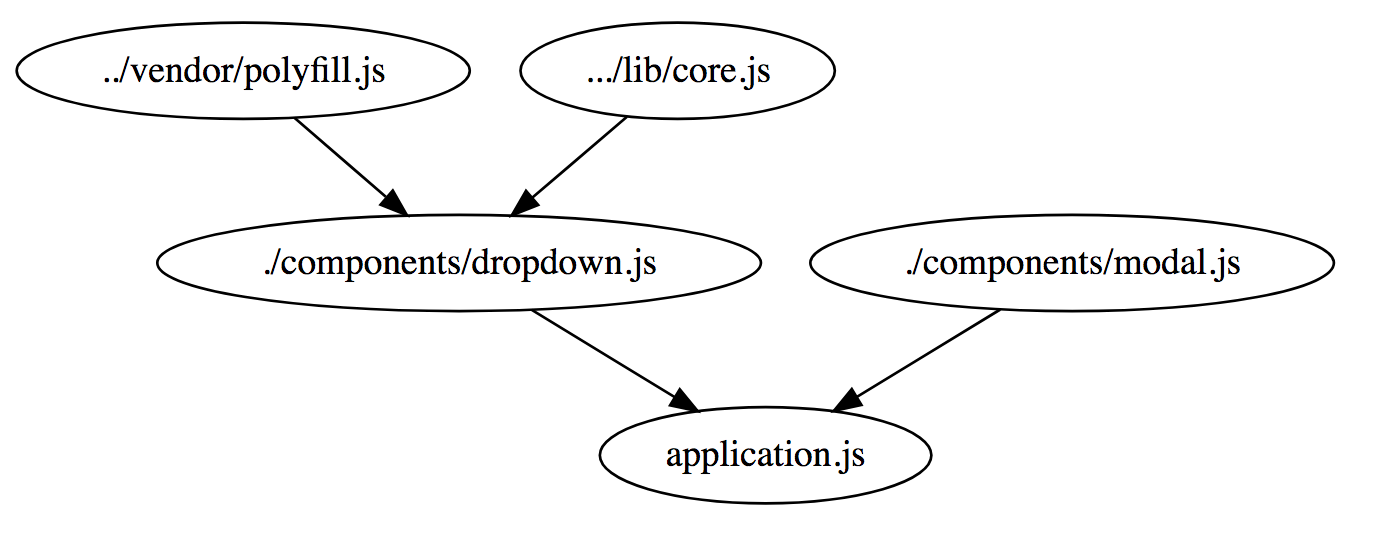

Simple solutions:
- Global vars
- IIFE (immediately-invoked function expressions)

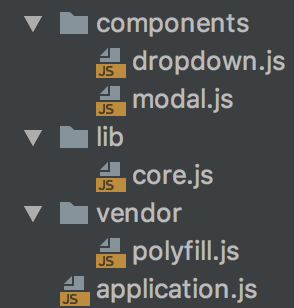

<script src="./vendor/polyfill.js"></script>
<script src="./lib/core.js"></script>
<script src="./components/dropdown.js"></script>
<script src="./components/modal.js"></script>
<script src="./application.js"></script>

// dropdown.js
var delay = 2000; // in ms


// modal.js
var delay = 4000; // in ms

Variable overwrite

// dropdown.js
(function(){
 var delay = 2000; // in ms
 APP.dropdown.delay = delay;
}());
// modal.js
(function(){
 var delay = 4000; // in ms
 APP.modal.delay = delay;
}());

Async Module Definition

Pros:

- Module scope
- Module reuse

- Dependency injection
(testing etc.)

- Tooling: Require.js etc.

Cons:

- Confusing syntax

- Dependencies order because of async nature

- Multiple requests in HTTP 1 era

- Usage with Angular, required additional effort to avoid minification problems

// dropdown.js
define(
    // Module definition
    'components/dropdown',
    // dependencies
    ['vendor/polyfill'
    'lib/core'],
    // module code
    function(core) {
      var dropdown = {};
      dropdown.delay = 2000; // in ms
      return dropdown;
});

// application.js
define([
    'components/dropdown',
    'components/modal',
], function(dropdown, modal) {
  // APP LOGIC
});

CommonJS

Cons:

- No async module load (either load and use as a callback, or implement something with file.read and extracting module.exports)

- Not a standard, not supported in browsers

// dropdown.js
require('../vendor/polyfill');
require('../lib/core');

var dropdown = {};
dropdown.delay = 2000; // in ms
module.exports= dropdown;

// application.js
const dropdown = require('./components/dropdown');
const modal = require('./components/modal')

// APP LOGIC

Pros:

- Supported in Node.js

- Scoping and context

- Modules reuse

- Tooling: Browserify etc.

ECMAScript Modules

aka JavaScript modules, aka ESM

Cons:

- Not supported in browsers?

- Not supported in Node.js?

// dropdown.js
import '../vendor/polyfill.js';
import '../lib/core.js';

export const dropdown = {};
dropdown.delay = 2000; // in ms

// application.js
// STATIC imports
import {dropdown} from './components/dropdown.js';

// Dynamic imports
import('./components/modal.js')
    .then(({modal})=> {
        modal.open();
    });

// OTHER APP LOGIC

Pros:

- Module scopes

- Modules reuse

- Multiple, named exports

- Deferred, buy executed in order

- Both static and dynamic

- ES 2015 standard

- Tooling: Webpack/Babel/Rollup

ECMAScript 2015 (aka ES6) standard

June 2015

~middle 2016

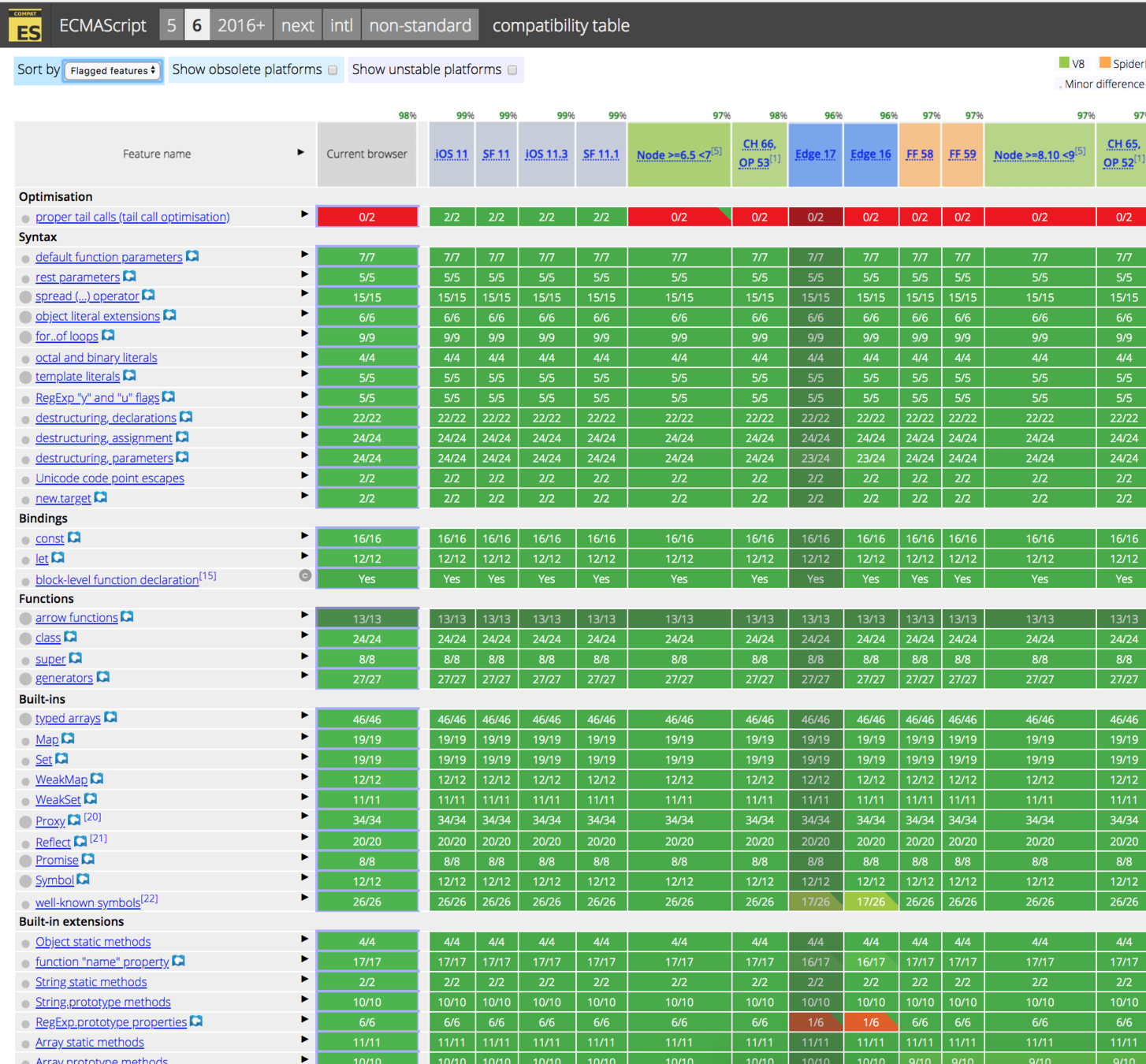

Major browsers and Node.js support ~100% of ES6 features
(NONE included ESM)

Modules ES Spec describes how to parse, instantiate and evaluate modules, but not how to get the files.

ESM implementation timeline 🗓

ECMAScript 2015 (aka ES6) standard

June 2015

~middle 2016

Major browsers and Node.js support ~100% of ES6 features
(NONE included ESM)

~fall 2016

HTML spec, which describes how to include, find and load modules

ESM implementation timeline 🗓

ECMAScript 2015 (aka ES6) standard

June 2015

~middle 2016

Major browsers and Node.js support ~100% of ES6 features
(NONE included ESM)

~autumn 2016

HTML spec, which describes how to include, find and download modules

First native ES modules implementation in Safari

~end 2016

Support landed in

MS EDGE, Chrome and Node.js

2017-2018

May 2018

Support landed in Firefox

ESM implementation timeline 🗓

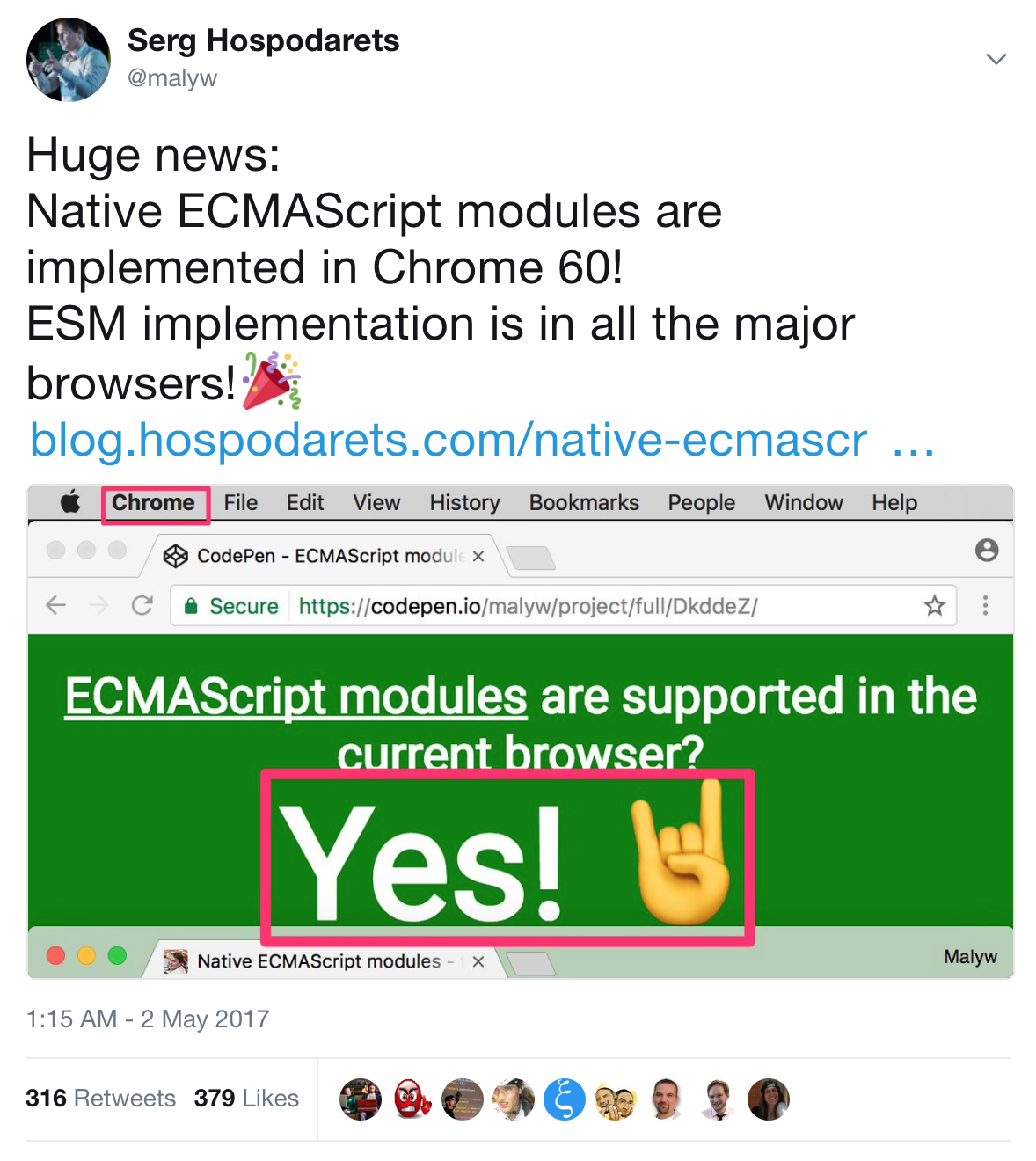

🛠 ESM support online

test

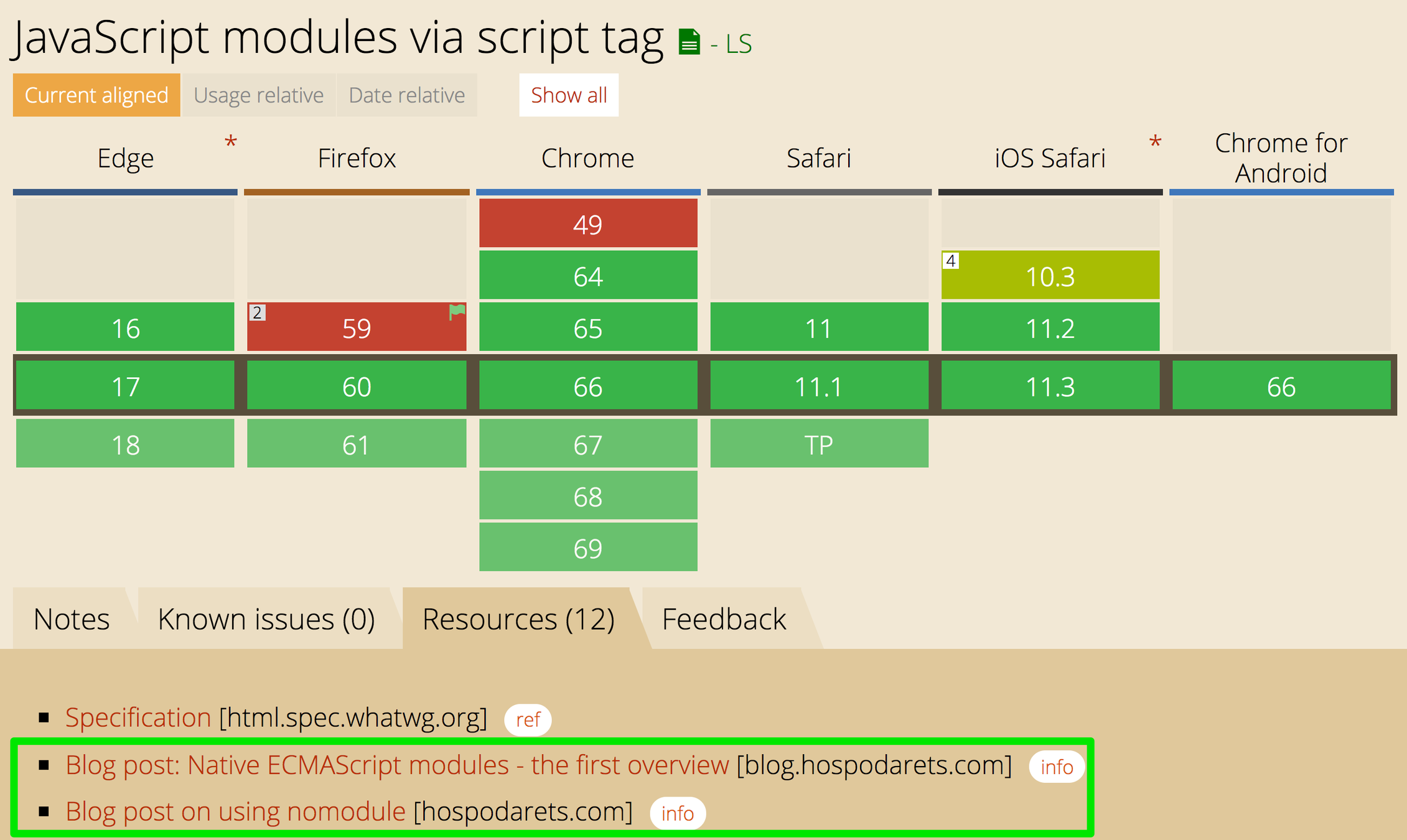

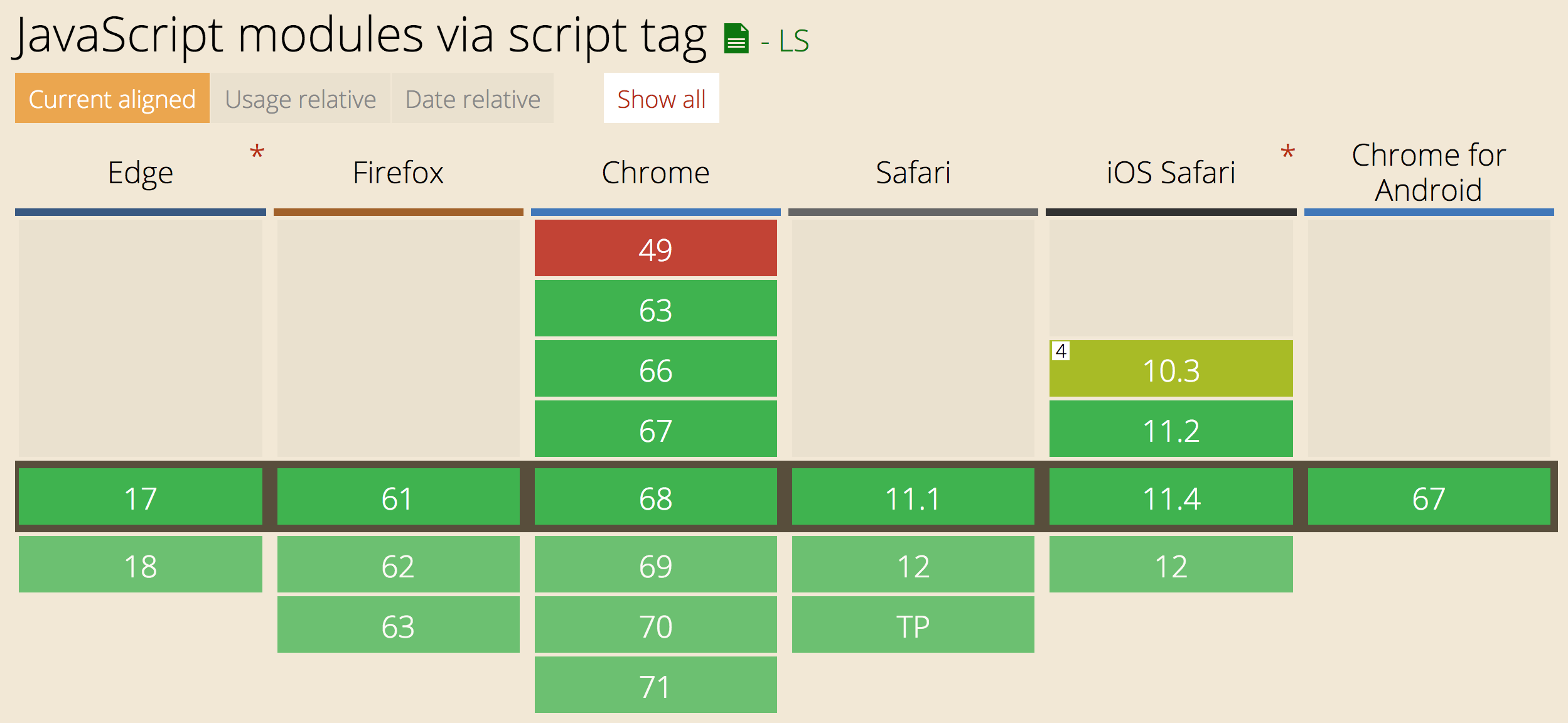

ESM Support Today

Table of module systems comparison

	Module Scopes	Tools	Static modules	Dynamic loading	Clear syntax	Handy multiple exports
Pure JS	❌	OOB	-	-	✅	❌
AMD	✅	RequireJS	✅	✅	❌	❌
CommonJS	✅	Browserify	✅	❌	✅	❌
ESM	✅	Webpack, Babel, Rollup	✅	✅	✅	✅

Great, so Webpack/Babel/Rollup do the thing, right? 🧐

Native ESM advantages

	Node.js OOB support	Browsers OOB support	Flag for ES6+ features availability	Config NOT required	Build NOT required
Pure JS	❌	✅	❌	✅	❌
AMD	❌	❌	❌	❌	❌
CommonJS	✅	❌	❌	❌	❌
Native ESM	✅	✅	✅	✅	✅

As result- immediate dev cycle, saves time, benefits in debugging and build configs/browser tools

ESM Features

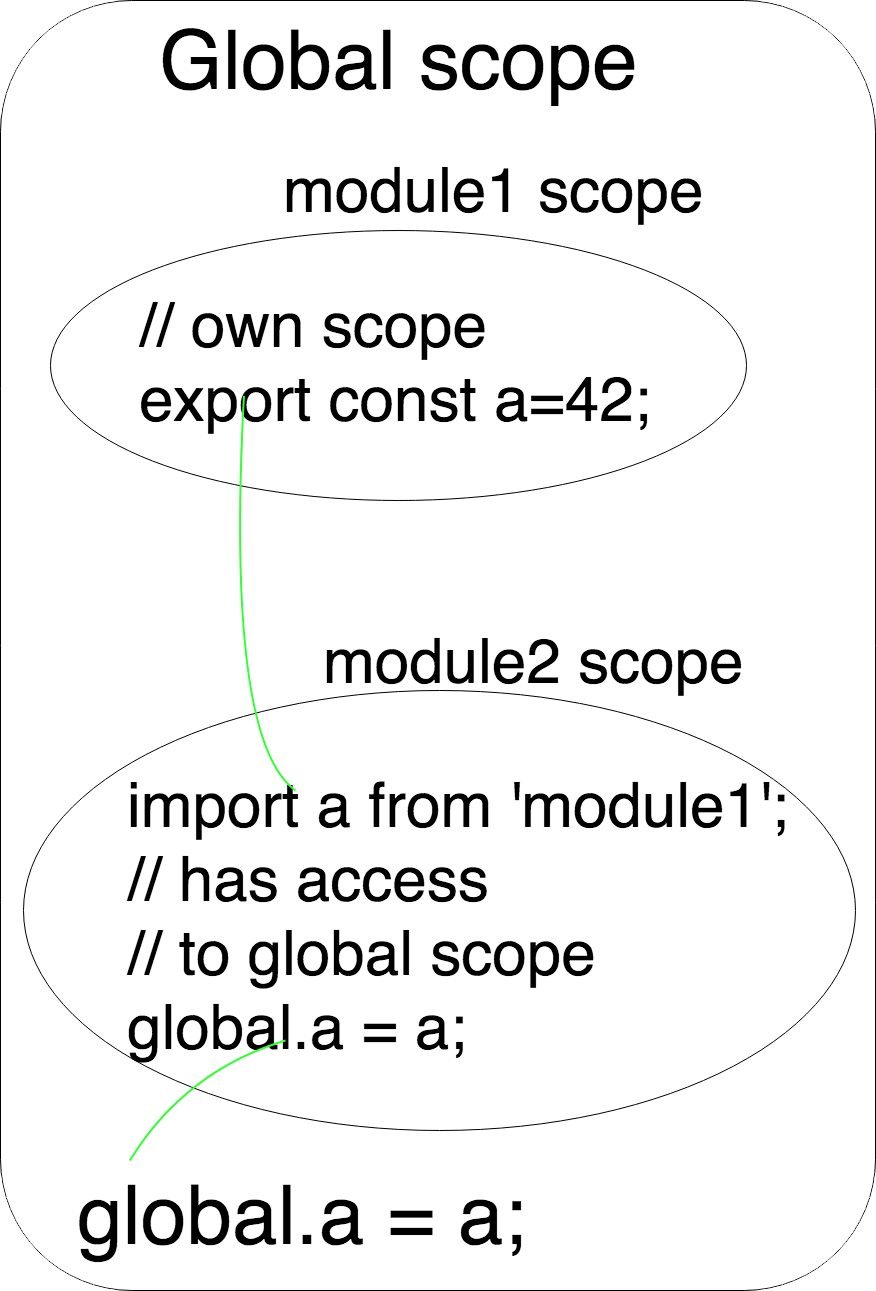

Modules have own scopes and contexts, the same time having access to the global scope

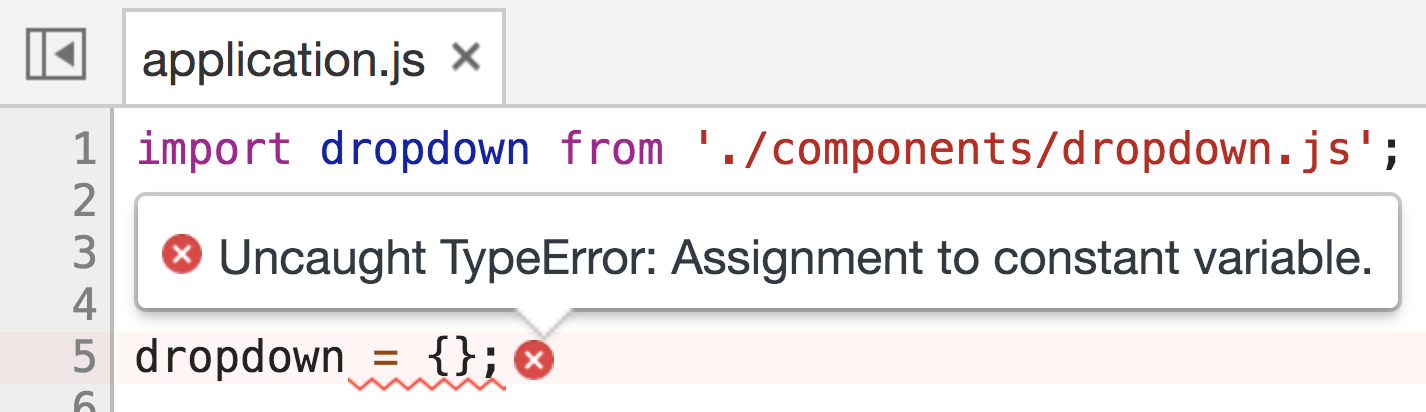

imports are immutable references and cannot be reassigned

ESM Features

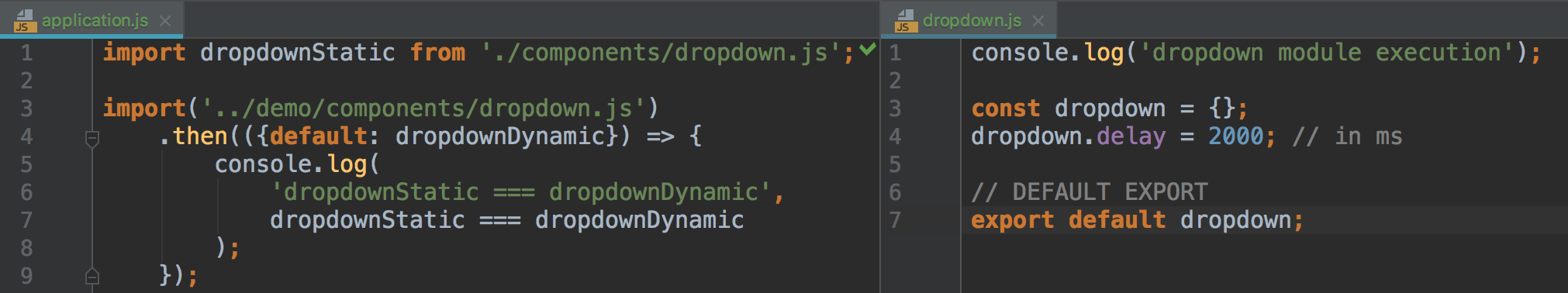

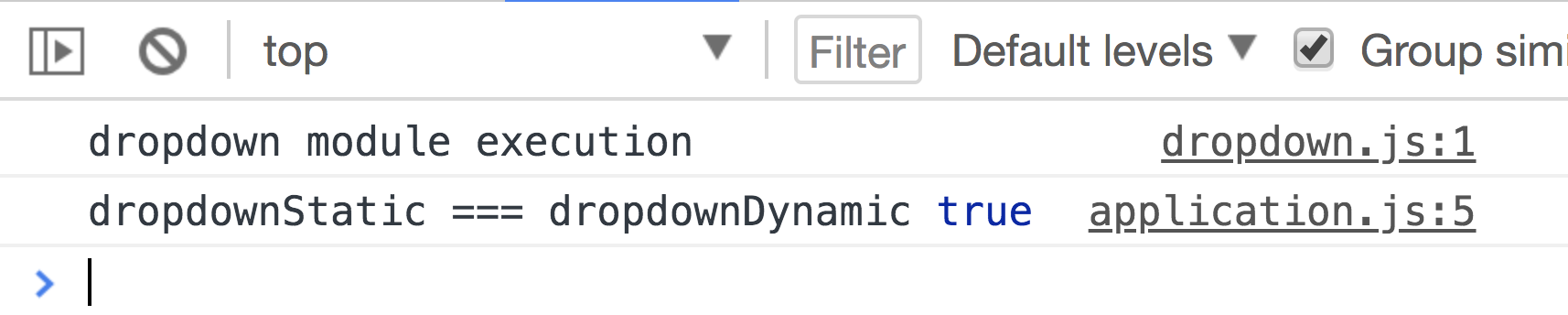

ESM are "singletons"

They are loaded and executed only once

even if imported via different paths or methods

ESM Features

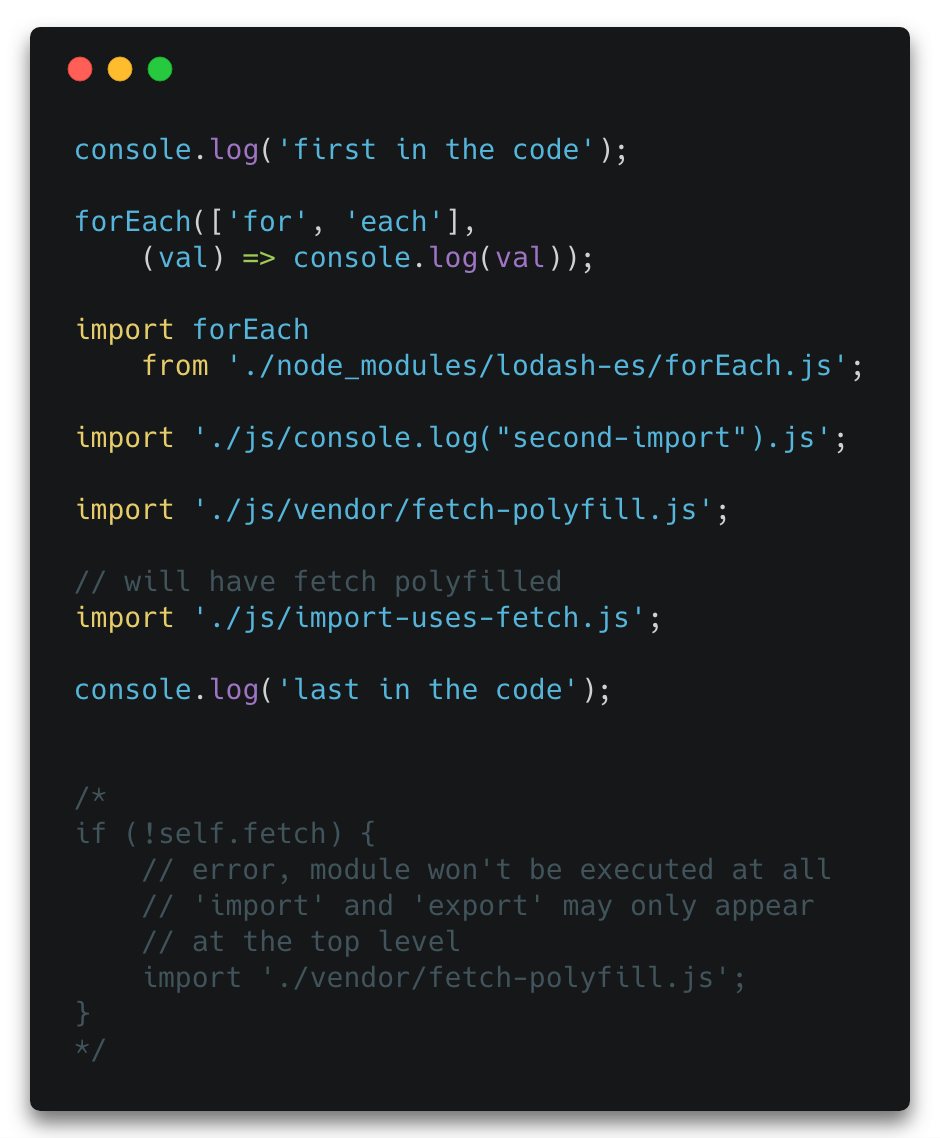

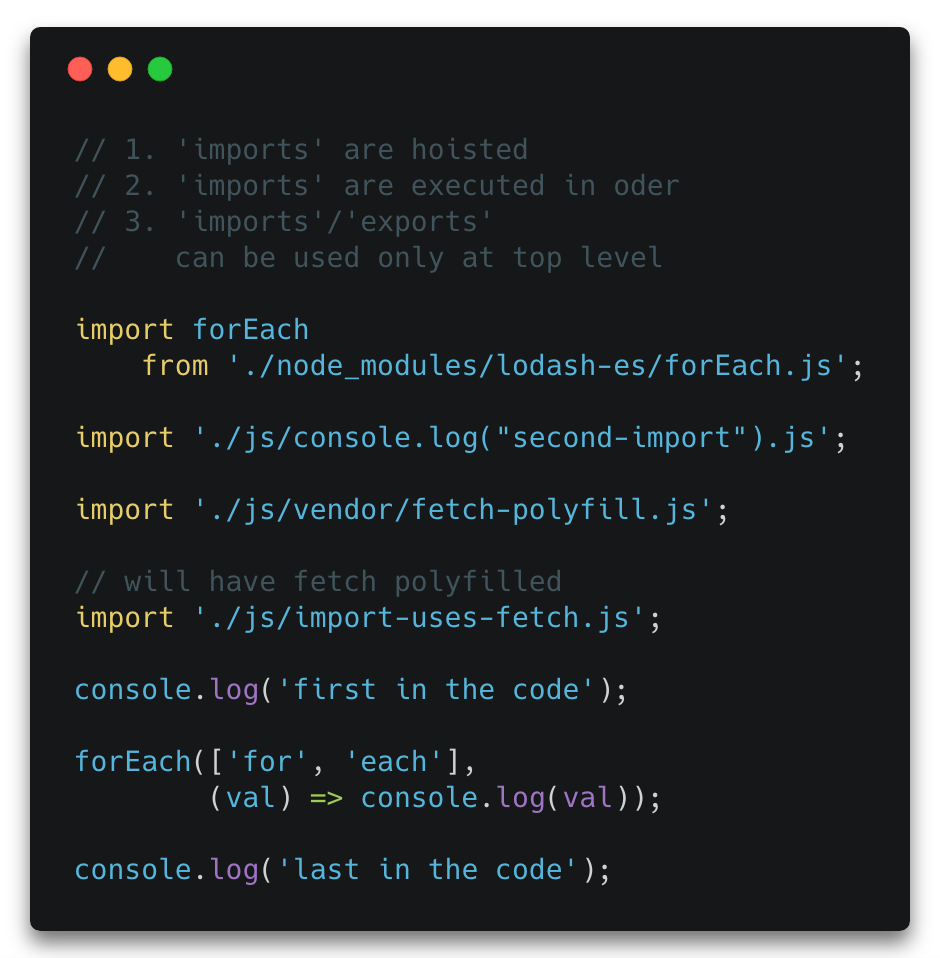

'import' hoisting, top level only

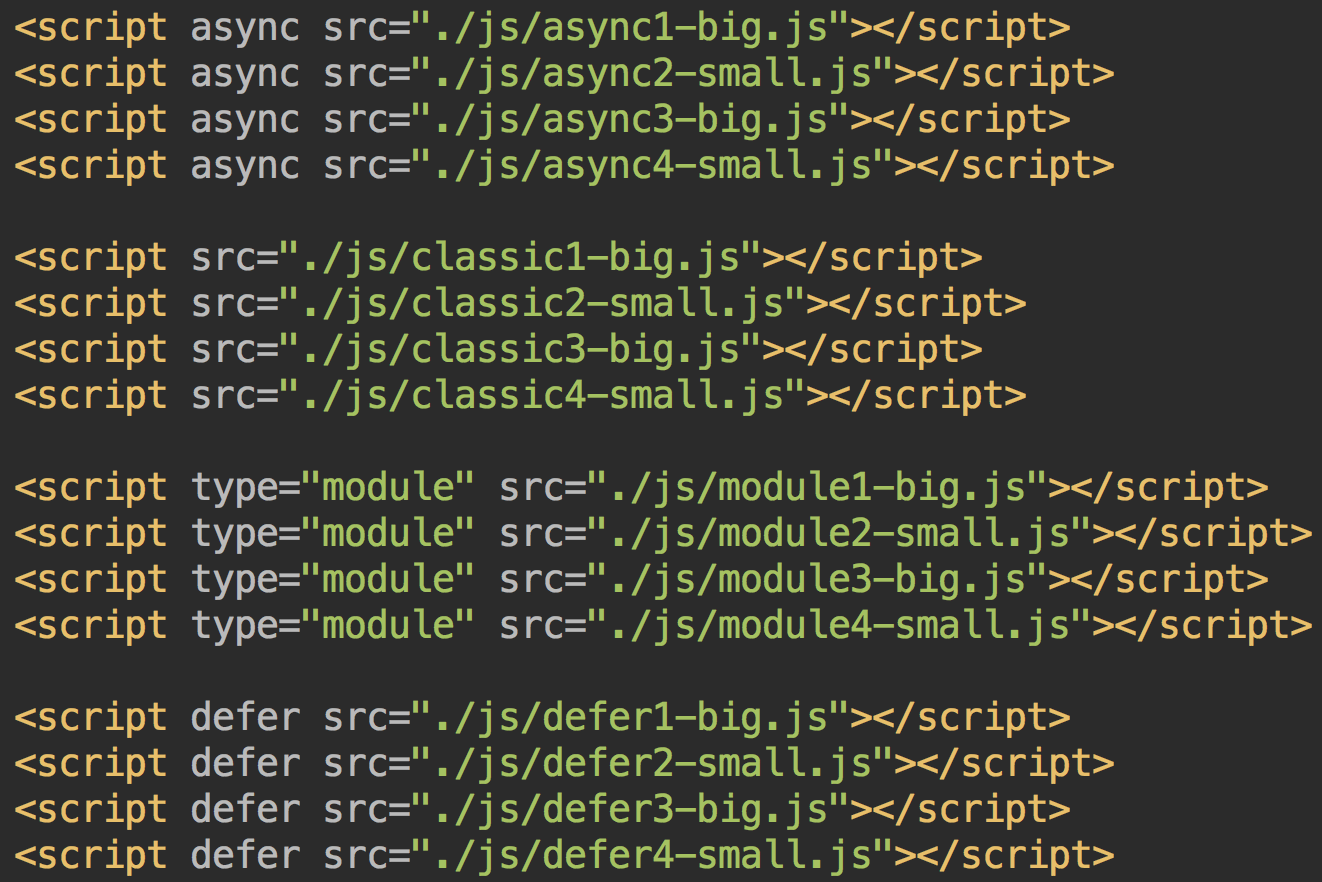

Real Execution Order

Differences with classic scripts

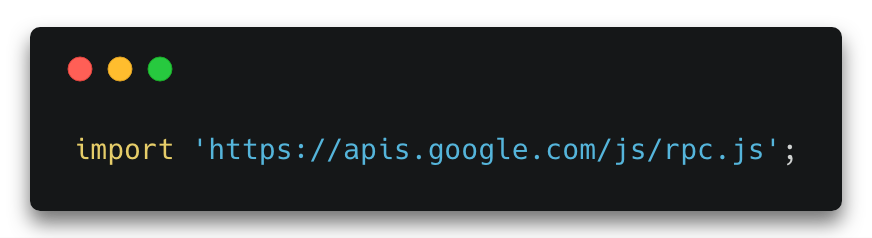

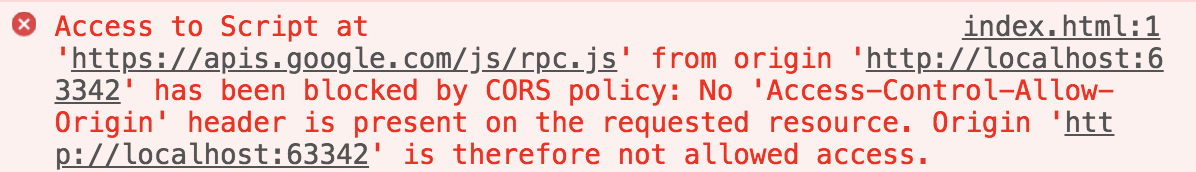

always CORS (cross-origin mechanism)

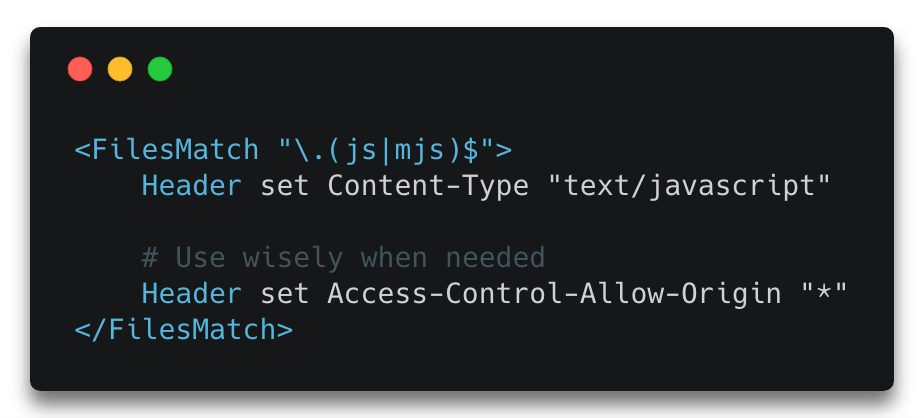

Fix

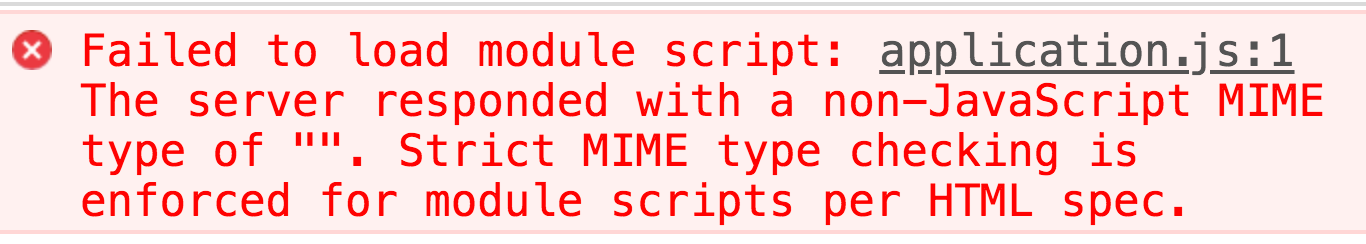

must have a valid JavaScript MIME type

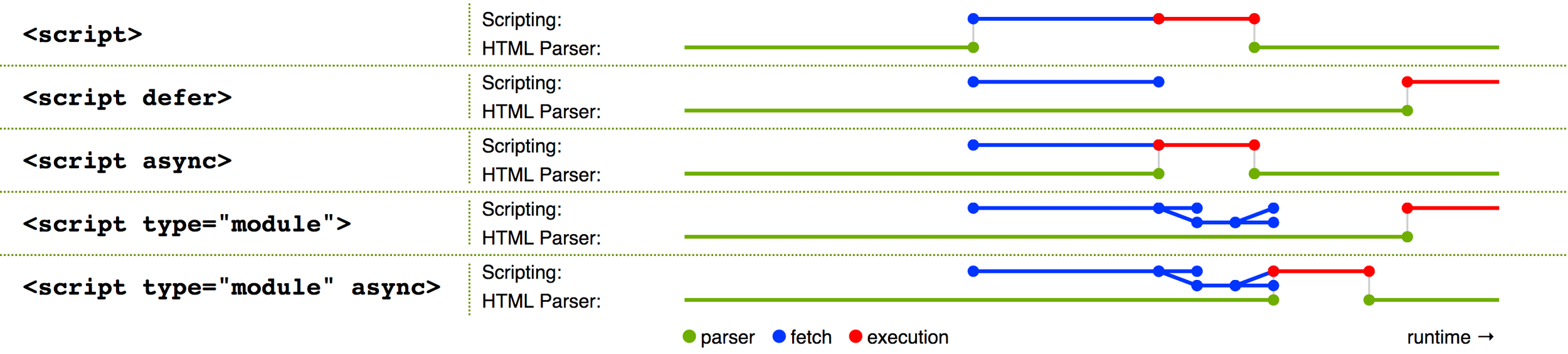

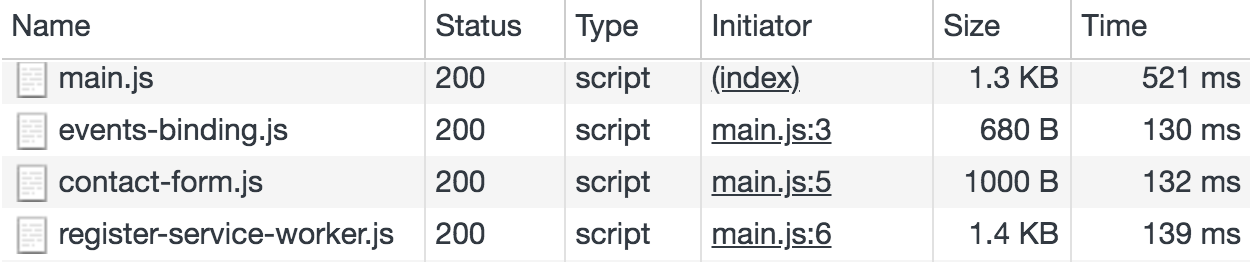

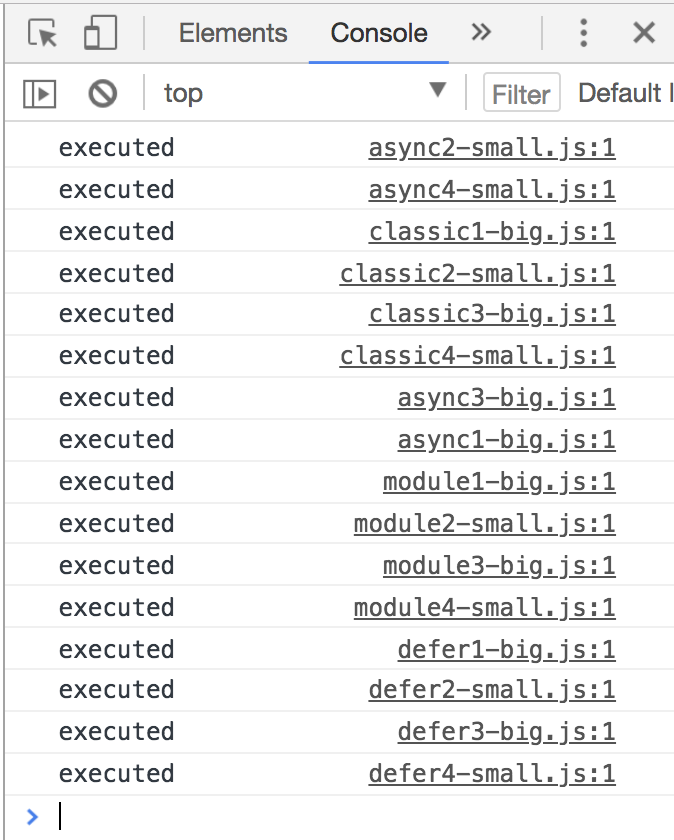

Modules loading order

deferred by default, non-blocking but executed in the order

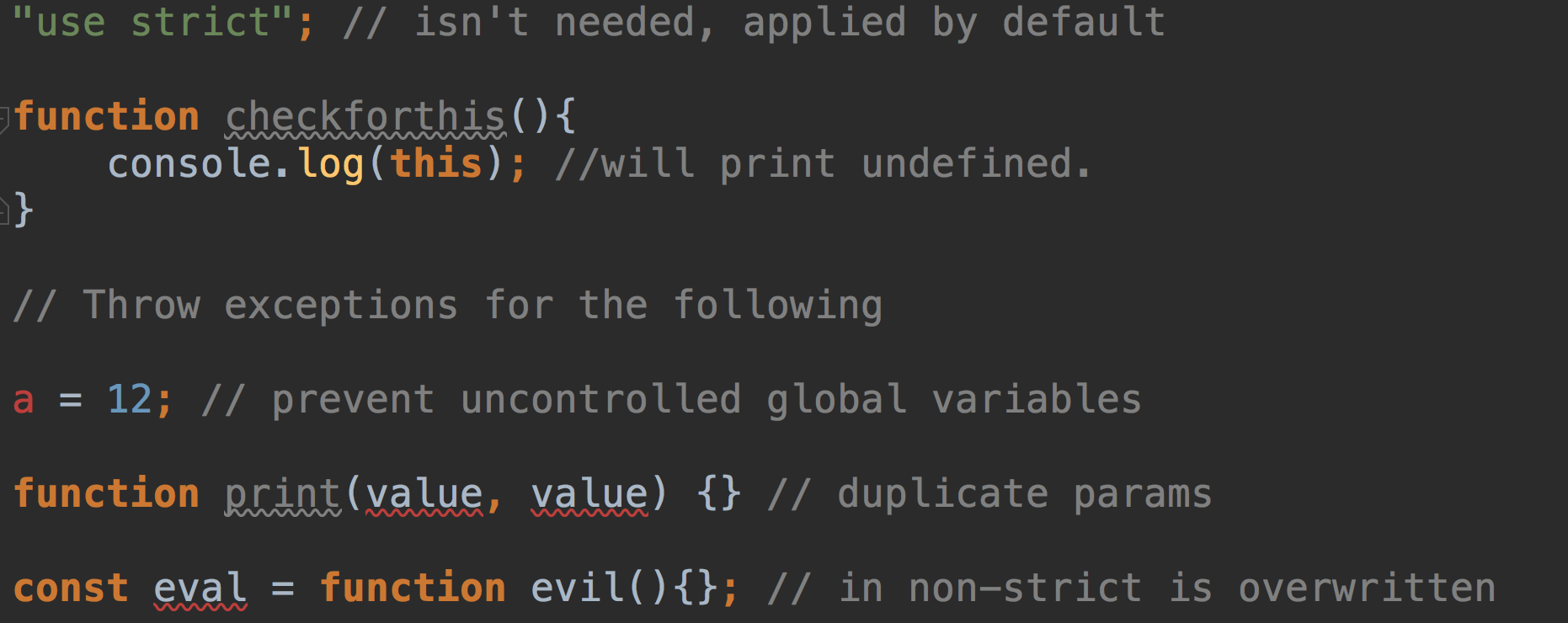

strict by default

Module loading process

Construction — find, download, and parse all of the files into module records.
Instantiation —find boxes in memory to place all of the exported values in (but don’t fill them in with values yet). Then make both exports and imports point to those boxes in memory. This is called linking.
Evaluation —run the code to fill in the boxes with the variables’ actual values.

Credits to Lin Clark 1,2

Handling circular dependencies

import {nextEven, isEven} from './evens.js';
import {nextOdd, isOdd} from './odds.js';

// "true" output is expected in all of these expressions
console.log(nextEven(1) === 2);
console.log(nextOdd(1) === 3);
console.log(isOdd(1));
console.log(!isOdd(0));
console.log(isEven(0));
console.log(!isEven(1));

// ./evens.js
import {isOdd} from './odds.mjs';

export function nextEven (n) {
    return isOdd(n) ? n + 1 : n + 2;
}

export function isEven(n) {
    return n % 2 === 0;
}

// ./odds.js
import {isEven} from './evens.mjs';

export function nextOdd(n) {
    return isEven(n) ? n + 1 : n + 2;
}

export function isOdd(n) {
    return !isEven(n);
}

Works because of the "instantiation" phase, which handles circular dependencies between the modules.

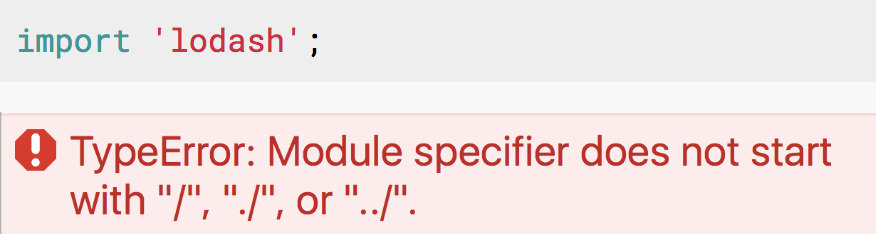

ES module path

cannot be dynamic for static imports
no extensions resolutions
no Node.js node_modules etc. resolutions
Possible solutions: Service Worker URLs proxy- quite complex

• must be a full URL (include extension)

• must be an absolute URL or:
• must start with “/”, “./”, or “../”

Package name maps
(module resolution algorithm)

<script type="packagemap" src="package-map.json"></script>

<script type="packagemap">
{
  "path_prefix": "/node_modules",
  "packages": {
    "moment": { "main": "src/moment.js" },
    "lodash": { "path": "lodash-es", "main": "lodash.js" }
  }
}
</script>

<script type="module">
    import moment from 'moment';
    import _ from 'lodash';
</script>

Main questions/alternatives:

- should it replicate Node.js module resolution algorithm

- should it follow NPM "main" field resolution

- how to apply for modules in browsers / Node.js and Workers

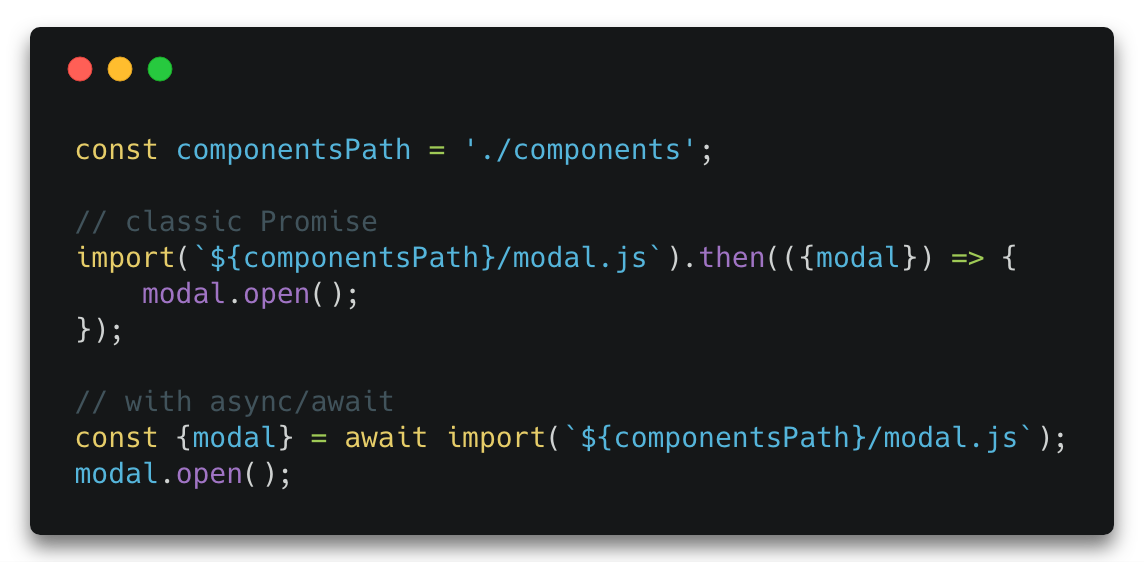

Dynamic import()

Promise-based API to asynchronously load JavaScript modules
Handy usage with async/await
Can load ES modules from the classic scripts
Can load both module and usual scripts (in "strict" mode)
Provides access to module 'exports'
Allows usage of dynamic path and not limited to top level only

DEMO: Lazy load of Bootstrap scripts on user actions

Other examples: Code Splitting, polyfills, additional pages, 3rd party scripts, and services etc.

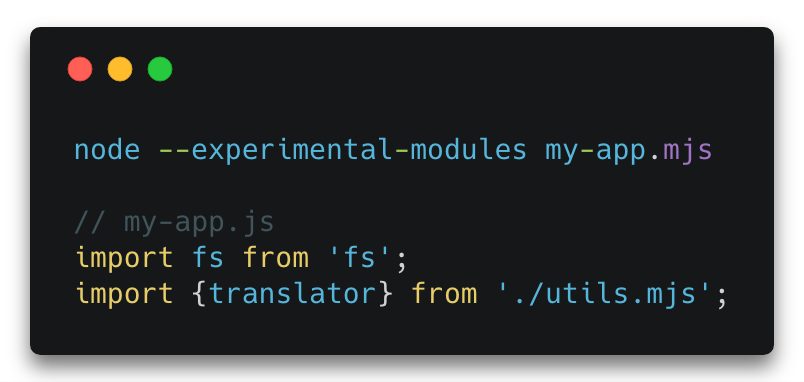

ESM in Node.js

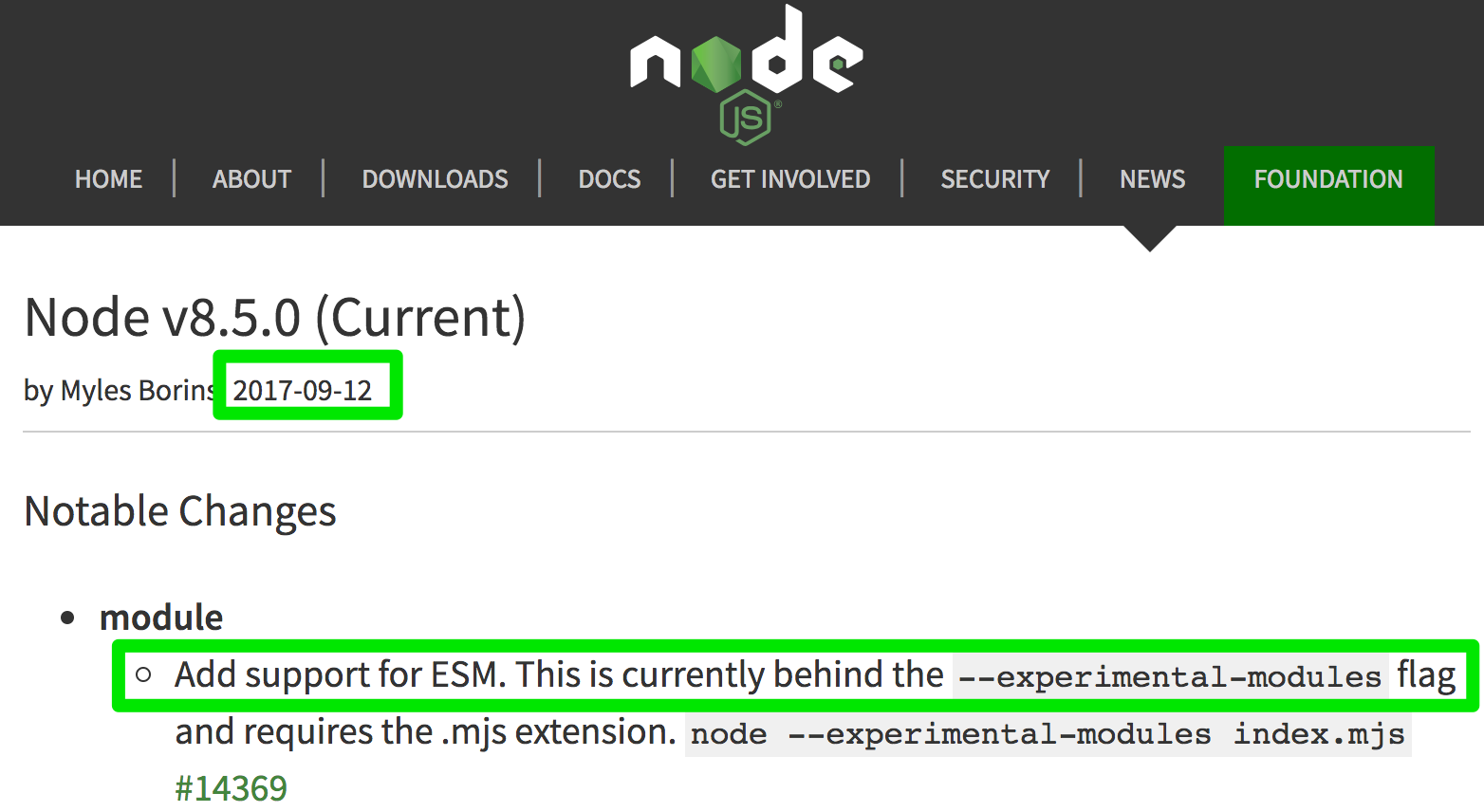

• Under the flag since Node.js 8.5

• Complete polyfill for Node.js (not fully compliant) is available

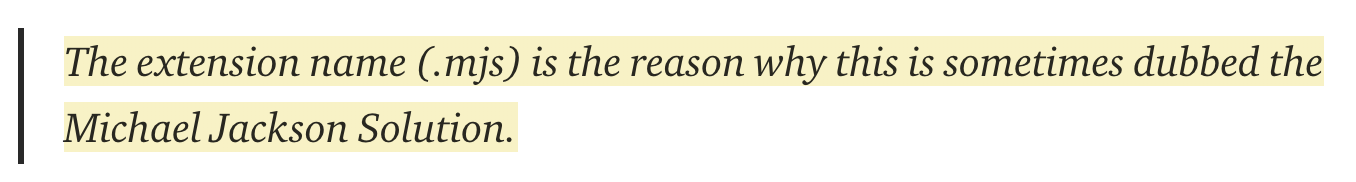

• Requires .mjs extensions for separation

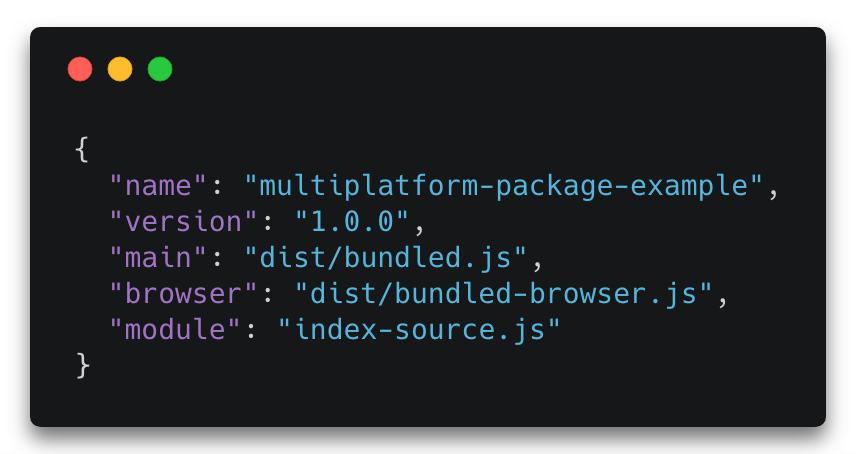

NPM package entries

	main	browser	module
Format	CommonJS	CommonJS	ESM
Webpack	✅	✅	✅
Rollup	✅	✅	✅

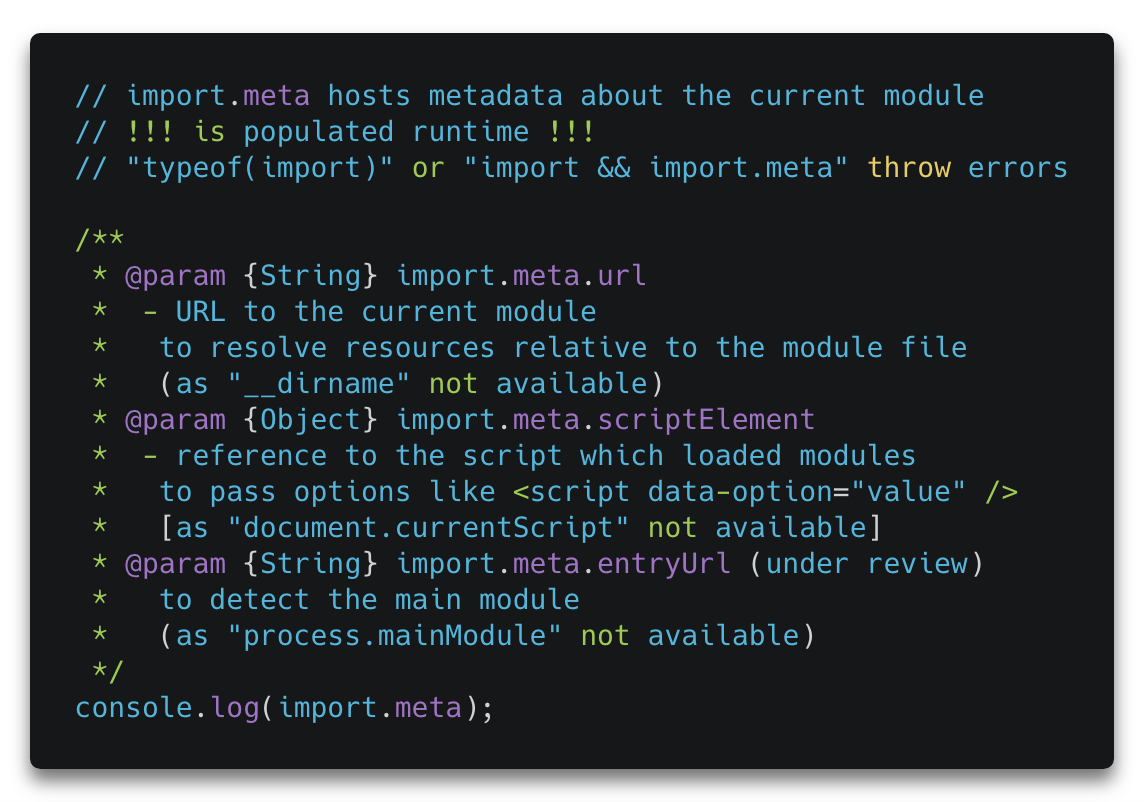

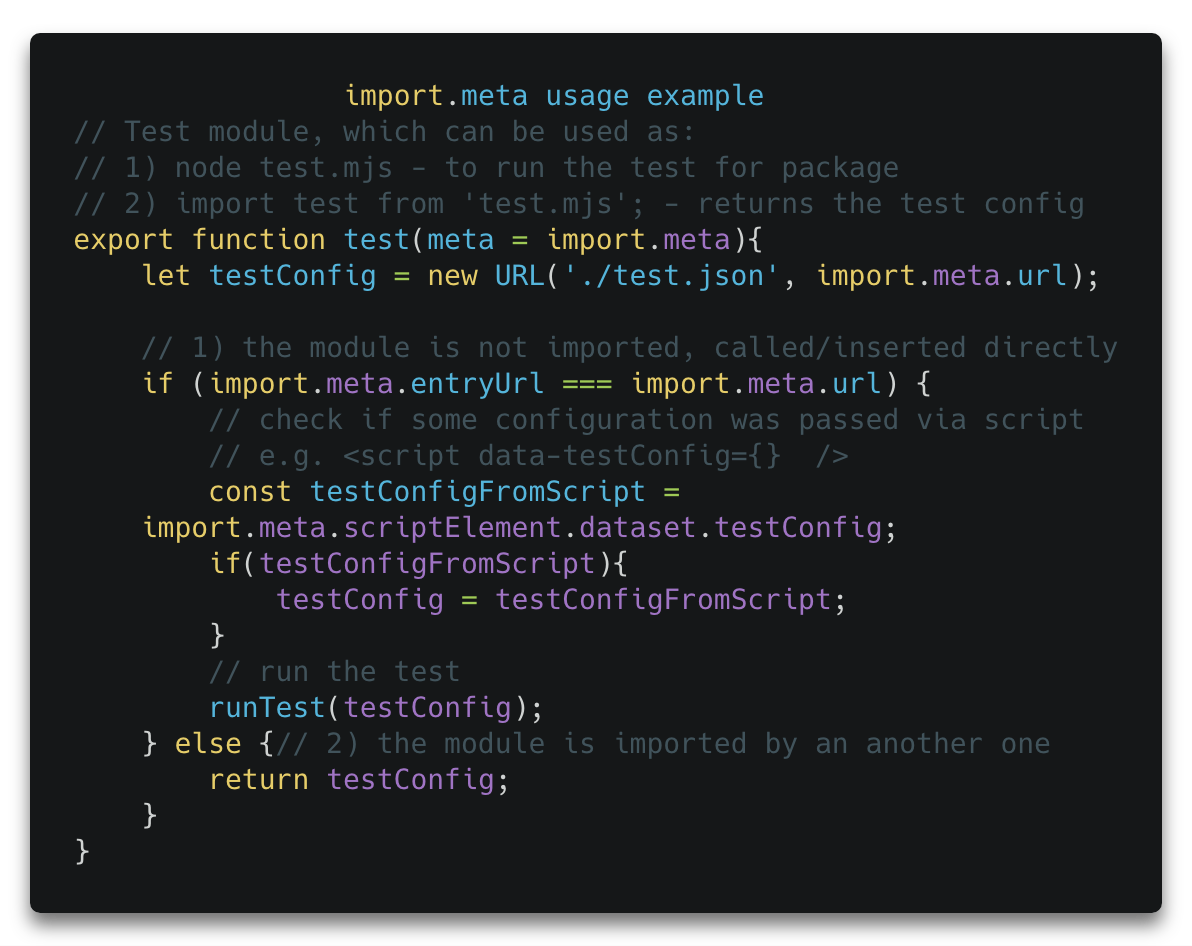

import.meta

Other types of scripts

• CSS Houdiny (API to expose browser internals for developers)

Use Worklets- ES modules by default

Online test: https://hospodarets.com/es-modules-test/

• aka Wasm (the new type of high-performant code that can be run in modern web browsers)
in progress of applying ESM

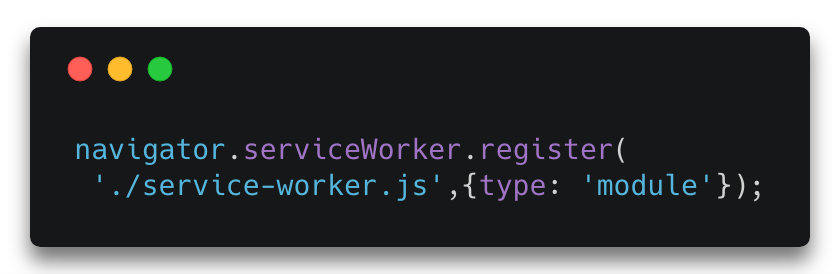

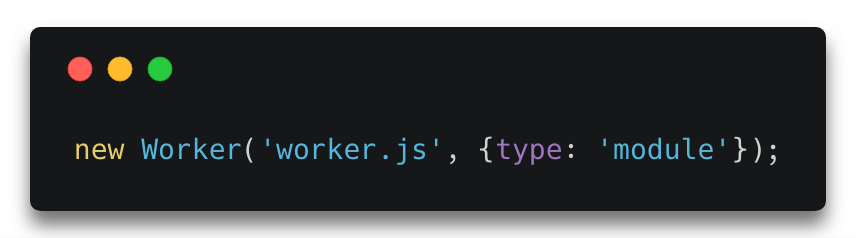

Web/Service Workers

• TypeScript: some compiler options are available. Open issue for full proper support

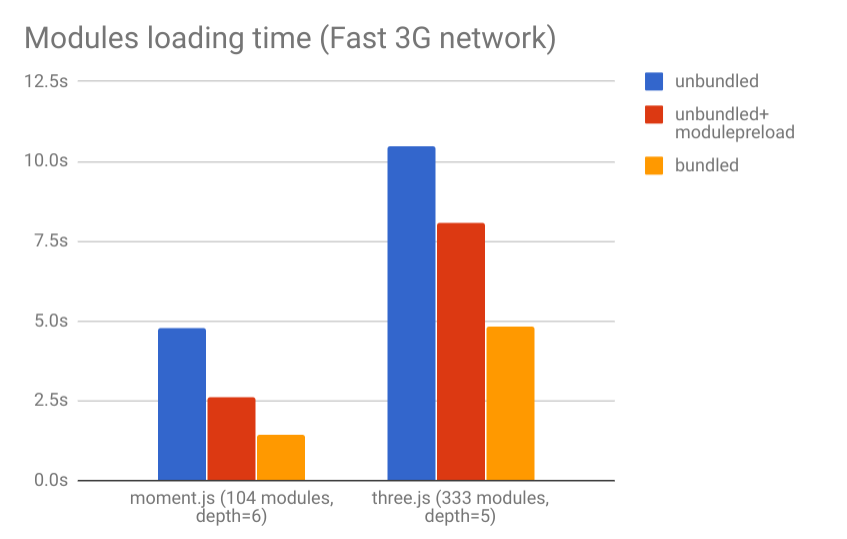

Performance

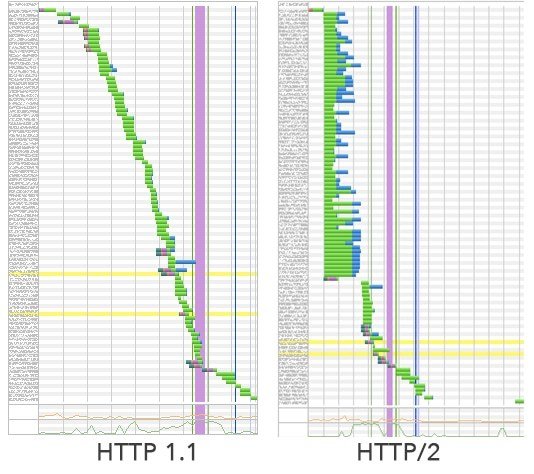

HTTP/2 is required

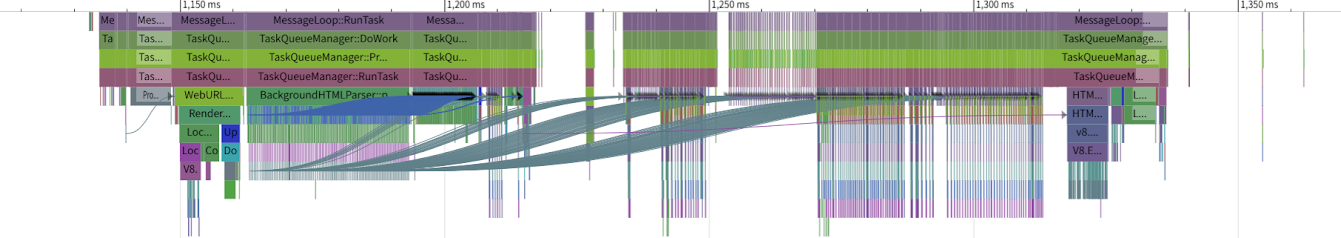

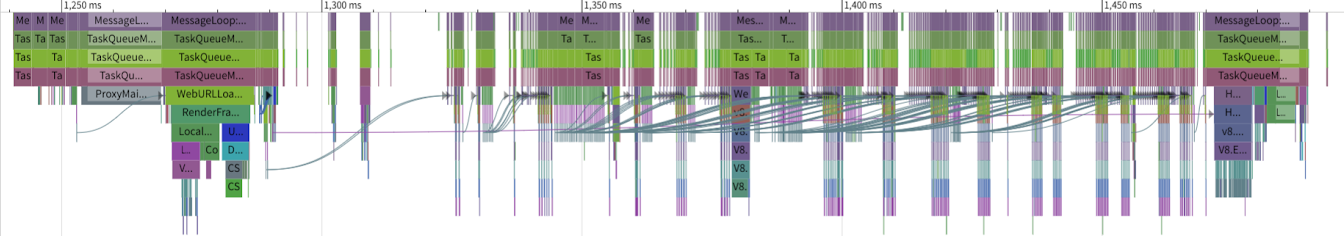

Chrome team analysis ESM performance work on optimizations

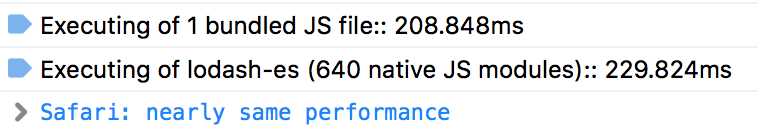

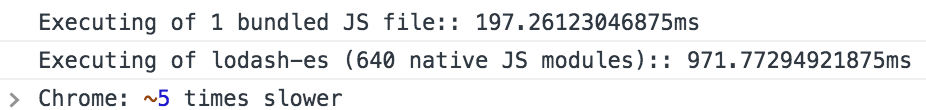

DEMO: Loading ~640 lodash-es native modules comparing with the bundled version

<link module-preload />

- allows preloading module script graphs

<link rel="modulepreload" href="dependency.js">
<link rel="modulepreload" href="sub-dependency.js">
...
<script type="module" src="app.js"></script>

<script type="module" src="app.js"></script>

// other ability- for dynamic imports (preloaded but not evaluated)
<link rel="modulepreload" href="modal.js">
<button onclick="import('./modal.js')
    .then(modal => modal.open())">

Unit Testing 🧐

Script
onload/onerror
events work for ESM
Tests should be deferred

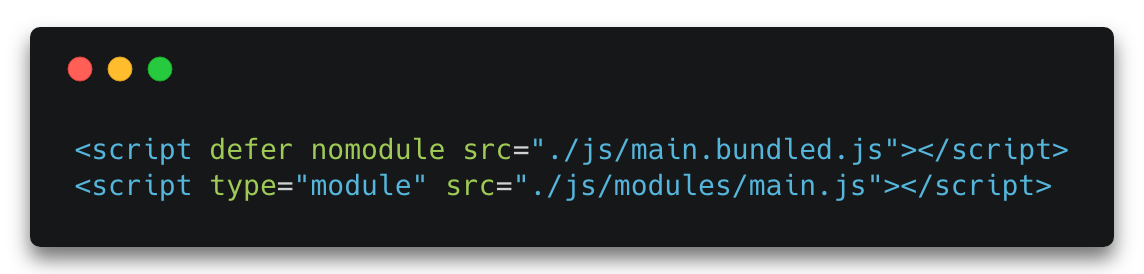

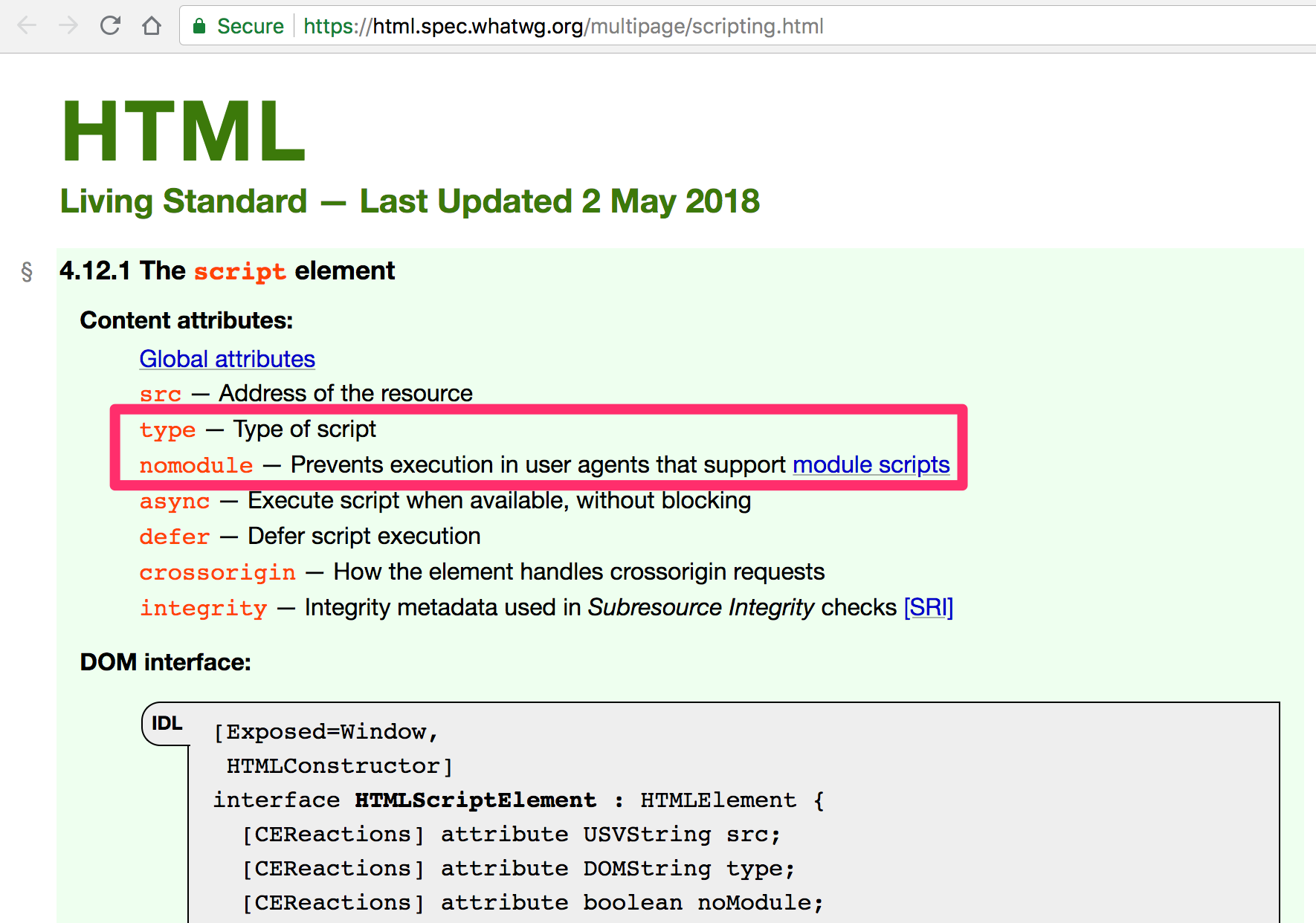

"nomodule" attribute for migration

Add the nomodule attribute for the bundled script
Add type="module" script pointing to the entry file
Resolve import URLs (aliases, '.js' extensions etc.)
Resolve non-JS modules (load dynamically, extract CSS etc.)
Solve node_modules dependencies and their publishing to prod

Proven usage of ESM

• Node.js:

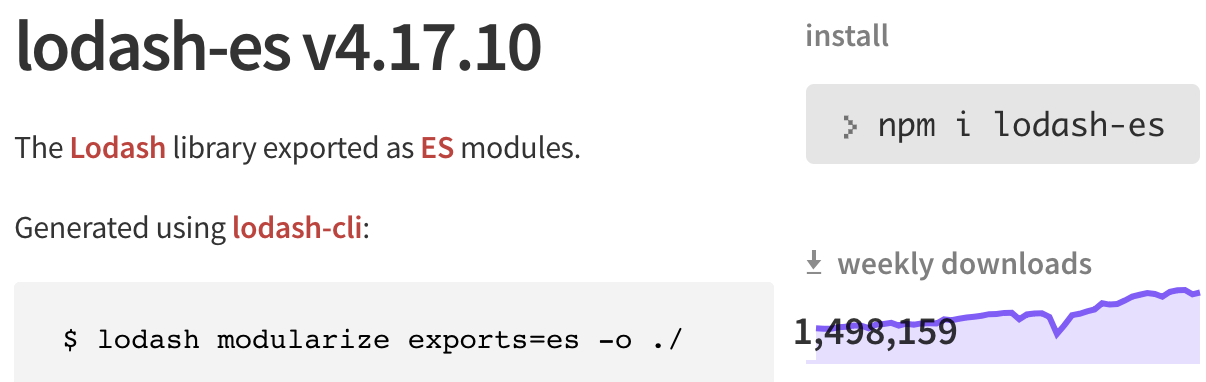

lodash-es

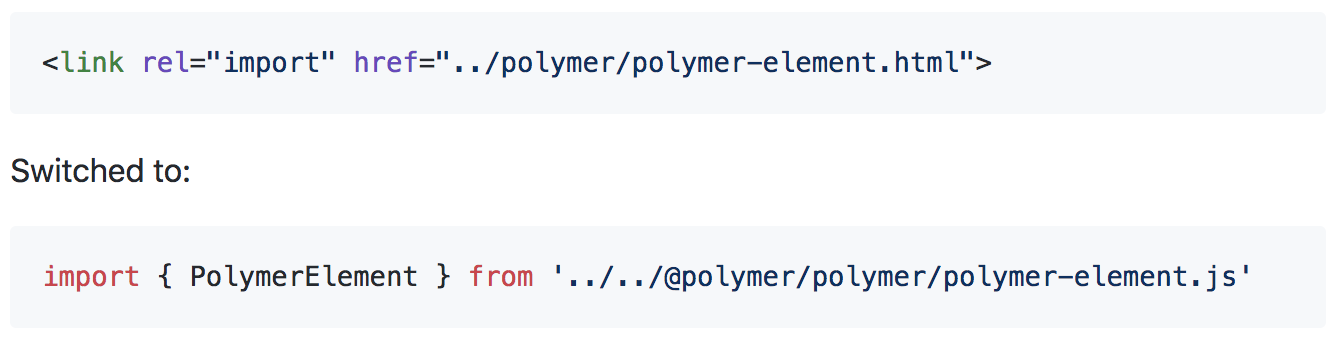

• Web components:
Polymer

• Browser:

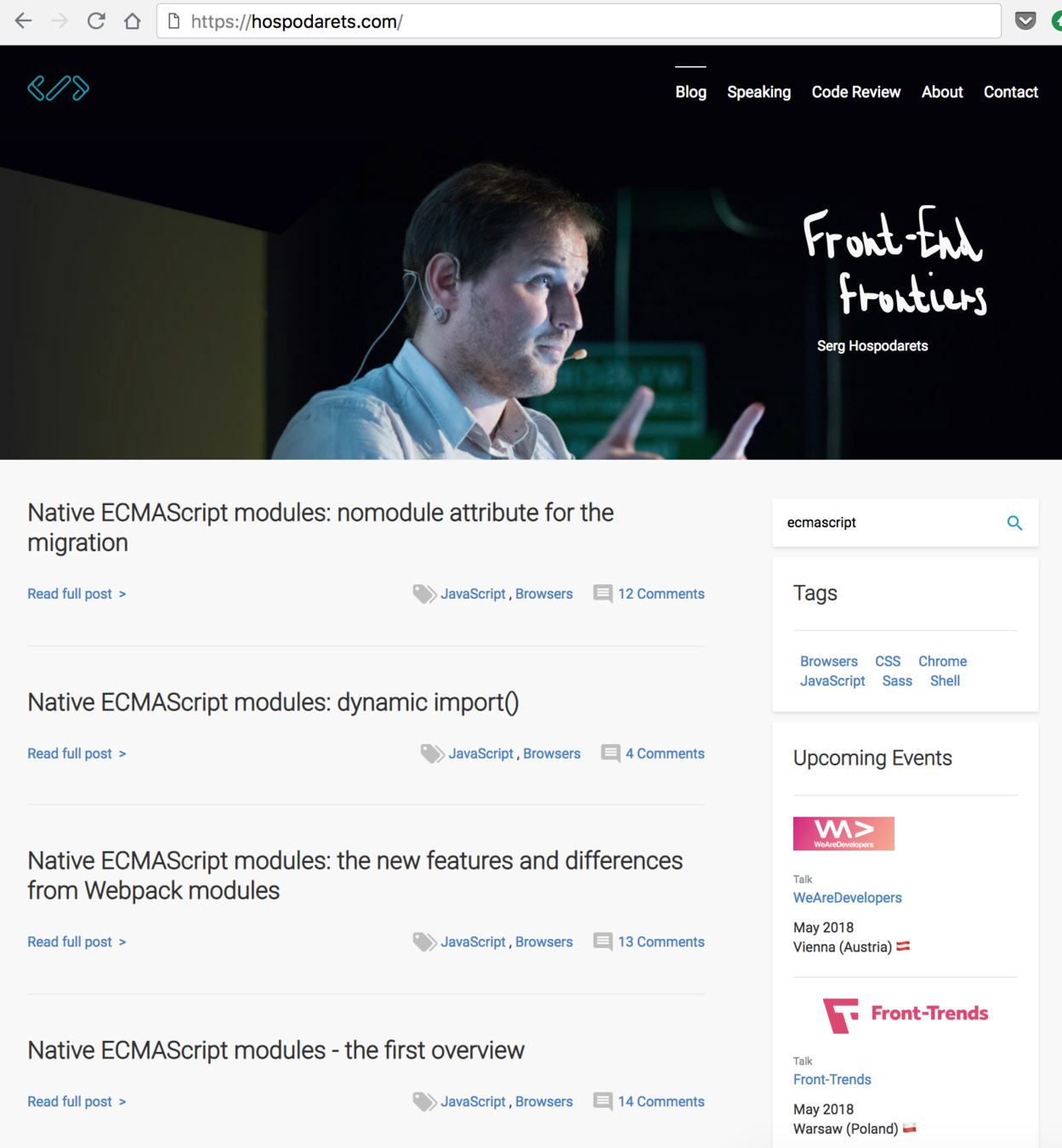

hospodarets.com

Native ESM in

production
