Train. Serve. Deploy!

Story of a NLP Model ft. PyTorch, Docker, Uwsgi and Nginx

whoami

- Data Scientist at GoDaddy

- Work with deep learning based language modeling

- Dancing, hiking,  (more recently) talking!

- Meme curator, huge The Office fan

ML Modeling

Training

Testing

ML Modeling

THEN WHAT?

ML Modeling

DEPLOYMENT

What This Talk IS

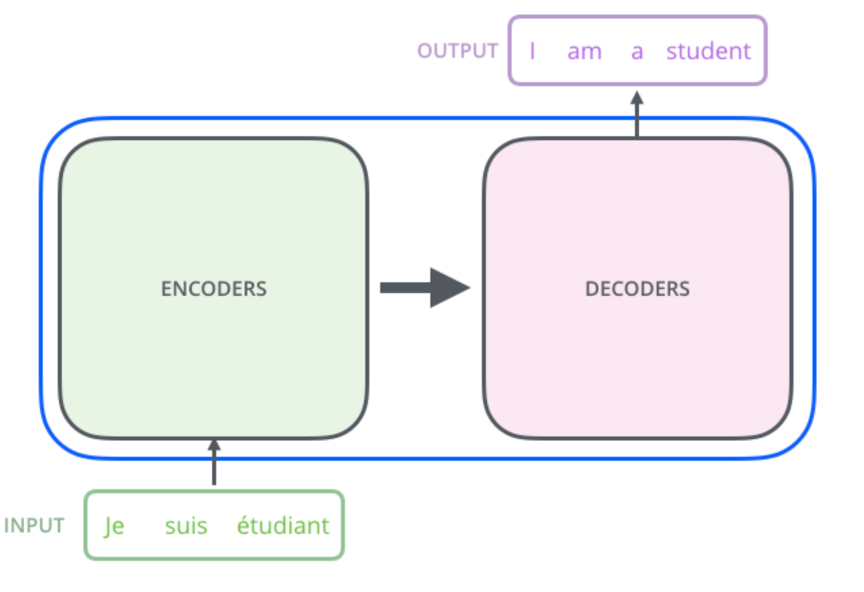

Machine Translation Systems: seq2seq model

Data

$ head orig/de-en/train.tags.de-en.de

<url>http://www.ted.com/talks/lang/de/stephen_palumbi_following_the_mercury_trail.html</url>
Das Meer kann ziemlich kompliziert sein.
Und was menschliche Gesundheit ist, kann auch ziemlich kompliziert sein.
.
.


$ head orig/de-en/train.tags.de-en.en

<url>http://www.ted.com/talks/stephen_palumbi_following_the_mercury_trail.html</url>
It can be a very complicated thing, the ocean.
And it can be a very complicated thing, what human health is.

de

en

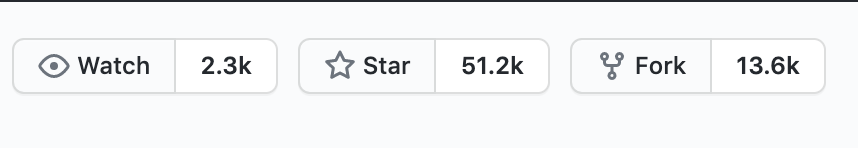

Fairseq

Quick prototyping of seq2seq models

Fairseq: Preprocessing

TRAIN=$tmp/train.en-de
BPE_CODE=$prep/code
rm -f $TRAIN
for l in $src $tgt; do
    cat $tmp/train.$l >> $TRAIN
done

echo "learn_bpe.py on ${TRAIN}..."
python $BPEROOT/learn_bpe.py -s $BPE_TOKENS < $TRAIN > $BPE_CODE

for L in $src $tgt; do
    for f in train.$L valid.$L test.$L; do
        echo "apply_bpe.py to ${f}..."
        python $BPEROOT/apply_bpe.py -c $BPE_CODE < $tmp/$f > $prep/$f
    done
done

Fairseq: Training

CUDA_VISIBLE_DEVICES=0 fairseq-train \
    data-bin/iwslt14.tokenized.de-en \
    --arch transformer \
    --share-decoder-input-output-embed \
    --optimizer adam \
    --adam-betas '(0.9, 0.98)' \
    --clip-norm 0.0 \
    --lr 5e-4 --lr-scheduler inverse_sqrt \
    --warmup-updates 4000 \
    --dropout 0.3 --weight-decay 0.0001 \
    --criterion label_smoothed_cross_entropy \
    --label-smoothing 0.1 \
    --max-tokens 4096 --max-epoch 50 \
    --encoder-embed-dim 128 \
    --decoder-embed-dim 128

Model Serving

$ fairseq-interactive data-bin/iwslt14.tokenized.de-en \
>     --path checkpoints/checkpoint_best.pt \
>     --bpe subword_nmt \
>     --remove-bpe \
>     --bpe-codes iwslt14.tokenized.de-en/code \
>     --beam 10

2020-07-15 00:23:09 | INFO | fairseq_cli.interactive | Namespace(all_gather_list_size=16384, beam=10, bf16=False, bpe='subword_nmt', bpe_codes='iwslt14.tokenized.de-en/code', bpe_separator='@@',
.
.

2020-07-15 00:23:09 | INFO | fairseq.tasks.translation | [de] dictionary: 8848 types
2020-07-15 00:23:09 | INFO | fairseq.tasks.translation | [en] dictionary: 6640 types
2020-07-15 00:23:09 | INFO | fairseq_cli.interactive | loading model(s) from checkpoints/checkpoint_best.pt
2020-07-15 00:23:10 | INFO | fairseq_cli.interactive | NOTE: hypothesis and token scores are output in base 2
2020-07-15 00:23:10 | INFO | fairseq_cli.interactive | Type the input sentence and press return:
danke
S-3	danke
H-3	-0.1772392988204956	thank you .
D-3	-0.1772392988204956	thank you .
P-3	-0.2396 -0.1043 -0.2216 -0.1435

Flask

Python code without an API

Python code with a Flask API

Flask App

from flask import Flask
from flask import Response
from flask import jsonify
from flask import make_response
from flask import request

from fairseq.models.transformer import TransformerModel

model = TransformerModel.from_pretrained(
        'checkpoints',
        'checkpoint_best.pt',
        data_name_or_path='data-bin/iwslt14.tokenized.de-en',
        bpe='subword_nmt',
        bpe_codes='iwslt14.tokenized.de-en/code',
        remove_bpe=True,
        source_lang='de',
        target_lang='en',
        beam=30,
        nbest=1,
        cpu=True
)

Flask App

@app.route('/translate', methods=['GET'])
def translate():

    timers = {'total': -time.time()}
    logger.info(str(datetime.now()) + ' received parameters: ' + str(request.args))

    query = request.args.get('q', '').strip().lower()

    if not query:
        raise BadRequest('Query is empty.')

    res = model.translate(query, verbose=True)
    rv = {'result': res}
    timers['total'] += time.time()
    resp = make_response(jsonify(rv))
    return resp

if __name__ == "__main__":
    app.run(debug=False, host='0.0.0.0', port=5002, use_reloader=True, threaded=False)


uwsgi

Assistant Regional Manager

to the

Flask Server

uwsgi + flask

from flask_app import app as application

if __name__ == "__main__":
    application.run()

wsgi.py:

[uwsgi]
module = wsgi:application
listen = 128
disable-logging = false
logto = /var/log/uwsgi/api.log
lazy-apps = true
master = true
processes = 3
threads = 1
buffer-size = 65535
socket = /app/wsgi.sock
chmod-socket = 666
enable-threads = true
threaded-logger = true

uwsgi.ini:

nginx

http requests

Route http requests to the uwsgi server

nginx

error_log  /var/log/nginx/error.log warn;

events {
    worker_connections 8192;
}

http {

    .
    .
    access_log  /var/log/nginx/access.log  apm;

    server {
        listen 8002;
        server_name 127.0.0.1;
        location /translate {
            include uwsgi_params;
            uwsgi_pass unix:/app/wsgi.sock;
        }
        location / {
            include uwsgi_params;
            uwsgi_pass unix:/app/wsgi.sock;
        }
    }

}

supervisord

Me getting happy after setting nginx + uwsgi config files

Who will coordinate them?

Supervisord

supervisord

[supervisord]
nodaemon=true
logfile=/var/log/supervisor/supervisord.log

[program:uwsgi]
command=uwsgi --ini uwsgi.ini # --pyargv "inference/32k/"
directory=/app
stopsignal=TERM
stopwaitsecs=10
autorestart=true
startsecs=10
priority=3
stdout_logfile=/var/log/uwsgi/out.log
stdout_logfile_maxbytes=0
stderr_logfile=/var/log/uwsgi/err.log
stderr_logfile_maxbytes=0

[program:nginx]
command=nginx -c /etc/nginx/nginx.conf
autorestart=true
stopsignal=QUIT
stopwaitsecs=10
stdout_logfile=/var/log/nginx/out.log
stdout_logfile_maxbytes=0
stderr_logfile=/var/log/nginx/err.log
stderr_logfile_maxbytes=0

Docker

World's best containerization software

I'm ready to start coding again

No doubt about it

Dockerfile

FROM ubuntu:18.04

RUN apt-get update && \
    apt-get dist-upgrade -y && \
    apt-get install -y build-essential curl g++ gettext-base git libfreetype6-dev libpng-dev libsnappy-dev \
                       libssl-dev pkg-config python3-dev python3-pip software-properties-common supervisor nginx \
                       unzip zip zlib1g-dev openjdk-8-jdk tmux wget bzip2 libpcre3 libpcre3-dev vim systemd ca-certificates && \
    apt-get clean && \
    rm -rf /var/lib/apt/lists/*

ENV LANG C.UTF-8


RUN pip3 install torch==1.4.0+cpu torchvision==0.5.0+cpu -f https://download.pytorch.org/whl/torch_stable.html && \
    rm -rf /root/.cache /tmp/*

COPY ./requirements.txt /tmp/
RUN pip3 install -r /tmp/requirements.txt && \
    rm -rf /root/.cache /tmp/*

COPY . /app

COPY nginx.conf /etc/nginx/
RUN mkdir -p /var/log/supervisor
RUN mkdir -p /var/log/uwsgi

# ========= setup uwsgi
RUN touch /app/wsgi.sock
RUN chmod 666 /app/wsgi.sock

WORKDIR /app

CMD ["bash", "entrypoint.sh"]

EXPOSE 8002

Docker

$ docker build -t mock_app:latest .
$ docker run -d -p 8002:8002 --name mock mock_app:latest


.
.
2020-07-19 09:16:59,130 CRIT Supervisor running as root (no user in config file)
2020-07-19 09:16:59,133 INFO supervisord started with pid 1
2020-07-19 09:17:00 | INFO | fairseq.file_utils | loading archive file checkpoints
2020-07-19 09:17:00 | INFO | fairseq.file_utils | loading archive file data-bin/iwslt14.tokenized.de-en
2020-07-19 09:17:00,138 INFO spawned: 'uwsgi' with pid 19
2020-07-19 09:17:00,145 INFO spawned: 'nginx' with pid 20

Does it work?

$ curl http://localhost:8002/health
OK

$ curl http://localhost:8002/translate?q=Mein+name+ist+shreya
{"result":"my name is shreya ."}

Some Good Practices

  1. Check logs frequently:


  2. Caching

  3. Unittests

When you think the talk is over, but the presenter keeps babbling something

$ docker logs -f <container-name>
$ docker exec -it <container-id> bash

Questions?

Discord channel: talk-nlp-model



LinkedIn:



GitHub: ShreyaKhurana



Code: https://github.com/ShreyaKhurana/europython2020
