Basis of Control Theory

Chris Hung (Rocket and Optimization)

Tutoring method

Structure

  • Concept
  • Overview
  • Thesis
  • Application
  • Current situation
  • Solving Problems or Implementation
  • Homework
  • Preview of future lessons



The lesson will surround applications in space engineering

  1. You can search for the papers I cited
  2. Please ask anytime you don't understand

What is Control system

Mathematical modeling

  • Think of the world in terms of dynamic system
  • Represent it with Differential Equations
  • e.g.
    • Romantic relationship

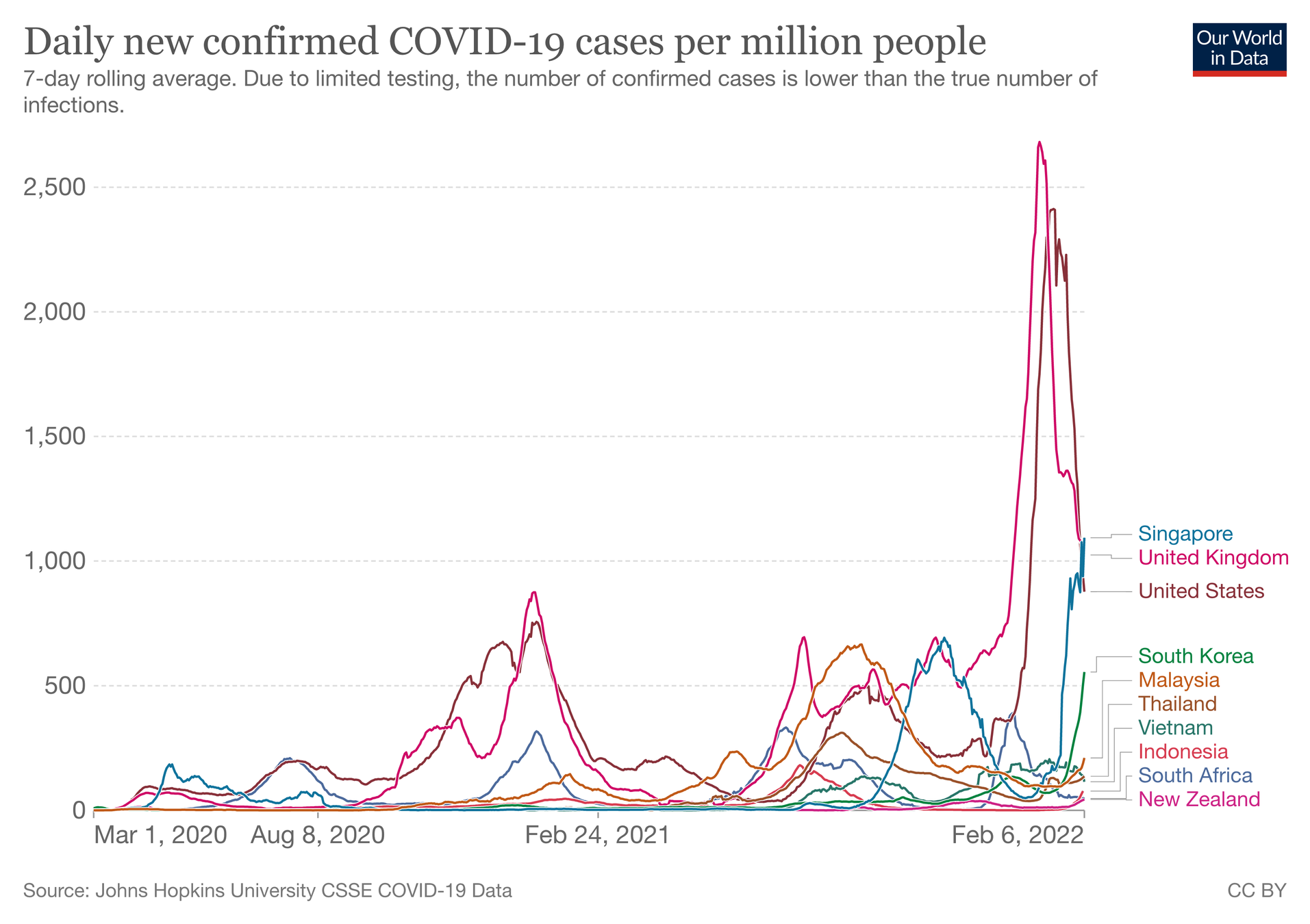

    • Spread of COVID-19
    • Rocket equation
    • Schrödinger equation
  • Humans not only want to predict the model but also manipulate it.
  • => Control System

https://www.weforum.org/agenda/2022/02/covid-19-top-news-omicron-coronavirus-7-february-2022/

https://en.wikipedia.org/wiki/Sigmoid_function

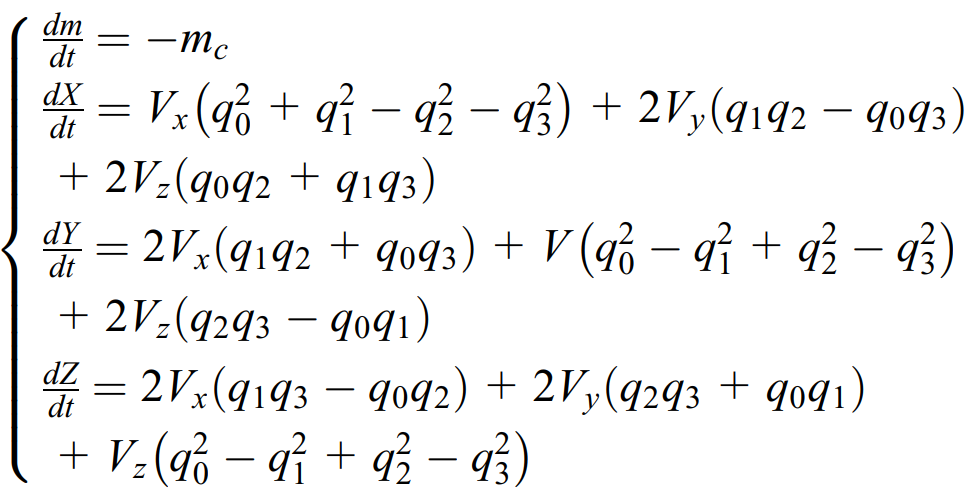

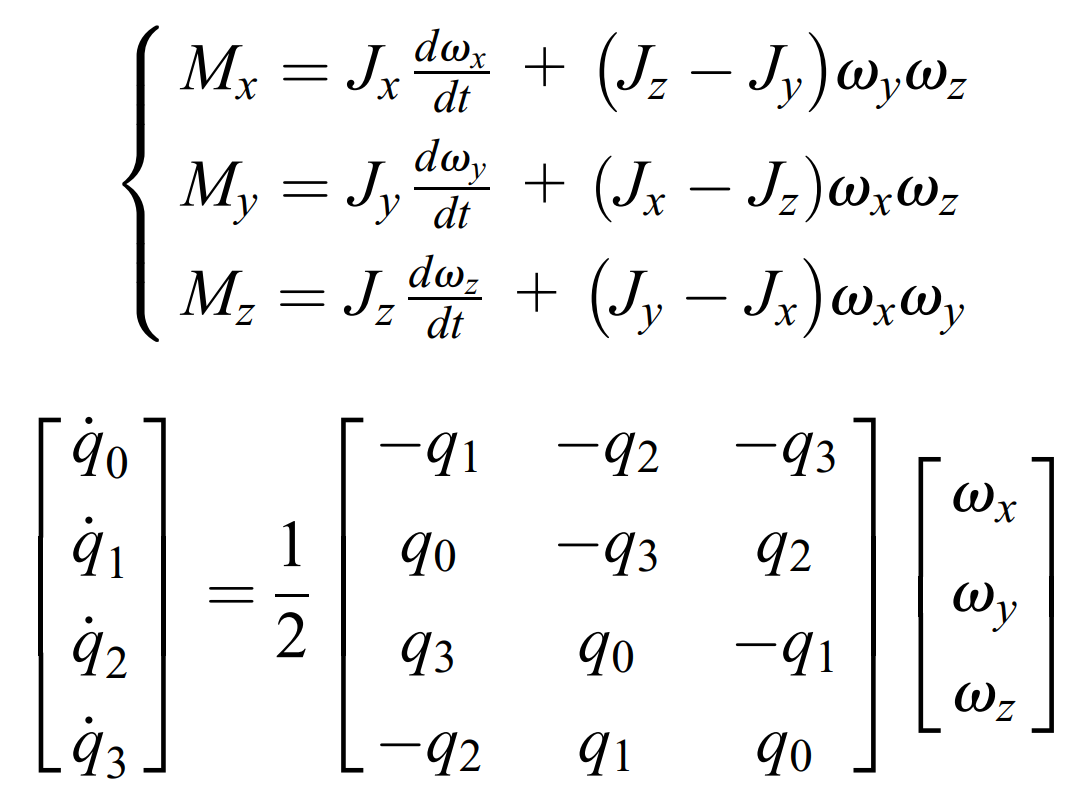

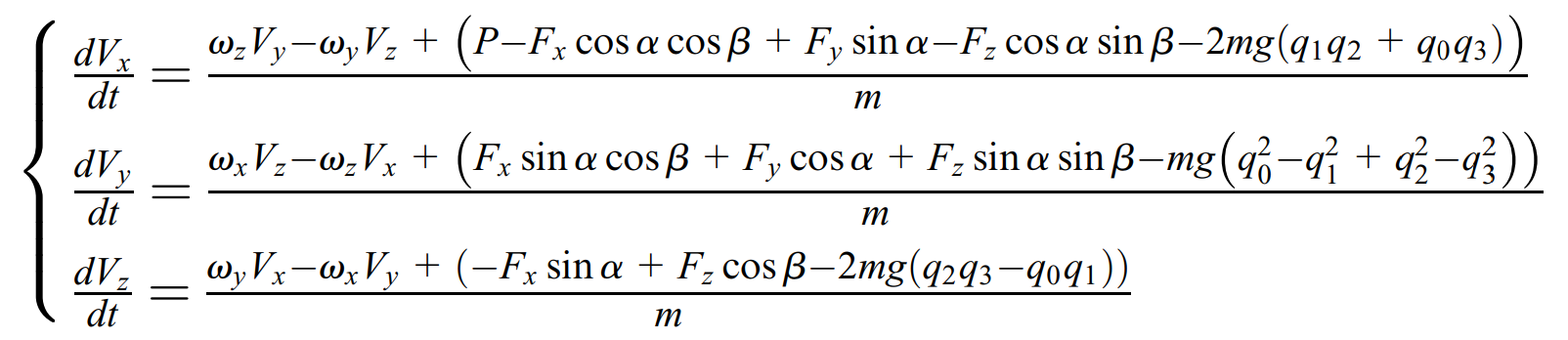

Dynamic mathematic model for the free flight phase of a sounding rocket

Dynamic mathematic model for the free flight phase of a sounding rocket

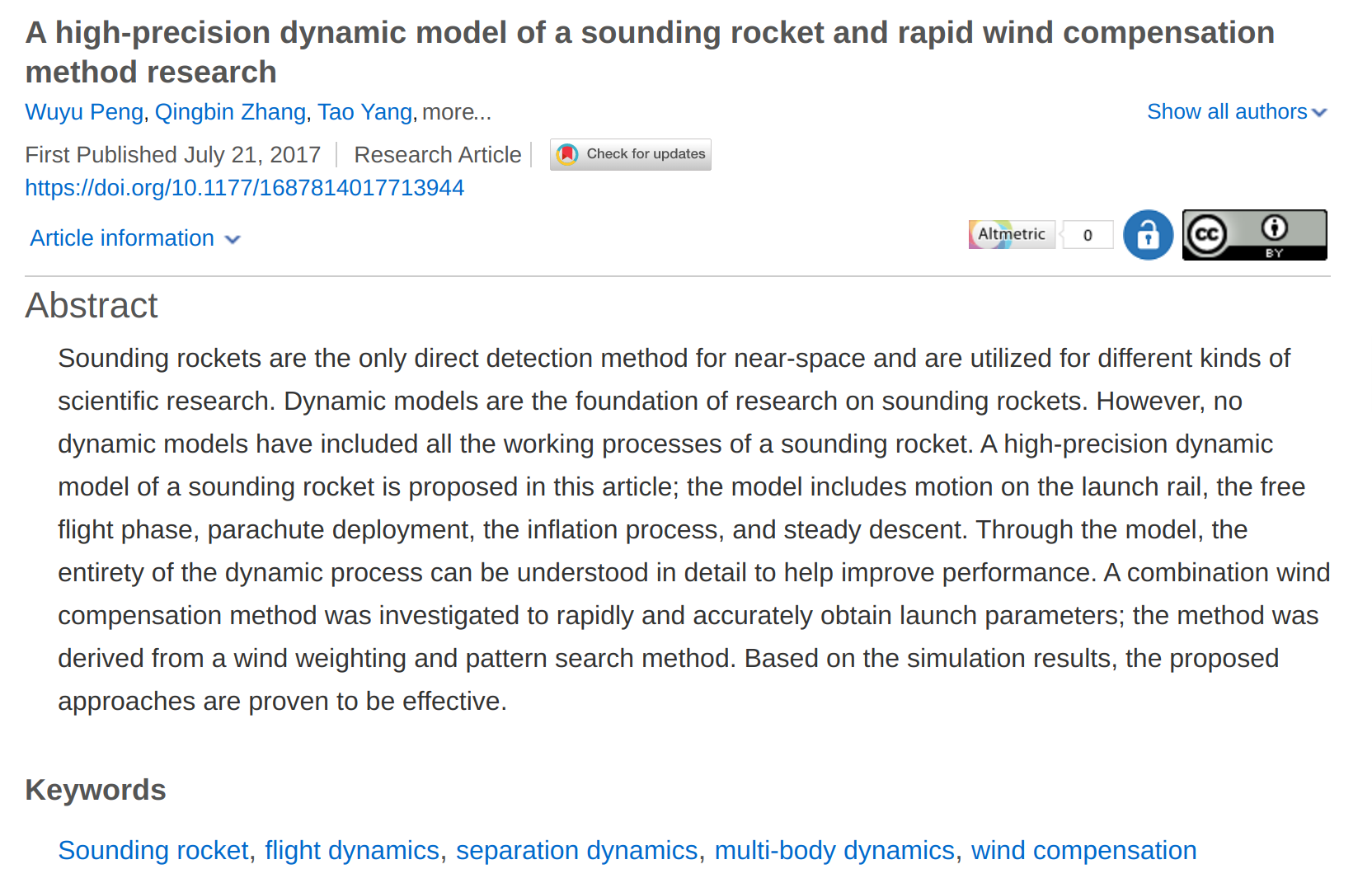

Peng W, Zhang Q, Yang T, Feng Z. A high-precision dynamic model of a sounding rocket and rapid wind compensation method research. Advances in Mechanical Engineering. July 2017. doi:10.1177/1687814017713944

An overview of Control Theory

  1. Actively
    • Impose some control logic in a certain preplanned way
    • Black box method: Measure the system and make decisions based on the system response to what you input
  2. Passively
    • System optimization
    • e.g., Attack angle for winds of a rocket

An overview of Control Theory

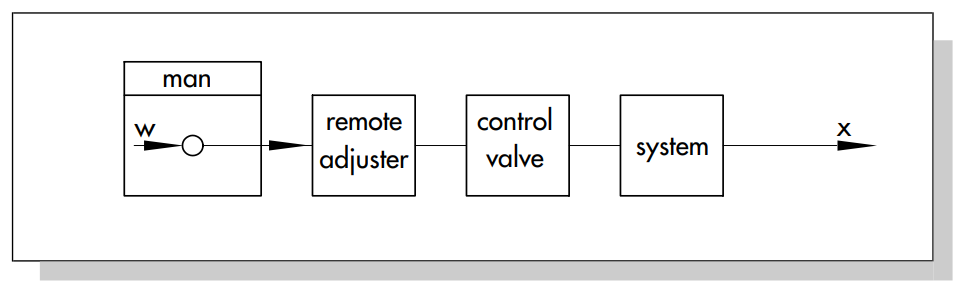

Open-loop

  1. Requires constant input of energy
  2. if not, the system will become unstable
  3. The system must be totally certain in order to preplan

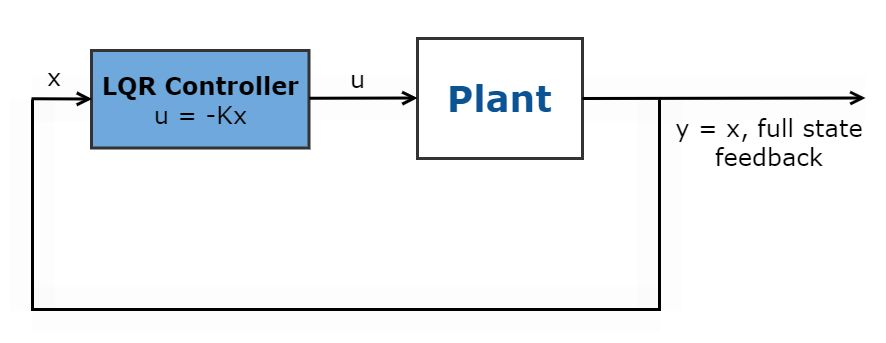

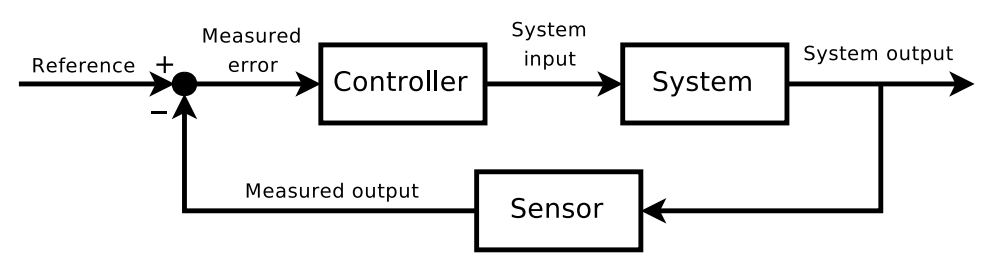

Closed-loop feedback control

  1. Requires sensors to measure the output
  2. feedback the error to the controller
  3. Why feedback?
    • Instability
    • Uncertainty
    • Disturbance
    • Efficient

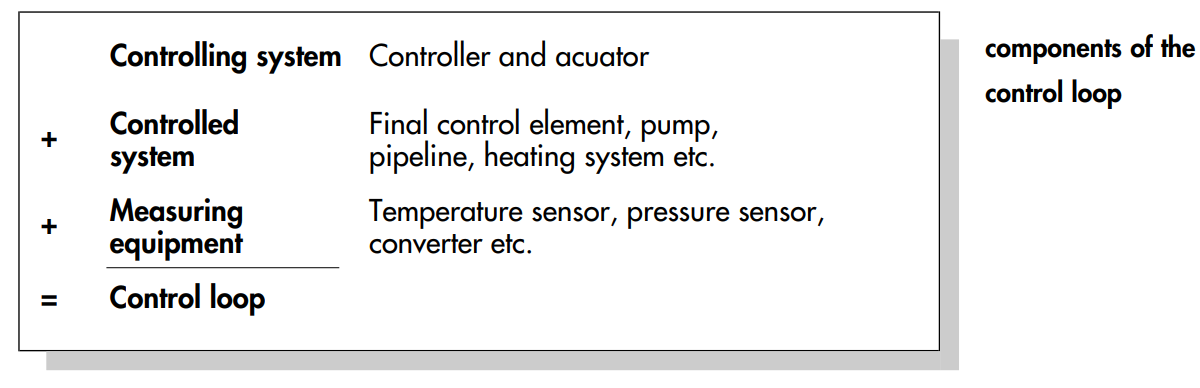

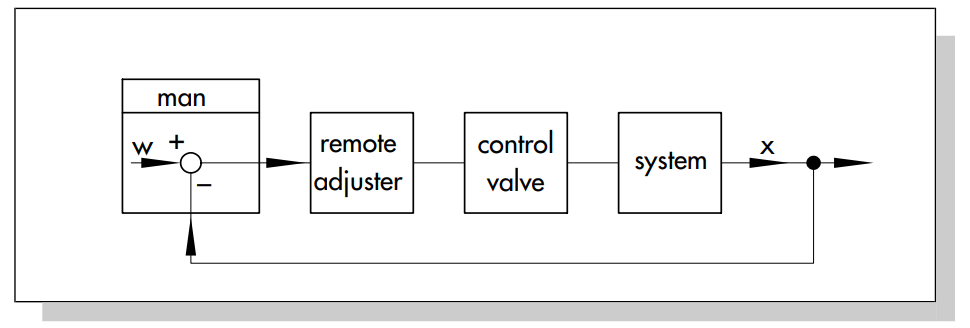

System Structure

https://www.samsongroup.com/document/l101en.pdf

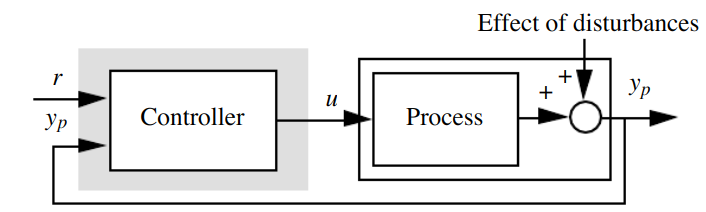

Simple feedback control systems

  1. Their control device is made of the controller only
  2. They are the most classic ones in the field of adaptive control.
  3. However, in the case of non-adaptive neural control, since the quality of their performance relies heavily on the fidelity of the model used for the design of the controller, they can only be used if the model is very accurate and if the effect of disturbances is small.

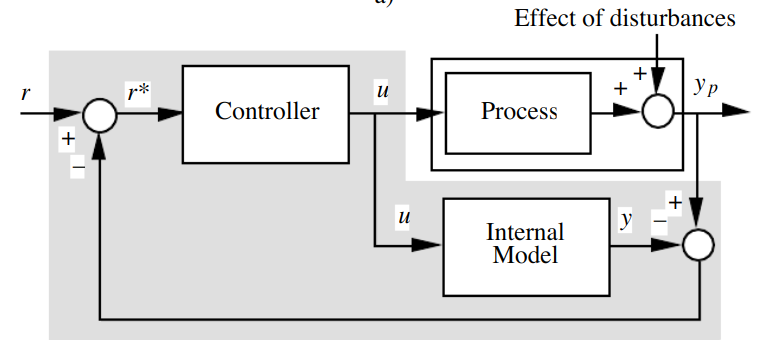

Internal model control systems

  1. They are characterized by a control device consisting of the controller and of a predictive model of the process, the internal model.
  2. The internal model loop uses the difference between the outputs of the process and of the internal model. This difference represents the effect of disturbances and of a mismatch of the model.

www.mathworks.com

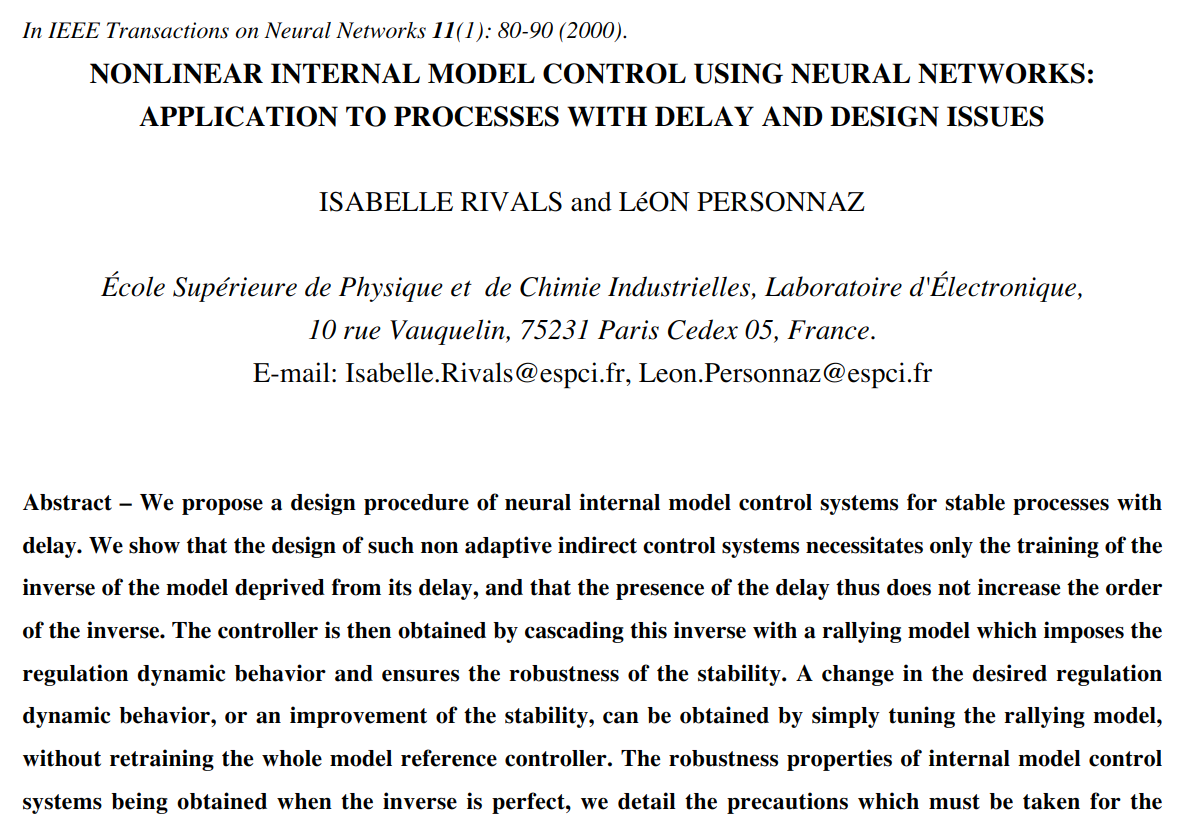

Rivals, Isabelle & Personnaz, Léon. (2000). Nonlinear Internal Model Control using Neural networks : application to Processes with Delay and Design Issues. IEEE transactions on neural networks / a publication of the IEEE Neural Networks Council. 11. 80-90. 10.1109/72.822512.

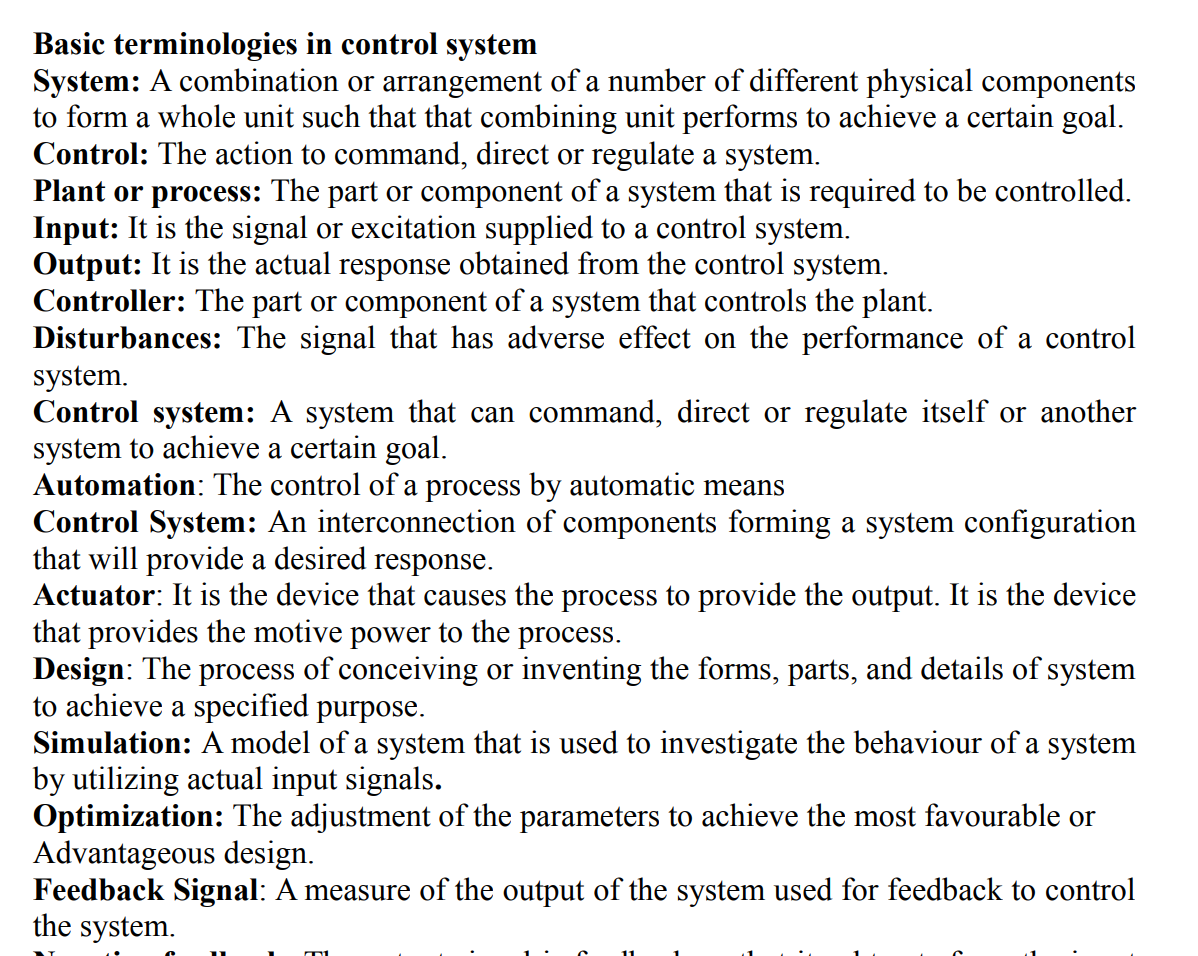

Homework: Memorize these terms

https://www.srecwarangal.ac.in/ece-itl/CS%20SUMMARY.pdf

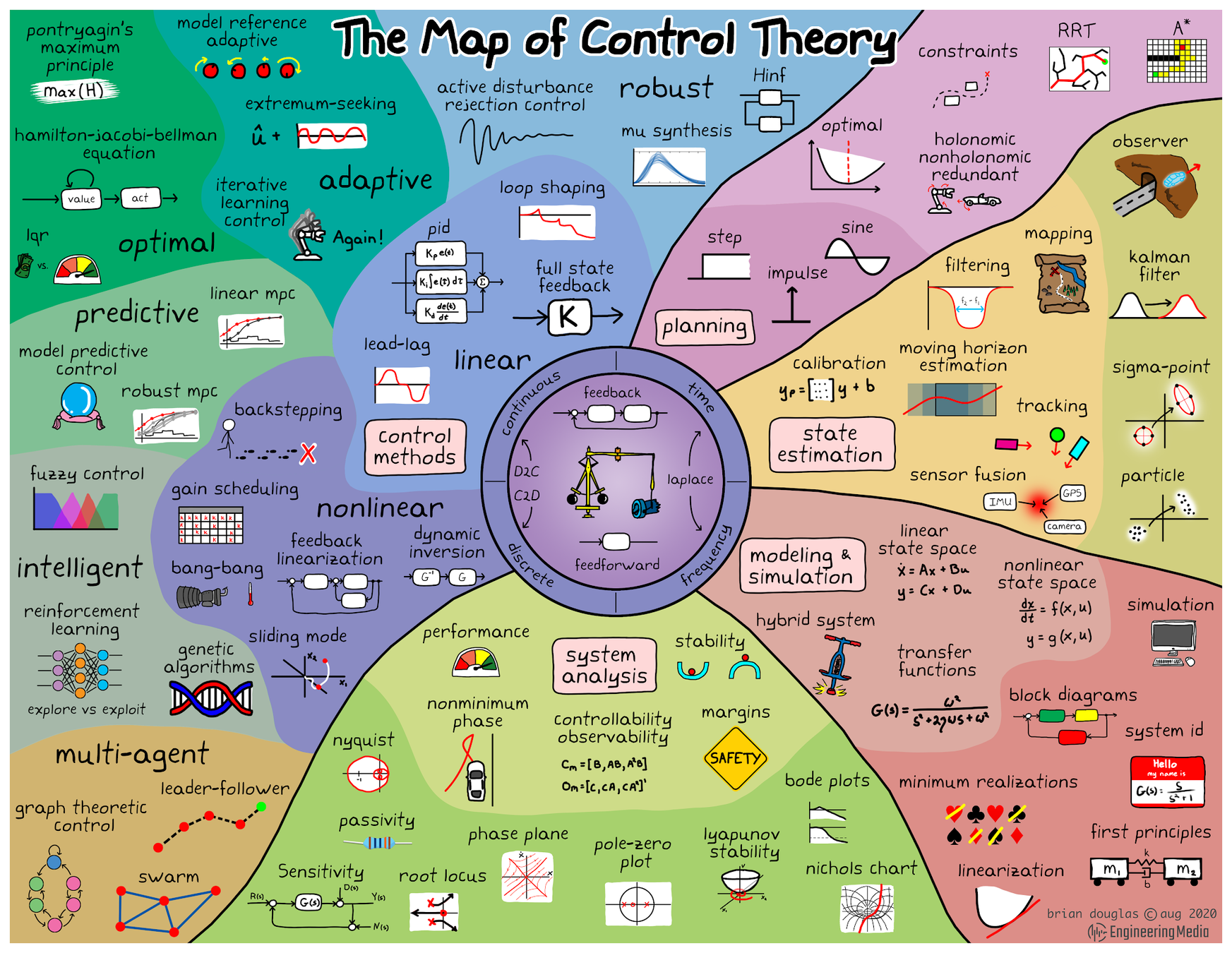

The Map of Control Theory

https://engineeringmedia.com/map-of-control

https://engineeringmedia.com/map-of-control

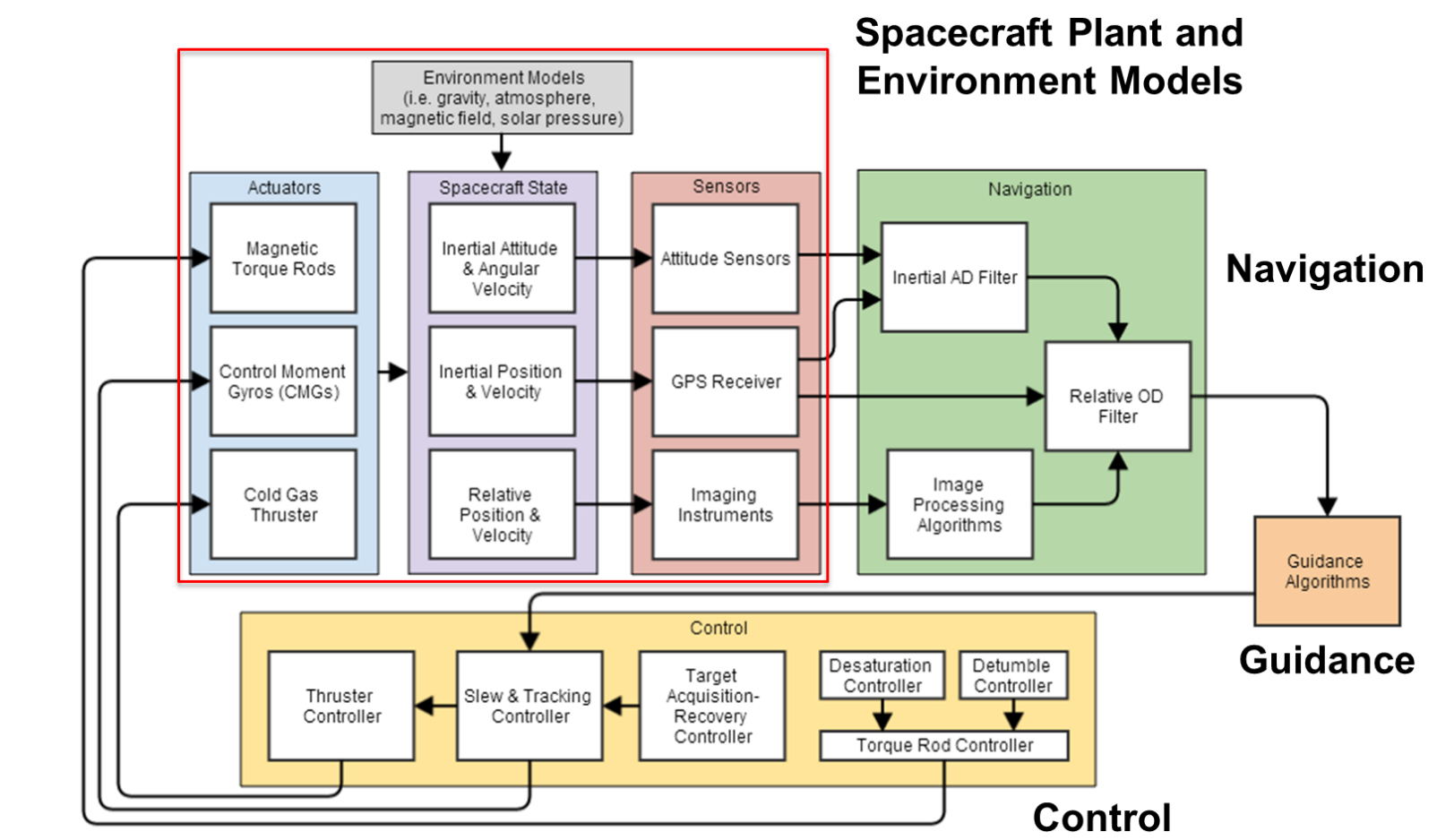

Map of satellite GNC

https://doi.org/10.1016/j.actaastro.2015.10.010

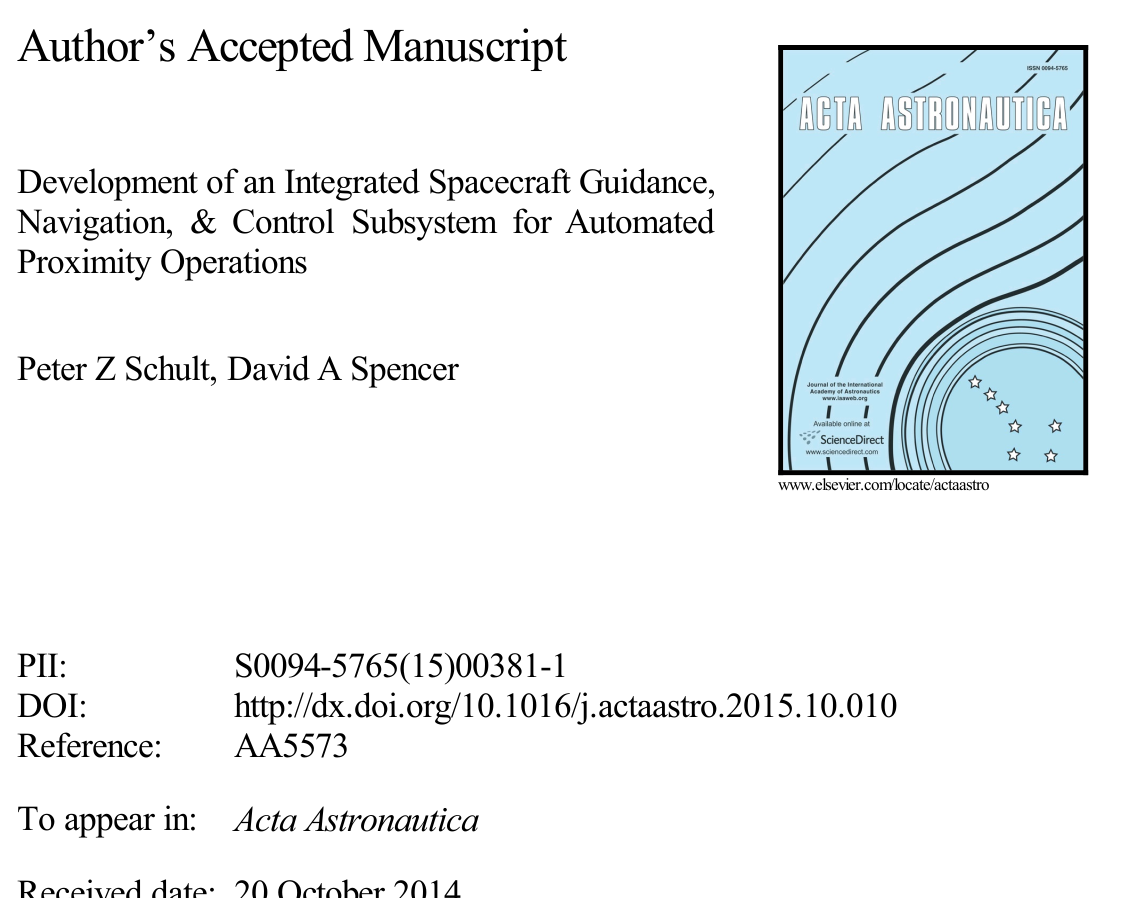

Peter Z. Schulte, David A. Spencer, Development of an integrated spacecraft Guidance, Navigation, & Control subsystem for automated proximity operations, Acta Astronautica, Volume 118, 2016, Pages 168-186, ISSN 0094-5765, https://doi.org/10.1016/j.actaastro.2015.10.010.

Application of Guidance & Control

Guidance and Control

a branch of engineering dealing with the design of systems to control the movement of vehicles, especially, automobiles, ships, aircraft, and spacecraft.

  1. Guidance refers to the determination of the desired path of travel (the "trajectory") from the vehicle's current location to a designated target, as well as desired changes in velocity, rotation and acceleration for following that path.
  2. Control refers to the manipulation of the forces, by way of steering controls, thrusters, etc., needed to execute guidance commands while maintaining vehicle stability.

https://en.wikipedia.org/wiki

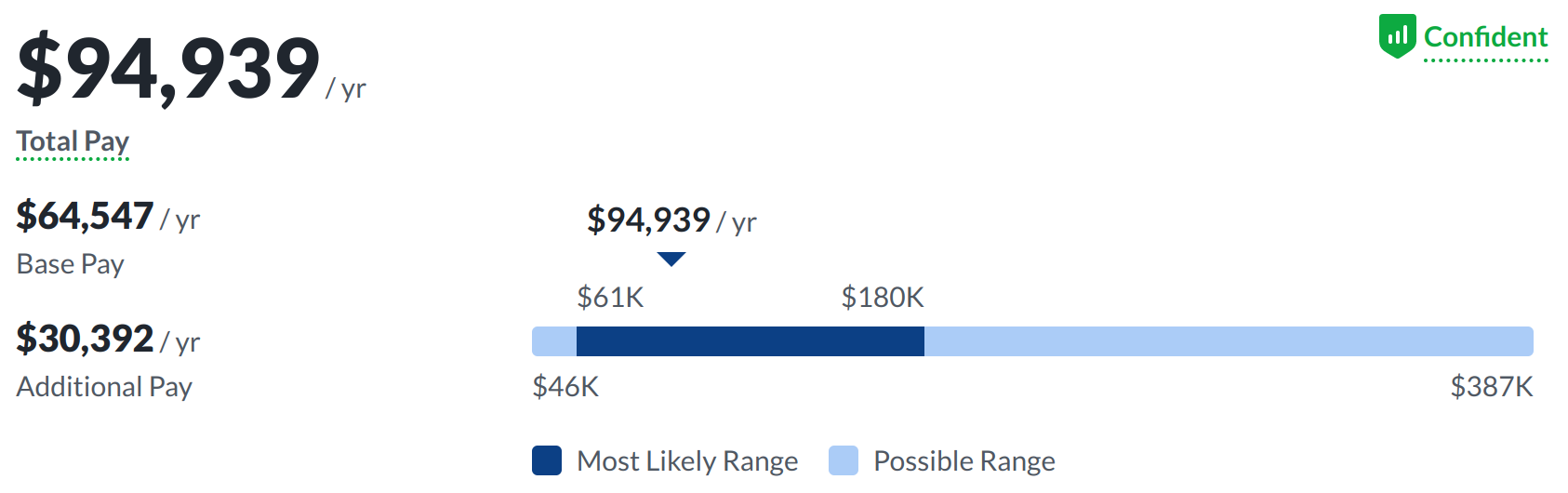

GNC Engineer Salaries in the U.S.

Median annual earnings at $41,535 in 2020 for workers aged 15 and over with earnings and $56,287 in 2020 for those who worked full-time, year-round.



250000 NTD/month

Problems

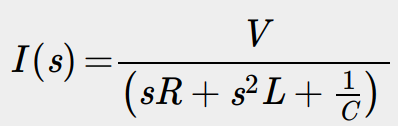

What's the transfer function

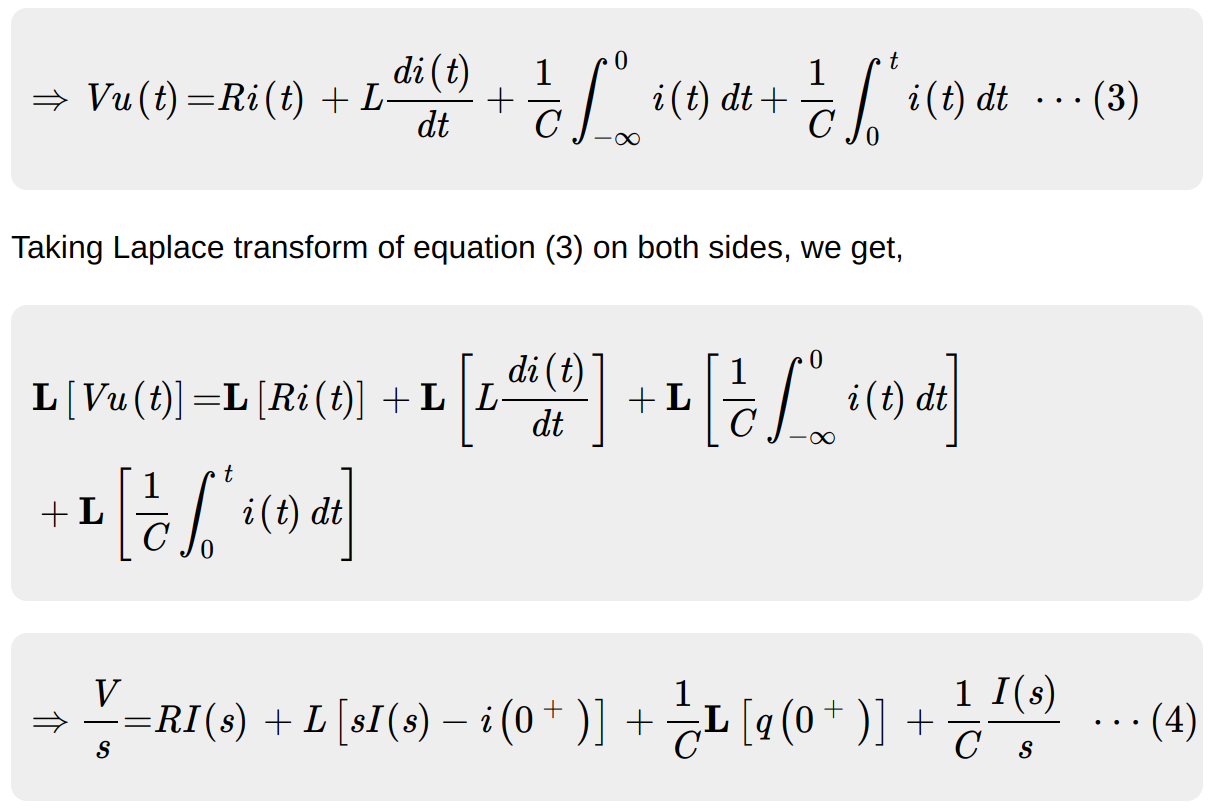

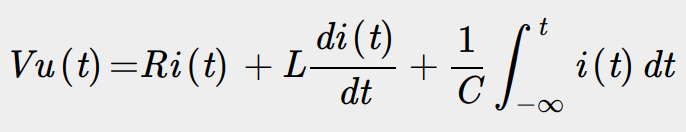

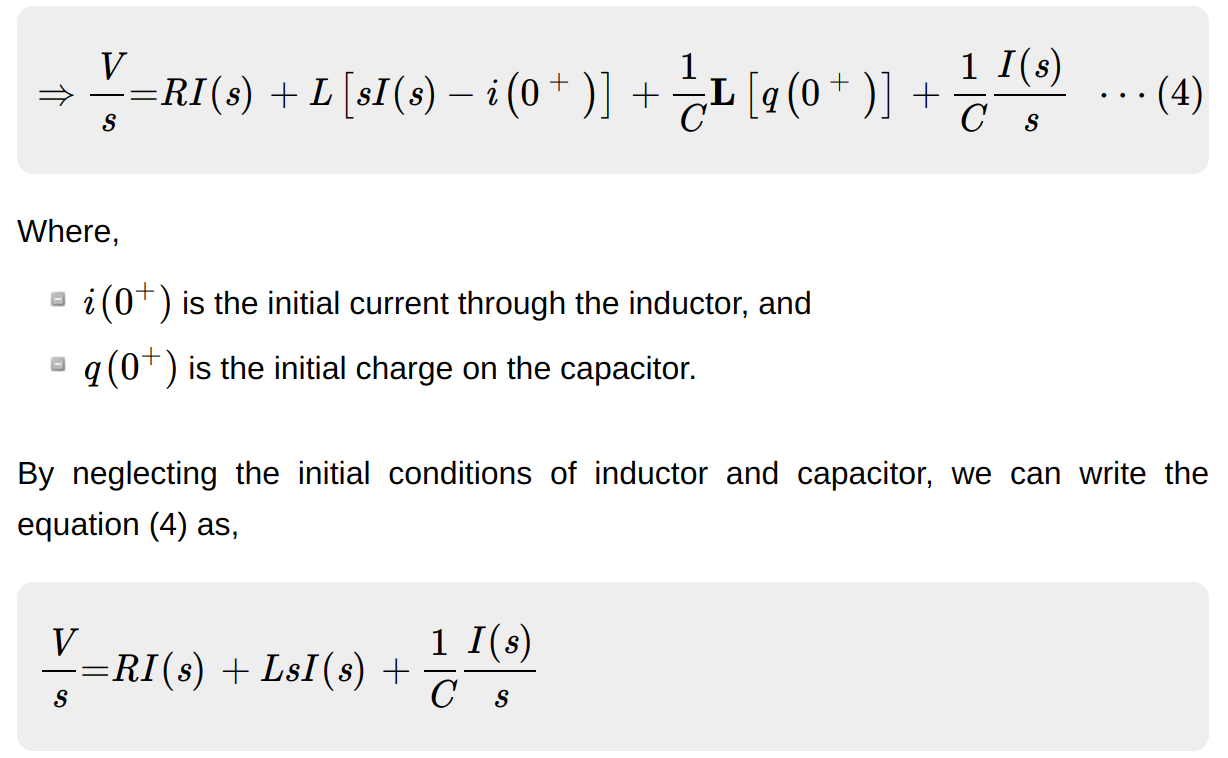

ODE --> Laplace function

https://www.tutorialspoint.com/step-response-of-series-rlc-circuit-using-laplace-transform

Your turn

T(t)=J\dfrac{d \omega(t)}{dt}+D\omega(t)+T_L
\dfrac{\omega(s)}{T(s)}=?

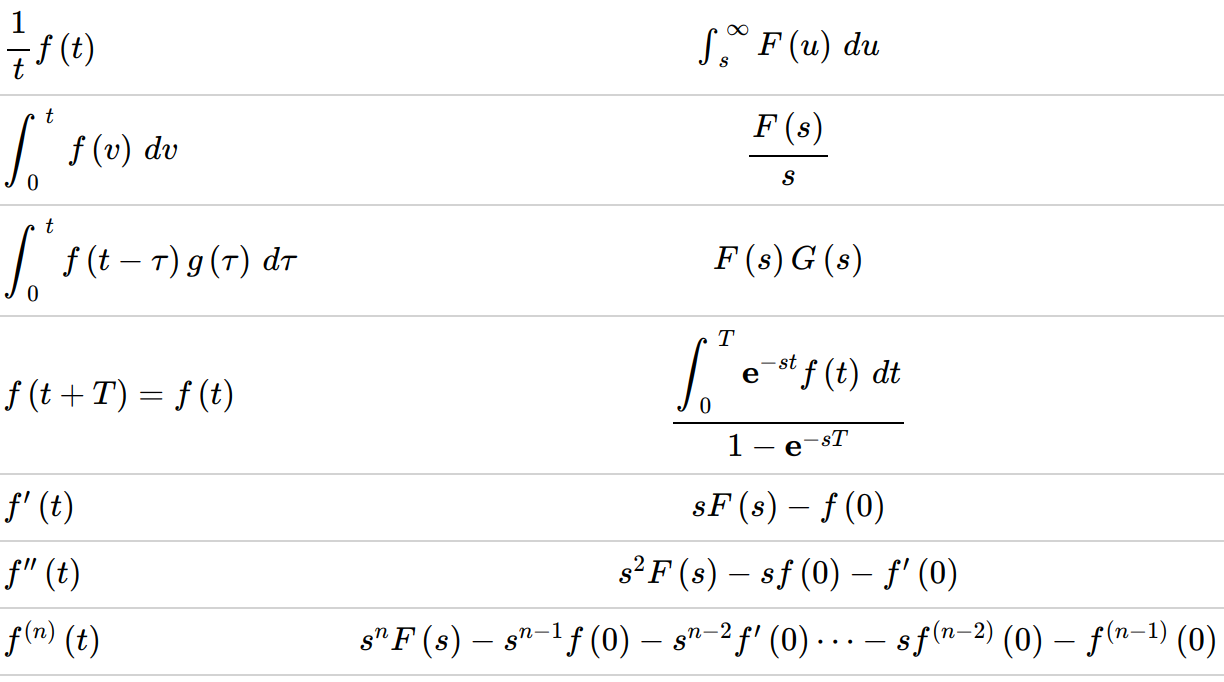

https://tutorial.math.lamar.edu/classes/de/laplace_table.aspx

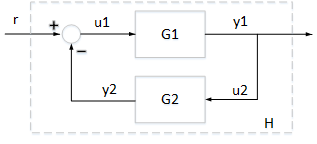

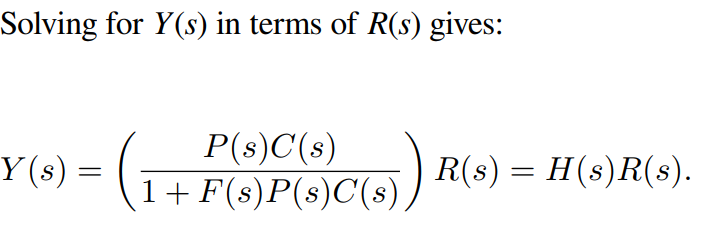

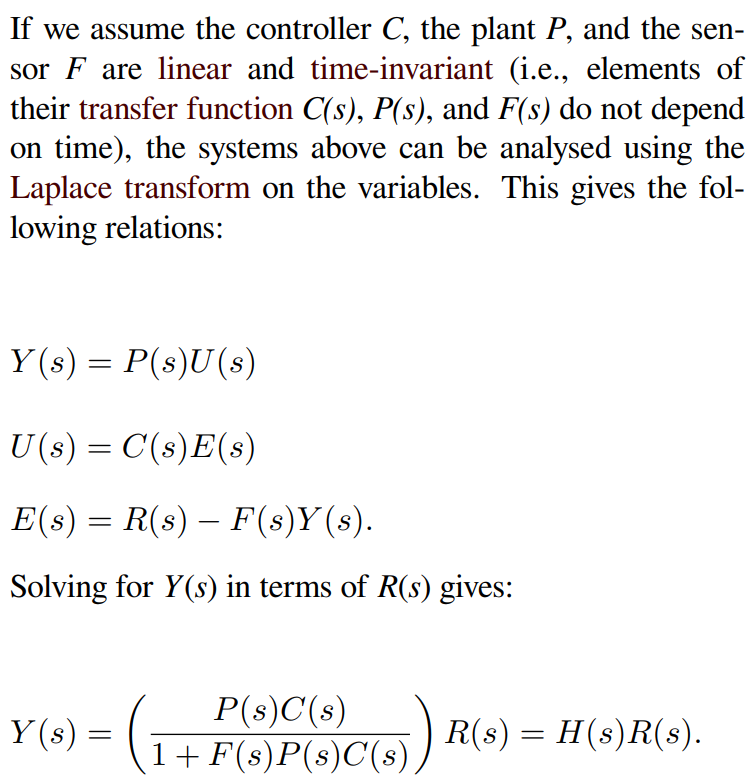

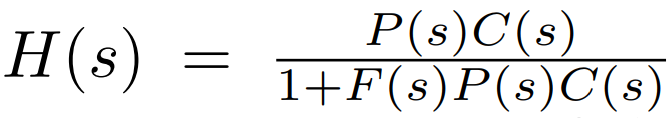

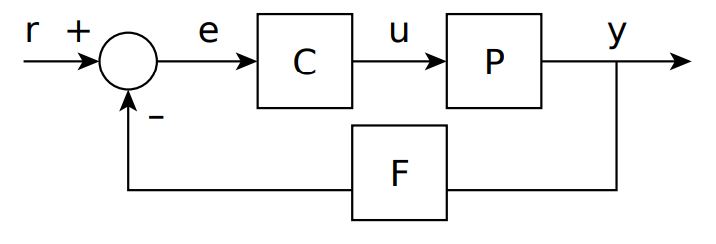

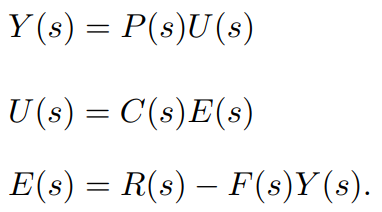

Closed-loop feedback control Laplace function

Closed-loop feedback control Laplace function

https://www.basicknowledge101.com/pdf/control/Control%20theory.pdf

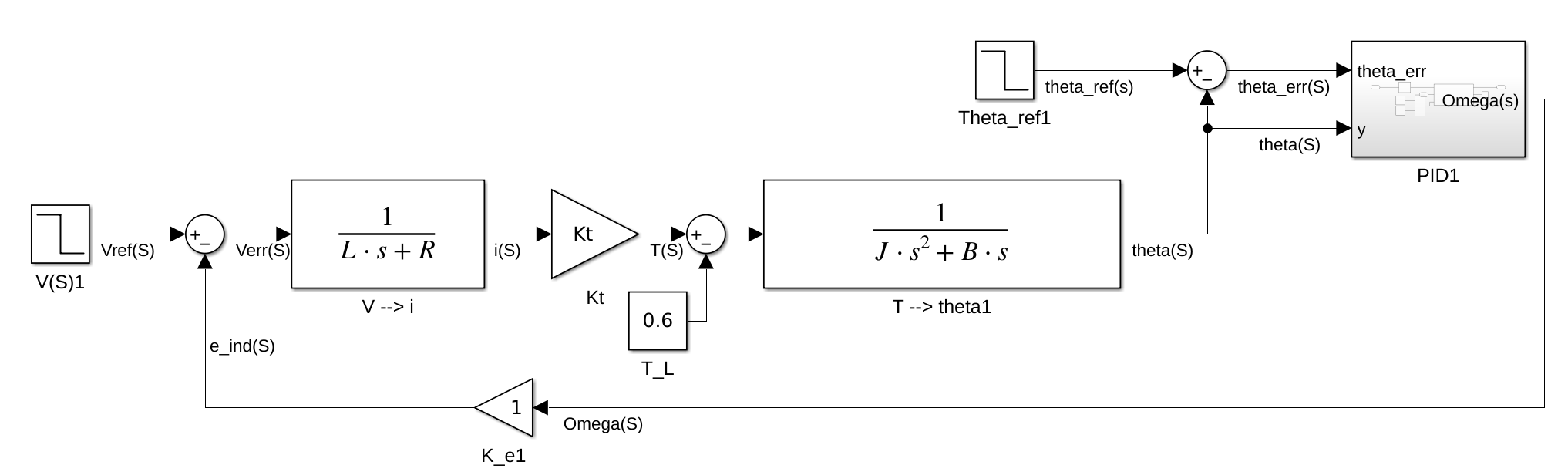

Homework

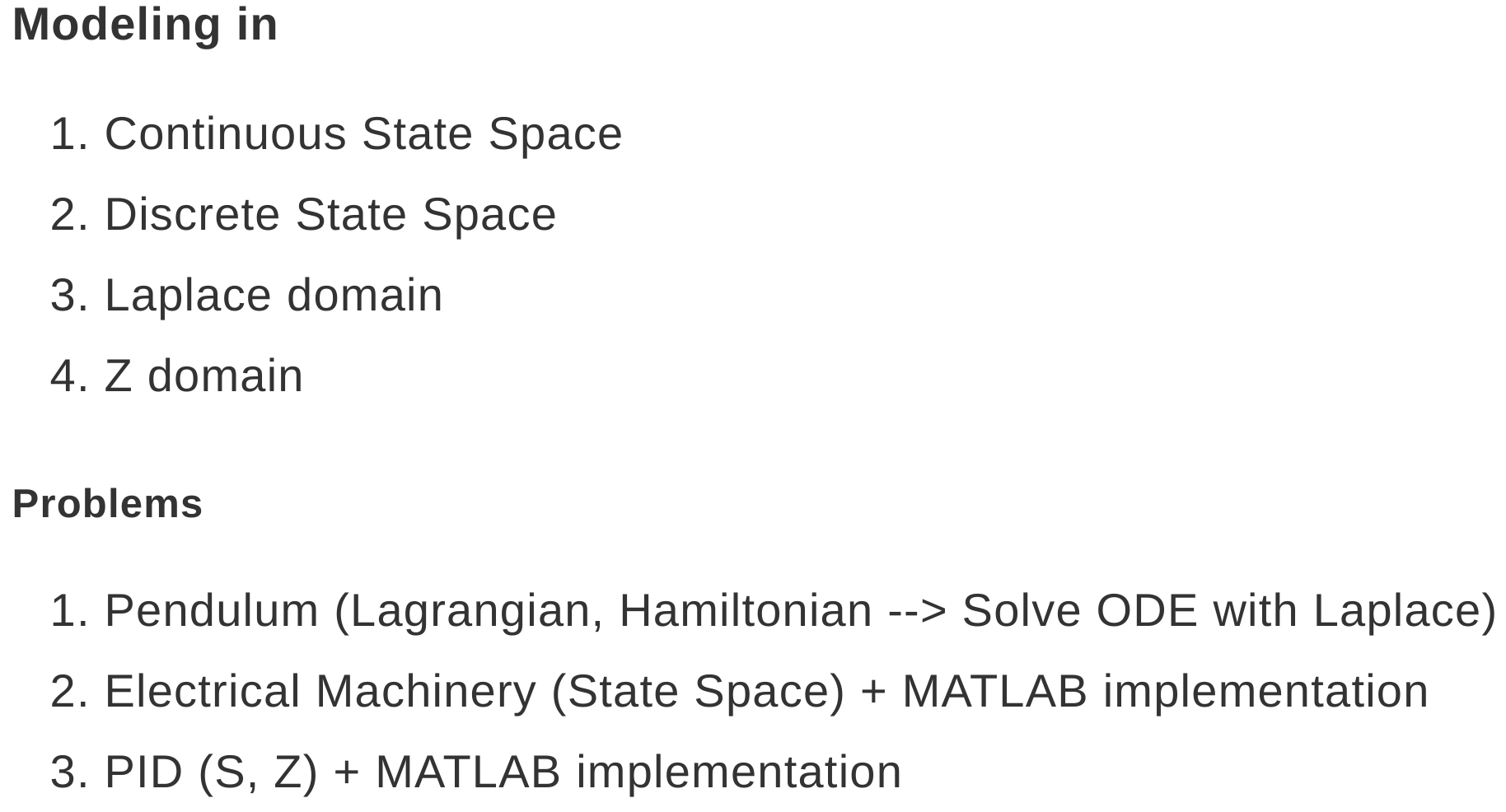

What's Next

3. prepare for implementation

4. Implementation: Dynamic modeling of a sounding rocket without aerodynamics (3hr)

5. Design of ADCS for the sounding rocket model (6hr)

6. Guidance, Algorithms and Control (>10hr)

  1. Prequired Linear algebra knowledge
  2. Frames --> Conversion between frames
  3. An intro to Attitude Determination Control Subsystem (ADCS)

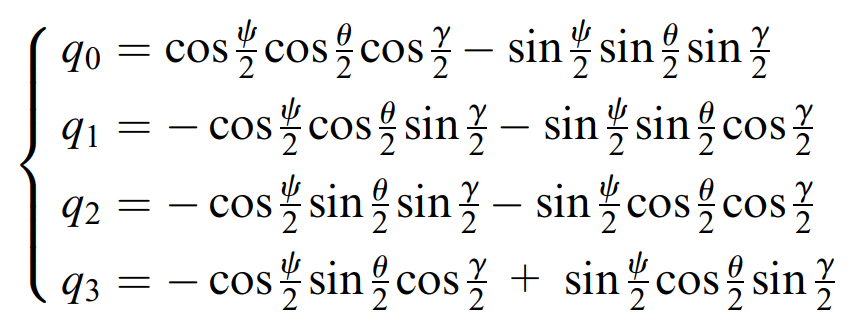

  4. Rotation: Quaternion and Euler angle
  5. Representation of Attitude
