Accessibility First Design System Components

Stephanie Eckles

@5t3ph

5t3ph.dev/a11y-ds-slides

Accessibility + Empathy

the most promising way to use technology to affect positive change

Thank you!

for working to improve interactive experiences
and make them accessible for all users

2007 - 2018

Advertising/Marketing Developer

  • Multi-platform DS: React, HTML/Sass, Angular

2007 - 2018

Advertising/Marketing Developer

Oct 2018 - Present

Lead DS Developer,

Frontend Product Dev

egghead instructor

ModernCSS.dev

LearnFromSteph.dev

dev.to/5t3ph

mom of 2 girls

Quick shout-out to my team and our fantastic dedicated accessibility gurus!

🥰

What I Want to Share Today:

What I Want to Share Today:

  • The value of design systems

What I Want to Share Today:

  • The value of design systems

  • Considerations for design system DX

What I Want to Share Today:

  • The value of design systems

  • Considerations for design system DX

  • Tips for self-defensive accessibility in components and themes

Design Systems:

Design Systems:

provide a cohesive visual language, essential to building products faster and better

Design Systems:

establish design standards among products

Design Systems:

form a shared lexicon of
UI terms

Design Systems:

reduce technical debt with
tested, accessible components

What is a component?

What is a component?

an isolated piece of code
used as building blocks for more complex UI

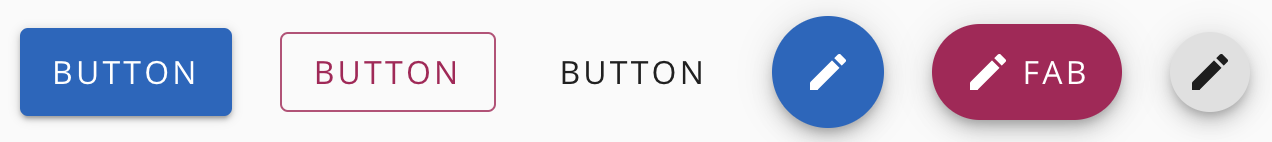

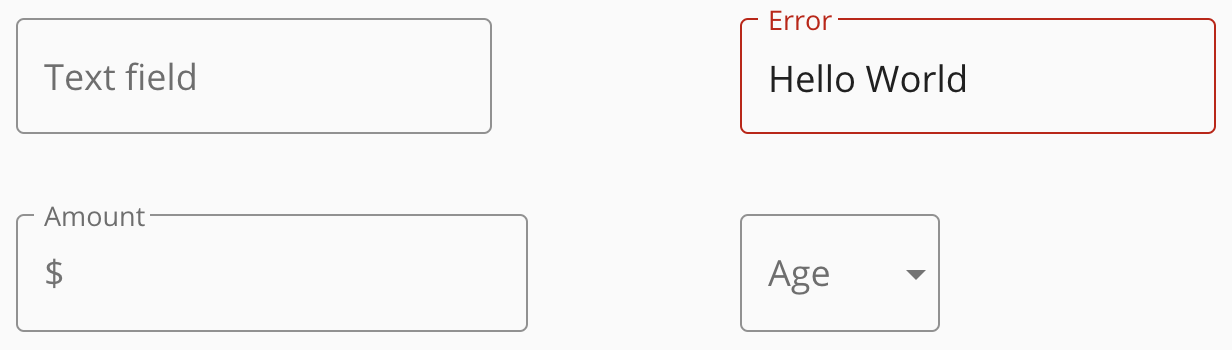

Component Examples

Component Examples

Component Examples

DX Win #1:

DX Win #1:

components inherently abstract pain points by encapsulation

components inherently
abstract pain points by
encapsulation

components inherently
abstract pain points by
encapsulation

providing semantic
HTML

components inherently
abstract pain points by
encapsulation

providing semantic
HTML

themed style
variants

components inherently
abstract pain points by
encapsulation

providing semantic
HTML

themed style
variants

components inherently
abstract pain points by
encapsulation

providing semantic
HTML

themed style
variants

guide developers with low familiarity with frontend/a11y

DX Win #2:

DX Win #2:

robust theme
capabilities alleviate
contrast issues

robust theme
capabilities alleviate
contrast issues

5t3ph.dev/a11y-ds-contrast

Ensure your theme system accounts for both initial text contrast as well as stateful-contrast

DX Win #3:

DX Win #3:

in-context a11y warnings
and documentation

in-context a11y warnings
​and documentation

Example: <IconButton />

in-context a11y warnings
​and documentation

Example: <IconButton />

failure to provide reasonable alternative text for the label

in-context a11y warnings
​and documentation

npm install warning

in-context a11y warnings
​and documentation

warning(
  props['aria-label'],
  'Design System: IconButton requires an aria-label prop. For a working, accessible example, see https://designsystemdocs.io/components/icon-buttons',
);

Example: <IconButton />

in-context a11y warnings
​and documentation

warning(
  props['aria-label'],
  'Design System: IconButton requires an aria-label prop. For a working, accessible example, see https://designsystemdocs.io/components/icon-buttons',
);

Example: <IconButton />

in-context a11y warnings
​and documentation

warning(
  props['aria-label'],
  'Design System: IconButton requires an aria-label prop. For a working, accessible example, see https://designsystemdocs.io/components/icon-buttons',
);

Example: <IconButton />

in-context a11y warnings
​and documentation

warning(
  props['aria-label'],
  'Design System: IconButton requires an aria-label prop. For a working, accessible example, see https://designsystemdocs.io/components/icon-buttons',
);
  • Appears in console only in dev environment

in-context a11y warnings
​and documentation

warning(
  props['aria-label'],
  'Design System: IconButton requires an aria-label prop. For a working, accessible example, see https://designsystemdocs.io/components/icon-buttons',
);
  • Appears in console only in dev environment

  • In-context opportunity to provide fix
      - include link to docs demo

in-context a11y warnings
​and documentation

warning(
  props['aria-label'],
  'Design System: IconButton requires an aria-label prop. For a working, accessible example, see https://designsystemdocs.io/components/icon-buttons',
);
  • Appears in console only in dev environment

  • In-context opportunity to provide fix
      - include link to docs demo

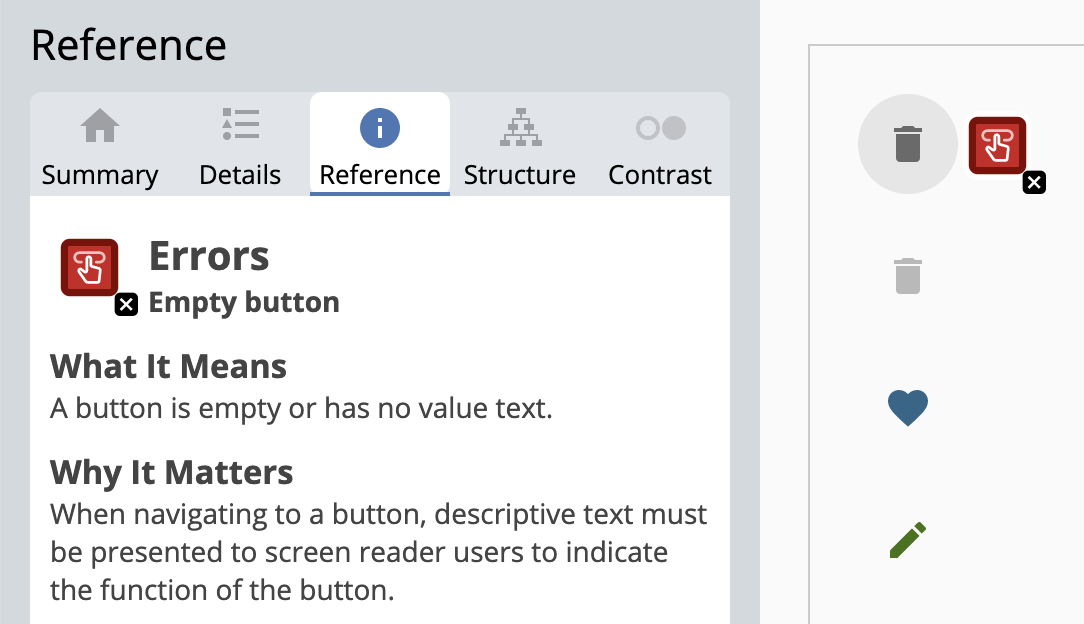

  • Complimentary to aXe or other a11y linters

DX Win #4:

required props and a11y-aware
defaults in consideration of
component intent

component
intent

component
intent

🤝

component
intent

accessibility
guidelines

🤝

component
intent

accessibility
guidelines

🤝

overlap of design system guidelines and accessibility standards

required props and a11y-aware defaults

Example: <Input />

interface IInputProps extends React.InputHTMLAttributes<HTMLInputElement> {
  type?: InputType;
}

const Input: React.FunctionComponent<IInputProps> = ({ type = "text" }) => {
  return <input type={type} />;
};

required props and a11y-aware defaults

Example: <Input />

interface IInputProps extends React.InputHTMLAttributes<HTMLInputElement> {
  type?: InputType;
}

const Input: React.FunctionComponent<IInputProps> = ({ type = "text" }) => {
  return <input type={type} />;
};

required props and a11y-aware defaults

Example: <Input />

interface IInputProps extends React.InputHTMLAttributes<HTMLInputElement> {
  type?: InputType;
}

const Input: React.FunctionComponent<IInputProps> = ({ type = "text" }) => {
  return <input type={type} />;
};

required props and a11y-aware defaults

Example: <Image />

interface IImageProps {
  alt: string;
  src: string;
}

const Image: React.FunctionComponent<IImageProps> = ({ alt = "", src }) => {
  return <img alt={alt} src={src} />;
};

required props and a11y-aware defaults

Example: <Image />

interface IImageProps {
  alt: string;
  src: string;
}

const Image: React.FunctionComponent<IImageProps> = ({ alt = "", src }) => {
  return <img alt={alt} src={src} />;
};

required props and a11y-aware defaults

best practice defaults
specific to your design system

required props and a11y-aware defaults

best practice defaults
specific to your design system

best practice defaults
specific to your design system

Example: <Button />

interface IButtonProps {
  variant?: 'contained' | 'outlined' | 'text';
}

const Button: React.FunctionComponent<IButtonProps> = ({ variant = "contained", ...props }) => {
  return <button class=`button-${variant}` {...props} />;
};

best practice defaults
specific to your design system

Example: <Button />

interface IButtonProps {
  variant?: 'contained' | 'outlined' | 'text';
}

const Button: React.FunctionComponent<IButtonProps> = ({ variant = "contained", ...props }) => {
  return <button class=`button-${variant}` {...props} />;
};

robust, contrast-safe theming

robust, contrast-safe theming

in-context a11y warnings and docs

required
props

robust, contrast-safe theming

in-context a11y warnings and docs

required
props

a11y-aware
defaults

0
 Advanced issue found
▲


robust, contrast-safe theming

in-context a11y warnings and docs

required
props

a11y-aware
defaults

0
 Advanced issue found
▲


design system
best practices

0
 Advanced issue found
▲


robust, contrast-safe theming

in-context a11y warnings and docs

required
props

a11y-aware
defaults

0
 Advanced issue found
▲


design system
best practices

0
 Advanced issue found
▲


accessible, easy to
implement design system components

robust, contrast-safe theming

in-context a11y warnings and docs

But...

But...

components can't cover every accessibility concern

Going beyond components...

Going beyond components...

production-ready
accessible examples in documentation

Going beyond components...

a11y-tested library of extended patterns

Going beyond components...

encouraging a11y linters and browser extensions

Going beyond components...

offering accessibilty audits

Going beyond components...

offering "getting started" workshops

Accessibility First Design System Components

Stephanie Eckles

@5t3ph

5t3ph.dev/a11y-ds-slides
