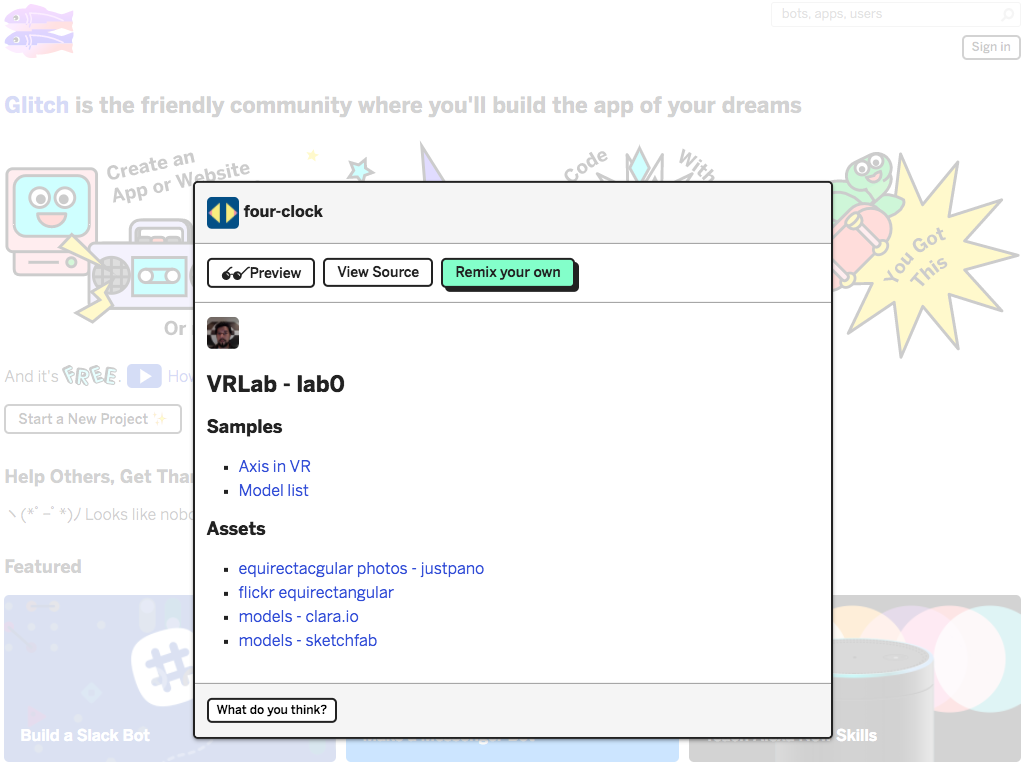

Remix
https://glitch.com/~four-clock
La Camara en VR

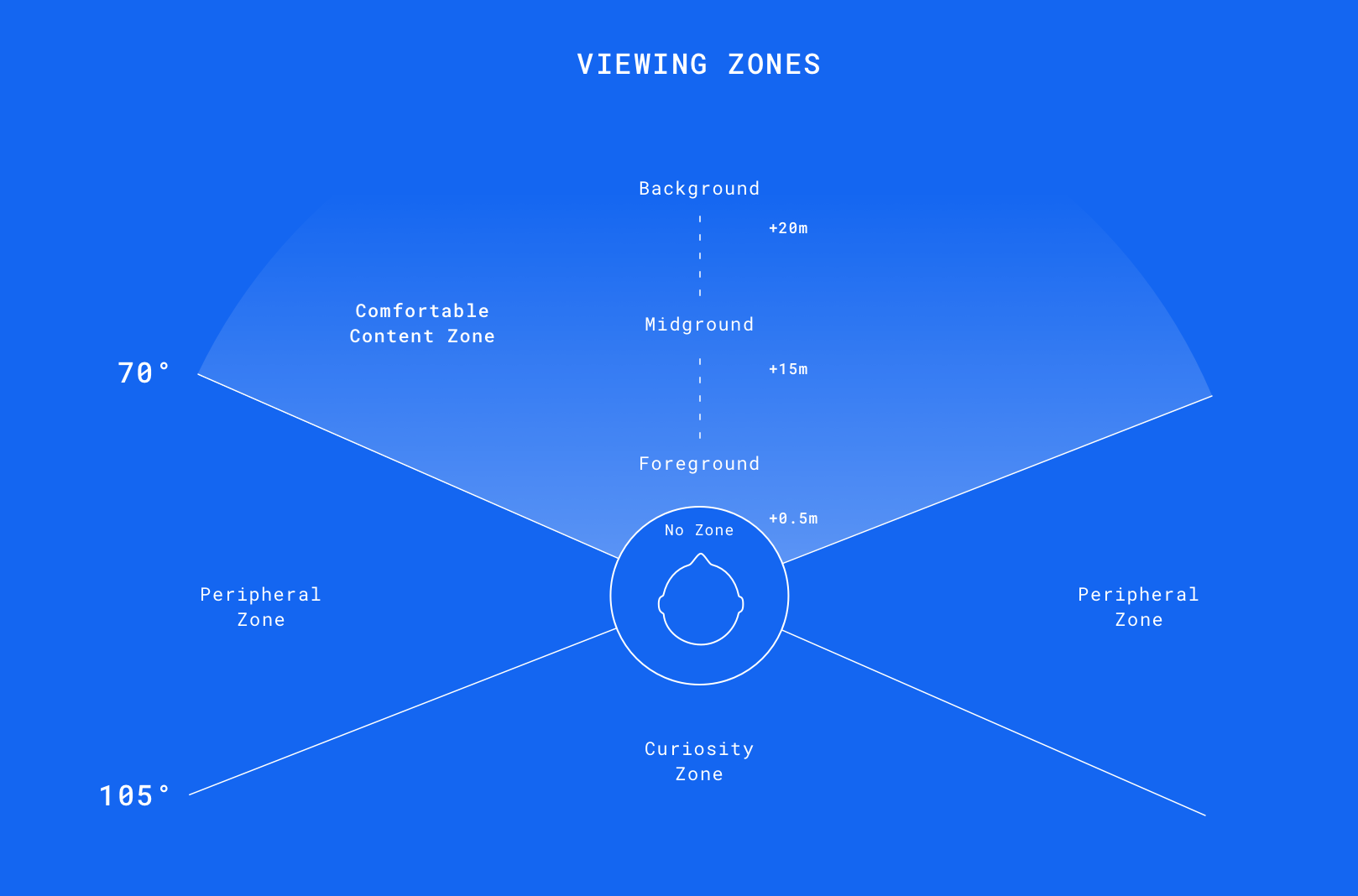

la zona de confort
¿y que pasa con las medidas?
medida de la vista
Importante
hacia el frente es Z y va disminuyendo
- positions (x, y, z) en metros
- rotations (x, y, z) en grados
- scales (x, y, z) de 0 a 1

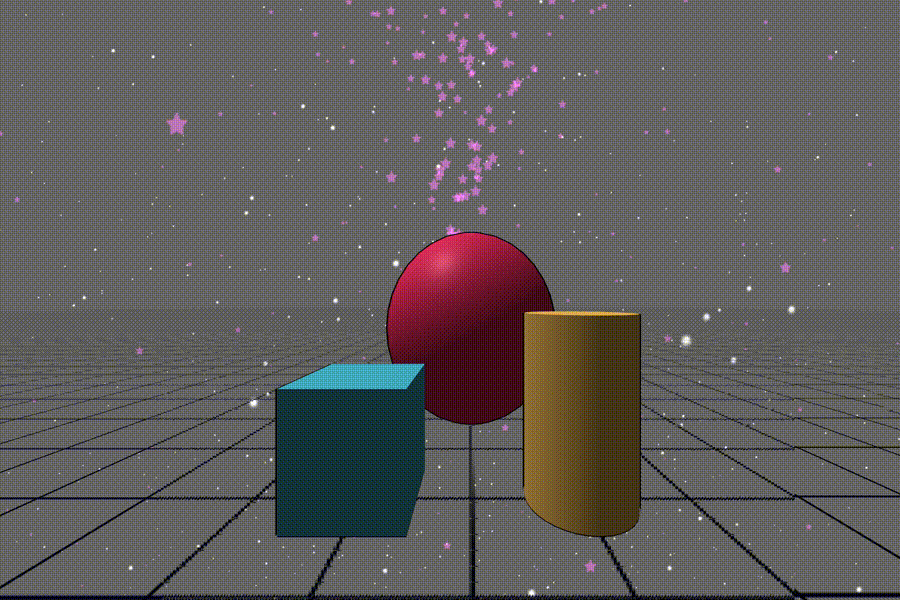

Primitivas 3D
Importante
¿de que esta compuesto un objeto en 3D?
¿Que es un vertice?
collada
blender
glTF
obj
.dae, contiene la información del material en el mismo archivo
.obj / .mtl, dos archivos, es muy pesado, muy usado en unity, formato por defecto. el .doc de 3D
.blend, archivos exportados desde blender.
formato preferido para web. contiene un archivo .bin que debe estar en la misma ruta
otros
json loader, three loader, etc
ecosistema glTF
Estructura de un glTF
Materiales / texturas
Principales Propiedades
- opacity (de 0 a 1)
- transparent (true / false)
- color (hex / color name)
- metalness (refleja la luz como un metal)
- wireframe (muestra los vertices del mesh)
- src o textura (textura)
Un Material esta compuesto de:
- shader
- albedo
- textura
Luces y sombras
ambient
directional
point
spot
hemisphere
Luz ambiente requerida para dar color a los objetos
similar a la de ambiente pero con dos colores top/bottom
es omnidireccional y afecta a los objetos dependiendo de la distancia y material
no es omnidireccional y afecta a los objetos dependiendo de la distancia y material // la batiseñal
como una linterna
Principales Propiedades
- Si no se agrega una luz, a-frame crea dos luces, una de ambiente y una direccional
- Note that lights are computationally expensive we should limit number of lights in a scene.
- habilitar sombras requiere deshabilitar las luces por defecto
- preferible usar un bake (¿que es un bake?)
Animaciones
Propiedades animables
- Vectores (x y z)
- enteros
- colores (hex, colorname)
- boleanos (true / false)
- propiedades en componentes (rotation.x)
Propiedades de la animación
- begin (milis to wait)
- direction (from-to , to-from)
- ease (función ease)
- repeat (# de veces)
- loop (¿?)
Tener en cuenta
- si se quiere animar varias propiedades se deben crear entidades hijo con cada una de las animaciones
- si no gusta las animaciones a-frame se puede usar greensock
- también se puede usar https://github.com/ngokevin/kframe/tree/master/components/animation/
Fisica y cuerpos
dynamic-body
A freely-moving object. Dynamic bodies have mass, collide with other objects, bounce or slow during collisions, and fall if gravity is enabled.
objetos afectados por la gravedad y por otros objetos
static-body
A fixed-position or animated object. Other objects may collide with static bodies, but static bodies themselves are unaffected by gravity and collisions.
paredes, pisos, puertas.
particulas
Interpupillary distance (IPD)
is the distance between the center of the pupils of the two eyes. IPD is critical for the design of binocular viewing systems, where both eye pupils need to be positioned within the exit pupils of the viewing system.

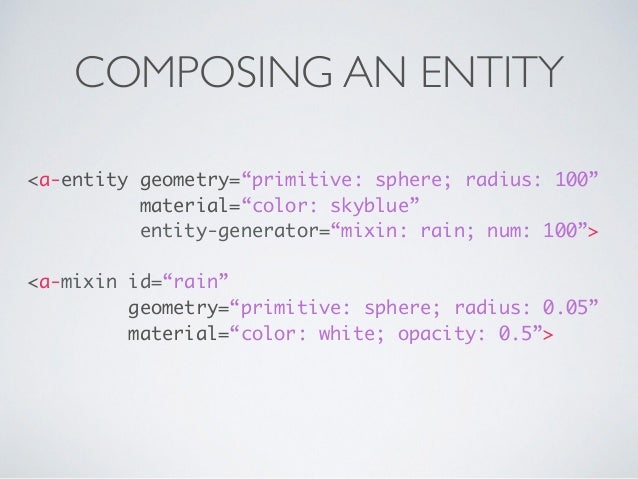

Entity System
Components of A-Frame’s entity-component framework are JavaScript modules that can be mixed, matched, and composed onto entities to build appearance, behavior, and functionality. We can register component in JavaScript and use it declaratively from the DOM. Components are configurable, reusable, and shareable. Most code in an A-Frame application should live within components.
html syntax
- Box = Position + Geometry + Material
- Light Bulb = Position + Light + Geometry + Material + Shadow
- Sign = Position + Geometry + Material + Text
- VR Controller = Position + Rotation + Input + Model + Grab + Gestures
- Ball = Position + Velocity + Physics + Geometry + Material
- Player = Position + Camera + Input + Avatar + Identity
Writing Components
<script>
AFRAME.registerComponent('bar', {
// ...
});
</script>
component life cycle
<script>
// Registering component
AFRAME.registerComponent('component-name', {
schema: {},
init: function () {},
update: function () {},
tick: function () {},
remove: function () {},
pause: function () {},
play: function () {}
});
</script>
schema
<script>
// Registering component
AFRAME.registerComponent('bar', {
schema: {
color: {default: '#FFF'}
},
init: {
console.log(this.data.color);
}
}
</script>
<a-scene>
<a-entity bar="color: red;"></a-entity>
</a-scene>

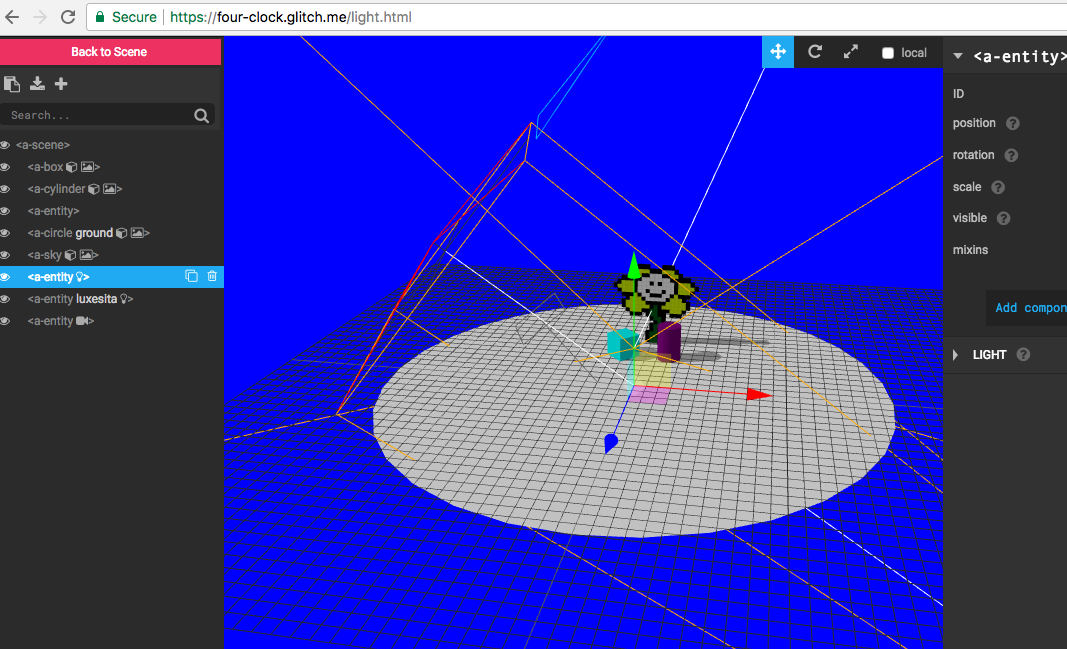

debug and hack
- threejs-inspector: https://chrome.google.com/webstore/detail/threejs-inspector/dnhjfclbfhcbcdfpjaeacomhbdfjbebi?hl=en
- components property.
Updates and more
- nueva micro version de a-frame: https://github.com/aframevr/aframe/blob/master/CHANGELOG.md
- http://keithclark.co.uk/articles/css-vr/
oportunidades de proyecto
- Guia 360 por prodigious / para nuevos empleados y para visitantes
- prodigious VR bazar (mini juegos e interacciones)
- cuenta una historia (storytelling + vr)
oportunidades de crecimiento
- Haciendo QA en VR
- UI / UX good practices
- 1 Cupo para el nano degree de udacity (1200 USD)
- Entity system (theory)
- Writing Components (the good, the bad and the ugly)
- Scripting events (based on gaze cursor)
- Using Utils (DRY)
- Good Practices
- Dirty hacks
- Project Ideas (Thinking outside the VR box)
