Partially Observable MDP

Definition

Graphical Model for POMDP:

POMDP is a 6-tuple \(<S,A,R,T,\Omega, O>\):

• \(S\) is a set of states
• \(A\) is a set of actions
• \(R: S \times A \to \mathbb{R}\) is a reward function
• \(T: S \times A \times S \to [0,1]\) is a transition function \(T(s,a,s\prime) =  P(S_{t+1}=s\prime|S_t=s, A_t=a)\)
• \(O\) is a set of observations.
• \(\Omega\) is a set of \(|O|\) conditional probability distributions \(P(o|s)\)

Partially Observable MDP

 Exact Solution

A proper belief state allows a POMDP to be formulated as a MDP over belief states (Astrom, 1965)

Belief State update:

General Idea:

Belief Update        "Beilief" MDP        Plan with Value Iteration        Policy

Problems:

• Need a model: \(p(o|s)\) and \(p(s'| a, s)\)
• Can compute exact belief update only for small/simple MDP

Learning in POMDP

Choose your fighter

Why We Need Working Memory?

. . .

. . .

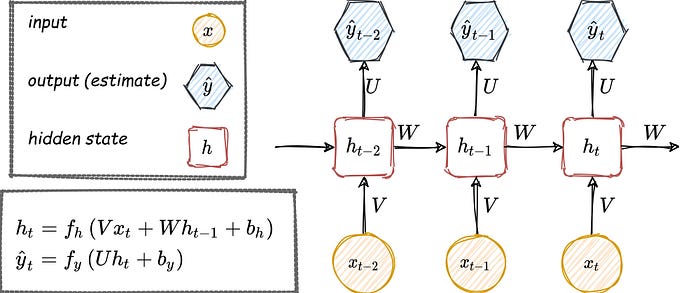

Recurrent Memory:

\(h_{10}\)

. . .

. . .

\(h_9\)

\(h_{19}\)

. . .

. . .

. . .

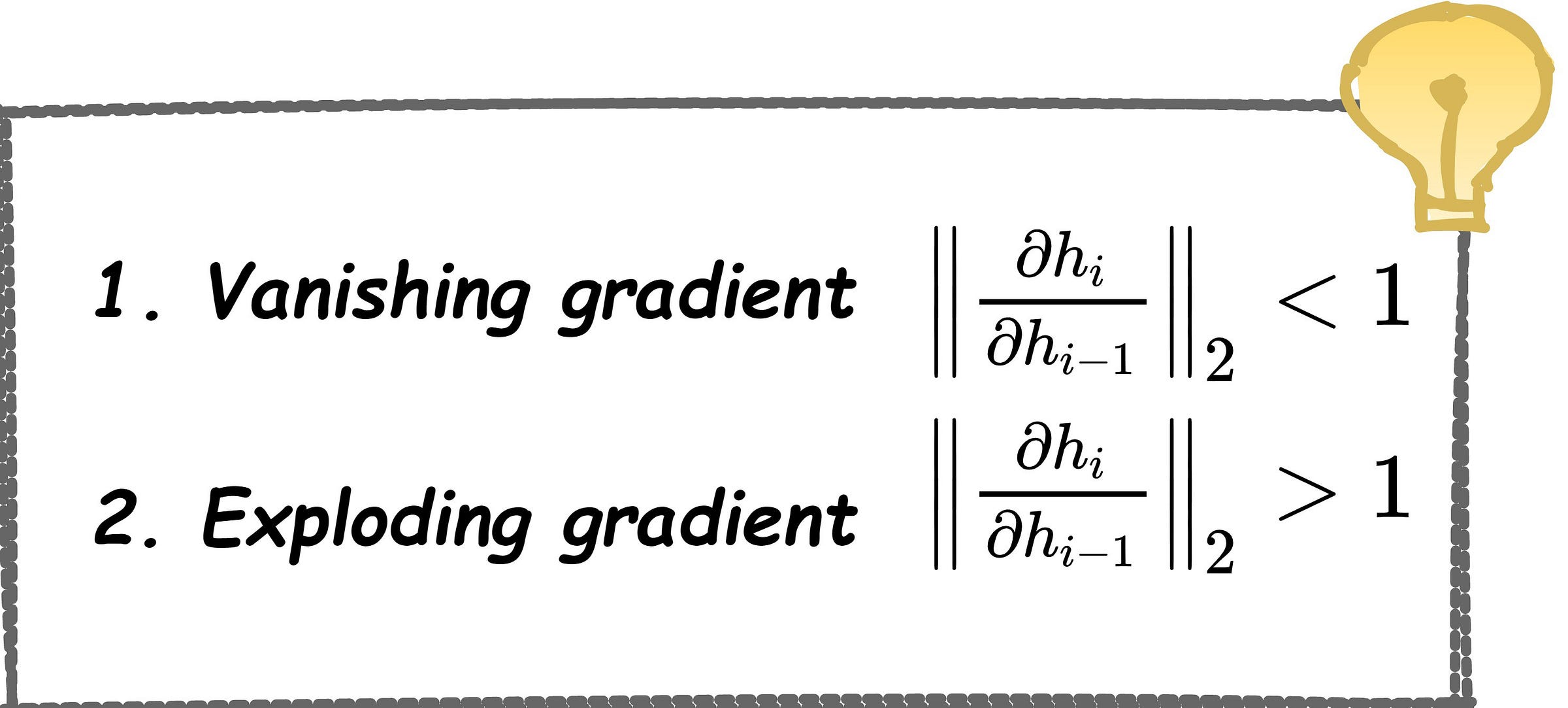

Problem with RNNs:

Solutions for Vanishing Gradients

Fight RNN problems by building more complex RNNs

Long-Short Term Memory: LSTM

Differential Neural Computer: DNC

Window Based Memory:

. . .

. . .

Soft-Attention:

. . .

. . .

\(e_{10}\)

\(e_{12}\)

Soft-Attention:

. . .

. . .

\(e_{10}\)

\(e_{12}\)

\(a_{10}\)

Embeddings

Query

\(a_{12}\)

Context Vector \(c_{20} = \sum_t a_t e_t\)

Attention weight: \(a_t = {e_{t}}^T q/\sum_i {e_{i}}^T q \)

\(q\)

Transformer Basics: Self-Attention

Transformer Basics: Self-Attention

Self-Attention computation:

Each \(z_t\) contains relevant information about \(o_t\) collected over all steps in

Memory Window:

Full Transformer

This is how real Transformer looks:

Transformer:

• All time-steps in a memory window attends to all other time-steps
• For each time-step you have: Query \(q_t\), Key \(k_t\), Value \(v_t\)
• Transformer has N attention heads!
• Transformer uses positional encoding to relate different time steps temporarily
• You repeat this process for several layers!

Transformer

Attention is All You Need!

Just add LSTM to everything

Off-Policy Learning (DRQN):

• Add LSTM before last 1-2 layers
• Sample sequences of steps from Experience Replay

On-Policy Learning (A3C/PPO):

• Add LSTM before last 1-2 layers
• Keep LSTM hidden state \(h_t\) between rollouts

PPO+LSTM+RESOURCES

DRQN+LSTM+TRICKS

Asynchronous Methods for Deep Reinforcement Learning (Mnih et al,  2016) | DeepMind, ICML, 3113 citations

Deep Recurrent Q-Learning for Partially Observable MDPs

(Hausknecht et al, 2015) AAAI,  582 citations )

Just add LSTM to everything

Default choice for memory in big projects

"To deal with partial observability, the temporal sequence of observations is processed by a deep long short-term memory (LSTM) system"

AlphaStar Grandmaster level in StarCraft II using multi-agent reinforcement learning (Vinyalis et al,  2019) | DeepMind, Nature, 16 Citations

Just add LSTM to everything

Default choice for memory in big projects

"The LSTM composes 84% of the model’s total parameter count."

Dota 2 with Large Scale Deep Reinforcement Learning (Berner et al,  2019) | OpenAI, 17 Citations

R2D2: We can do better

DRQN tests two sampling methods:

• Sample full episode sequences
  • Problem: sample correlation in mini-batch is proportional to the sequence length
• Sample random sub-sequences of length k (10 steps in the paper)
  • Problem: initial hidden state is zero at the start of a rollout

Recurrent Experience Replay in Distributed Reinforcement  Learning (Kapturowski et al,  2019) | DeepMind, ICLR, 49 citations

R2D2: We can do better

R2D2 is a DRQN build on top of Ape-X (Horgan et al, 2018) with addition of two heuristics:

• Stored state: Storing the recurrent state in replay and using it to initialize the network at training time
• Burn-in: Use a portion of the replay sequence only for unrolling the network and producing a start state, and update the network only on the remaining part of the sequence

Burn-in - 40 steps, full rollout - 80 steps

Recurrent Experience Replay in Distributed Reinforcement  Learning (Kapturowski et al,  2019) | DeepMind, ICLR, 49 citations

R2D2

Results: Atari-57

R2D2

Results: DMLab-30

Recurrent Experience Replay in Distributed Reinforcement  Learning (Kapturowski et al,  2019) | DeepMind, ICLR, 49 citations

AMRL

Motivation

Recurrent Neural Networks:

• good at tracking order of observations

• susceptible to noise in observations

• bad at long-term dependencies

RL Tasks:

• order often doesn't matter

• high variability in observation sequences

• long-term dependencies

AMRL: Aggregated Memory For Reinforcement Learning (2020) | MS Research, ICLR

AMRL:

Robust Aggregators

Add aggregators that ignore order of observations:













Agregators also act as residual skip connections across time.

Instead of true gradients a straight-through estimator(Bengio et al., 2013) is used.

AMRL: Aggregated Memory For Reinforcement Learning (2020) | MS Research, ICLR

AMRL

Architecture and Baselines

AMRL: Aggregated Memory For Reinforcement Learning (2020) | MS Research, ICLR

AMRL

Experiments

AMRL: Aggregated Memory For Reinforcement Learning (2020) | MS Research, ICLR

AMRL

Experiments

AMRL

Experiments

AMRL: Aggregated Memory For Reinforcement Learning (2020) | MS Research, ICLR

Are rewards enough to learn memory?

• Learning only by optimizing future rewards

  • A3C/PPO + LSTM

  • DRQN, R2D2
  • AMRL

• What if we know a little bit more?

  • Neural Map (Parisotto et al, 2017)
  • Working Memory Graphs(Loynd et al, 2020)

• Learing with rich self-supervised sensory signals

  • World Models (Ha et al, 2018)
  • MERLIN (Wayne et al, 2018)
  • PlaNet (Hafner et al, 2019)
  • Dreamer (Hafner et al, 2020)
  • Dreamer-v2 (Hafner et al, 2021)

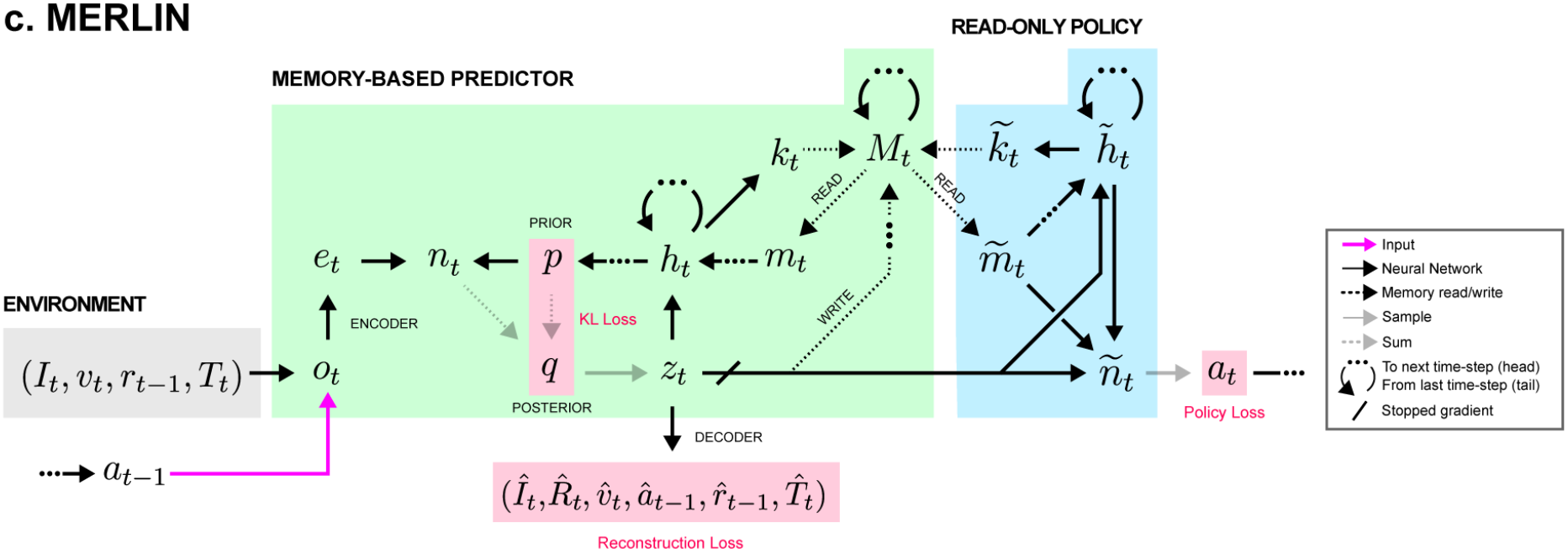

MERLIN

Unsupervised Predictive Memory in a Goal-Directed Agent (2018)

MERLIN has two basic components:

• Model-Based Predictor

  • a monstrous combination of VAE and Q-function estimator

  • uses simplified DNC under the hood

• Policy

  • no gradients flow between policy and MBR

  • trained with Policy Gradients and GAE

MERLIN

Experiments

MERLIN is compared against two baselines: A3C-LSTM, A3C-DNC

MERLIN

Experiments

Unsupervised Predictive Memory in a Goal-Directed Agent (2018)

Decision Transformer

Just treat RL as a sequence modeling problem

Decision Transformer: Reinforcement Learning via Sequence Modeling (Chen et al. 2021) |NeurIPS 2021

Decision Transformer

Training Decision Transformer:

• ​Train as in usual sequence learning task
• Can use suboptimal trajectories

Inference with Decision Transformer:

• Use first Reward-to-go \(R_0\) as promt in regular Transformers

Decision Transformer: Reinforcement Learning via Sequence Modeling (Chen et al. 2021) |NeurIPS 2021

Trajectory Transformer

Differences with Decision Transformer:

1. Each states and actions are split into many tokens
2. Uses Beam Search to select actions (see 1.)
3. Can learn goal-directed behaviour by using goal state as promt

Offline Reinforcement Learning as One Big Sequence Modeling Problem (Janner et al. 2021) |NeurIPS 2021

Results

Decision Transformer:

Results

Trajectory Transformer:

Hindsight Information Matching

Trajectory Transformer and Decision Transformer learn to generate tragectories that match with some statistics about the future

Generalized Decision Transformer for offline Hindsight Information Matching (Furuta et al) | ICLR 2022

HIM: Unseen HalfCheetah Task

Future statisitcs: Discretized X-velocity

Backflipping Dataset

Running Dataset

Generalized Decision Transformer for offline Hindsight Information Matching (Furuta et al) | ICLR 2022

HIM: Unseen HalfCheetah Task

Generalized Decision Transformer for offline Hindsight Information Matching (Furuta et al) | ICLR 2022

Stabilizing Transformers for RL

Stabilizing Transformers For Reinforcement Learning (Parisotto et al) | ICML 2020

Stabilizing Transformers for RL

Gating Layer

Stabilizing Transformers For Reinforcement Learning (Parisotto et al) | ICML 2020

Stabilizing Transformers for RL

Experiments

Stabilizing Transformers For Reinforcement Learning (Parisotto et al) | ICML 2020

Stabilizing Transformers for RL

Ablation Study

Stabilizing Transformers For Reinforcement Learning (Parisotto et al) | ICML 2020

Hierarchical Chunk Attention Memory

HCAM

Towards mental time travel: a hierarchical memory for reinforcement learning agents (Lampinen et al) | NeurIPS 2021

Hierarchical Chunk Attention Memory

Results

Towards mental time travel: a hierarchical memory for reinforcement learning agents (Lampinen et al) | NeurIPS 2021

Hierarchical Chunk Attention Memory

Results

Towards mental time travel: a hierarchical memory for reinforcement learning agents (Lampinen et al) | NeurIPS 2021
