Setup project

How to setup?

You need:

scene

camera

renderer

Setup project

var scene = new THREE.Scene();
var camera = new THREE.PerspectiveCamera( 75, w/ h, 0.1, 1000 );

var renderer = new THREE.WebGLRenderer();
renderer.setSize( window.innerWidth, window.innerHeight );
document.body.appendChild( renderer.domElement );

Setup project

function render() {
	requestAnimationFrame( render );
	renderer.render( scene, camera );
}
render();

Setup project

FORK THIS

Camera

Perspective vs Ortho

Camera

Camera

x,y,z

rotate(x,y,z)

lookAt

FOV

zoom

Camera

Lights

AmbientLight

PointLight

SpotLight

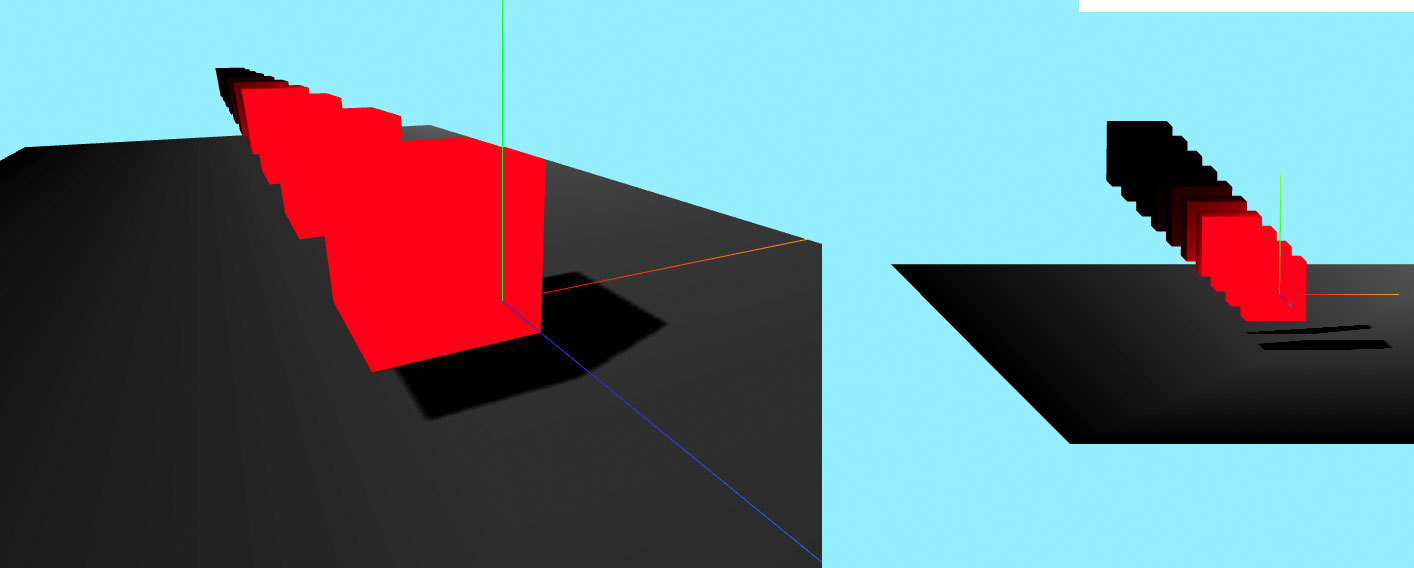

Lights + shadows!

... (init)

var renderer = new THREE.WebGLRenderer();
renderer.shadowMap.enabled = true;

renderer.shadowMapType = THREE.PCFSoftShadowMap;    //Optional

var plane = new THREE.Mesh(geo, mat);
plane.receiveShadow = true;

var cube = new THREE.Mesh(cubeGeo, cubeMat);
cube.castShadow = true;

var spotLight = new THREE.SpotLight(0xffffff);
... //Move up
spotLight.castShadow = true;

Lights + shadows!

- PointLightHelper

- SpotLightHelper!

- check near/far

- disable ambient:)

spotLight.shadowCameraNear = 10;
spotLight.shadowMapWidth = 2048;
spotLight.shadowMapHeight = 2048;

Objects

Object3D base class

 - "universal" parent for every object.

- also helps grouping objects.

- position, rotation, scale, matrix

- add, remove, parent, children

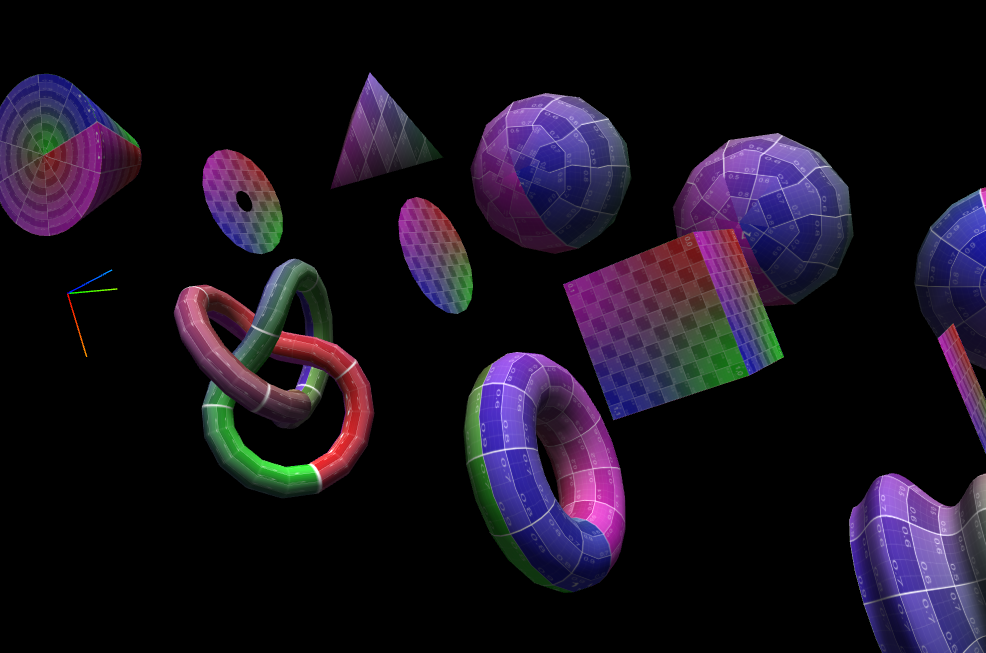

Geometry

Geometry base class

 - describe 3D model

- vertices

- colors (Points, Lines)

- faces

- verticesNeedUpdate = true

http://threejs.org/docs/index.html#Reference/Core/Geometry

Geometry

BoxGeometry,

SphereGeometry,

TextGeometry,

....

Material

Describe appearance of objects.

- opacity, transparent

 - side ( Front, Back, DoubleSide)

MeshBasicMaterial,

MeshLambertMaterial,

MeshPongMaterial

ShaderMaterial

http://threejs.org/examples/#webgl_materials

Mesh

var geometry = new THREE.BoxGeometry( 1, 1, 1 );
var material = new THREE.MeshBasicMaterial( { color: 0xffff00 } );

var mesh = new THREE.Mesh( geometry, material );
scene.add( mesh );

Orbital Controller

Don't implement your own camera controller

controls = new THREE.OrbitControls( camera, renderer.domElement );

dat.GUI

Helps you controlling values/property/everything

http://workshop.chromeexperiments.com/examples/gui/

Stats

Check FPS, Memory!

https://github.com/mrdoob/stats.js/

Helpers

ArrowHelper

AxisHelper

LightHelpers

CameraHelpers

...
