Design Django models such that your future self will thank you 👋🏾

@Tarun_Garg2

Coming up 📚

What is this talk about?
Setting up the premise
Key themes
- Audit your Models
- Timestamp your fields
- Soft deleting entries
- Use of choices
- Denormalisations
- ....
Bring down the curtain

What is this talk about 🤷🏻

What is this talk about 🤷🏽‍♀️

Setting up premise 🐒

Let's build Y.A.M.A. (Yet Another Messaging Application)

coz why not?

Y.A.M.A. 👻

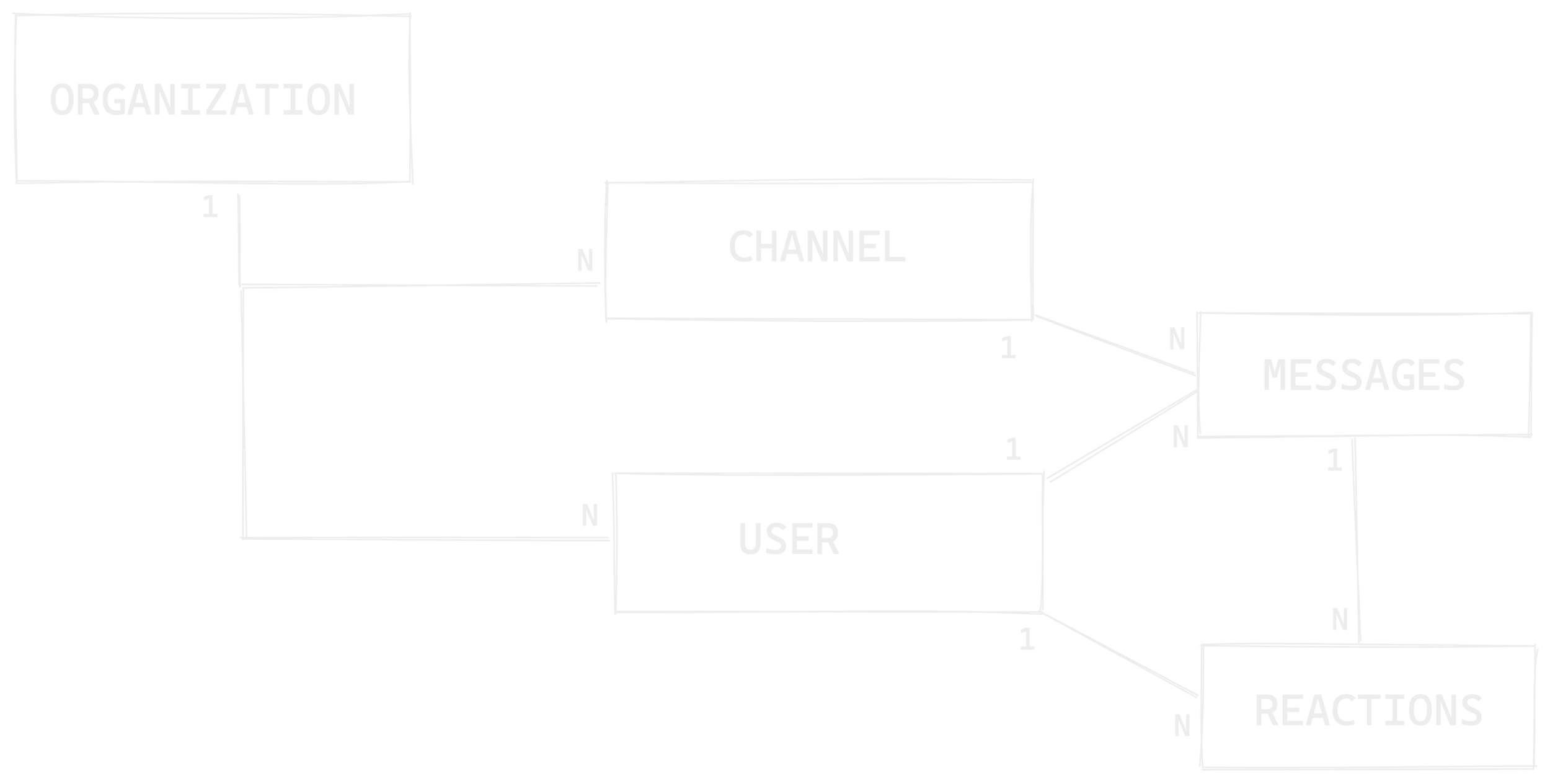

Let's see a high-level database design for Y.A.M.A.

Y.A.M.A. Adventures 👻

class User(models.Model):
   username = models.CharField(unique=True)
   profile_picture = models.URLField()
   ...user related fields

Y.A.M.A. Adventures 👻

PM:- Hey, can you tell me why does this user exists in our system? 👀

Developer:- Sure, allow me some time to debug 🦟

Y.A.M.A. Adventures 👻

Developer:- I need to know when was this user created to debug this; and I don't have that info in my schema.

Theme #1

Audit your models 📝

What is audit?

**googles**

An official examination of the present state of something.

Audit your models 📝

Have some metadata fields which
will help you audit your models

Audit your models 📝

class CreateUpdateAbstractModel:
    created_at = models.DateTimeField(auto_now_add=True)
    updated_at = models.DateTimeField(auto_now=True)

    class Meta:
        abstract = True

    def __str__(self):
        return str(self.id)

Most basic form of auditing can be achieved by following snippet

For a more advanced version of auditing, you can add other fields such as -
updated_by, created_by, deleted_at, deleted_by, raw_json

Audit your models 📝

Things I learned from experience!!!

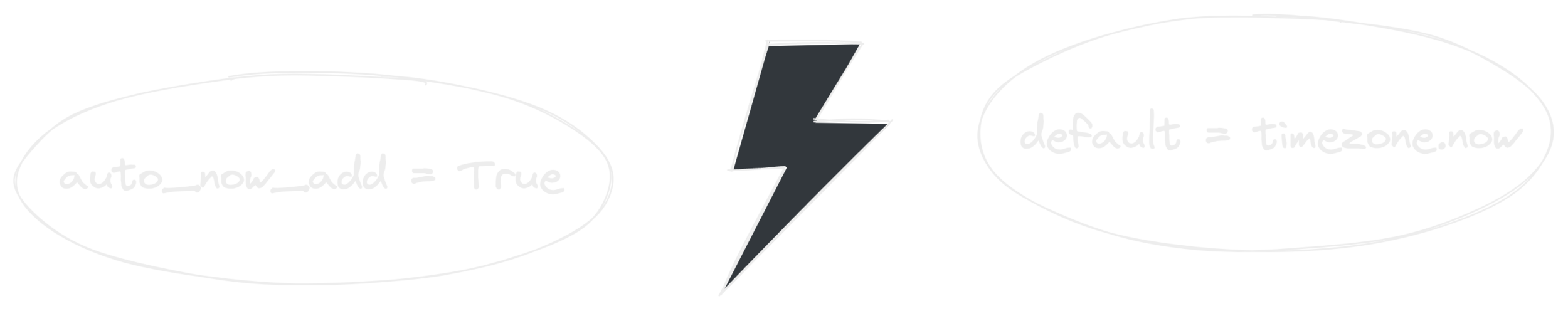

Having default=timezone.now has benefits like you can specify the value of the created_at while testing without having to mock timezone.now()

auto_now_add is a Django level construct vs default=timezone.now is database level construct

Audit your models 📝

Things I learned from experience!!!

Performance implications of having raw_json in models

Django defaults to fetching all fields
The way Postgres handles oversized attributes via Toast

Alternative?
• Evaluate for your use-case; after all, this is good to have.

• Have JSON as a 1:1 field in some other model

• Override Django manager to defer JSON

Audit your models 📝

you'll not regret it ;)

class User(models.Model):
   created_at = models.DateTimeField(default=timezon.now)
   updated_at = models.DateTimeField(auto_now=True)
   ...other auditing fields

   username = models.CharField(unique=True)
   profile_picture = models.URLField()
   ...

We can alter our Y.A.M.A. user model with :-

Y.A.M.A. Adventures 👻

3 weeks later....

No no, nothing dramatic happens!

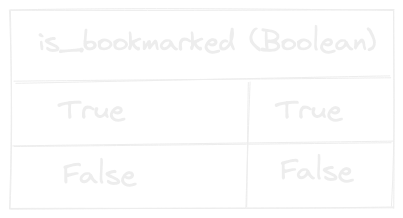

It's just that the boolean field can be swapped with something better here.

Theme #2

Timestamp your fields ⌚️

A digital record of the time of occurrence of a particular event.

What is timestamp?

**googles**

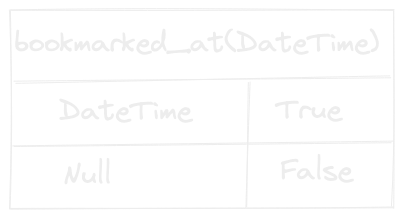

Timestamp your fields ⌚️

Essence almost remains the same, but having timestamped fields will provide benefits in future.

Timestamp your fields ⌚️

Things I learned from experience!!!

Storage cost is almost negligible compared to readability and other benefits it provide

This is hard to replicate this for NullBooleanField, since now we've three states to maintain

Timestamp your fields ⌚️

Things I learned from experience!!!

It's not either timestamp OR boolean debate always, sometimes you gotta have both of them also.

Timestamp your fields ⌚️

you'll not regret it ;)

class Message(models.Model):
   created_at = models.DateTimeField(default=timezone.now)
   updated_at = models.DateTimeField(auto_now=True)
   ...other auditing fields

   user = models.ForeignKey(User)
   message = models.TextField()
   bookmarked_at = models.DateTimeField(null=True)
   ...

We can now change our Message model schema with :-

Y.A.M.A. Adventures 👻

class Message(models.Model):
   ...auditing fields

   user = models.ForeignKey(User)
   deleted_at = models.DateTimeField()
   ...

Y.A.M.A. Adventures 👻

(In future)

For every query involving messages, we had to make sure to add
deleted_at is NULL flag and it became a pain.

For Organizations where the deletion was frequent; then it also became a performance overhead to maintain.

Theme #3

Soft delete or not ✍🏽

What is soft delete?

**duck-duck-go**

"Soft delete" in database lingo means that you set a flag on an existing table which indicates that a record has been deleted, instead of actually deleting the record.

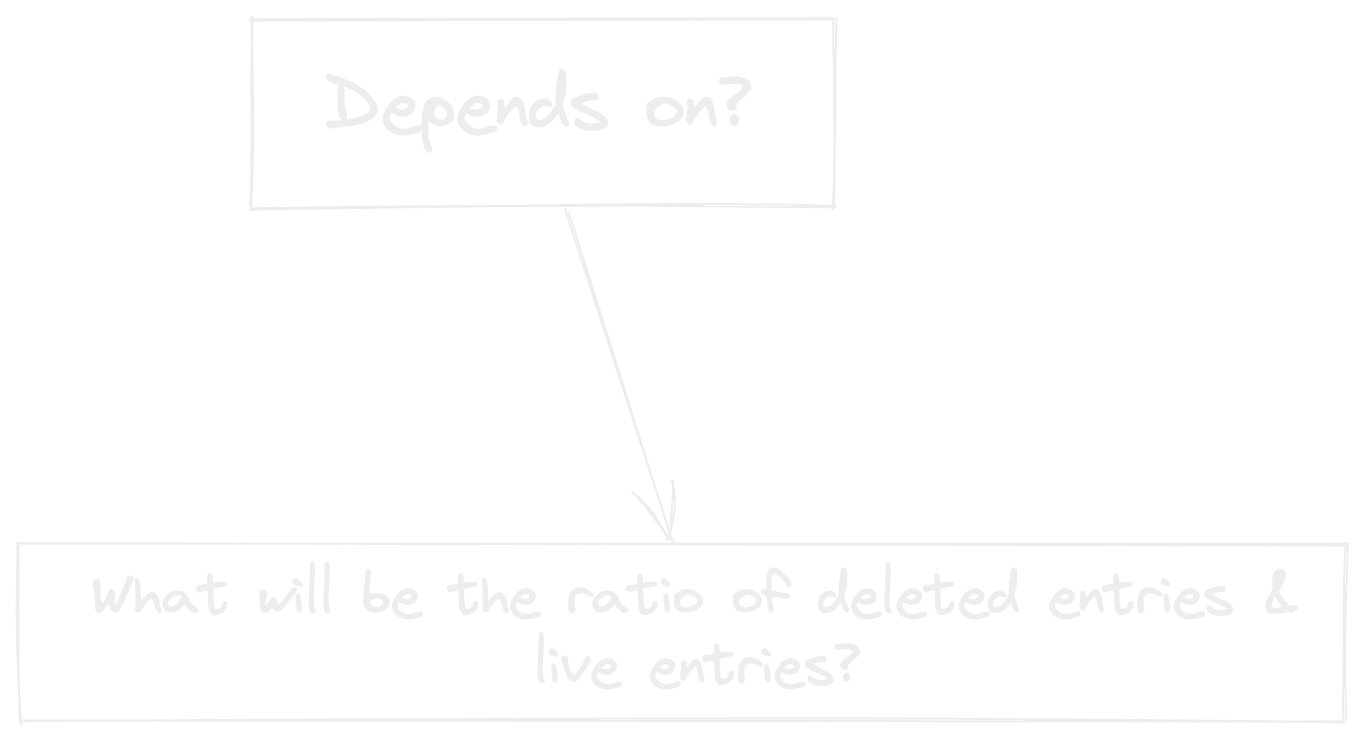

Soft delete or not ✍🏽

In the case of Y.A.M.A.; we rarely needed to fetch deleted messages(except for compliance audit).

class DeletedMessage(models.Model):
  ...auditing fields

  body = models.TextField()
  deleted_at = models.DateTimeField()
  original_message_id = models.PositiveIntegerField()

  ....

Y.A.M.A. Adventures 👻

USER_ROLE_CHOICES = [
    (0, 'Normal'),
    (1, 'Admin'),
    (2, 'Archived')
]

class User(models.Model):
    ... other fields

    role = models.PositiveIntegerField(choices=USER_ROLE_CHOICES, default=0)

pk	username	role
4	Test 4	0
5	Test 5	2

select * from user where role=1

Y.A.M.A. Adventures 👻

It Was Good Until It Wasn't

Django choices just do validation on ModelForm level i.e. it does not ensure constraint & quality check at the lowest level which is database.

Remembering all numerical mapping for roles became a pain

user.role = 3
user.save() # this will work

Theme #4

Use of choices

Things I learned from experience!!!

Keep strings instead of numbers for value; the benefits outweighs the disadavantages

USER_ROLE_CHOICES = [
    ('normal', 'Normal'),
    ('admin', 'Admin'),
    ('archived', 'Archived')
]

class User(models.Model):
    ... other fields

    role = models.CharField(choices=USER_ROLE_CHOICES, default='normal', max_length=10)
    ...

select * from user where role='normal'

Use of choices

Things I learned from experience!!!

Keep choices as constant variables and namespaced.

class UserRole(models.TextChoices):
    NORMAL = 'normal', 'Normal'
    ADMIN = 'admin', 'Admin'
    ARCHIVED = 'archived', 'Archived'


class User(models.Model):
    ...
    role = models.CharField(choices=UserRole.choices, default=UserRole.NORMAL, max_length=10)
    ...

Use of choices

Things I learned from experience!!!

Since Django does not enforce constraints for choices on Database level; we can force it to do so via :-

class UserRole(models.TextChoices):
    NORMAL = 'normal', 'Normal'
    ADMIN = 'admin', 'Admin'
    ARCHIVED = 'archived', 'Archived'


class User(models.Model):
    ...
    role = models.PositiveIntegerField(choices=UserRole.choices, default=UserRole.NORMAL)
    ...
	class Meta:
        constraints = [
            models.CheckConstraint(
                name="%(app_label)s_%(class)s_role_valid",
                check=models.Q(role__in=UserRole.values),
            )
        ]

Y.A.M.A. Adventures 👻

SELECT org.name, count(msg.id) from message msg
JOIN user u ON u.id=msg.user_id
JOIN organization org ON org.id=org.organization_id
GROUP BY 1

Run following SQL every hour

Things were fine in the citadel until one Friday database server crashed due to this query 👹

Reason? Expensive join cost between user & message

Theme #5

Denormalization 🙌🏻

What is denormalization?

**bings**

the process of adding precomputed redundant data to an otherwise normalized relational database to improve the read performance of the database

Denormalization 🙌🏻

It is OK to denormalize, in fact, denormalization might be one of the top reasons why new age databases are able to scale up

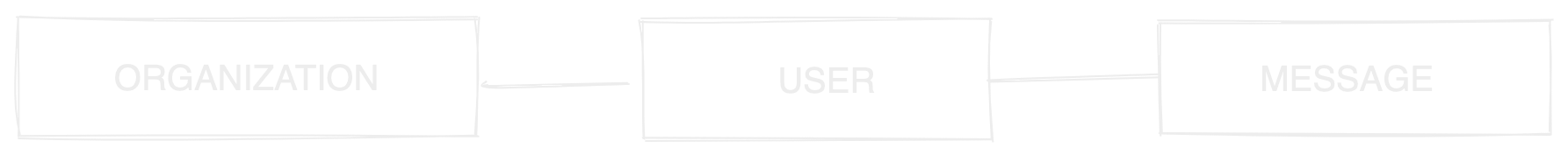

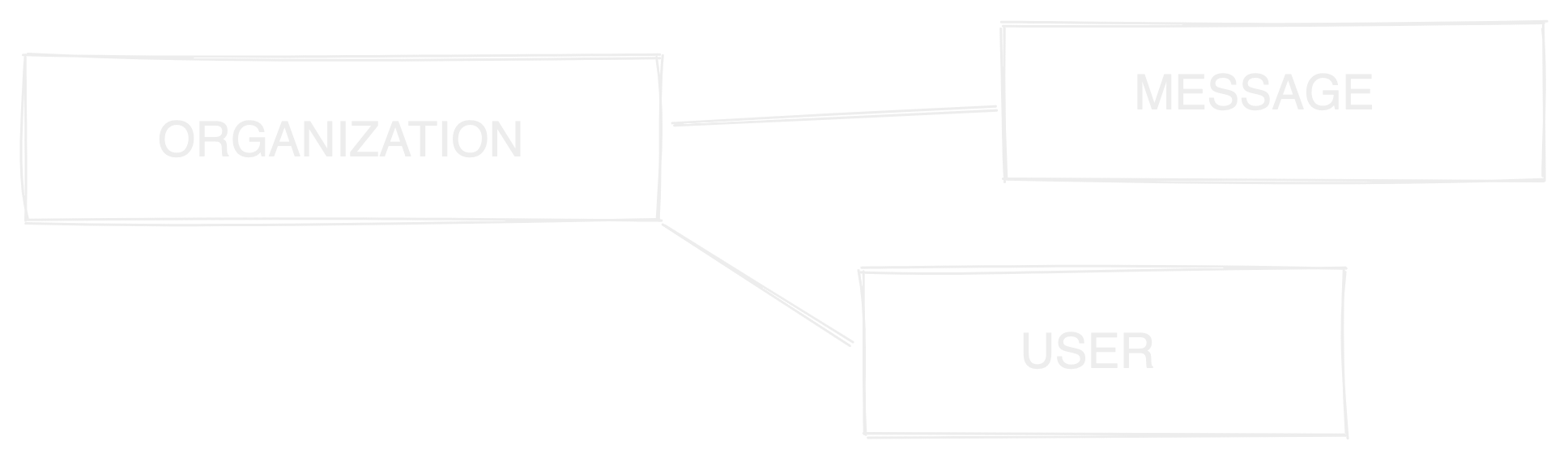

Before :-

Denormalization 🙌🏻

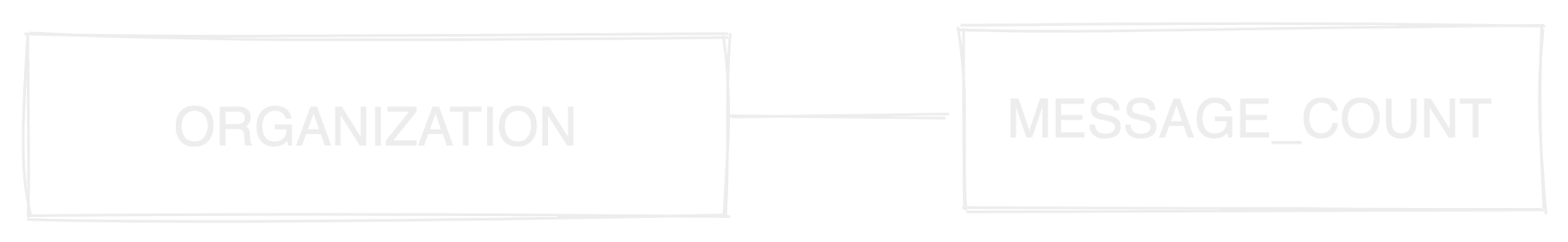

Option #1 :-

Option #2 :-

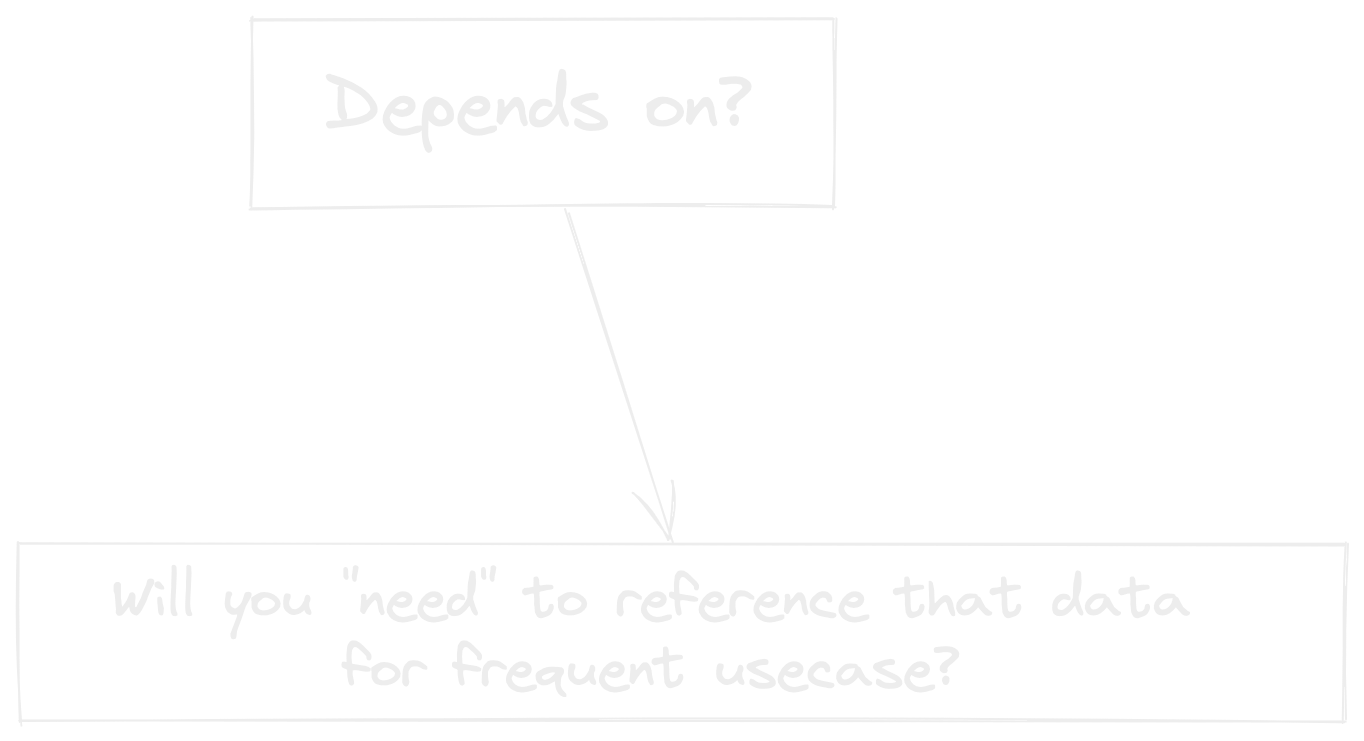

Denormalization 🙌🏻

Everything done in excess is bad, and the same is true for both normalization and denormalization

Everything done for software optimization is a tradeoff; Here the tradeoff is between - faster reads & slower writes v/s faster writes & slower reads

Things I learned from experience!!!

Bring down the curtain 🤗

Auditing your models can go a long way in making debuggability easy
When tempted to use boolean flags for something, evaluate whether you can use timestamp fields instead;
Kill two birds with one stone
Soft delete is good but it can be the root of problems also; so evaluate.
Use Django choices wisely and maintain consistency.
Denormalization is ok; is a tradeoff.

Don't follow any advice blindly from here(or anyone) without evaluating your use case.

🙏🏻 Open to
feedback or questions!

@Tarun_Garg2
