Task-Space Constraints

Planning with Kinematic Constraints

Collision-Free Motion Planning Problem:

\[\begin{array}{rl}\min_\gamma & L(\gamma)\\ \operatorname{s.t.} & \gamma:[0,1]\to\mathbb R^n\\ & \gamma(0)=q_0,\gamma(1)=q_1\\ & g(\gamma(t))\le 0,\forall t\in[0,1]\end{array}\]

Some Additional Structure

Constrained Collision-Free Motion Planning Problem:

\[\begin{array}{rl}\min_\gamma & L(\gamma)\\ \operatorname{s.t.} & \gamma:[0,1]\to\mathbb R^n\\ & \gamma(0)=q_0,\gamma(1)=q_1\\ & g(\gamma(t))\le 0,\forall t\in[0,1]\\ & h(\gamma(t))=0,\forall t\in[0,1]\end{array}\]

• Constraint manifold \(\mathcal M=\{q\in\mathbb R^n:h(q)=0\}\)

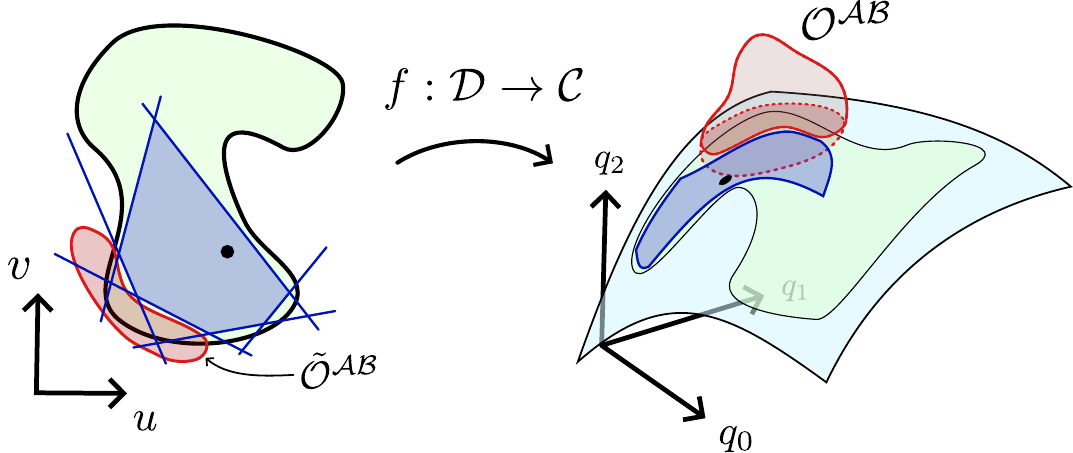

• Parametrization \(\xi:\mathbb R^m\to\mathbb R^n\), reachable domain \(\mathcal U\subseteq\mathbb R^m\)
• Require:
  • \(\xi\) is differentiable almost everywhere
  • \(\xi(\mathcal U)\subseteq\mathcal M\)

Parameterized Planning Problem

\[\begin{array}{rl}\min_\gamma & L(\gamma)\\ \operatorname{s.t.} & \gamma:[0,1]\to\mathbb R^n\\ & \gamma(0)=q_0,\gamma(1)=q_1\\ & g(\gamma(t))\le 0,\forall t\in[0,1]\\ & h(\gamma(t))=0,\forall t\in[0,1]\end{array}\]

• Constraint manifold \(\mathcal M=\{q\in\mathbb R^n:h(q)=0\}\)
• Parametrization \(\xi:\mathbb R^m\to\mathbb R^n\), reachable domain \(\mathcal U\subseteq\mathbb R^m\)
• Require:
  • \(\xi\) is differentiable almost everywhere
  • \(\xi(\mathcal U)\subseteq\mathcal M\)

Parameterized Planning Problem

\[\begin{array}{rl}\min_{\tilde\gamma}& L(\xi\circ\tilde\gamma)\\ \operatorname{s.t.} & \tilde\gamma:[0,1]\to\mathcal U\\ & \tilde\gamma(0)=\tilde q_0,\tilde\gamma(1)=\tilde q_1\\ & g((\xi\circ\tilde\gamma)(t))\le 0,\forall t\in[0,1]\\ & h((\xi\circ\tilde\gamma)(t))=0,\forall t\in[0,1]\end{array}\]

Building Parametrizations with Analytic IK

Forward kinematics can be written as a function

\[\operatorname{FK}:\mathbb{R}^n\to\operatorname{SE}(3)\]

Note: we often have \(n>6\), so \(\operatorname{FK}\) is not locally invertible.

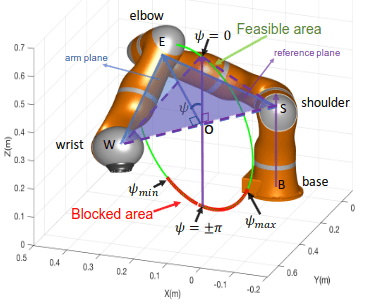

Redundancy Parameterization

Analytic IK can be written as a function

\[\operatorname{IK}:\operatorname{SE}(3)\times\mathcal{C}\times\mathcal{D}\to\mathbb{R}^n,\]

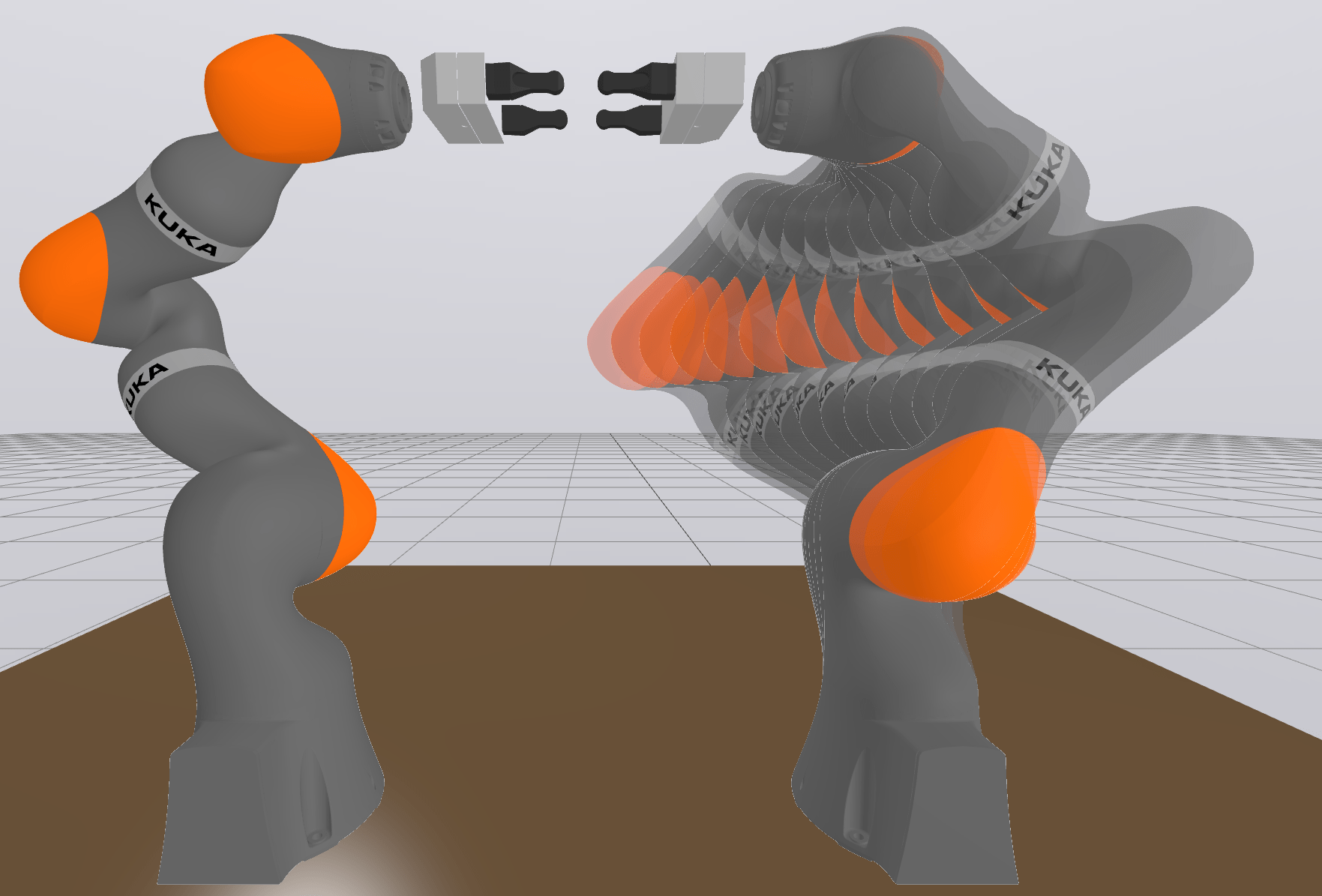

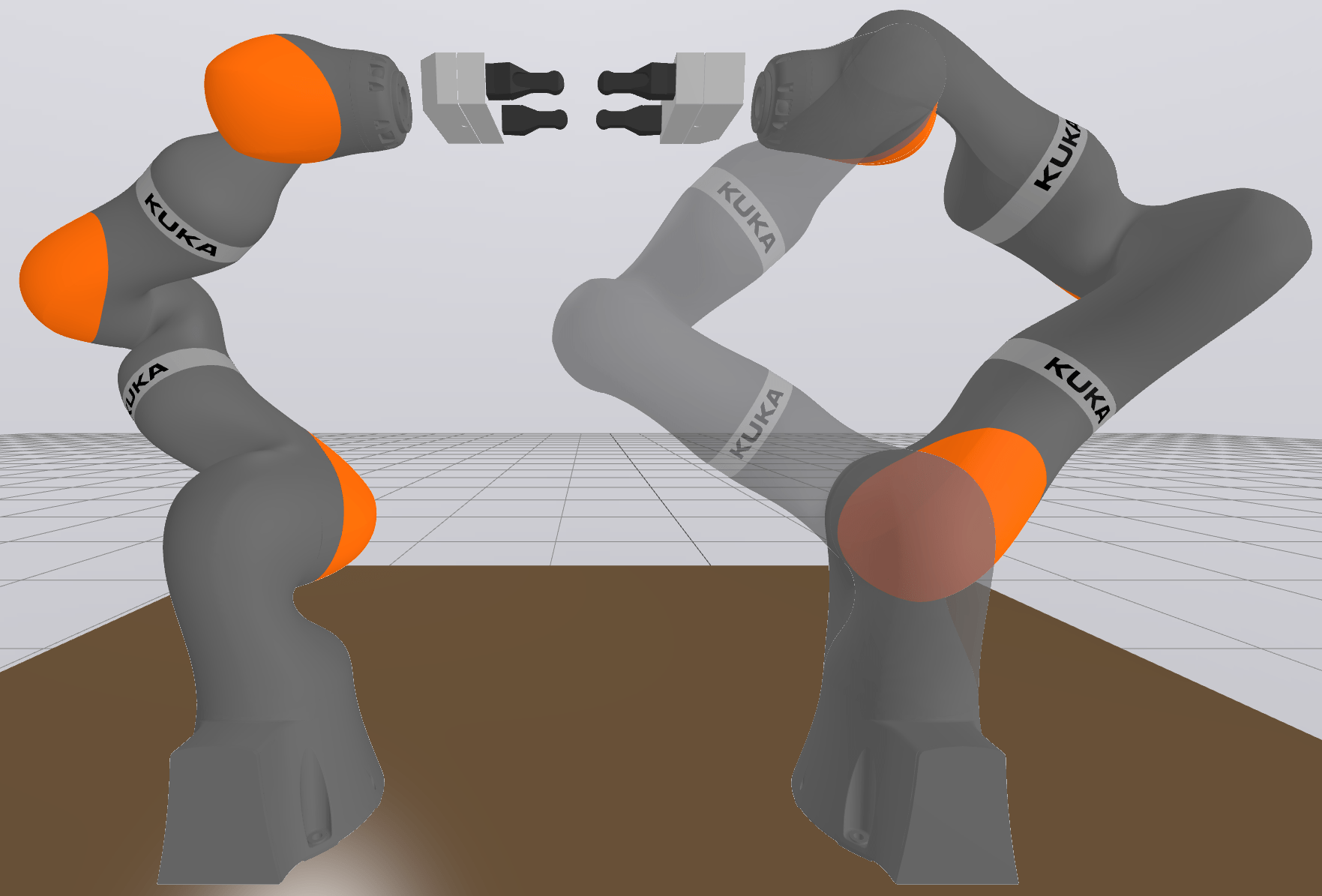

where \(\mathcal{C}\) are continuous redundancy parameters and \(\mathcal{D}\) are discrete redundancy parameters.

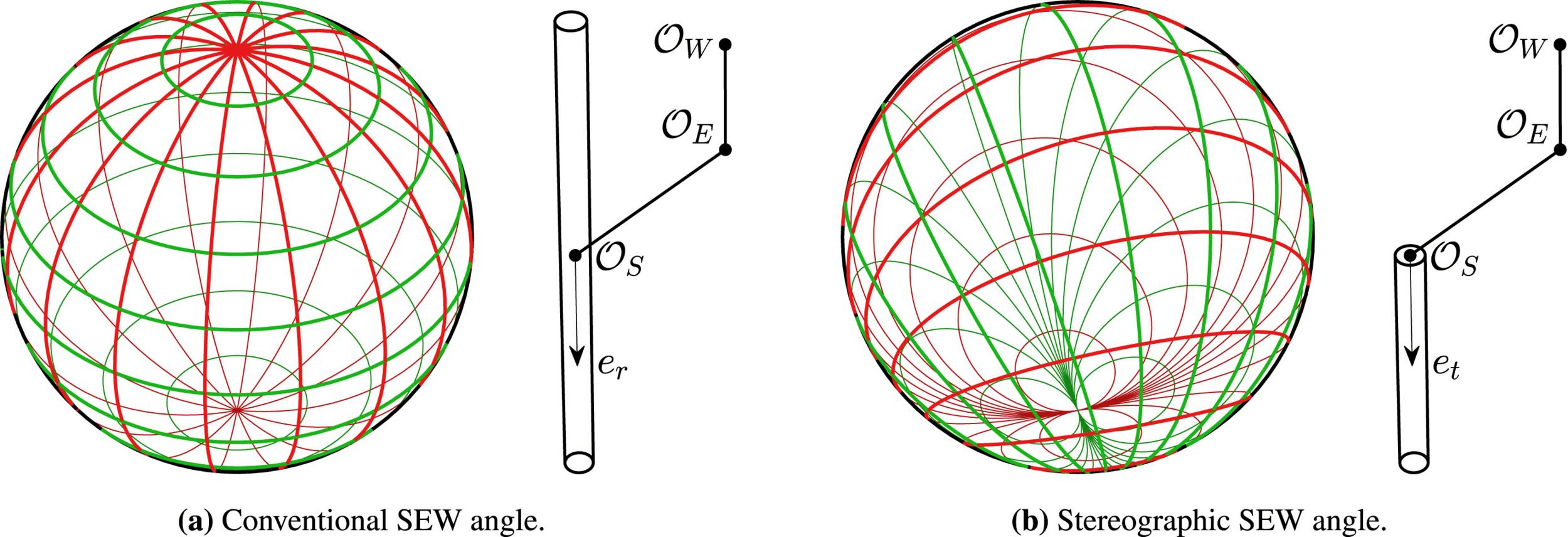

Specialized Redundancy Parameterizations

General Redundancy Parameterizations

Key idea:

• Solve some (length-6) chains with IK
• All remaining joint angles are self-motion parameters

Differentiating through IK

Reminder: we want to solve

\[\begin{array}{rl}\min_{\tilde\gamma}& L(\xi\circ\tilde\gamma)\\ \operatorname{s.t.} & \tilde\gamma:[0,1]\to\mathcal U\\ & \tilde\gamma(0)=\tilde q_0,\tilde\gamma(1)=\tilde q_1\\ & g((\xi\circ\tilde\gamma)(t))\le 0,\forall t\in[0,1]\end{array}\]

To use gradient-based optimization, need to compute \(D\xi\)

If you implement analytic IK by hand, easy to make it compatible with an autodiff framework

Black-Box IK Functions

• We want to use our method with all the robots
• We want to allow people to use any IK function they have
• Main target: codegen tools like IKFast
• Modifying to support autodiff is a major task!

The Inverse Function Theorem

Intuition: to differentiate through inverse kinematics, we just need to differentiate through forward kinematics!

Rough procedure:

1. Compute value \(q=\operatorname{IK}({}^W\!X^G)\)
2. Compute Jacobian \(J=D\operatorname{FK}(q)\)
3. Invert: \(D\operatorname{IK}({}^W\!X^G)=J^{-1}\)

Augmented Forward Kinematics

Augmented Forward Kinematics

Suppose \(q=\operatorname{IK}({}^W\!X^G,\psi)\), and we're given partials \(\frac{\partial ({}^W\!X^G,\psi)}{\partial y}\).

Augmented Forward Kinematics

Remember, we're using the augmented forward kinematics

\[\operatorname{FK}_A:q\mapsto({}^W\!X^G,\psi),\]

which returns the end-effector pose and the self-motion parameters.

A Worked Example: Bimanual

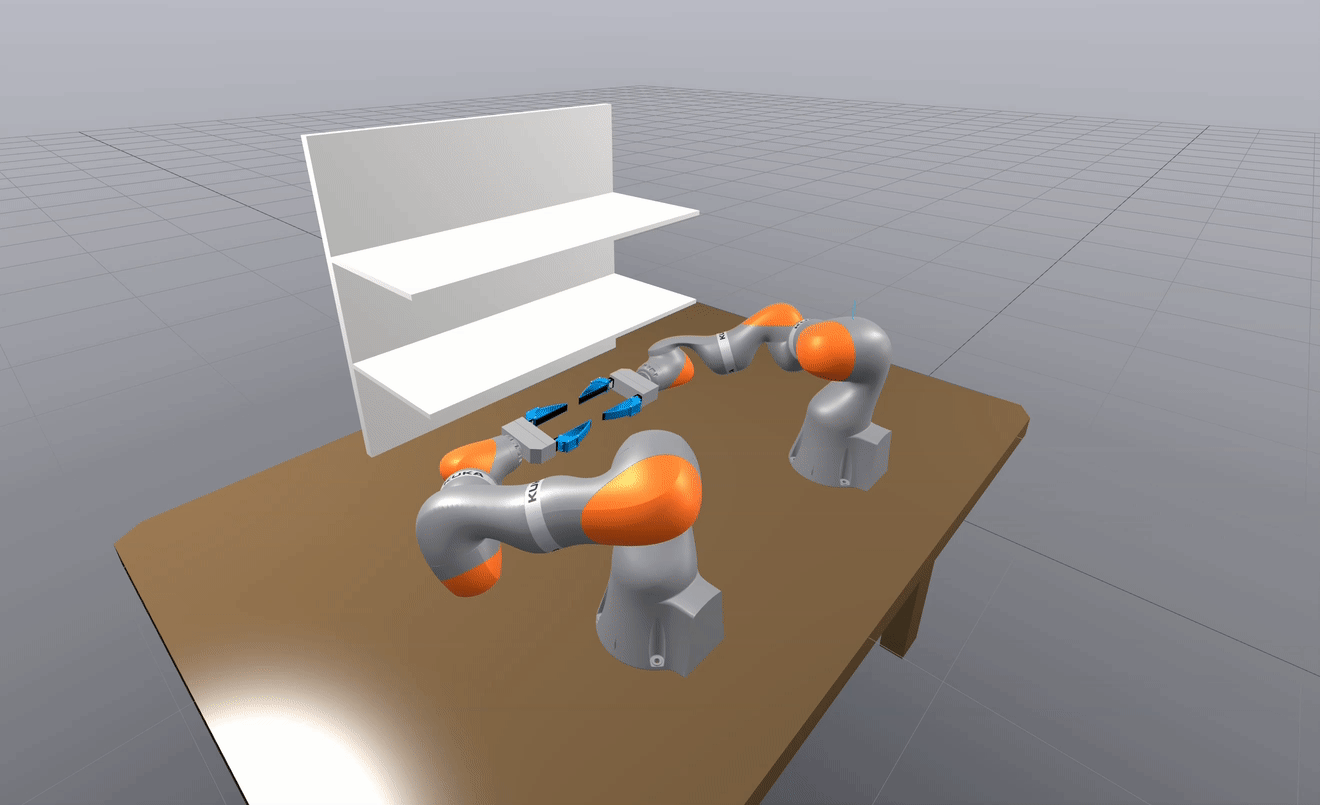

Consider the leader-follower bimanual iiwa setup:

A Worked Example: Bimanual

• \(q_c,q_s\in\mathbb R^7\) controlled, subordinate joint angles
• \(E_c,E_s\) end-effector frames
• \(\psi_s\) subordinate arm self-motion
• \({}^{E_c}\!X^{E_s}\) fixed relative end-effector transform
• \(\operatorname{FK}_c\) is the ordinary FK for the controlled arm
• \(\operatorname{FK}_A\) is the augmented FK for the subordinate arm
• \(\operatorname{IK}\) is the analytic IK for the subordinate arm

A Worked Example: Bimanual

The full parameterization can be written as \((q_c,q_s)=\xi(q_c,\psi_s)\),

\[\xi(q_c,\psi_s)=(q_c,\operatorname{IK}({}^W\!X^{E_s}(q_c),\psi_s))=(q_c,\operatorname{IK}(\operatorname{FK}_c(q_c){}^{E_c}\!X^{E_s},\psi_s))\]

A Worked Example: Bimanual

Apply the chain rule:

\[\frac{\partial q_s}{\partial (q_c,\psi_s)}=\frac{\partial q_s}{\partial({}^W\!X^{E_s},\psi_s)}\frac{\partial({}^W\!X^{E_s},\psi_s)}{\partial (q_c,\psi_s)}\]

A Worked Example: Bimanual

Putting it all together

\[D\xi=\begin{bmatrix}I\qquad\qquad\qquad 0\\ \\ \left(D\operatorname{FK}_A(q_s)\right)^{-1}\begin{bmatrix}D\operatorname{FK}_c(q_c){}^{E_s}\!X^{E_c} & 0\\ 0 & 1\end{bmatrix}\end{bmatrix}\]

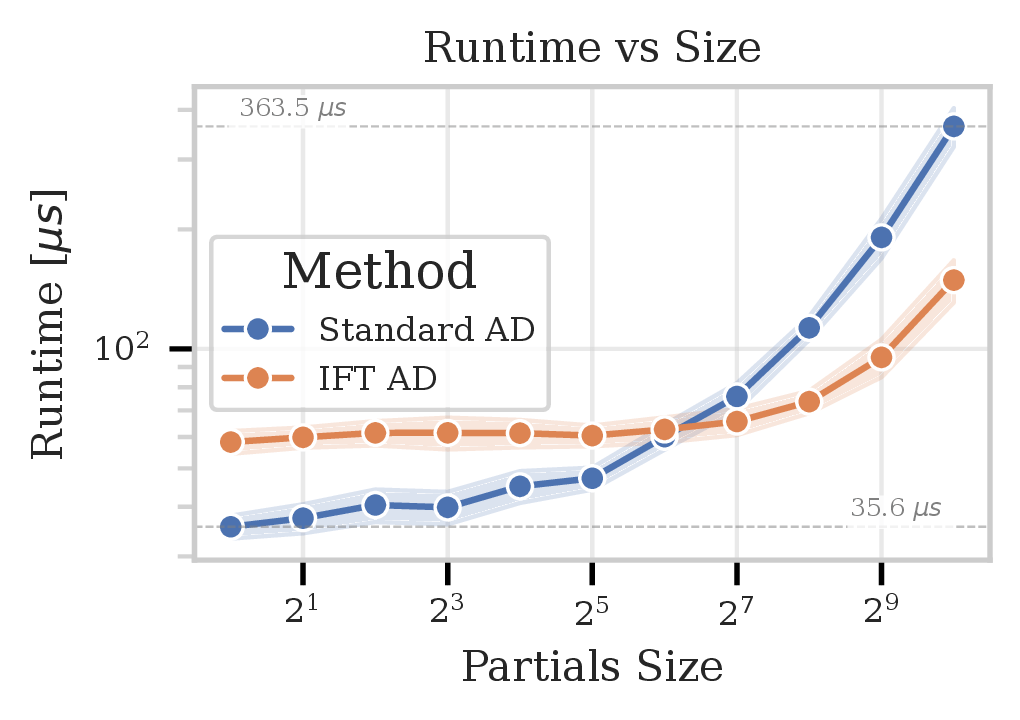

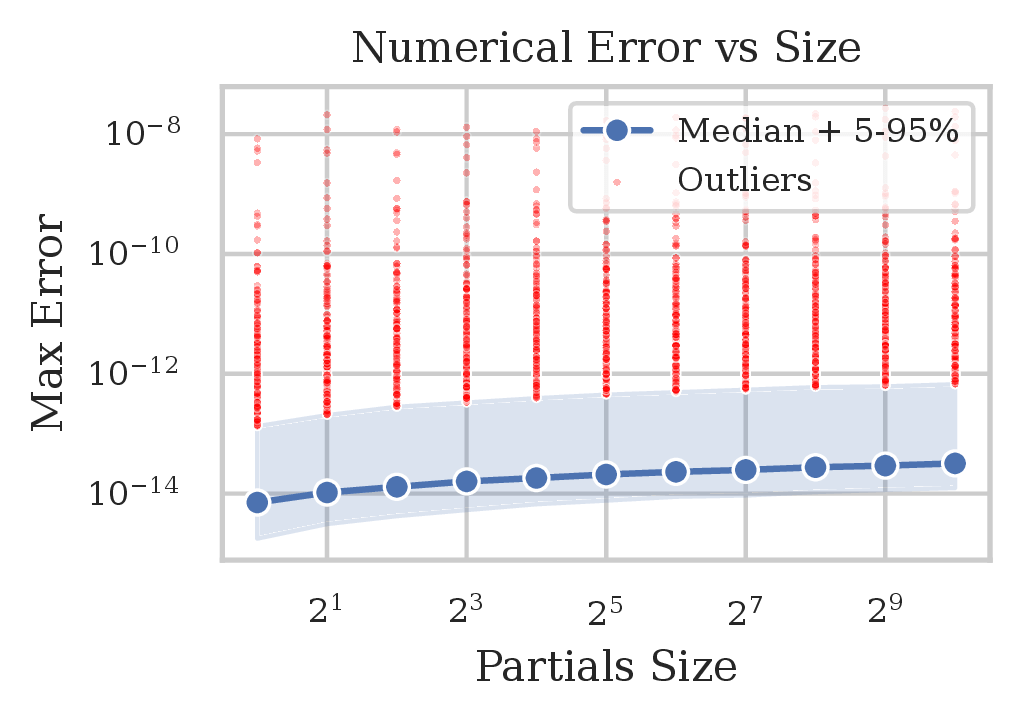

Direct Numerical Comparison

Procedure (for \(\xi:\tilde q\mapsto q\)):

1. Sample reachable configurations \(\left\{\tilde q_i\right\}_{i=1}^{10\,000}\)
2. For each \(i\), sample random partial vectors \(\frac{\partial \tilde q_i}{\partial y_{ij}}\in\mathbb R^{2^j}\)
3. Compute \(\frac{\partial q_i}{\partial y_{ij}}\) via autodiff and IFT, compare

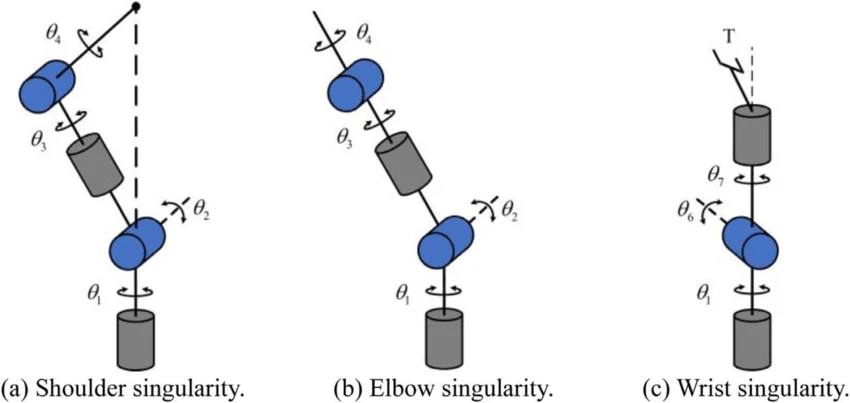

What about Singularities?

\(D\operatorname{FK}\) loses rank

Kinematic singularity: end-effector loses a degree of freedom

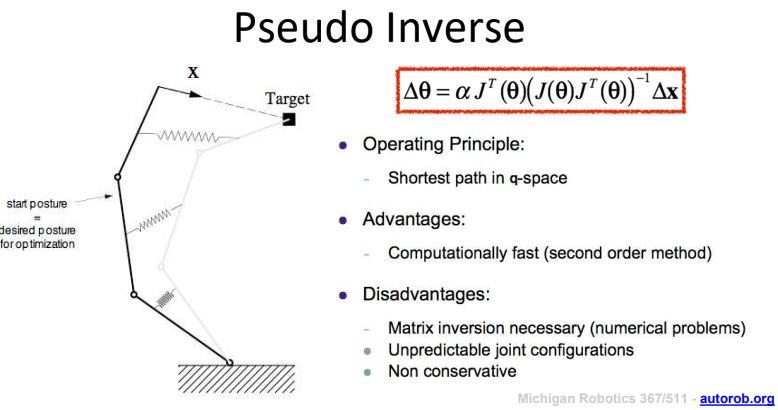

A "Pseudoinverse" Function Theorem?

A naive idea...

• Can't invert a matrix?
• Take the pseudoinverse instead!

Our prior work:

• Extend IK domain via greedy projection
• Gradients truncated by this step, rely on other gradient signal
  • E.g. \(D||\operatorname{FK}(\operatorname{IK}({}^W\!X^G,\psi))-{}^W\!X^G||_F^2\) still gives signal from the latter term.
  • Empirically: not good enough with IFT!
• Explicit domain constraints ("probing functions") provide external signal
  • Not an option for a generic IK function!

Non-Reachable Configurations?

Idealized Domain Extension

Ignore self-motion parameter for now. Suppose we write

\[\hat{\operatorname{IK}}({}^W\!X^G) = \left\{ \begin{array}{ll} \begin{array}{rl} \displaystyle \arg\min_{q} & \|\operatorname{FK}(q) - {}^W\!X^G\|^2 \\ \text{s.t.} & q \in \mathbb{T}^n \end{array} & {}^W\!X^G\;\text{not reachable} \\ \operatorname{IK}({}^W\!X^G) & {}^W\!X^G\;\text{reachable} \end{array} \right. \]

\[\begin{array}{rl} \displaystyle \arg\min_{q} & \|\operatorname{FK}(q) - {}^W\!X^G\|^2 \\ \text{s.t.} & q \in \mathbb{T}^n \end{array}\]

Derivative via Sensitivity Analysis

• \(J\) kinematic Jacobian, \(H\) kinematic Hessian
• First order optimality conditions: \[J(q)(\operatorname{FK}(q)-{}^W\!X^G)=0\]
• Apply implicit function theorem, push some symbols...
• Obtain gradient \[D\hat{\operatorname{IK}}({}^W\!X^G)=\left(J(q)^TJ(q)+\sum_{i=1}^nr_iH_i(x)\right)^{-1}J(q),\] \(r_i\) is the \(i\)th component of the residual \(\operatorname{FK}(q)-{}^W\!X^G\)

Derivative via Sensitivity Analysis

• Obtain gradient \[D\hat{\operatorname{IK}}({}^W\!X^G)=\left(J(q)^TJ(q)+\sum_{i=1}^nr_iH_i(x)\right)^{-1}J(q),\] \(r_i\) is the \(i\)th component of the residual \(r=\operatorname{FK}(q)-{}^W\!X^G\)
• If reachable, \(r_i=0\), so \[D\hat{\operatorname{IK}}({}^W\!X^G)=\left(J(q)^TJ(q)\right)^{-1}J(q)=J(q)^\dagger\] So taking the pseudoinverse is doing something reasonable!
• Fancier approximations...

Damping and Residuals

• Obtain gradient \[D\hat{\operatorname{IK}}({}^W\!X^G)=\left(J(q)^TJ(q)+\sum_{i=1}^nr_iH_i(x)\right)^{-1}J(q),\] \(r_i\) is the \(i\)th component of the residual \(r=\operatorname{FK}(q)-{}^W\!X^G\)
• Fancier approximations...
  • Damping \[D\hat{\operatorname{IK}}({}^W\!X^G):=(J(q)^TJ(q)+\lambda(q) I)^{-1}J(q)^T\]
    • Classic Levenbarg-Marquardt: constant \(\lambda\)
    • Singular Value Thresholding: \(\lambda(q)\) grows as \(\sigma_{\min}(J(q))\searrow 0\)
    • Residual Damping: \(\lambda(q)\) scaled by \(\|r\|^2\)

Damping and Residuals

• Fancier approximations...
  • Anistropic Damping \[J=U\Sigma V^T,\quad \Lambda_j=\lambda(\|r\|^2+3(u_j^Tr)^2),\quad \Lambda=\operatorname{diag}(\Lambda_j),\vphantom{\int}\] \[D\hat{\operatorname{IK}}({}^W\!X^G)=(\tilde J^T\tilde J+V\Lambda V^T)^{-1}\tilde J^T\]
  • Regularized Full Newton Step: \[D\hat{\operatorname{IK}}({}^W\!X^G)=\left(J(q)^TJ(q)+\sum_{i=1}^nr_iH_i(x)+\lambda I\right)^{-1}J(q),\]

Taking a Step Back

• What exactly did we do here?
• Numerical IK with Jacobian Psuedoinverse
  • Use \(J^\dagger\) to modify joint angles
  • Pseudoinverse handles redundancy
• Autodiff with Jacobian Pseudoinverse
  • Use \(J^\dagger\) to propagate gradients
  • Pseudoinverse handles singularities
• More advanced methods also correspond to numerical IK
• A possible intuition/explanation?
  • Within reachable set, do analytic IK
  • Outside of reachable set, do numerical IK

Downstream Experiments

IRIS-NP2: Generating convex collision-free polytopes in parameterized C-space

• Residual damping performs best for IRIS-NP2
• Full Newton method less effective
  • Maybe because not truly least-squares projection?
• GCS runtime is a rough proxy for region quality

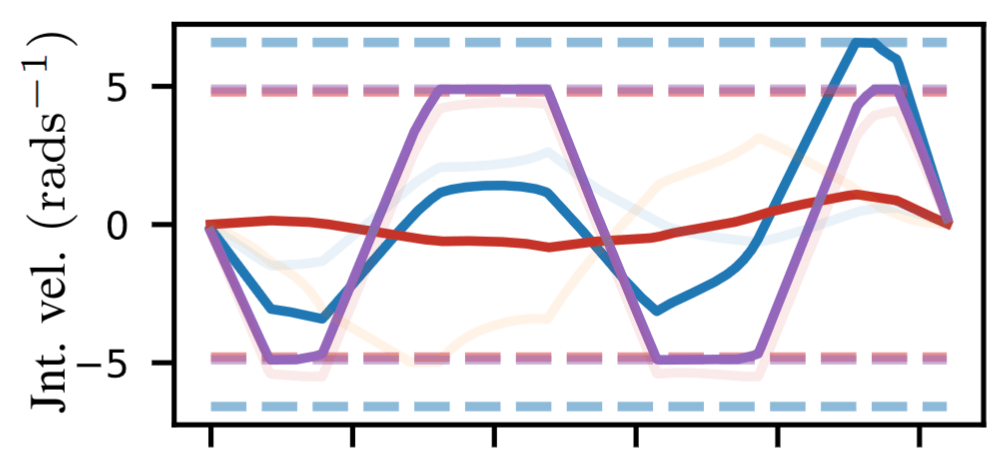

• All methods effective for TrajOpt, TOPP-RA
  • Unsurprising due to feasible start

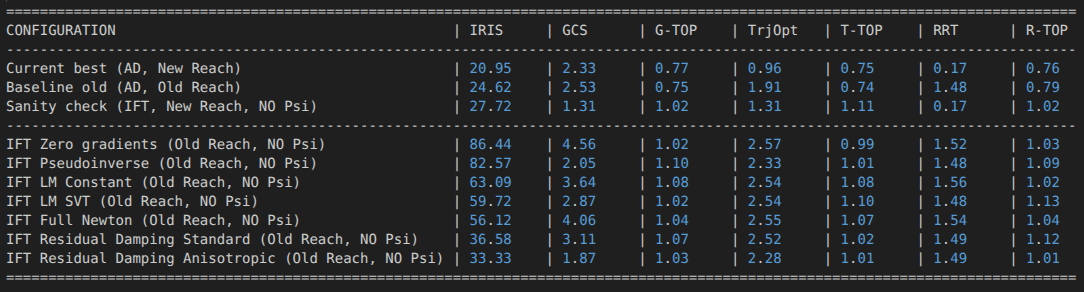

Runtimes: Bimanual iiwa Setup

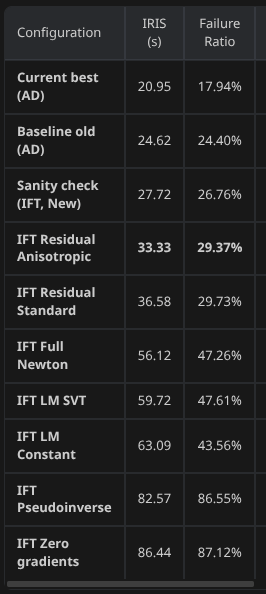

For the IRIS-NP2 Afficionados

• IRIS-NP2 requires solving "counterexample search programs"
  • Numerically challenging
  • Must work outside of reachable set
• Residual damping still most performant
• Full Newton method not much better than Levenberg-Marquardt
• Pseudoinverse and Zero Gradients reliant on random sampling

RB-Y1

Param: torso + both arms following frame between gripper
