Robot Motion Planning

• We have a robot in one configuration
• We want to get to another configuration
• We (probably) want to
  • Get there quickly
• We (probably) don't want to
  • Bump into obstacles

Configuration-Space Planning

Task Space

Configuration Space

Alternatively: Over-Parametrziation

(e.g. Maximal Coordinates)

Task-Space Constraints

Planning with Kinematic Constraints

Collision-Free Motion Planning Problem:

\[\begin{array}{rl}\min_\gamma & L(\gamma)\\ \operatorname{s.t.} & \gamma:[0,1]\to\mathbb R^n\\ & \gamma(0)=q_0,\gamma(1)=q_1\\ & g(\gamma(t))\le 0,\forall t\in[0,1]\end{array}\]

Existing Approaches

Sampling-Based Planning

Existing Approaches

Trajectory Optimization

Our Idea: Plan with a Parametrization

• Constraint manifold \(\mathcal M=\{q\in\mathbb R^n:h(q)=0\}\)
• Parametrization \(\xi:\mathcal U\to\mathbb R^n\) (with \(\mathcal U\subseteq\mathbb R^m\))
• Require:
  • \(\xi\) is smooth and injective
  • \(\xi(\mathcal U)\subseteq\mathcal M\), i.e., \(\forall \tilde q\in\mathcal U\), \(\xi(\tilde q)\in\mathcal M\)

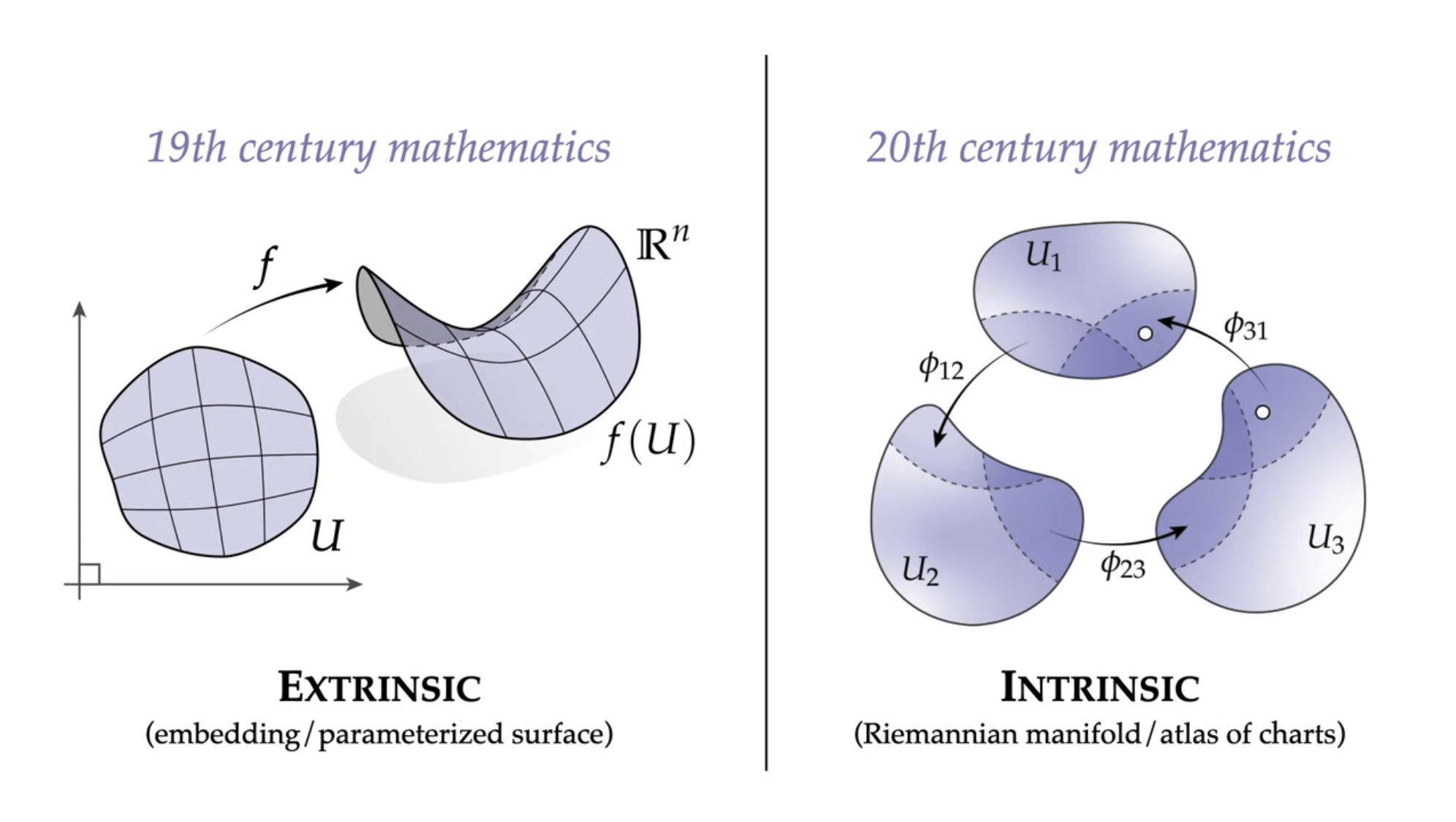

Intrinsic vs Extrinsic

Building Parametrizations with Analytic IK

Analytic IK can be written as a function

\[\operatorname{IK}:\operatorname{SE}(3)\times\mathcal{C}\times\mathcal{D}\to\mathbb{R}^n,\]

where \(\mathcal{C}\) are continuous redundancy parameters and \(\mathcal{D}\) are discrete redundancy parameters.

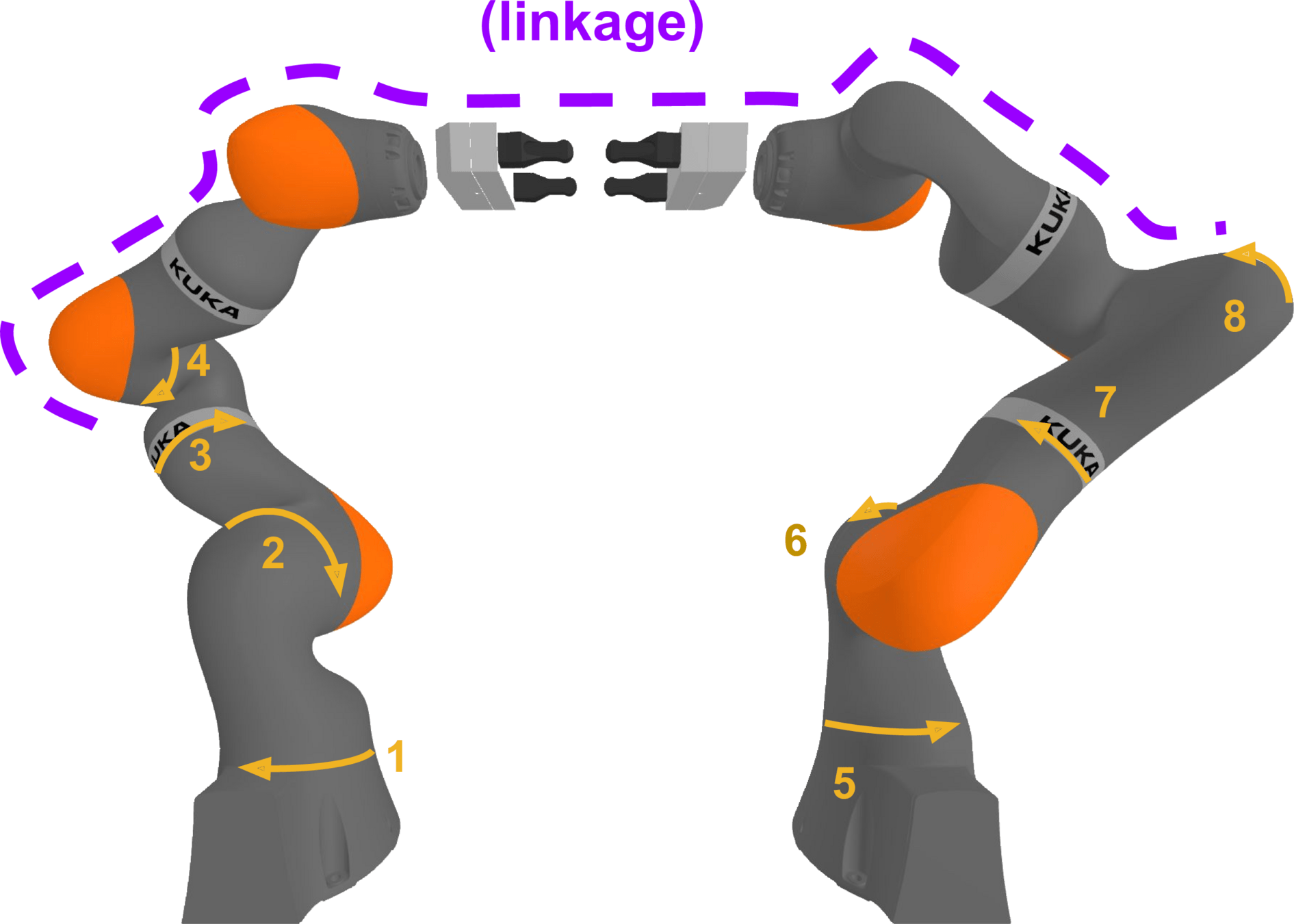

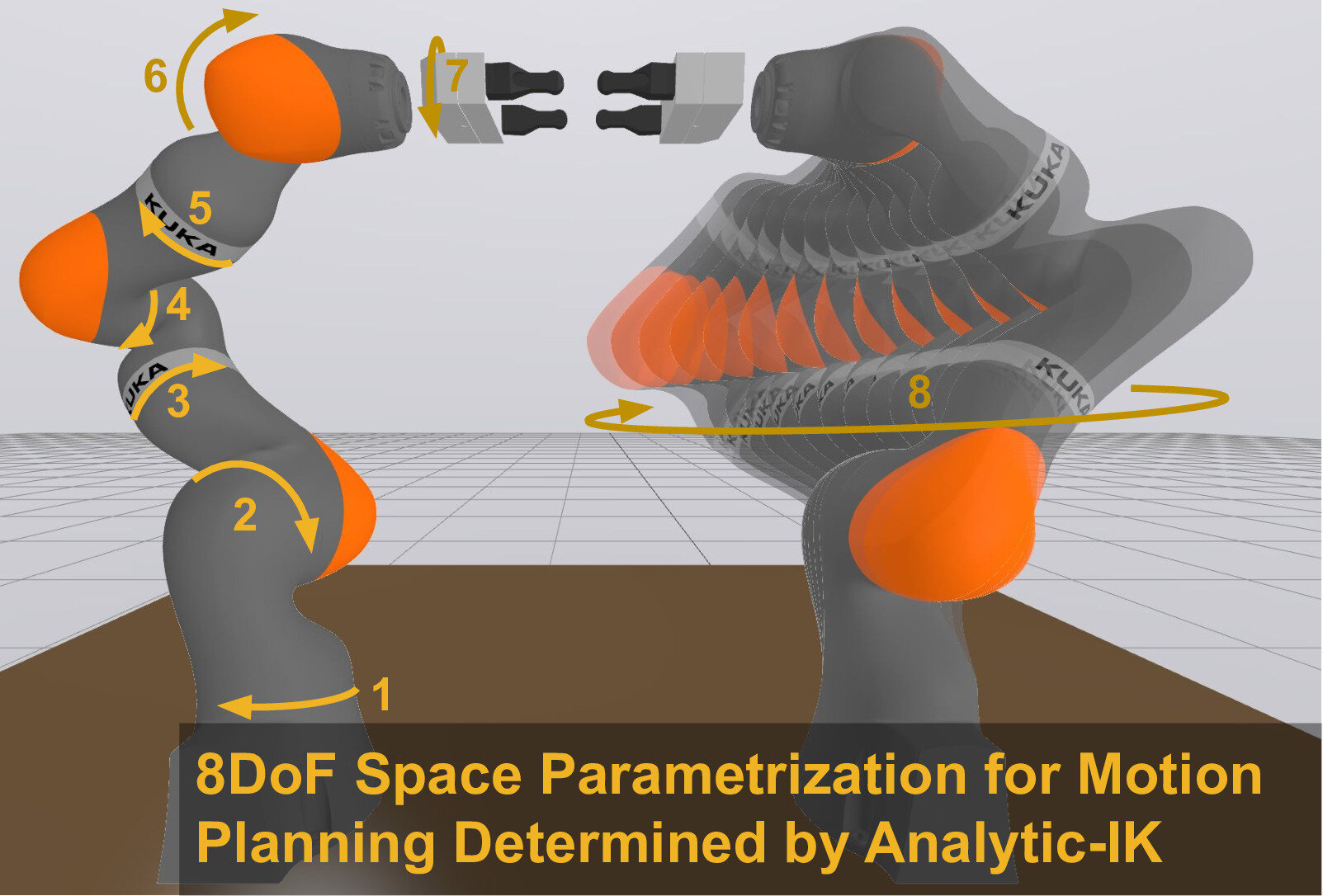

Parametrizing the Bimanual Constraint Manifold

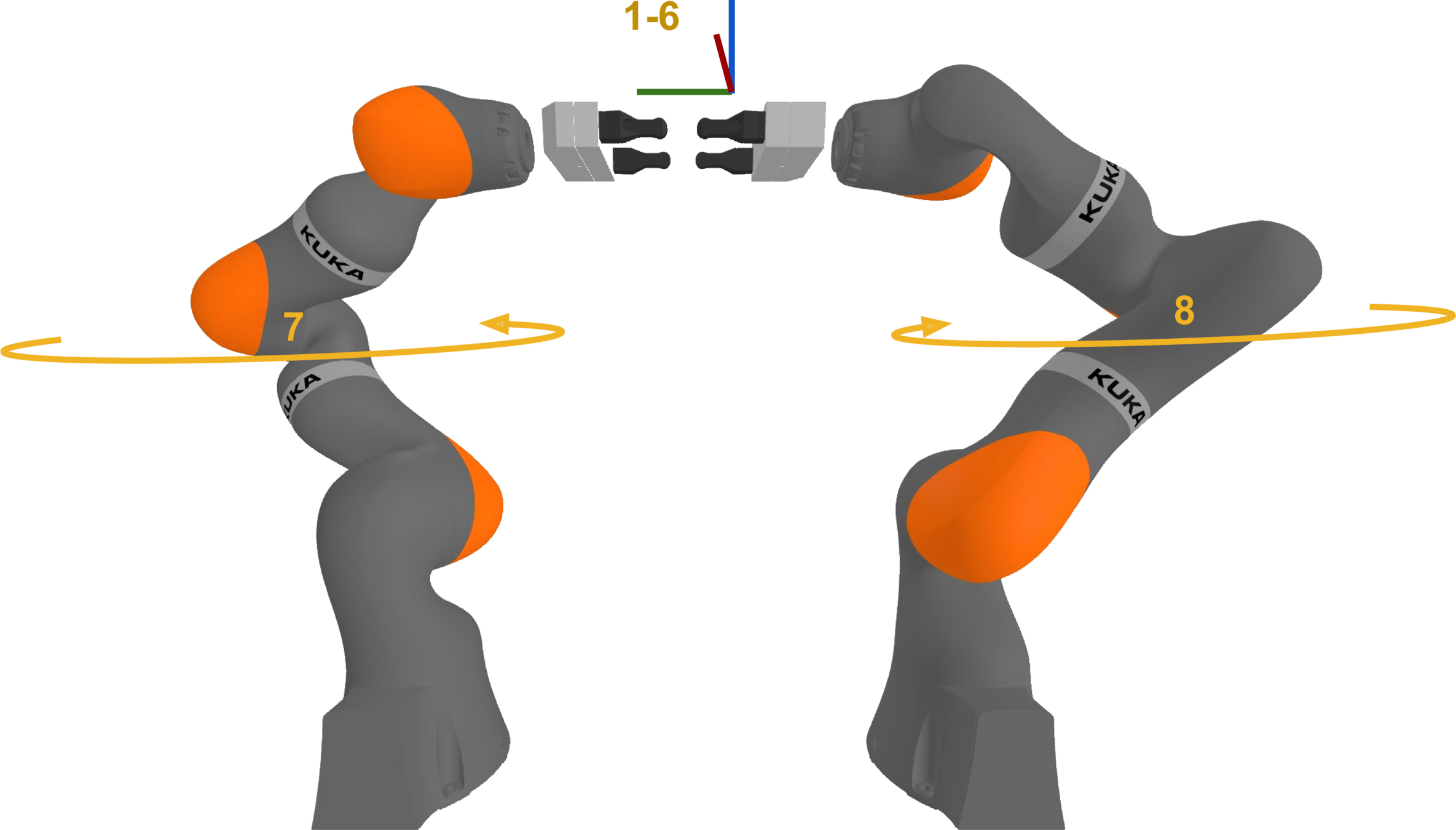

Alternative Parametrizations

Key requirement: it has to be a minimal coordinate system

Planning with a Parametrization

Major effort to get the pieces needed into Drake

• Parametrization construction
• Domain validity constraints
• Region generation with IrisNp2 and IrisZo

(Full tutorial notebook releasing soon!)

Setup: Just One Arm

How Can We Switch Branches?

For the KUKA iiwa, the branches meet when \(\theta_i\in\{0,\pi\}\) for \(i\in\{1,3,5\}\). Call this the coregular surface.

How Can We Switch Branches?

For the KUKA iiwa, the branches meet when \(\theta_i\in\{0,\pi\}\) for \(i\in\{1,3,5\}\). Call this the coregular surface.

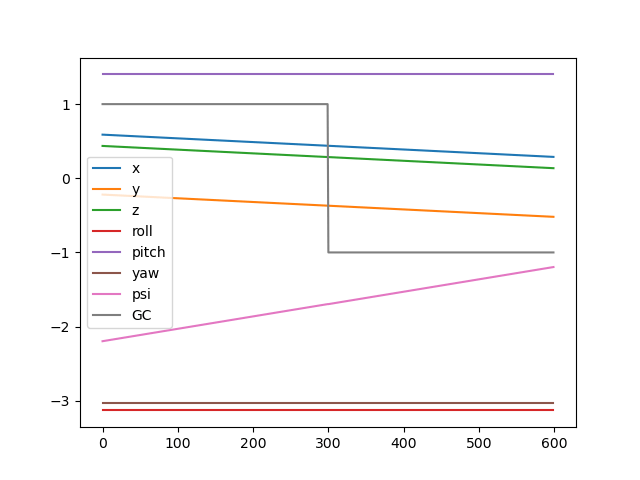

Now we can trace that trajectory in end-effector space, following two branches that should meet there.

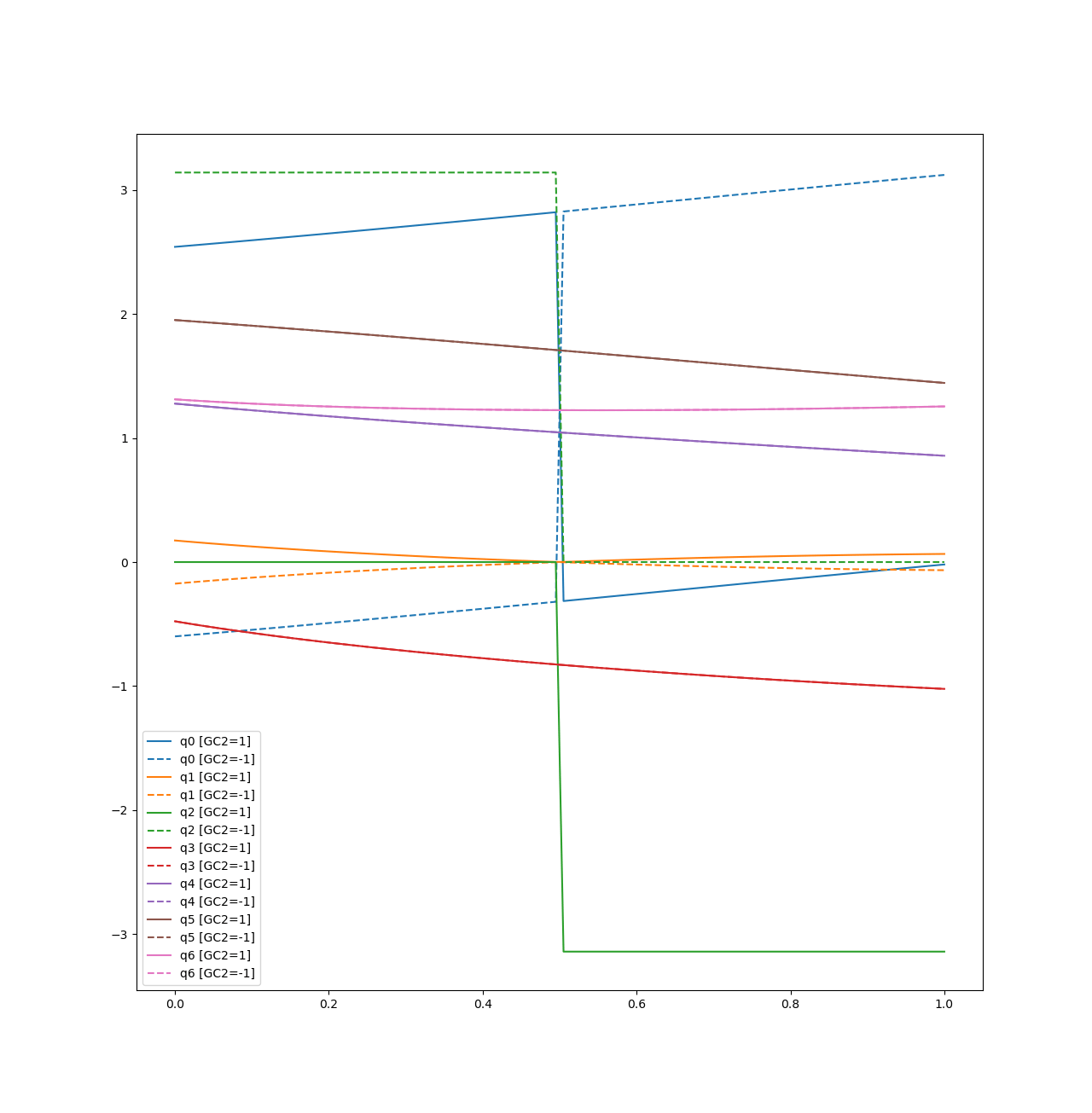

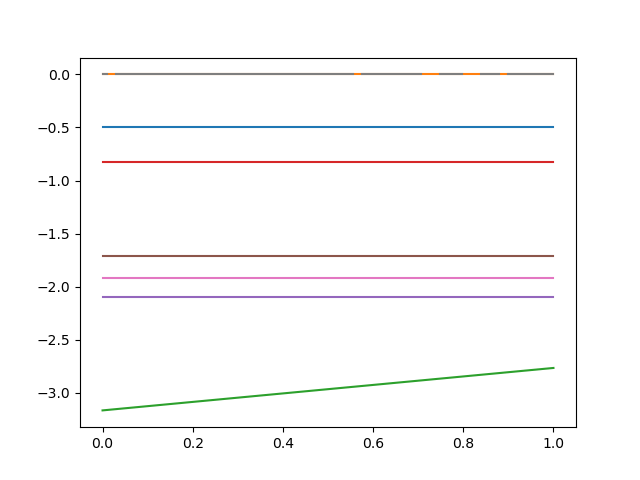

Moving along the Coregular Surface: Numerical Problems

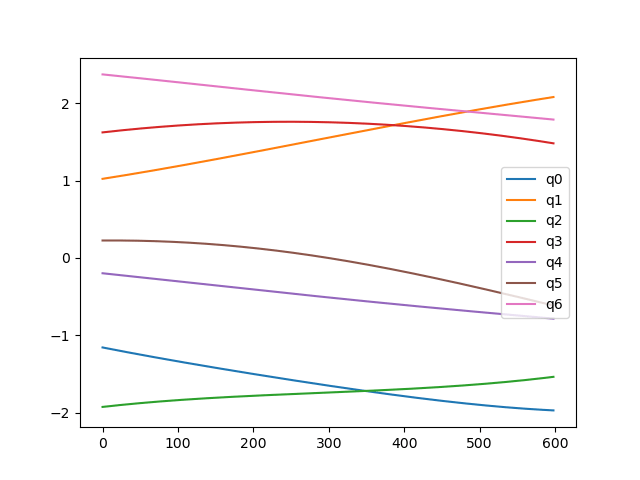

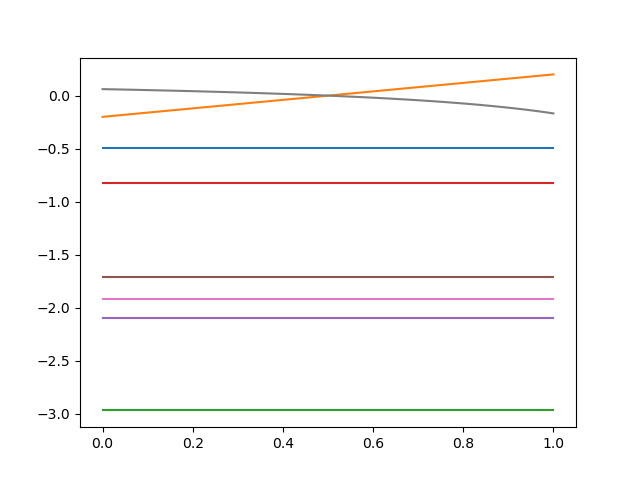

Joint Space

Moving along the Coregular Surface: Numerical Problems

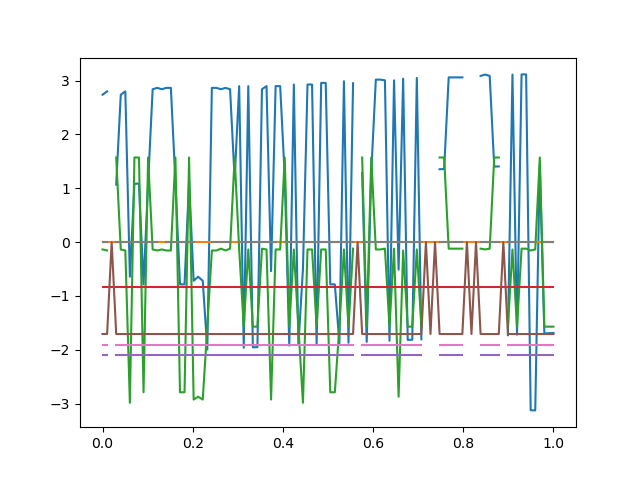

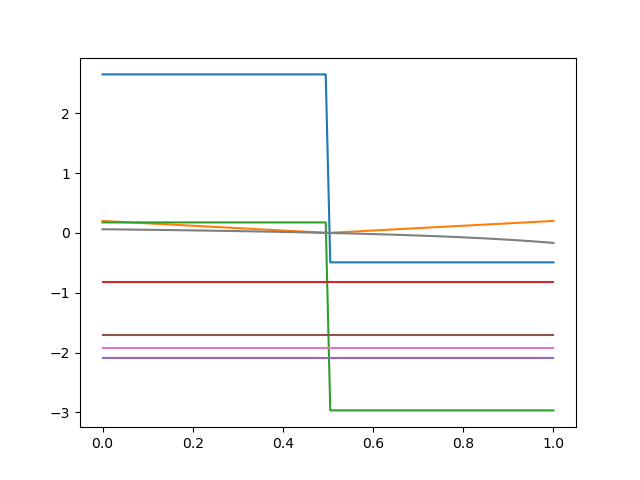

End-Effector Space

Self-Motion (Ordinarily)

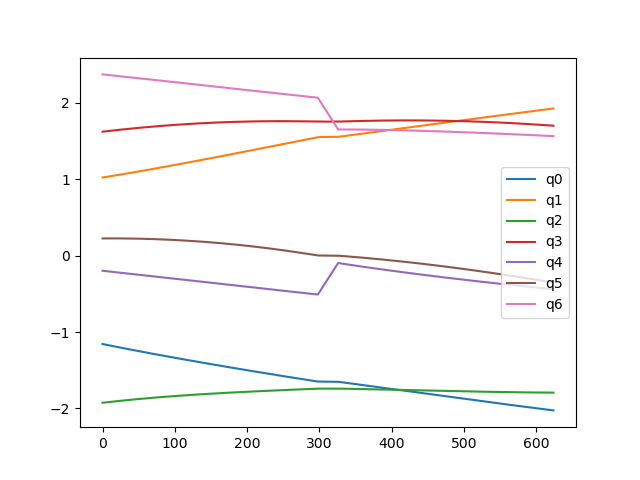

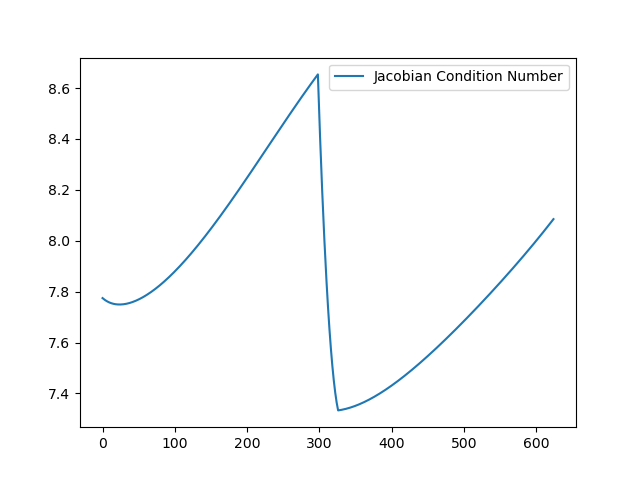

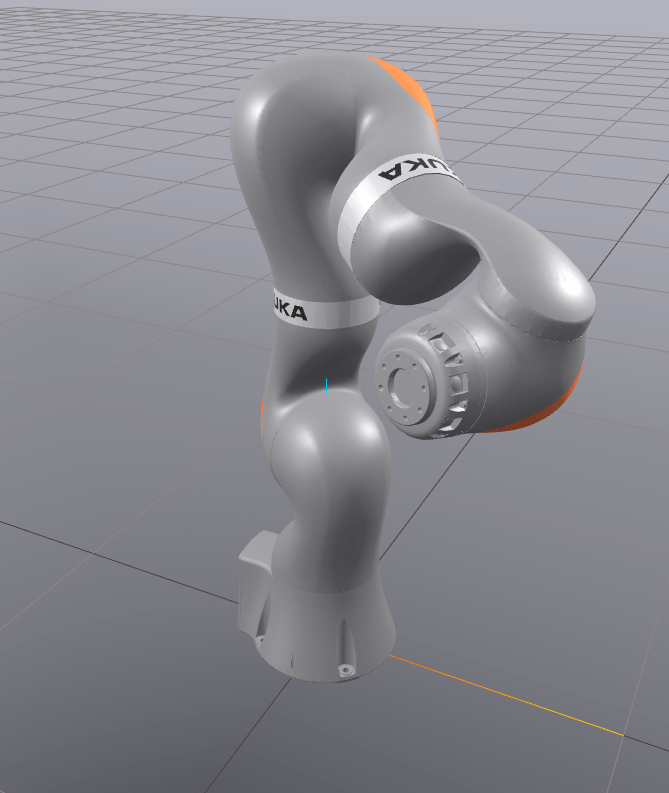

Self-Motion (Near a Coregular Surface)

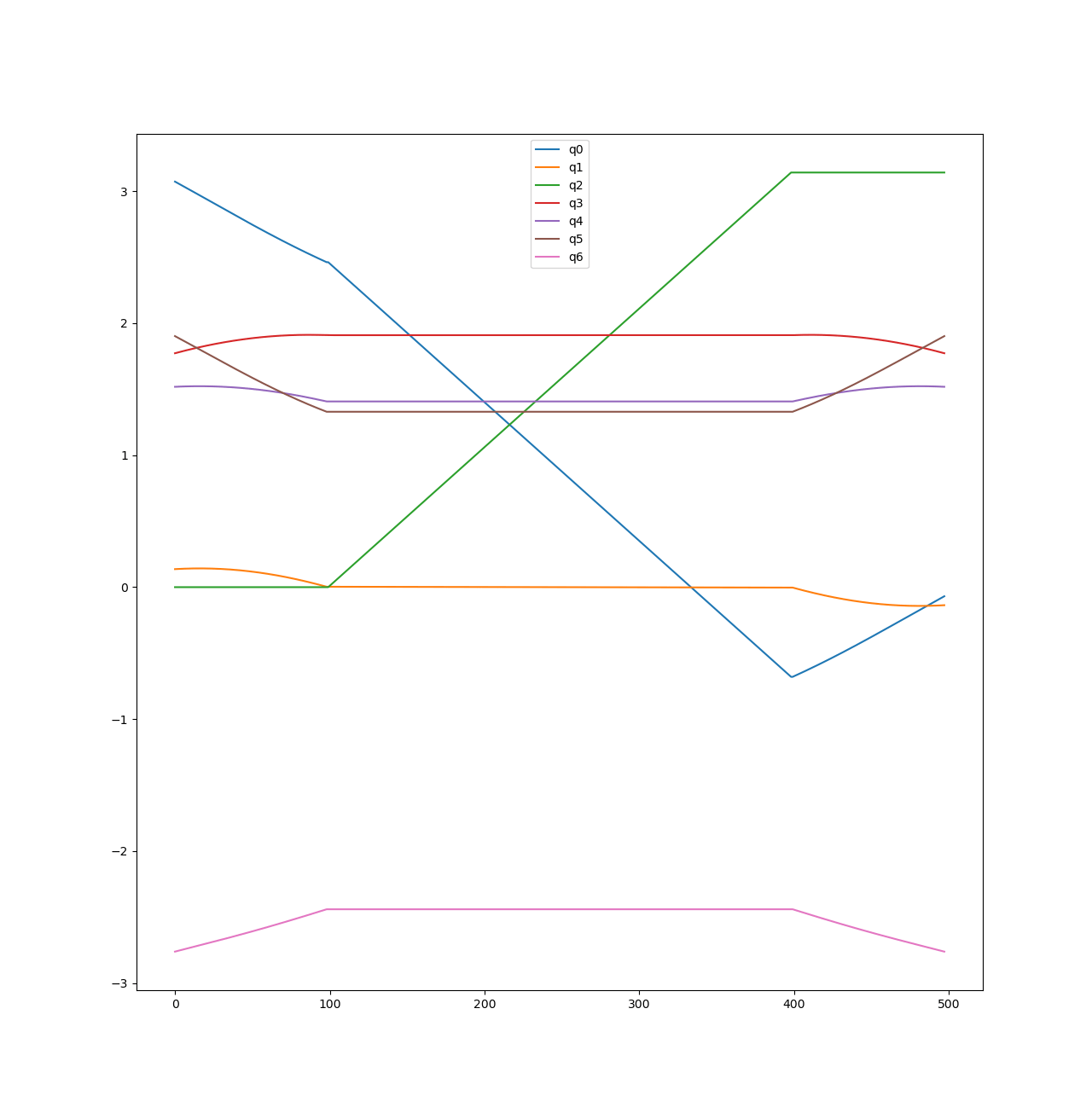

"Coregular" Self-Motion

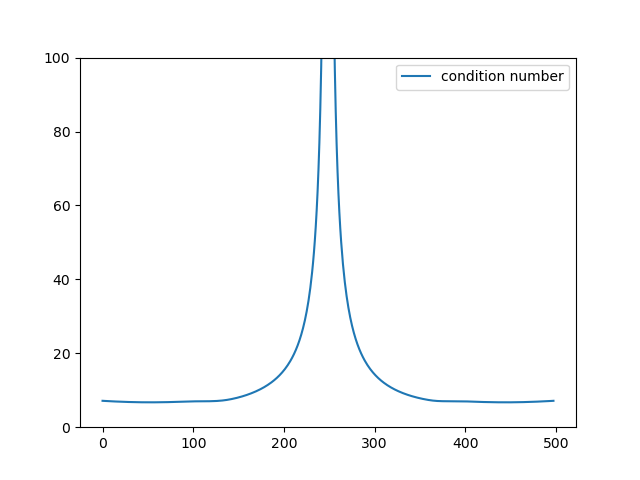

"Coregular" Self-Motion

Singularities

How Much Coregular Self-Motion?

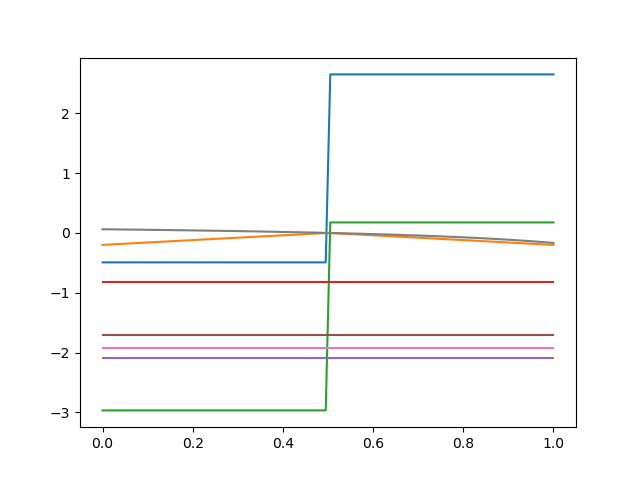

Examine the end-effector velocity into and out of the coregular point.

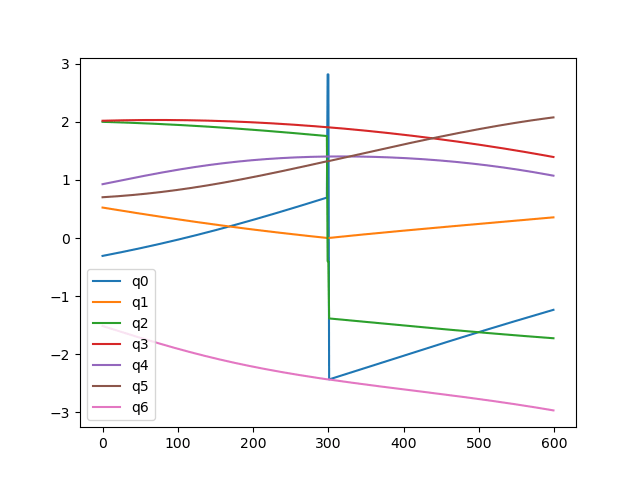

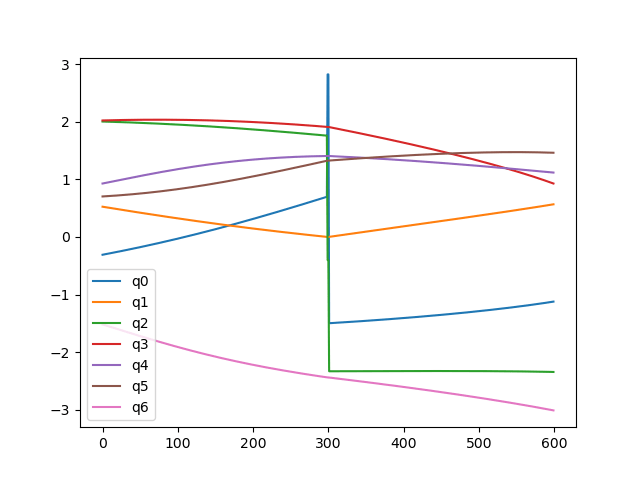

Example: No Flipping GC

Example: Flipping GC

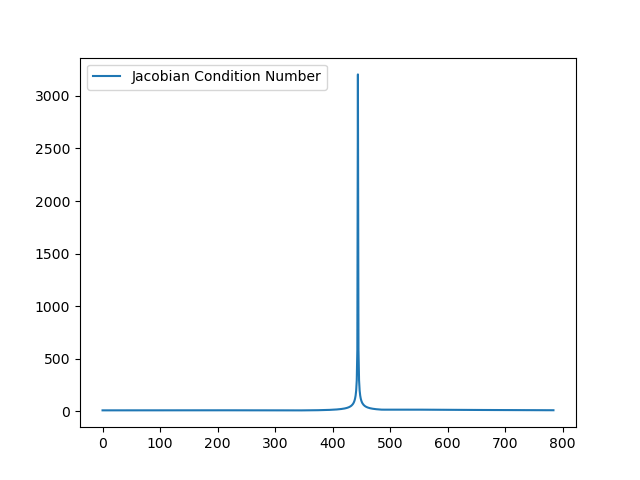

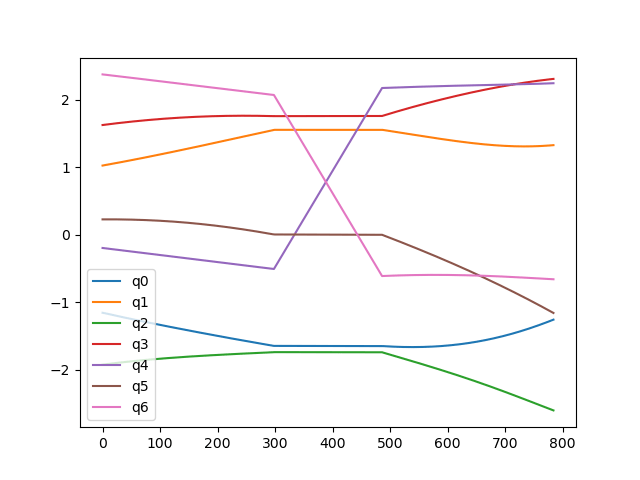

Large vs Small Self-Motion

Best Option: Match Velocities?

Just need to handle the numerical issues

What Now?

Hybrid Trajectory Optimization

Model as a hybrid system (refer to Underactuated Ch.17)

• Modes are the branches of the IK function

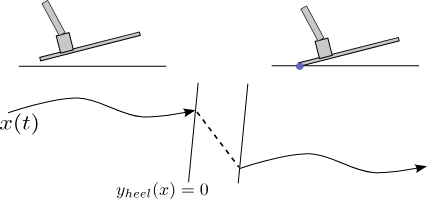

• Guards detect the coregular surfaces
• Resets switch the IK branch, handle coregular self-motion, etc.

What If We Fix the Point?

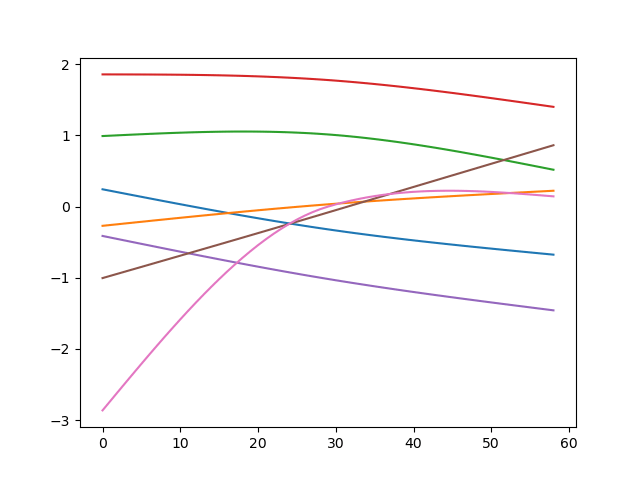

End-Effector Trajectory

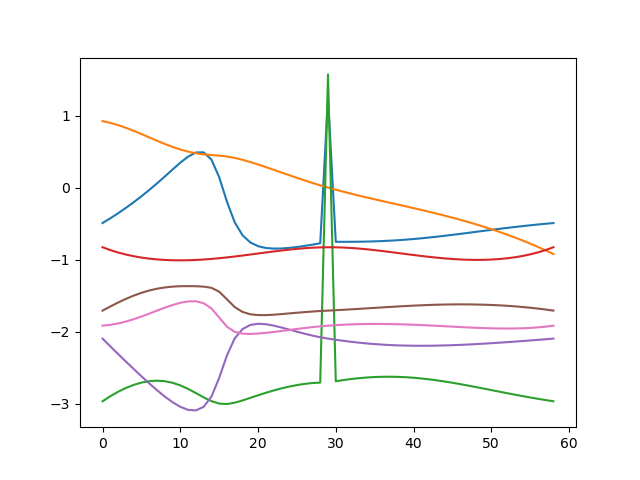

Joint Trajectory

Fixed Pose \(X_1(1)=X_2(0)=\hat X\)

Equal Velocity \(\dot X_1(1)=\dot X_2(0)\)

What if We Let the Point Move?

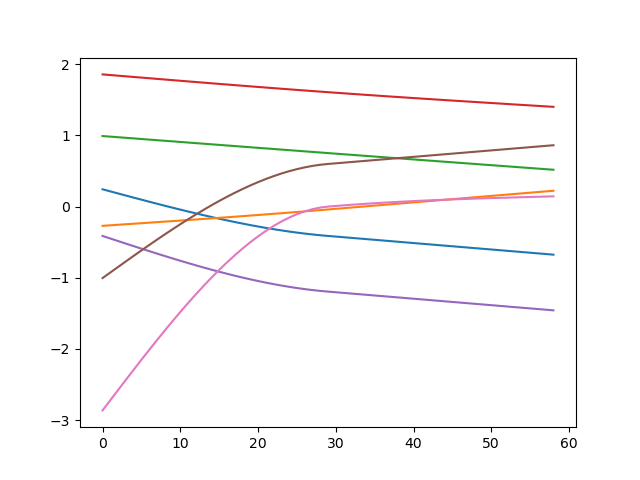

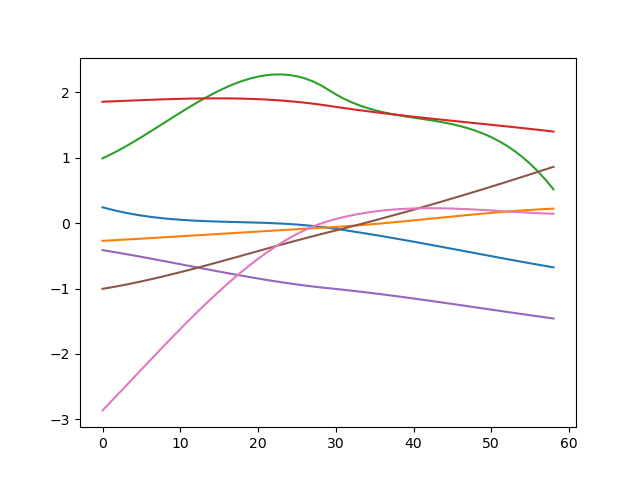

End-Effector Trajectory

Joint Trajectory

Equal Pose \(X_1(1)=X_2(0)\), "coregularity" \(\operatorname{IK}(X_1(1))_1=0\)

Equal Velocity \(\dot X_1(1)=\dot X_2(0)\)

Auxiliary Variable?

End-Effector Trajectory

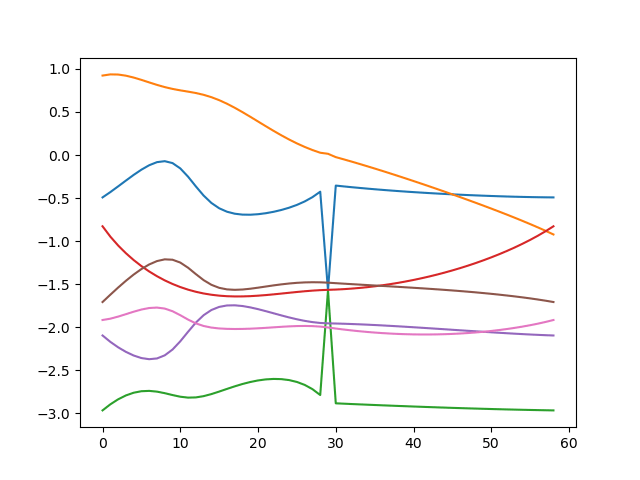

Joint Trajectory

Equal Pose \(X_1(1)=X_2(0)=\operatorname{FK}(\bar q), \bar q_1=0\)

Equal Velocity \(\dot X_1(1)=\dot X_2(0)\)

Hack the Gradients?

Equal Pose \(X_1(1)=X_2(0)=\operatorname{FK}(\bar q), \bar q_1=0\)

Equal Velocity \(\dot X_1(1)=\dot X_2(0)\)

\(\left.\frac{d}{dt}\arccos(t)\right|_{t=1}:=\left.\frac{d}{dt}\right|\arccos(t)|_{t=0.9999}\)

What Now?

New Idea: An Atlas of IK Solutions

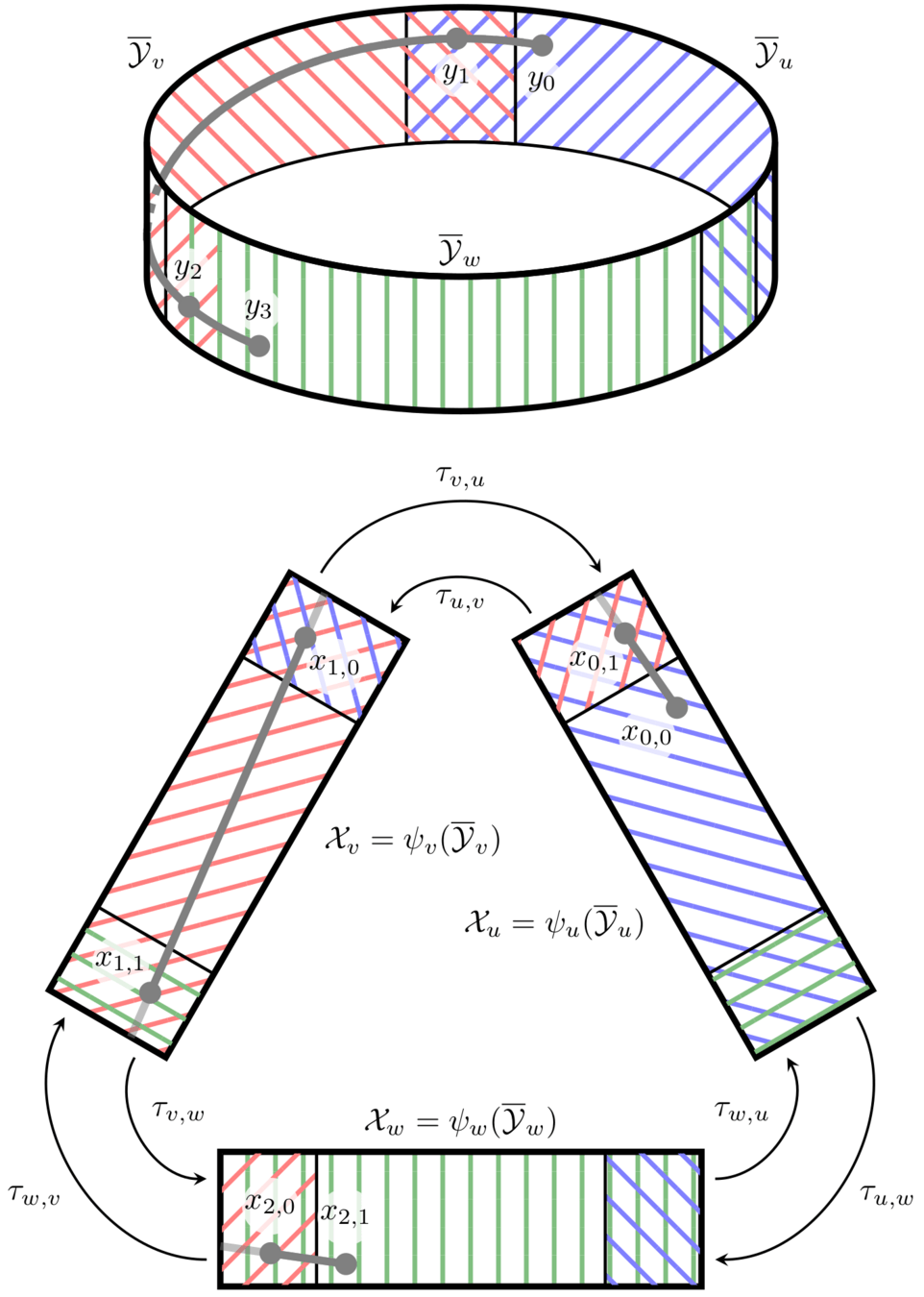

Maintain multiple parametrizations with different representational singularities

iiwa self-motion parametrizations:

• Shoulder-Elbow-Wrist
• First Joint
• Last Joint

This leads to more modes, but we can transition in their interior!
