GraphQL

Introduction & some common problems at scale

Overview

What is GraphQL?
Application structure
Authentication and authorization
Design your resolvers
Client state management

What is it?

GraphQL is a query language for APIs and a runtime for fulfilling those queries

schema: A GraphQL schema is at the center of any GraphQL server implementation and describes the functionality available to the clients which connect to it
resolvers: In order to respond to queries, a schema needs to have resolve functions for all fields. This collection of functions is called the “resolver map”

// Schema: describe your data
type User {
  email: String
  name: String
}
type Query {
  user: User
}

// Resolver: handle returned data
const resolver = {
  Query: {
    user: () => ({
      email: "dthanh1291@gmail.com",
      name: "Thanh Nguyen"
    })
  }
}

// Query
query {
  user {
    email
    name
  }
}

// Response
{
  "user": {
    "email": "dinhthanh@gmail.com",
    "name": "Thanh Nguyen"
  }
}

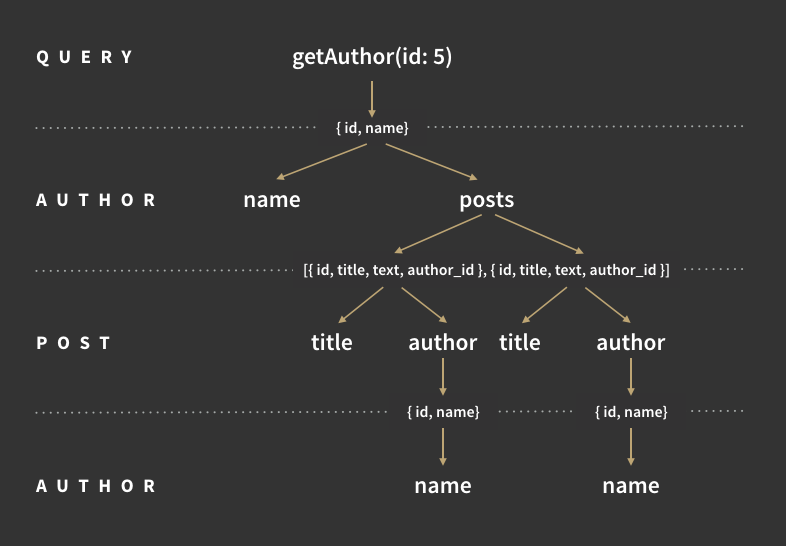

Query execution

Parsing the query: the server parses the query string and turns it into an abstract syntax tree
Validation: makes sure the query is syntactically correct and makes sense
Executing: execution begins at the root of the query, then calls the resolve function of the fields from the top level to bottom

type Author {
  id: String
  name: String
  posts: [Post]
}

type Post {
  id: String
  title: String
  text: String
  author: Author
}

query {
  getAuthor(id: 5) {
    name
    posts {
      title
      author {
        name
      }
    }
  }
}

Why GraphQL?

Solving Over-fetching
Avoiding multiple roundtrips
Simplifying client integration
Self-documentation and enforcing Schema & Type System
Allowing multiple data sources from a single endpoint

Application structure

Simple implementation

When we add more and more features, the schema and resolvers become too large and complex

request

to /graphql

GraphQL Server

Resolvers

Data Sources

/src
  /resolvers
    users.js
    posts.js
  /services
    userService.js
    postService.js
  schema.graphql
  server.js

Http Server

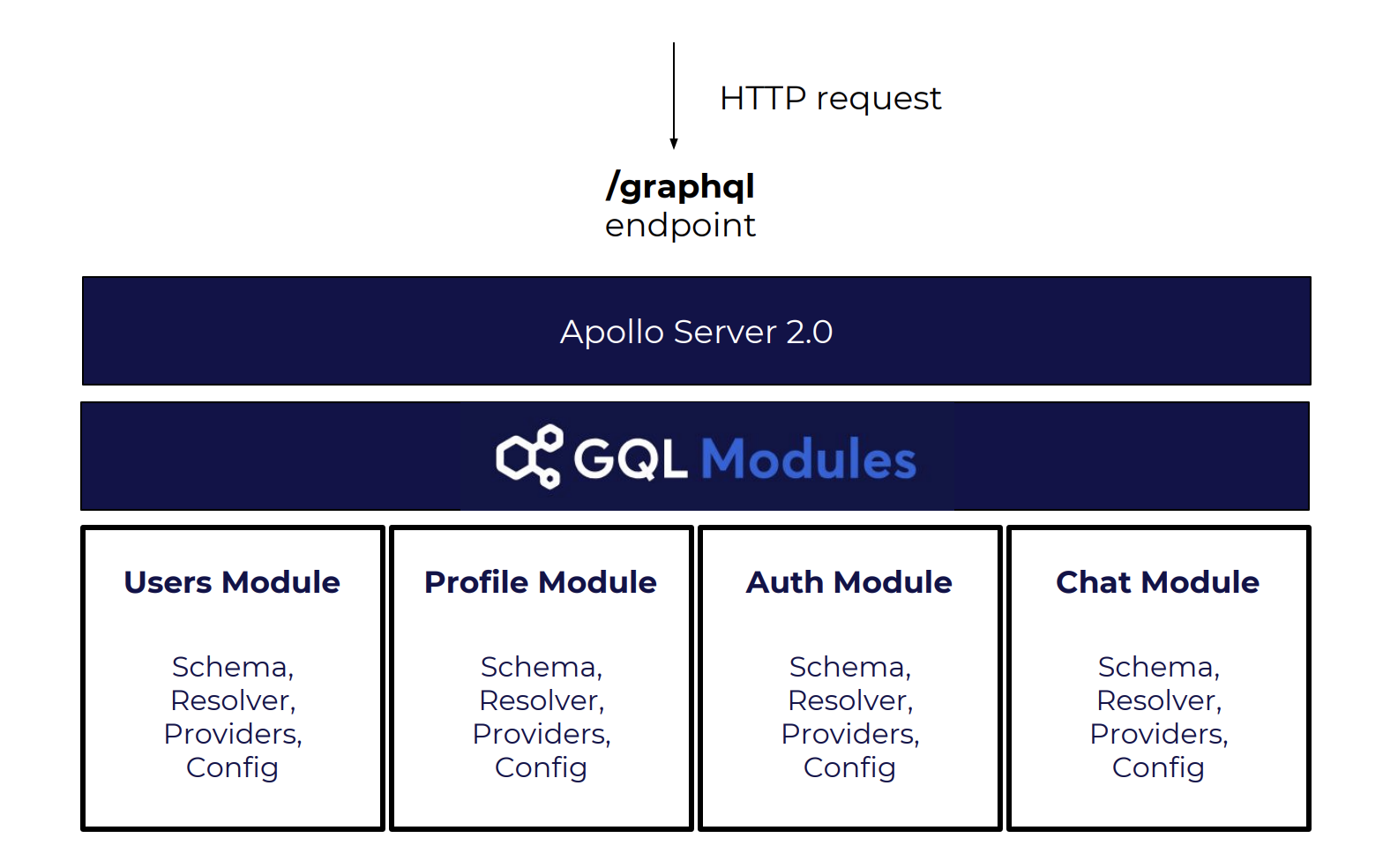

Feature based structure

GraphQL server

What's inside a module?

Schema
Resolvers
Providers

const UserModule = new GraphQLModule({
  typeDefs: gql`
    type Query {
      user: User
    }
    type User {
      email: String!
      name: String
    }
  `,

  resolvers: {
    Query: {
       user: (root, args, context)
         => context.injector.get(USER_DATA_LOADER).load(args.id),
    },
  },

  providers: [{
    provide: USER_DATA_LOADER,
    useValue: new DataLoader(keys => fetchUsersByIds(keys));
  }]
);

Authentication & authorization

Authentication

request

HTTP Server

GraphQL Server

Resolvers

business logic

1 - At HTTP Server

const api = express();
const server = http.Server(api);
api.post('/graphql', (req, res, next) => auth(req, res, next));

We can separate authentication logic from business logic
GraphQL layer is unaware of current user

3 - At resolvers

resolvers: {
  Query: {
    user: (_, args, context) {
      const user = authenticate(context.authToken);
      if (!user) {
        throw new Error('Invalid token!');
      }
    }
  }
}

Duplication
Business logic is tightly coupled with authentication

2 - At GraphQL server

const server = new ApolloServer({
  context: async ({ req }) => {
    const currentUser = await authenticate(req.headers.auth);
    if (!currentUser) {
      throw new Error('Invalid token');
    }
    return {
      currentUser
    };
   }
});

The resolvers can access to user session via currentUser, e.g we can use it for authorization

In resolvers
Via midlewares
Via directives

Directives provide a way to describe alternate runtime execution and type validation behavior in a GraphQL document.

// Middleware
const validateRole = role
  => next
    => (root, args, context, info) => {
      if (context.currentUser.role !== role) {
        throw new Error('Permission denied!');
      }
      return next(root, args, context, info);
    };

const UserModule = new GraphQLModule({
  // Directives
  typeDefs: gql`
    type Query {
      user: User @auth(role: ADMIN)
    }
  `,
  resolvers: {
    Query: {
      user: (root, args, context) => {
        if (context.currentUser.role !== 'ADMIN') {
          throw new Error('Permission denied!');
        }
        // return user
      },
      user: validateRole('ADMIN')((...args) => {
        // return user
      })
    },
  },
);

Authorization

Resolvers

Data loading

Can cause N + 1 problem

const UserModule = new GraphQLModule({
  typeDefs: gql`
    type Query {
      users: [User]
    }
    type User {
      email: String!
      name: String
      referrer: User
    }
  `,

  resolvers: {
    Query: {
      users: (root, args, context) => fetchUsers(),
    },
    User: {
      referrer: parentNode
        => fetchUserById(parentNode.referrerId),
    }
  },
);

// e.g we fetch the first 10 users
// fetch 10 users
// fetch 1st user's referrer
// fetch 2nd user's referrer
...
// fetch 10th user's referrer

DataLoader

DataLoader is a generic utility to be used as part of your application's data fetching layer to provide a simplified and consistent API over various remote data sources such as databases or web services via batching and caching
Each DataLoader contains a batch loading function which accepts an Array of keys, and returns a Promise which resolves to an Array of values

const userLoader = new DataLoader(userIds => {
  return batchFetchingUsersByIds(userIds);
  // e.g
  // SELECT * FROM users WHERE id in (...userIds)
});

const UserModule = new GraphQLModule({
  resolvers: {
    User: {
      referrer: (parentNode, _, context)
        => context.userLoader
             .load(parentNode.referrerId),
    }
  },
);

// fetch 10 users
// load user id 1 -> push it to a queue
// load user id 2 -> push it to the queue
...
// load user id n -> push it to the queue
// fetch referrers by ids

Client side

Querying data
Handling mutation
Handling client state and caching

Query

Query is used by the client to request the data it needs from the server

const GET_USER_QUERY = gql`
  query userById($id: ID!) {
    user(id: $id) {
      email
      name
    }
  }
`;

const withUserQuery
  = graphql(GET_USER_QUERY)(Component);

function Component({ data: { user } }) {
  return (
    <div>
      <div>{user.email}</div>
      <div>{user.name}</div>
    </div>
  );
}

function Component () {
  return (
    <Query query={GET_USER_QUERY}>
      {({ data: { user } }) => {
        return (
          <div>
            <div>{user.email}</div>
            <div>{user.name}</div>
          </div>
        );
      }}
    </Query>
  )
};

Mutation

Mutations are used to create, update and delete data

const ADD_USER = gql`
  mutation ($email: String!, name: String!) {
    addUser($email: String!, name: String!) {
      id
      email
      name
    }
  }
`;

const AddUser = () => (
  <Mutation mutation={ADD_TODO}>
    {(addUser) => (
      <AddUserForm addUser={addUser} />
    )}
  </Mutation>
);

const withAddUserMutation = graphql(ADD_USER, {
  props: ({ mutate }) => ({
    addUser: variables => mutate({ variables }),
  }),
});

Optimistic UI

Optimistic UI is a pattern that you can use to simulate the results of a mutation and update the UI even before receiving a response from the server
Improving perceived performance

const UPDATE_USER = gql`
  mutation ($id: String!, name: String!) {
    updateUser($id: String!, name: String!) {
      id
      name
    }
  }
`;

const UpdateUserForm = () => (
  <Mutation mutation={UPDATE_USER}>
    {mutate => {
      <UpdateUser
        updateUser={({ id, name }) =>
          mutate({
            variables: { id, name },
            optimisticResponse: {
              __typename: "Mutation",
              updateUser: {
                __typename: "User",
                id,
                name,
              }
            }
          })
        }
      />;
    }}
  </Mutation>
);

Client state management

It's not recommended to introduce another client store like Redux, MobX..
Apollo cache should be the single source of truth

Local state

Apollo Client allows to store your local data inside the Apollo cache alongside your remote data

const client = new ApolloClient({
  uri: 'https://localhost:3000/graphql',
  clientState: {
    typeDefs: `
      type Query {
        theme: String
      }
    `,
    defaults: {
      theme: 'light',
    },
    resolvers: {
      Mutation: {
        selectTheme: async (_, { theme }, { cache }) => {
          await cache.writeData({ data: { theme } });
          return null;
        }
      }
    }
  }
});

GraphQL

Introduction & some common problems at scale

Overview

What is it?

Query execution

Why GraphQL?

Application structure

Simple implementation

Feature based structure

What's inside a module?

Authentication & authorization

Authentication

1 - At HTTP Server

3 - At resolvers

2 - At GraphQL server

Authorization

Resolvers

Data loading

DataLoader

Client side

Query

Mutation

Optimistic UI

Client state management

Local state

Thank you for listening,
