Webhooks

Automate your life and work (and possibly even build a business from them?)

a.k.a.
What are they are how are they useful?

What are they?

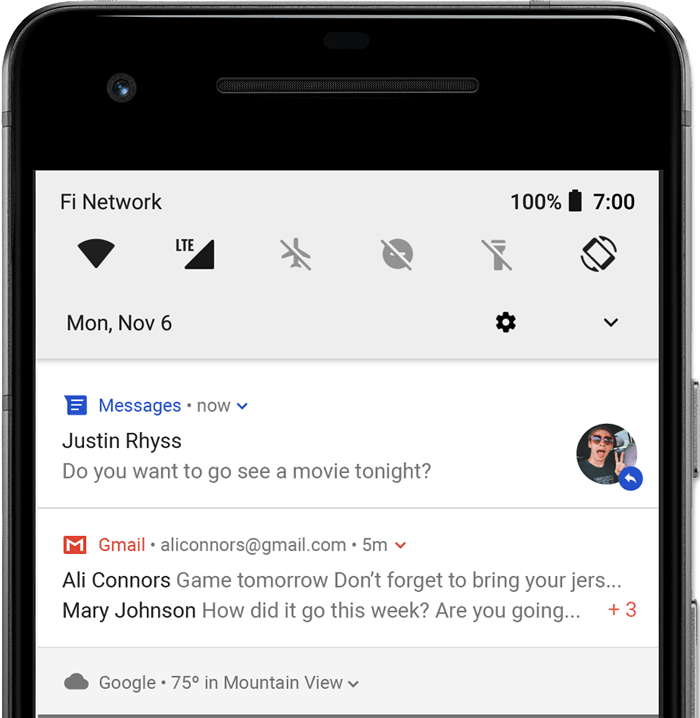

  • Notification that something has happened
  • From a system that you use
  • To your own code*
  • To do custom processing

* or service that you configure to process webhooks

System A

System B

System C

Why use them?

  • Extend functionality
    • Connect 2 separate systems that don't natively / normally talk to each other
    • Be a "translator" / "transporter"
  • Possible to do it without any code!

Why use them?

What kind of notifications?

  • It depends
  • Based on what the system has provided
  • RTFM:
    • Search the docs
    • Configure from web
  • Utilise 3rd party webhook processing systems to explore

How to use it?

Code-free

Event/Topic:

  • Specifies which kind of notification this is
  • (e.g. incoming message or deleted comment)



{
    "action": "created",
    "issue": {
        "url": "https://api.github.com/repos/CornerGeeks/test-git/issues/16",
        "title": "Test issue",
        "user": {
            "login": "thewheat", ...
        },
        "state": "open", ...
    },
    "comment": {
        "url": "https://api.github.com/repos/CornerGeeks/test-git/issues/comments/423866229",
        "user": {
            "login": "thewheat", ...
        },
        "created_at": "2018-09-24T02:21:50Z",
        "updated_at": "2018-09-24T02:21:50Z",
        "author_association": "MEMBER",
        "body": "Hello world!", ...
    },
    "repository": { "name": "test-git", ... },
    "organization": { "login": "CornerGeeks", ... },
    "sender": { "login": "thewheat", ... }
}

Payload

  • Specific details of event/topic
  • (e.g. contents of incoming message or person who performed the deletion)
  • E.g. Github



How to use it? Not so code-free

No Set Payload Standard

{
  "type" : "notification_event",
  "app_id" : "YOUR_APP_ID",
  "data" : {
    "type" : "notification_event_data",
    "item" : {
      "type" : "user",
      "id" : "57179d0fcda796048c00046d",
      "user_id" : null,
      "anonymous" : false,
      "email" : "user@example.com",
      "name" : "John Smith",
      ...
    }
  },
  "id" : "notif_b665efa0-070a-11e6-a52e-73634a395e93",
  "topic" : "user.created",
  "delivery_status" : null,
  "first_sent_at" : 1461165327,
  "created_at" : 1461165327,
   ...
}
{
  "object":"page",
  "entry":[
    {
      "id":"<PAGE_ID>",
      "time":1458692752478,
      "messaging":[
        {
          "sender":{
            "id":"<PSID>"
          },
          "recipient":{
            "id":"<PAGE_ID>"
          },

          ...
        }
      ]
    }
  ]
}

How to use it? Not so code-free

How to use it? Not so code-free

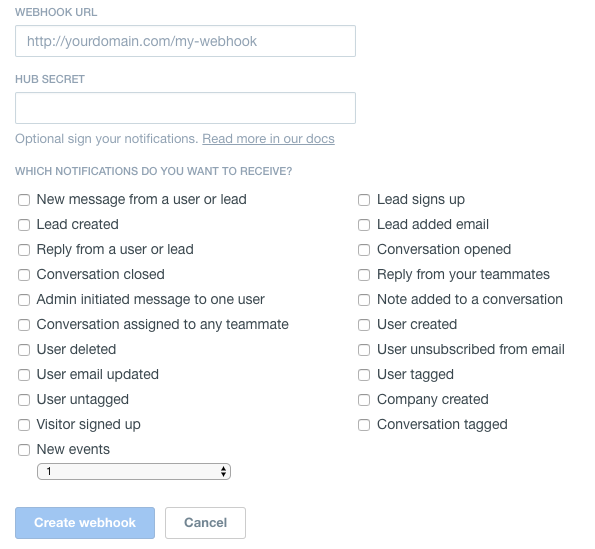

Configuration

  • Server URL running processing code

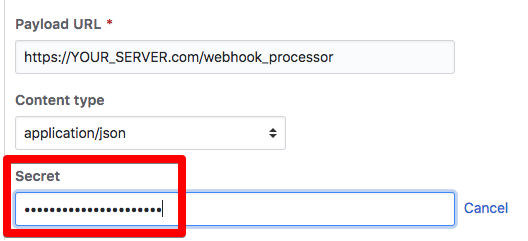

Security

  • Secret & Signature

Sample Code

  • Webhook POST may not provide data similar to web POST requests using parameters
    • E.g. PHP may need to use php://input not $_POST["payload"]
    • Github allows x-www-form-urlencoded which will provide a "payload" POST parameter
    • Check sample code if any





  • We wary of possible duplicate webhooks
    • Webhooks retry if couldn't successfully send
    • Or subscribing to multiple topics can create "duplicate" notifications

Useful tips and debugging

  • ngrok to allow getting a public URL running local code: don't need to deploy until you're sure it works
  • ngrok web interface:
    • see incoming data
    • Replay data

Useful tips and debugging

Demo

Q & A
