Building the New York Times 4th Down Bot


whoami

Trey Causey
Data Scientist, ChefSteps

NFL Consultant

CSSS Certificate Holder

@treycausey

trey.causey@gmail.com

Kevin Quealy (@kevinq)
Deputy Editor
The Upshot  / The New York Times

Josh Katz (@jshkatz)
Graphics Editor
The Upshot  / The New York Times

Brian Burke (@bburkeESPN)
Senior Analytics Specialist
ESPN / Advanced Football Analytics

A Simple Statistical Model...

... deployed to production

... ready for any edge case

... fully automated

... a lesson in statistical decision-making

... "data journalism?"

The model is the easy part.

What is a fourth down?


• Four attempts (downs) to advance
  the ball 10 yards (for a new set of downs)
  or score ("convert")

  "4th and 2": 4th down, 2 yards remaining
  for a new set of downs

• If fail to advance, ball "turns over
  on downs" to opponent

• Options
  • "Go for it"
  • Punt
  • Attempt a field goal

Do Firms Maximize? Evidence from Professional Football

Romer, David. 2006. Journal of Political Economy 114(2), pp. 340-365.

• If coaches are rational actors, they should maximize their win
  expectancy.

• Relatively simply decisions
• Very high compensation for coaches
• Extremely competitive labor market
• Learning is possible

... they don't.

• "Conservative" playcalling is the overwhelming norm

• Possible explanations
  • Risk aversion over in-game win probability
  • Principal-agent problems
  • Systematic imperfect maximizers
  • Complex objective
    functions

Romer's Approach

• Play-by-play data
• Dynamic programming
• Expected payoff to punting  / kicking / going for it
  • Conditioned on game situation

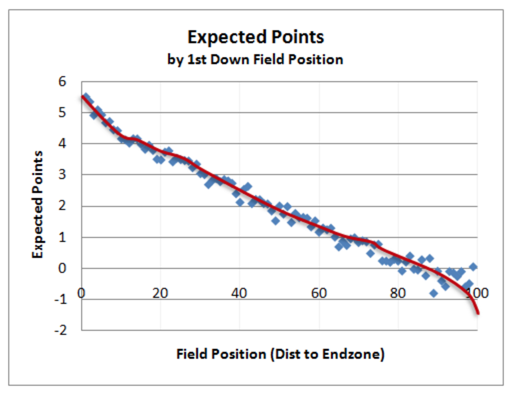

• Produces an expected points model

• Demonstrates coaches significantly and
  substantively fail to maximize their win
  expectancy on 4th down.

Coaches lose their minds on 4th down.

Supporting work by Burke

Broader observations


• Coaches don't win maximize, but delay losing as long as possible (Barnwell)

• If this is true, behavior will not change.

• If simply imperfect maximizers, data and learning via observation and trial & error should change behavior.

The 4th Down Bot Model(s)

Needed to make a decision

P(winning | pre-snap situation)


P(winning | successful conversion)

P(winning | failed conversion)


P(winning | successful field goal)

P(winning | failed field goal)


P(winning | punt)

Win Probability

Logistic regression (L2 penalty determined via cross-validation)

Dependent variable:

- Did team in this situation win the game? (not
expected points)


Inputs:

- Down, Distance, Yards to Go, Seconds Remaining

- Vegas line as a linear function of seconds remaining

- Score Difference, Offensive & Defensive Timeouts

- Quarter, (Score Difference * Quarter)

Training / Validation

• Trained on 475,000+ plays
  • 90% of 2001 - 2014 regular season plays
  • No overtime plays
  • Kickoffs, extra points, penalties removed

• Five-fold cross-validation used for parameter estimation, selected model then fit to all 475,000+ plays

• 10% random holdout used for evaluation of predictive accuracy

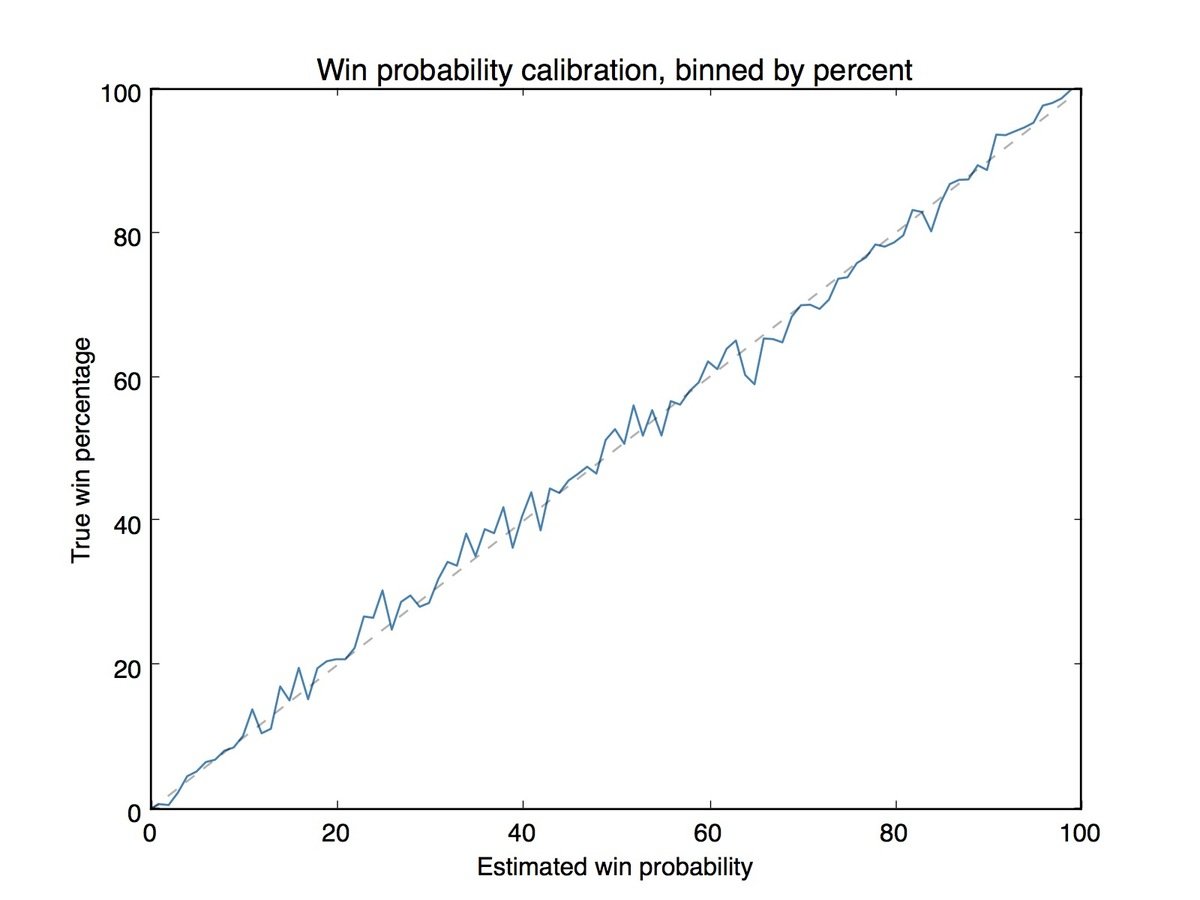

Performance

Precision: 0.77

Recall: 0.78

F1 Score: 0.77


AUC: 0.86

Kicking / Punting

Wrinkle: kickers growing more accurate over time

Logistic regression controlling for
distance, kicker, weather, and stadium
(Katz)

Punting: expected net return from current
field position, non-punter specific (doesn't
allow for muffed punt)

Decision-making

For each game situation, estimate win
probability for each possible outcome.

Determine breakeven point -- probability
of successful 4th down conversion at which
coach should be indifferent between options.

Unsolved (statistical) problems

• Estimation of uncertainty is problematic
  • Which makes adjudication along the
    decision frontier difficult to automate
• Obvious IID issues
• Non-linear models (random forests,
  gradient boosted trees) perform little
  better, odd given the known
  numerous interactions & non-linearities

Complications! (Overfitting?)

Lots of manual smoothing required for
situations that 'look' wrong.


End of game situations have
extremely high leverage &
visibility

Examples:

1) In fourth quarter, weight win probabilities of not going for it by the probability of getting the ball back.

2) With < 40 seconds left in game within FG range,
set WP to P(successful FG).

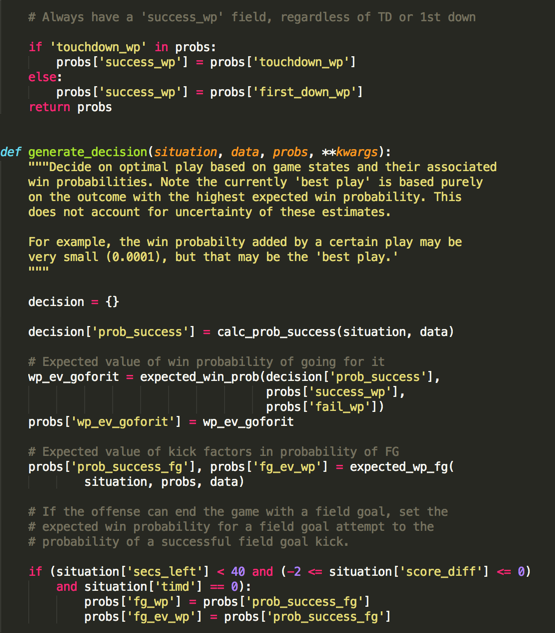

Model -> Code -> Product

Text

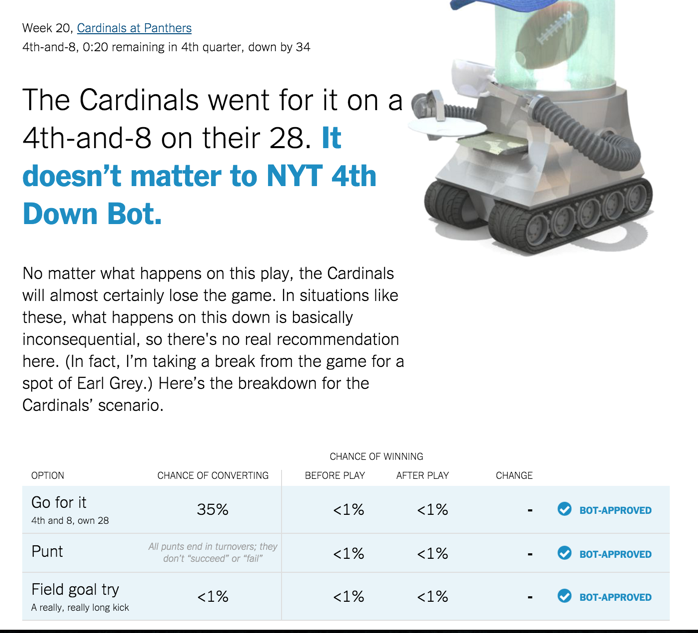

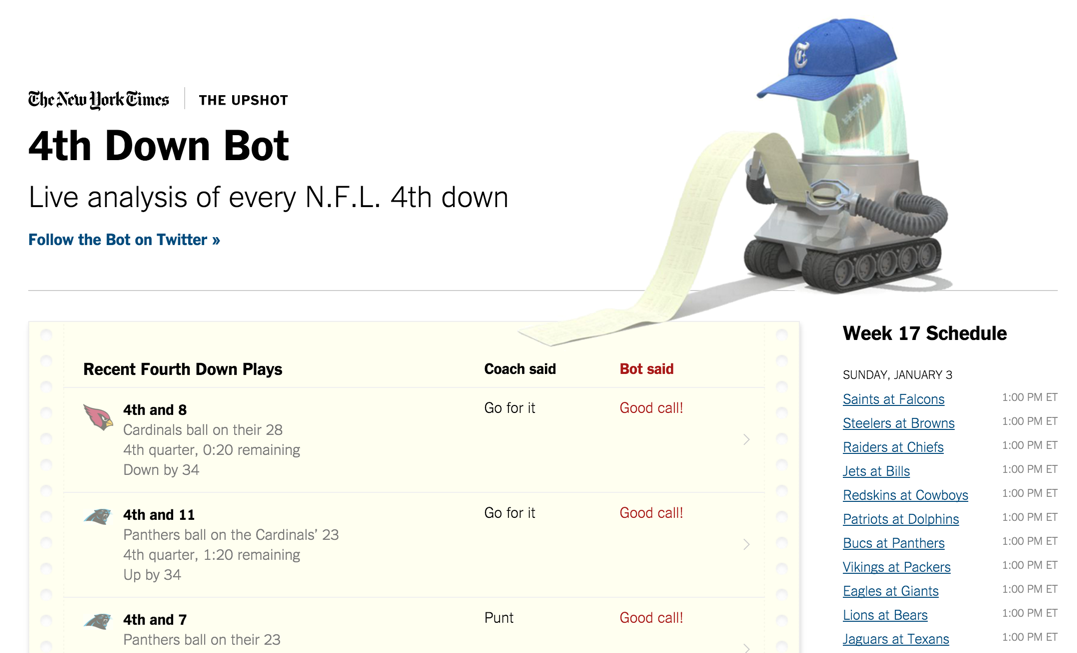

nyt4thdownbot.com

Every 4th down is analyzed
and explained with the
rationale for the call and
the breakeven point.

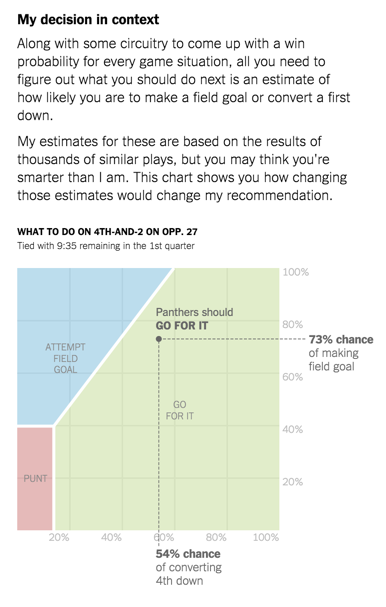

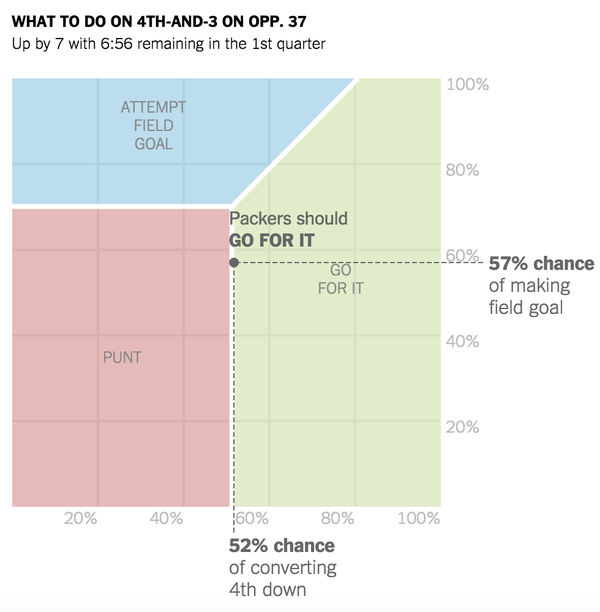

These charts ended up being
very popular!

The bot (@NYT4thDownBot)
has over 26,000 Twitter followers.

... but wait, there's more.

• Fast, live data == Making calls before ball is snapped
• For the 4th Down Bot to be a bot:
  • Needs to be very fast
    • Receive data, process, make prediction, make decision, send decision, tweet decision in one second or so.

  • Needs to be fully automated & always on
    • Load models & data into memory if not found
    • Logging
    • Graceful failure with fallback cases

API

• Application Programming Interface

• Stateless, accepts all arguments as
  parameters in URL

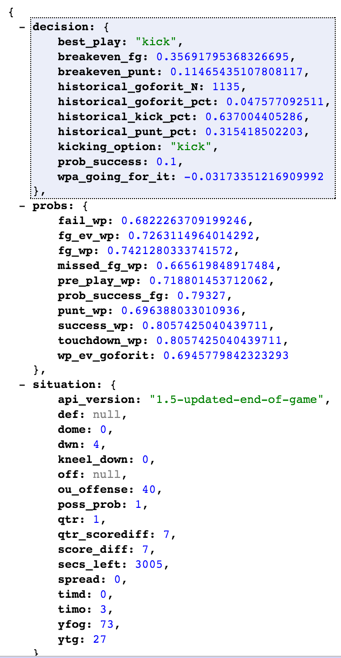

• Returns information needed to
  tweet and render decision page as
  JSON (JavaScript Object Notation)

http://someurl.com/predict?
dwn=4&ytg=27&yfog=73
&secs_left=3005&score_diff=7
&timo=3&timd=0&spread=0
&ou_offense=40
&key=APIKEY

Open source!

github.com/TheUpshot/4thdownbot-model

(API code is not open source for security purposes)

Lessons from building a data product

• Modeling is a very small component

• Data munging and packaging the model the majority of the work

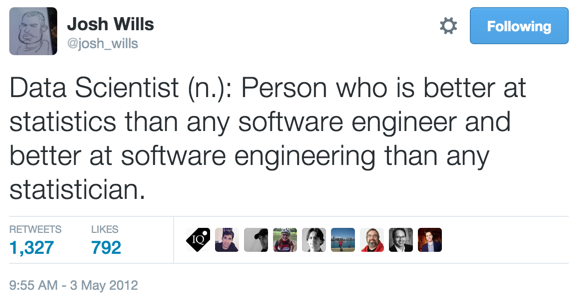

• Software development isn't statistics, but the intersection is powerful

• http://uwseds.github.io/

The Stack

• Python
  • Data munging: pandas
  • Modeling: scikit-learn
  • Plotting: matplotlib
  • API: Flask

• JavaScript (Node.js)
  • Kicking model
