HTTP/3: A QUIC Update

Software Development Engineer

Trivikram Kamat

@trivikram

@trivikr

#NodeJSInteractive

#http3

#quic

Tree

Weak

Rum

+

Tri

vik

ram

.

What's my name again?

My history with Node.js

Have been using Node.js for 4 years
Started contributing to Node.js core in Oct 2017
- helped make HTTP/2 stable
Became Node.js core collaborator in March 2018
Organized and mentored four Code+Learn events

What are we going to cover?

What's HTTP/1.1, and why HTTP/2 was required
What's HTTP/2, and why HTTP/3 was required
What's HTTP/3, and
We'll see some sample code!

when is it coming?

James Snell

is a Node.js TSC member, who is heading the work on implementing QUIC

Big Thanks to sponsors:

Tatsuhiro Tsujikawa

A big thank you to tatsuhiro-san for his amazing work on ngtcp2

@tatsuhiro-t

HTTP/0.9

Published: 1991

The one line protocol

GET /mypage.html

<HTML>
  A very simple HTML page
</HTML>

HTTP/1.0

Published: May 1996

Building extensibility

GET /mypage.html HTTP/1.0
User-Agent: NCSA_Mosaic/2.0 (Windows 3.1)

200 OK
Date: Tue, 15 Nov 1994 08:12:31 GMT
Server: CERN/3.0 libwww/2.17
Content-Type: text/html
<HTML>
A page with an image
  <IMG src="/myimage.gif">
</HTML>

Versioning information

Browser information

Status code

Headers

HTTP/1.1

Published: June 1999

The standardized protocol

GET /en-US/docs/Glossary/Simple_header HTTP/1.1
Host: developer.mozilla.org
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.9; rv:50.0) Gecko/20100101 Firefox/50.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate, br
Referer: https://developer.mozilla.org/en-US/docs/Glossary/Simple_header

HTTP/1.1 improvements

Persistent connection: using a single TCP connection to send and receive multiple HTTP requests/responses (serial requests)
Pipelining: send a second request before the answer for the first one is fully transmitted, lowering the latency for the communication
Chunked transfer encoding: streaming data transfer where stream is divided into a series of non-overlapping "chunks"
Additional Cache Control mechanisms
Content negotiation

Issue #1: Three roundtrips per request

Credit: https://blog.cloudflare.com/the-road-to-quic/

Issue #2: Multiple TCP+TLS connections are created for concurrent requests

http/1.1 server

const https = require("https");
const fs = require("fs");

const options = {
  key: fs.readFileSync("ssl/localhost.key"),
  cert: fs.readFileSync("ssl/localhost.cert")
};

https
  .createServer(options, (req, res) => {
    if (req.url === "/") {
      fs.createReadStream("./files/index.html").pipe(res);
    } else if (req.url === "/style.css") {
      fs.createReadStream("./files/style.css").pipe(res);
    } else if (req.url === "/script.js") {
      fs.createReadStream("./files/script.js").pipe(res);
    } else if (req.url === "/globe.png") {
      fs.createReadStream("./files/globe.png").pipe(res);
    }
  })
  .listen(3000);

http/1.1 server

const https = require("https");
const fs = require("fs");

const options = {
  key: fs.readFileSync("ssl/localhost.key"),
  cert: fs.readFileSync("ssl/localhost.cert")
};

https
  .createServer(options, (req, res) => {
    if (req.url === "/") {
      fs.createReadStream(`./files/index.html`).pipe(res);
    } else {
      // regular expression for filename requested
      const re = /\/(\w+)*/;
      const filename = req.url.replace(re, "$1");
      fs.createReadStream(`./files/${filename}`).pipe(res);
    }
  })
  .listen(3000);

index.html

<html>
  <head>
    <link rel="stylesheet" type="text/css"
          href="./style.css" />
  </head>
  <body>
    <img id="image" src="./globe.png" />
    <div>
      <div>Hello</div>
      <div id="name">World</div>
    </div>
    <script type="text/javascript"
            src="./script.js"></script>
  </body>
</html>

style.css

body {
  display: flex;
  align-items: center;
}

div {
  font-size: 100px;
}

script.js

setTimeout(() => {
  document.getElementById("name")
    .innerHTML = "#NodeJSInteractive!";
  document.getElementById("image")
    .src = "./njsi.png";
}, 1000);


Load the webpage

examine TCP connections with netstat

Issues with HTTP/1.1

Three round-trips per request
Multiple TCP+TLS connections for concurrent requests

HTTP/2

Credit: https://blog.cloudflare.com/the-road-to-quic/

Published: May 2015

http/2 server

const http2 = require("http2");
const fs = require("fs");

const options = {
  key: fs.readFileSync("ssl/localhost.key"),
  cert: fs.readFileSync("ssl/localhost.cert")
};

const server = http2.createSecureServer(options).listen(3000);
server.on("stream", (stream, headers) => {
  if (headers[":path"] === "/") {
    stream.respondWithFile("./files/index.html");
  } else {
    // regular expression for filename requested
    const re = /\/(\w+)*/;
    const filename = headers[":path"].replace(re, "$1");
    stream.respondWithFile(`./files/${filename}`);
  }
});

Load the webpage

examine TCP connections with netstat

Benefits of HTTP/2

Multiplexing and concurrency: different HTTP requests onto the same TCP connection
Stream dependencies: client can indicate to server which dependencies are important
HPACK Header compression: reduces the length of header field encodings by exploiting the redundancy
Server push: server can send resources which client has not requested yet

Issues with HTTP/2

HPACK is stateful: the encoding and decoding tables have to be maintained by an endpoint
High resource consumption in the middle tier
Not easily routable along the network: works well is Node.js server communicates with other Node.js server, but not if there's NGINX in between
TCP head-of-line blocking

TCP head-of-line blocking

When a single TCP packet is lost or corrupted, all subsequent packets are blocked until the lost one can be successfully transmitted.

With HTTP/2, multiple requests and responses are carried over a single TCP connection. So all those requests/responses will be blocked in case of a dropped TCP packet.

With HTTP/1.1, if that happens, you're only blocking one request

This effect is most significant on high-latency (long-distance), and low-reliability (mobile) connections

TCP head-of-line blocking

Chain metaphor

Credit: https://http3-explained.haxx.se/en/why-tcphol.html

TCP connection

CSS packet

JS packet

HTTP/3 over QUIC

draft-24 as of Dec 2019

When setting up multiple streams over QUIC connection, they are treated independently so that if any packet goes missing for one of the streams, only that stream has to pause and wait for the missing packet to get retransmitted.

CSS stream

JS stream

Credit: https://http3-explained.haxx.se/en/why-tcphol.html

QUIC is built on UDP

Speaking of UDP...

I could tell you a joke

BUT...

you won't get it 😉

Let me still give it a try...

UDP

packet

bar

walks

into

a

QUIC adds the following to UDP

Error Handling

Acknowledgements

Flow Control

Bidirectional/Unidirectional streams

Packet Sequencing

Built in encryption (TLS 1.3)

QUIC also reduces roundtrips

Credit: http://bit.ly/36CJ8GZ

Before we write HTTP/3 server

QUIC !== HTTP/3

HTTP/3 is an application protocol that uses QUIC as a transport protocol

HTTP/3

QUIC

UDP

IP

http/3 server

const quic = require("quic");
const fs = require("fs");

const options = {
  key: fs.readFileSync("ssl/localhost.key"),
  cert: fs.readFileSync("ssl/localhost.cert")
};

const server = quic.createSocket({ port: 3000 });
server.listen(options);
server.on("session", session => {
  session.on("stream", (stream, headers) => {
    if (headers[":path"] === "/") {
      stream.respondWithFile("./files/index.html");
    } else {
      // regular expression for filename requested
      const re = /\/(\w+)*/;
      const filename = headers[":path"].replace(re, "$1");
      stream.respondWithFile(`./files/${filename}`);
    }
  });
});

Load the webpage

HTTP/3 over QUIC in Node.js is in early stages of development

You can help build it!

https://github.com/nodejs/quic

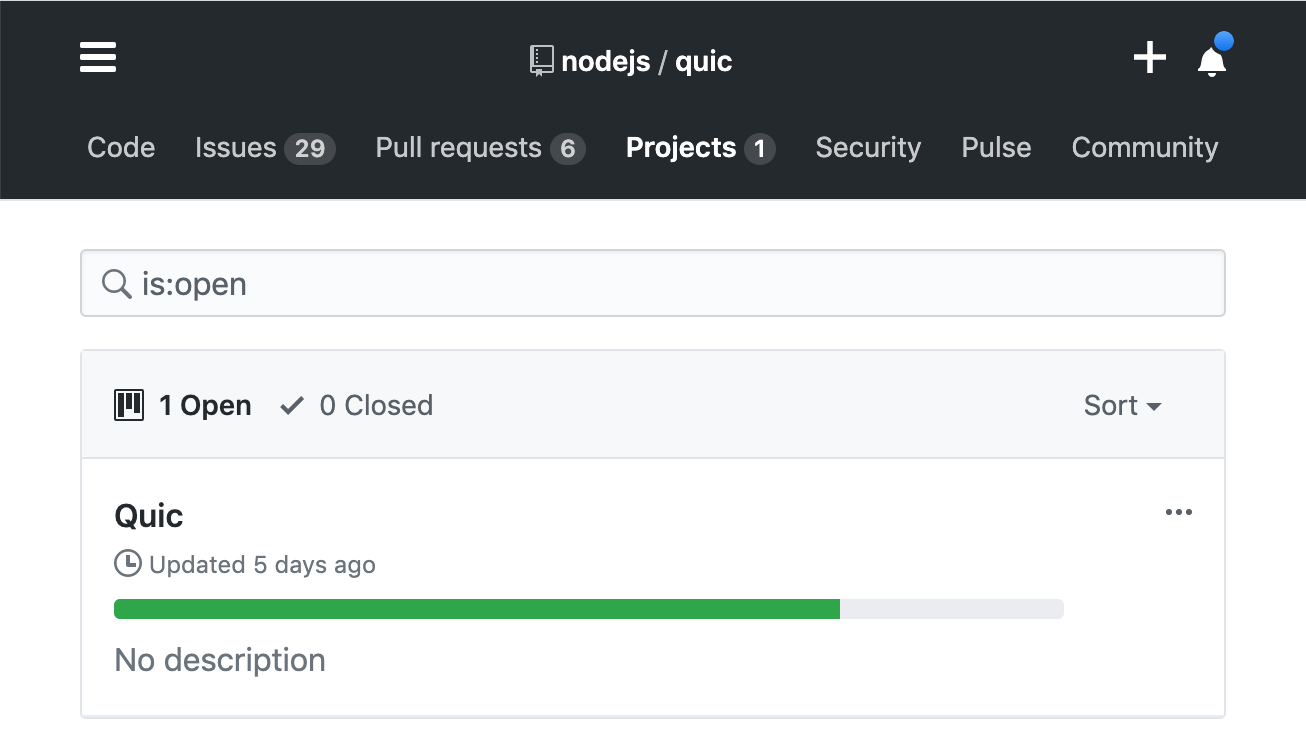

nodejs/quic progress

project board

How can I write unit tests?

git clone git@github.com:trivikr/quic.git

cd quic

./configure --experimental-quic --coverage

make -j4 coverage

Visit https://github.com/nodejs/quic

Current state of JavaScript tests

Current state of C++ tests

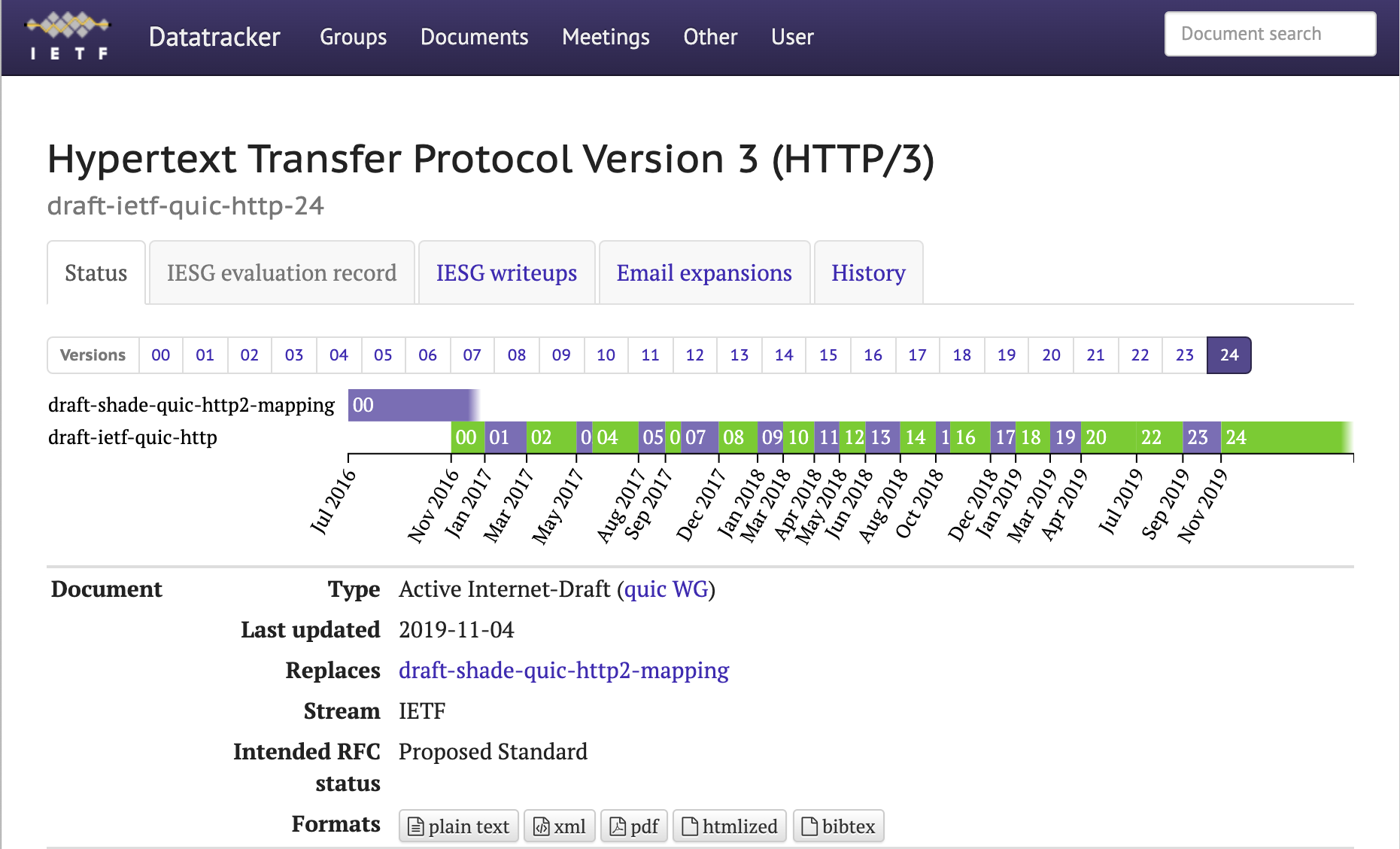

HTTP/3 IETF draft

Example webpage on QUIC

Demo

Summary

In HTTP/1.1, multiple TCP+TLS connections were required for concurrent requests
HTTP/2 added multiplexing in which multiple HTTP requests were sent onto the same TCP connection
TCP head-of-line blocking: the entire TCP connection is brought to halt if a single TCP packet is lost.
HTTP/3 over QUIC treats each stream independently, so if any packet goes missing in a stream - only that stream is affected

Thank you for listening!

https://slides.com/trivikram/http-3-a-quic-update

Trivikram Kamat

@trivikram

@trivikr

https://github.com/trivikr/node-http-servers
