VLC

GOALS

https://news.ycombinator.com/item?id=14409123

VLC

• Ready-to-use pipeline
• Automatic configuration
• Designed for making players, and extending use case through plugins
• No «custom pipeline»

GStreamer

• Multimedia pipeline description framework
• Designed for generic application
• Pipeline is explicit (most of the time)
• But already different sandboxing history

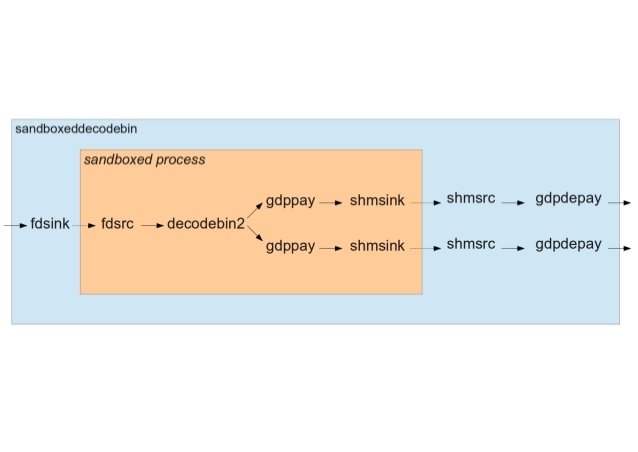

GStreamer sandbox bin

Pending work

• a «do your own security» framework
• designed for multimedia makers, not really final app makers

«Implement a generic sandboxing solution by implementing a GstElement / GstPad subclass that can be provide functionality of any GstElement in another process. »

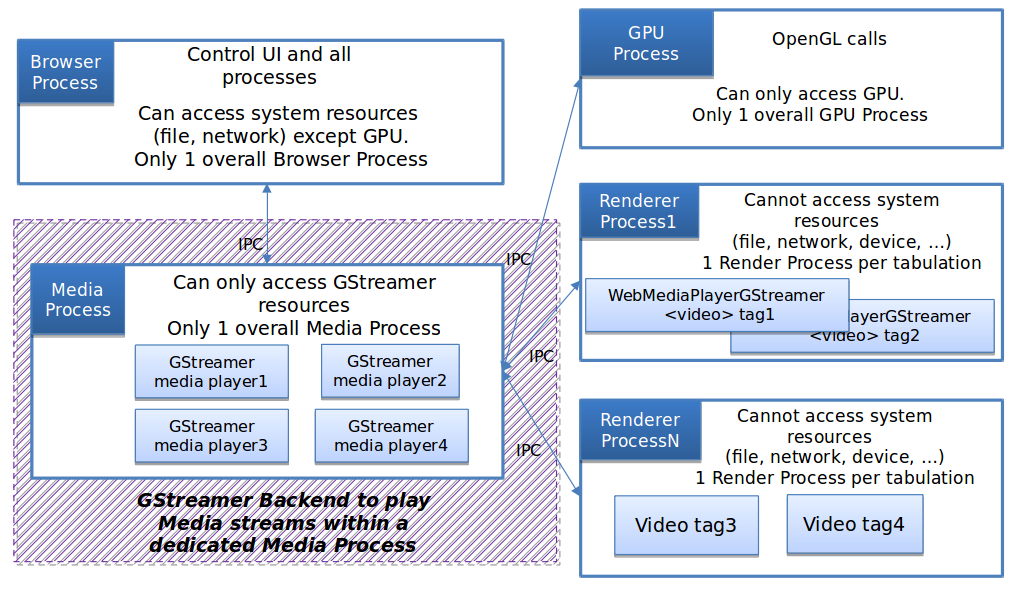

GStreamer in chromium

VLC

BUILDING

BLOCKS

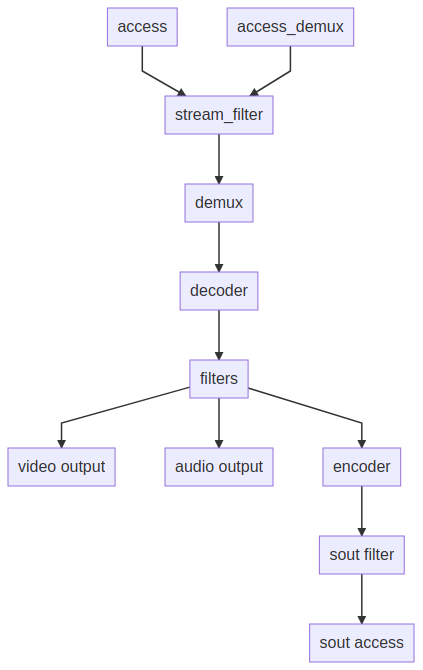

Pipeline

• src/video_output/video_output.c
• src/input/input.c
• src/input/decoder.c

Objects creation order

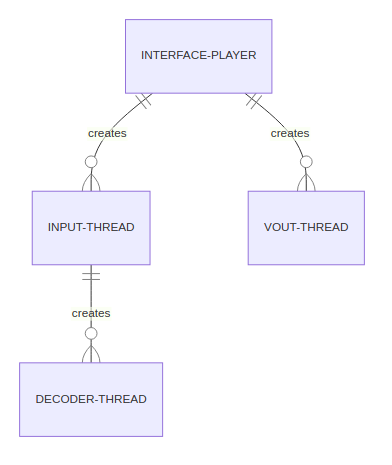

Main threads creation

VLC

PIPELINE

EVENTS

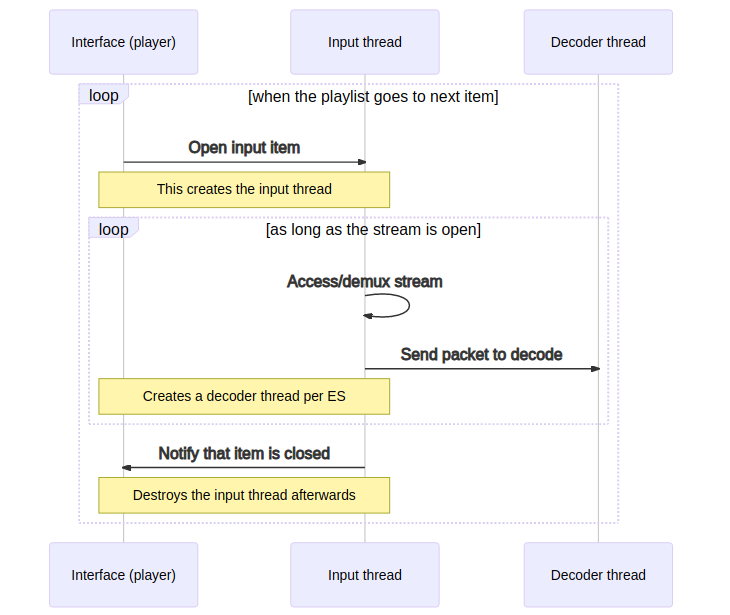

Focus on Input thread

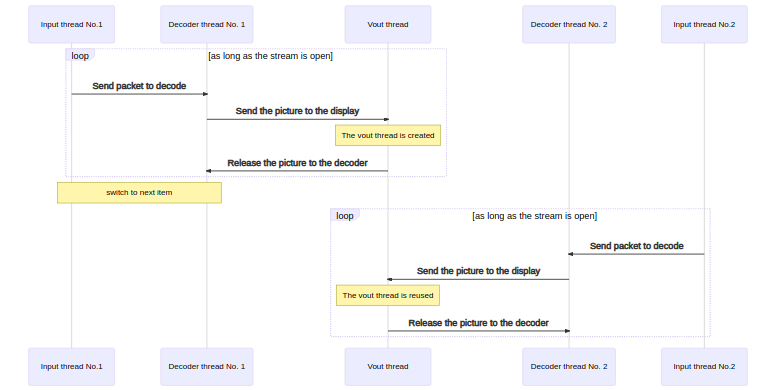

Focus on vout thread

"Sandbox"
prototype (Architecture)

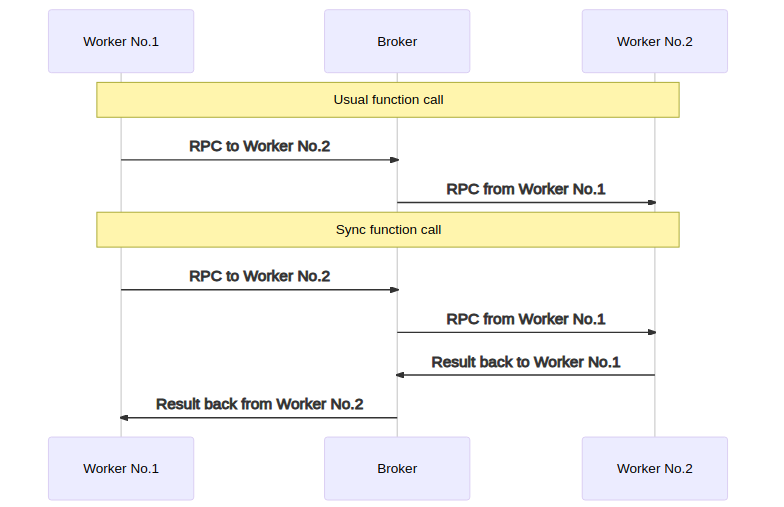

Broker IPC model

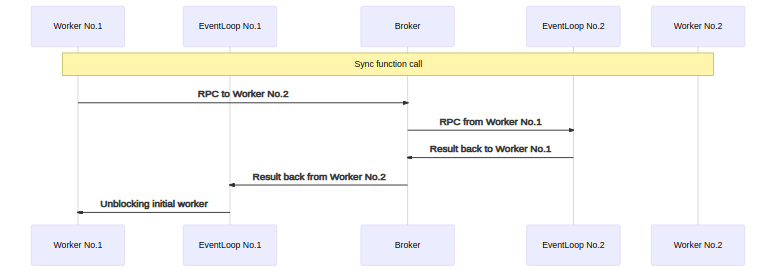

Broker in details

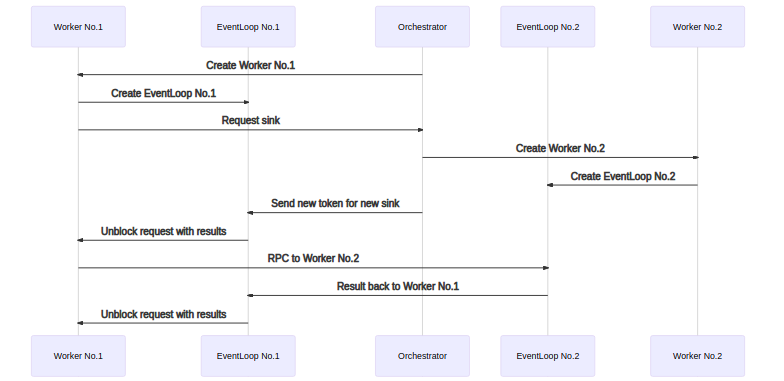

Orchestrator model

Capability

Handles and file descriptors can play the role of a capability token.

One pair of IPC per modules that are interacting.

Caveats

• More complexity
• Hard limit on fd number
• Can we always tranfer resources from one process to the other safely?

"Sandbox"
prototype (data transfer)

Windows

• DuplicateHandle
• ALPC / RPC Windows
• Process creation and setting up handles
• View on shared memory files
• Pipes
• D3d11 devices ?
• DXGI textures

Linux

• Unix socket and ancillary data
• Shared memory fd
• DMABuf fd
• Fork/Exec

Windows

• D3D11 devices
• DXGI resources
• COM objects (wasapi, some codec, some demux)
• File, network

Linux

• /dev/video0 (GBM, opengl, etc)
• wayland-0 / DISPLAY
• open(), network

"Sandbox"
prototype (Proxy system)

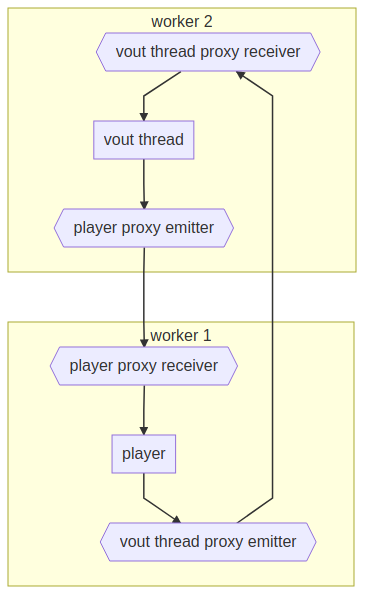

Proxy objects

• Bind two workers
• Allow request/response without knowing about the sandbox
• In theory, independent of the IPC implementation
• In practice... security must be accounted (available descriptors?)
• Need complex transparent object creation and object tracking

Transformed method call

Caveats

• Need to setup the different objects with the correct fd
• Need to have the same object virtually in multiple process
• Invisible capability hack?
• Platform limitations?

Benefit

• Transparent for VLC developers
• No intrusive sandbox design: sandbox concern
• Extension of RPC through plugins
• Independent of the underlying RPC framework

"Sandbox"
prototype (seccomp)

Main goals

• Split VLC into different priviledge area
• Classify syscalls into different categories
• Expose the limits

=> Guillaume Fournier's presentation

Main questions

Automatic testing ?

Creation of worker process?

Sharing/reuse of worker process with multiple components?

Tracing and mitigation?

Non-goals in the sandbox design?

Usual security flaws and how to handle them?
