Artillery: Fire-forged Cluster Management & Distributed Data Protocol (Library)
Mahmut Bulut (@vertexclique)
Mahmut Bulut
@vertexclique on internets.
- Data Processing Engineer by day.
- Academically working on experimental software
- Member of the community team.
DistributedSystems
Making
DistributedSystems
are not semi-hard. It is hard.
We will go through
Service Discovery
Forming Clusters
Data Replication
From zero to hero… all included in Artillery
Everything should be component based. Everything is
COMPARTMENTALIZED!
Service Discovery
Sharing Configuration
- Let's talk about config. of instances
Service Discovery
Sharing Configuration
- Let's talk about config. of instances
- but we made always a central shared state store...
Service Discovery
Sharing Configuration
- Decentralized network config sharing?
- but we made always a central shared state store...
- Let's make a central service that shares the config
Service Discovery
Sharing Configuration
- Let's talk about the decentralized systems
- but make a central shared state
- Let's make a central service that shares the config
- write an web api with hash table lookup? let's not!
Service Discovery
Bringing the Ancient tech back into the foreground
Dist. sys. engineers best at that.
- ~20 years old stuff.
- The network is unreliable, planet-scale systems are not for the network. They are based on rendezvous.
- Service discovery should be conform to rendezvous.
ZEROCONF
ZEROCONF
ZEROCONF
- Used from HPC to WSNs
- We are not using that much in the cloud. (K8S, *DNS etc. handles these)
- Still want full-blown zeroconf? use k8s with host network and deploy your app as a stateful/affine set or daemon set.
- Share network topology without intermediate 3rd party server or funky daemonized web apps.
ZEROCONF
- Used from HPC to WSNs
- We are not using that much in the cloud. (K8S, *DNS etc. handles these)
- Still want full-blown zeroconf? use k8s with host network and deploy your app as a stateful/affine set or daemon set.
- Share network topology without intermediate 3rd party server or funky daemonized web apps.
At this point, we have established a network at the link-local level.
ZEROCONF

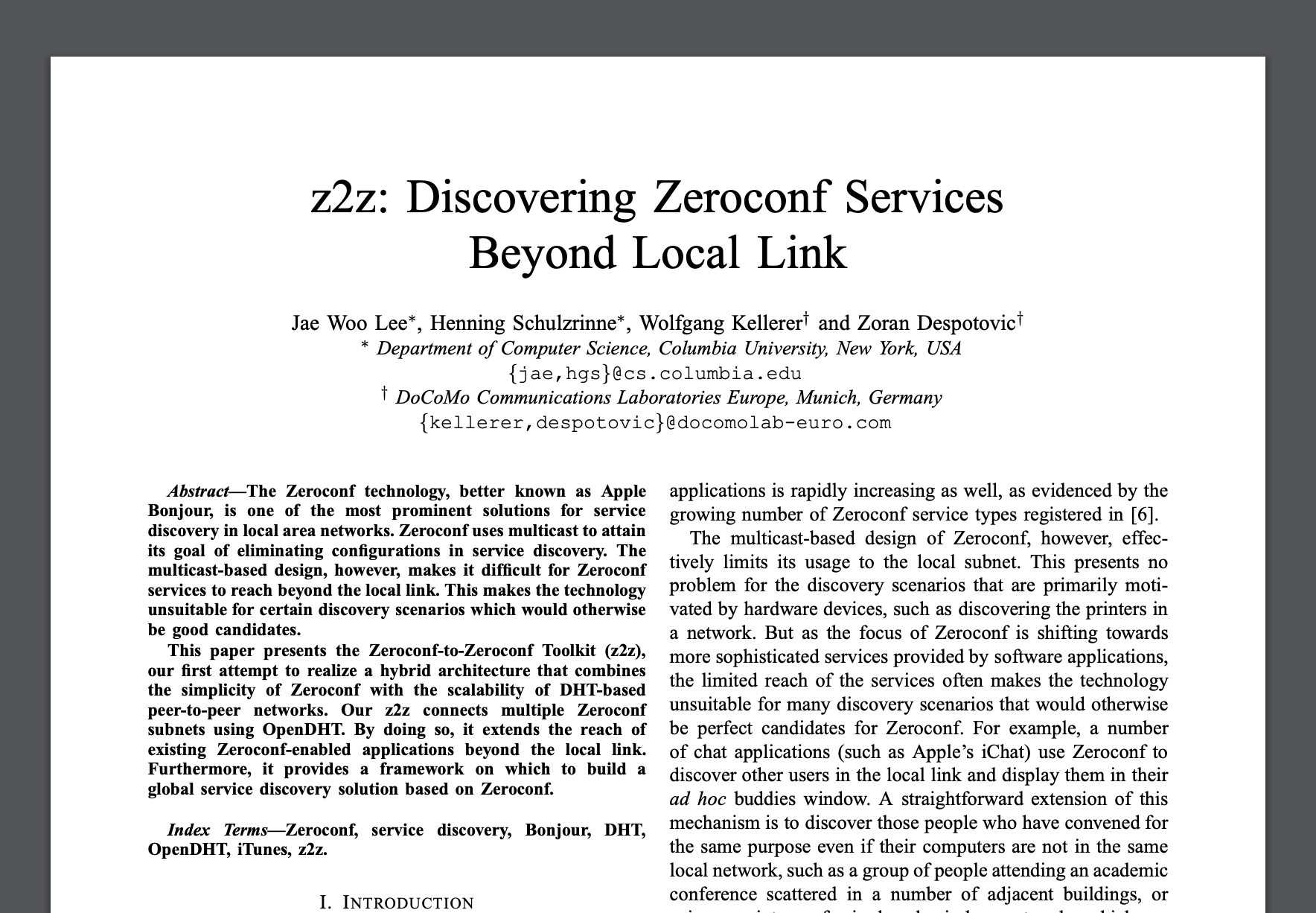

Want to go cross DC discovery?
ZEROCONF
Either zeroconf or another way you will discover services.
Artillery comes with built-in Zeroconf with both pure broadcast and UDP-anycast based methods.
NEXT UP: Forming a Cluster
FORMING CLUSTERS
REQUIREMENTS
- Forming a cluster and receiving membership events is needed to make a communication medium for nodes.
- Needed for database systems to look for replicas or status of the database instances.
- The protocol should be flexible, writing a library means that the user can have flexibility.
- The network shouldn't be congested with packets.
- Broadcast storm prevention, congestion, and all other things should be considered during the design.
- I need less packages and more work (bounded upper case traffic)
FORMING CLUSTERS
Guess which protocol suites suit to it?
FORMING CLUSTERS
Guess which protocol suites suit to it?
FORMING CLUSTERS
EPIDEMIC protocol (aka Gossip)
FORMING CLUSTERS
- SWIM-like FULLY custom message delivery based membership. I call them UDE(User-Defined Events). Serialize anything to bincode, or JSON or whatever...
- Limitation?
- your router's frag scheme, or that(x, y, z) orchestration software.
- Back it up with Bastion. You have an undying a fully reliable AP distributed cluster with the custom message send events.
- No need to call someone when it fails.
- When I write it I should make it well tested.
- Do more checking with model checkers for the possible worst-case scenarios.
- I check worst-case scenarios, not best-case scenarios, that's why stochastic methods are the best.
- Meanwhile released Chaos Testing Harness: KAOS
- KAOS enabled Artillery to be tested.
FORMING CLUSTERS
KAOS: Chaotic Testing Harness
TESTING
FORMING CLUSTERS
~~~ IN ACTION ~~~
FORMING CLUSTERS
Artillery comes with the mentioned membership protocol.
In the future for distributed actors, we can use gossip to exchange messages.
NEXT UP: Data Replication
DATA REPLICATION
DATA REPLICATION
REQUIREMENTS
- Now nodes are aware of each other and can send each other messages. (aka rumor-mongering)
- Network is in place.
- Need to replicate data between nodes.
- Strong Consistency please
- Don't use consensus that doesn't meant for data replication but agreement.
- Faul tolerance strategy should be one-or-all style.
- Lightweight replicated state machines
- Log should be ordered.
DATA REPLICATION
RAFT?
DATA REPLICATION
RAFT?
PAXOS?
DATA REPLICATION
RAFT?
PAXOS?
Actual mixed workloads are like: 60% read, 25% update, 10% insert, and 5% scan
* YCSB mixed workload definition
DATA REPLICATION
*

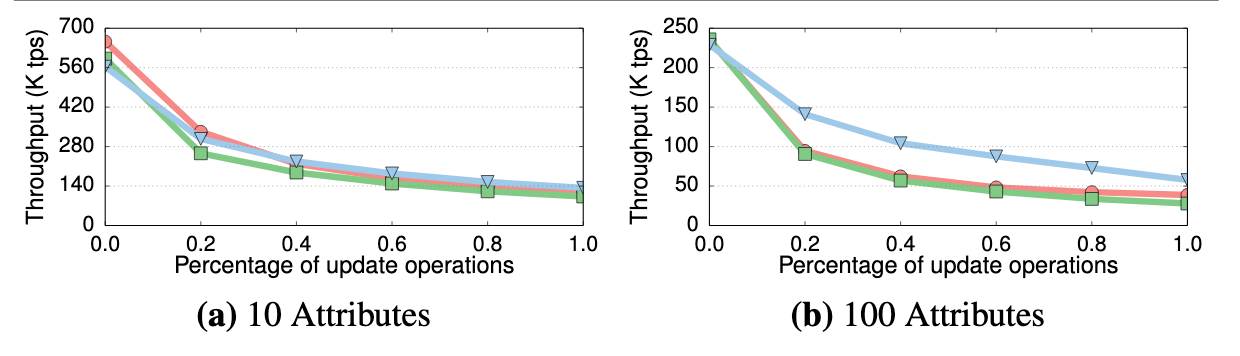

* Wu, Y., Arulraj, J., Lin, J., Xian, R., & Pavlo, A. (2150). An Empirical Evaluation of In-Memory Multi-Version Concurrency Control.
It is hard to make "%60 read" successful with low latency in these circumstances with geo distribution.
Workloads are read mostly.
DATA REPLICATION
Solution:
CHAIN REPLICATION
DATA REPLICATION
How it works?

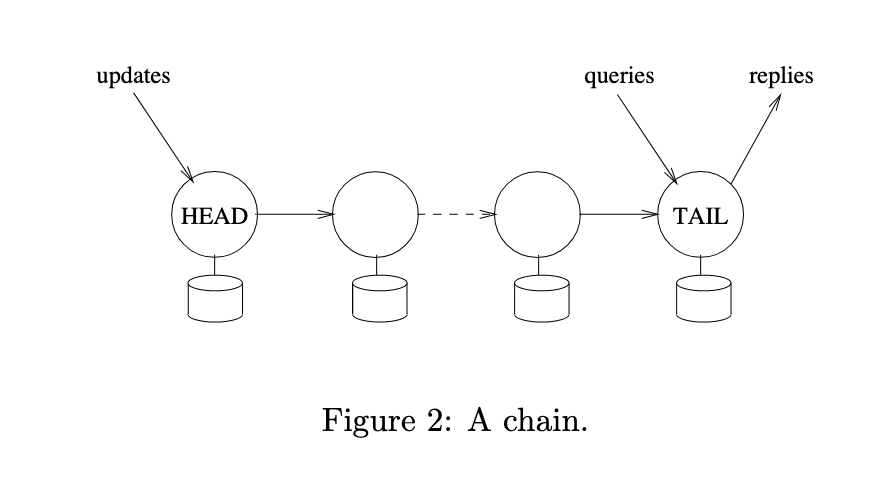

* Ordinary chain replication runs with tail queried reads

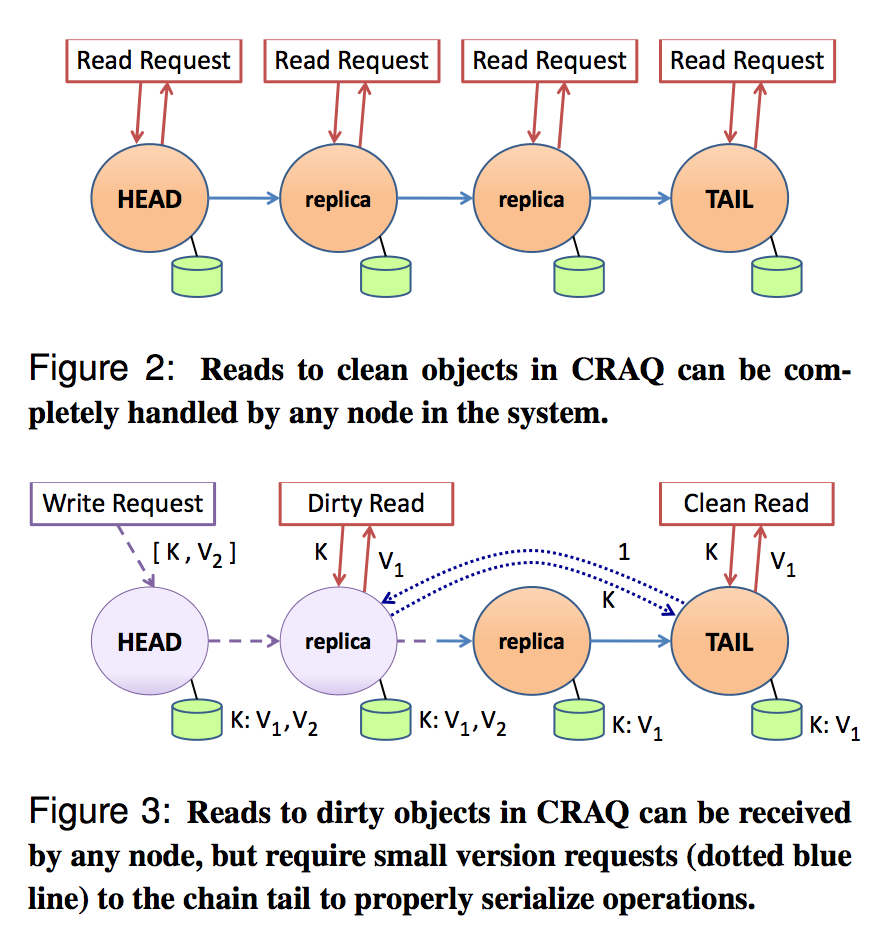

* Advanced mode (apportioned queries) runs with all nodes enabled with reads
DATA REPLICATION
- Implemented CR and implemented CRAQ to increase the read throughput!
- Artillery right now has lock free (except one that I need to refactor) CR implementation.
- Rust safety + concurrency + speed . The best combo.
- Tested (but not on cloud yet, I am on it)
DONE
DATA REPLICATION
- GC for replicated log
- Replicated state machine backup (aka checkpointing)
TODO
DATA REPLICATION

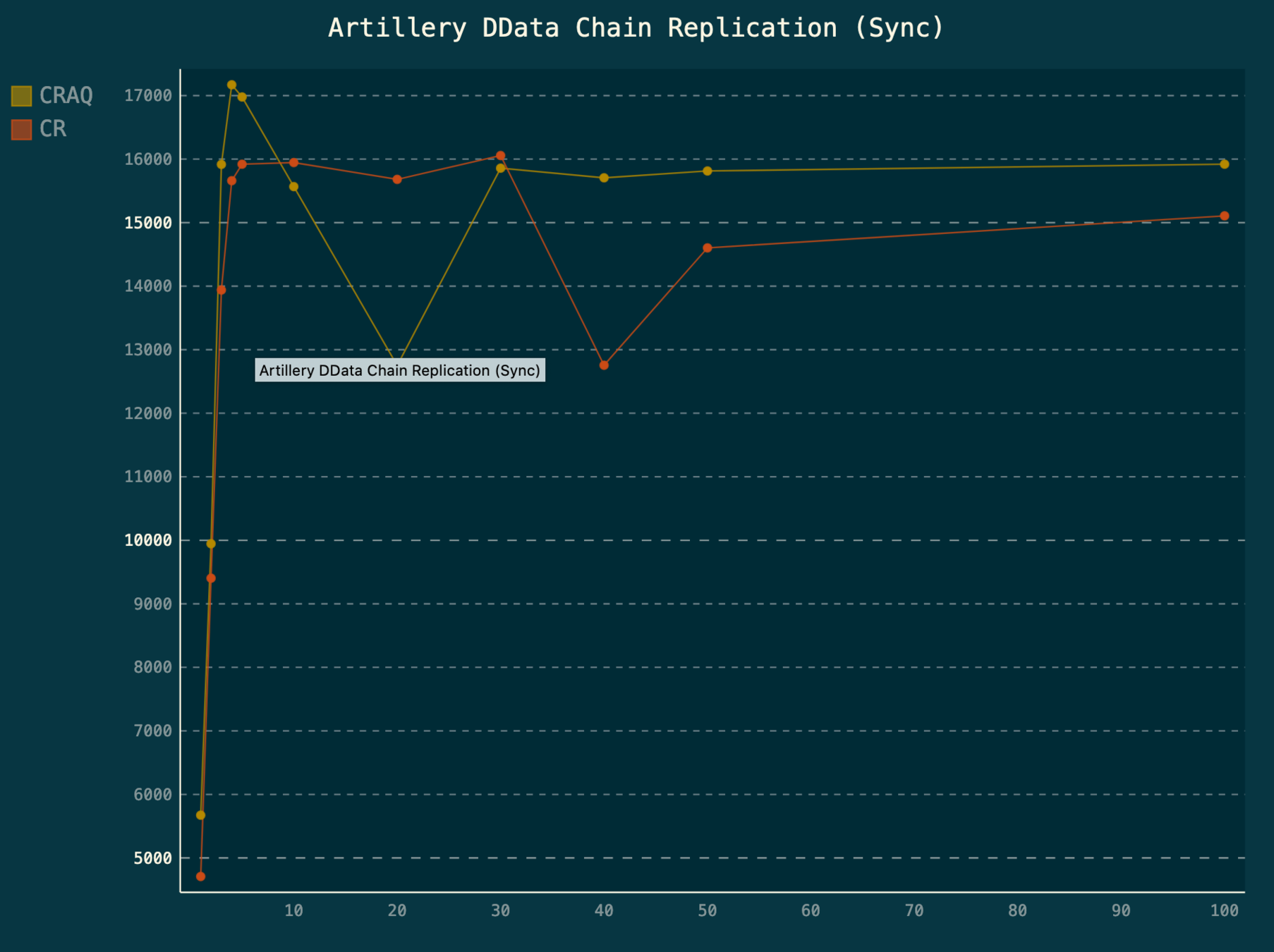

BENCHMARKS (RUST)
Even in synchronous mode it is
16000 ops/sec
Rust is my comrade in arms. Can't imagine how fast this will be with async code & executors.
TO SUM UP ARTILLERY IS
- A state-of-the-art distributed data library!
- Not a blockchain library or networking library, less deps.
- Exploits latest research techniques and other modern approaches.
- Designed for database systems & query engines
-
YOU CAN NOW MAKE PURE DISTRIBUTED DATABASES WITH THE TOOLING OUT THERE IN RUST!
- at planet scale
- with code optimized for resources
- blazingly fast
- interested? read Artillery's wip doc:
- Contribute to development:
- Sponsor me, please sustain OSS development:
Q & A
