VINCENT OGLOBLINSKY

@vogloblinsky

Vincent Ogloblinsky

Frontend software architect

SII Ouest - France

@vogloblinsky

bit.ly/2AYVcp7

Agenda

What is a compiler?

TypeScript compiler

What can we do with AST?

Have fun with AST?

TypeScript

" TypeScript is a typed superset of JavaScript that compiles to plain JavaScript. "

JavaScript that SCALES

TypeScript

ES5

ES6

ES7, ESNext

TypeScript

What is a compiler?

A compiler is a computer program that transforms source code written in a programming language into another computer language [...] The most common reason for converting source code is to create an executable program.

human readable code

high level

computer readable code

low level

class Greeter {
    greeting: string;
    constructor(message: string) {
        this.greeting = message;
    }
    greet() {
        return "Hello, " + this.greeting;
    }
}

let greeter = new Greeter("world");

let button = document.createElement('button');
button.textContent = "Say Hello";
button.onclick = function() {
    alert(greeter.greet());
}

document.body.appendChild(button);

class Greeter {
    greeting: string;
    constructor(message: string) {
        this.greeting = message;
    }
    greet() {
        return "Hello, " + this.greeting;
    }
}

let greeter = new Greeter("world");

let button = document.createElement('button');
button.textContent = "Say Hello";
button.onclick = function() {
    alert(greeter.greet());
}

document.body.appendChild(button);

Transpiling is different

var Greeter = /** @class */ (function () {
    function Greeter(message) {
        this.greeting = message;
    }
    Greeter.prototype.greet = function () {
        return "Hello, " + this.greeting;
    };
    return Greeter;
}());

var greeter = new Greeter("world");

var button = document.createElement('button');
button.textContent = "Say Hello";
button.onclick = function () {
    alert(greeter.greet());
};

document.body.appendChild(button);

same level of abstraction

What is the process of a general compilation?

Compilation process

Parsing

Transforming

Generating

Parsing

Transforming

Generating

take raw code

and turns it into

a more abstract representation

2 steps:

lexical analysis

syntax analysis

Parsing

Transforming

Generating

Lexical analysis

let message = 'hello'

split code into tokens

Parsing

Transforming

Generating

Syntax analysis

reformat tokens into a representation describing each part of the syntax and their relations

Parsing

Transforming

Generating

Syntax analysis

"tokens": [
    {
      "type": "Keyword",
      "value": "let"
    },
    {
      "type": "Identifier",
      "value": "message"
    },
    {
      "type": "Punctuator",
      "value": "="
    },
    {
      "type": "String",
      "value": "\"hello DEVOXX\""
    }
]

{
  "type": "Program",
  "body": [
    {
      "type": "VariableDeclaration",
      "declarations": [
        {
          "type": "VariableDeclarator",
          "id": {
            "type": "Identifier",
            "name": "message"
          },
          "init": {
            "type": "Literal",
            "value": "hello DEVOXX",
          }
        }
      ],
      "kind": "let"
    }
  ]
}

AST

Abstract Syntax Tree

Parsing

Transforming

Generating

take the AST

and make transformations for each nodes into final language context

Parsing

Transforming

Generating

Generation of code in the desired output

Stringify each nodes

Knows how to print them

Parsing

Transforming

Generating

TypeScript

compiler

Same process

enhanced

with "Type" checking

Architectural overview

Scanner

Parser

Checker

The scanner is driven by the parser

First internal part of "parsing"

Creates a tokens stream

Binder

Emitter

Parser

Checker

Binder

Emitter

const ts = require('typescript')

const scanner = ts.createScanner(ts.ScriptTarget.Latest, true);

let sourceCode = `var foo:number = "5";`

function initializeState(text) {
    scanner.setText(text);
    scanner.setOnError((message) => {console.error(message);});
    scanner.setScriptTarget(ts.ScriptTarget.ES5);
    scanner.setLanguageVariant(ts.LanguageVariant.Standard);
}

function syntaxKindToName(kind) {
    return ts.SyntaxKind[kind];
}

initializeState(sourceCode);

let token = scanner.scan();
while (token != ts.SyntaxKind.EndOfFileToken) {
    console.log(token, syntaxKindToName(token));
    token = scanner.scan();
}

104 'VarKeyword'
71  'Identifier'
56  'ColonToken'
133 'NumberKeyword'
58  'FirstAssignment'
9   'StringLiteral'
25  'SemicolonToken'

Scanner

Parser

Checker

The parser is driven by a program

AST is generated here

Binder

Emitter

Scanner

Parser

Checker

Binder

Emitter

Scanner

let parsedSourceFile =
ts.createSourceFile(
    'file.ts',
    sourceCode,
    ts.ScriptTarget.ES5,
    true
);

SourceFileObject {
  pos: 0,
  end: 21,
  flags: 0,
  transformFlags: undefined,
  parent: undefined,
  kind: 265,
  text: 'var foo:number = "5";',
  bindDiagnostics: [],
  languageVersion: 1,
  fileName: 'foo.ts',
  languageVariant: 0,
  isDeclarationFile: false,
  scriptKind: 3,
  referencedFiles: [],
  typeReferenceDirectives: [],
  amdDependencies: [],
  moduleName: undefined,
  checkJsDirective: undefined,
  statements:
   [ NodeObject {
       pos: 0,
       end: 21,
       flags: 0,
       transformFlags: undefined,
       parent: [Circular],
       kind: 208,
       decorators: undefined,
       modifiers: undefined,
       declarationList: [Object],
       modifierFlagsCache: 536870912 },
     pos: 0,
     end: 21 ],
  endOfFileToken: TokenObject { pos: 21, end: 21, flags: 0, parent: [Circular], kind: 1 },
  externalModuleIndicator: undefined,
  nodeCount: 8,
  identifierCount: 1,
  identifiers: Map { 'foo' => 'foo' },
  parseDiagnostics: [] }

Parser

Checker

astexplorer.net

Binder

Emitter

Scanner

Parser

Checker

ts-ast-viewer.com

Binder

Emitter

Scanner

Parser

Checker

The binder connects parts into coherent type system

Creates symbols

1st semantic pass

Binder

Emitter

Scanner

Parser

Checker

Symbols

connect declaration nodes in the AST to other declarations contributing to the same entity

Binder

Emitter

Scanner

Checker

Emitter

Scanner

ts.bindSourceFile(parsedSourceFile, {
    target: ts.ScriptTarget.ES5,
    module: ts.ModuleKind.CommonJS
});

...

initializer:
   TokenObject {
     pos: 16,
     end: 20,
     flags: 0,
     parent: [Circular],
     kind: 9,
     text: '5',
     transformFlags: 536870912 },
symbol:
   SymbolObject {
     flags: 1,
     escapedName: 'foo',
     declarations: [ [Circular] ],
     valueDeclaration: [Circular],
     parent: undefined }

Parser

Binder

Parser

Checker

Binder

Emitter

Scanner

Parser

Checker

The checker driven by a program

2nd semantic pass

- figure out relationships between symbols

- assign types to symbols

- generate semantic diagnostics (errors)

Binder

Emitter

Scanner

Emitter

Scanner

const fileName = './src/code.ts';
const program = ts.createProgram([fileName], {
    noEmitOnError: true,
    noImplicitAny: true,
    target: ts.ScriptTarget.ES5,
    module: ts.ModuleKind.CommonJS,
    outDir: 'dist'
});

const diagnostics = ts.getPreEmitDiagnostics(program);

console.log(diagnostics);

[ { file:
     SourceFileObject {...},
    start: 146,
    length: 14,
    code: 2322,
    category: 1,
    messageText: 'Type \'number\' is not assignable to type \'string\'.' } ]

Parser

Checker

Binder

Parser

Checker

The emitter generate the desired output :

.js, .d.ts, or .js.map

use .emit of a program

internally use a transformer

print the final code

Binder

Emitter

Scanner

const fileName = './src/code.ts';  // var foo:number = '5';
const program = ts.createProgram([fileName],
{
    noEmitOnError: true,
    noImplicitAny: true,
    target: ts.ScriptTarget.ES5,
    module: ts.ModuleKind.CommonJS,
    outDir: 'dist'
});

let emitResult = program.emit();

console.log(emitResult);

{ diagnostics:
   [ { file: [Object],
       messageText: 'Type \'"5"\' is not assignable to type \'number\'.' } ],
  sourceMaps: undefined,
  emittedFiles: undefined,
  emitSkipped: true }

Parser

Binder

Checker

Emitter

Scanner

const fileName = './src/code.ts'; // var foo:number = 5;
const program = ts.createProgram([fileName],
{
    noEmitOnError: true,
    noImplicitAny: true,
    target: ts.ScriptTarget.ES5,
    module: ts.ModuleKind.CommonJS,
    outDir: 'dist'
});

let emitResult = program.emit();

console.log(emitResult);

{ emitSkipped: false,
  diagnostics: [],
  emittedFiles: undefined,
  sourceMaps: undefined }

Parser

Binder

Checker

Emitter

What can we do with AST?

Analysing

linting
analysing complexity
documentation
API conformance
statistics

Linting with TSLint

if "type-checking" enabled

lint & do semantic ruling

if not

lint with rules using internal walker

if fix enabled

apply patch using normal string APIs

Managing AST

ts-simple-ast by David Sherret

Managing AST

tsquery by Graig Spence

Documentation

Typedoc

Documentation

Compodoc

One big challenge

deals with dynamic imports of routes metadatas

// home-paths.ts

export const PATHS = {
  home: 'homeimported'
};

// home-routing.module.ts

import { PATHS } from './home-paths';

const HOME_ROUTES: Routes = [
    {
        path: PATHS.home,
        component: HomeComponent
    }
];

PropertyAccessExpression

StringLiteral

Compodoc

Visualize

https://github.com/mgechev/ngrev

Statistics

https://github.com/compodoc/ts-stats

Transforming

edit code
transpile code
generate code
preprocess
reformat

Edit code

@schematics

exemple: adding declaration in a module

CLI

Transforming

Refactoring

https://github.com/ReactiveX/rxjs-tslint

Automatically add missing types

https://github.com/urish/typewiz

function add(a, b) {
    return a + b;
}
add(5, 6);

function add(a: number, b: number) {
    return a + b;
}
add(5, 6);

Have fun

with AST?

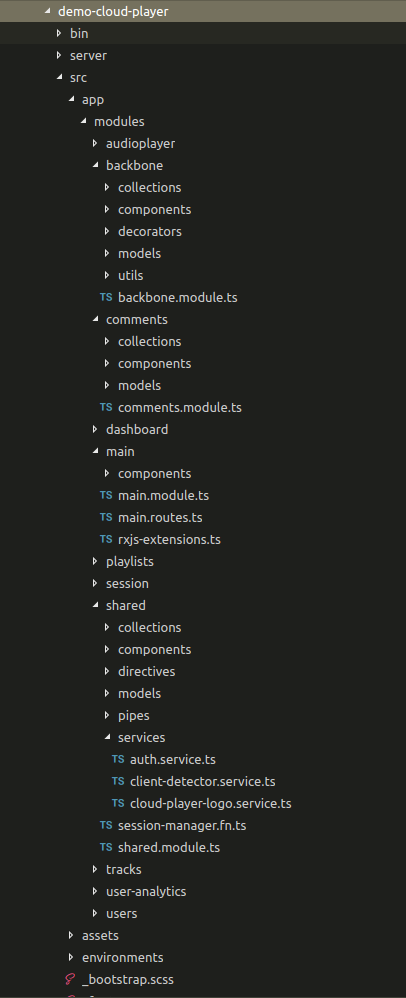

Browsing files inside a project can be very complicated

Let's answering the question:

What are the relations between my files?

Introducing madge

Generate a visual graph of your JavaScript module dependencies

Works with TypeScript files too

https://github.com/pahen/madge

by Patrik Henningsson @pahen

I love 3D & visualization

Let's extrude these graphics !

Demo time

madge 3D

https://github.com/compodoc/madge3d

We all love music

Demo time

TypeScript AST soundtrack

https://github.com/compodoc/typescript-ast-soundtrack

Generate sound with

Angular/TypeScript AST

Conclusion

We

all

Conclusion

Cons from the community

extra compilation step
JavaScript libraries integration
lack of documentation for internal APIs

Conclusion

Pros from the community

refactoring quickly & safely (thanks to TS language service) & enhance JS codebase gradually
attractive code
think with "type", code more "precise"
enhance "maintainability" and "readability"
open frontend community to Java, C# or .Net developers
great editor support / boost productivity
