Two Factor Authentication

Multi factor authentication

• verifies users identity by (at least) two different means
• because:
  • can't force a user to pick strong enough password
  • can't stop hackers from compromising your DB
• Means of verification, present something​​
  1. you know(a secret, password)
  2. you have(a possession, token)
  3. you are(a physical evidence, biometrics)

What mean of verificatoin is

Opening a door with a key

Fingerprint scan

Requiring pet name

USB key

SMS token

 Facial recognition

Using ATM(cash machine)

SSH

Time based one time password(TOTP)

• timestamp, number of seconds from epoch
• in practice, because of external factors(eg. network latency, typing speed) number of 30 second intervals is used

ROTP

https://github.com/mdp/rotp

    def generate_otp(input, padded=true)
      hmac = OpenSSL::HMAC.digest(
        OpenSSL::Digest.new(digest),
        byte_secret,
        int_to_bytestring(input)
      )

      offset = hmac[-1].ord & 0xf
      code = (hmac[offset].ord & 0x7f) << 24 |
        (hmac[offset + 1].ord & 0xff) << 16 |
        (hmac[offset + 2].ord & 0xff) << 8 |
        (hmac[offset + 3].ord & 0xff)
      if padded
        (code % 10 ** digits).to_s.rjust(digits, '0')
      else
        code % 10 ** digits
      end
    end

totp = ROTP::TOTP.new("secret", # required, Base32 encoded
  interval: 30,
  digits: 6,
  digest: 'sha1'
  issuer: 'app-name'
)

code = totp.now                  # => "323207"
totp.verify(code)                # => true
sleep(30)
totp.verify(code)                # => false
totp.vefify_with_drift(code, 30) # => true

# @param [Integer] drift the number of seconds
#                  that the client and server are
#                  allowed to drift apart

https://github.com/mdp/rotp/blob/master/lib/rotp/totp.rb#L41

Exchangeing secrets

(in the web apps)

1. share the secret as a string
   • useful for devices without camera, like browser extensions
2. generate secret via QR code
   • standardized QR payload format

otpauth://TYPE/LABEL?PARAMETERS
otpauth://totp/flufy@cat.com?secret=abc123&issuer=cat​

Integration with Devise

https://github.com/tinfoil/devise-two-factor

Usefull:

• generator
• migrations
• concern(except naming)
• backup codes plugin

Useless:

• devise strategy
• default workflow does not support 2 step verification

• all the pieces are there just need to glue it together
• allows for flexible integration, custom tailored to your business process
• you are unable to salvage, all library logic

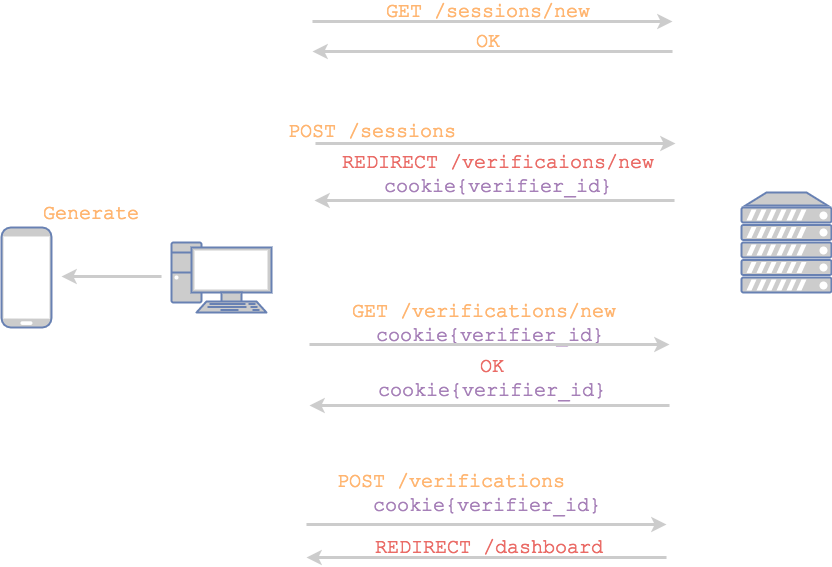

Two step verification

I'am the last slide

Questions?
