2025-10

Autor: woakas — CTO @ Ubidots

Model Context Protocol (MCP)

Tomado de https://modelcontextprotocol.io/docs/getting-started/intro

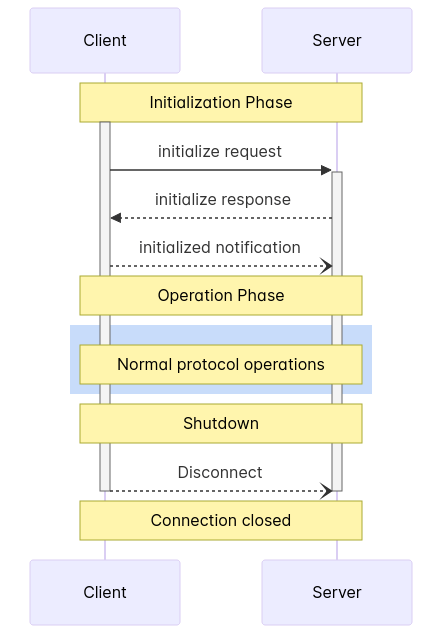

MCP

  • Statefull
    • Initialization
    • Operation
    • Shutdown

Motivación / Contexto

  • Problema: Integraciones ad-hoc con herramientas externas.
  • Solución: MCP estandariza acceso a herramientas y datos.
  • Objetivo: Reducir acoplamiento, crear “USB-C para IA”.

Prompts

  • Plantillas con variables que permiten guiar al LLM
  • Facilitan la comunicación entre usuarios y el MCP.

Resources

  • Datos y servicios necesarios para el funcionamiento del MCP.
  • Incluyen APIs, bases de datos y servicios externos.
  • Importancia técnica: Proporciona “memoria” o “contexto adicional” para el LLM

Tools

  • Herramientas para implementar y gestionar el MCP.
  • Ejemplos: SDKs, plataformas de desarrollo y entornos de prueba.

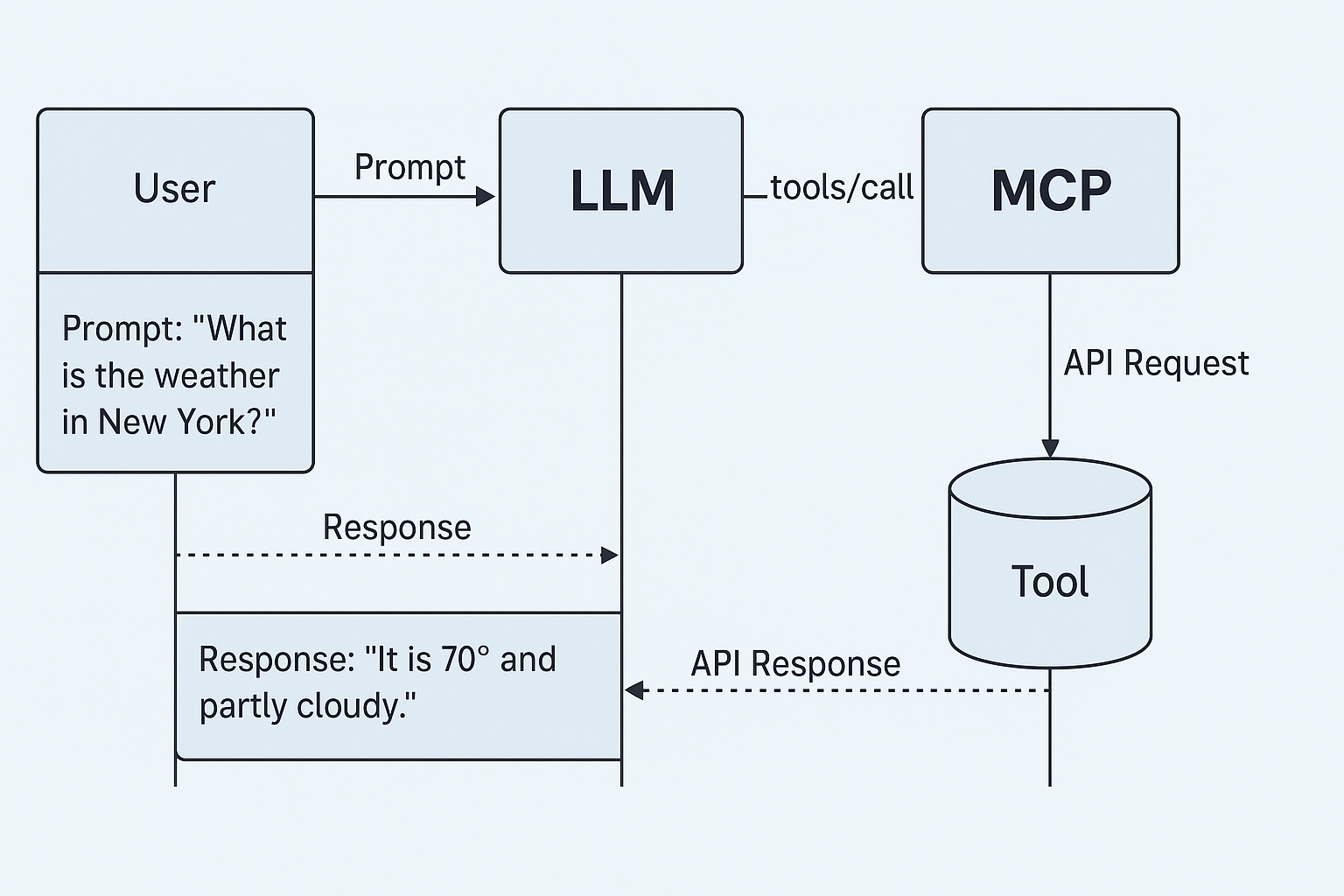

Prompts

Guían la generación de textual del LLM

Resources

Aportan datos/contexto

Tools

Permiten ejecutar acciones

Modelo

Aplicación

Usuario

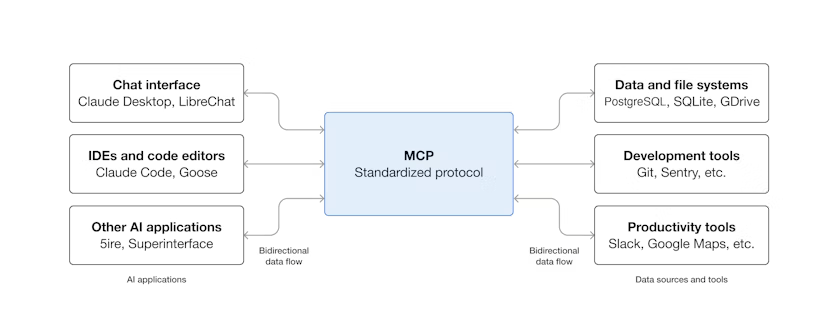

Arquitectura general MCP

Componentes: Host (cliente) ↔ Servidor MCP

Funciones clave: Tools, Resources, Prompts

Flujo base: handshake → discovery → tool invocation → streaming → close

JSON-RPC

Protocolo ligero para comunicación remota.

Mensajes: request, response, error handling.

JSON-RPC

{
  "jsonrpc": "2.0",
  "method": "sumar",
  "params": [5, 3],
  "id": 1
}
{
  "jsonrpc": "2.0",
  "result": 8,
  "id": 1
}
{
  "jsonrpc": "2.0",
  "error": {
    "code": -32602,
    "message": "Parámetros inválidos"
  },
  "id": 1
}

Request

Response (OK)

Response (Error)

Server-Sent Events (SSE)

Flujo continuo de datos desde servidor a cliente.

Ideal para aplicaciones en tiempo real.

Content-type: text/event-stream

https://html.spec.whatwg.org/multipage/server-sent-events.html#server-sent-events

Server-Sent Events (SSE)

event: progress
data: {"jsonrpc":"2.0","method":"notifications/progress","params":{"id":101}}

event: message
data: HOLA

event: result
data: {}
id: 23

data: {}

event: done
data: {"id":101}

Langbase stream

curl https://api.langbase.com/v1/pipes/run \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer TOKEN' \
-d '{"threadId": "THREAD",
  "messages": [{
    "role": "user",
    "content": "Say this is a demo request"
  }],
  "stream": true
}' -v
data: {"id":"chatcmpl-CWl5GuhAVuEnmnOK0CUVcTffP0Lkr","object":"chat.completion.chunk","created":1761923522,"model":"gpt-4o-mini-2024-07-18","service_tier":"default","system_fingerprint":"fp_560af6e559","choices":[{"index":0,"delta":{"role":"assistant","content":"","refusal":null},"logprobs":null,"finish_reason":null}],"usage":null,"obfuscation":"zU5k19vZF"}

data: {"id":"chatcmpl-CWl5GuhAVuEnmnOK0CUVcTffP0Lkr","object":"chat.completion.chunk","created":1761923522,"model":"gpt-4o-mini-2024-07-18","service_tier":"default","system_fingerprint":"fp_560af6e559","choices":[{"index":0,"delta":{"content":"Would"},"logprobs":null,"finish_reason":null}],"usage":null,"obfuscation":"kcfXxG"}

data: {"id":"chatcmpl-CWl5GuhAVuEnmnOK0CUVcTffP0Lkr","object":"chat.completion.chunk","created":1761923522,"model":"gpt-4o-mini-2024-07-18","service_tier":"default","system_fingerprint":"fp_560af6e559","choices":[{"index":0,"delta":{"content":" you"},"logprobs":null,"finish_reason":null}],"usage":null,"obfuscation":"ohhutF4"}

data: {"id":"chatcmpl-CWl5GuhAVuEnmnOK0CUVcTffP0Lkr","object":"chat.completion.chunk","created":1761923522,"model":"gpt-4o-mini-2024-07-18","service_tier":"default","system_fingerprint":"fp_560af6e559","choices":[{"index":0,"delta":{"content":" like"},"logprobs":null,"finish_reason":null}],"usage":null,"obfuscation":"VohU6O"}

data: {"id":"chatcmpl-CWl5GuhAVuEnmnOK0CUVcTffP0Lkr","object":"chat.completion.chunk","created":1761923522,"model":"gpt-4o-mini-2024-07-18","service_tier":"default","system_fingerprint":"fp_560af6e559","choices":[{"index":0,"delta":{"content":" me"},"logprobs":null,"finish_reason":null}],"usage":null,"obfuscation":"nAwg3fFN"}

data: {"id":"chatcmpl-CWl5GuhAVuEnmnOK0CUVcTffP0Lkr","object":"chat.completion.chunk","created":1761923522,"model":"gpt-4o-mini-2024-07-18","service_tier":"default","system_fingerprint":"fp_560af6e559","choices":[{"index":0,"delta":{"content":" to"},"logprobs":null,"finish_reason":null}],"usage":null,"obfuscation":"CySPkgjK"}

MCP

  • Statefull
    • Initialization
    • Operation
    • Shutdown

MCP

Initialization

curl -X POST https://mcp.ubidots.com/mcp \
  -H "Content-Type: application/json"  -H 'Accept: application/json, text/event-stream' \
  -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "initialize",
    "params": {
      "protocolVersion": "2025-06-18",
      "capabilities": {
        "tools": {},
        "resources": {},
        "prompts": {}
      },
      "clientInfo": {
        "name": "mi-cliente",
        "version": "1.0"
      }
    }
  }' -v

MCP

Initialized

curl -i -X POST https://mcp.ubidots.com/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json,text/event-stream" \
  -H "Mcp-Session-Id: fb56dfa63a2a487c8ea8ca5c09897151" \
  -d '{
    "jsonrpc": "2.0",
    "method": "notifications/initialized",
    "params": {}
  }'

MCP

SSE Stream

curl -i -X GET https://mcp.ubidots.com/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json,text/event-stream" \
  -H "Mcp-Session-Id: fb56dfa63a2a487c8ea8ca5c09897151"

MCP

tools/list

curl -X POST https://mcp.ubidots.com/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json,text/event-stream" \
  -H "Mcp-Session-Id: fb56dfa63a2a487c8ea8ca5c09897151" \
  -d '{
    "jsonrpc": "2.0",
    "id": 3,
    "method": "tools/list",
    "params": {}
  }'

MCP

tools/call

curl -X POST https://mcp.ubidots.com/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json,text/event-stream" \
  -H "Mcp-Session-Id: fb56dfa63a2a487c8ea8ca5c09897151" \
  -d '{
    "jsonrpc": "2.0",
    "id": 3,
    "method": "tools/call",
    "params": {"name": "list_devices"}
  }'

MCP

tools/call

curl -X POST https://mcp.ubidots.com/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json,text/event-stream" \
  -H "Mcp-Session-Id: fab1f1b03ff347de9804db1665ca584e" \
  -d '{
    "jsonrpc": "2.0",
    "id": 3,
    "method": "tools/call",
    "params": {
        "name": "list_devices",
        "arguments": {
            "fields": "id,label"
        }
    }
}'

MCP

  • Modular
  • Versiones
  • Json-rpc, simple
  • HTTP No reinventar la ruida
  • Estandar?

Gracias
