Redux in Action
Part One: Core Concepts
Redux | Core Concepts
- Store
- Action
- Reducer
store
action
reducer
store
reducer
Redux
state
action
UI
DOM Event
Network
……

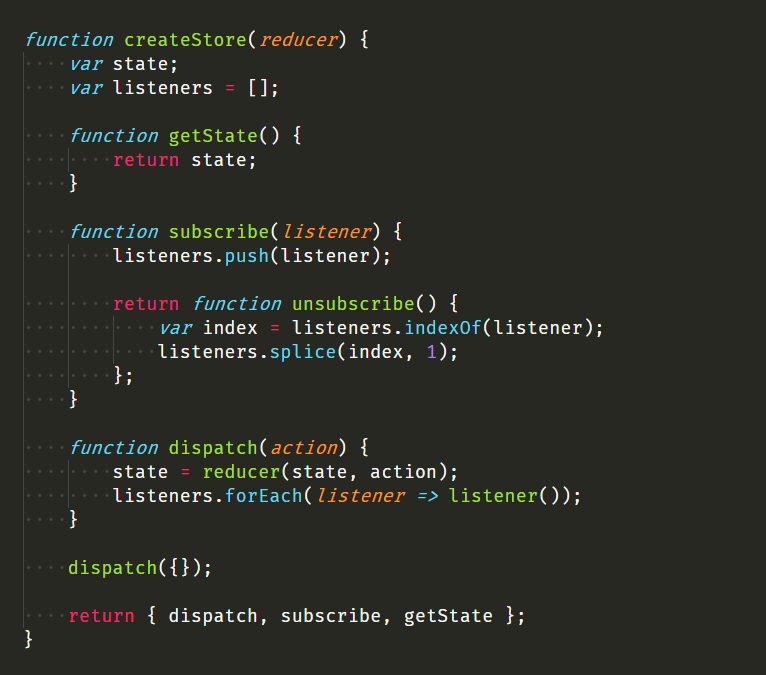

Redux | Core Concepts
Redux | Core Concepts
Redux | Three Principles
- Single source of truth
- State is read-only
- Changes are made with pure functions
Redux's primary goal is to make state mutations predictable
by imposing restrictions on how and when updates can happen.
Redux | Three Principles
- Single source of truth
The state of your whole application is stored in an object tree within a single store.
Tips
- You don't have to put everything into Redux.
- Only put plain serializable objects, arrays, and primitives into your store.
- Each entity should be stored once.
Redux | Three Principles
- State is read-only
The only way to change the state is to emit an action, an object describing what happened.
Tips
- Actions that reach the store must be plain objects, and actions must have a type field that is not undefined.
Redux | Three Principles
- Changes are made with pure functions
To specify how the state tree is transformed by actions, you write pure reducers.
Tips
- The single root reducer function can itself be made up of many smaller reducer functions.
- Predictable
- Hot reloadable
- Time travel
- Easy to test
- Doesn't care how you store your data
- The API surface area is minimal
- Provides extension points
Redux | Philosophy & Design Goals
- createStore(reducer, [preloadedState], [enhancer])
- applyMiddleware(...middleware)
Redux | Enhancer & Middleware

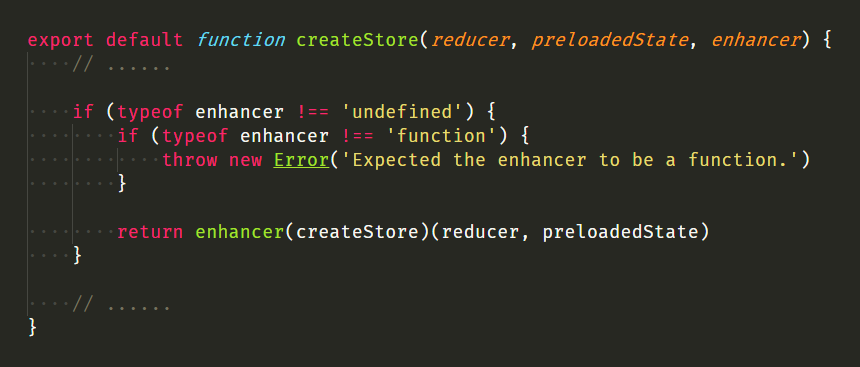

Redux | Enhancer
redux/createStore.js
createStore

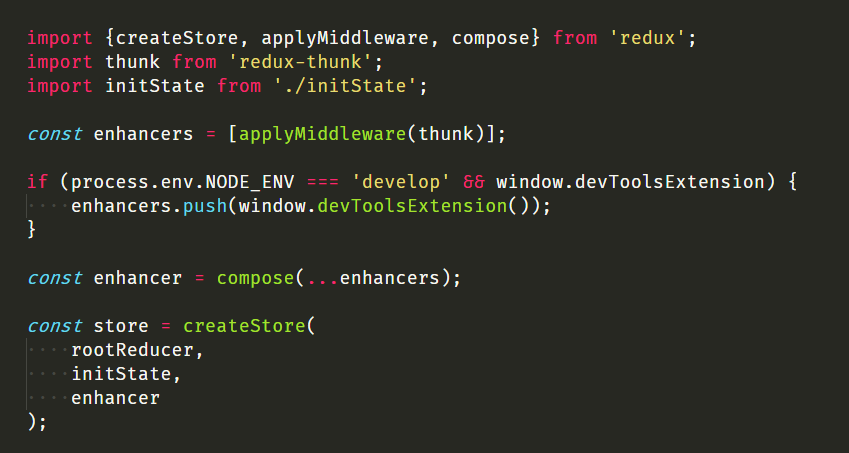

const enhancers = [enhancer1, enhancer2, enhancer3];
const enhancer = compose(...enhancers);
Enhanced createStore
enhancer3
enhancer2
enhancer1
reducer,preloadedState

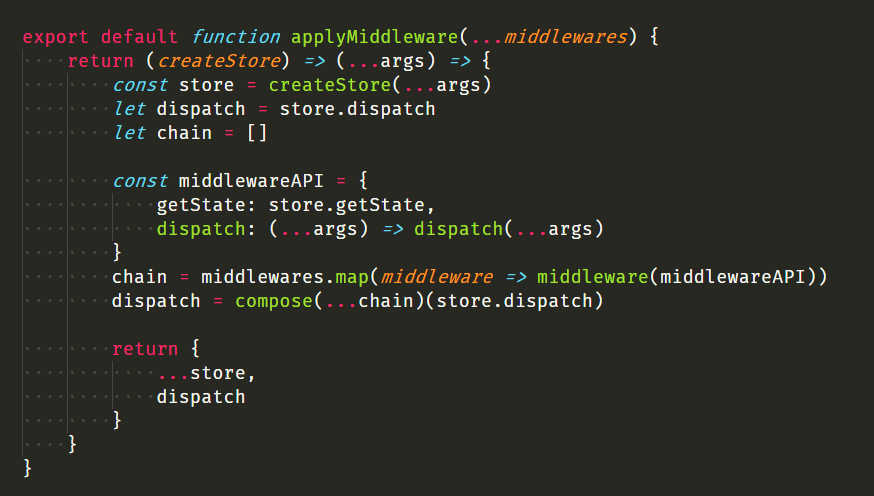

Redux | Middleware
redux/createStore.js
dispatch
const middlewares = [middleware1, middleware2, middleware3];
applyMiddleware(...middlewares);
Enhanced store.dispatch
middleware3
middleware2
middleware1
action
Redux | Review
store
reducer
Redux
state
action
UI
DOM Event
Network
……
React-Redux
React
React-Redux | API
-
connect([mapStateToProps], [mapDispatchToProps])
- Handles the process of subscribing to the store
- Extracts the pieces of state the wrapped component needs
- Ensures the wrapped component only re-renders when needed
- Shields the wrapped component from needing to know that the store exists
-
<Provider store>
- Pass the store to connected components by context
React-Redux | API
store
Provider
Root
Component
Sub
Component
Sub
Component
Wrapper
Component
store (by context)
props by
mapStateToProps &
mapDispatchToProps

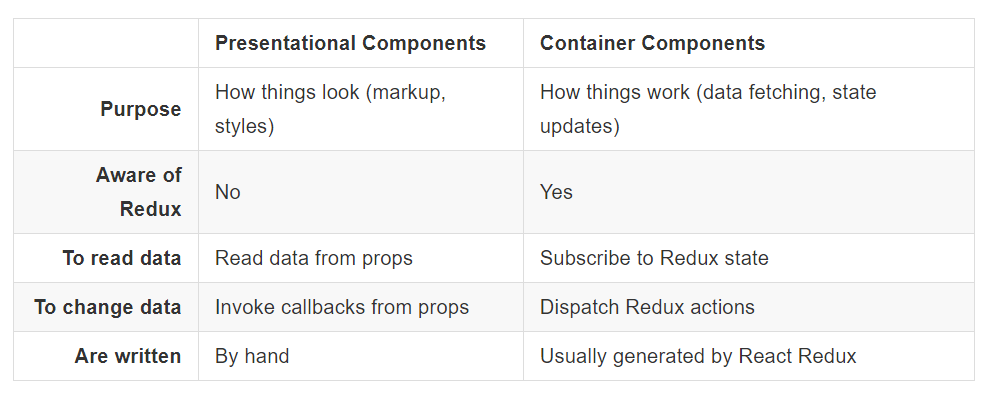

React-Redux | Presentational and Container
Redux in Action - Core Concepts
By yiliang_wang
