Building plugin free* video chat in browser

* almost

Bear with me

Zdravo!

Hi!

http://blog.crownrelo.com/uk/wp-content/uploads/city_break_germany_091864.jpg

Lets talk about plugins

Good old NPAPI

Adobe flash

these guys doesn't like plugins either

At least in Google Chrome, on iOS and in Edge

Html5 for the rescue

Webrtc, who are you?

Web (Real Time Communication) is peer-to-peer technology with media
(audio, video, screen capture)

and data capabilities
(bi-directional data channel)

WebRTC

Security

HTTPS

DTLS

Optional things like PGP

P2P

Peer

Peer

P2P

Peer

Peer

Signaling relay

P2P (Full mesh)

Peer

Peer

Signaling relay

Peer

SFU (Selective Forwarding Unit)

Peer

Peer

Peer

Peer

SFU

Peer

Peer

Peer

Peer

Available Media Relays, platforms and frameworks

Products using webrtc

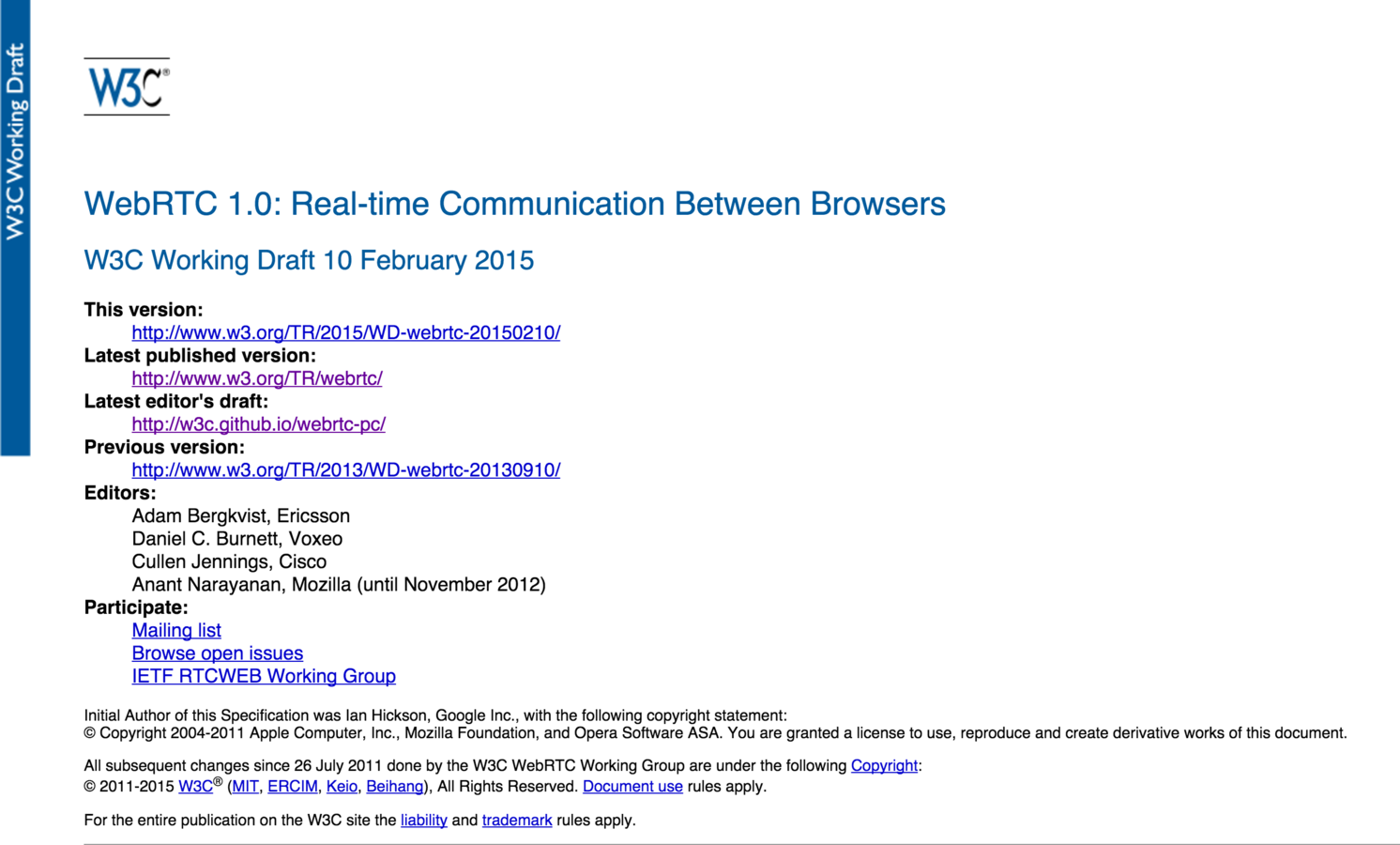

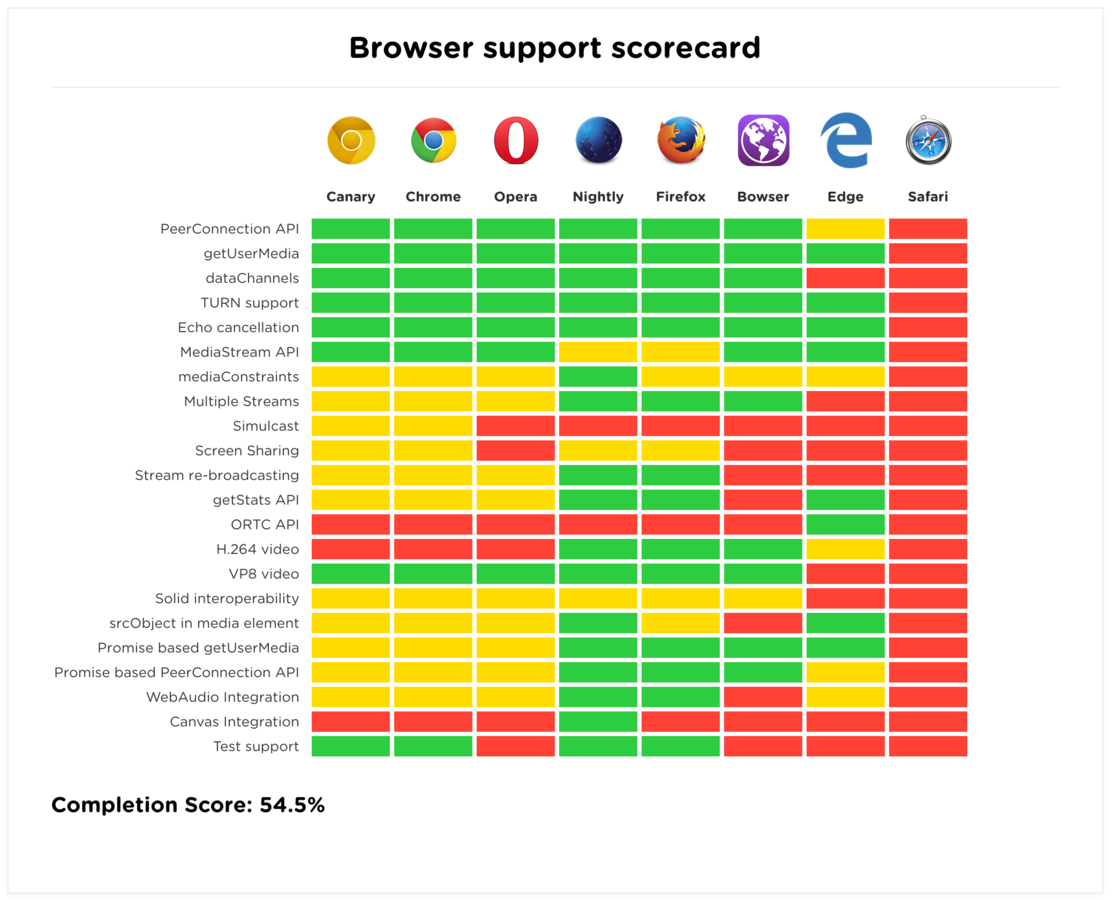

is webrtc ready yet?

But WebRTC is not just for a browser

Can be used outside of a browser with native C++ implementation (webrtc.org) for mobile, IoT, server side, etc.



Chrome for Android supports it too.

Media device handling and engines

Codec implementations

Media transport layer built on proven protocols

Reliable, realtime, bidirectional data channels

What's inside WebRTC

WebRTC media transport

RTP, RTCP and STUN multiplexed on one connection

RTP streams used to transport media

RTCP streams used to provide transport feedback (PLI)

STUN used to authenticate
(Used to exchange credentials negotiated in offer / answer)

STUN pings (Transmitted every 500ms)

RTP, RTCP are symmetric to keep NAT traversal pinholes open

Some SDP and a lot of asynchronous events

Typical WebRTC flow

Offer created by one party

Answered by the other

Async IP candidate gathering

Async connection establishment

STUN / TURN server

Is used to poke holes in NAT.

WebRTC Offers & Answers

v=0
o=- 3709720962883168841 3 IN IP4 127.0.0.1
s=-
t=0 0
a=group:BUNDLE audio
a=msid-semantic: WMS OwFf4ndJLqJTV8yAucuMC11MIsnKgmz5HrSH
m=audio 49997 RTP/SAVPF 111 103 104 0 8 106 105 13 126
c=IN IP4 54.72.232.91
a=rtcp:1 IN IP4 0.0.0.0
a=ice-ufrag:wG4d9cZxWJe+1/J3
...


v=0
o=- 120247245346114869 3 IN IP4 127.0.0.1
s=-
t=0 0
a=group:BUNDLE audio
a=msid-semantic: WMS 074F5EBE-9D32-C14B-84B95E6802A10EB0
m=audio 45001 RTP/SAVPF 103
c=IN IP4 10.39.32.26
a=rtcp:1 IN IP4 0.0.0.0
a=sendrecv
a=ssrc:3540656010 cname:kbjGX1Qis4+ZyDHn
...

LETS TALK ABOUT API

In many slides I show Chrome only examples with "webkit" vendor prefix.

For Firefox please use "moz" prefix instead.

getUserMedia

navigator.webkitGetUserMedia({

    audio: true,
    video: true

}, function(stream){

    // handle stream
    var url = URL.createObjectURL(stream);
    // url is like blob:https%3A//localhost%3A3443/b4d040dd-633c-4bb1-9fb9-6fd98f0dca43
    // get video element and set src-attribute using url from above
    // add some filters or something...

}, function(err){

   // handle errors
   console.error("Oops", err);

});

// Or in Chrome Canary, Firefox and Edge
navigator.mediaDevices.getUserMedia({audio: true, video: true})
    .then(console.log.bind(console))
    .catch(console.error.bind(console))

getUserMedia

Triggers Mic/Cam access dialog to ask user about permissions.



It happens per constraint.
If you request first audio and then video it will be two dialogs.

If at the same time then only one combined dialog.



If your web app is served via HTTP getUserMedia will trigger access dialog on every call.

If your web app is served via HTTPS then user response will be persisted.

MediaStream API

// get audio stream track
stream.getAudioTracks();

// locally mutes audio upstream (mic) without calling mute on audio element
stream.getAudioTracks()[0].enabled = false;

// get video stream track
stream.getVideoTracks();

/// clones stream
stream.clone();

// stops stream
stream.getTracks().forEach(function(track){
    track.stop();
});

Stop your stream when you don't need it to suppress camera usage indicator.

Device management

MediaStreamTrack.getSources(function(devices){

    // filter your devices if you want only audio or video
    // because device enumeration gives you both
    console.log(devices);

});

// device example
// SourceInfo
// {
//     facing: "",
//     id: "b6ab4c86bb2cb76b14535fa61fd2414e3f7b54325824a3da8915c7c508b05642",
//     kind: "video",
//     label: "HD Pro Webcam C920 (046d:082d)"
// }

// Or Promise-based API in Chrome & Firefox
navigator.mediaDevices.enumerateDevices().then(console.log.bind(console));

Seting input device

navigator.mediaDevices.getUserMedia({

    audio: {
        optional: [
            {
                // device id
                sourceId: "b6ab4c86bb2cb76b14535fa61fd2414e3"
            }
        ]
    },
    video: true

}).then(function(stream){

    // handle stream

}).catch(function(err){

    console.error(err);

});

Seting video dimentions

navigator.mediaDevices.getUserMedia({

    audio: true,
    video: {
        mandatory: {
            minWidth:  320,
            minHeight: 240,
            maxWidth:  1280,
            maxHeight: 720
        }
    }

}).then(...);

Please note that "mandatory" is an object

and "optional" is an array of objects

Screen sharing

navigator.mediaDevices.getUserMedia({

    video: {
        mandatory: {
            maxWidth: 1280,
            maxHeight: 720,
            maxFrameRate: 3,
            chromeMediaSource: 'desktop',
            chromeMediaSourceId: id
        }
    }

}).then(...);

Captures desktops, windows, tabs.

chrome.desktopCapture.chooseDesktopMedia(['screen', 'window'], null, function(id){
    // returns a stream id
});

Install extension via JS Chrome API or inline HTML.

RTCPeerConnection

new webkitRTCPeerConnection({
    iceServers: [{
        url: "stun:stun.l.google.com:19302"
    },{
        url: "turn:turn.citrixonline.com:5060",
        username: "Allice",
        credential: "LetMeIn"
    },{
        url: "turn:turn.citrixonline.com:443?transport=tcp",
        username: "Bob"
    }]
},{
    mandatory: {
        googIPv6: false
    },
    optional: [{
        DtlsSrtpKeyAgreement: true
    }]
});

RTCPeerConnection

Peer Connection is your transport between peers.

PeerConnection contains own signalling channel for STUN pings but not for handshake!

So offer/answer should be exchanged separately.

For example using HTTP or WebSocket.

Stream management


var pc = new webkitRTCPeerConnection({iceServers: []});

// add local stream (upstream) to local peer connection
pc.addStream(stream);

// remove local stream from local peer connection
pc.removeStream(stream);

// after each add/remove operation peer connection should renegotiate handshake
// you can do it either manually or based on peer connection callback
pc.onnegotiationneeded = function(){};

pc.onaddstream = function(stream){
    // remote peer added stream
};

pc.onremovestream = function(stream){
    // remote peer removed stream
};

Data channel

var pc = new webkitRTCPeerConnection({iceServers: []});

var dataChannel = pc.createDataChannel("my-channel", {
    ordered: false, // do not guarantee order
    maxRetransmitTime: 3000, // ms
});

dataChannel.onopen = function() {
    dataChannel.send("Hi.");
};

dataChannel.onmessage = function(msg) {
    console.log("New message received:", msg.data);
};

dataChannel.onerror = function(error){ ... };

dataChannel.onclose = function(){ ... };

Very similar to WebSocket API.

ICE Candidates

var pc = new webkitRTCPeerConnection({iceServers: []});

pc.onicecandidate = function(candidate){

    if (!candidate.candidate){
        // if candidate property is null then it was last candidate
        // and there is no need to signal it
        return;
    }

    // signal ice candidate to remote peer

};

function onRemoteIceCandidate(candidate){

    // in case of Firefox use mozRTCIceCandidate
    pc.addIceCandidate(new RTCIceCandidate(candidate));

}

Offer

var pc = new webkitRTCPeerConnection({iceServers: []});

pc.createOffer(function(offer){

    // send offer to remote peer
    // also you can set local description here

}, function(err){

    console.error(err);
},{

    mandatory: {
        OfferToReceiveAudio: true,
        OfferToReceiveVideo: true
    }

});

// In Firefox constraints would look like this:
// {
//     offerToReceiveAudio: true,
//     offerToReceiveVideo: true
// }
// without additional "mandatory": {} wrapper

Firefox supports Promise-based API for PeerConnection

Offer (part 2)

var pc = new webkitRTCPeerConnection({iceServers: []});

// For Firefox please use mozRTCSessionDescription
pc.setLocalDescription(new RTCSessionDescription(offer),
    callback, errorCallback);


Answer

var pc = new webkitRTCPeerConnection({iceServers: []});

// handle offer on "second" peer
function onOfferReceived(offer) {

    // offer should look like {"type":"offer","sdp":"..."}
    pc.setRemoteDescription(new RTCSessionDescription(offer), function(){
        pc.createAnswer(function(answer){
            pc.setLocalDescription(new RTCSessionDescription(answer), function(){

                // signal (send) answer back

            }, function(err){
                console.error(err);
            });
        }, function(err){
            console.error(err);
        });
    }, function(err){
        console.error(err);
    });
}

Callback hell will look a bit better with Promise-based API

Answer (part 2)


var pc = new webkitRTCPeerConnection({iceServers: []});

// handle answer on "first" peer
function onAnswerReceived(answer) {

    // answer should look like {"type":"offer","sdp":"..."}
    pc.setRemoteDescription(new RTCSessionDescription(answer), callback, errorCallback);

}

Signalling / ICE states

var pc = new webkitRTCPeerConnection({iceServers: []});

// current state of signalling
console.log(pc.signalingState);

pc.onsignalingstatechange = function(state){ ... };

// current state of ice
console.log(pc.iceConnectionState);

pc.oniceconnectionstatechange = function(state){ ... };

Profit!!!

Some handy debugging tools

usecase example

GoToMeeting Pro

What's next?

ORTC

WebRTC and ORTC will converge.

And it is already happening.



Project named WebRTC NV (Next Version)

What about IE9-11 and Safari?

ActiveX / NPAPI WebRTC plugin

Now you get "*almost" part, huh? ;)

Thank you!

If you are interested in what we do and want to be part of it - talk to me later
