Comparison of properties affecting the performance of Hypercube Interconnection

Presented By: Abdullah Alshammari

Authors

• K. Karthik
• Dr. Sudarson Jena
• Dr. T. Venu Gopal

Telangana state, India

Publisher

• Electrical, Electronics, Signals, Communication and Optimization (EESCO), 2015 International Conference

• Date of Conference : 24-25 Jan. 2015

Interconnection Networks

• Important in many area such as Parallel Computing and WSNs as a virtual backbone.
• In Parallel Computing:
  • interconnection of processors and linking the memory module to them effectively is not an easy task.
  • A single bus is not a perfect solution ( one message at a single point of time
  • crossbar is not a practical solution ( each process is linked to another one).
• The solution is custom topologies such as Hypercube topology.

Hypercube Variants

• Hypercube Network.
• Folded Hypercube Network.
• Multiply Twisted Cube Network.
• Multiple Reduced Hypercube Network.
• Half Hypercube Network.

Hypercube Network

• it's n dimensional figure similar to cube in 3 Dimension and square in 2 Dimension.
  • Diameter :  the minimum number of steps it takes for one processor to send a message to the farthest processor. ( it's 2 in C2 and 3 in C3  and n in Cn)
  • Nodes: 2^n
  • Degree: n.

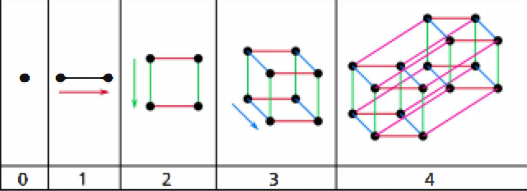

Hypercube Network Example

Folded Hypercube Network

• it is a standard hypercube with some extra links established between its nodes.

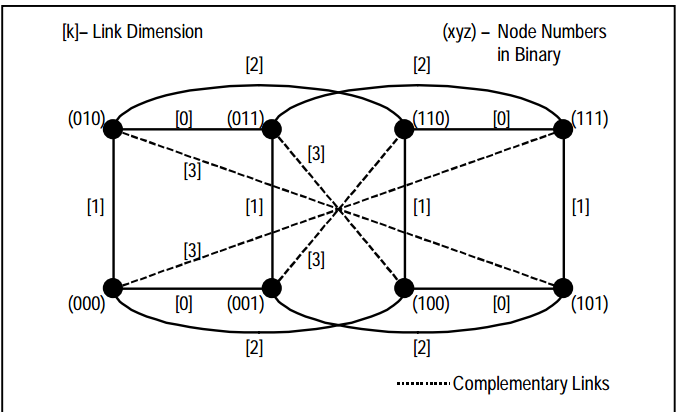

• it can be constructed from a standard n-dimension hypercube by connecting each node to the unique node that is farthest from it ( for example 111 to 000 ).
  • Diameter :  the minimum number of steps it takes for one processor to send a message to the farthest processor. ( n/2)
  • Nodes: 2^n
  • Degree: n+1

FHC example

Multiple Reduced Hypercube Network

• It's based on hypercube with better diameter.

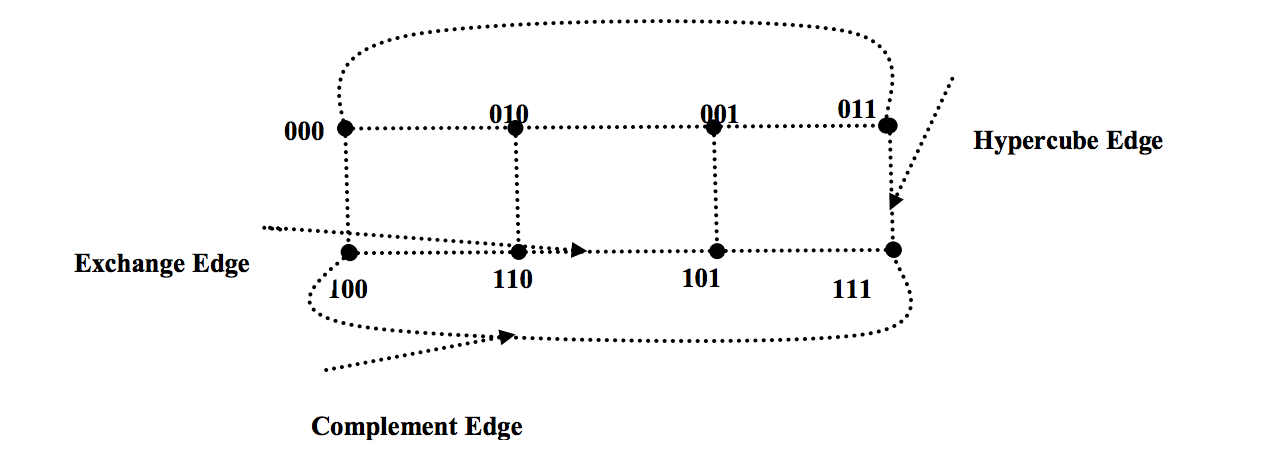

•  The edges of MRH(n) are expressed in three forms. Based on the methodology of connection, they are named as Hypercube edge, Exchange edge and Complement edge
• Diameter : (n/2) +  ( (n/2) + 1)/3)+ 1
• Nodes: 2^n
• Degree: n

Multiple Reduced Hypercube Network

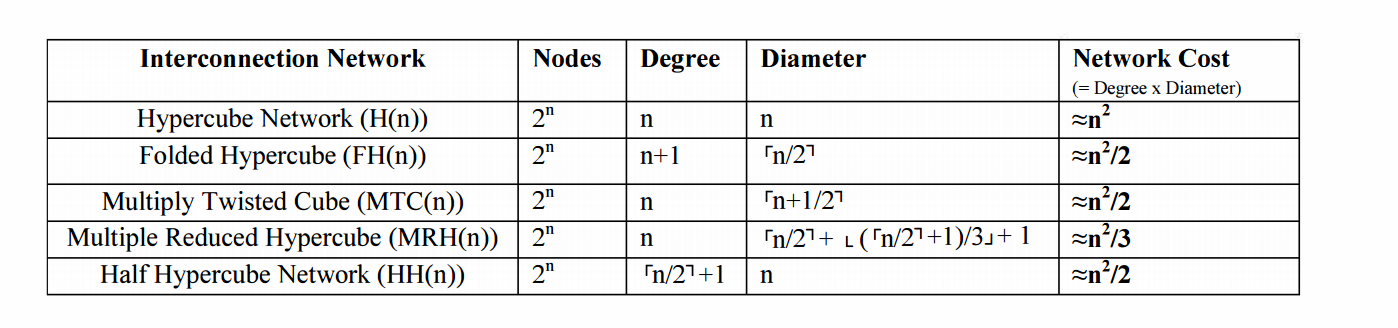

ANALYSIS OF PROPERTIES OF INTERCONNECTION NETWORKS

References

• Comparison of properties affecting the performance of Hypercube Interconnection Networks

• MODELING THE FOLDED HYPERCUBE NETWORK WITH OPNET

• ANALYSIS OF MULTIPLE REDUCED HYPERCUBE INTERCONNECTION NETWORK PROPERTIES OF BOTH DIAMETER AND NETWORK COST
