Intro to Creative Coding & Generative Art

...for Game Programers!

— by Ahmad Moussa

Table of Contents

  • Background & getting into Creative Coding
  • What is Creative Coding & Some of the Things I've made with code
  • Intro to P5JS



1

  • Sinusoidal Movement
  • SDF Example
  • Shape Packing & Collision Detection
  • Cellular Automata
  • Tiling & Tesselation

2

  • Randomness & Determinism
  • Long-form Generative Art on the Blockchain

3

A little bit about me

Find me on Twitter

Background 1/2

  • Bachelor Computer Science -> American University of Beirut
  • Programming in Different Languages, Algorithms & Data Structures, Theory of Computation, Software Development, etc.
  • First encounter with Creative Coding: Conway's Game of Life
  • Master in Informatik, Waseda University, Tokyo
  • ML & AI (pre-LMM and image generator era)
  • Focus: Generative Models for Sound Synthesis
  • Enjoyed research because it allowed for creative explorations

Background 2/2

Extracting Color Palletes with Neural Networks

A research project I worked on at the time.

AI as a gateway to Creative Coding

Programming neural networks was my gateway into creative coding. I was frustrated with the slow procedure. No image generators of LLMs existed at the time.

Discovering P5 & Processing

Writings about Creative Code

An independent kind of research

What is Creative Coding?

In a nutshell: you sit down and you make something with code.

Creative Coding is a loosely defined term used to describe a wide range of artistic practices that use computer code as a medium.



Creative Code typically distinguishes itself from regular coding by the fact that it doesn't follow pre-defined specifications to solve problems for a user, but rather aims at expressing ideas and concepts.



Artists, designers and developers use creative coding to make online experiences, generative art, interactive installations, and more.



– Raphaël de Courville

  • Fun and Silly Websites
  • Educative Web Experiences
  • Artsy little code explorations
  • Audioreactive Installations
  • Generative Art

Creative Coding can be:

What is Generative Art

  • Art created by means of an autonomous system.
  • Sub-category of Creative Coding / but kinda not really
  • Doesn't have to be code based
  • Algorithmic Art?
  • Contemporary discussions about Terminology, where generative art is nowadays also used to refer to AI generated art.

Artform that started in the 50s

  • Pioneers like Vera Molnar, Frieder Nake, Herbert Franke explored the idea of making art with randomness
  • Le Random
  • Genart Summit in Berlin earlier this year, hosted by the Herbert Franke Foundation. Recordings of talks can be viewed on the HYPERRAUMTV YouTube channel.

About the Process: Finding the Art as opposed to making the Art

  1. Not a linear process
  2. You find ideas rather than realizing them

After a certain high level of technical skill is achieved, science and art tend to coalesce in aesthetics, plasticity and form. The greatest scientists are always artists as well.

– Albert Einstein

We don't make mistakes, we make happy little accidents.

– Bob Ross

Early Explorations with P5JS

Art with Trigonometry

Inwards or Outwards

Folding Screen

Perspective / Optical Illusions

Layering and Transparency

Texture 1/2

Scribbles

Ascension

Texture 2/2

Exotic Quarpets

Reflections

Seamless Loops

Recent Explorations

Perlin Noise 1/2

One of the first techniques that I learned about when I got into

Fingerprint

Tree Ring

Perlin Noise 2/2

Inkblots

What is P5JS?

  • A JavaScript library for creative coding
  • Makes coding accessible and inclusive
  • Perfect for artists, designers, educators, and beginners
  • Free and open-source

Processing:

  • Created in 2001
  • For artists, designers, and educators to explore creative coding.
  • Pioneered code as a creative and artistic medium
  • Java-based environment, less lenient that Javascript



P5JS:

  • Started in 2014
  • JavaScript library.
  • Runs in the browsers
  • Makes sharing of sketches, natively as code, possible on the internet
  • Very easy to get into, focused on accessibility and inclusivity

Processing and P5JS

Sketching with Code

We also wanted to share a way of working with code where things are figured out during the process of writing the software. We called this sketching with code.

— Casey Reas

Everything you can do in P5JS you can also do without P5JS via HTML's canvas API. P5 basically uses the Canvas API functions under the hood and creates wrappers around them.



There's extensive documentation about the Canvas API on the MDN web docs. Overall P5 is just much more beginner friendly and provides some useful extras however.



Built on top of the Canvas API

1. P5 Editor Showcase

2. OpenProcessing Platform

3. Quick JavaScript Refresher

4. Overview of P5 Drawing Functions

  • Recreating a Zach Lieberman Sketch
  • Little code, but visually complex

A Practical Example

Atlas of Blobs

Talk: Poetic Computation

  • Idea of "Poetic Computation"
  • Code as an Artistic Medium
  • Über die funktionale problemlösung hinaus

Zach Lieberman

for(let y = 0; y < 400; y++){
  ellipse(200, y, 20)
}
for(let y = 0; y < 400; y+=20){
  ellipse(200, y, 20)
}

1/5

2/5

let t = millis()/500

for(let y = 0; y < 400; y++){
  ellipse(200 + sin(t) * 20, y, 20)
}
let t = millis()/500

for(let y = 0; y < 400; y++){
  ellipse(200 + sin(t + y/40) * 20, y, 20)
}
let t = millis()/500

for(let y = 0; y < 400; y++){
  ellipse(
    200 + sin(t + y/40) * 20,
    y,
    20 + sin(t + y/10) * 20)
}

3/5

let t = millis()/500

for(let y = 0; y < 400; y++){
  fill(
    127.5 + 127.5 * sin(t + y/40),
    127.5 - 127.5 * cos(t + y/40),
    127.5 + 127.5 * cos(t + y/40)
  )
  ellipse(
    200 + sin(t + y/40) * 20,
    y,
    20 + sin(t + y/10) * 20)
}

4/5

5/5

let t = millis()/500

for(let y = 0; y < 400; y++){
  fill(
    127.5 + 127.5 * sin(t + y/40),
    127.5 - 127.5 * cos(t + y/40),
    127.5 + 127.5 * cos(t + y/40)
  )
  ellipse(
    200 + sin(t + y/40 +
              sin(t + y/400)
             ) * 20,
    y,
    20 + sin(t + y/10) * 20)
}

Variations

SDF Live Coding Example

  1. Programming a Grid
  2. Defining distance functions on the grid
  3. Animation
  4. Combining distance functions
  5. Towards Shaders

Useful Algorithms both for Creative Coding & Game Programming

Grids

Collision Detection

Cellular Automata

Grids, Tilings and Tesselations

Variations on Hexagonal Grids

Arabesque

A tessellation or tiling is the covering of a surface, often a plane, using one or more geometric shapes, called tiles, with no overlaps and no gaps. In mathematics, tessellation can be generalized to higher dimensions and a variety of geometries.

Irregular Grids

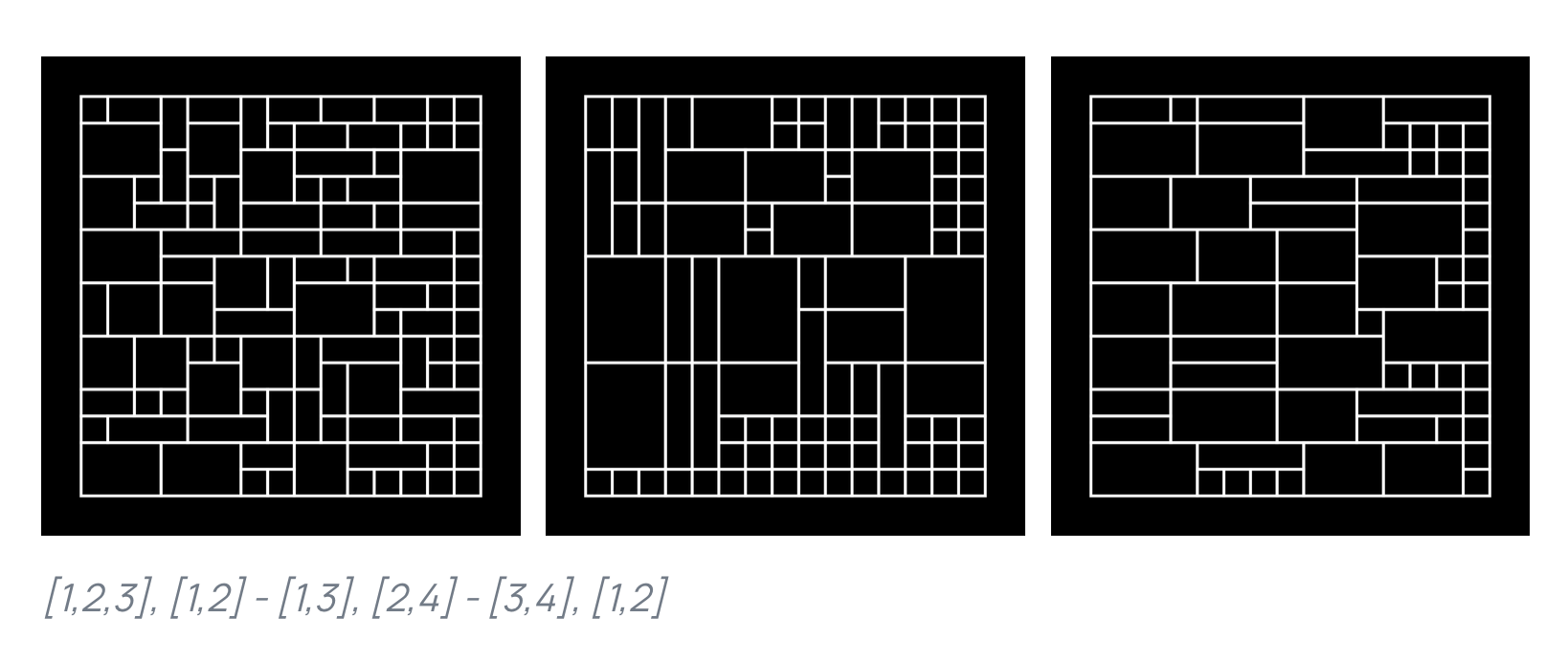

1. Various Subdivision strategies (+Recursion)

2. Pseudo Bin Packing
3. Graph Algorithms as Space Filling Algorithms

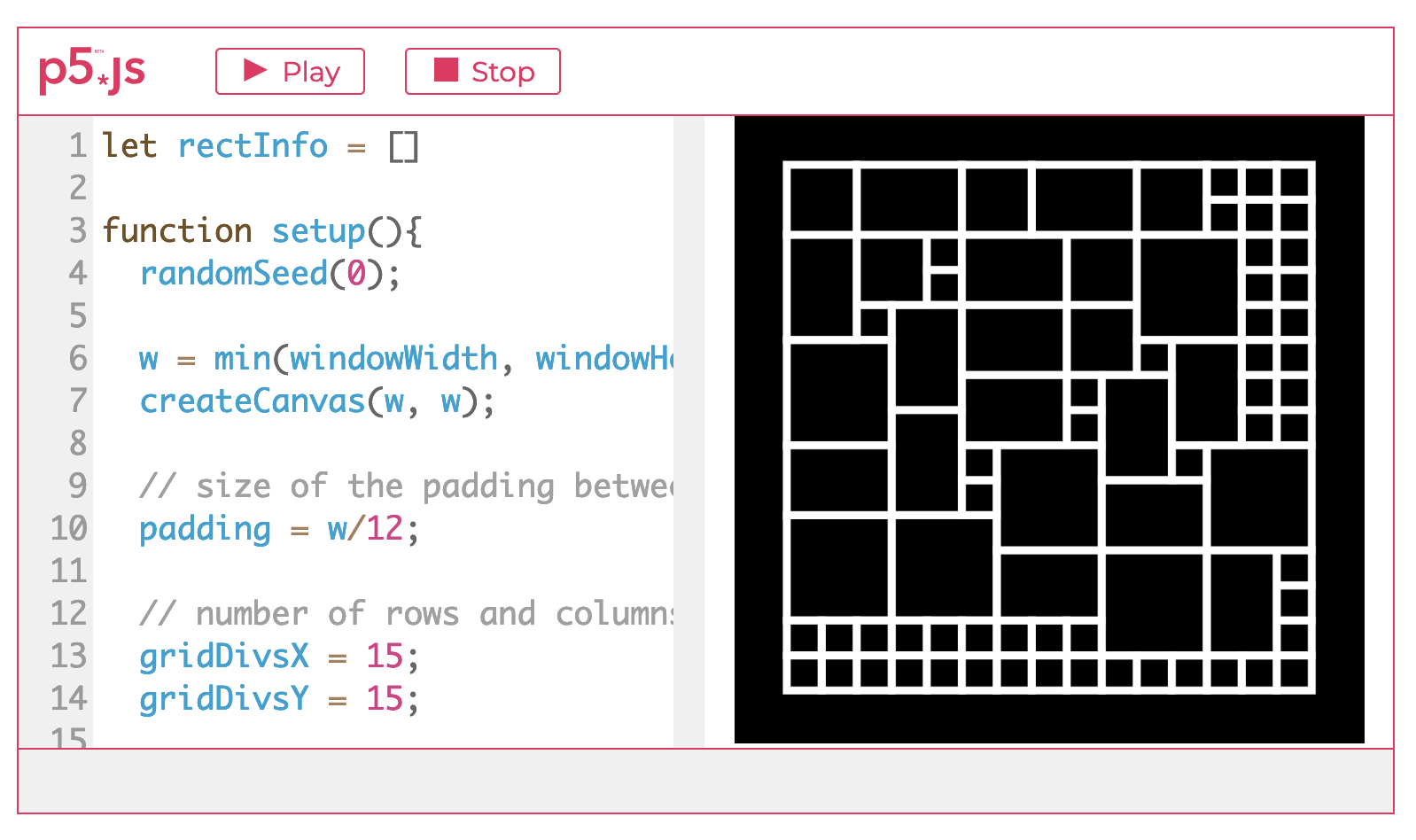

Pseudo Bin Packing (for a lack of a better term)

Graph Algorithms

Grids, tilings and tesselations can also be represented as graphs. Their traversal then allows for the creation of interesting visuals.

Different traversal strategies. Contour traversal to isolate the individual regions.

Random Walker Example

Domain Warping 1/2

Domain Warping 2/2

Inspiration vs. Recreation with Code

Truchet Tiling & Wave Function Collapse

Collision Detection Algorithms

Suprematist Compositions in the Style of Malevich & Kandinsky

Circle Packing Example

Polygon Intersections

Algorithm for determining polygon intersections:

  • Logic for computing intersection of two lines
  • For each two line pairs check intersection
  • If at least one intersection, then the polygons intersect



Divide & Conquer Approach

Modeling Things with Circles

A Note on Efficiency

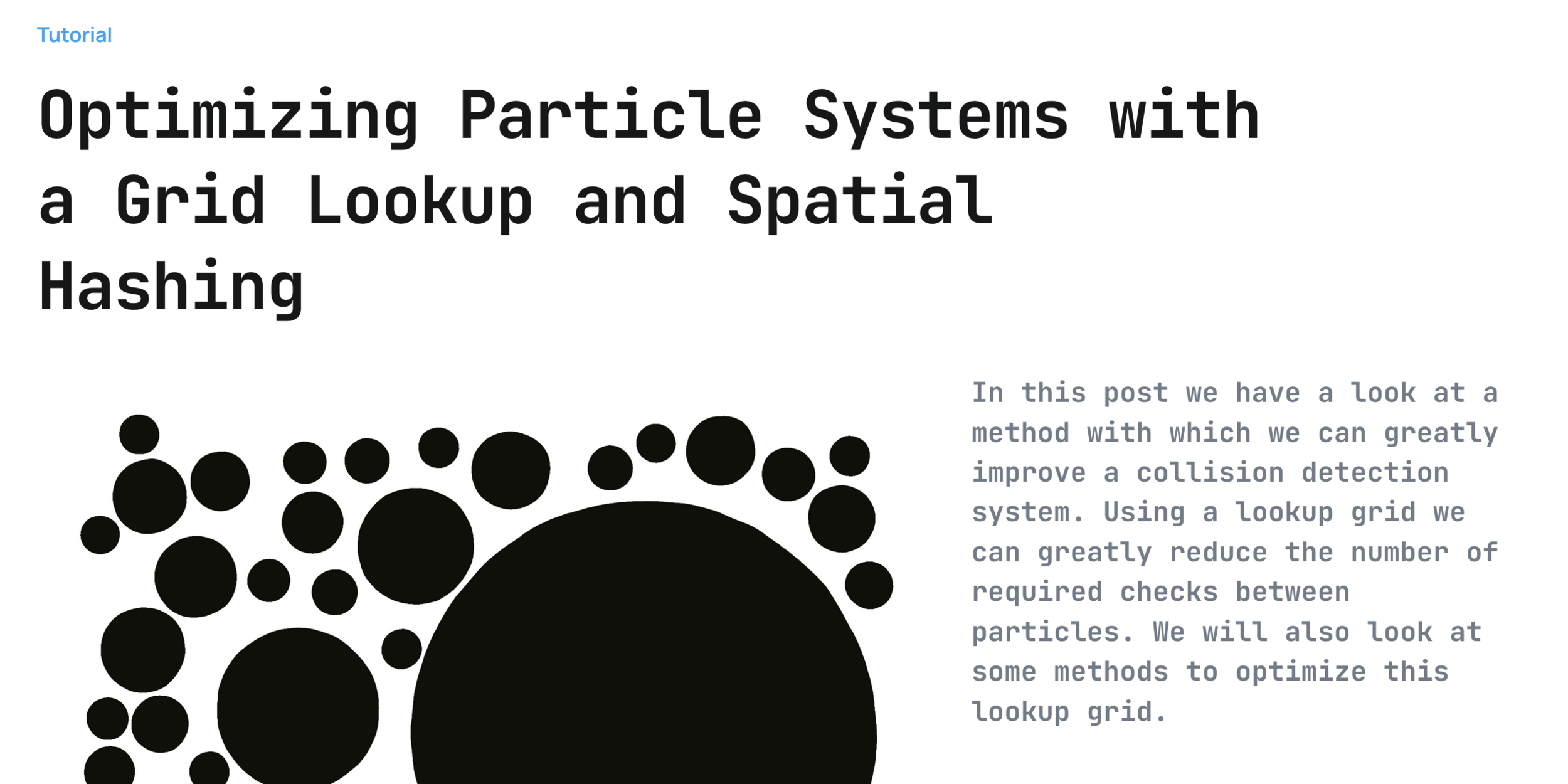

Usually the most important aspect of collision detection algorithms is efficiency, so that individual collision can easily be determined.

Particle Sims

Soft Body Physics

Cellular Automata & Emergent Systems

  • Emergence is a term that refers to complexity emerging from simpler individual components.
  • An Emergent System usually presents properties that are more than the sum of its parts.

Emergence in Nature

Kurzgesagt has a great video on this: How dumb components create intelligent systems.

Flocking behaviour of birds

Conway's Game of Life 1/3

Conway's Game of Life 2/3

Conway's Game of Life is based on 4 simple rules:

1. A cell with 3 living neighbours becomes alive.
2. A cell with less than 2 living neighbours dies.
3. A cell with 2 or 3 living neighbours stays alive.
4. A cell with more than 3 neighbours dies.

Conway's Game of Life 3/3

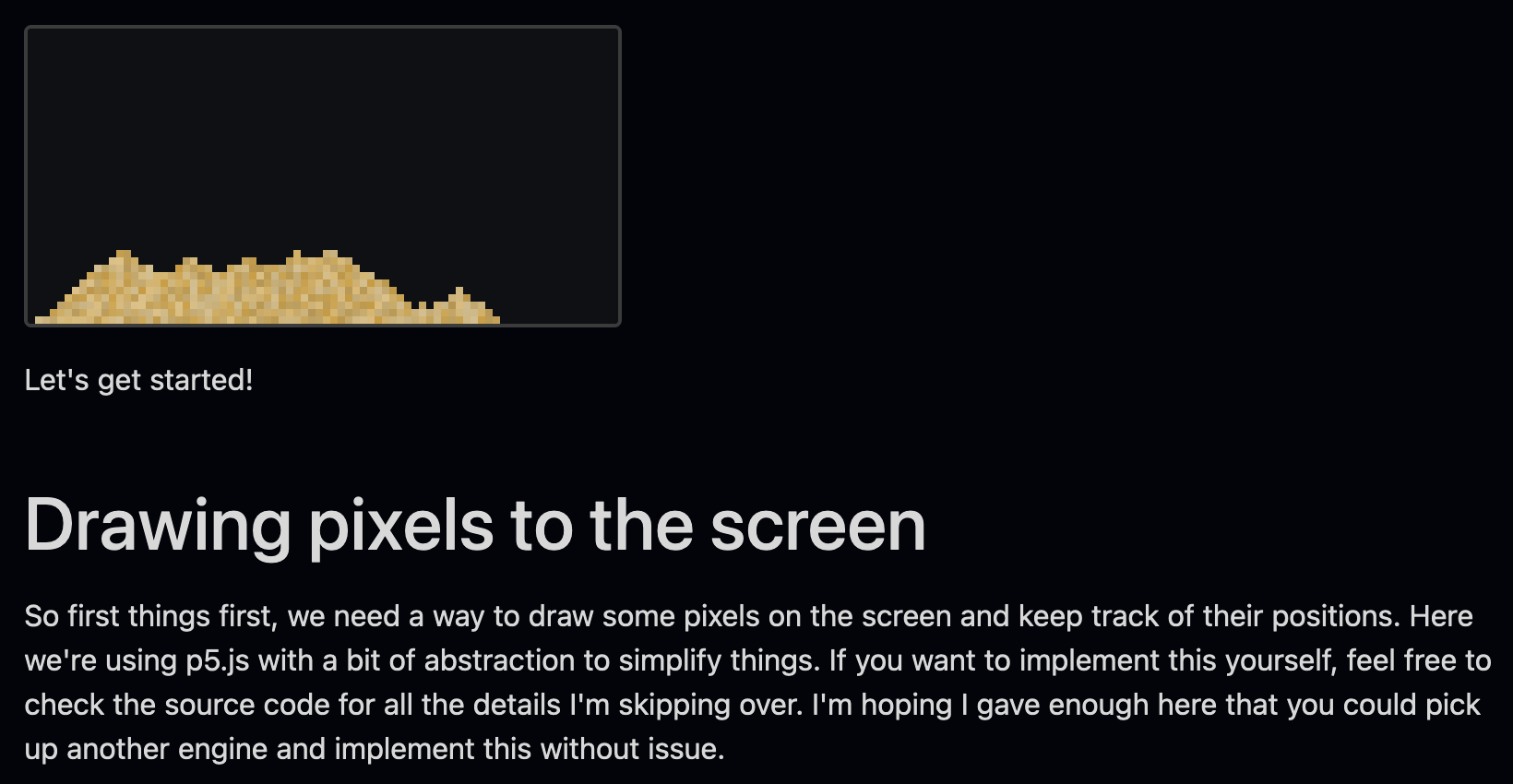

Towards Cellular Automata - Sandspiel

Tutorial by Jason McGhee

Amy Goodchild has another great article on this topic as well:

Emergence in Generative Art

Generative Art on the Blockchain

What are NFTs?

Long-form Generative Art?

Determinism & Randomness

fxhash

fxhash Projects

Publishing a Project on fxhash

We recently started a Newsletter!

Keeping up with fxhash

Sign up!

  • Raphael de Courville's Weekly Creative Coding Challenge
  • Genuary 2025 (month long coding fest, like inktober basically)
  • Follow artists on social media and see what they're up to!

Where to from here

Important to measure how much progress you have made, and for others to learn from your work.

Document Everything!

Vera Molnar: "Work a lot. Don't throw anything away."

"You have to work a lot and not throw anything away. I worked a lot I threw away a lot, and that I regret. But I love to tear up so much."

- Vera Molnar

Cheers!
