Arhitecturi Avansate de Retele de Calculatoare

Burlacu Alexandru - TI-191M/SIC-DD

Before we start

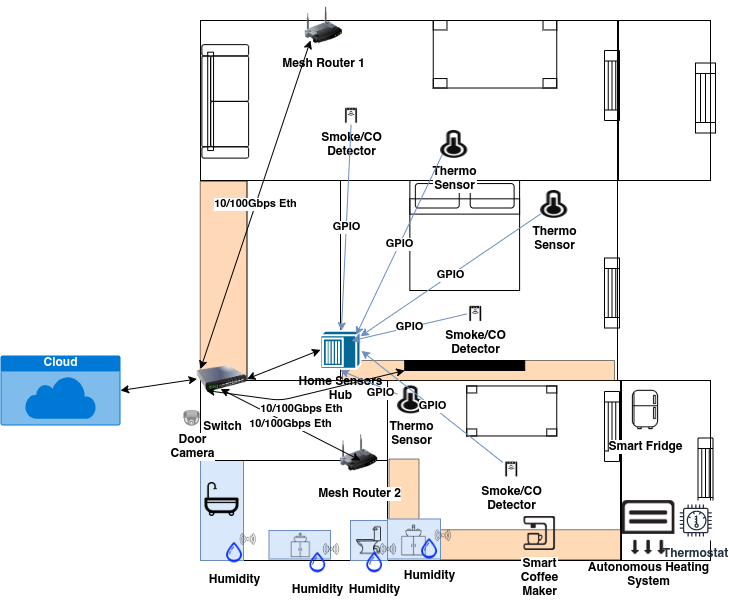

• If there's no wire on the diagram - the connection is wireless
• Besides showed devices, the network was designed with 2-3 smartphones and 1-2 laptops in mind, but should support up to 10 or more of each
• Current Mesh WiFi solutions claim support for tens to a 100 connections. This + device prioritization should accommodate the even more devices if needed
