Common Envelope
COBRA Discussion Group
Almog Yalinewich
8.3.19
A picture is worth 1000 words
Algol Paradox
Less massive but more evolved

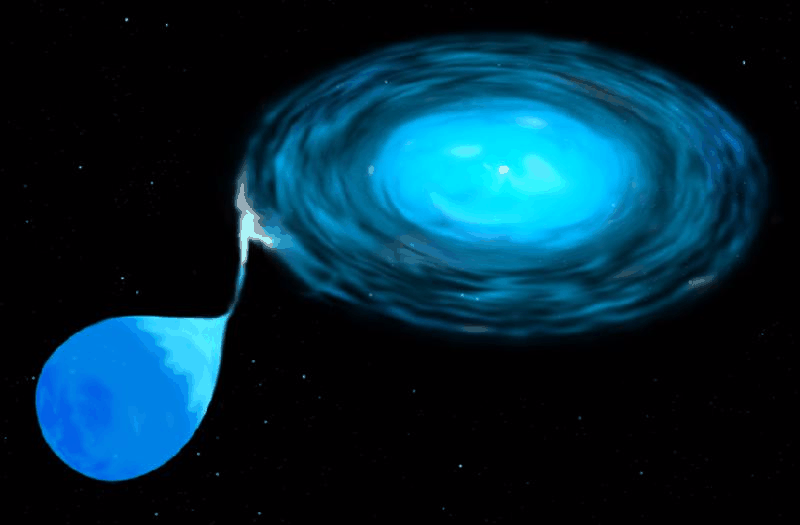

Mass transfer

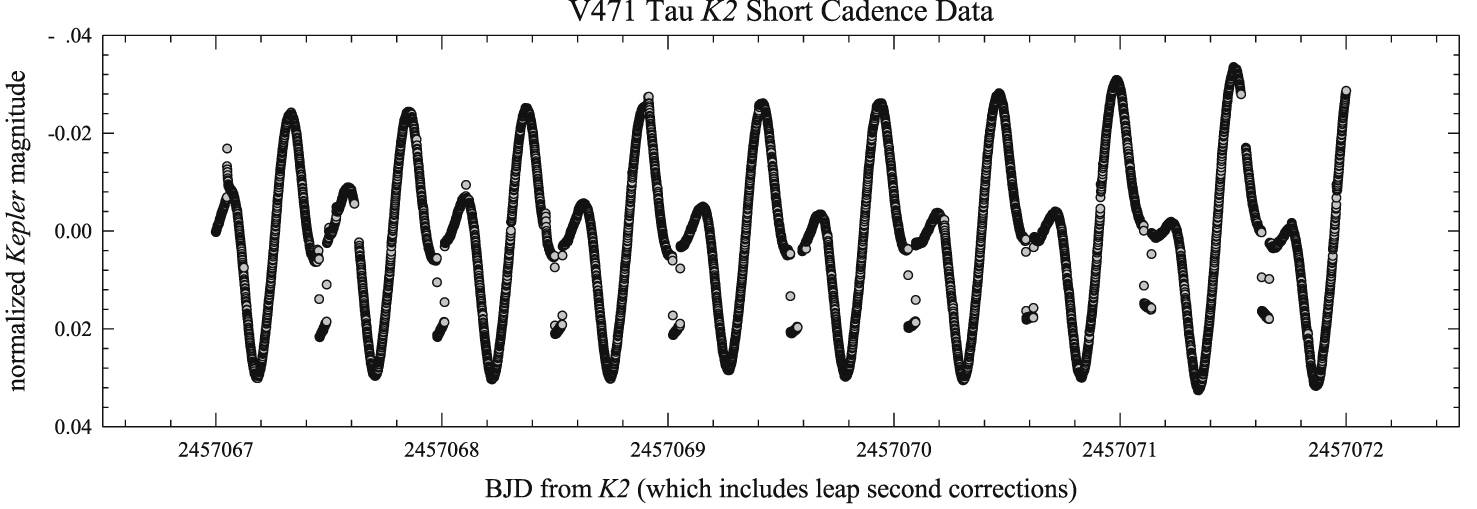

V471 Tau

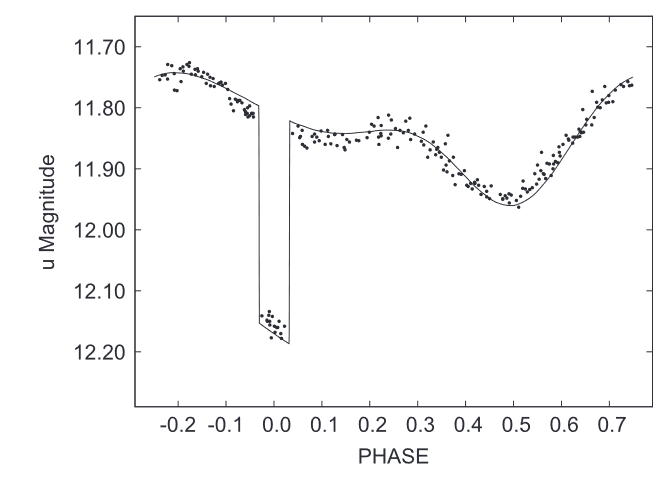

Eclipsing Binary
V471 Tau
Very short period (12h), sma
\approx 3 R_{\odot}
V471 Tau
K type
white dwarf
Planetary Nebula
NGC 6720, The Ring Nebula
NGC 6543, the Cat's Eye Nebula
Planetary Nebula

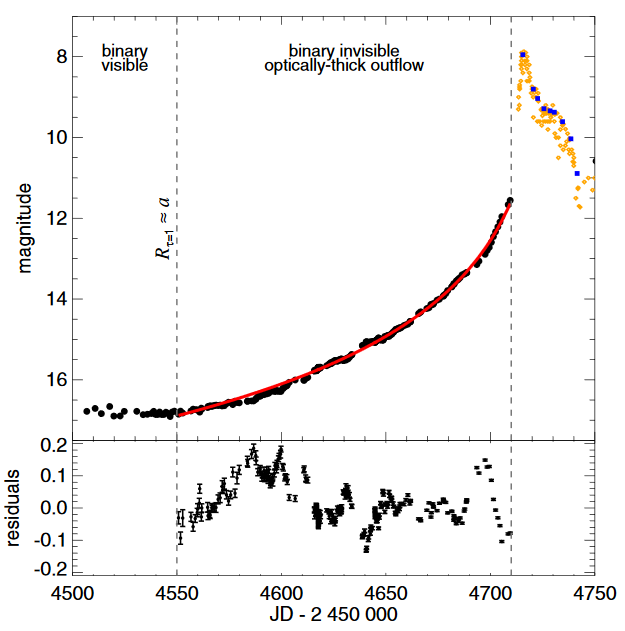

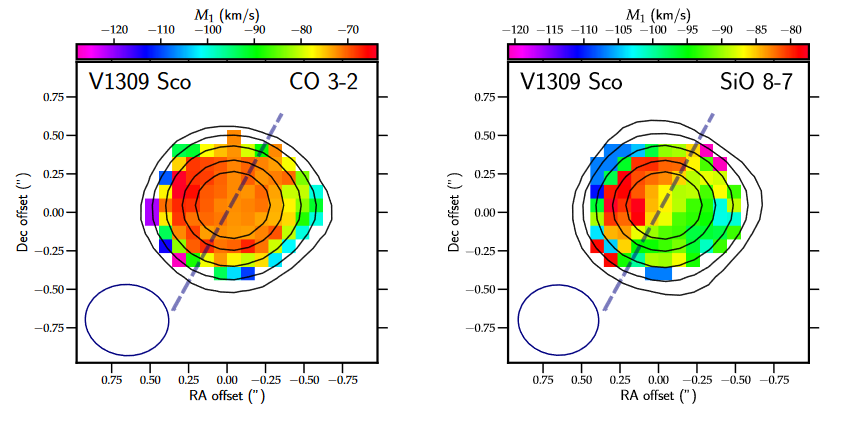

V1309 Sco
Bipolar Outflow?
Theoretical Analysis
Energy Conservation
m_c
m_s
m_s
\frac{G \left(m_c+m_e\right) m_e}{\lambda R}
m_e
R
a_i
a_f
\alpha \left[\frac{G m_s m_c}{a_f} - \frac{G m_s m_c}{a_i}\right]
Addition Energy Sources
Accretion onto Companion
Companion Spin
Recombination
Energy sink - binding energy to companion
+fusion

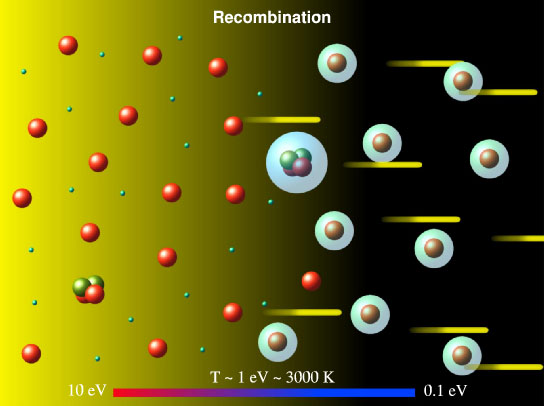

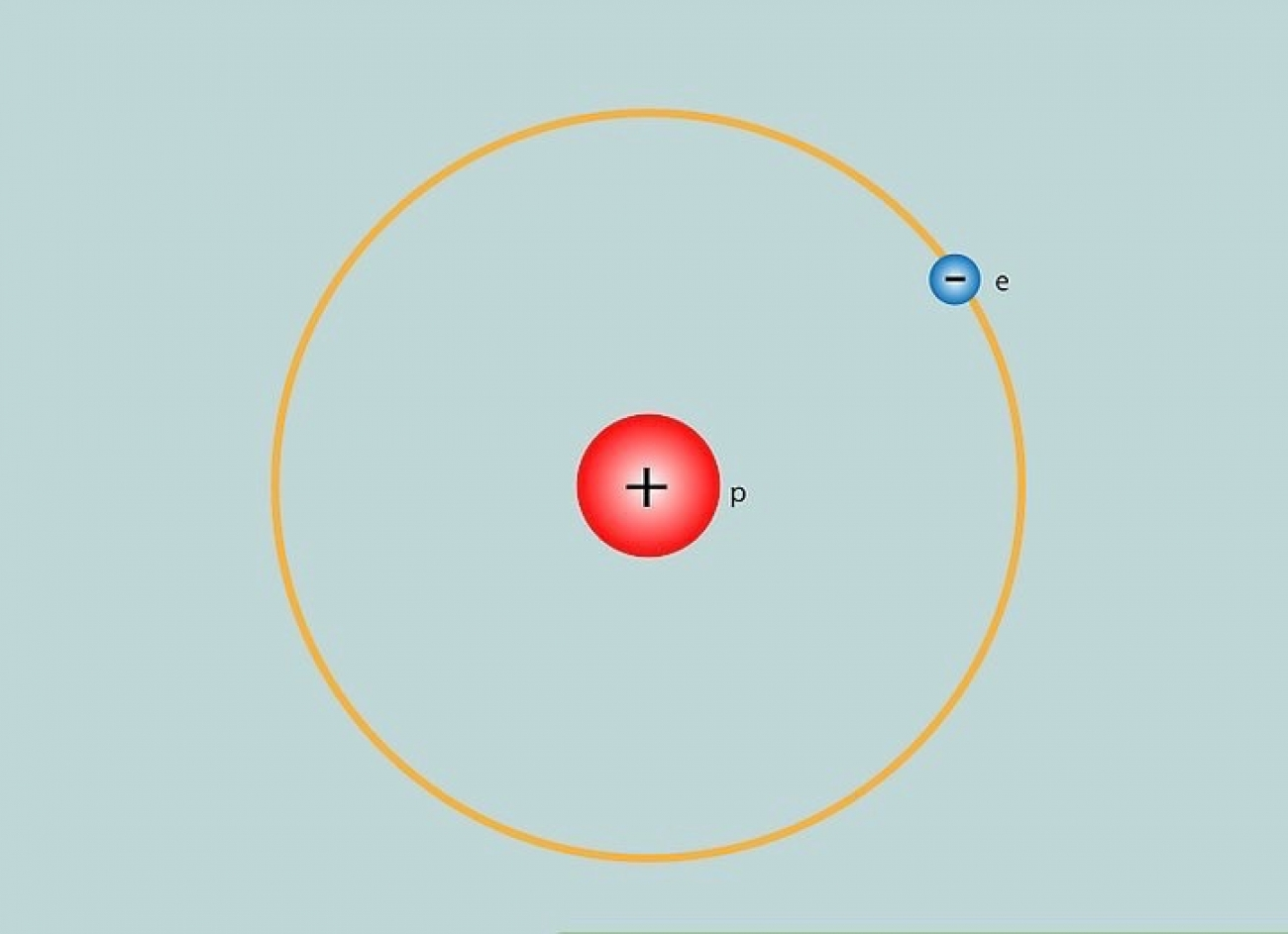

Recombination
13.6 \, \rm eV
1 \, M_{\odot}
1 \, \rm au
9 \, \rm eV
Technically, the envelope is unbound
\alpha \nless 1
Calibration
Mass ratio
Conservation of Angular Momentum
\frac{\Delta J}{J_i} \approx \gamma \frac{m_e}{m_e+m_c+m_s}
\frac{a_f}{a_i} = \left[\frac{m_c+m_e}{m_c} \frac{M_s+m_c +m_e}{m_s+m_c}\right]^2 \left[1-\gamma \frac{m_e}{m_e+m_c+m_s}\right]^2
a_i \approx R
Calibration
Mass transfer Stability
J = \frac{M_d M_r}{M_r +M_d} \sqrt{G \left(M_d + M_r\right) a}
\frac{\Delta a}{a} = 2 \Delta M \left[\frac{1}{M_d} - \frac{1}{M_r}\right]
= \frac{\left(M_d-\Delta M\right) \left(M_r+\Delta M\right)}{M_r +M_d} \sqrt{G \left(M_d + M_r\right) \left(a+\Delta a\right)}
Angular momentum
after mass transfer
M_d > M_r \Rightarrow \Delta a<0
M_d < M_r \Rightarrow \Delta a>0
Stable
Unstable
Stable Mass Transfer
M_d < \textcolor{blue}{M_r}
Unstable Mass Transfer
M_d > \textcolor{blue}{M_r}
Mnemonic
Progressive
unstable
Regressive
stable
insert snide political comment
Statistics

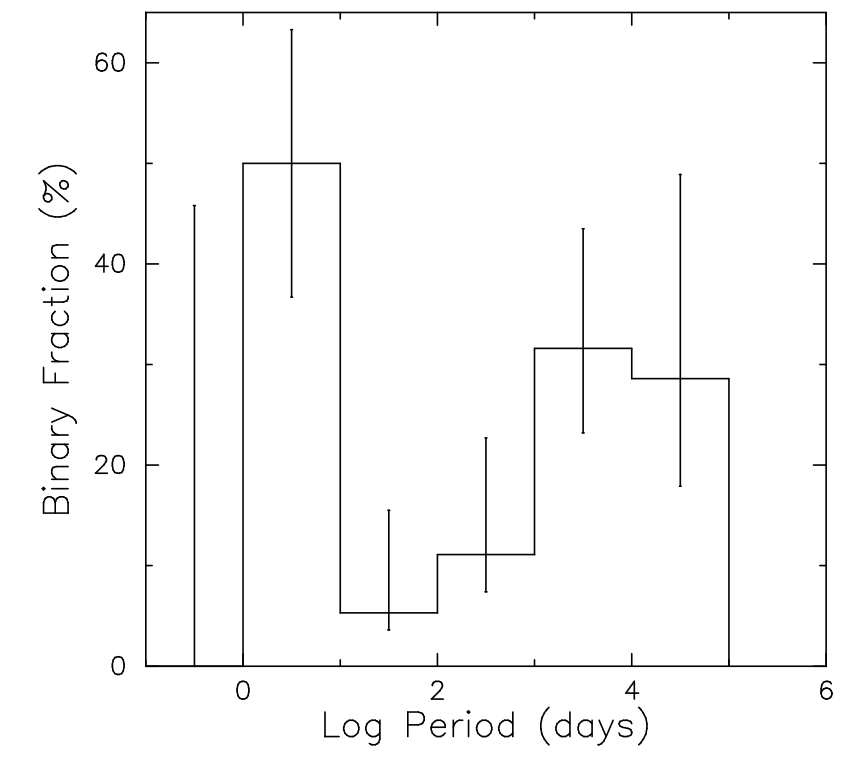

Bimodal White Dwarf Binary Period Distribution

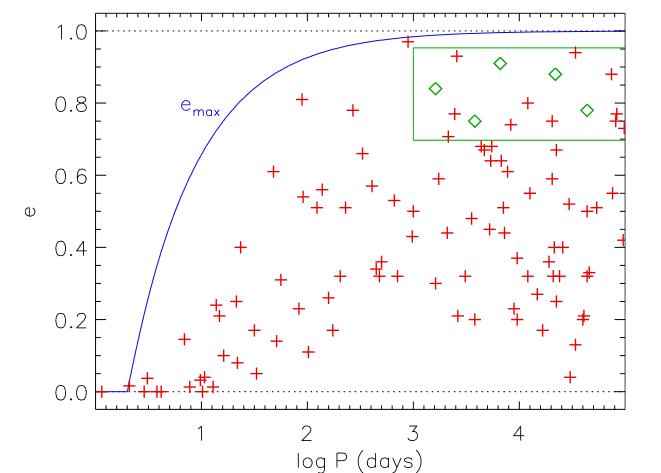

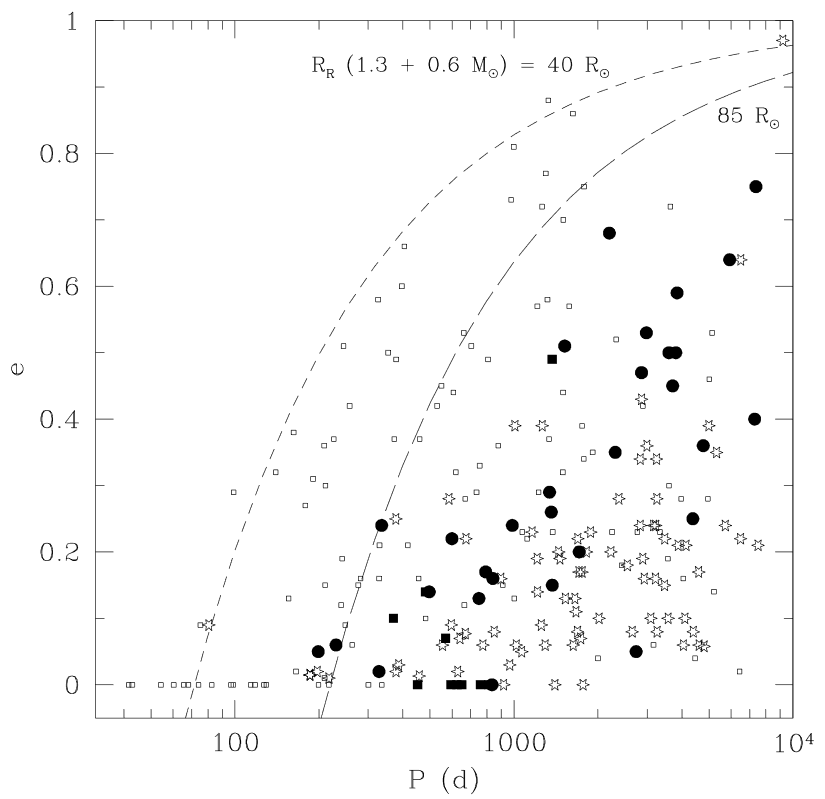

Eccentricity-Period Distribution
Eccentricity-Period Distribution

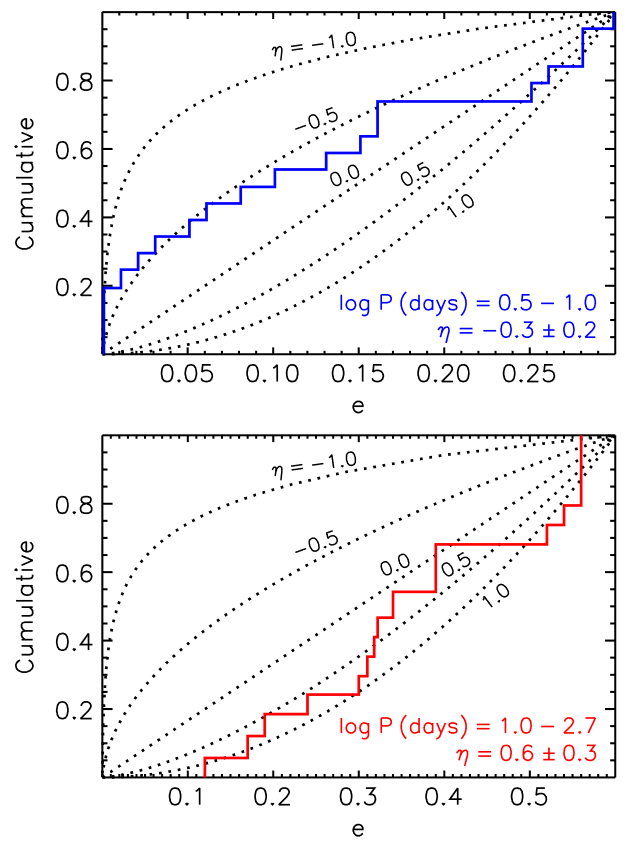

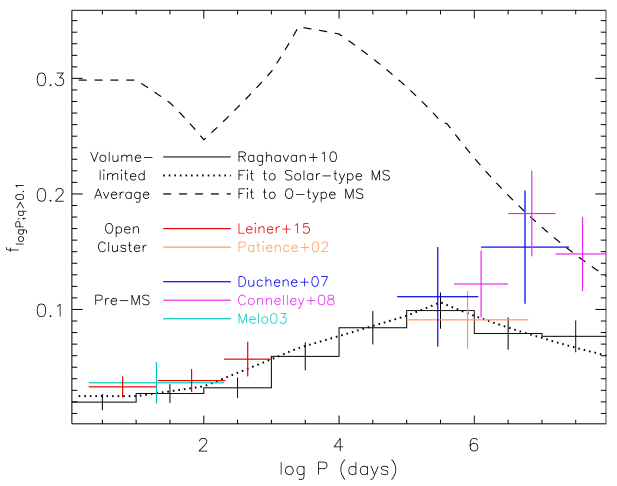

Eccentricity-Period Distribution - General

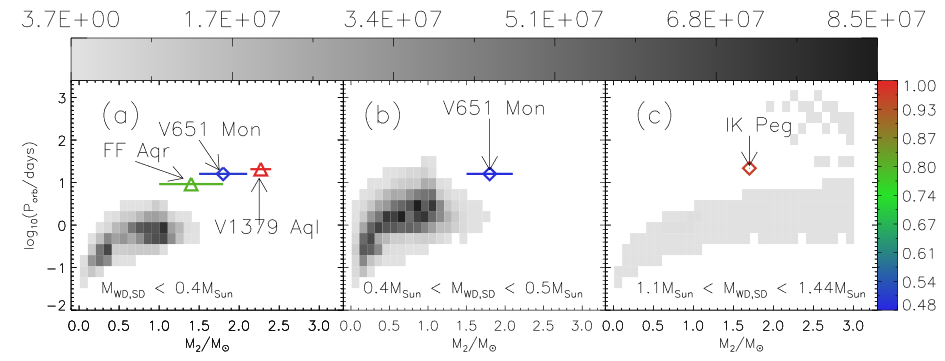

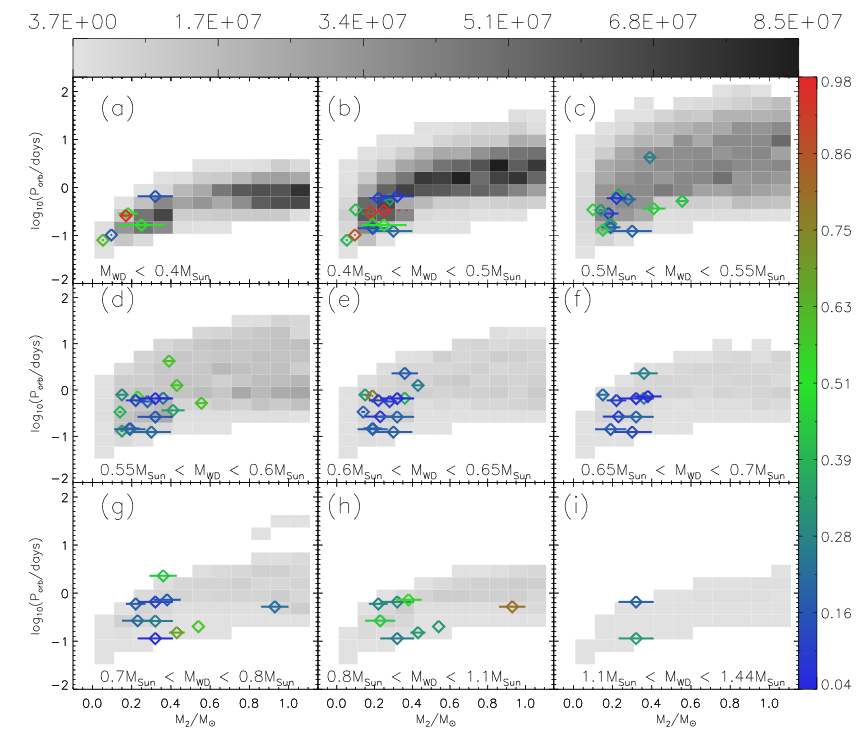

Period Mass Ratio Relation
Tight
binaries
favour
large q

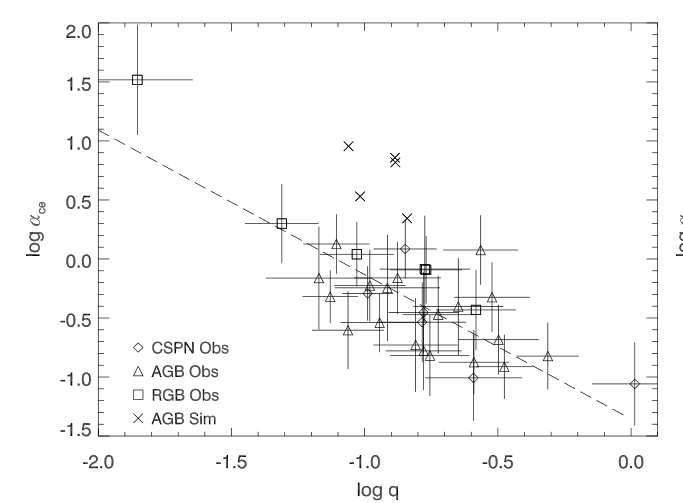

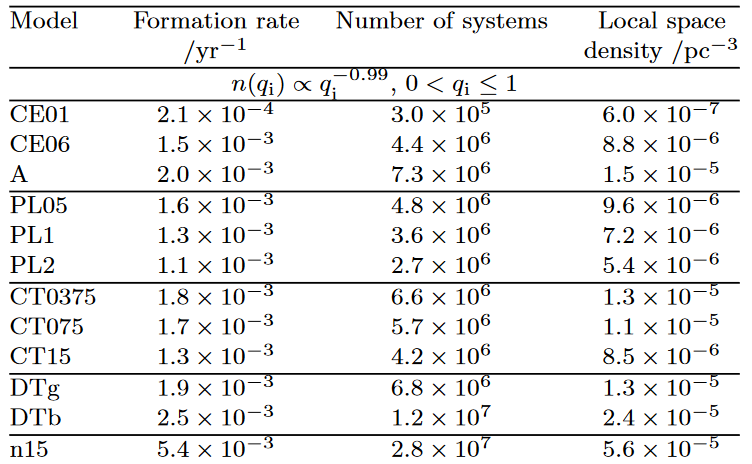

Alpha Prescription
Alpha Prescription

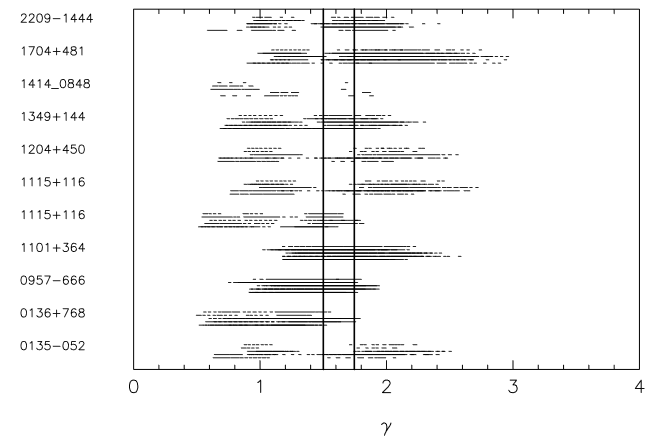

Gamma Prescription
Simulations
Difficulties
Inherently 3D
Self Gravity
Multiscale
Radiation
Length Scales
200 R_{\odot}
3 R_{\odot}

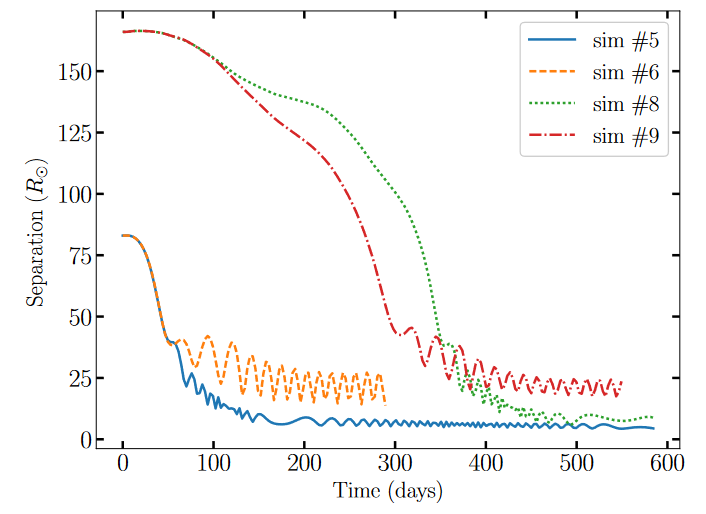

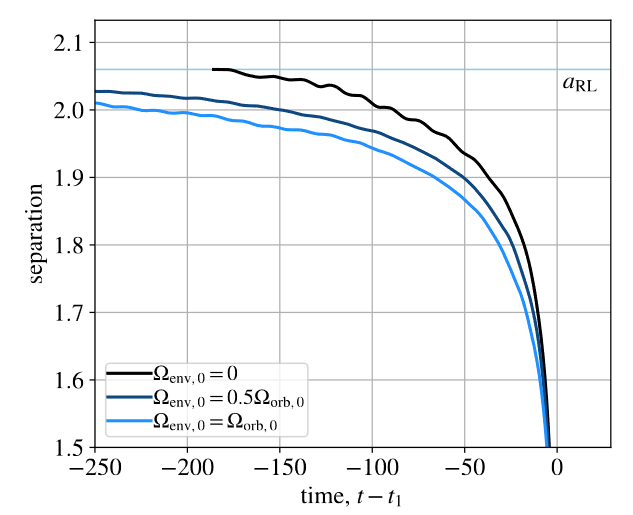

Timescales

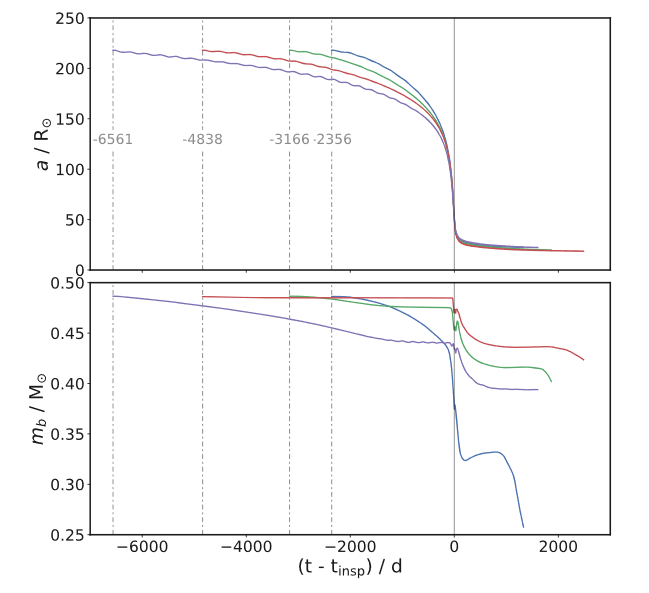

Rapid braking
Slow braking
high eccentricity
low eccentricity
Accretion Rate
v_k \approx \sqrt{\frac{G M_c}{R}}
R
R_b \approx \frac{G M_c}{v_k^2} \approx R
Super Eddington Accretion
\dot{M} \approx M \sqrt{\frac{G M}{R^3}} \approx 1 \, \frac{M_{\odot}}{\rm year}
Without radiation
\dot{M}_e \approx 10^{-9} \frac{M}{M_{\odot}} \frac{M_{\odot}}{\rm year}
Eddington limit
Jet formation?

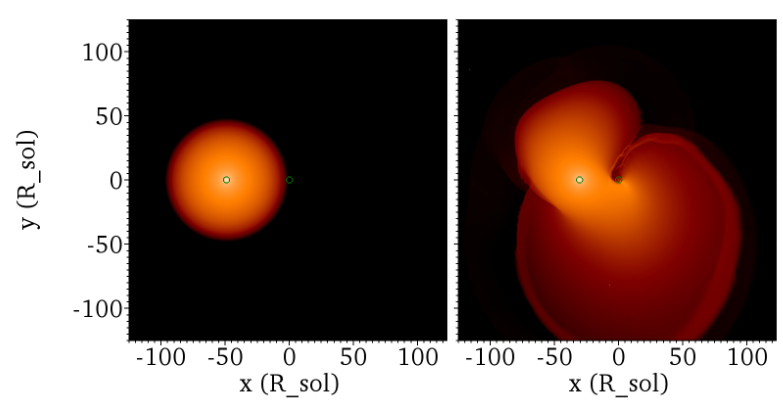

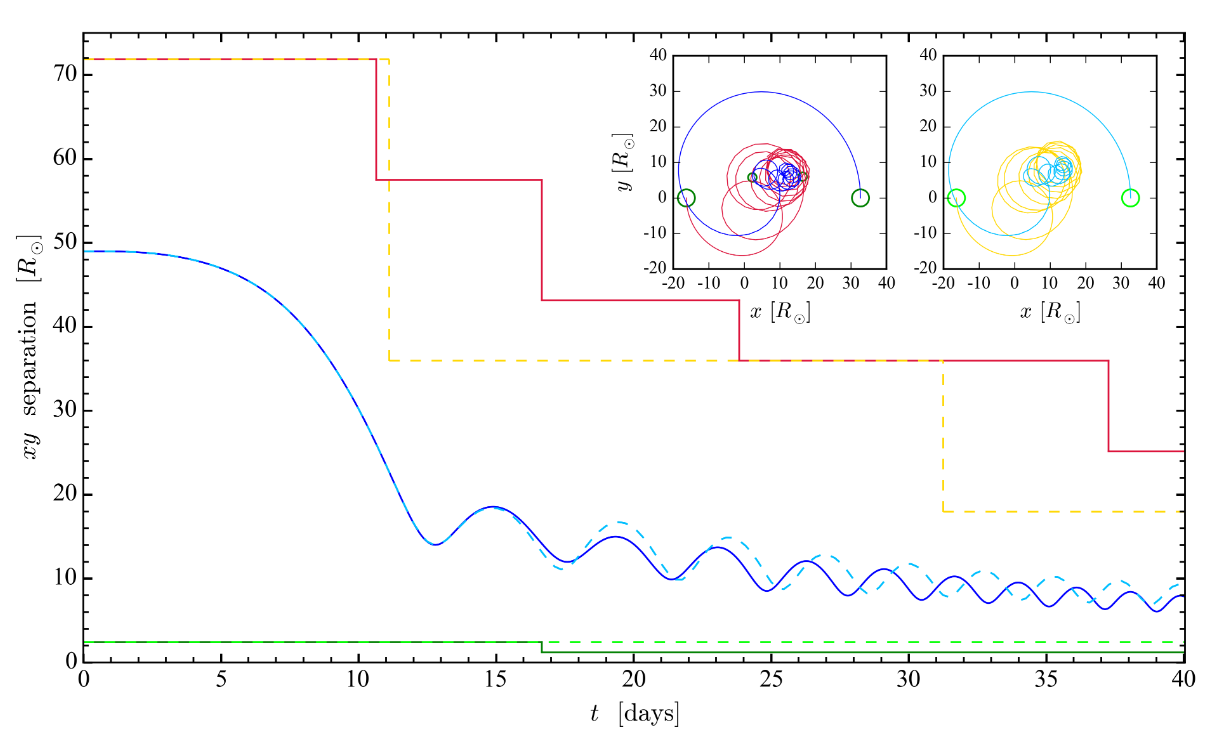

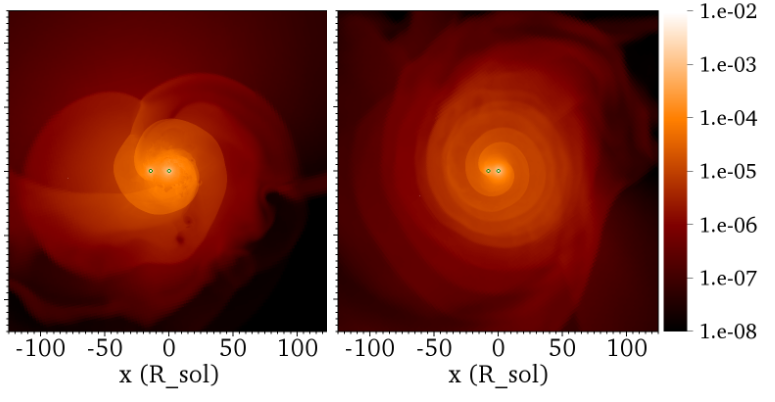

Adiabatic Simulations
Adiabatic Simulations

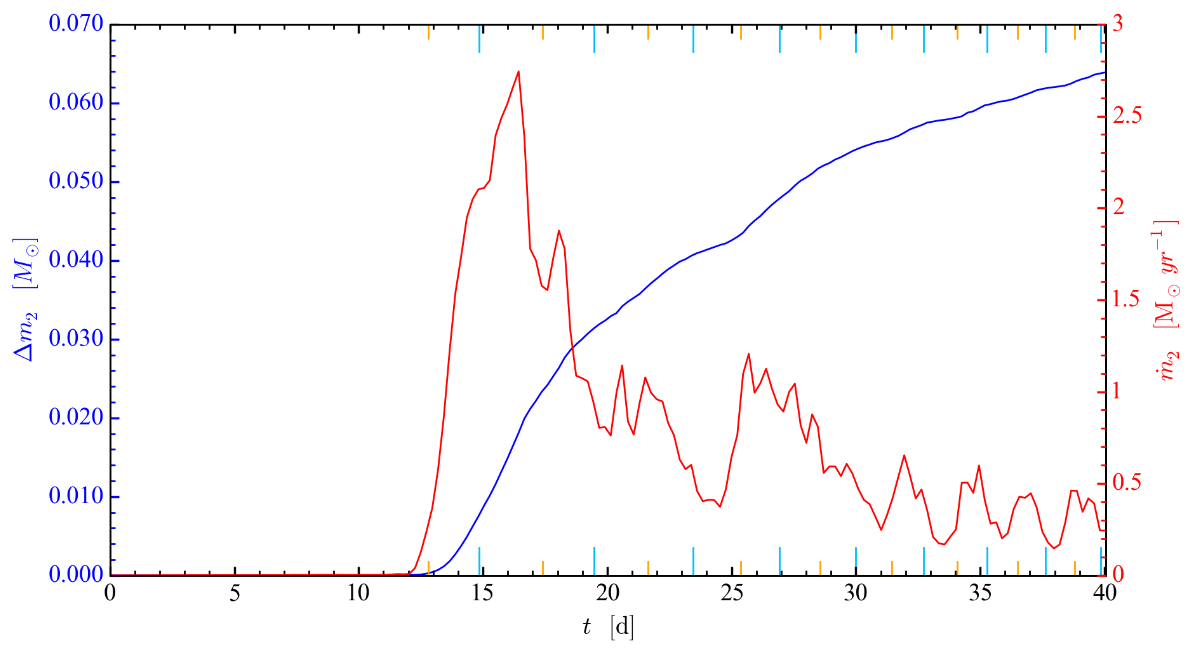

Very Little Mass Accretion
Loss of Mass through L2
Loss of Mass through L2
Loss of Mass through L2

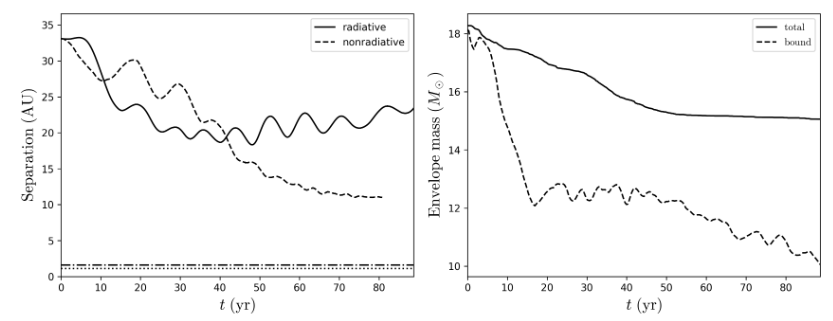

Radiation in CE of a Massive Star
Adiabatic
Radiative
Tenuous atmosphere
Different from low mass stars

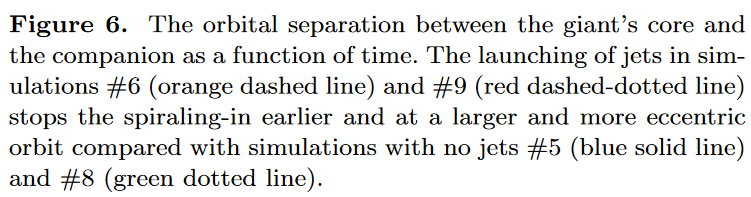

Radiation in CE of a Massive Star
Envelope retained
More Eccentric
Larger separation

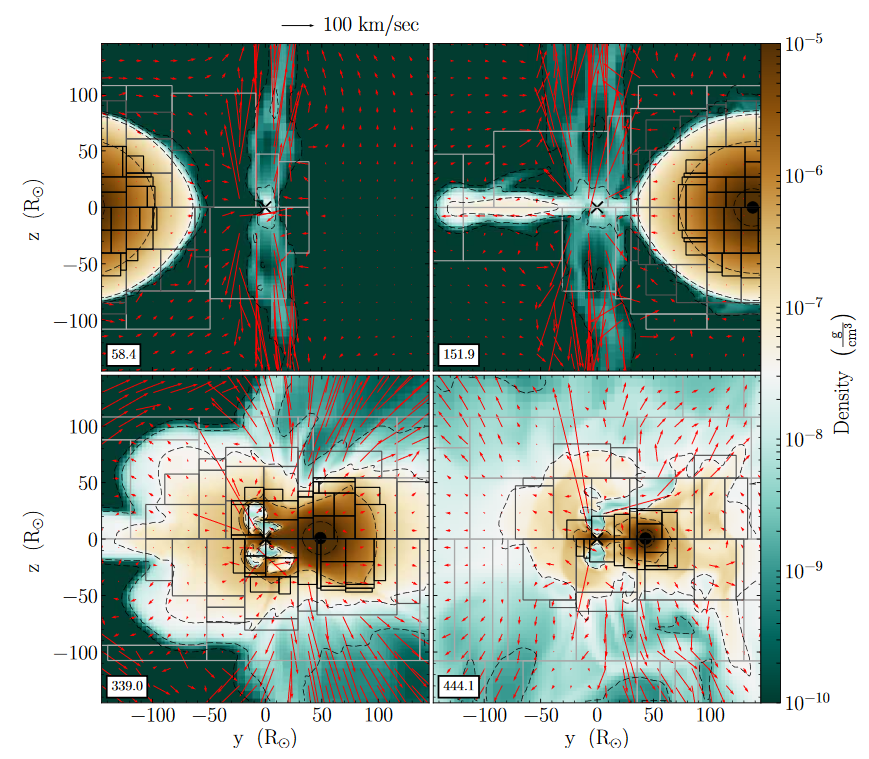

Jets
Jets
