Negative Dynamical Friction on compact objects moving through dense gas
Almog Yalinewich
27.6.19
Norm Group meeting
Dynamical Friction
Gravity Assist
M
b
\Delta v_{\perp}
v
v^2 \gg \frac{G M}{b}
\Delta v_{\perp} \approx \frac{G M}{b v}
\Delta v_{\parallel}
\Delta v_{\parallel} \approx \frac{\Delta v_{\perp}^2}{v} \approx \frac{G^2 M^2}{b^2 v^3}
v^2 \ll \frac{G M}{b}
\Delta v_{\parallel} \approx 2 v
Drag Force
R_b
R_b \approx \frac{G M}{v^2}
F \approx \rho v^3 R_b^2 \approx \rho G^2 M^2 /v
Why do we care?
violent relaxation in galaxies

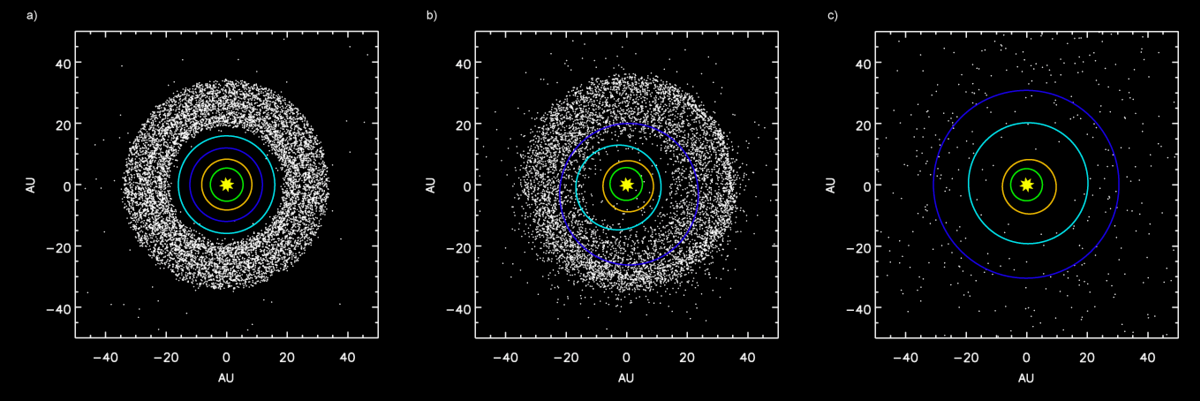

Migration and eccentricity damping in proto - planetary discs

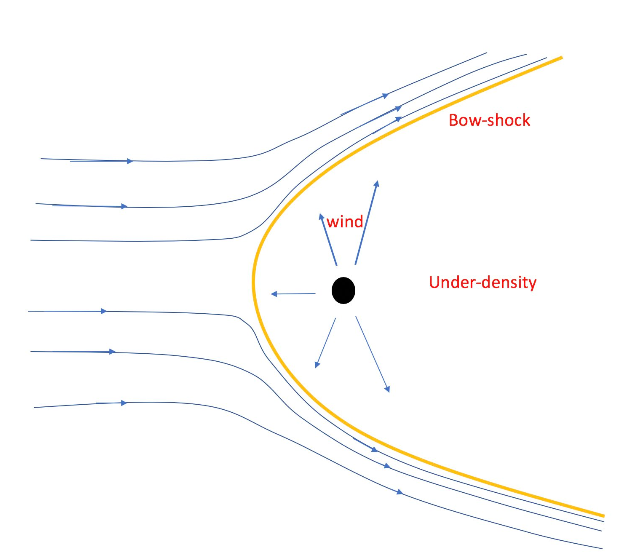

Negative Dynamical Friction

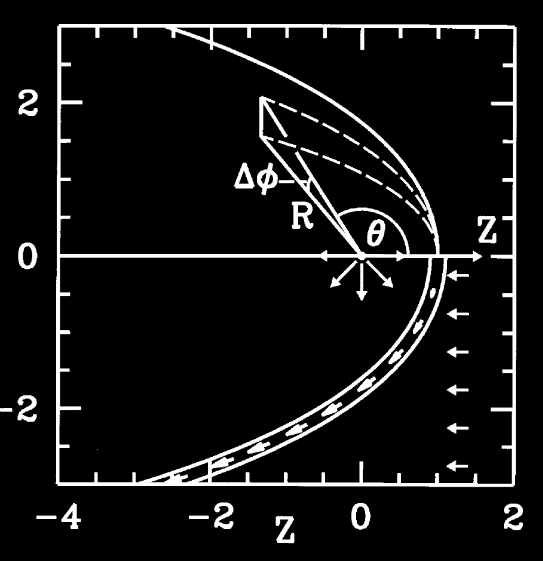

Standoff Distance
v_{\star}
v_w
2 R_0
R_0 \approx \sqrt{\frac{\dot{M v_w}}{4 \pi \rho_0 v_{\star}^2}}
\dot{M}
\rho_0
Equating dynamical pressure

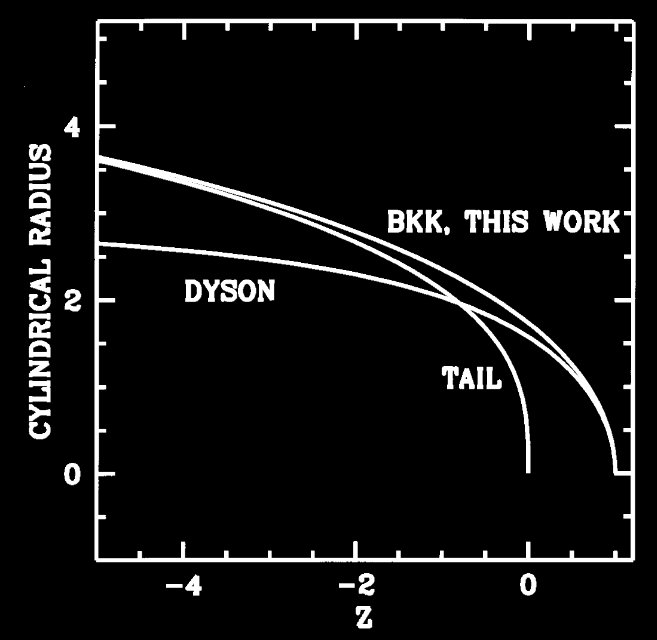

\frac{R \left(\theta\right)}{R_0} = \frac{\sqrt{3 \left(1-\theta \cot \theta\right)}}{\sin \theta}
u = v_{\star}/v_w
\varpi = 3 \left(1- \theta \cos \theta\right)

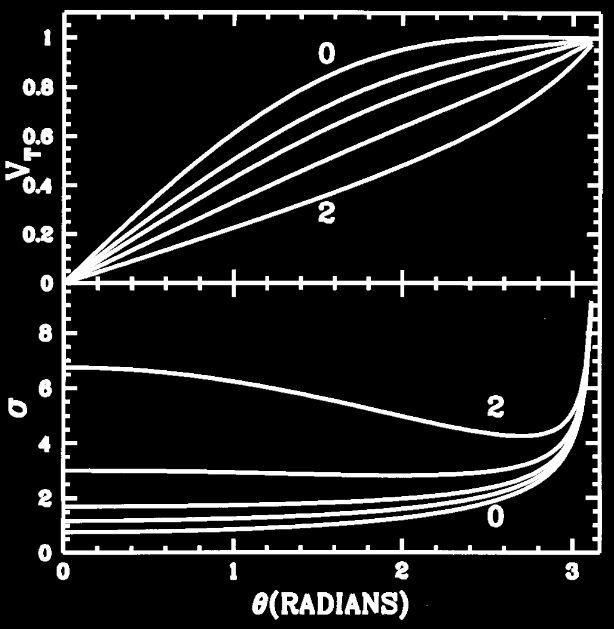

\frac{\sigma}{R_0 \rho_0} = \frac{\left[2u\left(1-\cos \theta\right) + \varpi^2\right]^2}{2 \varpi \sqrt{\left(\theta - \sin \theta \cos \theta\right)^2 + \left(\varpi-\sin^2 \theta\right)^2}}
Wake Gravity
\rho = \sigma \delta \left(r-R\right) + \left\{ \begin{matrix} \rho_0 & r>R \\ \frac{\dot{M}}{4 \pi r^2 v_w} & {R < r} \end{matrix} \right.
a = G \int_0^{\infty} r^2 dr \int_0^{\pi} 2 \pi \sin \theta d \theta \cos \theta \frac{\rho}{r^2}
a \propto \int_0^{\pi} d \theta \cos \theta \frac{R}{R_0} \times
\left[\frac{3}{2} \left(1+\frac{2u \left(1-\cos \theta\right)}{R/R_0}\right)^2 - 2 \left(1+\frac{u^2 \sin^2 \theta}{R^2/R_0^2}\right)\right]
Wake Gravity, cont'd
a \approx 8.18 \cdot \frac{4 \pi}{3} G \rho_0 R_0
u \ll 1
a \approx - 0.975 \cdot \frac{4 \pi}{3} G \rho_0 R_0 u^2
u \gg 1
a = 0
u \approx 1.71

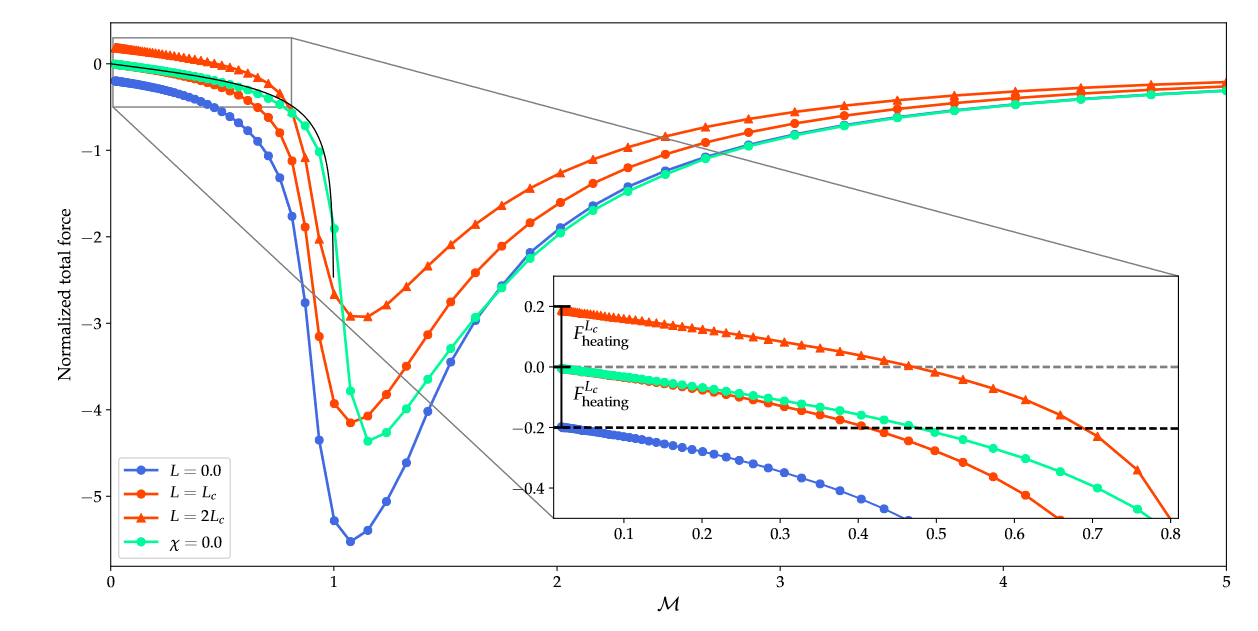

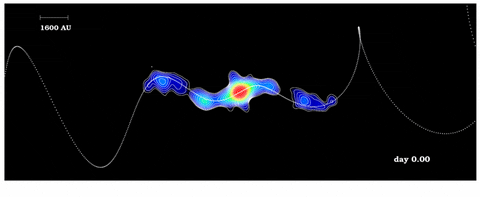

Numerical Verification
Accretion Powered Wind
Trajectory
\dot{M} \propto \dot{M}_B \approx \rho v_{\star} R_b^2 \approx \frac{\rho G^2 M^2}{v_{\star}^3}
a \approx G \rho R_0 \approx G \rho \sqrt{\frac{\dot{M} v_w}{\rho v_{\star}^2}} \propto v_{\star}^{-5/2}
v_{\star} \propto t^{2/7}

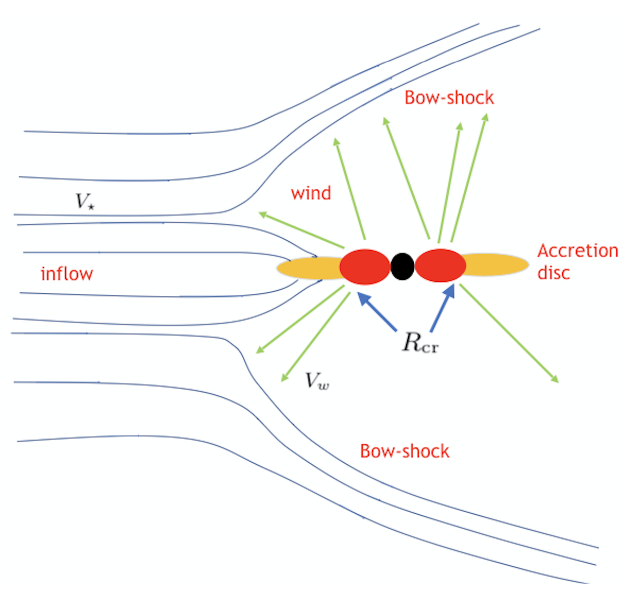

Super Eddington Accretion
v_k \approx v_w \approx \chi \sqrt{\frac{\dot{M}_{\rm Edd}}{\dot{M}}} c

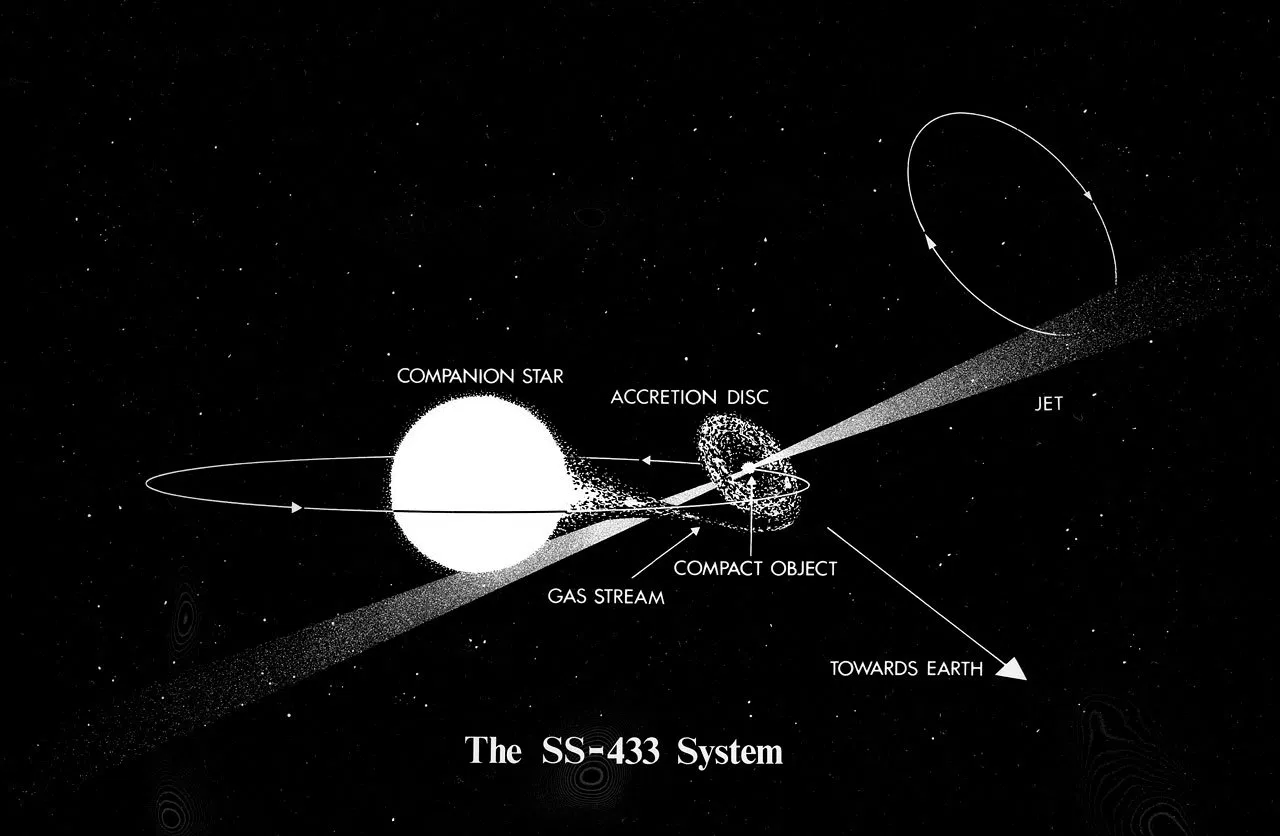

Calibration from SS433
v_w \approx 1500 \sqrt{10^3 \frac{\dot{M}_{\rm Edd}}{\dot{M}}} \, \rm \frac{km}{s}
\dot{M} \approx \frac{L}{v_k^2} \approx \frac{L_{\rm Edd}}{c^2} \approx \dot{M}_{\rm Edd}
SS433
Condition for Acceleration
v_w > v_{\star}
\rho < 3 \cdot 10^{-10} \left(10 \frac{M_{\odot}}{M}\right) \left(\frac{v_{\star}}{100 \, \rm km/s}\right) \, \rm \frac{g}{cm^3}
Self Gravity Limit on AGN discs
\rho < 7 \cdot 10^{-12} \left(\frac{\mathcal{M}}{10^8 M_{\odot}}\right) \left(\frac{0.1 \, \rm pc}{r}\right)
Application to Grazing Accretion
Black holes in AGN Discs
Reverse migration?
Growth of Supermassive Black Holes
Negative dynamical friction can impede black hole sinking, which is necessary for SMBH growth
