KM-ε: A novel Categorical Clustering Algorithm

Mohamad Amin Mohamadi

Prof. Pasi Franti



Summer 2019

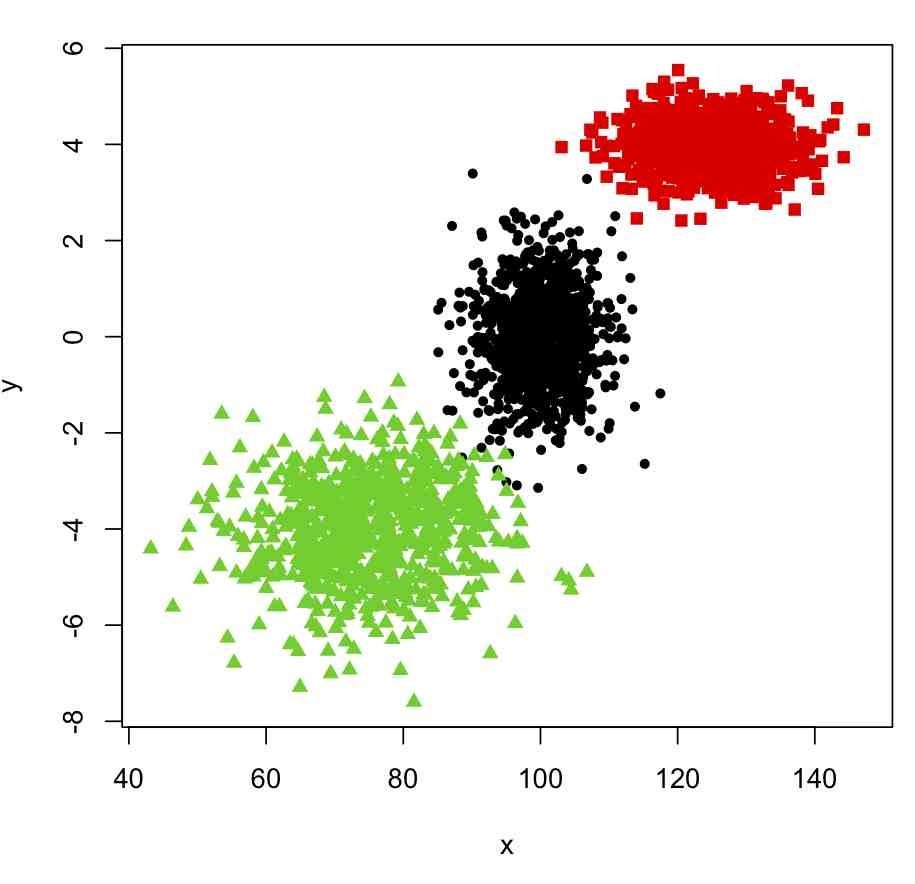

Cluster Analysis

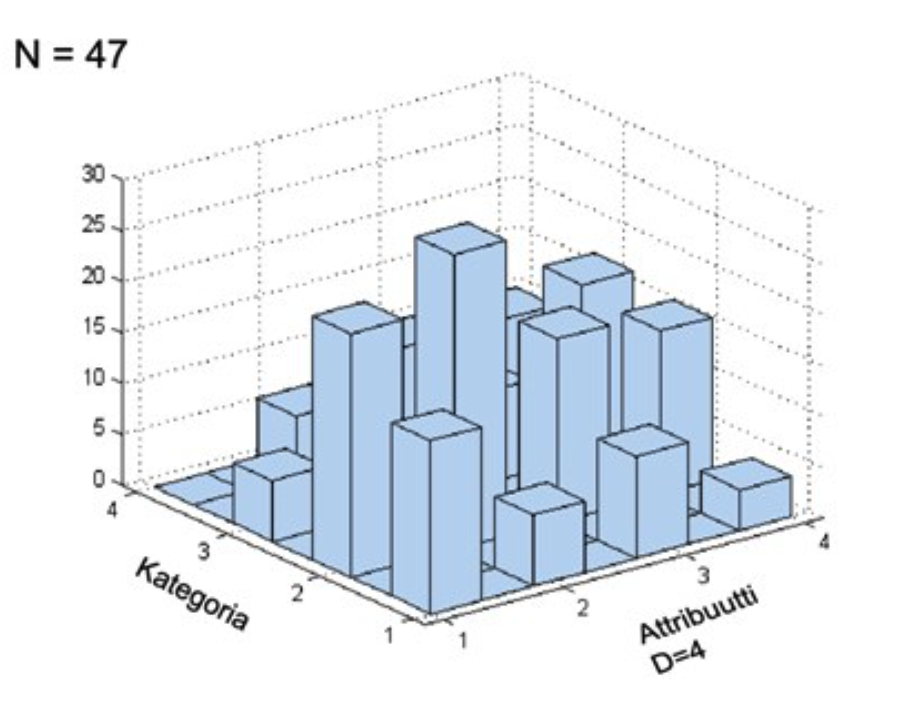

Categorical Data

Related Work

  • K-Means like iterative point of view

  • Agglomerative point of view

  • Direct optimization point of view

  • Subspace categorical clustering

  • Fuzzy categorical clustering

Motivation

  • Lack of optimal convergence guarantee and dependence of the solution to the initialization

  • High time complexity for optimal convergence (quadratic for special cases or more for general algorithms)

  • Need for extra convergence parameters

  • Need for pre or post processing of clustering results

Idea

Objective Function

Using entropy as a measure of

purity in clusters

\sum_{j \in 1..k}{H(C_j) * (n_j / N)}
H(C_j): \text{Entropy of cluster } j \\ k: \text{Number of clusters} \\ n_j: \text{Size of cluster } j \\ N: \text{Number of data points} \\ X: \text{Input dataset with D attributes}

K-means Like Algorithm for Categorical Data

1. Centroid Step:

Calculate probabilities of each category in each attribute for clusters as                        for each cluster, where     is the maximum number of categories in attributes.

2. Assignment step:

Assign each data point                                to the cluster  where    is:

j = \argmin -\sum_{a \in 1..D}{ln(C^{(j)}_{ax^a})} \qquad (1)
x = (x_1, x_2, ..., x_D)
C^{(j)} \in \mathbb{R}_{D \times C'}
C'
j
j
C^{(j)} \text{ for } j \in 1..k

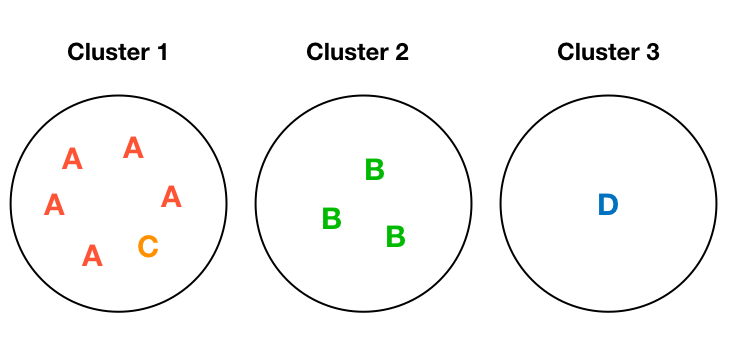

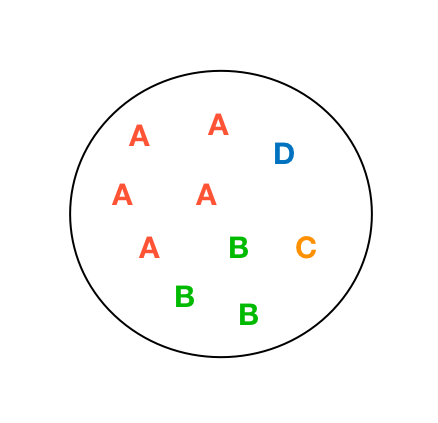

A Toy Example

N=10, D=4

Entropy: 0

Entropy: 0

Entropy: 0.45

\text{Total entropy: } \frac{6}{10} \times 0.45 + \frac{3}{10} \times 0 + \frac{1}{10} \times 0 = 0.27

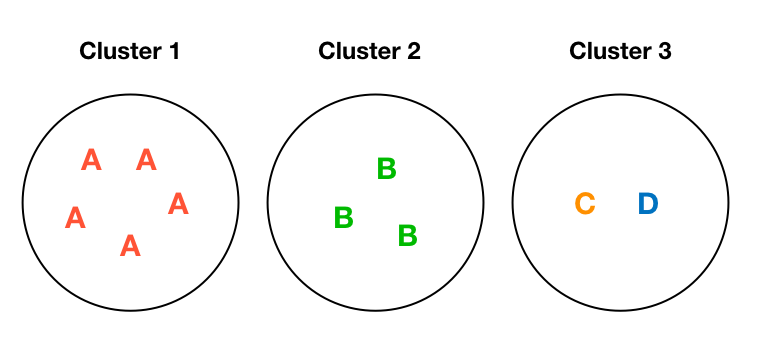

A Toy Example (Optimum)

N=10, D=4

Entropy: 0

Entropy: 0.69

Entropy: 0

\text{Total entropy: } \frac{5}{10} \times 0 + \frac{3}{10} \times 0 + \frac{2}{10} \times 0.69 = 0.14

Calculating Centroids

P(A) P(B) P(C) P(D)
Cluster 1 0.83 - 0.17 -
Cluster 2 - 1.00 - -
Cluster 3 - - - 1.00

Assigning Datapoints

Data Cluster 1 Cluster 2 Cluster 3 Selected
0.18
  		1
0 2
1.79 3
0 1
x = A
x = B
x = C
x = D
\infty
\infty
\infty
\infty
\infty
\infty
\infty
\infty

We select the best cluster for each datapoint according to equation (1).

Assigning Datapoints

Problem:

Log of 0 is infinite, so the datapoints won't move if D-1 attributes feel comfortable about a move, but only one attribute doesn't!

Motivation:

Decrease the influence of categories with zero probability. Anticipate newcomers in less crowded clusters!

No datapoint moves! Each datapoint has it's best situation (according to eq. 1) in its own cluster!

Epsilon Strategy

A

A

A

A

A

A

B

B

B

B

B

B

B

D

E

E

F

C

?

?

?

\text{Cost} = \infty
\text{Cost} = \infty
\text{Cost} = \infty

B

A

* Costs Calculated according to equation 1

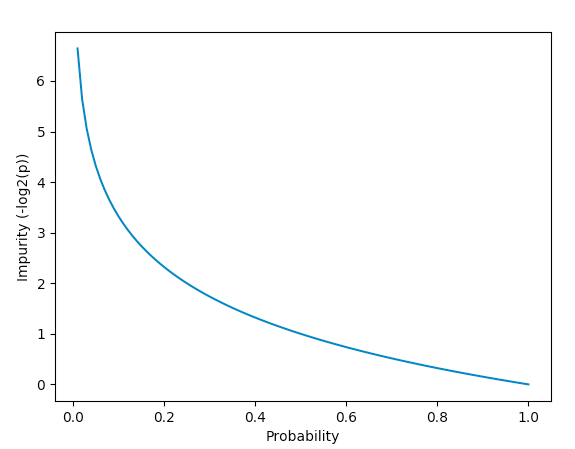

Epsilon Strategy

p = 0.0 \\ -log(p) = \infty
p = 0.1 (\epsilon) \\ -log(p) = 3.32

Calculating Centroids (Epsilon Strategy)

Let's start with a simple epsilon:



\epsilon = 1 / (n_j + 1) \\ p = p \times \frac{n_j}{n_j + 1}

Calculating Centroids (Epsilon Strategy)

P(A) P(B) P(C) P(D)
Cluster 1 0.67 0.17 0.17 0.17
Cluster 2 0.25 0.75 0.25 0.25
Cluster 3 0.5 0.5 0.5 0.5

Assigning Datapoints (Epsilon Strategy)

Data Cluster 1 Cluster 2 Cluster 3 Selected
0.40 1.38 0.69 1
1.77 0.28 0.69 2
1.77 1.38 0.69 3
1.77 1.38 0.69 3

We select the best cluster for each datapoint according to equation (1).

x = A
x = B
x = C
x = D

Assigning data points with epsilon idea

  • Datapoint C moves from cluster 1 to cluster 3
  • No other datapoints move afterwards
  • Reached the global optimum!

How To Choose Epsilon?

\epsilon = 1 / (n_j + 1)
\epsilon = 1 / N
Strategy Average Impurity Impurity SE
7.59* 0.31*
7.49* 0.26*

* Over 100 tests on the test dataset

Pseudo-Code: KM-ε

Input
-------------
X (N × D)
k
update_proportion_criterion

Algorithm
-------------
assign datapoints randomly to k clusters
do
    centroids = calculate_centroids()
    movements = assign_datapoints(centroids)
while movements > update_proportion_criterion * N

Pseudo-Code: KM-ε

function calculate_centroids()
  for j in 1..k
    cluster_data = items in cluster j  // n_j * D matrix
    for d in 1..D
      if there is empty category in dimension d of cluster_data:
        for each category in dimension d as cat:
          if count(cat) in cluster_data > 0:
            centroids[k][d][cat] = count(cat) / (n_j + 1)
          else:
            centroids[k][d][cat] = 1 / (n_j + 1)
      else:
          for each category in dimension d as cat:
            centroids[k][d][cat] = count(cat) / n_j
  return centroids

Pseudo-Code: KM-ε

function assign_datapoints(centroids)
  movements = 0
  for i in 1..N:
    selected_cluster = -1
    most_entropy = -infinite
  	for j in 1..k:
      cluster_entropy = 0
      for d in 1..D:
      	category = X[i][d]
        cluster_entropy -= log(centroids[j][d][category])
      if cluster_entropy > most_entropy:
        most_entropy = cluster_entropy
        selected_cluster = j
    if selected_cluster != prev_cluster[i]:
      movements++
      move datapoint to selected_cluster
  return movements

Testing The Algorithm

Mushroom dataset

For testing the algorithm, we used mushroom dataset.

Mushroom dataset properties:

  • 8124 rows
  • 22 attributes (all categorical)


We used 16 clusters for the mushroom dataset.

Results of running the algorithm on the dataset are available in the next slides.

Empirical results: KM-ε

Results of 100 runs:

Statistic Value
Average impurity 7.49
Best (lowest) impurity 7.04
Worst (highest) impurity 8.12
Standard error of impurity 0.26
Empty cluster situations* 9

* By empty cluster situation, we mean that in some point the algorithm created some empty cluster and we                 couldn't continue the algorithm from there and thus, that case was dumped from the statistics

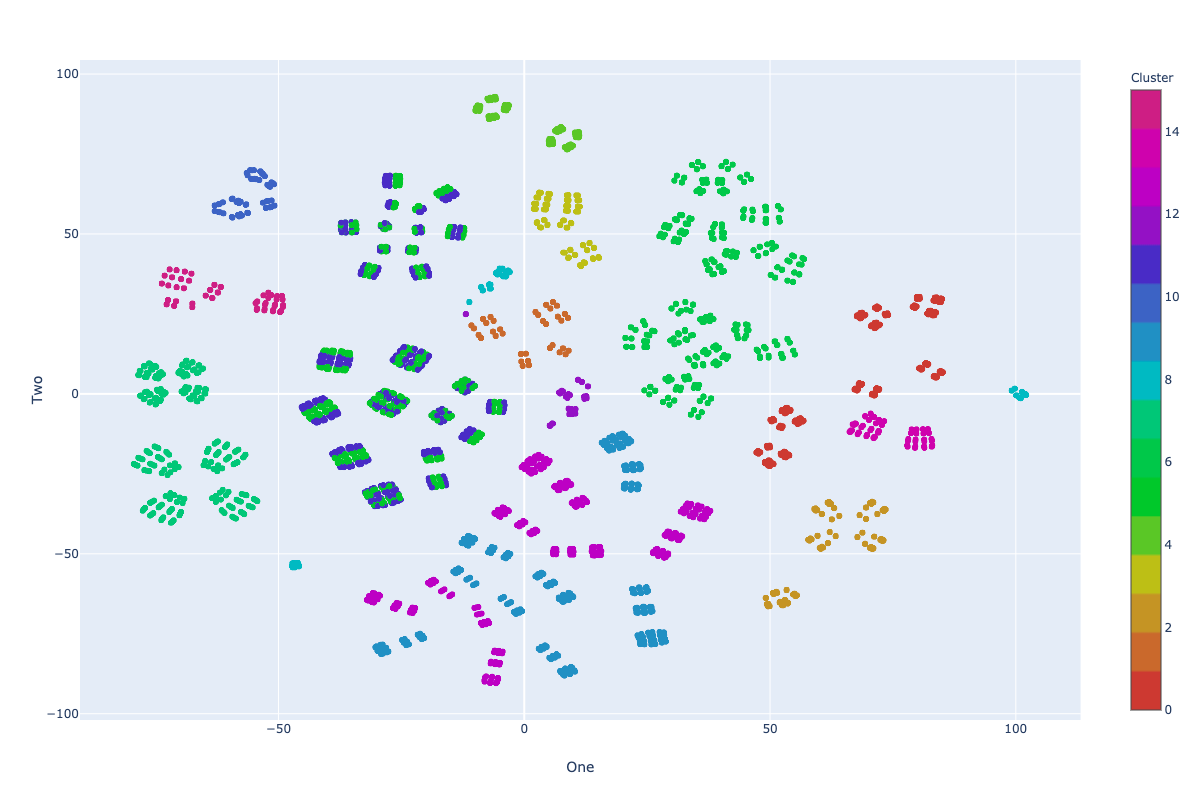

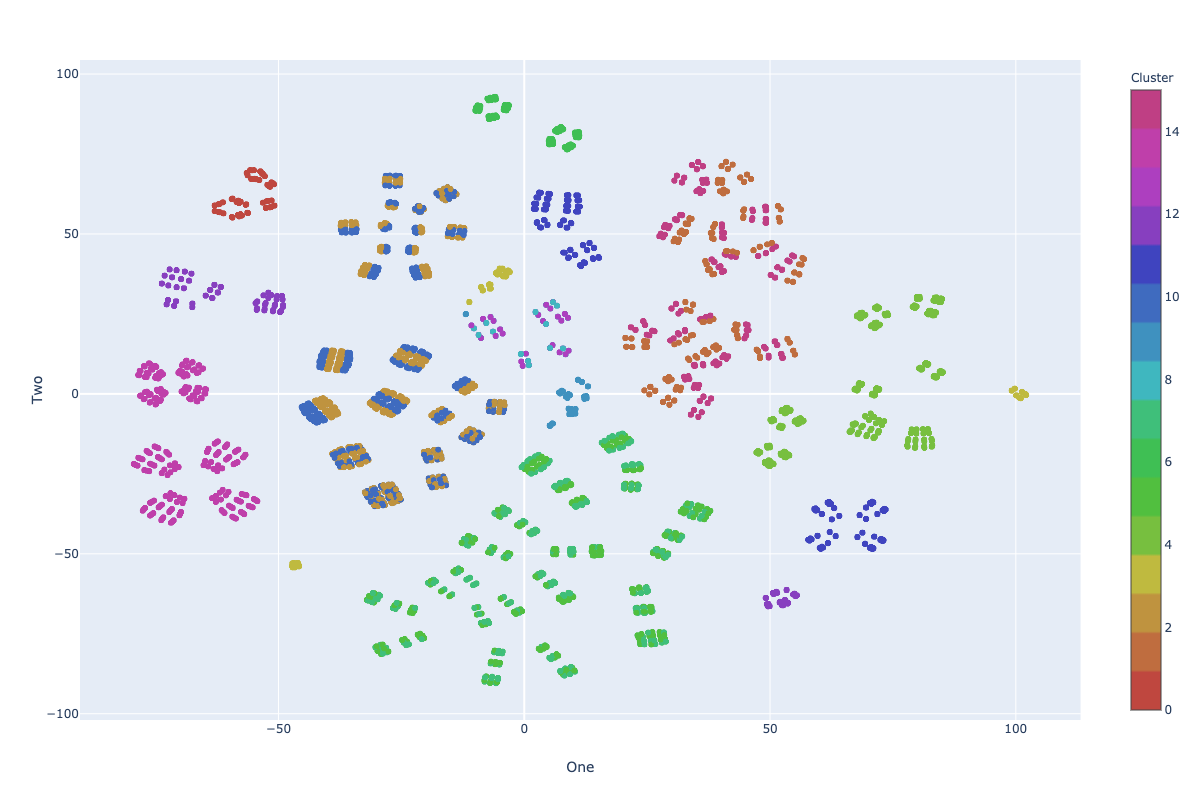

Visualization: KM-ε

Impurity: 7.41

* Visualization in 2D using TSNE

Far From Optimum

Improvement?

Add Random Swap

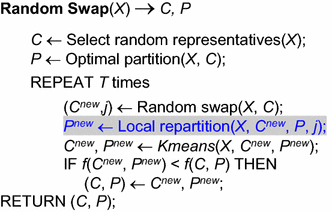

Random Swap

KM-ε + Random Swap

Result of 100 runs:

Statistic Value
Average impurity 7.13
Best (lowest) impurity 6.98
Worst (highest) impurity 7.90
Standard error of impurity 0.13
Empty cluster situations* 4

* By empty cluster situation, we mean that in some point the algorithm created some empty cluster and we                 couldn't continue the algorithm from there and thus, that case was dumped from the statistics

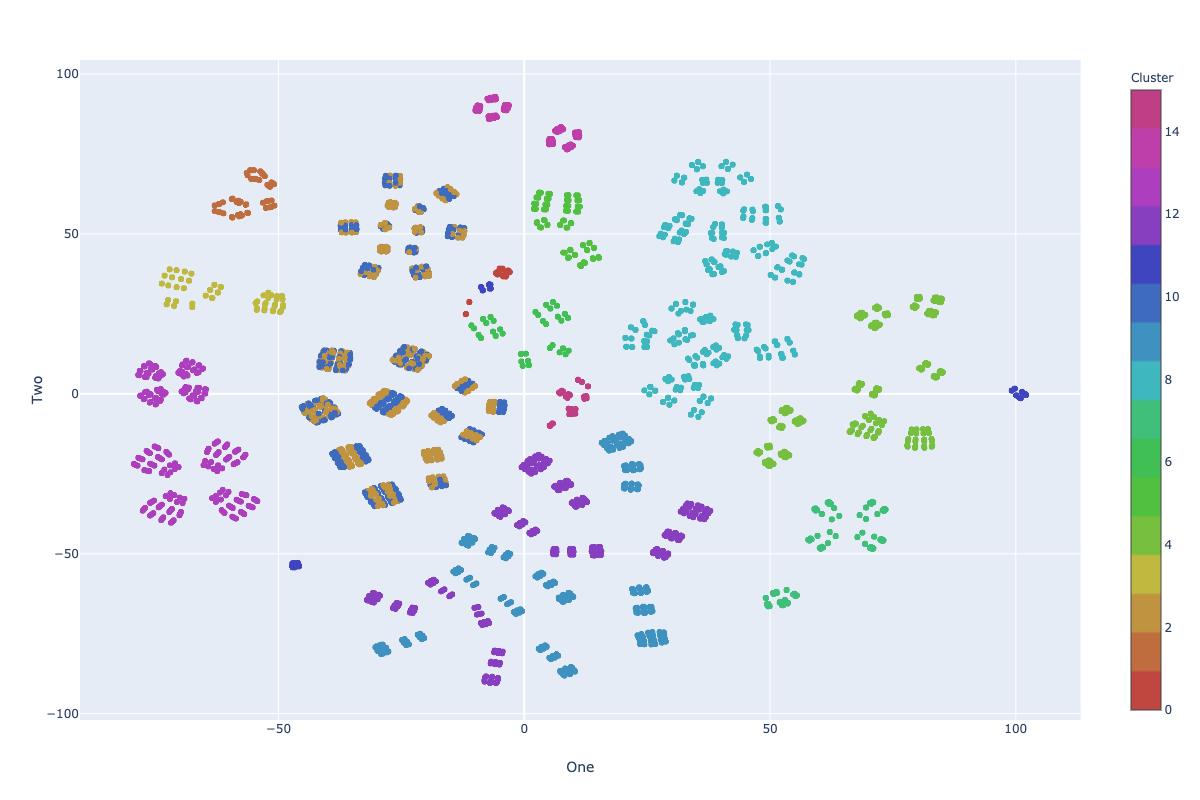

Visualization: KM-ε + Random Swap

Impurity: 7.10

Stress Test: KM-ε + Random Swap

  • For checking the rate of convergence of the algorithm, we tested the algorithm with 5000 random swaps to see if it achieves the overall impurity of <= 6.98 (reached with 100 random swap at least once) or not.

  • The result was NO!, the impurity achieved using 5000 random swaps was 6.99.

Other Assignment Strategies

  • The other assignment strategies tested were:
    1. SE Strategy: Assigning the datapoints to the cluster with minimum distance where distance is defined as:


    2. SE-Full Strategy: Assigning the datapoints to the cluster with minimum distance where distance is defined as
j = \argmin \sum_{a \in 1..D}{(1 - C^{(j)}_{ax_a})^2}
j = \argmin \sum_{a \in 1..D}{(1 - {C^{(j)}_{ax_a})}^2 + \sum_{a' \in 1..cats_a \wedge a' \ne x_a}{{C^{(j)}_{a'x_{a'}}}^2}}

* where cats represents the categories in an attribute

Results: SE Strategy

Here are the statistics of algorithm runs on mushroom dataset using the SE strategy assignment .

* By empty cluster situation, we mean that in some point the algorithm created some empty cluster and we                 couldn't continue the algorithm from there and thus, that case was dumped from the statistics

K-Means (100 Runs) K-Means + 100 Random Swaps (50 Runs)
Average impurity 7.51 6.99
Best (lowest) impurity 7.00 6.95 (New best)
Worst (highest) impurity 8.79 7.07
Standard error of impurity 0.13 0.02
Empty cluster situations* 27 2

Stress test visualization: SE Strategy

Impurity: 6.95

Stress test: SE Strategy

  • We reached the overall impurity of 6.95 during our tests with 100 random swaps in this strategy, which is a new best achieved clustering.

  • For checking the rate of convergence of the algorithm, we tested the algorithm with 10000 random swaps to see if it achieves the overall impurity of <= 6.95 (reached with 100 random swap at least once) or not.

  • The result was Yes!, the impurity achieved using 5000 random swaps was 6.95, which can indicate the stable convergence in SE strategy.

Strategy Comparison

Impurity Epsilon = 1/N SE Strategy
Average 7.013 6.99
Best (lowest) 6.98 6.95
Worst (highest) 7.90 7.07
Standard error 0.13 0.02

Strategy Comparison

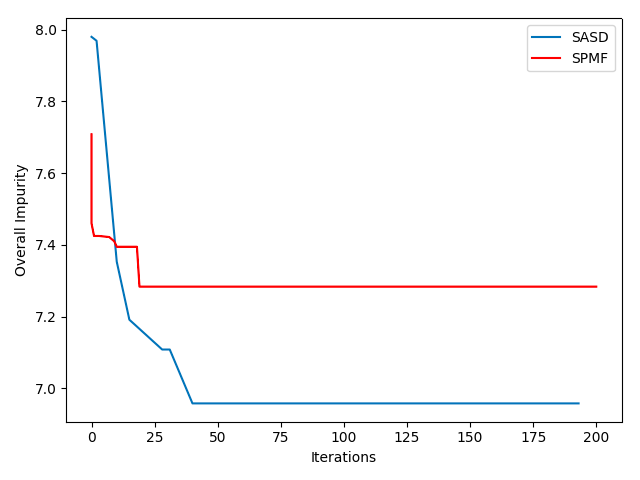

Convergence comparison plot for SE strategy (SASD) and initial epsilon 1/N

Convergence comparison plot for SE strategy (SASD) and initial epsilon 1/N

Strategy Comparison

According to the statistics achieved using the experiments, it seems like SE strategy has much faster convergence rate compared to the epsilon strategy, and this is probably because of the epsilon not being a good anticipation of the future changes in the next iterations of the algorithm. But in general, a good epsilon should give the best convergence rate.

Internal Evaluation


Algorithm		 Soybean
M = 4
Cost     std		 Mushroom
M = 16
Cost     std		 SPECT
M = 8
Cost     std
ACE 7.83        0 7.01    n/a 8.43     0.07
ROCK 9.20        0 n/a    n/a 10.82       0
K-medoids 10.94   1.57 13.46   0.71 10.06    0.44
K-modes  8.66    1.06 10.19   1.45 9.25     0.29
K-distributions  9.00     0.93  7.87    0.44 8.25     0.13
K-represantives  8.30     0.83  7.51    0.30 8.64     0.13
K-histograms  8.04     0.53  7.31    0.18 8.64     0.15
K-entropy  8.15     0.56  7.31    0.18 8.06    0.07
Proposed 7.83        0 6.95       0 7.97       0

External Evaluations

To be added soon

Conclusion

  • Proposed new algorithm: KM-ε

    • ​Optimal convergence guaranteed with adequate number of random swaps independent of the initialization
    • Linear time complexity
    • No extra convergence parameters
    • No pre or post processing of clusters
  • Future Work
    • ​Better anticipation of ε to have much higher rate of convergence
    • Clustering mixed (numeric + categorical) data using the proposed concept
